Table of Contents
Manual Structure
Purpose of this manual .............................................................................................. 2
Related manuals ......................................................................................................... 2
Contents ..................................................................................................................... 2
Trademark .................................................................................................................. 2
1. Installation
1-1. Operating Environment ............................................................................... 1-1
1-2. Power Supply .............................................................................................. 1-1
1-2-1. Power Specifications .................................................................. 1-1
1-2-2. Recommended Power Cord ........................................................ 1-2
1-3. Installation Space (External dimensions) .................................................... 1-3
1-4. Installing the Options .................................................................................. 1-4
1-4-1. Installing the Plug-in Boards ...................................................... 1-4
1-4-2. Installing the Connector Board .................................................. 1-6
1-4-3. Installing the HK-PSU04 ........................................................... 1-7
1-5. Rack Mounting ............................................................................................ 1-8
1-6. Matching Connectors and Cables.............................................................. 1-10
1-7. Input/Output Signals of Connectors .......................................................... 1-11
1-8. Checks on Completion of Installation ....................................................... 1-12
1-8-1. On-board Switches Setting and LED Functions ...................... 1-12
1-9. System Connection .................................................................................... 1-22
2. Service Overview
2-1. Troubleshooting .......................................................................................... 2-1
2-2. Periodic Inspection and Maintenance ......................................................... 2-2
2-2-1. Cleaning ..................................................................................... 2-2
2-3. About the Data Backup Capacitor ............................................................... 2-2

2MVE-9000 IM
Purpose of this manual
This manual is the installation manual of DME Processor Pack MVE-9000-C and
their optional boards and units.
This manual is intended for use by trained system and service engineers, and
describes the information on installing the MVE-9000-C system.
Related manuals
The following manuals are prepared for MVE-9000-C and their optional boards and
units.
..
..
.Operation Manual (Supplied with MVE-9000-C)
This manual describes the application and operation of MVE-9000-C system.
..
..
.Maintenance Manual (Available on request)
This manual describes the detailed service information.
If this manual is required, please contact your local Sony Sales Office/Service
Center.
Contents
This manual is organized by following sections.
Section 1 Installation
This section describes the operating environment, power supply, installation space,
installation of optional boards and units, rack mounting, connectors, input and
output signals of connectors, checking upon completion of installation, and system
configuration.
Section 2 Service Overview
This section describes the troubleshooting and periodic inspection and maintenance.
Trademark
Registered trademark used in this manual is follows.
.Ethernet is a registered trademark of Xerox Corporation.
Manual Structure

1-1
MVE-9000 IM
Section 1
Installation
1-1. Operating Environment
Operating guaranteed temperature : +5 dC to +40 dC
Performance guaranteed temperature : +10 dC to +35 dC
Operating humidity : 10 % to 90 %
(relative humidity)
Storage temperature : _20 dC to +60 dC
Mass (when all options are installed) : Approx. 27 kg
Prohibited locations for installation
.Areas where the unit will be exposed do direct sunlight
or any other strong lights.
.Dusty areas
.Areas subject to vibration.
.Areas with strong electric or magnetic fields.
.Areas near heat sources.
.Areas subject to electrical noise.
.Areas subject where is subjected to static electricity.
Ventilation
The inside of the MVE-9000-C is cooled by a fan (both
sides).
The power supply can be damaged if the exhaust vent
(both sides) and air intake (front panel) are blocked or the
fan is stopped.
Therefore, leave a blank space of more than 10 cm in the
front and both sides of the MVE-9000-C.
1-2. Power Supply
1-2-1. Power Specifications
A switching regulator is used for the power supply of this
unit. The voltage within the range of 100 V to 240 V can
be used without changing the supply voltage.
Power requirements : AC 100 to 240 V ±10 %
Power frequency : 50/60 Hz
Current consumption (when all options are installed) :
6.0 to 2.5 A
m
.As the inrush current at turn-on is a maximum 110 A (at
100 V)/220 A (at 240 V), the capacity of the AC power
source must be commensurate with this load.
If the capacity of the AC power is not adequately large,
the AC power source braker will operate or the unit will
abnormally operate.
.The MVE-9000 contains the single power supply unit as
the standard configuration. A maximum of two power
supply units may be installed. When starting up the
MVE-9000, be sure to turn on the power of one or more
power supply units.

1-2 MVE-9000 IM
1-2-2. Recommended Power Cord
This unit does not come with a power cord.
To get a power cord, please contact your local Sony Sales
Office/Service Center.
w
.Use the approved Power Cord (3-core mains lead)/
Appliance Connector/Plug with earthing-contacts that
conforms to the safety regulations of each country if
applicable.
.Use the Power Cord (3-core mains lead)/Appliance
Connector/Plug conforming to the proper ratings (Volt-
age, Ampere).
If you have questions on the use of the above Power Cord/
Appliance Connector/Plug, please contact your local Sony
Sales Office/Service Center.
w
.Never use an injured power cord.
.Plugging the power cord in the AC inlet, push as far as it
will go.
For customers in the U.S.A. and Canada
1Power cord, 125 V 10 A (2.4 m) : !1-557-377-11
AC inlet
1
For customers in the all European countries
1Power cord, 250 V 10 A (2.4 m) : !1-782-929-21
1
AC inlet

1-3
MVE-9000 IM
375
61 380
144.5 115.5 115.5
17.5
482
37.2
101.6
176(4U)
161
465
440
35
7
520
Unit : mm
1-3. Installation Space (External dimensions)

1-4 MVE-9000 IM
1-4. Installing the Options
The MVE-9000-C is shipped from the factory with the
necessary option (refer to the following table) already
installed in the MVE-9000, in accordance with the speci-
fied system configuration.
MVE-9000-C options
Model name Board configuration
Plug-in board Connector board
MKE-9020M _CN-2357A board
MVS Interface Board Set CN-2357B board
MKE-9021M _CN-2355A board
Input/Output Board Set CN-2355B board
MKE-9040M DVP-24A board
Advanced Effects Board
HK-PSU04 __
Power Supply Unit
1-4-1. Installing the Plug-in Boards
c
Be sure to turn off the POWER switch and unplug the
power cord from the wall outlet before starting the installa-
tion work.
If the installation work is started with the POWER switch
left on, it may cause electrical shock or damage of printed
circuit boards.

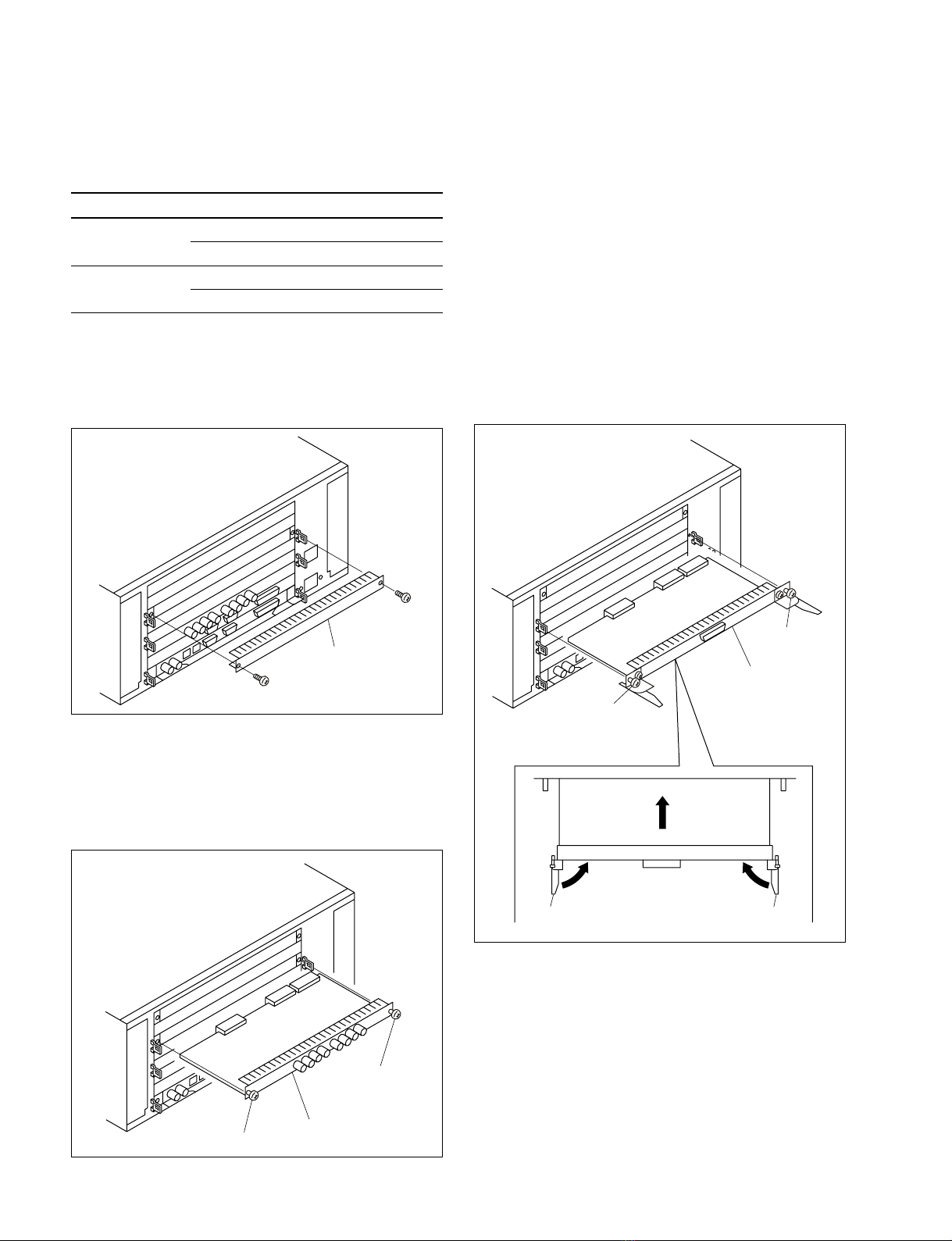

Installation procedure
1. Turn off the main power of the MVE-9000 and
disconnect the AC power cord from the wall outlet.
2. Loosen the four screws (with drop-safe) and remove
the front panel in the direction of the arrow.
3. Remove the four screws (B3 x5), and remove the
“plug-in board loose-proof assembly”.
Screws
(with drop-safe)
Front panel
Screws
(with drop-safe)
B3 x 5
B3 x 5
Plug-in board
loose-proof assembly
