Sony SXRD VPL-VW100/P User manual

•Supports Full HD 1080p with three SXRD
1920 x 1080 chips
•Up to 15000:1 Contrast Ratio (Advanced Iris ON)
•Full HD 1080p Input
•Quiet operation with low fan noise (22dB)
•Pure Xenon Lamp (400W) for accurate and
natural color
•Advanced Iris Function (Auto, On, Off)
•1.8X Zoom
•Blanking function allows the user to add an
adjustable black frame over unusable portions
of the image
KEY FEATURES
•Lens Shift
•RCP (Real Color Processing) Function
(User 1, 2, 3 and Off)
•User Selectable OverScan Function (choice of
ON or OFF)
•PC Input (D-sub 15)1 Front Projection
1. For supported resolutions and timings, please refer to user's manual.
In response to strong demand from professional
customers, Sony is proud to introduce the
VPL-VW100/P professional SXRD™ HD Projector.
The power of SXRD™ technology delivers a whole new level of projector
performance for professional venues. With a contrast ratio up to
15,000:1*, and the Advanced Iris function that dynamically adjusts video
images according to the level of the input signal, the VPL-VW100/P
provides a picture quality that rivals even the best CRTs. The black levels are deep.
The color range is wide and accurate. All with incredible 1920 x 1080 full HD 1080p detail.
Ideal for museums, mini-theaters, or virtually any controlled-lighting application, an ultra quiet fan and Lens
Shift function provide flexible placement options. Smooth, film-like picture quality and excellent response to fast
motion allow the VPL-VW100/P to be the centerpiece of any video system. And its elegant design fits into just about
any room decor.
*With Advanced Iris ON
High Definition SXRD Video Projector
VPL-VW100/P
VPL-VW100/P
Front Panel View

SPECIFICATIONS
©2007 Sony Electronics Inc. All rights Reserved.
Features and specifications are subject to change without notice.
Reproduction in whole or in part without written permission is prohibited.
Sony and SXRD are trademarks of Sony.
The New Way of Business is a service mark of Sony.
VPL-VW100/P
Optical Characteristics
Projection System 3-SXRD panel, 1 lens projection system
Panel Type .61-inch SXRD™ panel with 6,220,800 total pixels
Lens f1 8.7 to 33.7mm/F2.54 to 3.53
Lamp 400W xenon lamp
Contrast Ratio Up to 15000:1 (with Advanced Iris Auto ON)
Screen Coverage 40 to 300 inches (Viewable area, measured diagonally)
Electrical Characteristics
Color System NTSC3.58, PAL, SECAM, NTSC4.43, PAL-M, PAL-N, PAL60
Display Resolution 1920 x 1080p
Acceptable Computer Signals fH: 19 to 72 kHz, fV: 48 to 92 Hz,
Maximum Resolution 1920 x 1080, fV: 60Hz
Acceptable Video Signals 15 kHz (RGB/Component) 50/60Hz, Progressive
Component, 50/60 Hz, DTV (480/60i, 575/50i,
480/60p, 575/50p, 720/60p, 720/50p, 1080/60i,
1080/50i, 1080/60p – HDMI/DVI-D input only,
1080/50p – HDMI/DVI-D input only)
Composite video, Y/C video
Input/Output
Video Input Composite Video: Phono, S Video:
Y/C Mini DIN 4-pin, Component: Phono
Input A (RGB) Analog RGB: HD D-sub 15-pin (female)
Digital Input HDMI™: Digital RGB/Y CB (PB) CR (PR),
DVI-D(TMDS): Digital RGB
Network RJ-45: 10BASE-T/100BASE-TX
Remote RS-232C: D-sub 9 pin (female)
12V Trigger Input Minijack
General
Cabinet Color Dark Gray
Power Consumption 610W (in operation) 10W (in Standby)
0.5W (in ECO mode)
Power Requirements AC 100 to 240V, 0.8 to 1.95A, 50/60Hz
Operating Temperature 32 to 95 ˚F (0 to 35 ˚C)
Operating Humidity 35% to 85% (no condensation)
Dimensions (W x H x D) 191/2x 67/8x225/8inches (496 x 175 x 574mm)
Weight 41lbs 13oz (19kg)
Supplied Accessories
Remote Commander®Unit RM-PJVW100,
Size AA batteries (x2) for Remote Commander unit,
AC Power Cord, CD-ROM (Image Director 2),
Air Filter Cover, Operating Manual
Optional Accessories
LMP-H400 Xenon Replacement Lamp
PSS-610//A Ceiling Mount
Sony Electronics Inc.
1SonyDrive
Park Ridge, NJ 07656
www.sony.com/PROJECTORS
Printed in USA 2/07
DI-0113

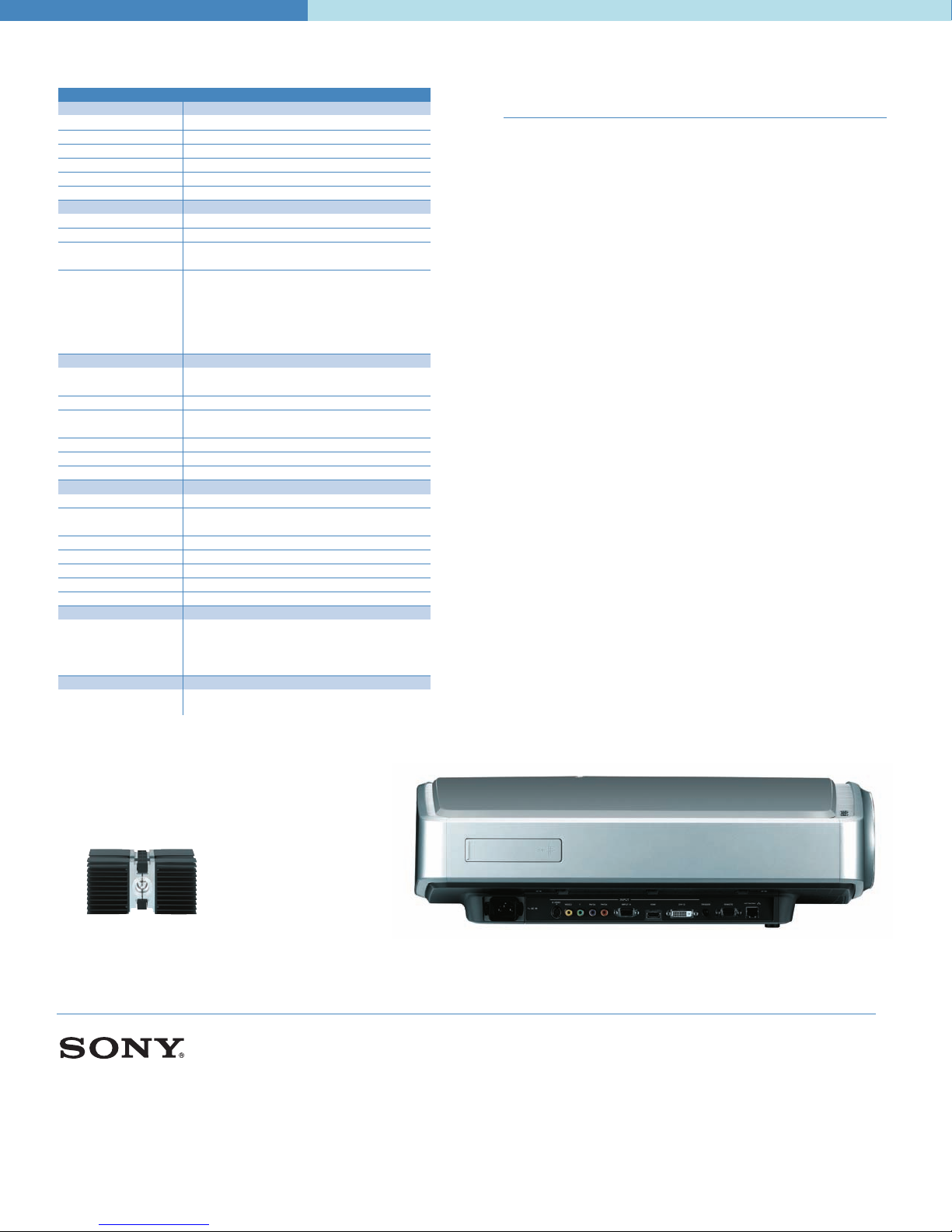

Side Panel View
LMP-H400
Xenon Replacement Lamp
Features and specifications are subject to change without notice.
KEY TECHNOLOGIES
SXRD is a display technology developed by Sony engineers to
meet and exceed the demands of a high definition image at
its full 1080 line resolution. It is a 1920 x 1080p chip
characterized by several key benefits – full HD resolution,
smooth film-like image with minimal screen door effects, high
response times (2.5ms rise and fall), high contrast ratios and
accurate color rendition.
Pure Xenon lamp provides equal brightness output levels for
all three primary colors – red, green and blue – used to create
the trillions of colors that can be delivered. Natural and
accurate color is reproduced with bottomless whites and
spectacular reds.
Advanced Iris Function reproduces bright images and deep blacks
by dynamically changing the opening of the iris according to the
level of input signal.
Ultra Quiet Fan efficiently removes heat at a barely
noticeable noise spec. Obtrusive fan noise is virtually
eliminated to allow for flexibility in room placement.
ARC-F (All Range Crisp Focus) Lens delivers an 8%
improvement in focus to the center of the screen and a 20%
improvement in focus to the corner of the screen compared to
previous Sony lenses.
RCP (Real Color Processing) allows the user to target specific
colors on the picture and fine adjust their color and hue
without changing the overall picture color and hue.
