Sony Walkman SRF-M85V User manual

SRF-M85V_U [US] 2-585-437-21(1)
Installing the Battery
(See Fig. A– )
1Open the battery compartment lid and install one size AAA (R03)
battery (not supplied) with correct polarity.
When a battery is first installed, “AM 12:00” flashes in the display. Once the
current time is set, the flashing stops.
2Close the lid.
Battery Life (Approx. hours) (JEITA*)
When using TV WEATHER FM AM
Sony alkaline 27 27 27 36
size AAA (LR03)
Sony size AAA (R03) 10 10 10 16
*Measured by JEITA (Japan Electronics and Information Technology Industries
Association) standards. The actual battery life may vary depending on the
circumstance of the unit.
When to replace the battery
You can check the remaining battery power that appears in the display. The
indicators are as follows:
Indicator
Full strength*
Weakening*
When the battery becomes exhausted, the unit will turn off. Replace
with new battery. When you press POWER after installing the new
battery, the indicator changes to “ ”.
* Displayed only when the radio is turned on.
Note
Do not take more than 30 seconds to replace the battery, otherwise, your clock,
pitch timer and countdown timer settings and preset stations will be initialized.
Should that happen, reset the functions again.
For customers who purchased this product in the USA
Please register this product on line at
http://www.sony.com/productregistration.
Proper registration will enable us to send you periodic mailings about new
products, services, and other important announcements.
Registering your product will also allow us to contact you in the unlikely
event that the product needs adjustment or modification. Thank you.
WARNING
You are cautioned that any changes or modifications not expressly approved
in this manual could void your authority to operate this equipment.
This device complies with the Part 15 of the FCC Rules.
Operation is subject to the condition that this device does not cause harmful
interference.
If you have any questions about this product, you may call:
Sony Customer Information Services Center 1-800-222-7669 or
http://www.sony.com/
Declaration of Conformity
Trade Name: SONY
Model: SRF-M85V
Responsible Party: Sony Electronics Inc.
Address: 16450 W. Bernardo Dr, San Diego, CA 92127 USA
Telephone Number: 858-942-2230
This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Features
• TV/WEATHER/FM/AM 4 band PLL (phase locked loop) synthesized armband
radio.
•Atotal of 30 stations can be preset, 5 TV stations, 5 WEATHER stations, 15
FM stations and 5 AM stations.
•Stopwatch, split and pitch timer functions.
• Wearable round design for armband and belt-holder use.
•Water-resistant for all –weather use.
•MEGA BASS for dynamic bass sound.
Precautions
• Operate the unit only on 1.5 V DC with one size AAA (R03) battery.
•Avoid exposure to temperature extremes, direct sunlight, moisture, sand, dust
or mechanical shock. Never leave the unit in a car parked under the sun.
• Should anything fall into the unit, remove the battery and have the unit checked
by qualified personnel before operating it any further.
• To clean the casing, use a soft cloth dampened with a mild detergent solution.
•In vehicles or buildings, radio reception may be difficult or noisy. Try listening
near a window.
Notes on Headphones
Road safety
Do not use headphones while driving, cycling, or operating any motorized
vehicle. It may create a traffic hazard and is illegal in many areas. It can also be
potentially dangerous to play your headphones at high volume while walking,
especially at pedestrian crossings. You should exercise extreme caution or
discontinue use in potentially hazardous situations.
Preventing hearing damage
Avoid using headphones at high volume.
Hearing experts advise against continuous, loud and extended play. If you
experience a ringing in your ears, reduce volume or discontinue use.
Caring for others
Keep the volume at a moderate level. This will allow you to hear outside sounds
and to be considerate to people around you.
TV/WEATHER/FM Stereo/AM
PLL Synthesized Radio
© 2004 Sony Corporation Printed in China
2-585-437-21(1)
SRF-M85V
Operating Instructions
Warning
If there is lightning when you are using the unit, take off the headphones
immediately.
Cautions on Water-resistance
This unit is designed so that it can be used with slight exposure to rain, snow and
other forms of moisture, but there are several points on which caution should be
observed.
•Do not allow it to come in contact with large amounts of water.
•Do not immerse it in water.
• If water should get on it or if it should fall into water, take it out immediately
and wipe it off with a dry cloth. The interior of the battery compartment
has no water-resistance. The battery may corrode, so wipe out the
interior of the battery compartment as follows.
– Open or close the battery compartment with dry hands in a place without
exposure to any water.
– Wipe off the battery and the inside of the battery compartment. Give special
attention to the contacts so that no water remains on them.
If you have any questions or problems concerning your unit, please
consult your nearest Sony dealer.
Troubleshooting
Should any problem persist after you have made the following checks, consult
your nearest Sony dealer.
All buttons do not operate at all.
•“-” is displayed. Slide down the HOLD lever so that “-” disappears.
Very weak or interrupted sound, or unsatisfactory reception
•Weak battery
•In a vehicle or in a building, move closer to a window.
Display is dim, or no indication is displayed.
•Weak battery.
• The unit is being used in extremely high or low temperatures or in a place with
excessive moisture.
The station cannot be received when the preset was tuned.
•You chose the wrong preset number.
•The memory of the station has been initialized. Preset the station again.
The power cannot be turned on, and “ ” is flashing in the
display.
• The battery has been completely exhausted.
The preset stations may be initialized, if a maintenance service is performed.
Please note down your settings in case you want to preset them again.
Specifications
Time display
12-hour system
Frequency range
Band Range Channel step
TV 2 - 13 ch 1 channel
WEATHER 1 - 7 ch 1 channel
FM 87.5 – 108 MHz 0.1 MHz
AM 530 – 1 710 kHz 10 kHz
Output
ii
ii
i(headphones) jack (ø 3.5 mm stereo mini jack) 16 Ω
Power output
5 mW + 5 mW (at 10 % harmonic distortion)
Power requirements
1.5 V DC, one size AAA (R03) battery
Dimensions
Approx. 95.5 ×69.3 ×37.5 mm (w/h/d)
(3 7/8×2 3/4×1 1/2inches) incl. projecting parts and controls
Mass
Approx. 88.3 g (3.1 oz.) incl. battery
Supplied accessories
Stereo headphones (vertical in the ear type) (1), Arm band (1)
Design and specifications are subject to change without notice.
Lead-free solder is used for soldering.
Halogenated flame retardants are not used in printed wiring boards.
PVC is not used in Stereo Headphones cord.
Notes on battery
•Do not charge the dry battery.
• Do not carry the dry battery together with coins or other metallic objects. It can
generate heat if the positive and negative terminals of the battery are
accidentally come into contact with metallic objects.
•When you are not going to use the unit for a long time, remove the battery to
avoid damage from battery leakage and corrosion.
To attach the battery compartment lid if it is
accidentally detached (See Fig. A– )
The battery compartment lid is designed to come off when opened with excessive
force. To put it back on, see the illustration.
1Insert one side of the lid as illustrated.
2Push the other side to attach.
A
“WALKMAN” is a registered trademark of Sony Corporation to represent Headphone Stereo
products. is a registered trademark of Sony Corporation.
Printed on 100% recycled paper using
VOC (Volatile Organic Compound)-
free vegetable oil based ink.
Size AAA
(R03) ×1
Insert the Eside of
the battery first.
x
x
TV/WEATHER/FM/AM WALKMAN

SRF-M85V_U [US] 2-585-437-21(1)
WEATHER
RADIO ON
MB STPW PITCH
SPLIT TIMER
TV
FM
AM
PM

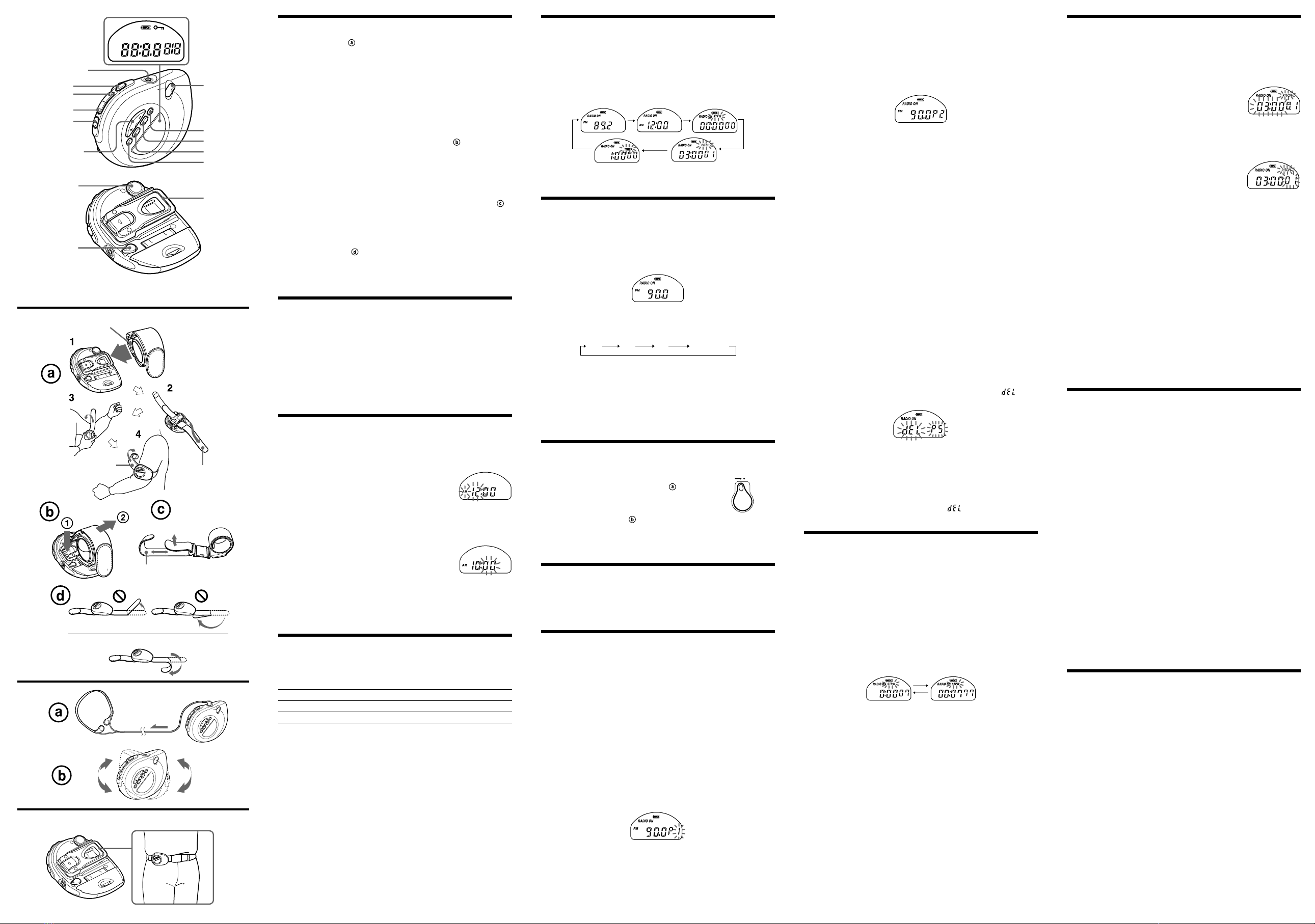

Using the Arm Band
(See Fig. B– )
1Slide the connector onto the unit until you hear a click.
2Unwind and straighten the wraparound arm band.
To more easily straighten the band, slightly bend the tip of the band in the
opposite direction.
3Hold the body of the unit and attach the straightened band to your
arm.
The band will wind by itself.
4Tighten the band with the rubber belt.
To remove the arm band from the unit (See Fig. B– )
While holding down “PUSH RELEASE” (1), slide the connector to remove the
arm band (2).
The arm band can be attached either on left or right arm by changing up side
down. The unit can also be removed with the arm band attached on your arm, as
instructed above.
To vary the length of the rubber belt to fit your arm (See Fig. B–)
Move the velcro fastener to the proper position.
If the rubber belt and wraparound band becomes dirty
Remove the rubber belt from the unit and clean them.
Caution (See Fig. B–)
• Avoid bending the wraparound band forcibly in the opposite direction. It may
break.
•The straightened band will wind easily when you touch or wiggle it. Be sure to
treat it carefully.
Preventing Accidental
Change
— HOLD Function
When you slide HOLD in the direction of the arrow, “-” appears in the
display. All the other buttons on the radio will become inoperative.
This function prevents the radio from being unintentionally turned on, or the
radio frequency from being accidentally changed.
To cancel HOLD, slide HOLD in the opposite direction of the arrow so that
“ -” disappears.
Setting the Clock
The display will flash “AM 12:00” when the battery is first inserted.
1Press DISPLAY repeatedly to select the clock mode when the
clock mode is not on.
2Hold down ENTER for more than 2 seconds.
The beep sounds and the hour flashes in the display.
3Press TUNE/TIME SET + or – until the correct hour appears in
the display.
Each press changes the digit(s) by one.
When you keep the button pressed, the digit(s) change rapidly.
4Press ENTER.
The beep sounds and the minute starts to flash.
Repeat step 3to set the minute. After setting the minute,
press ENTER again. The two beeps sound and the clock
starts from 0 seconds.
Notes
•One you start setting the clock, you must perform each step within 65 seconds,
or the clock setting mode will be cancelled.
•12-hour system: “AM 12:00” = midnight, “PM 12:00” = noon.
Changing AM Channel Step
The AM channel step differs depending on areas. The channel step of this unit is
factory-set to 10 kHz. Change the settings as shown below to be able to listen to
the radio.
Area Channel step
North and South American countries/regions 10 kHz
Other countries/regions 9 kHz
Note
When the AM channel step is changed, the preset stations for AM will be
initialized.
1Press POWER to turn off the power.
2Press DISPLAY repeatedly to select the clock mode when the
clock mode is not on.
3While holding down TUNE/TIME SET + or –, keep pressing
MODE for more than 5 seconds.
Two short beeps sound, and the AM channel step will be changed.
“AM 9” (or “AM 10”) is displayed for about 2 seconds.
If you proceed to step 3again, the channel step changes again.
B
HOLD lever
BAND
SPLIT/RESET
START/STOP
POWER
ENTER
TV/WB/FM SENS
DX/LOCAL
Belt clip
Selecting the Mode
You can use this unit as a radio, clock, stopwatch, pitch timer or countdown
timer.
The functions of clock, stopwatch, pitch timer, countdown timer are available
even if the power is off.
Press DISPLAY to select a function mode.
Each function mode can be selected as follows:
Stopwatch
Radio frequency*Clock
Pitch timer
Countdown timer
* Selected only when the power is on.
Playing the Radio
— Manual Tuning
1Connect the headphones to the i(headphones) jack.
2Press POWER to turn on the radio.
“RADIO ON” appears in the display.
3If “P” is displayed, press MODE so that “P” disappears.
Pressing MODE will switch over between manual tuning mode and preset
tuning mode.
4Press BAND to select the band.
Each press changes the band as follows:
AM FM TV WEATHER
5Press TUNE/TIME SET + or – to select the desired frequency.
If you hold down TUNE/TIME SET + or –, the frequency or channel
changes rapidly.
When the frequency matches the broadcast frequency, the broadcast will be
received.
6Adjust the volume using VOL.
To turn off the radio, press POWER.
Improving the Reception
TV/WEATHER/FM:Extend the headphones cord which
functions as the TV/WEATHER/FM
antenna (See Fig. C-).
AM:Rotate the unit horizontally for
optimum reception. A ferrite bar
antenna is built-in the unit (See
Fig.C-).
Set TV/WB/FM SENS to LOCAL if interference is
prevalent and reception is too strong. Under normal
conditions, set it to DX.
Obtain Powerful Bass Sound
Press MEGA BASS.
“MB” indication appears in the display when the MEGA BASS function is on.
The MEGA BASS function intensifies the bass sound for richer quality audio
reproduction.
Presetting Your Favorite
Station
— Preset Tuning
You can preset up to 5 stations each for TV, WEATHER and AM, and 15
stations for FM. Also, you can delete the preset station whether it is factory-set or
preset by yourself.
Presetting a Station
1Follow steps 1to 5in “Playing the Radio” and manually tune in to
the station you wish to preset.
2Hold down ENTER until the preset number flashes.
If there is a preset number that has no preset station, that preset number
flashes.
When all the preset numbers are set to certain stations, the following occurs:
• Initialized (factory-set): “1” flashes and “P” appears.
• After tuning in a preset station: The next preset number after the one last
preset flashes and “P” appears.
3Press TUNE/TIME SET + or – to select the number you wish to
preset, then press ENTER.
When you select the preset number using TUNE/TIME SET + or –, “P”
appears if that number has a preset station. If it has no preset station, only the
number flashes and “P” does not appear.
When you press ENTER, the selected preset number lights up in the display.
Example: Display window when you preset FM 90.0 MHz in preset
number 2.
To preset another station, repeat these steps.
To change the preset station, preset a new station. The previous station will
be canceled.
To cancel the presetting mode, press MODE.
Note
If you do not press TUNE/TIME SET + or –, or ENTER within 65 seconds, the
preset tuning mode will be canceled.
Tuning in to a Preset Station
1Press POWER to turn on the radio.
2Press MODE so that “P” and preset number appear.
3Select the band with BAND.
4Press TUNE/TIME SET + or – to select the desired preset
number.
5Adjust the volume using VOL.
To turn off the radio, press POWER.
Note
If you hold down MODE for more than 2 seconds, the unit enters the preset
station deleting mode. Press MODE again to return to the previous mode.
Deleting a Preset Station
1Follow steps 1and 2in “Tuning in to a Preset Station”.
2Select the band with BAND.
3Press TUNE/TIME SET + or – to select the preset number to be
deleted.
4Hold down MODE for more than 2 seconds until “P”, “ ” and
the preset number flash.
5While the letters and the preset number are flashing, press
ENTER.
The station set to the preset number just before the deleted station will be
displayed.
To delete other stations, repeat steps 2to 5.
If all the preset stations are deleted, “P -” appears in the display.
To cancel deleting, press MODE while “P”, “ ” and the preset number
are flashing.
Using the Stopwatch
The stopwatch can time up to 99 hours 59 minutes and 59.99 seconds, in 1/100-
second increments.
1Press DISPLAY to select the stopwatch.
“STPW” flashes in the display.
2Press START/STOP to start.
The display shows the elapsed time.
3Press START/STOP to stop.
To reset to zero, press SPLIT/RESET when the stopwatch is in the stop
status.
The stopwatch comes with two display modes. To switch to the hour-minute-
second display, press ENTER.
To switch to the minute-second-split second display, press ENTER again.
When the count time exceeds “59:59 99” during the minute-second-split
second display, the display switches to the hour-minute-second display.
To switch to the other modes during counting, press DISPLAY.
“STPW” stops flashing if changed to other mode while the stopwatch counts
down.
To listen to the radio while the stopwatch is running, press POWER. The
display will switch to the radio frequency for a few seconds.
Displaying the Split Time
To display the current split time, press SPLIT/RESET while the stopwatch is
running. “SPLIT” flashes in the display.
The stopwatch keeps counting during the display.
To return to the count display, press SPLIT/RESET again while the split time is
being displayed.
DISPLAY
D
TUNE/TIME SET +/–*1
VOL*2
MODE
MEGA BASS
i(headphones) jack
Connector
Rubber belt
Rubber belt Wraparound arm
band
TV/WB/FM
SENS
DX LOCAL
*2There is a tactile dot beside VOL to show the direction to turn up
the volume.
C
preset number to
be deleted
Using the Pitch Timer
The pitch timer allows setting the timer with an identical length of time
repeatedly. The functions of the radio, the stopwatch, and the countdown timer
are available even while the pitch timer is being used.
1Press DISPLAY to select the pitch timer.
“PITCH” flashes in the display.
2Hold down ENTER for more than 2 seconds.
The beep sounds and the countdown duration flashes in
the display.
3Press TUNE/TIME SET + or – to set the desired countdown
duration for the pitch timer.
The countdown duration can be set from 1 second to 59 minutes 59 seconds,
in 1-second increments.
4Press ENTER.
The beep sounds and the number of times flashes in the
display.
5Press TUNE/TIME SET + or – to set the desired number of
times.
The number of times can be set up to 99.
6Press ENTER.
The two beeps sound and the number of times stops flashing.
7Press START/STOP.
Countdown starts. After the preset countdown duration, the two beeps sound
three times.
When the last pitch timer setting is finished, the display switches to the pitch
timer display even in another display mode and a long beep sounds, and then
returns to the previous display.
To stop the long beep, press any button.
To pause the countdown on the pitch timer, press START/STOP while counting
down.
At this time, the countdown is reset by pressing SPLIT/RESET. The display will
show the set-up countdown duration and number of times.
To switch to the other modes, press DISPLAY.
“PITCH” stops flashing if changed to other mode while the pitch timer counts
down.
Using the Countdown Timer
You can use the built-in countdown timer to turn off the radio automatically after
a preset duration.
1Press DISPLAY to select the countdown timer.
“TIMER” flashes in the display.
2Hold down ENTER for more than 2 seconds.
The beep sounds, and the countdown duration starts flashing.
3Press TUNE/TIME SET + or – to set the desired countdown
duration for the timer.
The countdown duration can be set from 1 minute to 2 hours, in 1-minute
increments.
4Press ENTER.
The two beeps sound and the countdown duration stops flashing.
5Press START/STOP.
Countdown starts. The radio is automatically turned on when the radio is off.
After the preset countdown duration, the four beeps sound five times and the
radio is turned off.
To stop the beeps, press any button.
To turn off the radio before the preset time, press POWER.
To pause the countdown on the countdown timer, press START/STOP while
counting down.
At this time, the countdown is reset by pressing SPLIT/RESET. The display will
show the set-up countdown duration.
To switch to the other modes, press DISPLAY.
“TIMER” stops flashing if changed to other mode while the countdown timer
counts down.
Using the Belt Clip
(See Fig. D)
Use the belt clip when attaching the unit to your belt.
*1The TUNE/TIME SET
+ has a tactile dot.
