Sony Hcd-dz520k User manual

SERVICE MANUAL

Sony Corporation

Home Audio Division

Published by SonyTechno Create Corporation

E Model

HCD-DZ520K

Russian Model

HCD-DZ520K/DZ620K

DVD RECEIVER

9-887-197-01

2006D1678-1

Ver. 1.0 2006.04

HCD-DZ520K/DZ620K

•HCD-DZ520Kistheamplifier,DVD/CD

and tuner section in DAV-DZ520K.

•HCD-DZ620Kistheamplifier,DVD/CD

and tuner section in DAV-DZ620K.

SPECIFICATIONS

Model Name Using Similar Mechanism HCD-DZ110

Mechanism Type CDM85-DVBU102

Optical Pick-up Name

KHM-310CAA

This system incorporates with Dolby*1Digital and Dolby Pro Logic (II)

adaptive matrix surround decoder and the DTS*2Digital Surround

System.

*1 Manufactured under license from Dolby Laboratories.

“Dolby,” “Pro Logic,” and the double-D symbol are trademarks of

Dolby Laboratories.

*2 Manufactured under license from Digital Theater Systems, Inc.

“DTS” and “DTS Digital Surround” are trademarks of Digital

Theater Systems, Inc.

*Depending on the sound field settings and the source,

there may be no sound output.

Inputs (Analog)

TV/VCR (AUDIO IN/VIDEO IN)

Sensitivity: 450/250 mV

AUDIO IN/MIC 1/MIC Sensitivity: AUDIO IN

250/125 mV/MIC 1 1 mv

MIC 2 Sensitivity: 1 mV

DVD system

Laser Semiconductor laser

(DVD: λ= 650 nm)

(CD: λ= 790 nm)

Emission duration:

continuous

Signal format system

Russian models: PAL

Other models: NTSC/PAL

Tuner section

System PLL quartz-locked digital

synthesizer system

FM tuner section

Tuning range 87.5-108.0 MHz (50 kHz

step)

Antenna (aerial) FM wire antenna (aerial)

Antenna (aerial) terminals 75 ohms, unbalanced

Intermediate frequency 10.7 MHz

AM tuner section

Tuning range

Middle Eastern and Russian models:

531-1,602 kHz (with the

interval set at 9 kHz)

Asian models: 531-1,602 kHz (with the

interval set at 9 kHz)

530-1,710 kHz (with the

interval set at 10 kHz)

Antenna (aerial) AM loop antenna (aerial)

Intermediate frequency 450 kHz

Amp

DZ520K

lifier section

Stereo mode (rated) 108 W + 108 W (3 ohms at

1 kHz, 1 % THD)

Surround mode (reference)

RMS output power, 10 %

THD

Front: 142 W + 142 W

(with SS-TS53)

Center*: 142 W

(with SS-CT51)

Surround*: 142 W + 142

W

(with SS-TS51)

Subwoofer*: 140 W

(with SS-WS52)

DZ620K

Stereo mode (rated) 108 W + 108 W (3 ohms at

1 kHz, 1 % THD)

Surround mode (reference)

RMS output power, 10 %

THD

Front: 143 W + 143 W

(with SS-TS53)

Center*: 143 W

(with SS-CT51)

Surround*: 143 W + 143

W

(with SS-TS53)

Subwoofer*: 285 W

(with SS-WS52B)

— Continued on next page —

Photo : HCD-DZ520K

w

.

x

i

a

o

y

u

1

6

3

.

c

o

m

Q

3

7

6

3

1

5

1

5

0

9

2

8

9

4

2

9

8

T

E

L

1

3

9

4

2

9

6

5

1

3

9

2

8

9

4

2

9

8

0

5

1

5

1

3

6

7

3

Q

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

19

HCD-DZ520K/DZ620K

SECTION 4

TEST MODE

Note 1: Regarding the notification symbol “R”

Because the number of the operating buttons of this product

are limited, some operations require use of the operating

buttons of the remote commander,When a specific operation

requires use of the operating buttons of the remote

commander, “R” is added to the specific operating procedure

in this manual. Example MENU/NO “R” The MENU/NO

button of remote commander.

Note 2: Incorrect operations may be performed if the test mode is

not entered properly.

In this case, press the ?/1 button to turn the power off, and

retry to enter the test mode.

3. DiscTray Lock

The disc tray lock function for the antitheft of an demonstration

disc in the store is equipped.

Setting Procedure :

1. Press the ?/1 button to turn the set on.

2. Press the FUNCTION button to set DVD function.

3. Insert a disc.

4. Press the x button and the A button simultaneously for five

seconds.

5. The message “LOCKED” is displayed and the tray is locked.

Releasing Procedure :

1. Press the x button and the A button simultaneously for five

seconds. again.

2. The message “UNLOCKED” is displayed and the tray is

unlocked.

Note: When “LOCKED” is displayed, the slot lock is not released by

turning power on/off with the ?/1 button.

4. DVD Ship Mode

•Use this mode when returning the set to the customer after

repair.

Procedure:

1. Press the ?/1 button to turn the set on.

2. Press the FUNCTION button to set the function “DVD”.

3.

Remove all discs, press two buttons

x

,

and

.

simulta-

neously.

4. After a message “MECHA LOCK” is displayed on the

fluorescent indicator tube, pull out the AC plug.

5. To exit from this mode, press the ?/1 button to turn the set on.

5. AM Step Change

•Astep of AM channels can be changed over between 9 kHz

and 10 kHz.

Procedure:

1. Press the ?/1 button to turn the set ON.

2. Select the function “TUNER”, and press FUNCTION button

to select the BAND “AM”.

3. Press the ?/1 button to turn the set OFF.

4. Press two buttons >and ?/1 simultaneously, and the

display of fluorescent indicator tube changes to “AM 9 k

STEP” or “AM 10 k STEP”, and thus the channel step is

changed over.

6.VolumeTest Mode

Procedure:

1. Press the ?/1 button to turn the power on.

2. Press three buttons ., H and >simultaneously.

3. The message “VOLUME MAX” is displayed, when the

VOLUME control is turned in the dirction of (+).

The message “VOLUME MIN” is displayed, when the

VOLUME control is turned in the dirction of (–).

4. To exit from this mode, press the ?/1 button to turn the set off.

7. Product Out

This mode moves the optical pick-up to the position durable to

vibration and clears all data including preset data stored in the RAM

to initial conditions. Use this mode when returning the set to the

customer after repair.

Procedure:

1. Press the ?/1 button to turn the power on.

2. Press the FUNCTION button to set the function “DVD”.

3.

Remove all discs, and then

press three buttons >, A and

?/1 simultaneously.

4. After the “STANDBY” blinking display finishes, the message

“MECHA LOCK” is displayed on the fluorescent indicator

tube disconnect theAC power plug, then the ship mode is set.

1. Cold Reset

•The cold reset clears all data including preset data stored in

the RAM to initial conditions. Execute this mode when

returning the set to the customers.

Procedure:

1. Press the ?/1 button to turn the power on.

2. Press three buttons x , A and ?/1 simultaneously.

3. When this button is operated, display as “COLD RESET” for

a while and all of the settings are reset.

2. PanelTest Mode

•This mode is used to check the software version, FL, LED

and KEY.

2-1. DisplayTest Mode

Procedure:

1. Press the ?/1 button to turn the power on.

2. Press three buttons X, . and Asimultaneously.

3. Whenthedisplaytest mode is activated,allsegmentsandLEDs

are turned on.

4. To exit from this mode, press three buttons X, . and A

simultaneously.

2-2.VersionTest Mode

Procedure:

1. When the panal test mode is activated, press the .button

and the message “DSX2KF” (DZ520K), “DSX2KF+”

(DZ620K) are displayed, the version test mode is activated.

2. Whenever press the .button, the version is displayed in

order of CE2, MC, SYS, UI, DVD, ST, TA, DSP and TM.

3. Press the >button and the date of the software production

is displayed.

4. Press the >button again and the version is displayed.

5. To exit from this mode, press three buttons X, . and A

simultaneously.

2-3. KeyTest Mode

Procedure:

1. When the panel test mode is activated, press the Hbutton,

to select the key test mode.

2. To enter the KEY test mode, the fluorecent indicator displays

“K0 V0”. Each time a button is pressed, “KEY” value

increases. However, once a button is pressed, it is no longer

taken into account. When all keys are pressed correctly, “K8

V0” is displayed.

3. When the VOLUME control is turned in the direction of (+),

“V0” is changed to “V1”, then ... “V9”.

When the VOLUME control is turned in the direction of (–),

“V0” is changed to “V9”, then ... “V1”.

4. To exit from this mode, press three buttons X, . and A

simultaneously.

w

.

x

i

a

o

y

u

1

6

3

.

c

o

m

Q

3

7

6

3

1

5

1

5

0

9

2

8

9

4

2

9

8

T

E

L

1

3

9

4

2

9

6

5

1

3

9

2

8

9

4

2

9

8

0

5

1

5

1

3

6

7

3

Q

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

20

HCD-DZ520K/DZ620K

DVD SECTION

[TEST DISC LIST]

Be sure to use the DVD disc that matches the signal standards of

your region.

• CD YEDS-18 (Part No.: 3-702-101-01)

PATD-012 (Part No.: 4-225-203-01)

• DVD SL (Single Layer)

NTSC : HLX-503 (Part No.: J-6090-069-A)

HLX-504 (Part No.: J-6090-088-A)

PAL : HLX-506 (Part No.: J-6090-077-A)

• DVD DL (Dual Layer)

NTSC : HLX-501 (Part No.: J-6090-071-A)

HLX-505 (Part No.: J-6090-089-A)

PAL : HLX-507 (Part No.: J-6090-078-A)

8-1. GENERAL DESCRIPTION

The Mirror Time and IOP measurement allows you to make

diagnosis and adjustment simply by using the remote commander

and monitor TV. The instructions, diagnosis results, etc. are given

on the on-screen display (OSD).

Be sure to execute the Mirror Time and IOP measurement when a

BU (Base Unit) is replaced.

8-2. HOWTO ENTERTEST MODE

While pressing the x and A buttons simultaneously, turn

VOLUME + with the DVD player in power on.

The Test Mode starts, then the menu shown below will be

displayed on the TV screen.

*During the TEST mode is running, the model name “DSX2KF”

is displayed for DZ520K in the “Remocon Diagnosis Menu”.

The model name “DSX2KF+” is displayed for DZ620K.

The menu above is the Remocon Diagnosis Menu screen which

consists of six main function. At the bottom of the menu screen,

the model name and IF-con version. To enter Mirror Time

Adjustment menu, press button 2 “R” on the remote commander

to enter Drive Manual Operation menu.To exit from the Test Mode,

press the power button on the remote commander.

8-3. DRIVE MANUAL OPERATION

The Drive Manual Operation menu consists of five main

function. By pressing 2 “R” button on the remote commander in

the Remocon Diagnosis Menu, the screen will appear as below.

Remocon Diagnosis Menu

0. External Chip Check

1. Servo Parameter Check

2. Drive Manual Operation

3. Emergency History Check

4. Version Information

Model Name : DSX2KF_XX

IF-con : V

Syscon : Ver.

er. XX.XX (XXXX)

X.XXX

Drive Manual Operation

1. Servo Control

2. Track/Layer Jump

3. Manual Adjustment

4. Tray Aging Mode

5. MIRR time Adjust

0. Return to Top Menu

8-4. MIRRORTIME ADJUSTMENT

To enter Mirror TimeAdjustment, press 5 “R” button on the remote

commander. The screen will appear as below.

There are five main commands in the Mirr time Adjust menu as

shown in the figure above. The functions of each command are

described in the following page.

1. CD MIRR time Check

This command checks the Mirror time value for CD disc.

2. DVD MIRR time Check

This command checks the Mirror time value for DVD disc.

3. Threshold

This command displays the threshold value between CD and DVD

mirror time.

4. Save to EEPROM

This command saves an adjusted mirror time value to the EEPROM.

5. Default set MIRR time

ThiscommandwillsetCDandDVDmirror time to firmwaredefault

value.

[Open] / [Close]

Pressing the A button controls the tray for disc change

during mirror time adjustment.

[0] Return to previous menu

Press the 0 “R” button to return to previous menu.

8-4-1. EXECUTING MIRRORTIME ADJUSTMENT

In order to execute mirror time adjustment, the following standard

procedures must be followed.

(1) In power on, while pressing the x and A buttons

simultaneously, turn VOLUME + .

(2) Select “2. Drive Manual Operation”.

MIRR time Adjust Menu

1. CD MIRR time Check:

2. DVD MIRR time Check:

3. Threshold:

4. Save to EEPROM:

5. Default set MIRR time:

[Open] Tray open [Close] Tray close

[0] Return to previous menu

Remocon Diagnosis Menu

0. External Chip Check

1. Servo Parameter Check

2. Drive Manual Operation

3. Emergency History Check

4. Version information

Model Name : DSX2KF_XX

IF-con : Ver. XX.XX (XXXX)

Syscon : Ver. X.XXX

w

.

x

i

a

o

y

u

1

6

3

.

c

o

m

Q

3

7

6

3

1

5

1

5

0

9

2

8

9

4

2

9

8

T

E

L

1

3

9

4

2

9

6

5

1

3

9

2

8

9

4

2

9

8

0

5

1

5

1

3

6

7

3

Q

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

21

HCD-DZ520K/DZ620K

(3) Select “5. MIRR time Adjust”.

(4) Select “5. Default set MIRR time”.

(5) Select “3. Threshold”.

(6) Confirm the number. If it is 7D, go to next step. If it is any

other value, return to step 4.

(7) Push the Abutton to eject tray.

(8) Insert Test Disc HLX-504 into tray.

(9) Push the Abutton to close tray.

(10) Push “2. DVD MIRR time Check”.

(11) Wait for HEX number to display.

(12) Confirm the number, if XX is 28 – 70, proceed with next

step. If no, return to 8.

(13) Push “4. Save to EEPROM”.

Drive Manual Operation

1. Servo Control

2. Track/Layer Jump

3. Manual Adjustment

4. Mecha test mode

5. MIRR time Adjust

0. Return to Top Menu

MIRR time Adjust Menu

1. CD MIRR time Check:

2. DVD MIRR time Check:

3. Threshold:

4. Save to EEPROM:

5. Default set MIRR time:

[Open] Tray open [Close] Tray close

[0] Return to previous menu

MIRR time Adjust Menu

1. CD MIRR time Check:

2. DVD MIRR time Check:

3. Threshold: 7D

4. Save to EEPROM:

5. Default set MIRR time:

[Open] Tray open [Close] Tray close

[0] Return to previous menu

MIRR time Adjust Menu

1. CD MIRR time Check:

2. DVD MIRR time Check: XX XX

3. Thereshold:

4. Save to EEPROM:

5. Default set MIRR time:

[Open] tray open [close] Tray close

[0] Return to previous menu

(14) Confirm the same values are displayed. If it is not same,

return to step 7.

(15) Push the Abutton to eject tray.

(16) Take out HLX-504 and insert Test Disc YEDS-18 into

tray.

(17) Push the Abutton to close tray.

(18) Push “1. CD MIRR time check”.

(19) Wait for HEX number to display.

(20) Confirm the number, ifYY is 5A – E8, proceed with next

step. If no, return to 15.

(21) Push “4. Save to EEPROM”.

(22) Confirm the same values are displayed. If it is not the

same, return to step 15.

(23) Push the Abutton to eject tray.

(24) Remove Test DiscYEDS-18 from tray.

(25) Push the Abutton to close tray.

(26) Press the 0 “R” button to the Drive Manual Operation menu.

(27) Press the 0 “R” button to return to the Remocon Diagnosis

Menu.

(28) Press the ?/1 button to switch OFF set.

MIRR time Adjust Menu

1. CD MIRR time Check:

2. DVD MIRR time Check: XX XX

3. Threshold:

4. Save to EEPROM:

5. Default set MIRR time:

[Open] Tray open [close] Tray close

[0] Return to previous menu

MIRR time Adjust Menu

1. CD MIRR time Check: YY YY

2. DVD MIRR time Check: XX XX

3. Threshold:

4. Save to EEPROM:

5. Default set MIRR time:

[Open] Tray open [close] Tray close

[0] Return to previous menu

MIRR time Adjust Menu

1. CD MIRR time check: YY YY

2. DVD MIRR time check: XX XX

3. Threshold:

4. Save to EEPROM:

5. Default set MIRR time:

[Open] Tray open [close] Tray close

[0] Return to previous menu

w

.

x

i

a

o

y

u

1

6

3

.

c

o

m

Q

3

7

6

3

1

5

1

5

0

9

2

8

9

4

2

9

8

T

E

L

1

3

9

4

2

9

6

5

1

3

9

2

8

9

4

2

9

8

0

5

1

5

1

3

6

7

3

Q

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

22

HCD-DZ520K/DZ620K

8-5. EXECUTING IOP MEASUREMENT

In order to execute mirror time adjustment, the following standard

procedures must be followed.

(1) In standby mode, while pressing the x and A buttons

simultaneously, turn VOLUME + .

(2) Select “2. Drive Manual Operation” by pressing the 2 “R”

button on the remote commander. The screen will appear as

below.

(3) Select “3. ManualAdjustment” by pressing the 3 “R” button

on the remote commander. The screen will appear as below.

(4) Select Iop by pressing the 6 “R” button on the remote

commander.

Remocon Diagnosis Menu

0. External Chip Check

1. Servo Parameter Check

2. Drive Manual Operation

3. Emergency History Check

4. Version information

Model Name : DSX2KF_XX

IF-con : Ver. XX.XX (XXXX)

Syscon : Ver. X.XXX

Drive Manual Operation

1. Servo Control

2. Track/Layer Jump

3. Manual Adjustment

4. Tray Aging Mode

5. MIRR time adjust

0. Return to top Menu

Manual Adjust

1. Track Balance Adjust:

2. Track Gain Adjust:

3. Focus Balance Adjust:

4. Focus Gain Adjust:

5. Eq boost Adjust:

6. Iop:

7. TRV. Level:

8. S curve(FE) Level:

9. RFL(PI) Level:

0. MIRR Time:

oOChange Value

[RETURN] Return to previous menu

(5) Wait until a hexadecimal number appear.

(6) Convert each data from hexadecimal to decimal using

conversion table.

(7) Substract between these two values.

(8) If the remainder is smaller than 93 (decimal), then it is

OK. However if the value is higher than 93, then the BU

is defective and need to be change.

(9) Press the RETURN “R” button to return back to previous

menu.

(10) Press the 0 “R” button to return to Top Menu and power

OFF the DVD Player.

Manual Adjust

1. Track Balance Adjust:

2. Track Gain Adjust:

3. Focus Balance Adjust:

4. Focus Gain Adjust:

5. Eq Boost Adjust:

6. Iop. 5B:

7. TRV. Level:

8. S curve(FE) Level:

9. RFL(PI) Level:

0. MIRR Time:

Change Value

[0] Return to previous menu

w

.

x

i

a

o

y

u

1

6

3

.

c

o

m

Q

3

7

6

3

1

5

1

5

0

9

2

8

9

4

2

9

8

T

E

L

1

3

9

4

2

9

6

5

1

3

9

2

8

9

4

2

9

8

0

5

1

5

1

3

6

7

3

Q

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

23

HCD-DZ520K/DZ620K

SECTION 5

ELECTRICAL ADJUSTMENT

DVD SECTION

When the base unit is replaced, perform the adjustment and the

measurement as shown below in this order.

1) MIRROR TIME ADJUSTMENT (See page 20)

2) EXECUTING IOP MEASUREMENT (See page 22)

[TEST DISC LIST]

Be sure to use the DVD disc that matches the signal standards of

your region.

• CD YEDS-18 (Part No.: 3-702-101-01)

PATD-012 (Part No.: 4-225-203-01)

• DVD SL (Single Layer)

NTSC : HLX-503 (Part No.: J-6090-069-A)

HLX-504 (Part No.: J-6090-088-A)

PAL : HLX-506 (Part No.: J-6090-077-A)

• DVD DL (Dual Layer)

NTSC : HLX-501 (Part No.: J-6090-071-A)

HLX-505 (Part No.: J-6090-089-A)

PAL : HLX-507 (Part No.: J-6090-078-A)

[RF Level Check]

Connection:

Procedure:

1. Connect an oscilloscope to CN1105 pin 6(RFMON) and

CN1105 pin 3(GND) on the MAIN board.

2. Turn the power on.

3. Insert the CD test disc (refer to the TEST DISC LIST), and

press the Hbutton to play the disc back.

4. Confirm that oscilloscope waveform is clear and check RF

signal level is correct or not.

Note: A clear RF signal waveform means that the shape “◊” can be

clearly distinguished at the center of the waveform.

5. Eject the CD disc, and insert the DVD SL test disc (refer to

the TEST DISC LIST), and press the Hbutton to play the

disc back.

Checking Location: MAIN board (Side A)

+

–

CN1105 pin 6(RFMON)

CN1105 pin 3(GND)

oscilloscope

MAIN board

RF signal waveform VOLT/DIV: 200 mV

TIME/DIV: 500 ns

level: 0.57 to 1.1 Vp-p (CD)

0.58 to 1.23 Vp-p (DVD

)

IC501

IC1103

3

6

CN1105 Pin 3(GND)

CN1105 Pin 6(RFMON)

CN1105

MAIN BOARD (SIDE A)

w

.

x

i

a

o

y

u

1

6

3

.

c

o

m

Q

3

7

6

3

1

5

1

5

0

9

2

8

9

4

2

9

8

T

E

L

1

3

9

4

2

9

6

5

1

3

9

2

8

9

4

2

9

8

0

5

1

5

1

3

6

7

3

Q

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

24

HCD-DZ520K/DZ620K SECTION 6

DIAGRAMS

For Schematic Diagrams.

Note:

•All capacitors are in µF unless otherwise noted. (p: pF)

50WV or less are not indicated except for electrolytics and

tantalums.

•All resistors are in Ωand 1/4W or less unless otherwise

specified.

•f: internal component.

•C: panel designation.

THIS NOTE IS COMMON FOR PRINTEDWIRING BOARDS AND SCHEMATIC DIAGRAMS.

(In addition to this, the necessary note is printed in each block.)

•A: B+ Line.

•Voltages and waveforms are dc with respect to ground un-

der no-signal (detuned) conditions.

•Voltages and waveforms are dc with respect to ground in

service mode.

•Waveforms are taken with a oscilloscope.

Voltage variations may be noted due to normal production

tolerances.

no mark : DVD STOP

*: Impossible to measure

•Voltages are taken with VOM (Input impedance 10 MΩ).

•Circled numbers refer to waveforms.

•Signal path.

F: AUDIO

J: CD PLAY

c: DVD PLAY

I: SACD PLAY

d: TUNER

L: VIDEO

E:Y

a: CHROMA

r: COMPONENT VIDEO

f: AUDIO IN

•Abbreviation

E3 : 240V AC area in E model

RU : Russian model

SP : Singapore model

For PrintedWiring Boards.

Note:

•X: parts extracted from the component side.

• a: Through hole.

•: Pattern from the side which enables seeing.

(The other layers' patterns are not indicated.)

•Indication of transistor.

Caution:

Parts face side: Parts on the parts face side seen from

(SIDE A) the parts face are indicated.

Pattern face side: Parts on the pattern face side seen from

(SIDE B) the pattern face are indicated.

✩New part of EEP ROM (IC1103) on the MAIN board

cannot be used.Therefore, if the mounted MAIN board

(A-1144-746-A, etc.) is replaced, exchange new EEP

ROM (IC1103) with that used before the replacement.

C

B

These are omitted.

E

Q

CEBThese are omitted

Note: The components identified by mark 0or dotted

line with mark 0are critical for safety.

Replace only with part number specified.

w

.

x

i

a

o

y

u

1

6

3

.

c

o

m

Q

3

7

6

3

1

5

1

5

0

9

2

8

9

4

2

9

8

T

E

L

1

3

9

4

2

9

6

5

1

3

9

2

8

9

4

2

9

8

0

5

1

5

1

3

6

7

3

Q

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

2525

HCD-DZ520K/DZ620K

• Circuit Boards Location

FL board

JACK board

DDCON board

SW board

IO-S TERMINAL board

SPEAKER board

MAIN board

HEATSINK A board

HEATSINK B board

POWER board

TUNER UNIT

MS-203 board

•Waveforms

– MAIN Board –

200 ns

2.7 Vp-p

5.5 Vp-p

20.3 ns

5IC3010 rk (XFSOIN)

1 V/DIV, 10 ns/DIV

4IC501 qg (XIN)

1 V/DIV, 100 ns/DIV

2IC1101 <xx. (XTALI)

1 V/DIV, 10 ns/DIV

37 ns

1.7 Vp-p

1IC1101 6(DVDRFIP)

200 mV/DIV, 100 ns/DIV

900 mVp-p

3IC1101 <z., (YUV3)

500 mV/DIV, 20

µ

s/DIV

H

1.5 Vp-p

6

IC201

wh

(COUT)

7

IC201

wa

(YOUT)

8

IC201

w;

(CYOUT)

9

IC201

qk

(CbOUT)

0

IC201

qh

(CrOUT)

1 V/DIV, 20

µ

s/DIV

H

2.0 Vp-p

1 V/DIV, 20

µ

s/DIV

2.2 Vp-p

H

1 V/DIV, 20

µ

s/DIV

2.2 Vp-p

H

1.6 Vp-p

H

500 mV/DIV, 20

µ

s/DIV

500 mV/DIV, 20

µ

s/DIV

H

1.6 Vp-p

– IO-STERMINAL Board –

w

.

x

i

a

o

y

u

1

6

3

.

c

o

m

Q

3

7

6

3

1

5

1

5

0

9

2

8

9

4

2

9

8

T

E

L

1

3

9

4

2

9

6

5

1

3

9

2

8

9

4

2

9

8

0

5

1

5

1

3

6

7

3

Q

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

2626

HCD-DZ520K/DZ620K

6-1. BLOCK DIAGRAM – RF SECTION –

: CD PLAY

: DVD PLAY

: SACD PLAY

• Signal Path

DETECTOR

6

2

3

4

5

11

10

19

18

252 253

DVDRFIP

DVDA

DVDB

DVDC

DVDD

TPI

TNI

MD

MC

29 V2O

D

C

LD01

MD12

LD02

MSW

IOP

MD11

OSP OSN

IC1101 (1/3)

CD/DVD RF AMP,

FOCUS/TRACKING ERROR AMP

DVD SYSTEM PROCESSOR

DIGITAL SERVO PROCESSOR

OPTICAL PICK-UP

BLOCK

(KHM-310CAA)

2AXIS

DEVICE

FOCUS/

TRACKING

COIL

23

20

LI M SW

176

22

21

36 48

43

15

37 1

Q1102 (2/2)

AUTOMATIC POWER

CONTROL (FOR DVD)

Q1101, Q1103

VOLUME CONTROL

Q1102 (1/2)

AUTOMATIC POWER

CONTROL (FOR CD)

LASER

DIODE

(FOR CD)

LASER

DIODE

(FOR DVD)

FOCUS COIL

DRIVE

42

41 BUFFER

35 3

34 4

TRACKING COIL

DRIVE

32

31

38

42

39

37

41

30

47

SLED MOTOR

DRIVE

IC1201

FOCUS/TRACKING COIL DRIVER,

SPINDLE, SLED MOTOR DRIVER

27

28

SPINDLE MOTOR

DRIVE

MM

(SPINDLE MOTOR)

47

46

FMO

TROPENPWN

FOO

DND

TRO

V REFO

SPFG

40 IOPMON

FOO

RF

A

B

C

D

F

E

VC

LIMIT

CD LD

PD

VR650

VR780

MSW

DVD LD

FCS+

FCS–

TRK+

+3.6V

+2.5V

TRK–

SP+

SP–

SL+

SL–

D

C

B

A

VREFO

9

NB

B

8

NA

A

30

29 SLED MOTOR

DRIVE

MM

(SLED MOTOR)

50

BUFFER

19

20

22

21

40

45

IC501 (1/4)

SYSTEM

CONTROLLER

99

IFCK DVD_SCO

33

100

XIFCS DVD_XIFCS

37

110

PRST MTK_RST

SYSRST

SCO

SCD

SID

43

98

IFSDO DVD_SOD

32

101

IFSDI

177

OCSW CDM_OPEN_SW

27

105

IFBSY

CKSW

DVD_XIFBUSY

34

DVD_SID

31

207

KRMOD KARAOKE_MODE

36

205

MIC MIC_DET

35

TRO

FMO

FOO

DMO

TRO

10

13

16

17

FMO

DMO

178

REV

174

FWD

211

MUTE123

210

MUTE

170

TSDM

22

24

25

179

OCSW/CKSW

OCSW1

S001

(CHUCK/TRAY DETECT)

MM

(LOADING MOTOR)

LDM+

LDM-

28

V2REFO

106

RXD

107

TXD

5

6

2

1

RFMON

CN1105

TO DIAG JIG

V2REFO

RXD

TXD

w

.

x

i

a

o

y

u

1

6

3

.

c

o

m

Q

3

7

6

3

1

5

1

5

0

9

2

8

9

4

2

9

8

T

E

L

1

3

9

4

2

9

6

5

1

3

9

2

8

9

4

2

9

8

0

5

1

5

1

3

6

7

3

Q

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

2727

HCD-DZ520K/DZ620K

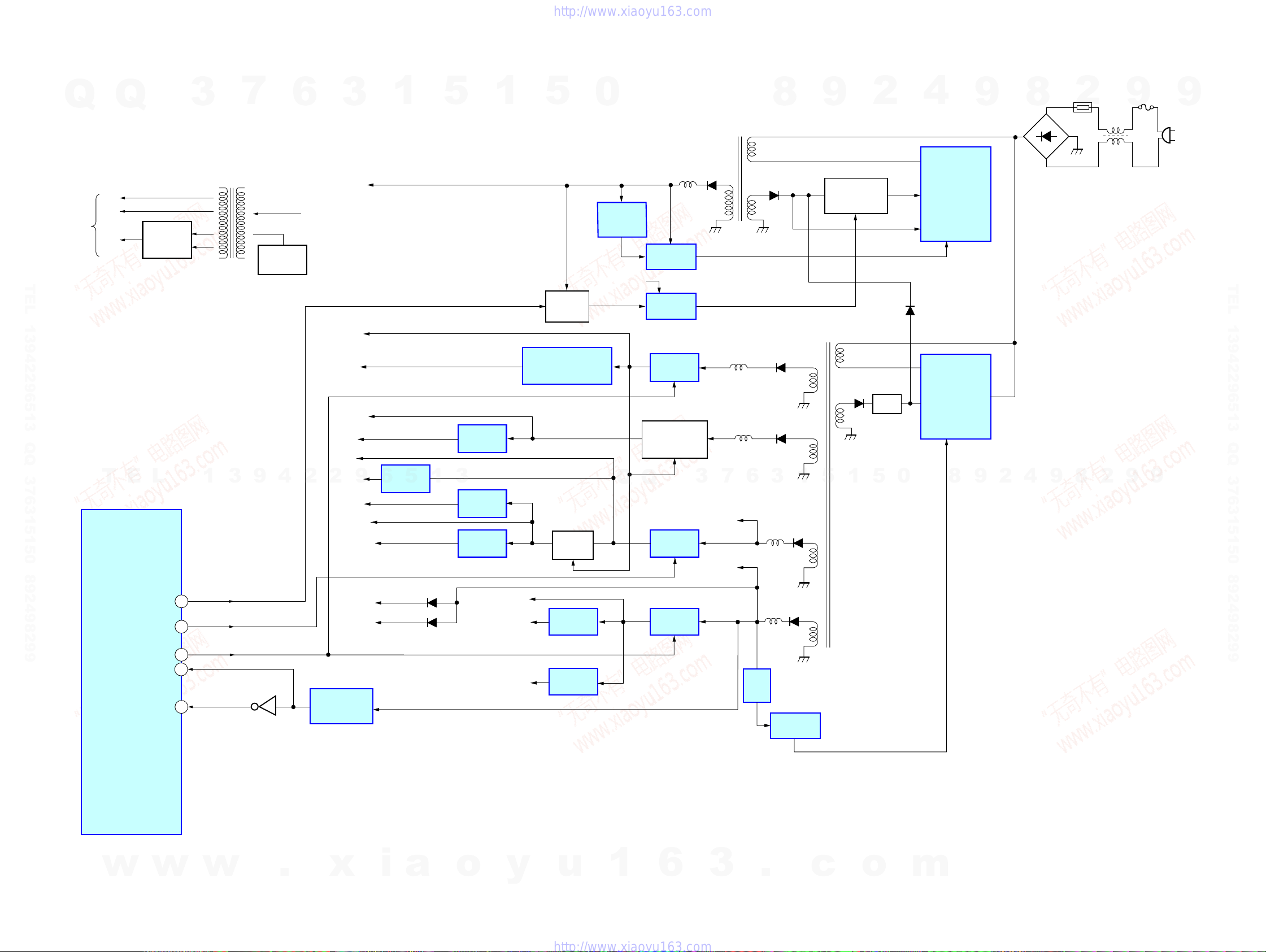

6-2. BLOCK DIAGRAM – AMP SECTION –

: AUDIO

• Signal Path

: AUDIO IN

: TUNER

J401

AUDIO IN/MIC 1/

A.CAL MIC

IC401

AMP

+

–

6

57

+

–

3

21

Q470-473,476

MO/ST DETECT

IC402

AMP

+

–

5

67

+

–

3

21

C

AUDIO

SECTION

(Page 28) +9V

MIC2

PLUG DET2

GAIN CONT ACAL

DC CONT

MO/ST DET

PLUG DET1

Q477-478

PLUG DET

Q474,475

GAIN CONT

IC371

BUFFER

1VIN2 2

VOUT1 +

+

7

VOUT2

8VIN2

DATA

Q355

RDS DATA

RDS CLK

Q351

4

CLK

5

IC372

COMPARATOR

+

–

3

21

+5V

MUTING

Q300,310,320

IC350

AUDIO INPUT SELECTOR

4Y3

2Y2

5Y1

13

X

3

Y

1Y0

A

A SEL1

A SEL0

10

B

9

11 X3

15 X2

L

R

14 X1

12 X0

Q395 Q396

IC360

AMP

+

–

3

21

+

–

5

67

IC2200

A/D CONVERTER

1LIN

LIN 12

DOUT

10

LRCK

2RIN

RIN 11

BCK

15

SCKI

IC1101 (2/3)

DVD SYSTEM PROCESSOR

209

SPDATA

217

SDATA0 AMP D1

AMP MCKO

AMP BCKO

AMP LRCKO

AMP D2

AMP D3

218

SDATA1

224

DWIDE

219

SDATA2

213

ALRCK

214

ABCK

215

ACLK

IC501 (2/4)

SYSTEM CONTROL

82 A-SEL0

83 A-SEL1

76 RDS_DATA

RDS_DATA

75 RDS_CLK

RDS_CLK

69 TUNED

TUNED

70 ST_CLK

PLL CK

PLL DO

PLL CE

PLL DI

71 ST_DO

72 ST_CE

73 ST_DI

91 ACAL MIC LEVEL

26 MIC GAIN

28 DC CONT

90 MONO/ST DET

100 MIC/A CALSW

ACAL

GAIN CONT

MO/ST DET

PLUG DET1

71 V_SEL0

72 V_SEL1

81 TVSEL/V_SEL3

V_SEL0

V_SEL1

DVD_SEL

J203

TV/VCR

TUNER

UNIT

RDS_DATA

L-CH

R-CH

L

R

RDS_CLK

TUNED

PLL CK

PLL DO

PLL CE

PLL DI

AAUDIO

SECTION

(Page 28)

B

VIDEO

SECTION

(Page 29)

D433 D470

w

.

x

i

a

o

y

u

1

6

3

.

c

o

m

Q

3

7

6

3

1

5

1

5

0

9

2

8

9

4

2

9

8

T

E

L

1

3

9

4

2

9

6

5

1

3

9

2

8

9

4

2

9

8

0

5

1

5

1

3

6

7

3

Q

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

2828

HCD-DZ520K/DZ620K

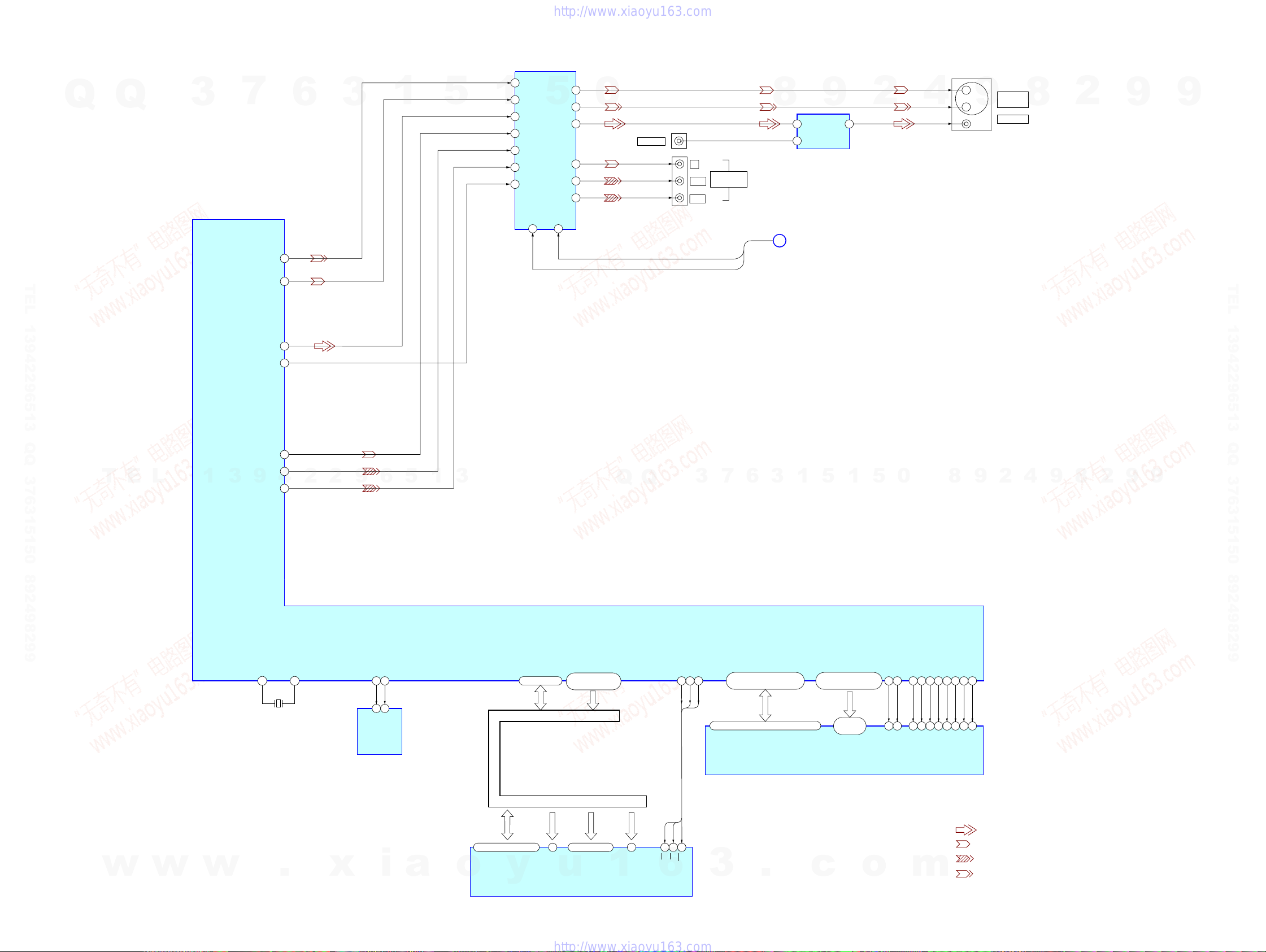

6-3. BLOCK DIAGRAM – AUDIO SECTION –

: AUDIO

• Signal Path

IC3250

S-MASTER DIGITAL AMP

TB301

(+)

(–)

IC3030

S-MASTER PROCESSOR

31 DATA

36 XFSIIN

30 BCK

23 SCLATCH

27 INIT

18 NSPMUTE

SOFTMUTE

21 SCDT

29 LRCK

22 SCSHIFT

25 FLAGL OVF

24 OVF FLAGR

LAT3

INIT

NSPMUTE

SCDT

OVF2

SHIFT

9

OUTL2

6

OUTR1

11

OUTL1

4

OUTR2

38

FS0I

Q3401,3402

DC

DETECT

WOOFER

24 FL DATA

21 FL CLK

25 FL CS/STB

VFL

(+)

(–)

Q3301,3302

DC

DETECT

CENTER

(+)

(–)

IC3010

S-MASTER PROCESSOR

IC501 (3/4)

SYSTEM CONTROLLER

IC802

FL DRIVER

31 DATA

36 XFSIIN

30 BCK

23 SCLATCH

27 INIT

18 NSPMUTE

21 SCDT

29 LRCK

22 SCSHIFT

9

OUTL2

6

OUTR1

11

OUTL1

4

OUTR2

38

FS0I

7

DIN

8

CLK

9

42

STB

30

F1

F2

Q3101,3102

DC

DETECT

(+)

(–)

Q3151,3152

DC

DETECT

(+)

(–)

IC3020

S-MASTER PROCESSOR

31 DATA

20 PGMUTE

36 XFSIIN

30 BCK

23 SCLATCH

27 INIT

18

19

NSPMUTE

SOFTMUTE

SCDT

29 LRCK

22

21

SCSHIFT

4

OUTR2

11

OUTL1

6

OUTR1

9

OUTL2

38

FS0I

48

XFS0IN

48

XFS0IN

48

XFS0IN

Q3201,3202

DC

DETECT

FRONT

R

SD

4

6PWMBP

14

5

PWMAP

RESET

(+)

(–)

OUTA

OUTB

IC3200

S-MASTER DIGITAL AMP

SD

4

14 PWMB

6

5

PWMA

RESET

OUTA

OUTB

IC3150

S-MASTER DIGITAL AMP

SD

6PWMA

14

5

PWMB

RESET

OUTB

OUTA

4

IC3100

S-MASTER DIGITAL AMP

SD

14 PWMB

6

5

PWMA

RESET

OUTB

OUTA

4

IC3300

S-MASTER DIGITAL AMP

SD

6PWMA

14

5

PWMB

RESET

OUTA

OUTB

4

IC3400

S-MASTER DIGITAL AMP

SD

14 PWMB

6

5

PWMA

RESET

OUTB

25

28

OUTA

Q3251,3252

DC

DETECT

43

DRIVE OCP

FRONT

L

SUR R

SPEAKER

J402

SUR L

AMP_D3 WF

WF

C

MCK0

BCK0

LRCK0

LAT1

INIT

NSPMUTE

SOFTMUTE

INIT

SOFTMUTE

SCDT

SHIFT

LAT1

LAT2

LAT3

SCDT

SHIFT

AMP_D1

MCK0

BCK0

LRCK0

LAT2

INIT

NSPMUTE

SCDT

SHIFT

AMP_D2

MCK0

BCK0

LRCK0

24 OVF FLAGR

FLAGL OVF

25

19 SOFTMUTE

19

20

FL801

FLUORESCENT

INDICATOR TUBE

Q3551

PROTECT DETECT

AMP_D1-D3

AMP_BCK0,LRCK0,MCK0

A

AMP

SECTION

(Page 27)

1

DAMP SCDT

2

DAMP SHIFT

SG1 – SG16

MST

47

DAMP LAT1

48

DAMP LAT2

49

DAMP LAT3

50

DAMP INIT

51

DAMP SOFT MUTE

42

DRIVE RST RESET

DIAG

OVF

44

OVERFLOW1 OVF2

45

OVERFLOW2

14 – 29

GR2 – GR12

GR1

G1

41 – 31

74 KEY INT

4SIRCS–IN

IC801

REMOTE CONTROL

RECEIVER

97,95,94

KEY0 – KEY2

KEY0

S801 – S808

(FUNCTION KEY)

10 ENA

S800

VOLUME

ENCODER 11 ENB

15

13

X502

5MHz

IC3003

SELECTER

Xin

Xout

LPF

Q802

FL DRIVER

+3.3V

FAN

DRIVE

Q3000-3002

+12V

SOFTMUTE

FR

FL

SR

SL

VOLUME

25 FLAGL OVF

24 OVF FLAGR

OVF

TB302

E3.3V

19

DIPCSFLAG AMP_D0-D3

D3071-D3073

2

1

5

6

68

20 PGMUTE

PGMUTE

14

XFS0OUT

14

XFS0OUT

37

FSOCKOUT

IC3051

OSC

X450

49.152MHz

30

25

28

30

25

28

30

25

28

30

25

28

30

25

28

30

PLUG DET2

MIC2

C

AMP

SECTION

(Page 27)

MIC 2

4

IC3500

S-MASTER DIGITAL AMP

SD

14

PWMA

6

5

PWMB

RESET

OUTB

DZ620K

OUTA

LPF

25

28

30

27

: AUDIO IN

w

.

x

i

a

o

y

u

1

6

3

.

c

o

m

Q

3

7

6

3

1

5

1

5

0

9

2

8

9

4

2

9

8

T

E

L

1

3

9

4

2

9

6

5

1

3

9

2

8

9

4

2

9

8

0

5

1

5

1

3

6

7

3

Q

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

2929

HCD-DZ520K/DZ620K

6-4. BLOCK DIAGRAM –VIDEO SECTION –

• Signal Path

: VIDEO

: Y

: COMPONENT VIDEO

: CHROMA

IC1101(3/3)

DVD SYSTEM PROCESSOR

196

YUV2

203

YUV6

49

WIDE WIDE

200

YUV4

202

YUV5

IC1103

EEPROM

6 5

SCL

SDA

198

YUV3

194

YUV1

XROMCS

XWR

XRD

IC1102

32M FLASH ROM

125-123, 121, 120, 118,

117, 115, 135, 133-128, 126

146, 147, 149-151,

158-160, 162, 164-166

22-26,

29-35

HIGHA0-7

IOA0-7, IOA18-IOA21

A16, A17

AD0 – AD7

A1-A20

DATA & ADDRESS BUS

81-84,86-88,91 53-61, 67-72, 74-76,

78, 89, 92, 93

HD0 – HD7 A0 – A21

HD0 – HD7

A21

A0

2645

CE

WE

28

OE

11

A0 – A19DQ15/A-1

77

IOCS

IOWA

79

IOUE

66

DQ0 – DQ7

RCLK

IC1104

64M SDRAM

38

DRCLK

RD0 – RD15 RA0 – RA11

RA0 – RA11

RD0 – RD15

142

RCS

19

RCS

138

RWE

16

RWE

140

MRAS

18

RAS

139

CAS

17

CAS

MDQM0

15

DQM0

MDQM1

39

DQM1

CLE

37

DRCLE

102

SCL

103

SDA

143

BA0

20

BS0

BA1

21

BS1

29,31,33,35,38,40,42,44 25-16, 9-1, 48

145 156 113 137 157

2,4,5,7,8,10,11,13,42,44,45,47,48,50,51,53

10

NC

XROMCS

XWR

XRD

12 CBIN

4CVBSIN

10 CYIN

2CIN

6YIN

25 S1

14 20

21

23

26

16

18

CRIN

2

1

S VIDEO

(DVD ONLY)

J201

J203

COMPONENT

VIDEO OUT

VIDEO IN

VIDEO

Y

P

B

/C

B

P

R

/C

R

CY

CB

CR

BAMP

SECTION

(Page 27)

2CIN 2

CIN

6YIN

V SEL0

V SEL1

IC201

VIDEO AMP, 75ΩDRIVE

IC202

VIDEO SELECTOR

YOUT

COUT

CVBSOUT

Y

C

V

CbOUT

CYOUT

CrOUT

313

228 229

X1102

27MHz

w

.

x

i

a

o

y

u

1

6

3

.

c

o

m

Q

3

7

6

3

1

5

1

5

0

9

2

8

9

4

2

9

8

T

E

L

1

3

9

4

2

9

6

5

1

3

9

2

8

9

4

2

9

8

0

5

1

5

1

3

6

7

3

Q

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

3030

HCD-DZ520K/DZ620K

6-5. BLOCK DIAGRAM – POWER SECTION –

F1

F2

VFL

TO FLUORESCENT

INDICATOR TUBE

T801

DC/DC

CONVERTER

IC511

RESET

RECT

D801,802

D804,805 OSC

Q801

12RESET

20AC_CUT

40P CONT2

41P CONT3

IC501 (4/4)

SYSTEM CONTROLLER

+5V

Q506

39P CONT1

IC941

+12V REG

IC931

VOLTAGE

DETECT

IC300

+9V REG

D943

D942

D944

D941

D922

D910

Q921 IC921

POWER

PROTECTION

T902

TRANSFORMER (SUB)

T901

TRANSFORMER(MAIN)

PC902


COUPLER

D931

D905

Q943,947

PC901

PC903

D901

E4V

E 4V

RF +3.3V

+31.5V

IC901

POWER

PROTECTION

AC IN

SW+3.3V,+3.3V

+5V


COUPLER


COUPLER

REG

IC1107

+3.3V REG

IC1105

+3.3V REG

IC942

D+5V REG

IC943

+3.3V REG

IC951

VOLTAGE

DETECT

IC1109

+1.8V REG

IC3050

+1.8V REG

+6V

SW+9V

VOLTAGE

DETECT

Q901

VOLTAGE

CONTROLLER

Q945

MOTOR DRIVE

CONTROLLER

+3.3V

IC516

+5V REG

A5V

+9V

A12V

+1.8V

D503

D505

E3.3V

BMP3.3V

+1.8V

Q502

5V SW

IC502

+3.3V REG

+3.3V

SW +5V

F901

POWER

Thermistor

LINE

FILTER

w

.

x

i

a

o

y

u

1

6

3

.

c

o

m

Q

3

7

6

3

1

5

1

5

0

9

2

8

9

4

2

9

8

T

E

L

1

3

9

4

2

9

6

5

1

3

9

2

8

9

4

2

9

8

0

5

1

5

1

3

6

7

3

Q

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

3131

HCD-DZ520K/DZ620K

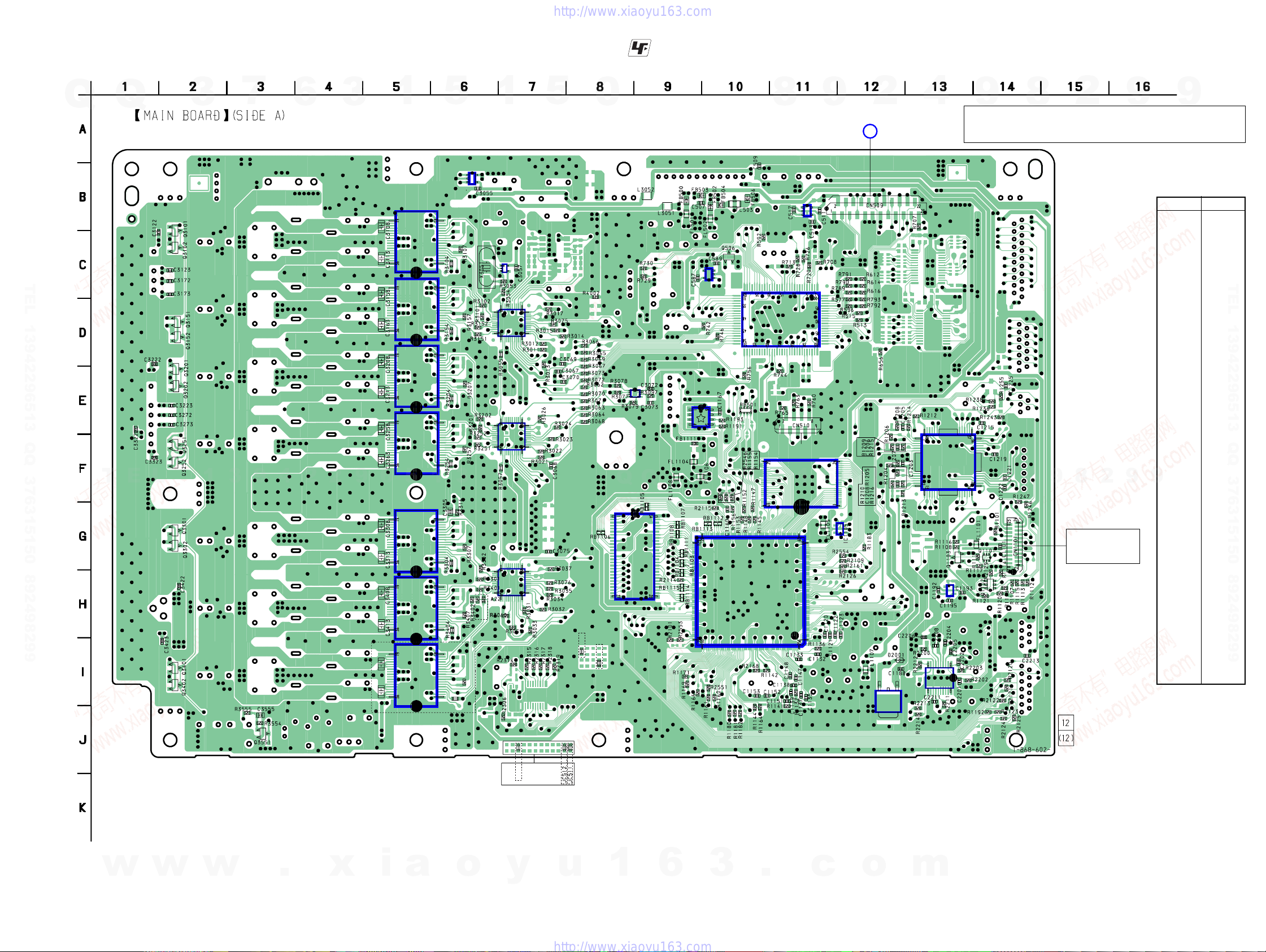

6-6. PRINTED WIRING BOARD – MAIN BOARD (SIDE A) – •See page 25 for Circuit Boards Location. :Uses unleaded solder.

• Semiconductor

Location

Ref. No.

Location

D2001 I-12

IC501 D-11

IC502 B-11

IC511 C-10

IC1101 H-10

IC1102 F-11

IC1103 E-9

IC1104 H-8

IC1105 G-12

IC1107 H-13

IC1109 J-12

IC1201 F-13

IC2200 I-13

IC3001 C-7

IC3003 E-8

IC3010 D-7

IC3020 E-7

IC3030 H-7

IC3050 B-6

IC3051 C-7

IC3100 C-5

IC3150 D-5

IC3200 E-5

IC3250 F-5

IC3300 G-5

IC3400 H-5

IC3500 I-5

Q506 C-10

Q1101 G-14

Q1102 H-14

Q1103 G-13

Q3101 C-2

Q3102 C-2

Q3151 D-2

Q3152 D-2

Q3201 E-2

Q3202 E-2

Q3251 F-2

Q3252 F-2

Q3301 G-2

Q3302 G-2

Q3401 I-2

Q3402 I-2

Q3551 J-3

✩New part of EEP ROM (IC1103) on the MAIN board cannot be used.

Therefore,if the mountedMAIN board(A-1144-746-A, etc.)is replaced,

exchangenewEEP ROM(IC1103)with thatused beforethe replacement.

IC502

IC501

IC1103

IC1102

IC1101

IC1104

IC3030

IC3020

IC3010

IC3051

IC3100

IC3150

IC3200

IC3250

IC3300

IC3400

IC3050

IC1105

IC1107

IC1109

IC2200

IC1201

IC3003

IC511

10 1

11 20

IC3500

for WRITER JIG

RU

E3

SP

1

34

5

4

51

3

1

34

5

31

E

JC520

JC505

JC507

C3508

C3513

R3507

R3504

DZ620K

R3051

R3052

DZ620K

DZ520K

A

FL BOARD

CN801

(Page 46)

OPTICAL

PICK-UP BLOCK

(KHM-310CAA)

w

.

x

i

a

o

y

u

1

6

3

.

c

o

m

Q

3

7

6

3

1

5

1

5

0

9

2

8

9

4

2

9

8

T

E

L

1

3

9

4

2

9

6

5

1

3

9

2

8

9

4

2

9

8

0

5

1

5

1

3

6

7

3

Q

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

3232

HCD-DZ520K/DZ620K

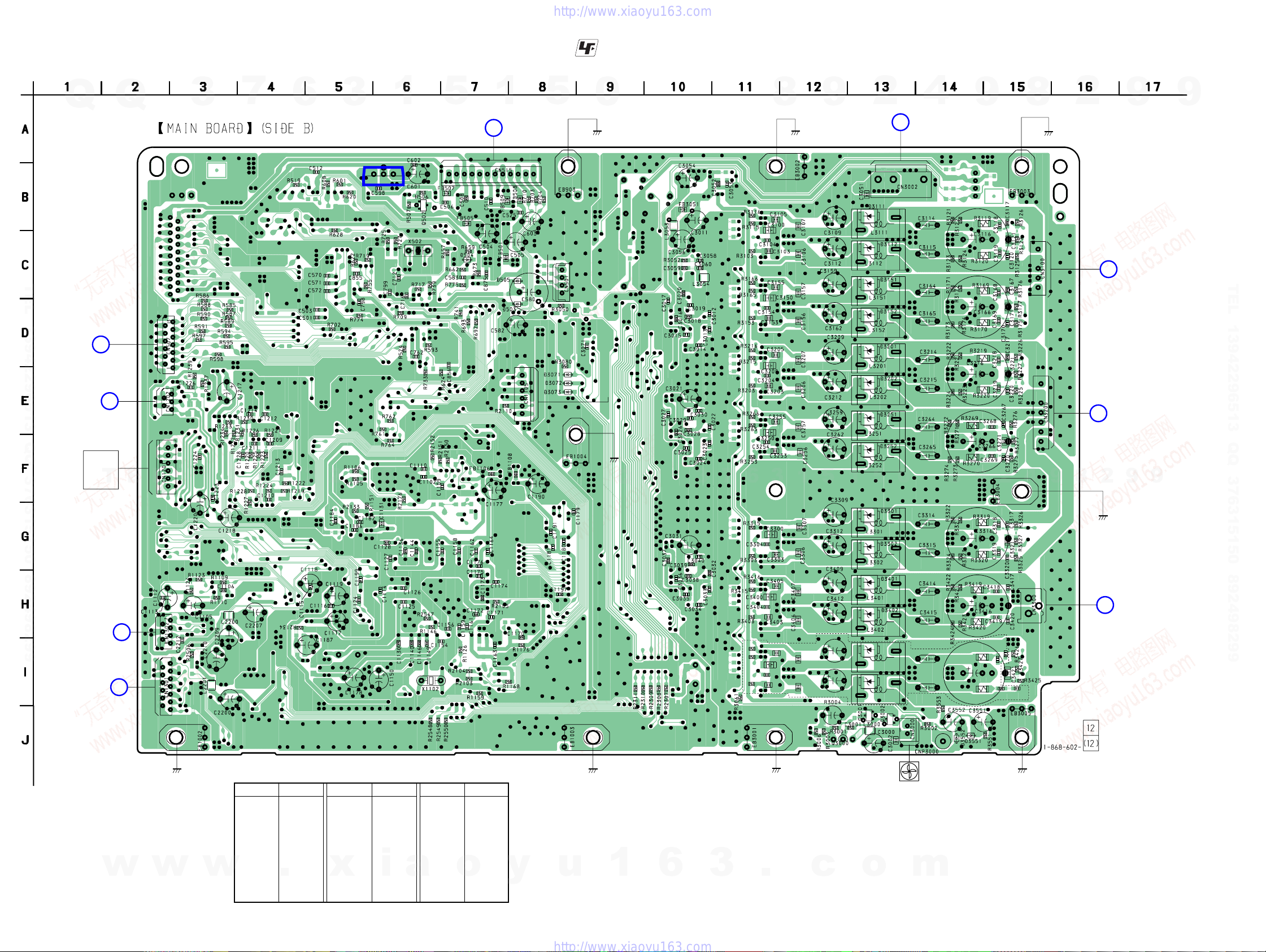

6-7. PRINTEDWIRING BOARD – MAIN BOARD (SIDE B) – •See page 25 for Circuit Boards Location. :Uses unleaded solder.

FPOWER BOARD

CN904

(Page 50)

E

IO-S TERMINAL BOARD

CN301

(Page 43)

D

MS-203 BOARD

CN001

(Page 49)

C

IO-S TERMINAL BOARD

CN304

(Page 44)

B

IO-S TERMINAL BOARD

CN201

(Page 44)

K

SPEAKER BOARD

CN302

(Page 48)

JSPEAKER BOARD

CN303

(Page 48)

SPINDLE

MOTOR

SLED

MOTOR

ISPEAKER BOARD

CN301

(Page 48)

G

POWER BOARD

CN902

(Page 50)

for DIAG JIG

for SOFT JIG

1

13

1

6

5

1

12

13

1

31

4

1

6

1

2

1

2

E

EE

4

1

6

C3520

C3519

R3520

R3519

C3516

C3514

C3515

L3502

L3501

D3501

C3509

R3516

DZ620K

R3515

R3503 C3503

C3504

C3500

C3505 C3507

C3506

D3502

C3512

C3517

C3518

FAN

(CHASSIS)

(CHASSIS)(CHASSIS)

(CHASSIS)

(CHASSIS) (CHASSIS) (CHASSIS)

(CHASSIS)

IC516

•Semiconductor Location

Ref. No.

Location

D503 D-8

D504 C-7

D505 C-8

D3071 E-8

D3072 E-8

D3073 E-8

D3111 B-13

D3112 C-13

D3151 C-13

D3152 D-13

Ref. No.

Location

D3201 D-13

D3202 E-13

D3251 E-13

D3252 F-13

D3301 G-13

D3302 G-13

D3401 H-13

D3402 H-13

D3501 I-13

D3502 I-13

Ref. No.

Location

D3551 J-14

D3552 J-14

IC516 B-6

Q502 B-6

Q3000 J-12

Q3001 J-13

Q3002 J-13

Q3081 D-9

w

.

x

i

a

o

y

u

1

6

3

.

c

o

m

Q

3

7

6

3

1

5

1

5

0

9

2

8

9

4

2

9

8

T

E

L

1

3

9

4

2

9

6

5

1

3

9

2

8

9

4

2

9

8

0

5

1

5

1

3

6

7

3

Q

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

3333

HCD-DZ520K/DZ620K

6-8. SCHEMATIC DIAGRAM – MAIN BOARD (1/10) –

IO-S TERMINAL BOARD

CN304

(Page 45)

C3021

IC3020

C3031

IC3030

CN3000

C3000

Q3000

C3072

C3073

R3078

R3077

R3079

R3080

D3071

D3072

D3073

R3063

R3064

R3065

L3000

ICT3001

ICT3002

ICT3063

ICT3062

R2309

R2310

R2311

R2308

R2307

R2306

R2316

R2315

R2314

R2319

R2318

R2317

TP577

TP581

TP582

C2210

L2200

L2201

C2205

C2200

R2203 R2202

C2209

C2204

IC2200

CN1302

TP580

TP579

R3075

R3076

R3023

R3034

C3024

C3023

C3022

C3030

C3029

C3028

C3026

C3025

C3027

R3057

C3034

C3033

C3032

R3301

R3302

C3040

C3039

C3038

C3036

C3035

C3037

R3001

R3002

R3006

R3004

R3060

R3059

R3033

C3067

C3068

C3069

C3070

TP3003

R3032

R3031

R3021

R3022

TP3021

TP3031

C3001

C3075

TP3002

TP3000

R4002

R3035

R3024

R3037

R3026

Q3001

Q3002

TP3032

TP3022

R3066

R3067

R3068

R3069

R3070

R3071

R3072

R3073

R3003

R3202

R3201

R3252

R3251

TP3023

EB3001

IC3003

R3097

TP3033

C3071

R3062

C3002

TP3001

TP3004

C2208

C2206

C2207

C2211

R2200

R2214

R2213

R2212

R2211

C2202

C2201

C2212

C2213

ICT503

ICT502

ICT501

ICT506

ICT505

ICT504

ICT512

ICT513

ICT510

ICT511

ICT507

ICT508

ICT5090

0

10 50V 7L

47

16V

7L

47

16V

CXD9788AR

47

16V

CXD9788AR

2P

100

16V

2SD1616-TP-LK

0.1 16V

0.1

16V

100

100k

1SS355WTE-17

1k

0

0.1

470 470

0.1

IC PCM1803DBR

7P

FFC 1MM

100

0.1

25V

0.1 25V

0.1

25V

0.1

25V

0.1 25V

0.1

25V

0.1 25V

100

0.1

25V

0.1 25V

100

0.1

25V

0.1

25V

0.1

25V

0.1

25V

0.1

25V

0.1 25V

10k

2.2k

1.2k

10k

100p

0.001

470

1/10W

470

1/10W

47

16V

0.0047

0

100

2SC3052EF

-T1-LEF

2SC3052EF-T1-LEF

100

1.5k

100

TERMINAL BOARD

TC7WH157FK

100

0.1

100

0.1

50V

0.1

0

0.1

100

0.01

0.1

0.001

(CHASSIS)

•See page 52 for IC Block Diagrams.

w

.

x

i

a

o

y

u

1

6

3

.

c

o

m

Q

3

7

6

3

1

5

1

5

0

9

2

8

9

4

2

9

8

T

E

L

1

3

9

4

2

9

6

5

1

3

9

2

8

9

4

2

9

8

0

5

1

5

1

3

6

7

3

Q

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

3434

HCD-DZ520K/DZ620K

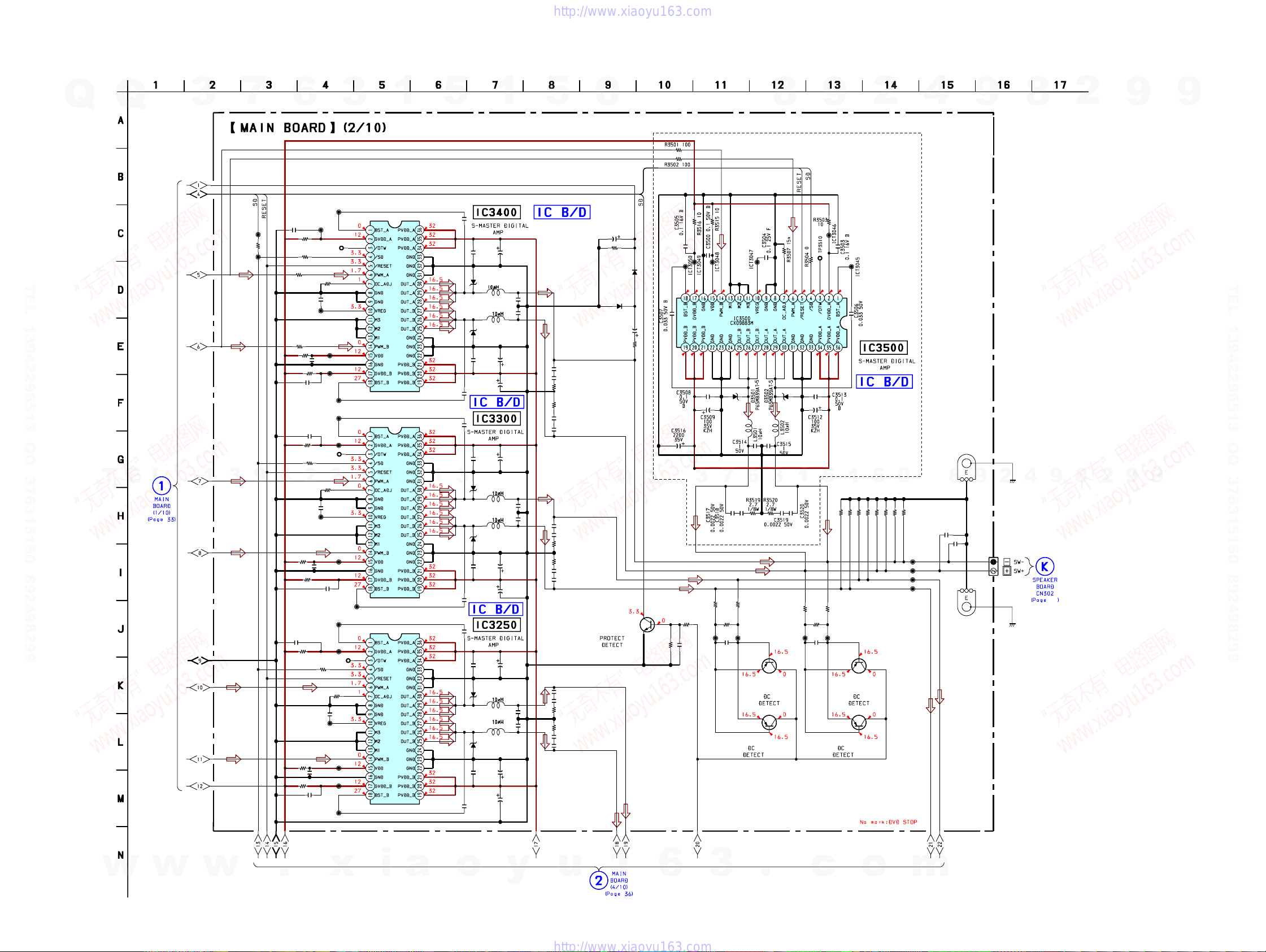

6-9. SCHEMATIC DIAGRAM – MAIN BOARD (2/10) –

48

27.8 11.9 11.9 001

2.4 3.3 0011.9 27.8

16.316.316.316.316.316.3

32

3232 32

3232

C3268

C3269

C3318

C3319

C3418

C3419

C3555

Q3551

R3554

R3426 R3425

C3421

R3427

R3325R3326

C3321

R3327

D3551

D3552

C3552

C3551

C3267

C3270

C3317

C3320

C3417

C3420

R3254

L3252

L3251

C3250

C3255

C3253

R3304

L3302

L3301

C3300

C3305

C3303

R3404

L3402

L3401

C3400

C3405

C3403

TP3301

TP3302

TP3303

TP3304

CN3300

ICT3051

ICT3052 ICT3053 ICT3054

ICT3010

ICT3011

ICT3012

ICT3015

ICT3014

ICT3013

ICT3016

ICT3017

ICT3018

ICT3020

ICT3019

ICT3021

ICT3022

ICT3023

ICT3026

ICT3025

ICT3024

ICT3060

ICT3061

R3270

R3269

R3320

R3319

C3422

C3423

R3420

R3419

Q3401

Q3402

Q3301

Q3302

R3551

R3553

R3423

R3421

R3323

R3321

R3322

R3324

R3422

R3424

R3555

EB3005

R3061

EB3004

C3256

C3257

C3254

C3263

C3258

C3265

C3264

D3251

D3252

C3266

IC3250

R3266

R3265

R3253

R3257

TP3250 C3262

C3259

C3306

C3307

C3304

C3313

C3308

C3315

C3314

D3301

D3302

C3316

IC3300

R3316

R3315

R3303

R3307

TP3310 C3312

C3309

C3406

C3407

C3404

C3413

C3408

C3415

C3414

D3401

D3402

C3416

2200

35V

IC3400

R3416

R3415

R3403

R3407

TP3410 C3412

C3409

0.0022 50V B

0.1

2SC3052EF-T1-LEF

100k

1/10W

100k

1/10W

100k

1/10W

10

10V

F

100k

1/10W

100k

1/10W

100k

1/10W

2.2

16V

F

100k

1/10W

1SS355WTE-17

10

50V

150V

0.0022 50V B

0

0.1 50V

0.1 16V

0

0.1 50V

0.1 16V

0

0.1 50V

0.1 16V

2P

VH

BOARD IN

2.7 1/8W

0.001 50V B

2.7 1/8W

2SA1235TP-1EF

100k

1/10W

10k

1/10W

10k 1/10W

0

TERMINAL BOARD

0

TERMINAL BOARD

0.033

50V

0.033 50V

0.1

25V

0.1

50V

0.1

50V

1

50V

1

50V

P6SMBJ33A-5

CXD9883M

10

12k

100

35V

100

35V

0.033

50V

0.033 50V

0.1

25V

0.1

50V

0.1

50V

1

50V

1

50V

P6SMBJ33A-5

CXD9883M

10

12k

100

35V

100

35V

0.033

50V

0.033 50V

0.1

25V

0.1

50V

0.1

50V

1

50V

1

50V

P6SMBJ33A-5

CXD9883M

10

12k

100

35V

100

35V

2200

35V

2200

35V

DZ620K

R3402 100

R3401 100

(CHASSIS)

•See page 52 for IC Block Diagrams.

w

.

x

i

a

o

y

u

1

6

3

.

c

o

m

Q

3

7

6

3

1

5

1

5

0

9

2

8

9

4

2

9

8

T

E

L

1

3

9

4

2

9

6

5

1

3

9

2

8

9

4

2

9

8

0

5

1

5

1

3

6

7

3

Q

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

3535

HCD-DZ520K/DZ620K

6-10. SCHEMATIC DIAGRAM – MAIN BOARD (3/10) –

51

IC3051

X3051

C3056

FB3051

R3054

C3011

IC3010

IC3050

C3055

C3053

C3054

L3053

L3051

L3052

ICT3007

ICT3006

ICT3008

ICT3009

ICT3064

R3014

C3091

R3052

C3058

C3059

C3057

L3054

C3060

R3053

TP3056

C3014

C3013

C3012

C3020

C3019

C3018

C3016

C3015

R3013

C3017

R3055

C3052

TP3054

R3011

R3012

TP3011

TP3053

R3015

R3017

TP3012

C3051

R3102

R3101

R3152

R3151

TP3014

TP3013

TP3015

CN3002

SN74AHC1GU04DCKR

49.152

SMD-49TB

220

10V

0

22

47

16V

CXD9788AR

TK11118CSCL-G

0.01 25V B

0.001 50V B

100 16V

100

220

16V

1M 1/10W

5p 50V CH

0.001

50V

B

0.01 25V B

10p

50V

CH

100

1/10W

0.1

25V

0.1 25V F

0.1 25V

0.1

25V

10k

1/10W

0.1 25V

100

110V

470 1/10W

470

1/10W

100

0.1

50V

B

100

3P

JST VH 3.96MM

•See page 25 forWaveform. •See page 52 for IC Block Diagrams.

w

.

x

i

a

o

y

u

1

6

3

.

c

o

m

Q

3

7

6

3

1

5

1

5

0

9

2

8

9

4

2

9

8

T

E

L

1

3

9

4

2

9

6

5

1

3

9

2

8

9

4

2

9

8

0

5

1

5

1

3

6

7

3

Q

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

3636

HCD-DZ520K/DZ620K

6-11. SCHEMATIC DIAGRAM – MAIN BOARD (4/10) –

48

R3104

L3112

L3111

C3118

C3119

C3168

C3169

C3218

C3219

R3125

R3126

C3121

R3127

R3175

R3176

C3171

R3177

R3225

R3226

C3221

R3227

R3275

R3276

C3271

R3277

C3117

C3120

C3167

C3170

C3217

C3220

C3100

C3105

C3103

R3154

L3152

L3151

C3150

C3155

C3153

R3204

L3202

L3201

C3200

C3205

C3203

TP3201

TP3202

TP3203

TP3204

TP3101

TP3102

TP3103

TP3104

CN3100

CN3200

ICT3057

ICT3058

ICT3059

ICT3055 ICT3056

ICT3027

ICT3028

ICT3029

ICT3032

ICT3031

ICT3030

ICT3033

ICT3034

ICT3035

ICT3038

ICT3037

ICT3036

ICT3039

ICT3040

ICT3041

ICT3044

ICT3043

ICT3042

C3106

C3107

C3104

C3113

C3108

C3115

C3114

C3122

C3123

R3120

R3119

C3172

C3173

R3170

R3169

C3222

C3223

R3220

R3219

C3272

C3273

C3322

C3323

Q3102

Q3101

Q3152

Q3151

Q3202

Q3201

Q3252

Q3251

D3111

D3112

R3273

R3271

R3223

R3121

R3172

R3174

R3123

R3173

R3171

R3124

R3122

R3224

R3272

R3274

R3222

R3221

EB3003

EB3002

C3116

IC3100

R3116

R3115

R3103

R3107

TP3110 C3112

C3109

C3156

C3157

C3154

C3163

C3158

C3165

C3164

D3151

D3152

C3166

IC3150

R3166

R3165

R3153

R3157

TP3150 C3162

C3159

C3206

C3207

C3204

C3213

C3208

C3215

C3214

D3201

D3202

C3216

IC3200

R3216

R3215

R3203

R3207

TP3210 C3212

C3209

0

0.0022 50V B

100k

1/10W

100k

1/10W

2.2

16V

F

100k

1/10W 100k

1/10W

100k

1/10W

2.2

16V

F

100k

1/10W

100k

1/10W

100k

1/10W

2.2

16V

F

100k

1/10W

100k

1/10W

100k

1/10W

2.2

16V

F

100k

1/10W

0.0022 50V B

0.1 50V

0.1 16V

0

0.1 50V

0.1 16V

0

0.1 50V

0.1 16V

4P

SCN

BOARD IN

4P

SCN

BOARD IN

0.033

50V

0.033 50V

0.1 25V F

0.1

50V

0.1

50V

1

50V

1

50V

0.001 50V B

2.7 1/8W

0.001 50V B

2.7 1/8W

0.001 50V B

2.7 1/8W

0.001 50V B

2SA1235TP-1EF

P6SMBJ33A-5

10k 1/10W

TERMINAL BOARD

CXD9883M

10

12k

100

35V

100

35V

0.033

50V

0.033 50V

0.1 25V

0.1

50V

0.1

50V

1

50V

1

50V

P6SMBJ33A-5

CXD9883M

10

12k

100

35V

100

35V

0.033

50V

0.033 50V

0.1 25V F

0.1

50V

0.1

50V

1

50V

1

50V

P6SMBJ33A-5

CXD9883M

10

12k

100

35V

100

2200

35V

2200

35V

2200

35V

(CHASSIS)

•See page 52 for IC Block Diagrams.

w

.

x

i

a

o

y

u

1

6

3

.

c

o

m

Q

3

7

6

3

1

5

1

5

0

9

2

8

9

4

2

9

8

T

E

L

1

3

9

4

2

9

6

5

1

3

9

2

8

9

4

2

9

8

0

5

1

5

1

3

6

7

3

Q

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

3737

HCD-DZ520K/DZ620K

6-12. SCHEMATIC DIAGRAM – MAIN BOARD (5/10) –

IO-S TERMINAL

BOARD

CN301

(Page 45)

RU

1.5k RU

TP793

R793

TP792

R792

R791

R612

Q506

C583

R775

R756

R616

R614

R789

R624

TP592

TP591

TP590

TP589

TP588

TP587

TP586

TP585

TP584

R595

R591

R594

R590

R589

R588

R587

R586

R585

R657

R662

R659

R673

R790

R774

R717

X502

R709

R729

R730

R741

R713

R577

6

R577

10k

6

15k

DZ520K

R596

R536

R535

TP545

TP546

R727

R725

R728

R726

R524

R719

R744

R733

R720

R755

R622

R746

R702

R708

TP578

TP576

R592

R593

R739

R597

R598

R513

R515

R742

CN507

ICT580

ICT581

C570

C716

C798

D504

C712

C799

C572

C571

C587

C589

IC511

C762

C856

IC501

C875

C855

EB1001

C503

C501

ICT514

ICT515

ICT516

ICT517

ICT518

ICT519

ICT520

ICT521

ICT525

ICT526

ICT527

ICT528

ICT529

ICT530

ICT531

ICT532

ICT533

ICT535

ICT534

ICT547

ICT548

47k

10k

1k

M30622MEP

-A76FPU0

100

10k

2SC3052EF

-T1-LEF

0.22

16V

B

47k

1k

10k

100

47k

100k

10k

100

1k

10k

5MHz

10k

4.7k

10k

0

10k

1k

10k

1k

10k

100

1k

10k

13P

FFC-S-1.0

0.1

1SS355WTE

-17

0.1

0.22 16V B

0.1

IC PST3635NR

0.1

0.01

0.1

TERMINAL BOARD

GROUND

0.01 25V B

DZ620K

(CHASSIS)

•See page 25 forWaveform. •See page 55 for IC Pin Function Description.

w

.

x

i

a

o

y

u

1

6

3

.

c

o

m

Q

3

7

6

3

1

5

1

5

0

9

2

8

9

4

2

9

8

T

E

L

1

3

9

4

2

9

6

5

1

3

9

2

8

9

4

2

9

8

0

5

1

5

1

3

6

7

3

Q

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

Sony HCD-DZ520K User manual

Popular Receiver manuals by other brands
