SONY:
3-209-668-11(1)
Multi Channel
AV Receiver
Operating Instructions m-.
Mode d'emploi IDIII
Owner's Record
The model and serial numbers are located on the rear of the unit. Record the
serial number in the space provided below. Refer to them whenever you call
upon your Sony dealer regarding this product.
Model No. Serial No. _
STR-DA5300ES
©2007 Sony Corporation

WARNING
To reduce the risk of fire or electric
shock, do not expose this apparatus to
rain or moisture.
Do not install the appliance in aconfined space, such
as abookcase
or built-in cabinet.
To prevent tire or shock hazard, do not place objects
filled with liquids, such as vases, on the apparatus.
Install this system
so that the power cord can be
unplugged from the wall socket immediately
in the
event
of trouble.
Batteries
or batteries installed apparatus shall not be
exposed to excessive heat such as sunshine, tire or
the like.
Don't throw away battery with
general house waste; dispose
of it
correctly as chemical waste.
For customers in the United
States
"lIOUSER·SEI'tV1C€.A8lEPARTSIHSlDE
RE'FEFI !lI':RVI(;a«J TO 0UAL1F1EO S£R'/IC£ PERSOMEl
This symbol is intended to alert the
user to the presence
of un insulated
"dangerous voltage" within the
product's enclosure that may be
of
sufficient magnitude to constitute a
risk
of electric shock to persons.
This symbol is intended to alert the
user to the presence
of important
operating and maintenance
(servicing) instructions
in the
literature accompanying the
appliance.
WARNING
This equipment has been tested and found to comply
with the limits for aClass Bdigital device, pursuant
to Part
15 of the FCC Rules. These limits are
designed to provide reasonable protection against
harmful interference
in aresidential installation.
This equipment generates, uses, and can radiate
radio frequency energy and,
ifnot installed and used
in accordance with the instructions, may cause
harmful interference to radio communications.
However, there
is no guarantee that interference will
not occur
in aparticular installation. If this
equipment does cause harmful interference to radio
or television reception, which can
be determined by
turning the equipment
off and on, the user is
encouraged to try to correct the interference by one
or more of the following measures:
-Reorient
or relocate the receiving antenna.
-Increase the separation between the equipment
and receiver.
-
Conncctthe equipment into an outlet on acircuit
different from that to which the receiver
is
connected.
-Consult the dealer or an experienced
radiorrV
technician for help.
CAUTION
You are cautioned that any changes or modification
not expressly approved
in this manual could void
your authority to operate this equipment.
Note to CATV system installer:
This reminder is provided to call CATV system
installer's allention to Article 820-40
of the NEC
that provides guidelines for propergroundingand, in
particular, specifies that the cable ground shall be
connected to the grounding system
of the building,
as close to the point
of cable entry as practical.

About This Manual
• The instructions in this manual are for model
STR-DA5300ES. Check your model
number by
looking at the lower right corner
orthe front panel.
•
The instructions in this manual describe the
controls on the supplied remote.
You can also use
the controls on the receiver
if they have the same
or similar names as those on the remote.
•
"Neural-THX" and "neural THX" introduced in
the Operating Instructions and displayed in the
display window and on the
GUlmenu screen mean
Neural-THX Surround.
This receiver incorporates Dolby" Digital and Pro
Logic Surround and the
DTS"" Digital Surround
System.
,', Manufactured under license from Dolby
Laboratories.
Dolby. Pro Logic. Surround EX. and the doublc-
Dsymbol are trademarks
of Dolby Laboratories.
*" Manufactured under license from DTS, Inc.
·'OTS".
"OTS-ES" and "Neo:6" are registered
trademarks
of DTS. Inc. and "DTS-HD Master
Audio".
"DTS-HD High Resolution Audio" and
"DTS 96/24" are trademarks of DTS. Inc.
This receiver incorporates High-Definition
Multimcdia Interface
(HDMI''') technology.
HDMI. the HDMI logo and High-Definition
Multimedia Interface are trademarks
or registered
trademarks
of HDMI Licensing LLC.
The XM name and related logos are registercd
trademarks
of XM Satellite Radio Inc.
©2006 SIRIUS Satellite Radio Inc.
"SIRIUS" and
the SIRIUS dog logo are registered trademarks
of
SIRIUS Satellite Radio Inc.
This product using Neural Surround.
THX
Technologies is manulactured under license from
Neural Audio Corporation and
THX Ltd. Sony
Corporation hereby grants the user anon-exclusive.
non-transferable, limited right to use this product.
and
other related technologies dully licensed owned
by Neural Audio Corporation andlor
THX Ltd.,
following
US and foreign patent and patent pending
laws. Neural Surround is atrademark owned by
Neural Audio Corporation.
THX is atrademark of
THX Ltd., which may be registered in some
jurisdictions.
The font type (Shin
Go R) installed in this receiver
is provided by MORISAWA &COMPANY LTD.
These names are the trademarks
of MORISAWA &
COMPANY LTD .. and the copyright of the font also
belongs to MORISAWA &COMPANY LTD.
iPod
is atrademark of Apple Inc .. registered in the
U.S. and other countries.
All other trademarks and rcgistered tradcmarks are
1m
:
of their respective holders. In this manual, r" and ®
marks are not specified.
Hereby. Sony Corpomtion declares that this
STR-DA5300ES Multi Channel
AV Receiver is in
compliance with the essential requirements and
other relevant provisions
of Directive 1999/5/EC.
Por details, please ",;cess the following URL:
http.//www.complianccsony.de/
The Bluetooth word mark and logos are owned by
the Bluetooth SIG. Inc. and any use
of such marks
by Sony Corporation
is under license.
Other trademarks and trade names are those
of their
respective owners.
"M-crew Server"
is atrademark of Sony
Corporation.
"x.v.Color"
is atrademark of Sony Corporation.
3
GB

Table of Contents
Getting Started
Description and location of parts 6
I: Installing speakers 16
2: Connecting speakers 18
3: Connecting the monitor 20
4a: Connecting the audio components 22
4b: Connecting the video components 27
5: Connecting the antennas (aerials) 38
6: Preparing the receiver and the remote 39
7: Operating the receiver using the GUI
(Graphical User Interface) .41
8: Setting the speakers 44
9: Calibrating the appropriate speaker settings
automatically (Auto Calihration) .46
Playback
Selecting a component 53
Listening to a Super Audio CD/CD 55
Watching aDVD/Blu-ray Disc 56
Enjoying video gamcs 57
Watching video 58
Amplifier Operations
Settings for the audio
(Audio settings menu) 59
Settings for the video
(Video settings menu) 60
Settings for HDMI (HOMI menu) 60
Settings for the system
(System settings menu) 61
Enjoying Surround Sound
Enjoying a pre-programmed sound lield 62
Adjusting the sound effect 69
Using the surround hack decoding mode 71
Enjoying the surround effect at low volume
levels (NIGHT MODE) 73
Advanced Speakers Setting
Up
Adjusting the speaker settings manually 74
Adjusting thc equalizer 80
Tuner Operations
Listening to FM/AM radio 82
Listening to satellite radio 85
Other Operations
Converting analog video input signals 94
Using the DIGITAL MEDIA PORT
adapter 94
Naming inputs 98
Switching hetwccn digital and analog audio
(INPUT MODE) 99
Enjoying the sound/images from other
inputs 100
Changing thc display 102
Using the sleep timer 106
Recording using the receiver 107
Listening to the sound in anothcr zone
(ZONE 2/Z0NE 3operations) 108
Using abi-amplifier connection 113
Using the CONTROL SControl
System 114
Operating without connecting to the
TV 115
Using the Remote
Operating each component using the
rcmote 125
Programming the remote 127
Performing several commands in sequence
automatically (Macro Play) 130
Sctting remote control codes that are not
stored in the remote 132

Clearing all the contenls of the remote's
memory 134
Additional Information
Glossary 135
Precautions 138
Troubleshooting 139
Specitications 143
Index 146

Getting Started
Description and location of parts
Front panel
Sj
To remove the cover
Press PUSH.
When you remove the cover,
keep it out
of reach from children.
Status of the POWER button
OfT
Thc receiver is turned off (initial
setting).
Press POWER to turn the receiver on.
You cannot turn the receiver on using
the remote.
On/Standby
Press I/C) on the remote to turn the
receiver
on or set it to the standby mode.
When you
press POWER on the
receiver,
the receiver will be turned alT.

Name Function Name Function
..
[I] POWER Prcss to turn thc
ffQ] 2CH/A.DIRECT Press to select sound
receiver on
or off. A.F.D. field (page 62). G)
CD
[g] AUTO CALMIC Connects to the
S:.
MOVIE
::J
jack supplied optimizer
lC
MUSIC
en
microphone for the -
III
[D] ZONE!
...
Digital Cinema Auto Press
SELECT
-
CD
Calibration function POWER, repeatedly to select
Q.
(page 47). SELECT zone 2, zone 3
or main
@jTONEMODE Adjusts FRONT/
zonc. Each time you
TONE
CENTER/
press POWER, the
SURROUND/
output signals for the
SURROUND BACK selected zone will be
BASS and
TREBLE.
turned on or oil
Press TONE MODE
(page 108).
repeatedly to select
[jl] DMPORT Press to select the
BASS
or TREBLE,
audio/video input
then turn
TONE to signal from the
adjust the level.
component connected
@]MEMORY/ Press to operatc atuner to the DIGITAL
ENTER (FM/AM) and satellite MEDIA PORT adapter
TUNING MODE radio (XM/SIRIUS) (page 23, 94).
~HDMI
TUNING (page 121-123). Press to select input
source from the
[§] Remote sensor Receives signals from component connected
rcmote commandcr. to the HDMI IN jack.
[§] DIMMER Press repeatedly to
IHJ PHONES jack Connects to
adjust brightness
of the headphoncs.
display.
[§] SPEAKERS Switch to OFF, A, B,
mDISPLAY Prcss repeatcdly to (OFF/AlB/A+B) A+B
of the front
select information speakers (page 46).
displayed on the
[1§] VIDEO 3INI Connect to aportable
display. PORTABLEAV audio/vidcocomponent
[ill SUR BACK Press to activate SB
IN jacks such as a camcorder or
DECODING DECODING video gamc.
(page 71).
l1ZI MULTI Lights up when multi-
rnJ Display
The current status of
CHANNEL channel audio signals
window the selccted component DECODING are dccoded.
or alist of selectable lamp
items appears here
(page 1(3).
continued-----
7
GB

Name
[j]] INPUT
SELECTOR
~MASTER
VOLUME
Function
Turn 10 selecllhe inpul
source 10 play back.
To
selccllhe input
source for zonc 2or
zonc
), press ZONE/
SELECT (ITIJ) to select
zone 2
or zone) first
("ZONE 2INPUT" or
"ZONE) INPUT"
appearson the display),
thcn turn
INPUT
SELECTOR 10 seleci
the input source.
Turn to adjust the
volume level
of all
speakers al Ihe
same
time.

Rear panel
..
C>
(l)
::::
:i"
lC
CIl
-
Dl
...
-
(l)
a.
[I] DIGITAL INPUT/OUTPUT section
Connect to interlock
on/off of the power
supply
of other 12V
TRIGGER
compliant
components, or the
amplifier/receiver
of
zone 2 or zonc 3
(page
III).
Connect to Sony TV,
DVD player
or VCR
with
CONTROL S
jack (pagc 114).
CTRL SIN/
OUT jacks
IR REMOTE Connect an IR
IN/OUT jacks repeater (page 109,
110).
TRIGGER
OUT jacks
[2] Control jack for Sony equipment
and other external components
Connect to aDVD
player, Blu-ray Disc
Player,
or asatellite
tuner. An image and
the sound are output
to TV or aprojcctor
(page 20, 28).
HDMIIN/
OUT* jacks
OPTICAL IN/
OUT jacks
COAXIAL IN
jacks
Connect to aDVD
player, Super Audio
__________ CD playcr, etc. The
COAXIAL jack
provides abeller
quality sound (page
20, 22, 23,
31,32).
~DMPORT
[c:=::JI Connects to aSony
DIGITAL MEDIA
PORT adapter
(page 23).
continued-----

@] ANTENNA section
FM ANTENNA Connects to the PM
jack wire antenna (acrial)
supplied with this
receiver (page 38).
rnJ VIDEO/AUDIO INPUT/OUTPUT
section
Connect to the
component in zone 2
or wne 3(page 108).
Connect to aVCR or
aDVD player etc.
(page 20. 31. 32. 33).
VIDEO INI
OUT* jacks
S VIDEO INI
OUT" jacks
AUDIO INI
OUT jacks
AUDIO OUT
jacks
VIDEO OUT
jack
Connects to a
SiriusConnect Home
tuner (not supplied)
(page 86).
Connects to the XM
Mini Tuner
and
Home Doek (not
supplied) (page 86).
Connects to the AM
loop antenna (aerial)
supplied with this
receiver (page 38).
XM
jack
SIRIUSjack
AM
ANTENNA
jack
~
..
...
..
[§] COMPONENT VIDEO INPUT/
OUTPUT section
Y. P
13
/C
B•
PRI
CR IN/OUT'
jacks
Connect to aDVD
player. TV. or a
satellite tuner (page
20.31.32).
EXT VIDEO IN Connects to the
jack component when
you want to watch
in
PIP <Picture in
Picture) window.
[§] RS-232C port
~~p
~
Used for
mainlenance and
service.
lID SPEAKERS section
Connects to speakers
(page 18).
[I] AUDIO INPUT/OUTPUT section
AUDIOINI
OUT jacks
MULTI
CHANNEL
INPUT jacks
Connect to atape
deck
or MD deck. etc
(page 20. 22. 23. 26).
Connect to a Super
Audio CD player or
DVD player with an
analog
audiojack for
7.1 channel or 5.1
channel sound (page
22.25).
" You can watch the selected input image when you
connect the
MONITOR VIDEO OUT jack loa TV
(page 20). You can operate this receiver using a
GUI (Graphical User Interface) (page 41).
PRE
OUT jacks Connect to an
external
power
amplilier.
10
GB

Remote commander
You can use the supplied remote RM-AAL008
to operate the receiver and to control the Sony
audio/video components that the remote is
assigned to operate (page 127).
RM-AAL008
~--- -~._.-_.-
Name
[I] AV 1/(') (on/
standby)
[2] 1/(') (on/
standby)
@jlnput
buttons
@] ZONE 2
ZONE 3
lID AMP
[§J MUSIC
[l] MOVIE
Function
Press to lurn on or olflhe audiol
video components Ihat the
remote
is assigned 10 operate
(page 127).
If you press the
11(') d1:h at Ihe
same lime. it will turn offlhe
receiver and other Sony
components (SYSTEM
STANDBY).
Note
The funclion of the AV 1/(')
switch changes automatically
each
tin~ou press the input
button
(@J).
Press to turn the receiver on or
o IT.
If ZONE 2 or ZONE 3is
selected, only the main receiver
is lurned on
or off with this
button. To turn
off all
components including an
amplitier in zone 2 or zone 3.
press
1/(') and AV 1/(') ([I]) at
the
samc time (SYSTEM
STANDBY).
Press one
of the buttons to
select the
component you want
to use. Press apink-labeled
button after pressing
SHiFf
dnIJ. When you pressany of the
input buttons. Ihe receiver turns
on.
The buttons are faclOry
assigned to control Sony
components (page 53). You can
program the remote 10 conlrol
non-Sony
components
following the slCps in
"Programming the remote"
(page 127).
Press to enable the zone 2
or
zone 3operation (page 108).
Press to enable the receiver
operation (page 4 I
).
Press to select sound field
(page 67).
Press 10 select
sound tield
(page 67).
•
G>
~
:i"
IC
en
-
III
...
-
(1)
c.
continued- _
11
GB

Name
[ID Numeric
buttons
ill] ENTER
MEMORY
ffQ) AMP MENU
fi]0)
+1+1.1.
~ OPTIONS
TOOLS
~ MENU
SCREEN/
DSPl
CONTROL
IHl CATEGORY
+/-
12
GB
Function
Press to
-preset/tune
(0 preset stations.
select track numbers
of the
CD player, DVD player. Blu-
ray Disc Player or MD deck.
Press
0/1 0to select track
number
10.
select channel numbers of
the VCR or satellite tuner.
After pressing TV
(~).
press the numeric bullons to
select the TV channels.
Press to enter the value after
selecting achannel. disc or
track using the numeric buttons.
Press to store astation during
tuncr operation.
Press to display the menu to
operate the receiver.
Press
+/+/./. to select the
menu items. Then press 8to
enter the selection.
Press to display and select items
from option menus for receiver
and DVD player. Blu-ray Disc
Player.
Press to display and select items
from the option menus for DVD
player
or Blu-ray Disc Player.
etc.
Press to display the menu to
operate the audio/video
components.
Press
SHIFT <lnh. then press
MENU to switch the display
mode of the menu between
SCREEN (to display the menu
on the TV screen) and DSPL (to
display the menu
in the display
window).
Press to select the category for
satellite tuner (page 123).
Name
lffiI .... /~a)
.a)
II a)
c> alb)
I .... /~a)
CATEGORY
MODE
TUNING
+/-
[§] PRESET
+ b)/_
TV CH +/-
Function
Press to operate the DVD
player, Blu-ray Disc Player.
CD
player, MD deck, tape deck. or
component connected to the
DIGITAL MEDIA PORT
adapter etc.
Press to select the category
mode for satellite tuner
(page 123).
Press to select station
(page 122).
Press to register
FM/AM/
satellite tuner stations or to
select preset stations.
Press TV
(~). then press TV
CH+/- to operate the TV,
satellite tuner, VCR, etc.

Press to adjuslthe volume level
of all speakers at the same time.
Name
I1lJ F1/F2
MACR01,
MACR02
TVIINPUT
WIDE
PIP
RESOLUTION
Function
Press TV (~). then press 1"1 or
1"2 10 select a componenl to
operate.
•HDD recorder
1"1: HDD
1"2: DVD player. Blu-ray Disc
Player
•
DVD/yHS combo player
1"1: DVD player. Blu-ray Disc
Player
1"2: VHS
Press
AMP (lID). then press
MACRO I or MACRO 210 set
up the
macro function
(page 130).
Press
TV/INPUT and TV ([g§])
allhe same time to selecl the
input signal (TV input
or video
inputl.
Press repealedly 10 select the
wide piclure mode.
Press
SHIFT dnh. then press
1'11'10 switch Ihe image of the
PI I' (Picture in Picture) window.
The image will be changed as
follows. EXT VIDEO-+
ZONE 2 VIDEO -+ OFF. You
can swap the position of the
main screen and the
I'll'
window (swap) by pressing the
e dDl>. You can also move
the window position using
+1+1
+1+dDh.
Note
The HDMI video signalsare not
output while the
I'll' window is
displayed.
Press
SHIFT dnll. then press
RESOLUTION repeatedly to
change the resolulion
of signals
output from the HDMI
OUT or
COMPONENT VIDEO
MONITOR OUT jack
(page 94).
Name
I1ID DVD/
TOP MENU,
MENU
NIGHT
MODE
INPUT
MODE
SLEEP
TEST TONE
IffiI MUTING
[gQJ MASTER
VOL
+/-
TV VOL +/-
[gj] DISC SKIP
~ RETURN/
EXIT 0"-'
~ DISPLAY
Function
Press to display the menus of
Ihe DVD player onlhe TV
screen. Then use +1+1+1+ and
8) 10 perform amenu
operations (page 125).
Press
AMP (lID). then press
NIGHT MODE 10 aClivate Ihe
NIGHT MODE funclion
(page 73).
Press
AMP (lID). then press
INPUT
MODE to sekctthe
input mode when the same
componenls are connected 10
hoth digilal and analog jacks
(page 99).
Press
SHIFT dnil. then press
SLEEP 10 activate the sleep
timer function and the duralion
which the receiver turns
off
automatically (page 106).
Press
SHIFT dnh. then press
TEST TONE to output the test
tone from
each speaker.
Press to turn
off the sound
lemporarily. Press Ihe button
again to restore the sound.
Press TV
(~). then press TV
VOL
+1- to adjust the volume
level
of the TV.
Press to skip adisc when using
amulti-disc changer.
Press to return to Ihe previous
menu
or ex it the menu while the
menu or on-screen guide
of the
VCR. DVD player.
or satellite
tuner
is displayed on the TV
screen.
Press to select information
displayed
in Ihe display
window. TV screen
of the VCR.
salellite tuner.
CD player. DVD
player. Blu-ray Disc Player.
or
MD deck.
Note
In the SCREEN mode. press the
hullon to display the menu on
the
TV screen.
..
conNnued----------
13
GB

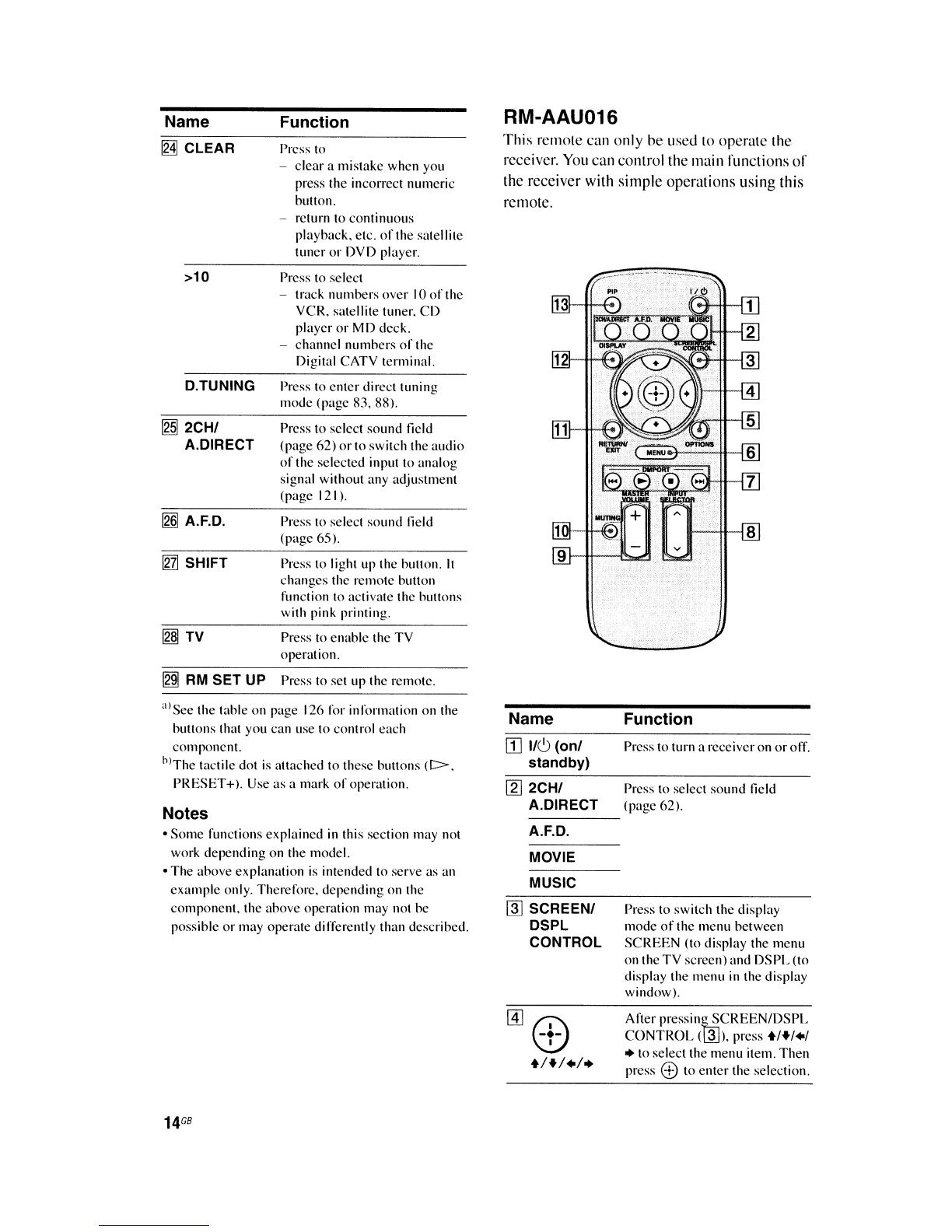

Name
~ CLEAR
>10
D.TUNING
~ 2CHI
A.DIRECT
[g§] A.F.D.
jgZJ SHIFT
~TV
~ RM SETUP
Function
Prcss to
-clear amistake when you
press the incorrect numeric
bulton.
-return to continuous
playback. etc.
of the satellite
tuner
or DVD player.
Press to select
-track numbers ovcr
10 of the
VCR. satellite tuner.
CD
player or MD dcck.
-channel numhers
of the
Digital CATV tcrminal.
Press to
enter direct tuning
mode (page 83. 88).
Press to sclect
sound field
(page
62) or to switch the audio
of the selected input to analog
signal without any adjustment
(page 121).
Press to select
sound Iield
(page 65).
Press to light up the hutton. It
changes the remote button
function to activate the buttons
with pink printing.
Press to enable the TV
operation.
Press to set up the remote.
RM-AAU016
This remote can only be used to operate the
receiver.
You can conlrolthe main functions of
the receiver with simple operations using this
remote.
alS
ee
the table on page 126 lor information on the
huttons that you can use to control each
component.
hl
The
tactile dot is attached to these buttons (C>.
PRESET +). Use as amark of operation.
Notes
• Some functions explained in this section may not
work depending on the model.
•The ahove explanation is intended to serve as an
example only. Therefore. depending on the
component. the ahove operation may not he
possihle or may operate differently than described.
14
GB
Name
ill 110 (anI
standby)
[g] 2CHI
A.DIRECT
A.F.D .
MOVIE
MUSIC
~ SCREENI
DSPL
CONTROL
@]G:>
+1+1.1.
Function
Press to turn areceiver on or off.
Press to select
sound Iield
(page 62).
Press to switch the display
mode of the menu between
SCREEN (to display the menu
on the
TV screen) and DSPL (to
display the menu in the display
window).
After
pressin~CREEN/DSPL
CONTROL (~). press +1+1.1
•to select the menu item. Then
prcss eto
enter the selcction.

Name
lID OPTIONS
ill] MENU
[lJ DMPORT
•
[ID INPUT
SELECTOR
ill] MASTER
VOLUME
+/-
[ill] MUTING
Illl RETURN/
EXIT
~ DISPLAY
~ PIP
Function
Press to display and select items
from option menus.
Press to display the menu to
opemte the receiver.
Press to
operate the component
connected to the DIGITAL
MEDIA
PORT adapter
(page 53).
Starts play.
Stops play.
Skips tracks.
Press to select the input source
to play back.
Press to adjust the volume level.
Press to turn
otT the sound
temporarily. Press the hullon
again to restore the sound.
Press to return to the previous
menu or exit the menu.
Press to select information
displayed
in the display
window.
Note
In the SCREEN mode. press the
bullon to display the
menu on
the TV screen.
Press PIP to switch the image
of
the PIP (Picture in Picture)
window.
The image will he
changed as follows. EXT
VIDEO -. ZONE 2 VIDEO
-. OFF. You can swap the
position
of the main screen and
the PIP window (swap) by
pressing the
8) dTIll. You can
also move the window position
using
+1+1+1+ dTIll.
Note
The HDMI video signals are not
output while the PIP window
is
displayed.
..
15
GB

1: Installing speakers
This receiver allows you to use a 7.1 channcl
system (7 speakers and one sub woofer).
Enjoying a5.1n.1 channel
system
To fully enjoy theater-like multi-channel
surround sound requires live speakers (two
front speakers, acenter speaker, and two
surround speakers) and asub woofer (5.1
channcl system).
Example of a 5.1 channel
speaker system configuration
mFront left speaker
(DFront right speaker
[!]Center speaker
I!]Surround left speaker
(iSurround right speaker
IDSub woofer
16
GB
You can cnjoy high fidelity reproduction of
DVD software recorded sound in the Surround
EX format
if you connect one additional
sUITound back speaker (6.1 channel system) or
two surround back speakers (7.1 channel
system.) See
"Using the surround hack
decoding modc" (page 71).
Example of a 7.1 channel
speaker system configuration
mFront left speaker
(DFront right speaker
[!]Ccnter speaker
I!]Surround left speaker
(iSurround right speaker
ClSurround back left speaker
mSurround back right speaker
IDSub woofer

Tips
•The angle 0should be the samc.
..
C)
III
::::
S'
lQ
en
-
III
...
CD
Q.
....... ~ ..
.~'
•When you connect a 6.1 channcl speaker system.
place the surround back speaker behind the seating
position.
•S:nce Ill<' sub woofer does
nol emit highly
directional signals. you can place il wherever you
W'-lIll.
17
GB

2: Connecting speakers
Before connecting cords, make sure to
disconnect the
AC power cord (mains lead).
.1
oMonaural audio cord (not supplied)
4) Speaker cords (not supplied)
aFront speaker [A] (L)
mFront speaker [A] (R)
[!)Center speaker
I!]Sub wooferb)
(iSurround back speaker (L)")
IiIISurround back speaker (R)")
mSurround speaker (L)
G)Surround speaker (R)
18
GB
FRONT SPEAKERS
[§] terminals a)
a) If you have an additional front speaker
system, connect them to the
FRONT
SPEAKERS ~ terminals. You can select
the front speaker system you want to use
with the
SPEAKERS switch (OFF/A/B/
A+B) on the front panel (page 46).

Il) When you connect a sub woofer with an auto
standby function, turn
off the function whcn
watching movies.
If the auto standby
function is
set to on, it turns to standby mode
automatically
based on the level of the input
signal to a
sub woofer, then sound may not
be output.
c) If you connect only one surround back
speaker, connect
it to the SURROUND
BACK SPEAKERS Lterminals.
Notes
•When you connect all the speakers with anominal
impedance
of 8 ohms or higher. set "Impedanee" in
the Speaker sellings menu to "8 n." In other
connections. set
it to "4 n." For details. see "8:
Selling the speakers" (page 44).
•Before connecting the AC power cord (mains
lead). make sure that metallic wires
of the speaker
cords arc not touching each other between the
SPEAKERS terminals.
Tip
To connect certain speakers to another power
amplifier, use the
PRE OUT jacks. The same signal
is output from both the SPEAKERS terminals and
the PRE
OUT jacks. For example. if you want to
connect
just the front speakers to another amplifier.
connect that amplilier to the PRE
OUT FRONT L
and Rjacks.
ZONE 2 connection
You can assign the SURROUND BACK
SPEAKER terminals lEI and 1]1 to the
speakers of the zone 2. Set "Sur Back Assign"
to "ZONE 2" in the Speaker settings menu.
See "Listening to the sound in another zone
(ZONE 2/Z0NE 3operations)" (page 108) for
details
on connection and operation in zone 2.
..
"
CD
a:.
::I
(Q
en
-
III
:::.
CD
a.

3: Connecting the monitor
You can watch the selected input image when
you connect the MONITOR
VI DEO OUT jack
to a TV. You can operate this receiver using a
GUI (Graphical User Interface).
It is not necessary to connect all the cables.
Connect audio and video cords according to
the
jacks of your components.
Audio signals Video signals
TV monitor
oOptical digital cord (not supplied)
oAudio cord (not supplied)
eComponent video cord (not supplied)
eHOMI cable (not supplied)
GSvideo cord (not supplied)
GVideo cord (not supplied)
20
GB
