Sony CD259STA-40S-D User manual

Specification
Model CD259STA-40S-D
Image Sensor 1/2.8" SONY IMX2441+291 2.1MP
Resolution 1080P
Signal System PAL / NTSC
Minimum Illumination 0.01Lux/F1.2
S/N Ratio More than 52 dB
Synchronous System Internal
IR Distance No IR Board
IR Power On Photodiode AUTO Control
Video Output CVBS / CVI / TVI / AHD
Power/Current DC12V / AC24V (+/-10%)/800mA
Lens 2.8-12mm Manual Zoom Lens
Weather Proof IP66
Dimension (mm) ￠150 x 127(H)
Weight (g) 1092
Operating Conditions -10~+50℃ RH95% MAX
CD259STA-40S-D
4in1 SONY Starvis Weatherproof
Vandalproof Varifocal Camera
Name Number
Camera 1
User Guide 1
Thank you for using our product.
Before providing power for the camera, please read
this manual carefully before use.
Accessories list
We adopt the latest technical of sensor and driver.
It owns the characters of high definition and stability,
strong anti-jamming, rich and real color. Fixing and
using this model are convenient too. It is very good
for you to apply to your CCTV system.
*pictures and specifications subject to change or
typographical errors without notice
Notes:
Do not attempt to disassemble the camera. If the camera
can not work, please contact local franchiser or our company.

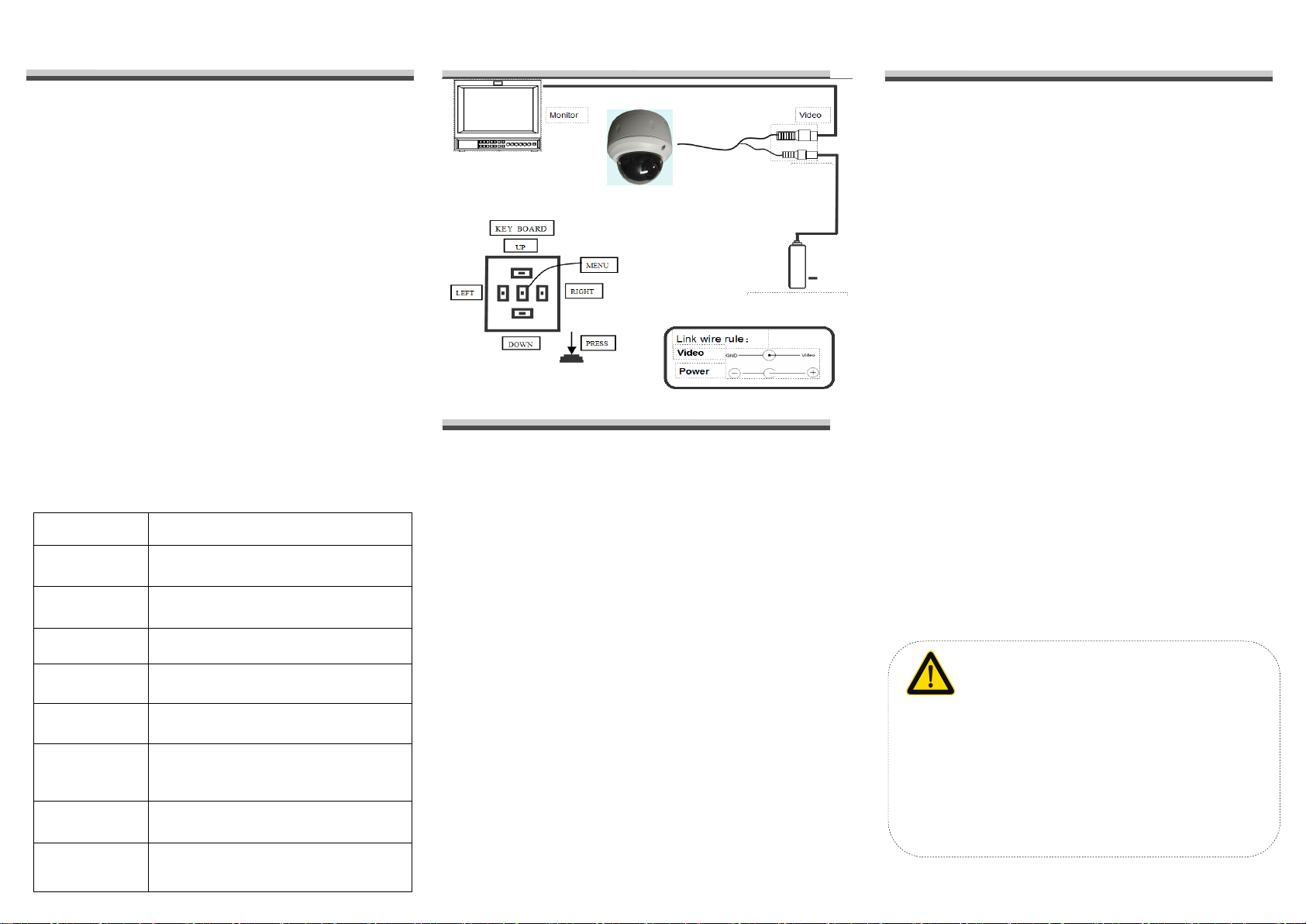

Main Features Device connection
> No Picture after providing power
May be the power supply voltage abnormity, please check
he power supply voltage and pole whether exactitude.
Please check all the connecting cable and monitors whether
be connected correctly or not.
> The picture level direction have flowing interference
ripples
May be caused by the power supply AC ripples, it need filter
the wave of the power supply.
Check the monitor and peripheral equipments used.
> The picture background color changes continuously
The fluorescent lamp’s electromagnetic field cause color roll.
This is proper phenomenon of the cameras.
Reduce the fluorescent lamp numbers or increase the
distance between the camera and the fluorescent lamps can
improve it.
Use power supply external sync. camera can solve it.
> The picture smear too mass
The power supply’s voltage unstable.
Connecting cables not connect correctly or have high
impedance.
Common Problems and Troubleshooting
1.Before using the camera ,please read this manual carefully and
keep it safely for later use.
2.Installation should be proceed by professional service and follow
manufacturer’s instructions, do not dismantle without authoriza
tion.
3.In order to prevent sensor ,do not expose lens to intense light
source in long time.
4.Do not touch sensor directly. Please covers the dustproof cover
when the camera is not being used.
5.Please use a dry soft cloth to clean the camera. If dirt difficult to
clean, use detergent with water and wipe dry the camera.
6.Do not install camera under air conditioning’s air gate ,or else
lens blur with condensation of moisture.
7.Please ensure that all electric power sources are turned off
when not open , installation ,clean, etc operation.
8.Please transporting , using and storing the camera in allowable
temperature and humidity.
9.If the camera was broken, for example power cord or plug dam-
aged,Splash liquid or foreign matter fall into camera, raining,
wetting, etc can’t work situation, please contact manufacturer
or maintenance center (modify and maintenance without perm
ission, you must be responsible for the problems).
Safety instruction
> Auto Gain Control (AGC)
Built-in auto gain control (AGC) circuit. The color camera
Can get high definition picture in low Lux condition.
> Auto Electronic Shutter (AES)
Built-in auto electronic shutter function. The color
camera’s AES speed can reach 1/100,000s.
> Scanning Mode
NTSC or PAL mode.
> Signal Switch
CVI MODE: hold up key 5s.
TVI MODE : hold down key 5s.
CVBS MODE : hold left key 5s.
AHD MODE : hold right key 5s.
Press towards desired video technology for 5 sec. within 10
sec. of connecting power.
> Menu
Note:
• Please note the camera’s operating temperature and its
using environment requirement. Avoid using the camera
at too high or too low temperatures. The operating tem
perature is -30~+60℃. (Recommendatory operating tem
perature is -10~+50℃.)
• Do not mount the camera near by the radiator or heater.
*All logos and copyright belong to their respective owners
Lens MANUAL / AUTO
EXPOSURE SHUTTER / AGC /SENS-UP / BRIGHT-
NESS / D-WDR / DEFOG
BACKLIGHT OFF / BLC / HSBLG
WHITE BAL ATW
DAY&NIGHT D→N / N→D / RETURN
NR 2DNR / 3DNR / RETURN
SPECIAL
CAM TITLE / D-EFFECT / MOTION /
PRIVACY / LANGUAGE / DEFECT /
RS485 / RETURN
ADJUST SHARPNESS / MONITOR / LSC / VID-
EO OUT / RETURN
EXIT SAVE / CANCLE
DC12V/AC24V Power Supply
DC12V/AC24V
