Sony SSC-CD33V User manual

EIA/NTSC
Mini Fixed Dome Cameras
SSC-MD53V/CD53V
SSC-MD33V/CD33V
SSC-MD53V/CD53V
SSC-MD33V/CD33V
SON45412_SSCMD53V 5/30/01 3:52 PM Page 1

Sony is proud to introduce the SSC-MD53V, SSC-CD53V, SSC-MD33V, SSC-CD33V - four mini
dome cameras to its extensive range of surveillance video cameras.
More discreet than non-dome security cameras, the mini dome cameras are ideal for
surveillance sites where cameras are less noticeable such as building entrances, retail stores,
shopping malls, etc. In addition to the discreetness, Sony’s original sleek triangular design of
the cameras fits smartly into a wide variety of surveillance sites.
To accommodate user requirements, Sony provides a choice of four models, which differ in the
body strength (rugged/normal) and signal system (EIA/NTSC). The rugged models, SSC-MD53V
and SSC-CD53V, are not only built to withstand high impacts, but are also rated IP66, making
them suitable for use in outdoor environments. The SSC-MD33V and the SSC-CD33V, on the
other hand, are normal domes for use indoors in CCTV applications.
All four models are equipped with auto iris vari-focal lenses, with a focal length of 2.8 to 5.8
mm to cover a broader range of viewing choices. Moreover, incorporating 1/4" type Super HAD
CCD™offers exceptionally high resolution of 570 TV lines (B/W) or 480 TV lines (color) and
excellent sensitivity. All the models can use either DC 12 V and AC 24 V and can automatically
switch to either of the two modes upon supplying power.
FEATURES
Rugged Design (SSC-MD53V and SSC-CD53V only)
The SSC-MD53V and SSC-CD53V are equipped with heavy duty aluminum diecast enclosures,with a durable
polycarbonate viewing window, and comply with IP66 standard. The entire camera enclosure is durable enough to
withstand strong impacts from outside. As a further deterrence to tempering, anti-theft screws are utilized.
Built-in auto iris vari-focal lens
The focal length of the vari-focal lens is 2.8 to 5.8 mm, approximately 2x zoom. The large angle of view range:
75.9° to 37.8° (H), 56.4° to 28.4° (V) covers a wide range of viewing areas.
High picture quality
The 1/4" type Super HAD CCD allows the camera to achieve a horizontal resolution of over 570TV lines (B/W) or 480
TV lines (Color) and excellent sensitivity of 0.4 lx (B/W) or 2.0 lx (Color) (AGC On, F1.4, 50 IRE,clear cover).
AC 24 V/DC 12 V Operation
Either of AC 24 V 60Hz,or DC 12 V is selected automatically for proper operation.
■Vari-focal lens, wide angle of view
Horizontal Vertical
37.8°28.4°
75.9°
56.4°
SON45412_SSCMD53V 5/30/01 3:53 PM Page 2

FEATURES
Easy mounting and installation
Incorporated lens allows for easy picture adjustment after installation. The
position of the vari-focal lens can be freely rotated 360°horizontally allowing
for easy changes in the viewing area after installation. The camera employs a
Sony unique “lens adjustment screw”.
External sync line lock (for AC only)
These cameras feature AC line lock for external synchronization. Using the AC power frequency (60 Hz) as the
vertical sync reference provides roll-free switching in multi-camera installations. These cameras also have an
externally adjustable Vertical Phase (±90°) control, so that proper synchronization can be attained.
AGC/Turbo AGC™
AGC function boosts camera’s video gain so that the subject under low illumination can be distinguished more
clearly. Turbo AGC (up to 24 dB)/Normal AGC (up to 18 dB) switchable.
BLC ON/OFF
Center weighted backlight compensation is offered to make the subject more easily visible under strong backlight
conditions.
Wide range ATW
The white balance automatically adjusts in response to varying light conditions, resulting in pictures with an
appropriate color balance.
ATW color range: 2200 K to 10000 K
Ceiling Surface Mount (Normal model)Ceiling Flush Mount (Normal model) *Optional In-ceiling bracket is required.
■Adjustment range of lens angle
Center
Wall
a
b
b
c
c
d
Ceiling
a
b
b
d
c
c
Mounting the camera on a ceiling
a. Approx. 70°:Range of adjusted angle
b. 28.4°:View angle (Tele)
c. 56.4°:View angle (Wide)
d. Approx. 20°:Maximum angle
Mounting the camera on a wall
a. Approx. 35°: Range of adjusted angle
(Toward ground)
Approx. 70°: Range of adjusted angle
(Toward ceiling)
b. 28.4°:View angle (Tele)
c. 56.4°:View angle (Wide)
d. Approx. 55°: Maximum angle
(Toward ground)
Approx. 20°: Maximum angle
(Toward ceiling)
Center
SON45412_SSCMD53V 5/30/01 3:54 PM Page 3

Printed in U.S.A.
S-MINIDOME
© 2001 Sony Corporation. All rights reserved.
Reproduction in whole or in part without written permission is prohibited.
Features and specifications are subject to change without notice.
All non-metric weights and measures are approximate.
Super HAD CCD and Turbo AGC are trademarks of Sony Corporation. Sony is a registered trademark of Sony Corporation.
All other trademarks are the property of their respective owners.

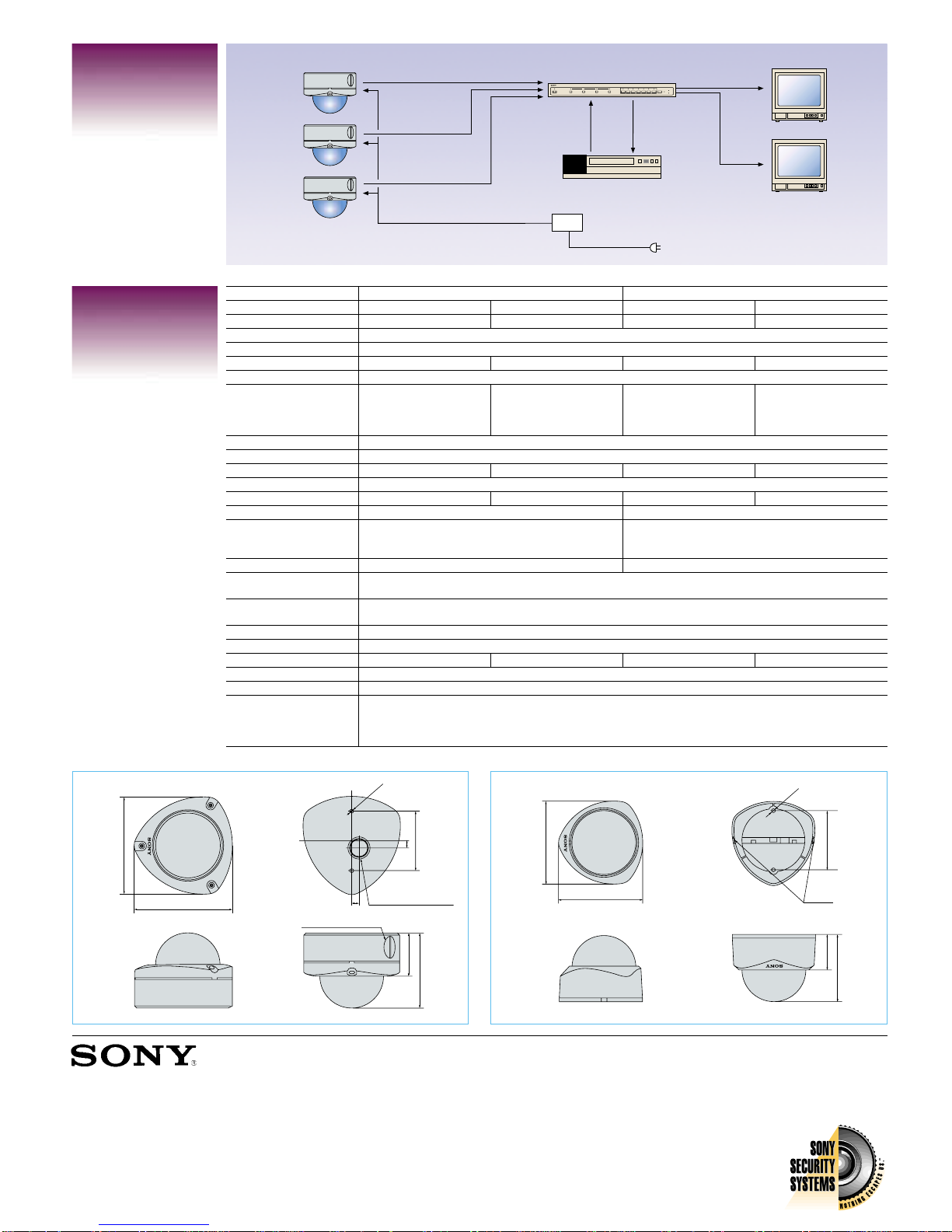

Rugged Type Normal Type
Model name SSC-MD53V SSC-CD53V SSC-MD33V SSC-CD33V
Signal system EIA NTSC EIA NTSC
Image device 1/4" type IT CCD
Picture elements 768 (H) x 494 (V)
Horizontal resolution 570 TV lines 480 TV lines 570 TV lines 480 TV lines
S/N ratio More than 50 dB (AGC Off,Weight On)
Minimum illumination 0.2 lx (AGC On, 1.2 lx (AGC On, 0.2 lx (AGC On, 1.2 lx (AGC On,
F1.4, 30 IRE, clear cover) F1.4, 30 IRE, clear cover) F1.4, 30 IRE, clear cover) F1.4, 30 IRE, clear cover)
0.4 lx (AGC On, 2.0 lx (AGC On, 0.4 lx (AGC On, 2.0 lx (AGC On,
F1.4, 50 IRE, clear cover) F1.4, 50 IRE, clear cover) F1.4, 50 IRE, clear cover) F1.4, 50 IRE, clear cover)
AGC Turbo AGC (up to 24 dB)/NormalAGC (up to 18 dB), switchable
Iris control mode Auto Iris Lens
White balance –ATW–ATW
Backlight compensation (BLC) On (Centre measured)/Off switchable
Video output signal VS (1 Vp-p, 75 Ω, BNC) VBS (1 Vp-p, 75 Ω, BNC) VS (1 Vp-p, 75 Ω, BNC) VBS (1 Vp-p, 75 Ω, BNC)
Rain proof IP66 –
Dimension Base approx. 5 1/2 (W) x 4 1/4 (H) x 5 1/2 (D) inches Base approx. 4 5/8 (W) x 4 3/4 (H) x 3 3/4 (D) inches
137 (W) x 105 (H) x 138 (D) mm) (117 (W) x 95 (H) x 118 (D) mm)
Bubble approx. 3 5/8inches (91 (ø) mm) Bubble approx. 3 5/8inches (91 (ø) mm)
Weight Approx.1 lb 14 oz (870 g) Approx. 11 oz (320 g )
Built-in lens Vari-focal lens
f-2.8 to 5.8, from F1.4 Auto iris
View angle W95.7° (D), 75.9° (H), 56.4° (V)
T47.3° (D), 37.8° (H), 28.4° (V)
Input voltage AC 24 V/ 60Hz DC 12 V
Synchronization system Internal or Line lock (for AC 24 V),60Hz
Power consumption 2.3 W 3.5 W 2.3 W 3.5 W
Operating temperature -4°F to 122°F (-20°C to 50°C)
Relative operating humidity 20 % to 80 % (non condensing)
Optional accessories YT-LDC53V Clear dome cover for SSC-MD53V, SSC-CD53V
YT-LDC33V Clear dome cover for SSC-MD33V, SSC-CD33V
YT-ICB53V In-ceiling bracket for SSC-MD53V, SSC-CD53V
YT-ICB33V In-ceiling bracket for SSC-MD33V, SSC-CD33V
Typical System
Specifications
Multiple camera operation Video Monitor
Time Lapse VCR
DC 12 V/AC 24 V
Power supply
AC outlet
Multiplexer
138
137
83.5
105
60.5 10
10
2–ø4.5
Threaded for 3/4-inch Conduit
Unit: mm
Threaded for 3/4-inch Conduit
Plug Supplied
Top View
Side View
Rear View
Front View
Unit: mm
118
117
83.5
2–ø5
50.5
95
Knockout
Top View
Side View
Rear View
Front View
■SSC-MD33V, SSC-CD33V■SSC-MD53V, SSC-CD53V
