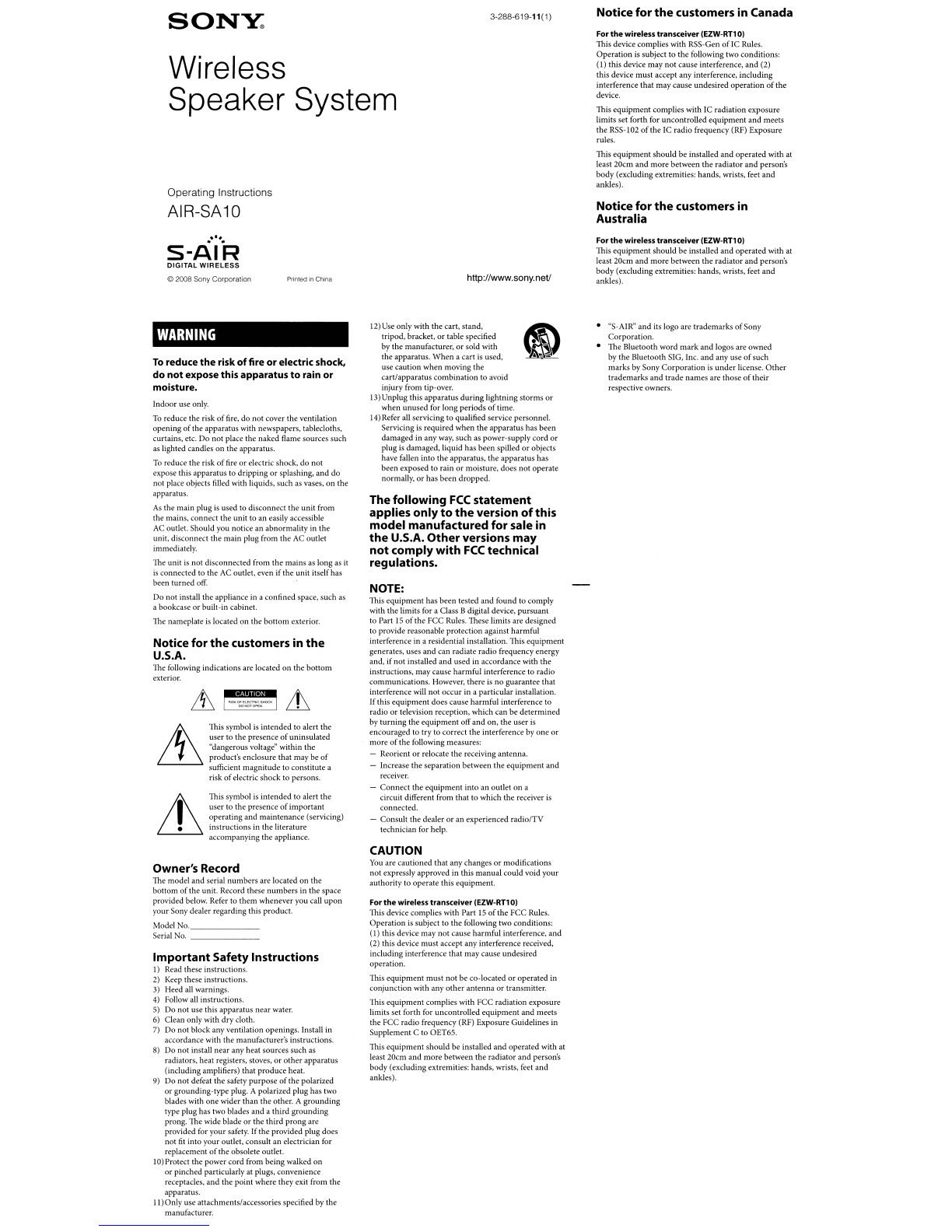

Sony AIR-SA10 User manual

SONY:
Wireless
Speaker System
Operating Instructions
AIR-SA10
3-288-619-11(1)
Notice for the customers in Canada
For the wireless transceiver (EZW-RTl 01
This device complies with RSS-Gen of IC Rules.
Operation is subject to the following two conditions:
(1) this device may
not cause interference, and (2)
this device must accept any interference, including
interference that may cause undesired operation
of the
device.
This
equipment complies with Ie radiation exposure
limits set forth for uncontrolled equipment and meets
the RSS-102
of the IC radio frequency (RF) Exposure
rules.
This equipment should be installed and operated with at
least 20cm
and more between the radiator and person's
body (excluding extremities: hands, wrists, feel and
ankles).
Notice for the customers in
Australia
.• 1_.
S-AIR
DIGITAL WIRELESS
©2008 Sony Corporation Printed in China http://www.sony.neV
For the wireless transceiver (EZW-RTlO)
This equipment should be installed and operated with at
least 20cm and more between the radiator and person's
body (excluding extremities: hands, wrists, feet and
ankles).
WARNING
To reduce the risk of fire or electric shock,
do not expose this apparatus to rain or
moisture.
Indoor use only.
To reduce the risk of fire, do not cover the ventilation
opening of the apparatus with newspapers, tablecloths,
curtains, etc. Do not place the naked flame sources such
as lighted candles on the apparatus.
To reduce the risk of fire or electric shock, do not
expose this apparatus to dripping or splashing, and do
not place objects filled with liquids, such as vases, on the
apparatus.
As the main plug is used to disconnect the unit from
the mains. connect the unit to an easily accessible
AC oullet. Should you notice an abnormality in the
unit, disconnect the main plug from the AC outlet
immediately.
The unit is not disconnected from the mains as long as it
is connected to the AC outlet, even if the unit itself has
been turned off.
Do not install the appliance in aconfined space, such as
abookcase
or built-in cabinet.
The nameplate
is located on the bottom exterior.
Notice for the customers in the
U.S.A.
The following indications are located on the bottom
exterior.
&This symbol
is intended to alert the
~
user to the presence of uninsulated
"dangerous voltage" within the
product's enclosure that may be
of
sufficient magnitude to constitute a
risk
of electric shock to persons.
This symbol
is intended to alert the
user to the presence
of important
operating and maintenance (serVicing)
instructions in the literature
accompanying the appliance.
Owner's Record
The model and serial numbers are located on the
bottom
of the unit. Record these numbers in the space
provided below. Refer to
them whenever you call upon
your Sony dealer regarding this product.
~~i~~I~~. ---
Important Safety Instructions
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with
dry cloth.
7) Do not block any ventilation openings. Install in
accordance with the manufacturer's instructions.
8) Do
not install near any heat sources such as
radiators, heat registers, stoves,
or other apparatus
(including amplifiers) that produce heat.
9) Do not defeat the safety
purpose of the polarized
or grounding-type plug. Apolarized plug has two
blades with
one wider than the other. Agrounding
type plug has two blades and athird grounding
prong. The wide blade
or the third prong are
provided for your safety. Ifthe provided plug does
not
fit into your outlet, consult an electrician for
replacement
of the obsolete outlet.
10) Protect the power cord from being walked on
or pinched particularly at plugs, convenience
receptacles, and the point where they exit from the
apparatus.
II)Only use attachments/accessories specified by the
manufacturer.
12) Use only with the cart, stand,
tripod, bracket,
or table specified
by the manufacturer,
or sold with
the apparatus.
When acart is used,
use caution when moving the
cart/apparatus combination to avoid
injury from tip-over.
13)Unplug this apparatus
during lightning storms or
when unused for long periods of time.
14) Refer all servicing to qualified service personnel.
Servicing
is required when the apparatus has been
damaged in any
way, such as power-supply cord or
plug is damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus has
been exposed
to rain or moisture, docs not operate
normally,
or has been dropped.
The following FCC statement
applies only to the version of this
model manufactured for sale in
the U.S.A. Other versions may
not comply with FCC technical
regulations.
NOTE:
'Inis equipment has been tesled and found to comply
with
the limits for aClass Bdigital device, pursuant
to Part 15 of the FCC Rules. These limits are deSigned
to provide reasonable protection against harmful
interference in aresidential installation. This equipment
generates, uses and can radiate radio frequency energy
and,
if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there
is no guarantee that
interference will not
occur in aparticular installation.
Ifthis equipment does cause
harmful interference to
radio
or television reception, which can be determined
by
turning the equipment off and on, the user is
encouraged to try to correct the interference by one or
more of the following measures:
-Reorient
or relocate the receiving antenna.
-Increase the separation between the equipment and
receiver.
- Connect the equipment into an outlet on a
circuit different from that to which the receiver
is
connected.
-Consult the dealer
or an experienced radio/TV
technician for help.
CAUTION
You arc cautioned that any changes or modifications
not expressly approved in this manual could void your
authority to operate this equipment.
For the wireless transceiver (EZW-RTl 0)
This device complies with Part 15 of the FCC Rules.
Operation
is subject 10 the following two conditions:
(I) this device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause undesired
operation.
This equipment must
not be co-located or operated in
conjunction with any other antenna or transmitter.
'Inis equipment complies with FCC radiation exposure
limits set forth for uncontrolled equipment and meets
the FCC radio frequency (RF) Exposure Guidelines in
Supplement Cto OET65.
This equipment should be installed and operated with at
least 20cm
and more between the radiator and person's
body (excluding extremities: hands, wrists, feet and
ankles).
•"S-AIR"
and its logo are trademarks of Sony
Corporation.
•The Bluetooth word
mark and logos are owned
by the Bluetooth SIG, Inc.
and any use of such
marks
by Sony Corporation is under license. Other
trademarks and lrade names are those of their
respective owners.
