SONY.
Compact
Hi-Fi Stereo System
Operating instructions
lise
LBT-D170
LBT-D270
LBI-G1100
LBT-G3100
© 1995 by Sony Corporation

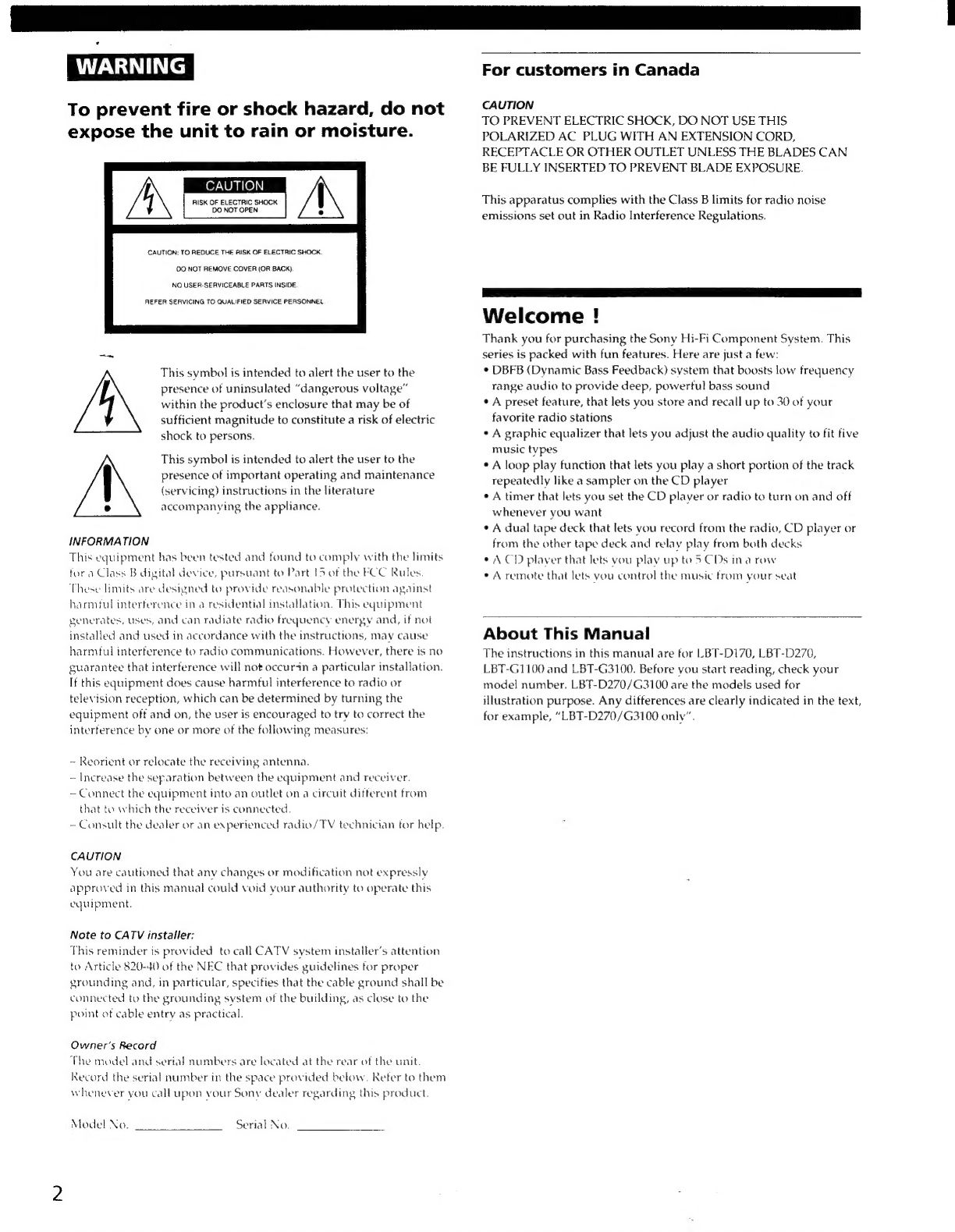

| WARNING |
To prevent fire or shock hazard, do not
expose the unit to rain or moisture.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK.
DO NOT REMOVE COVER (OR BACK).
NO USER-SEAVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
This symbol is intended to alert the user to the
presence of uninsulated “dangerous voltage”
within the product’s enclosure that may be of
sufficient magnitude to constitute a risk of electric
shock to persons.
This symbol is intended to alert the user to the
presence of important operating and maintenance
(servicing) instructions in the literature
accompanying the appliance.
INFORMATION
This equipment has been tested and tound to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no
guarantee that interference will not occurin a particular installation.
If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
~ Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
— Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician tor help.
CAUTION
You are cautioned that any changes or modification not expressly
approved in this manual could void your authority to operate this
equipment.
Note to CATV installer:
This reminder is provided to call CATV system installer’s attention
to Article 820-40 of the NEC that provides guidelines tor proper
grounding and, in particular, specifies that the cable ground shall be
connected to the grounding system of the building, as close to the
point of cable entry as practical.
Owner’s Record
The model and serial numbers are located at the rear of the unit.
Record the serial number in the space provided below. Refer to them
whenever you call upon vour Sony dealer regarding this product.
Model No. Serial No.
For customers in Canada
CAUTION
TO PREVENT ELECTRIC SHOCK, DO NOT USE THIS
POLARIZED AC PLUG WITH AN EXTENSION CORD,
RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN
BE FULLY INSERTED TO PREVENT BLADE EXPOSURE.
This apparatus complies with the Class B limits for radio noise
emissions set out in Radio Interference Regulations.
[eee eens es ey
Welcome !
Thank you for purchasing the Sony Hi-Fi Component System. This
series is packed with fun features. Here are just a few:
e DBFB (Dynamic Bass Feedback) system that boosts low frequency
range audio to provide deep, powerful bass sound
e A preset feature, that lets you store and recall up to 30 of your
favorite radio stations
e A graphic equalizer that lets you adjust the audio quality to fit five
music types
e A loop play function that lets you play a short portion of the track
repeatedly like a sampler on the CD player
¢ A timer that lets you set the CD player or radio to turn on and off
whenever you want
¢ A dual tape deck that lets vou record from the radio, CD player or
from the other tape deck and relay play from both decks
e ACD plaver that lets vou play up to 5 CDs ina row
è A remote that lets you control the music from your seat
About This Manual
The instructions in this manual are for LBT-D170, LBT-1D270,
LBT-G1100 and LBT-G3100. Before you start reading, check your
model number. LBT-D270/G3100 are the models used for
illustration purpose. Any differences are clearly indicated in the text,
for example, “LBT-D270/G3100 only”.

Chapter 1: Setting Up
rs
|
e
o)
Connecting
the
Stereo
4
Inserting the Batteries 6
Contents Biase
Chapter 2: the CD Player
Playing CDs (normal play) 7
Playing Tracks in Random Order (shuffle play) 8
Playing Tracks in the Desired Order (program play) 8
Playing Tracks Repeatedly (repeat play) 9
Playing Tracks with Repeating a Specified Portion (loop play) 10
Chapter 3: the Radio

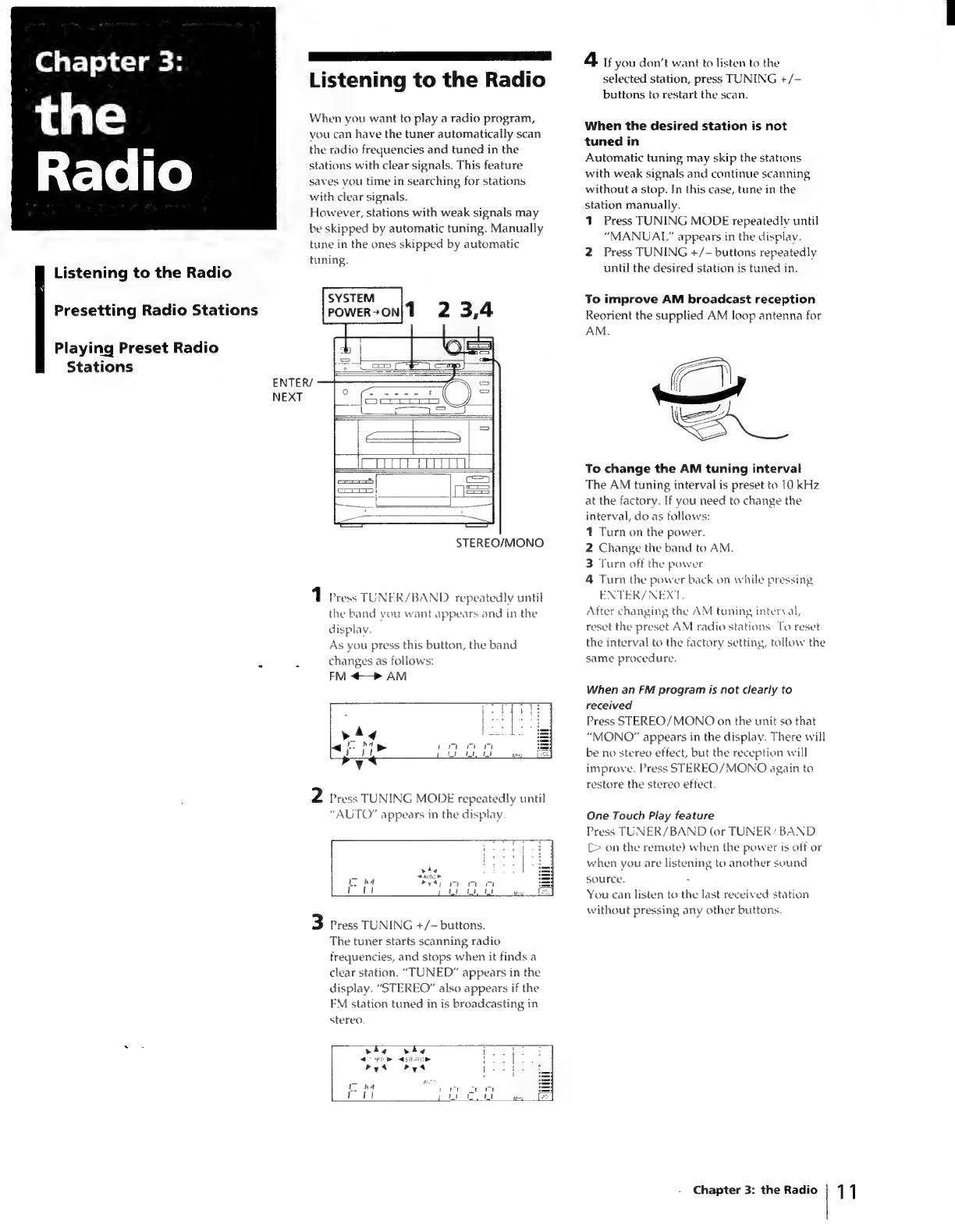

Listening to the Radio 11

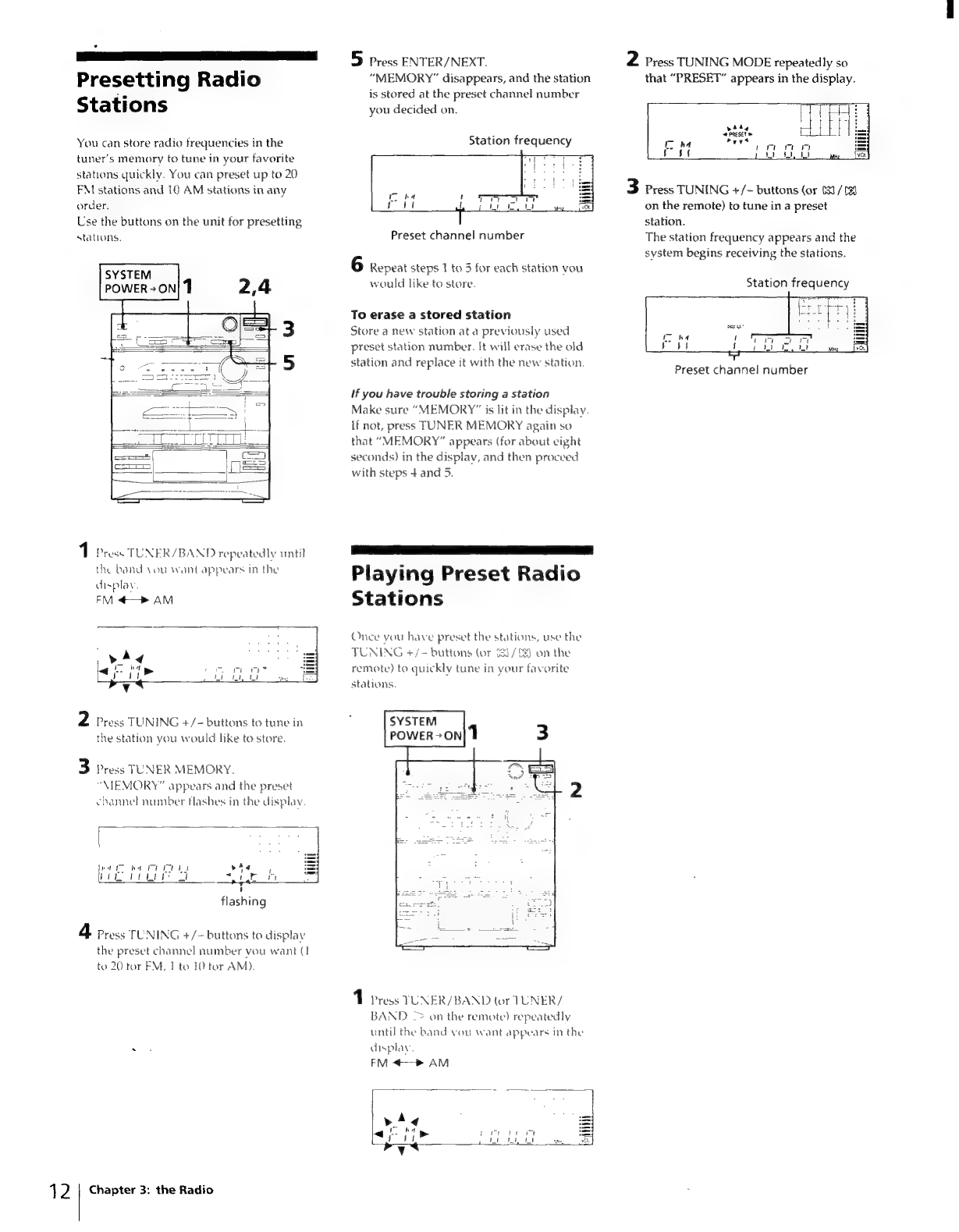

Presetting Radio Stations 12
Playing Preset Radio Stations 12
Chapter 4: the Tape Player
Playing a Tape 13
RecordingaCD 13

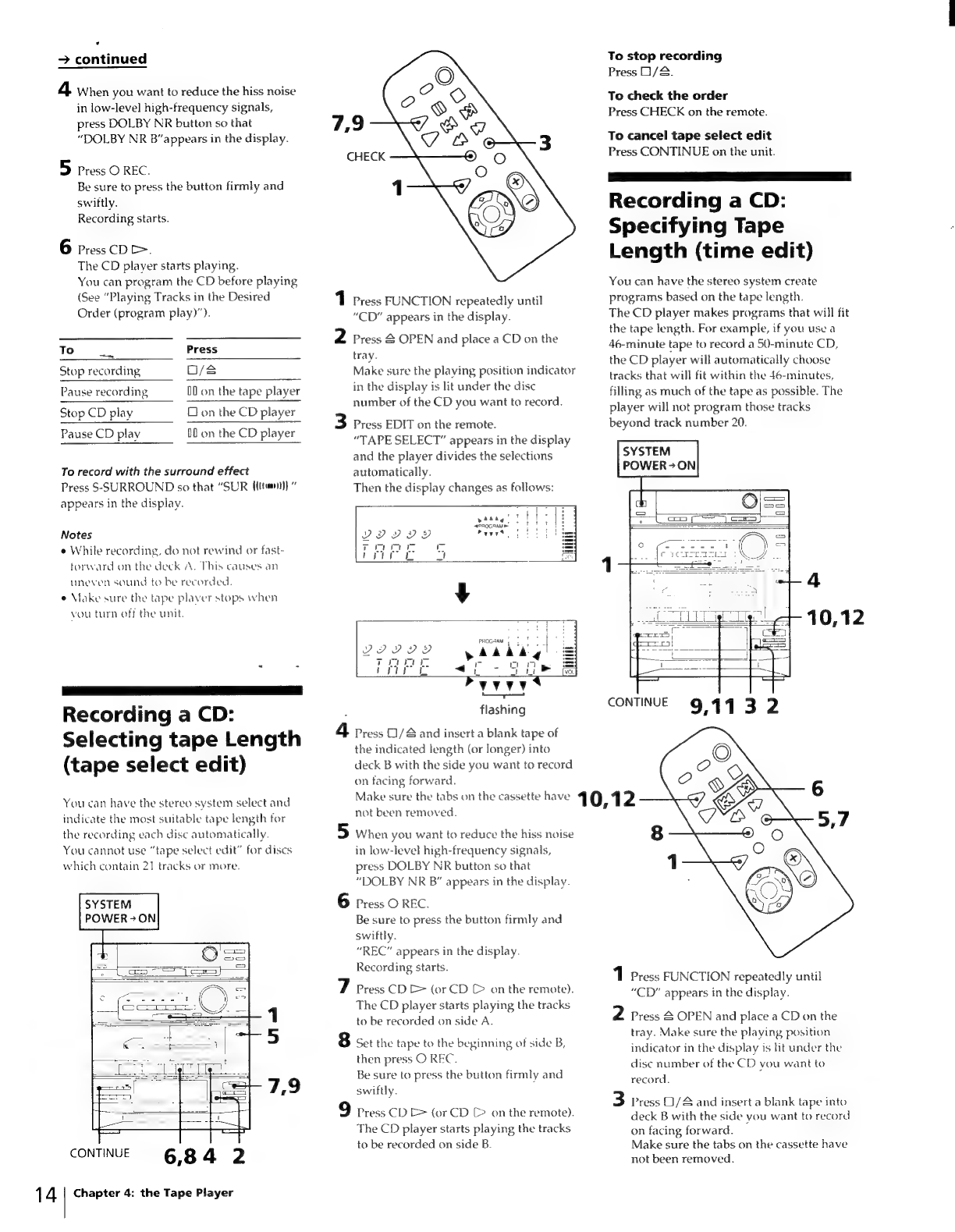

Recording a CD: Selecting Tape Length (tape select edit) 14
Recording a CD: Specifying Tape Length (time edit) 14
Recording From the Radio 15
Recording From Another Tape (dubbing) 15
Chapter 5: Sound Adjustment

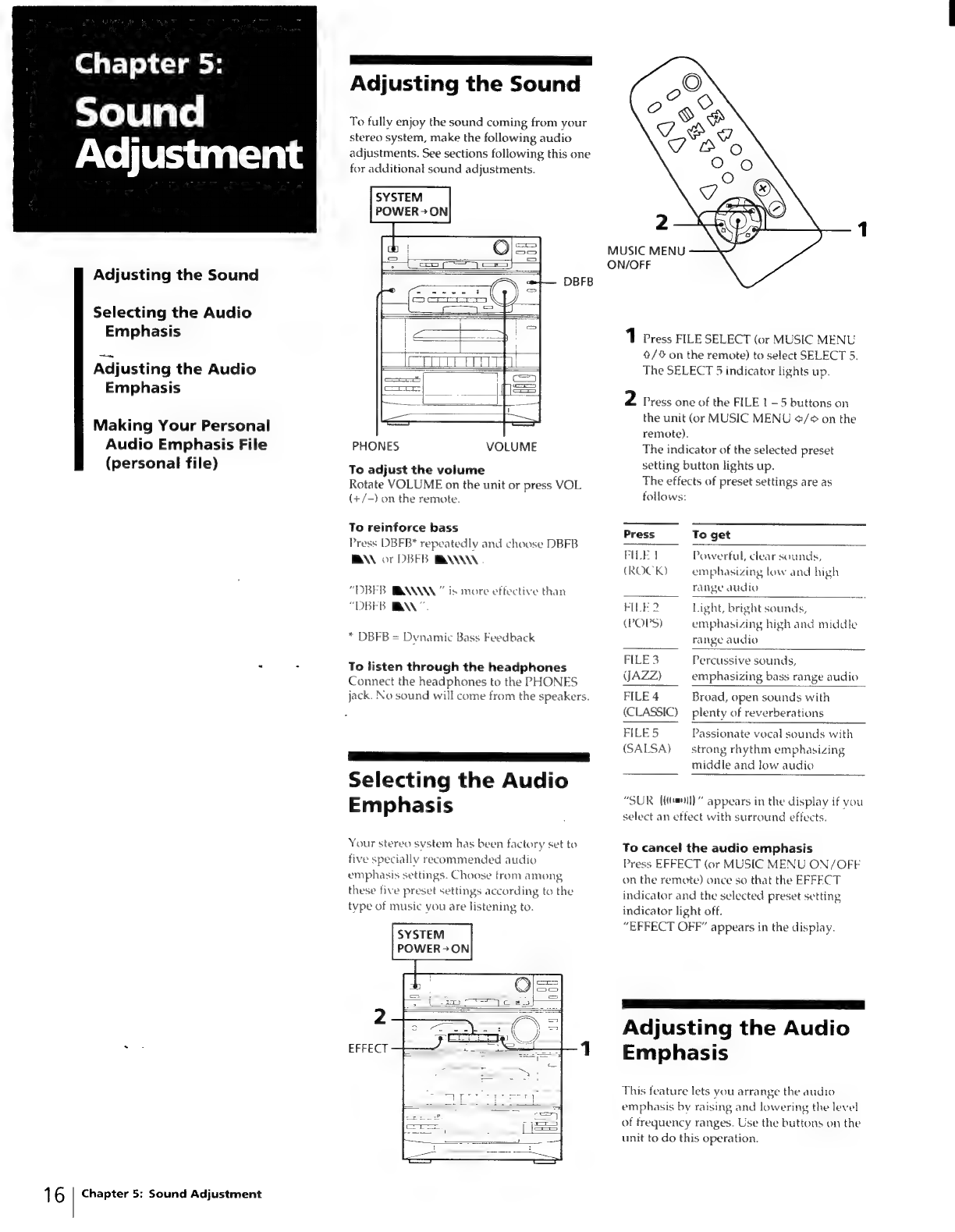

Adjusting the Sound 16
Selecting the Audio Emphasis 16
Adjusting the Audio Emphasis 16

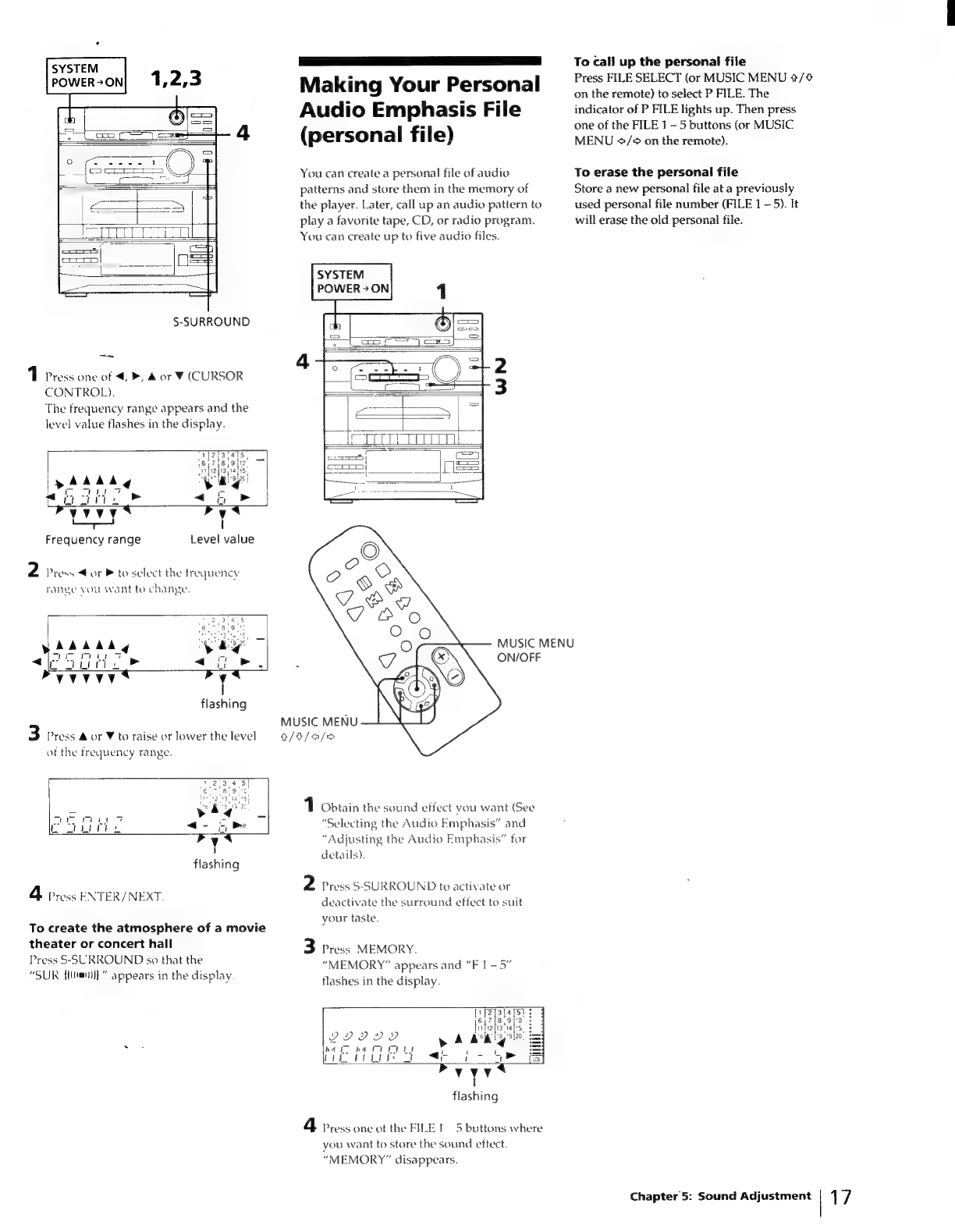

` 2 Making Your Personal Audio Emphasis File (personal file) 17
Chapter 6: Additional Features
Falling Asleep to Music 18
Waking up to Music 18
Connecting Optional Equipment 19
For Your Information

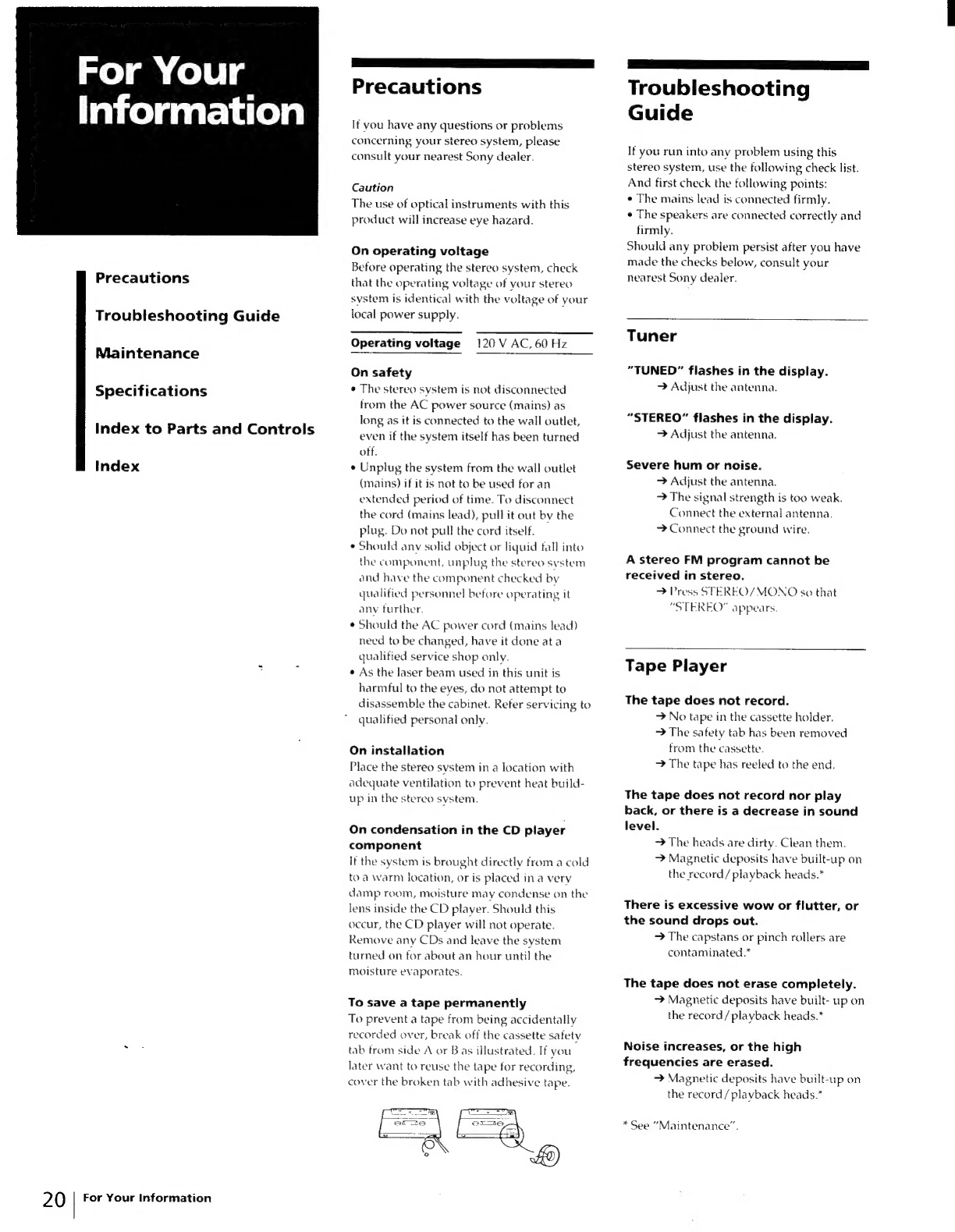

Precautions 20
Troubleshooting Guide 20
Maintenance ?1
Specifications 21
Index to Parts and Controls 22
Index 23

|

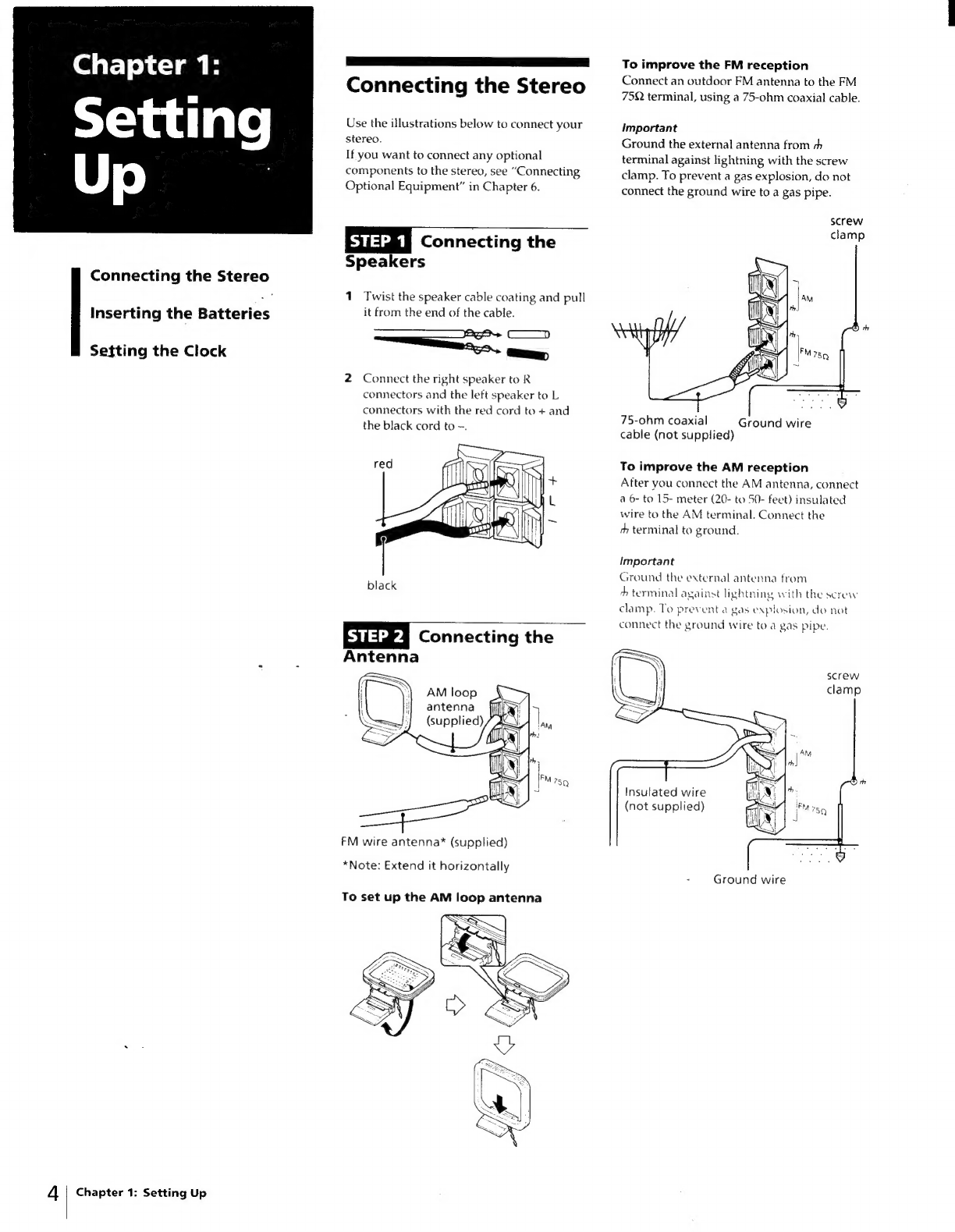

Connecting the Stereo
Chapter 1:
Use the illustrations below to connect your
stereo.
If you want to connect any optional
components to the stereo, see “Connecting
Optional Equipment” in Chapter 6.
Connecting the
Speakers
Connecting the Stereo
f 1 Twist the speaker cable coating and pull
it from the end of the cable.
=
bat)
2 Connect the right speaker to R
connectors and the left speaker to L
connectors with the red cord to + and
the black cord to ~.
Inserting the Batteries
Setting the Clock
Connecting the
Antenna
AM loop
antenna
(supplied)
FM wire antenna®* (supplied)
*Note: Extend it horizontally
To set up the AM loop antenna
4 | Chapter 1: Setting Up
To improve the FM reception
Connect an outdoor FM antenna to the FM
75Q terminal, using a 75-ohm coaxial cable.
important
Ground the external antenna from h
terminal against lightning with the screw
clamp. To prevent a gas explosion, do not
connect the ground wire to a gas pipe.
screw
clamp
75-ohm coaxial Ground wire
cable (not supplied)
To improve the AM reception
After you connect the AM antenna, connect
a 6- to 15- meter (20- to 50- feet) insulated
wire to the AM terminal. Connect the
rh terminal to ground.
Important
Ground the external antenna from
+ terminal against lightning with the screw
clamp. To prevent a gas explosion, do not
connect the ground wire to a gas pipe.
Insulated wire
(not supplied)
- Ground wire

AM loop antenna (supplied)
Right speaker
FM antenna
(supplied)
Left speaker
to a wall outlet Sama
ISTEP 3| Connecting the
Power
`
Connect the AC power cord to a wall outlet
after you have made all the above
connections.
to a wall outlet
Demo mode
: i
| The demo mode appears in the display
when vou connect the AC power cord to
a wall outlet. To deactivate the demo
mode, press DISPLAY / DEMO when the |
| system power is off.
+
'Do this connection last!
Note
¢ When vou turn on the system power for
the first time, the disc tray starts rotating
and the disc calendar (2 YYP LP )in
the display disappear one by one.
You can operate the CD player after the
disc trav stops rotating and “no DISC”
appears in the display.
Chapter 1: Setting Up | 5

6
|
Inserting the Batteries
Install two size AA (R6) batteries in the
supplied for remote control.
1 Open the lid.
2 Insert two R6 (size AA) batteries.
Match the + and - to the diagram in the
battery compartment.
a
3 Close the lid.
Battery life
You can expect the remote control to
operate for about six months (using Sony
SUM-3 (NS) batteries) before the batteries
rundown. When the batteries no longer
operate the remote, replace all the batteries
with new ones.
To avoid battery leakage
If vou are not going to use the remote for a
long time, remove the batteries to avoid
damage caused by corrosion from battery
leakage.
Chapter 1: Setting Up
ES rae
Setting the Clock
The built-in clock shows the time in the
display.
3,5
DISPLAY/
DEMO
1 Press CLOCK SET.
The “AM” and hour indication begin
flashing.
flashing
2 Set the current hour by pressing <4 or >
(CURSOR CONTROL) until the correct
hour appears.
flashing
3 Press ENTER/NEXT.
The minutes indication begins flashing.
A
I ha FESS IA
rust an u
vy
I
flashing
Å set the current minute by pressing < or
> until the correct minute appears.
flashing
5 press ENTER/NEXT.
The clock starts running and the upper
dot flashes. Use the time signal to set the
clock accurately. The upper dot flashes
for the first half of a minute (0 to 29
seconds), and the lower dot flashes for
the last half of a minute (30 to 59
seconds).
To check the time
Press DISPLAY/DEMO a few times.
The current time appears for a few seconds.
To correct the clock setting
Repeat steps 1 to 5.

Cha pter 2: A 5 Close the front cover.
Playing CDs (normal Play starts automatically from the CD in
the loading position.
play) The playing position indicator lights
e under the disc number which is in the
After vou insert up to five CDs, you can playing position.
can play them in four modes: normal,
shuffle, program or repeat.
Before vou play a CD, decrease the volume
level by turning the VOLUME control
counterclockwise, to prevent damage to the
Playing CDs (normal play) speakers: Disc number Track number Playing time
SYSTEM When AUTO indicator is not lit
POWER >ON DISPLAY/DEMO Press CD © (or CD © on the remote) to
plav all tracks or discs in the original order . e
consecutively (normal play). Besides, you Playing position ;
5 4 indicator Disc calendar Music calendar
telr] T i
Playing Tracks in Random
Order (shuffle play)
play a CD.
Playing Tracks in the To Press
Desired Order (program Stop play oot)
play)
Pause
00
(00)
2
Resume
play
C>
or
I
(>*
or
00*)
Playing Tracks Repeatedly i r P : =
30 forward to uring play or pause,
(repeat
play)
another
track
press
AMS*
DDA
. : ((8)*'). Release when
Playing
Tracks
with
you
reach
the
track
Repeating a Specified vou desire.
Portion (loop play) Go back toa During plav or pause,
4 DISC 1-5 5 2 ag previous track press AMS*® KKI
(t, Release when
T Press FUNCTION repeatedly until a FEA eels
“CD” appears in the display. aay
CD is selected. Select a particular The corresponding
CD DISC 1 ~ 3 button* or
2 Press & OPEN and place a CD (label press DISC SKIP
: i side facing up) on the disc tray in the repeatedly
loading position. Remove or & OPEN”
exchange a CD
Remote
Auto Music Sensor
H there is no disc at that number, the
disc trav rotates and plays the next CD.
H there is no dise at that number with
the front cover opened, the disc tray
rotates to the loading position.
The disc tray rotates and brings the CD
in the playing position to the loading
position when ALTO is selected (the
AUTO indicator is lit).
3 Press DISC SKIP to place up to four
more CDs on the disc tray. et
The disc tray rotates so you can insert
other CDs.
4 Press CONTINUE on the unit to choose
heter to play “REISE oh ALL To remove or exchange the CD in the
DISCS: loading position while playing
RAAE Press & OPEN and remove or exchange the
Choose To play CD in the loading position.
1 DISC Only the CD you
have selected. Note
ALL DISCS AIL CDscconsbainvelv After exchange the CD in the loading
` in order. Empty dise position while plaving, the CD in the
fraveare skipped. loading position you exchanged is the next
J CD to be played when AUTO is selected.
i You can play a CD with little blank
22I ƏƏ “Sy between tracks (non-stop play)
L if page Hi Press and hold down CD E> on the CD
player.
Chapter 2: the CD Player | 7

To cancel non-stop play
Press O on the CD player.
Note
You cannot use this feature when the CD
play mode is SHUFFLE or PROGRAM.
Press CONTINUE so that “SHUFFLE” or
“PROGRAM” disappears from the display.
To locate a particular point in a track
You can locate a particular point in a track
while playing or pausing a CD. Use the
buttons on the unit to operate this feature.
To locate a Press
point
While DDA (forward) or KKI
(backward) and hold
down until you find the
point.
monitoring the
sounch
Quickly by DDA (forward) or KKI
observing the (backward) and hold
display during down until you find the
pause point. You will not hear
the sound during this
operation,
To check the remaining or total
playing time
Press DISPLAY /DEMO repeatedly.
Each time vou press DISPLAY /DEMO
while playing a CD, the display changes as
tollows:
aT. a
Playing time on the current track
Remaining time on the current
track
Remaining time on the CD (1
DISC play mode) or “PLAY”
indication (ALL DISCS play
mode) |
Clock (appears for a few seconds)
|
EFFECT ON/OFF or P FILE
name appears for a few seconds
in the display
TONENE
.
Note
0% + .--" appears in the display when the
total playing time is 100 minutes or more.
8 | Chapter 2: the CD Player
When AUTO indicator is lit
* The CD in the loading position starts
playing automatically when vou close the
front cover.
e The playing CD comes back to the
loading position when you stop playing
and open the front cover.
* When you exchange the CD while
playing, the exchanged CD is the next CD
to be played.
If you don’t want a CD functioned
described above, press AUTO so that the
AUTO indicator is not lit.
One Touch Play feature
Press CD D> (or CD © on the remote)
when the power is off. You can listen to the
last selected CD without pressing any other
buttons when a CD is in the player.
If you press CD © or DISC 1-5 while
another source is selected, the CD player is
selected and play starts automatically.
The Music Calendar Display
This display lights according to the number
of tracks on the CD. As each track is plaved,
the corresponding number disappears.
Tracks numbered in excess of 20 are not
displayed.
What the ” 2” and ”_” indicators of the
disc calendar indicate
e” 2” tight up with the disc numbers of
CDs you inserted. In ALL DISCS play
mode, “ 2” of the dise number
disappears when that CD finished
playing, and the CD tray rotates to play
the next CD. You can see which CDs are
not played vet with these indicators.
”_” (the playing position indicator)
_ indicates that the CD whose disc number
with ” ” is in the plaving position. When
MANUAL is selected (the AUTO
indicator is not lit), the CD whose disc
number with “_.” is played first if you
press CD >.
ESE ee U eee
Playing Tracks in
Random Order
(shuffle play)
You can play all the tracks on a CD or all
CDs in random order.
SYSTEM
POWER >ON
CONTINUE DISC 1-5
1 Press FUNCTION repeatedly until
“CD” appears in the display.
2 Press SHUFFLE to choose whether to
play “1 DISC” or “ALL DISCS”.
“ALI DISCS SHUFFLE” or “1 DISC
SHUFFLE” appears in the display.
pnizflajajs 3 |
ġo i
biddhdhy
2 YVINS A2UISC SHUHET H 16
yyy?
3 ress CD E> for CD
“13” appears and then all the tracks
slay in random order
To skip to the next track, press DDA.
To replay the current track, press KK.
You cannot replay the previous track.
on the remote).
To stop playing
Press O (or D on the remote).
To cancel shuffle play
Press CONTINUE on the unit.
To select the desired CD
Press DISC 1 - 5 on the unit during “1 DISC
SHUFFLE” play.
he ee ees
Playing Tracks in the
Desired Order
(program play)
You can program up to 32 tracks trom all
o
the CDs in the order you want them to be
plaved.

CONTINUE
SYSTEM
POWER>ON
1
2
Press FUNCTION repeatedly until
“CD” appears in the display.
Press DISC SKIP repeatedly (or DISC
1 = 5) to choose a CD.
Press PROGRAM.
“PROGRAM” appears in the displav.
-ress KKI or DA (or S/S on the
remote) to choose a track.
The chosen track number and the
plaving time flash for about 15 seconds
in the display.
Track number
cars Playing time
Press ENTER/ NEXT.
The chosen track is programmed and its
number lights up in the music calendar.
If the track number disappears before
you press ENTER/NEXT, go back to
step 3.
To program additional tracks from the
same CD, repeat steps 4 and 5.
To program additional tracks from
another CD, repeat steps 2 to 5.
Note
elt "--.--" appears instead of the total
playing time, this means
~vou have programmed a track
number which exceeds 20.
~the total time has exceeded 100
minutes.
6 Press CD © (or CD © on the remote).
All the tracks play in the order vou
chose.
To Press
CHECK on the
remote repeated y*!
00° (00 on the
remote)
Check the program
Program a pause
(1 (0 on the remote)
CONTINUE*
Stop play
Cancel the program
play
CLEAR on the
remote in stop mode
CHECK on the
remote repeatedly so
the number ot the
track Tights up, and
Erase a track from
the end
Erase a specitic
track
ress CEEAR on the
remote
Erase the entire L (J on the remote)
once in stop mode or
twice while playing
program
“After the last track appears, “CHECK
End” appears in the display.
“P” appears in the display and the total
playing time is reset to 0.00.
The program is erased
To change the order of programmed
tracks
Erase the entire program and create a new
one
The whole program is erased also when:
e vou select another play mode.
e vou exchange or remove the CDs.
Ee E EERE Oe a e
Playing Tracks
Repeatedly (repeat
play)
The repeat play function repeats a single
CD or all CDs in normal, program, and
shuttle plav.
In normal play mode only, the player can
also repeat a single track.
CONTINUE
SYSTEM
POWER >ON
Repeating all the tracks
1 Press REPEAT once so that “REPEAT”
lights up in the display.
REPES D
Io >ya
2 Press CD © (or CD œ on the remote).
To Press
CONTINUE repeatedly
until “1 DISC” appears
in the display
CONTINUE repeatedly
until “ALL DISCS”
appears in the display.
REPEAT repeatedly
until “REPEAT 1”
appears in the display
while playing the track
vou want to repeat.
Repeat all the
tracks on the
current CD
Repeat all the
tracks on all CDs
Repeat only one
track (in normal
play only)
To cancel repeat play
Press REPEAT so that “REPEAT” or
“REPEAT 1” disappears trom the display.
Ehapter 2: the CD Player
9

10
EEE Se ere
Playing Tracks with
Repeating a Specified
Portion (loop play)
You can play a short portion of the track
repeatedly like a sampler (loop play). It is
useful for making original dance music
style tapes.
Original song:
Hey, Come on everybody!
When you make the effect:
Hev, Co Co Co Co Come on every body!
SYSTEM
POWER > ON
1 Press the LOOP button on the remote.
You can choose the repeating time from
about 0.25 see. to about 1 see. for
NORMAL 1-5 and RHYTHM 1-5. For
more information on NORMAL and
RHYTHM, see “What is the difference
between NORMAL and RHYTHM 2?”
for details
7 NORMAL1 >= NORMAL2 ->= NORMAL3
RHYTHMS NORMAL4
RHYTHM= NORMALS
E= RHYTHM3 «— RHYTHM2 æ- RHYTHM1
You can get the longest repeating time
by selecting NORMAL (RHYTHM) 5,
and the shortest with NORMAL
(RHYTHM) 1.
Chapter 2: the CD Player
2 Press CD O> (or CD © on the remote).
The CD player starts playing.
3 Press and hold down the LOOP button
when the portion you want to repeat is
heard.
What is the difference between
NORMAL and RHYTHM?
NORMAL differs from RHYTHM in respect
to the restarting point of the music when
the loop effect ends in steps 3.
When you play the loop for five seconds
NORMAL
A A’
— g
LOOP play
In this case, the song restarts at the point
that you started the loop (A).
RHYTHM
A B
= LOOP play =
In this case, the song restarts at the point 5
sec. after vou started the loop (B).

Chapter 3:
P Listening to the Radio
the
When you want to play a radio program,
you can have the tuner automatically scan
the radio frequencies and tuned in the
stations with clear signals. This feature
saves you time in searching for stations
with clear signals.
However, stations with weak signals may
be skipped by automatic tuning. Manually
tune in the ones skipped by automatic
tuning.
SYSTEM
rowesvonl1 2 3,4
Radio
Listening to the Radio
XN
Presetting Radio Stations
Playing Preset Radio
Stations
ENTER/
NEXT
STEREO/MONO
1 Press TUNER/BAND repeatedly until
the band you want appears and in the
display.
As you press this button, the band
changes as follows:
FM <+—> AM
2 Press TUNING MODE repeatedly until
“AUTO” appears in the display.
ya
Mauk
I, y mrt
1 oS pit tl
L
ot tod, Mog
<
>
a
3 Press TUNING +/- buttons.
The tuner starts scanning radio
frequencies, and stops when it finds a
clear station. “TUNED” appears in the
display. “STEREO” also appears if the
FM station tuned in is broadcasting in
stereo.
Ais you don’t want to listen to the
selected station, press TUNING +/-
buttons to restart the scan.
When the desired station is not
tuned in
Automatic tuning may skip the stations
with weak signals and continue scanning
without a stop. In this case, tune in the
station manually.
1 Press TUNING MODE repeatedly until
“MANUAL” appears in the display.
2 Press TUNING +/- buttons repeatedly
until the desired station is tuned in.
To improve AM broadcast reception
Reorient the supplied AM loop antenna for
AM.
To change the AM tuning interval
The AM tuning interval is preset to 10 kHz
at the factory. If you need to change the
interval, do as follows:
1 Turn on the power.
2 Change the band to AM.
3 Turn off the power
4 Turn the power back on while pressing
ENTER/NEXT.
After changing the AM tuning interval,
reset the preset AM radio stations. To reset
the interval to the factory setting, tollow the
same procedure.
When an FM program is not clearly to
received
Press STEREO/MONO on the unit so that
“MONO” appears in the display. There will
be no stereo effect, but the reception will
improve. Press STEREO/MONO again to
restore the stereo effect.
One Touch Play feature
Press TUNER/BAND (or TUNER/ BAND
© on the remote) when the power is off or
when you are listening to another sound
source. -
You can listen to the last received station
without pressing any other buttons.
Chapter 3: the Radio | 11

[Ss Bae go a]
Presetting Radio
Stations
You can store radio frequencies in the
tuner’s memory to tune in your favorite
stations quickly. You can preset up to 20
FM stations and 10 AM stations in any
order.
Use the buttons on the unit for presetting
stations.
SYSTEM
POWER>ON| 1
1 Press TUNER/BAND repeatedly until
the band vou want appears in the
display.
FM 4% AM
2 Press TUNING +/- buttons to tune in
the station you would like to store.
3 Press TUNER MEMORY.
“MEMORY” appears and the preset
channel number flashes in the display.
i
flashing
4 Press TUNING +/- buttons to displav
the preset channel number vou want (1
to 20 for FM, 1 to 10 for AM).
Chapter 3: the Radio
5 Press ENTER/NEXT.
“MEMORY” disappears, and the station
is stored at the preset channel number
you decided on.
Station frequency
Preset channel number
6 Repeat steps 1 to 3 for each station vou
would like to store.
To erase a stored station
Store a new station at a previously used
preset station number. It will erase the old
station and replace it with the new station.
If you have trouble storing a station
Make sure “MEMORY” is lit in the display.
IF not, press TUNER MEMORY again so
that “MEMORY” appears (for about eight
seconds) in the display, and then proceed
with steps 4 and 5.
a
Playing Preset Radio
Stations
Once you have preset the stations, use the
TUNING +/- buttons (or 2 / £35 on the
remote) to quickly tune in your favorite
stations.
SYSTEM
Poweron 3
A Press TUNER/BAND tor TUNER/
BAND > on the remote) repeatedly
until the band vou want appears in the
displav.
FM 4> AM
2 Press TUNING MODE repeatedly so
that “PRESET” appears in the display.
3 Press TUNING +/~ buttons (or (3 / (3
on the remote) to tune in a preset
station.
The station frequency appears and the
system begins receiving the stations.
Station frequency
Preset channel number

Chapter 4:
the Tape
Player
Playing a Tape
Recording a CD
Recording a CD: Selecting
tape Length (tape select
edit)
Recording a CD: Specifying
Tape Length (time edit)
Recording From the Radio
Recording From Another
Tape (dubbing)
Lt Se se F]
Playing a Tape
SYSTEM
POWER > ON DOLBY NR
aD fp aS
fe} Pi ve S ae =
ETT ECY (re
on
DD on Sa i
<< i ae
2 =e igis og
1 ca! = 1
mks SH pp
a <<
1 Press O/£ to open the tape
compartment.
Insert a recorded tape in deck A or B
with the tape side facing down and the
side you want to play facing forward.
Push to close the compartment.
2 Press D>.
The tape starts plaving.
To Press
Stop play 0/8
Pause- 00
Resume play after pause D0
Fast forward b>
Rewind <<
Remove the cassette 0/2
To play both decks in succession
(relay play)
The relay play sequence is B — A.
1 Press O/8 and insert recorded tapes in
both decks.
2 Press D> on deck B.
3 Press 08 and D> on deck A.
To stop relay play, press 0/& on the
plaving deck.
If you play both decks at the same time
You will hear the sound from deck B.
When listening to a tape recorded with the
Dolby* B-type noise reduction system
Press DOLBY NR button so that “DOLBY
NR B” appears in the display.
The setting affects both decks. Dolby noise
reduction system reduces tape hiss noise in
low-level high-frequency signals.
* Dolby noise reduction manufactured
under license from Dolby Laboratories
Licensing Corporation. “DOLBY” and the
double-D symbol DO are trademarks of
Dolby Laboratories Licensing Corporation.
One Touch Play feature
Press E> on deck A or B when the power is
off or when you are listening to another
sound source. You can listen to the tape
without pressing any other buttons when a
tape is in the player. If no tape is inserted,
the system will just turn on.
Notes
e When playing a tape on one deck, if you
rewind or fast-forward the tape in the
other deck, the playback sound is
temporarily uneven.
e Make sure the tape plaver stops when
you turn off the unit.
SS ae ee ed
Recording a CD
You can record from a CD to a tape. Use
TYPE I (normal or TYPE H (CrO?) tapes.
You cannot listen to other sources while
recording
SYSTEM
POWER > ON
> 32
1 Press FUNCTION repeatedly until
“CD” appears in the display.
2 Press & OPEN and place a CD on the
tray.
Make sure the playing position indicator
in the display is lit under the disc
number of the CD you want to record.
The total number of tracks and the total
plaving time appear in the display.
3 Press 0/8 and insert a blank tape into
deck B with the side you want to record
on facing forward.
Make sure the tabs on the cassette have
not been removed.
continue to next page >
Chapter 4: the Tape Player
13

> continued
4 when you want to reduce the hiss noise
in low-level high-frequency signals,
press DOLBY NR button so that
“DOLBY NR B” appears in the display.
5 Press O REC.
Be sure to press the button firmly and
swiftly.
Recording starts.
6 Press CD >.
The CD player starts playing.
You can program the CD before playing
(See “Playing Tracks in the Desired
”
Order (program play)’”).
To Press
——
Stop recording o/s
Pause recording 00 on the tape player
Stop CD play O on the CD player
Pause CD plav 00 on the CD player
To record with the surround effect
Press S-SURROUND so that “SUR {ltt} ”
appears in the display.
Notes
e While recording, do not rewind or fast-
forward on the deck A. This causes an
uneven sound to be recorded.
e Make sure the tape player stops when
vou turn off the unit.
Recording a CD:
Selecting tape Length
(tape select edit)
You can have the stereo system select and
indicate the most suitable tape length for
the recording each disc automatically.
You cannot use “tape select edit” for discs
which contain 21 tracks or more.
SYSTEM
POWER >ON
14 | Chapter 4: the Tape Player
1 Press FUNCTION repeatedly until
“CD” appears in the display.
2 Press & OPEN and place a CD on the
tray.
Make sure the playing position indicator
in the display is lit under the disc
number of the CD you want to record.
3 Press EDIT on the remote.
“TAPE SELECT” appears in the display
and the player divides the selections
automatically.
Then the display changes as follows:
@PnocaaMe `
JIJI JY Pevyt ft
| :
a ae ae A
pahag tao a
ti
PROGAM i o, l
pabbdy
r 1 Hi
e Ee
>
flashing
4. Press 0/4 and insert a blank tape of
the indicated length (or longer) into
deck B with the side you want to record
on facing forward.
Make sure the tabs on the cassette have 1 0 1 2
r
not been removed.
5 When you want to reduce the hiss noise
in low-level high-frequency signals,
press DOLBY NR button so that
“DOLBY NR B” appears in the display.
6 Press O REC.
Be sure to press the button firmly and
swiftly.
“REC” appears in the display.
Recording starts.
7 Press CD E> (or CD © on the remote).
The CD player starts playing the tracks
to be recorded on side A.
8 Set the tape to the beginning of side B,
then press O REC.
Be sure to press the button firmly and
swiftly.
9 Press CD œ> {or CD [> on the remote).
The CD player starts playing the tracks
to be recorded on side B.
To stop recording
Press 0/8.
To check the order
Press CHECK on the remote.
To cancel tape select edit
Press CONTINUE on the unit.
eS ee |
Recording a CD:
Specifying Tape
Length (time edit)
You can have the stereo system create
programs based on the tape length.
The CD player makes programs that will fit
the tape length. For example, if you use a
46-minute tape to record a 50-minute CD,
the CD player will automatically choose
tracks that will fit within the 46-minutes,
filling as much of the tape as possible. The
player will not program those tracks
beyond track number 20.
SYSTEM
POWER > ON
10,12
CONTINUE
9,113 2
1 Press FUNCTION repeatedly until
“CD” appears in the display.
2 Press & OPEN and place a CD on the
tray. Make sure the playing position
indicator in the display is lit under the
disc number of the CD you want to
record.
3 Press 0/8 and insert a blank tape into
deck B with the side you want to record
on facing forward.
Make sure the tabs on the cassette have
not been removed.

4 when you want to reduce the hiss noise
in low-level high-frequency signals,
press DOLBY NR button so that
“DOLBY NR B” appears in the display.
5 Press EDIT on the remote twice.
“TIME EDIT” then “SELECT TIME”
appear in the display.
6 Press (3) or W on the remote to
designate the tape length.
As you press the button, the indication
changes as follows:
HALF «+ C-46 ++ C-54
(23.00) (27.00)
C- + C-74 + C-60
90
(45.00) (37.00) (30.00)
Choose “HALF” if you want the CD
player to half of the total playing time of
the CD. You connot select “HALF” when
recording CDs with more than 20 tracks.
7 Press EDIT.
The player determines the tracks to be
recorded on side A automatically. The
total time to be recorded on side A
appears in the display.
To record on both sides, press EDIT
agiain. The CD plaver determines the
tracks to be recorded on side B.
Tracks to be recorded on side A
Total time to be recorded on side A
8 Press CHECK on the remote repeatedly
to check the tracks to be recorded on
each side.
“STEP” appears with each track number
you programmed in the display.
“P” appears with the first track to be
recorded on side B, and “CHECK End”
appears with the last track to be
recorded on side B.
Tracks to be recorded on both sides
Last track Total playing time
on side B
9 Press O REC.
Be sure to press the button firmly and
swiftly.
“REC” appears in the display.
Recording starts.
10 Press CD > (or CD © on the remote).
The CD player plays the tracks to be
recorded on side A and then pauses.
11 set the tape to the begining of side B,
then press O REC.
Be sure to press the button firmly and
swiftly.
1 2 Press CD O> (or CD © on the remote).
The CD player starts playing the tracks
to be recorded on side B.
To stop recording
Press 0/2.
To select the desired tracks
beforehand
You can place priority on some tracks to be
recorded by selecting them before
programming them up to 20 tracks. (See
“Playing Tracks in the Desired Order
(program play)”).
If you have programmed a track number
which exceeds 20, you cannot use this
feature.
To cancel time edit
Press CONTINUE on the unit.
a |
Recording From the
Radio
You can record from the tuner onto a tape.
Use TYPE I (normal) or TYPE H (CrO?) tape.
SYSTEM
POWER > ON
1 Press TUNER/BAND several times
until the desired radio band appears.
2 Tune in the radio station you want to
record. (See “Listening to the Radio”, or
“Playing Preset Radio Stations” for
details.)
3 Press 0/8 and insert a blank tape into
deck B with the side you want to record
on facing forward.
Make sure the tabs on the cassette have
not been removed.
4 When you want to reduce the hiss noise
in low-level high-frequency signals,
press DOLBY NR button so that
“DOLBY NR B” appears in the display.
5 Press O REC.
Be sure to press the button firmly and
swiftly.
Recording starts.
To stop recording
Press 01/8.
DS ——————
Recording From
Another Tape
(dubbing)
You can record an entire tape onto another.
Use the buttons on the unit and TYPE I
(normal) or TYPE II (CrO?) tape for dubbing.
SYSTEM
POWER > ON
3234 2
1 Press FUNCTION repeatedly until
“TAPE” appears in the display.
TAPE is selected.
2 Press 0/8, and insert a recorded tape
in deck A with the side you want to play
facing forward.
Also, insert a blank tape in deck B with
the side vou want tọ record on facing
forward.
Make sure the tabs on the cassette in
deck B have not been removed.
3 Press 10 and E> on deck A.
Deck A pauses for playing.
Å Press O REC on deck B.
Be sure to press the button firmly and
swiftly.
“DUB” and “REC” appear in the display.
Deck A releases playing pause and deck
B starts recording simultaneously.
To stop dubbing
Press 0/8 on deck A, then press
deck B.
/Son
Note
Do not change the sound source while
dubbing
You do not have to activate DOLBY NR
The tape in deck B is automatically
recorded in the same state as the tape in
deck A.
Chapter 4: the Tape Player
15

16
Chapter 5:
Sound
Adjustment
Adjusting the Sound
Selecting the Audio
Emphasis
Adjusting the Audio
Emphasis
Making Your Personal
Audio Emphasis File
(personal file)
Chapter 5: Sound Adjustment
he eae)
Adjusting the Sound
To fully enjoy the sound coming from your
stereo system, make the following audio
adjustments. See sections following this one
for additional sound adjustments.
SYSTEM
POWER + ON
DBFB
PHONES
VOLUME
To adjust the volume
Rotate VOLUME on the unit or press VOL
(+/-) on the remote.
To reinforce bass
Press DBFB* repeatedly and choose DBFB
BN or DBFB BN.
“DBEB BANANA is more effective than
“DBEB BANA”.
* DBFB = Dynamic Bass Feedback
To listen through the headphones
Connect the headphones to the PHONES
jack. No sound will come from the speakers.
fe a)
Selecting the Audio
Emphasis
Your stereo system has been factory set to
five specially recommended audio
emphasis settings. Choose from among,
these five preset settings according to the
type of music you are listening to.
SYSTEM
POWER>ON
MUSIC MENU
ON/OFF
1 Press FILE SELECT (or MUSIC MENU
£/2 on the remote) to select SELECT 5.
The SELECT 5 indicator lights up.
2 Press one of the FILE 1 -5 buttons on
the unit (or MUSIC MENU ¢/ on the
remote).
The indicator of the selected preset
setting button lights up.
The effects of preset settings are as
follows:
Press To get
FILE | Powerful, clear sounds,
(ROCK) emphasizing low and high
range audio
FILE 2 Light, bright sounds,
(POPS) emphasizing high and middle
range audio
FILE 3 Percussive sounds,
JAZZ) emphasizing bass range audio
FILE 4 Broad, open sounds with
(CLASSIC) plenty of reverberations
FILE 5 Passionate vocal sounds with
(SALSA) — strong rhythm emphasizing
middle and low audio
“SUR (ftim) appears in the display if you
select an effect with surround effects.
To cancel the audio emphasis
Press EFFECT (or MUSIC MENU ON/OFF
on the remote) once so that the EFFECT
indicator and the selected preset setting
indicator light off.
“EFFECT OFF” appears in the display.
gt ai)
Adjusting the Audio
Emphasis
This feature lets you arrange the audio
emphasis by raising and lowering the level
of frequency ranges. Use the buttons on the
unit to do this operation.

SYSTEM
POWER > ON
1,2,3
$-SURROUND
a
1 Press one of 4, >, A or Y (CURSOR
CONTROL).
The frequency range appears and the
level value flashes in the display.
:1]2135415, =a)
“el ohotats
AAAA aye
Poi af vig
marie > an >
Frequency range Level value
2 Press or P to select the frequency
range vou want to change.
flashing
ress A or ¥ to raise or lower the level
of the frequency range.
flashing
Å Press ENTER/NEXT.
To create the atmosphere of a movie
theater or concert hall
Press S-SSURROUND so that the
“SUR {lltni}} ” appears in the display.
fe os ee
Making Your Personal
Audio Emphasis File
(personal file)
You can create a personal file of audio
patterns and store them in the memory of
the player. Later, call up an audio pattern to
play a favorite tape, CD, or radio program.
You can create up to five audio files.
SYSTEM
POWER >ON
MUSIC MENU
ON/OFF
MUSIC MENU
o/%3/a/o
1 Obtain the sound effect vou want (See
“Selecting the Audio Emphasis” and
“Adjusting the Audio Emphasis” for
details).
Press SSURROUND to activate or
deactivate the surround effect to suit
your taste.
Press MEMORY.
“MEMORY” appears and “F 1 - 5”
flashes in the display.
[y2tatatsi: 4
BERR
1 E 3 a 3 ‘ey `f ty
maa TECI EA X ae aq
ee ee ee
flashing
4 Press one of the FILE | —5 buttons where
you want to store the sound effect.
“MEMORY” disappears.
To call up the personal file
Press FILE SELECT (or MUSIC MENU @/%
on the remote) to select P FILE. The
indicator of P FILE lights up. Then press
one of the FILE 1 - 5 buttons (or MUSIC
MENU </> on the remote).
To erase the personal file
Store a new personal file at a previously
used personal file number (FILE 1 — 5). It
will erase the old personal file.
Chapter 5: Sound Adjustment
17

Chapter 6:
Additional
Features
Falling Asleep to Music
Waking Up to Music
Connecting Optional
Equipment
18 | Chapter 6: Additional Features
A)
Falling Asleep to
Music
You can set the stereo system to turn off
automatically so you can go to sleep to
music (Sleep timer).
Before setting the sleep timer, make sure
the clock has been set correctly.
You can set the sleep timer even if you have
set the DAILY timer.
SYSTEM
POWER > ON
1 Play vour favorite sound source (a tape,
the tuner or a CD).
2 Press SLEEP repeatedly to choose how
long you want the music to play.
“SLEEP” and minutes indication appear
in the display. The power will turn off
after 10 to 90 minutes depending on the
length of time you choose.
if AUTO-> 90 —> 80 > 70
OF
F 4—10 4—20 4—
When you choose AUTO
The power turns off when the current CD
or tape (1 side) finishes playback (for up to
100 minutes). :
To cancel the sleep timer
Press SLEEP repeatedly until “OFF”
appears in the display.
To check the remaining time before
the sleep timer turns off the system
Press SLEEP once.
The remaining time (in minutes) is
displaved for several seconds.
To change the remaining time while
the sleep timer is on
Press SLEEP repeatedly to select the
remaining time you desire.
When you use the sleep timer function
while listening to a tape
Choose the minutes longer than half of the
tape length, because the play button of the
tape player does not spring back
automatically.
e.g. Choose 50 minutes when you listen to a
90 minute tape.
ee 2G
Waking Up to Music
You can wake up to music at a preset time.
You only need to set the timer once. When
you select the CD plaver as the sound
sourse, you can play a CD in any mode
(normal, shuffle, or progam). Before setting
the timer, make sure the clock has been set
correctly.
You can set the DAILY timer even if you
have set the sleep timer.
SYSTEM
POWER > ON
1 Prepare the sound source.
To wake up to the radio
Tune in the preset station you want.
To wake up to a CD
Insert a CD and close the front cover. If
the playing position indicator is not
under the disc number you want to
play, press DISC SKIP repeatedly until
the red indication lights up under your
desired CD. If you want to play from a
specific track follow the procedures for
programmed CD play (See “Playing
Tracks in Desired Order (program
play)”).
2 Turn the VOLUME dial to adjust the
volume.
3 Press TIMER SET.
“SELECT TIMER” appears in the
display.

©
4 Press DAILY 1 or DAILY 2.
“ON” and the timer indication appear
and the hour digits flash in the display.
DG? AM g
rere Fr hA an
i Aa
y v vy
i
flashing
5 Press < or > (CURSOR CONTROL) to
set the hour you want the system to turn
on then press ENTER/NEXT.
Set the minutes in the same way. “OFF”
appears and the hour digits flash in the
display.
Oc g fo) : 4
VPIIVI ae
YD Dp ys asja ]28119 [20
mi he rt ha ~ » 4
oe oe
Wty Jig i
flashing
6 Press or > to set the hour vou want
the system to turn off then press
ENTER/NEXT.
Set the minutes in the same way.
7 Press or > to select a sound source.
The display changes as follows: E
CD <———> TUNER
flashing
B Press ENTER/NEXT.
The preset items appear in the display
sequentially.
9 Press SYSTEM POWER to turn off the
system.
To change the preset timer settings
Start over from step 1.
To check the preset timer settings
1 Press DAILY 1 or DAILY 2 which ever
you have set once.
2 “TIMER OFF” appears in the display.
3 Press DAILY 1 or DAILY 2 again.
The preset items appear in the display
sequentially, then “DAILY 1 ON” or
“DAILY 2 ON” appears in display .
To change the timer
Press DAILY 1 or DAILY 2.
To cancel the timer
1 Press DAILY 1 or DAILY 2 which ever
you have set.
2 “TIMER OFF” appears in the display.
Note
When you set the sleep timer, the DAILY
timer does not activate until the system
turns off by the sleep timer.
[ESS eed
Connecting Optional
Equipment
For greater enjoyment of your stereo
system, you can connect other components
to the stereo. You can connect :
e a VCR to the VIDEO (AUDIO) IN jacks
e a turntable to the PHONO IN jacks
(LBT-D270/1LBT-G3100 only)
e headphones to the PHONES jack on the
front panel
To connect a VCR
1) Connect the VCR or other video
equipment to the VIDEO (AUDIO) IN
jacks.
2 Press FUNCTION repeatedly until
“VIDEO” appears in the display.
The connected sound source comes
through the speakers.
You can also record the VCR sound.
To connect a turntable (LBT-D270/
LBT-G3100 only)
1 Connect the turntable to the PHONO IN
jacks on the rear panel of the stereo.
2 Press FUNCTION until “PHONO”
appears in the display.
The turntable sound comes through the
speakers.
You can also record the turntable sound.
Chapter 6: Additional Features
19

For Your
Information
Precautions
Troubleshooting Guide
Maintenance
Specifications
Index to Parts and Controls
Index
20 | For Your Information
ee ee ees
Precautions
If you have any questions or problems
concerning your stereo system, please
consult your nearest Sony dealer.
Caution
The use of optical instruments with this
product will increase eye hazard.
On operating voltage
Before operating the stereo system, check
that the operating voltage of your stereo
system is identical with the voltage of your
local power supply.
Operating voltage 120 V AC, 60 Hz
On safety
e The stereo system is not disconnected
from the AC power source (mains) as
long as it is connected to the wall outlet,
even if the system itself has been turned
off.
Unplug the system from the wall outlet
(mains) if it is not to be used for an
extended period of time. To disconnect
the cord (mains lead), pull it out by the
plug. Do not pull the cord itself.
Should anv solid object or liquid fall into
the component, unplug the stereo system
and have the component checked by
qualified personnel before operating it
any further,
Should the AC power cord (mains lead)
need to be changed, have it done at a
qualified service shop only.
As the laser beam used in this unit is
harmful to the eyes, do not attempt to
disassemble the cabinet. Refer servicing to
qualified personal only.
On installation
Place the stereo system in a location with
adequate ventilation to prevent heat build-
up in the stereo system.
On condensation in the CD player
component
If the system is brought directly from a cold
to a warm location, or is placed in a very
damp room, moisture may condense on the
lens inside the CD player. Should this
occur, the CD player will not operate.
Remove any CDs and leave the system
turned on for about an hour until the
moisture evaporates.
To save a tape permanently
To prevent a tape from being accidentally
recorded over, break off the cassette safety
tab from side A or B as illustrated. If you
later want to reuse the tape for recording,
cover the broken tab with adhesive tape.
ieee er
Troubleshooting
Guide
If you run into any problem using this
stereo system, use the following check list.
And first check the following points:
e The mains lead is connected firmly.
e The speakers are connected correctly and
firmly.
Should any problem persist after you have
made the checks below, consult your
nearest Sony dealer.
Tuner
“TUNED” flashes in the display.
> Adjust the antenna.
“STEREO” flashes in the display.
> Adjust the antenna.
Severe hum or noise.
> Adjust the antenna.
> The signal strength is too weak.
Connect the external antenna.
> Connect the ground wire.
A stereo FM program cannot be
received in stereo.
> Press STEREO/ MONO so that
“STEREO” appears.
Tape Player
The tape does not record.
> No tape in the cassette holder.
> The safety tab has been removed
from the cassette.
> The tape has reeled to the end.
The tape does not record nor play
back, or there is a decrease in sound
level.
> The heads are dirty. Clean them.
> Magnetic deposits have built-up on
the record/ playback heads.*
There is excessive wow or flutter, or
the sound drops out.
> The capstans or pinch rollers are
contaminated.*
The tape does not erase completely.
> Magnetic deposits have built- up on
the record / playback heads.*
Noise increases, or the high
frequencies are erased.
> Magnetic deposits have built-up on
the record/ playback heads.*
* See “Maintenance”.
