SONT'TY.
3-810-986-11 (1)
Compact
Hi-Fi Stereo System
Operating instructions
Hise
LBT-D670AV
© 1996 by Sony Corporation

2
‘

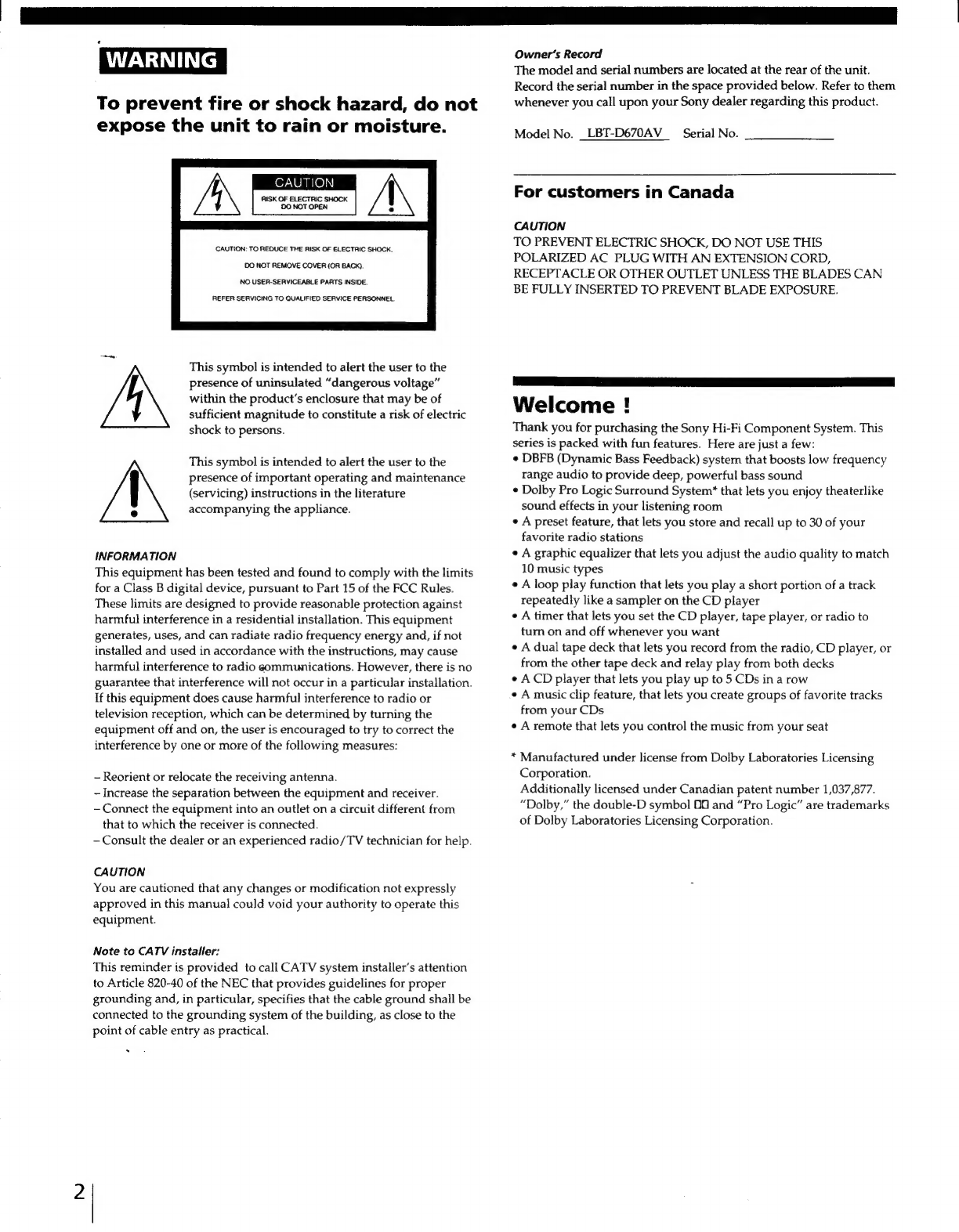

| WARNING |
To prevent fire or shock hazard, do not
expose the unit to rain or moisture.
/\
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
CAUTION
DO NOT OPEN
DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
This symbol is intended to alert the user to the
presence of uninsulated “dangerous voltage”
within the product's enclosure that may be of
sufficient magnitude to constitute a risk of electric
shock to persons.
This symbol is intended to alert the user to the
presence of important operating and maintenance
(servicing) instructions in the literature
accompanying the appliance.
INFORMATION
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
— Reorient or relocate the receiving antenna.
~ Increase the separation between the equipment and receiver.
— Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.
CAUTION
You are cautioned that any changes or modification not expressly
approved in this manual could void your authority to operate this
equipment.
Note to CATV installer:
This reminder is provided to call CATV system installer’s attention
to Article 820-40 of the NEC that provides guidelines for proper
grounding and, in particular, specifies that the cable ground shall be
connected to the grounding system of the building, as close to the
point of cable entry as practical.
.
Owner's Record
The model and serial numbers are located at the rear of the unit.
Record the serial number in the space provided below. Refer to them
whenever you call upon your Sony dealer regarding this product.
Model No. _LBT-D670AV__ Serial No.
For customers in Canada
CAUTION
TO PREVENT ELECTRIC SHOCK, DO NOT USE THIS
POLARIZED AC PLUG WITH AN EXTENSION CORD,
RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN
BE FULLY INSERTED TO PREVENT BLADE EXPOSURE.
Welcome !
Thank you for purchasing the Sony Hi-Fi Component System. This
series is packed with fun features. Here are just a few:
¢ DBFB (Dynamic Bass Feedback) system that boosts low frequency
range audio to provide deep, powerful bass sound
¢ Dolby Pro Logic Surround System* that lets you enjoy theaterlike
sound effects in your listening room
¢ A preset feature, that lets you store and recall up to 30 of your
favorite radio stations
e A graphic equalizer that lets you adjust the audio quality to match
10 music types
¢ A loop play function that lets you play a short portion of a track
repeatedly like a sampler on the CD player
¢ A timer that lets you set the CD player, tape player, or radio to
turn on and off whenever you want
¢ A dual tape deck that lets you record from the radio, CD player, or
from the other tape deck and relay play from both decks
e ACD player that lets you play up to 5 CDs ina row
¢ A music clip feature, that lets you create groups of favorite tracks
from your CDs
¢ A remote that lets you control the music from your seat
* Manufactured under license from Dolby Laboratories Licensing
Corporation.
Additionally licensed under Canadian patent number 1,037,877.
“Dolby,” the double-D symbol O00 and “Pro Logic” are trademarks
of Dolby Laboratories Licensing Corporation.

Chapter 1: Setting Up
Connecting the Stereo 4
Setting up the Speakers for Dolby Pro Logic Surround 6
Inserting the Batteries 6
Setting the Clock 6
if:\°)(-meyi

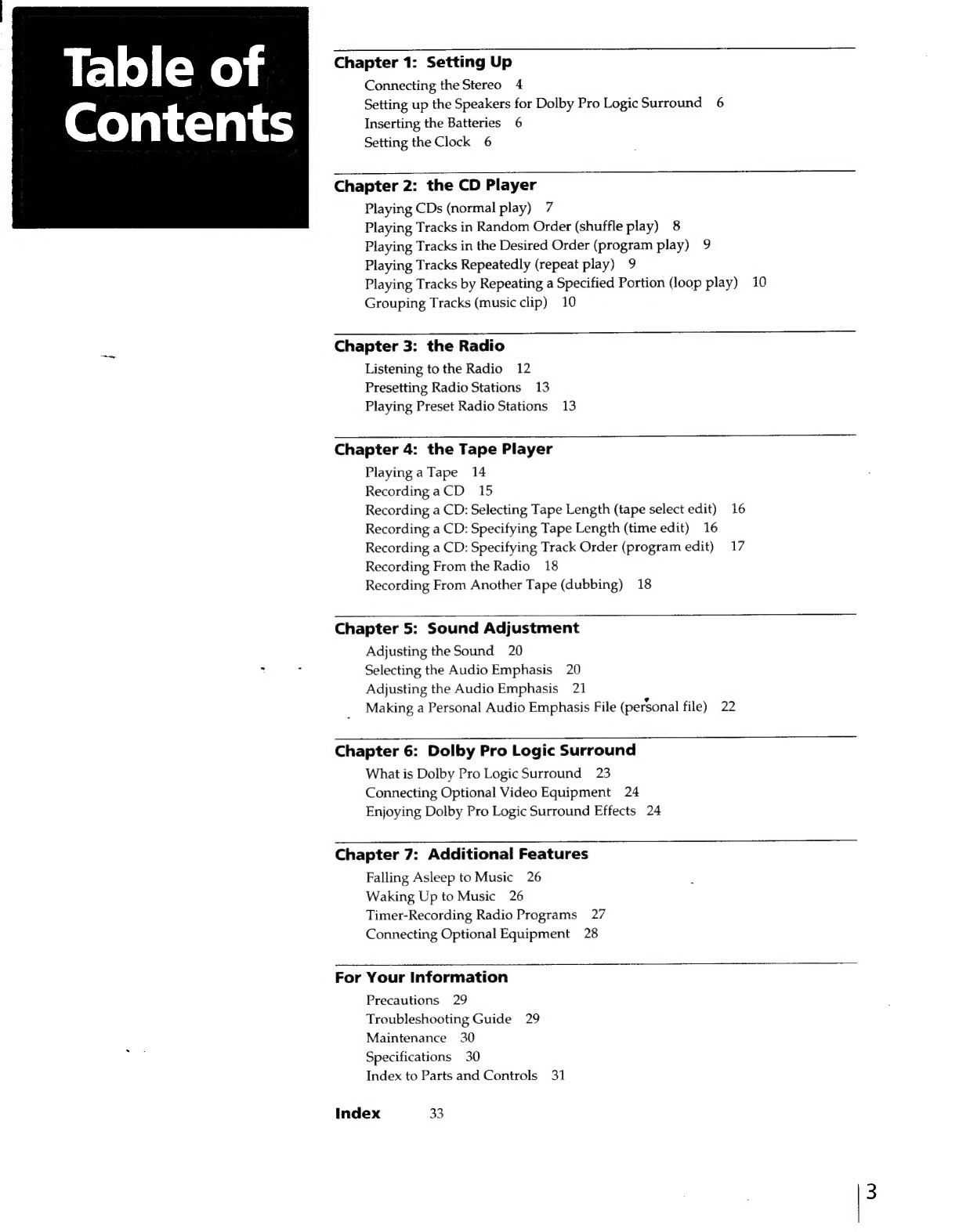

Contents

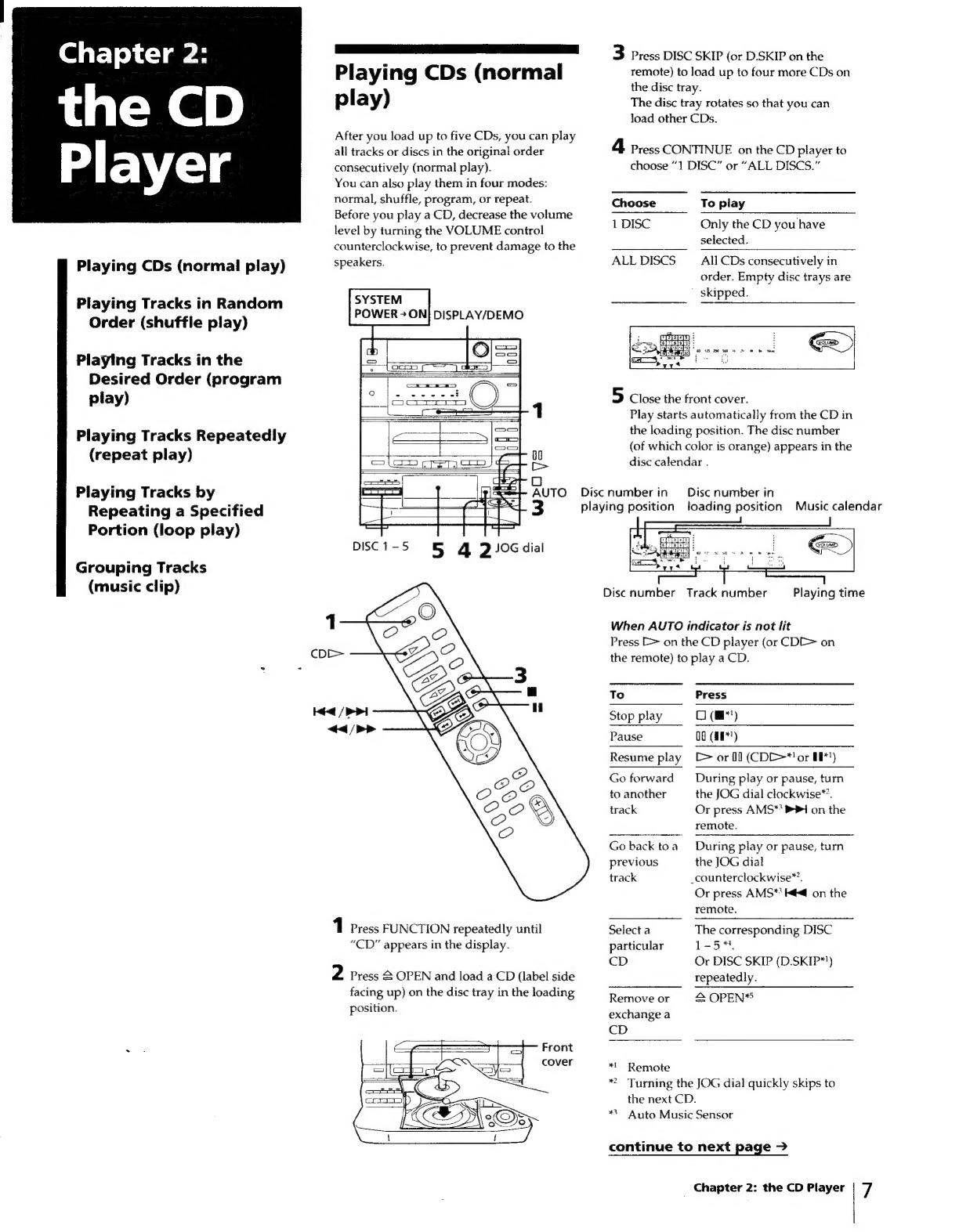

Chapter 2: the CD Player
Playing CDs (normal play) 7
Playing Tracks in Random Order (shuffle play) 8

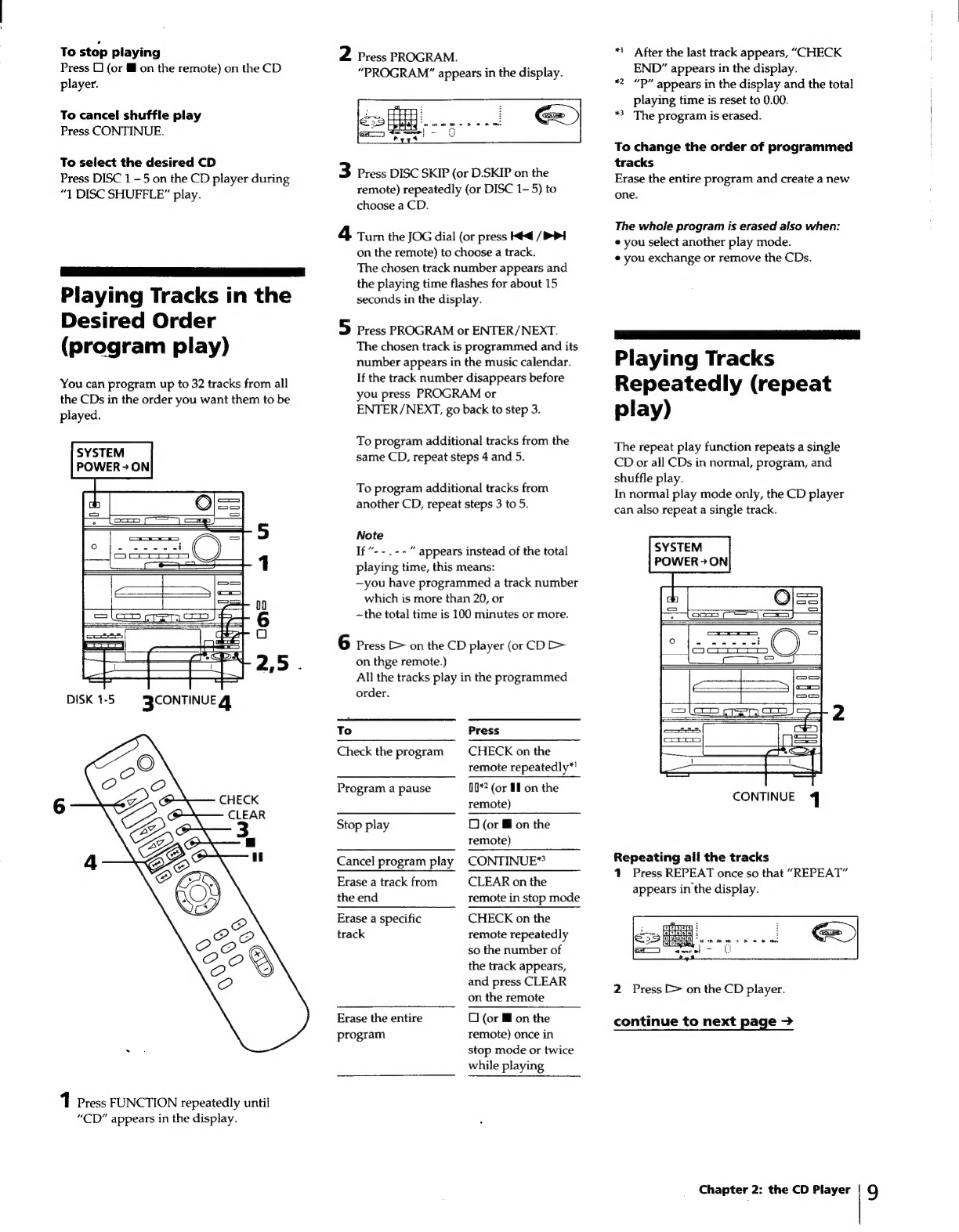

Playing Tracks in the Desired Order (program play) 9
Playing Tracks Repeatedly (repeat play) 9

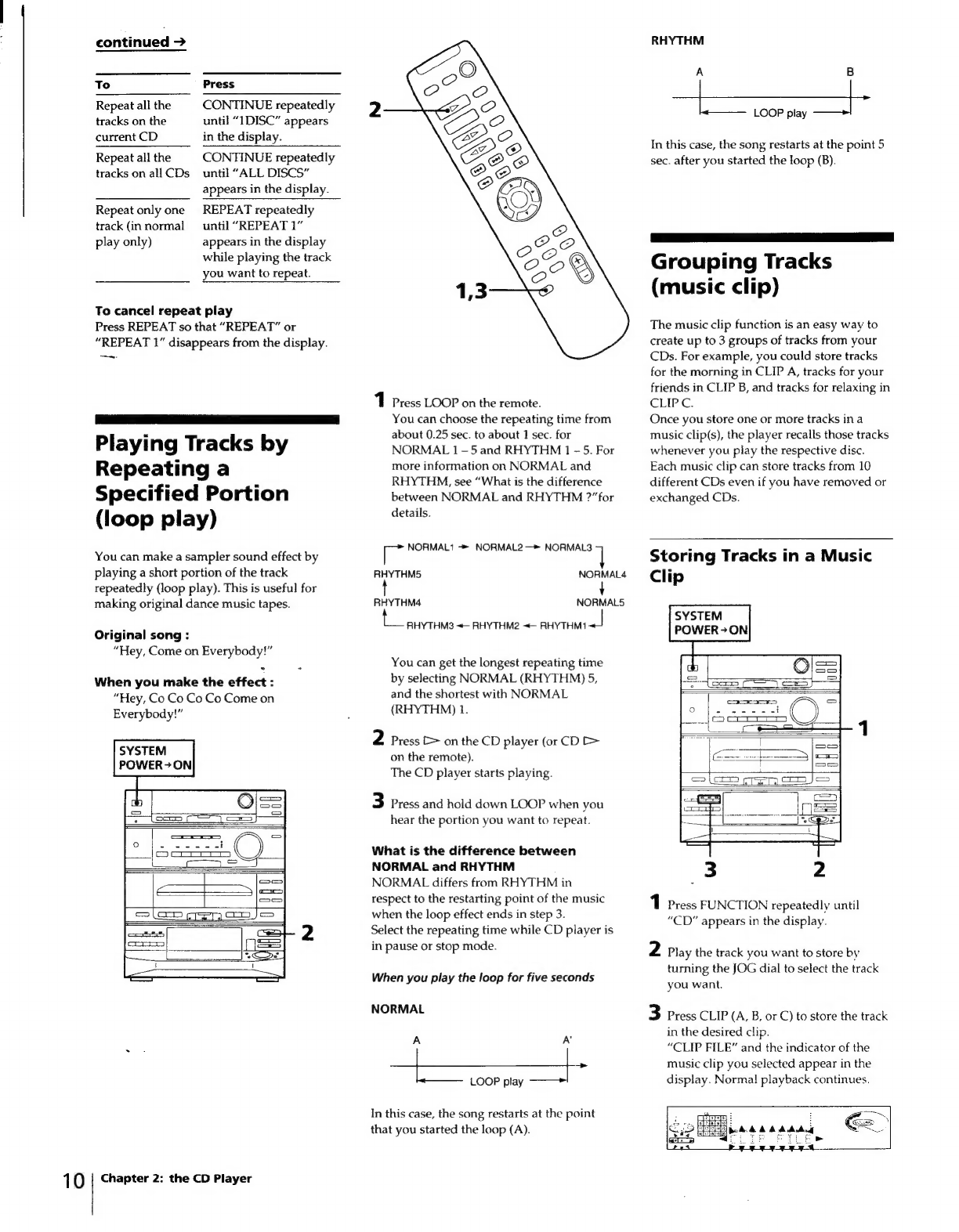

Playing Tracks by Repeating a Specified Portion (loop play) 10
Grouping Tracks (music clip) 10
Chapter 3: the Radio

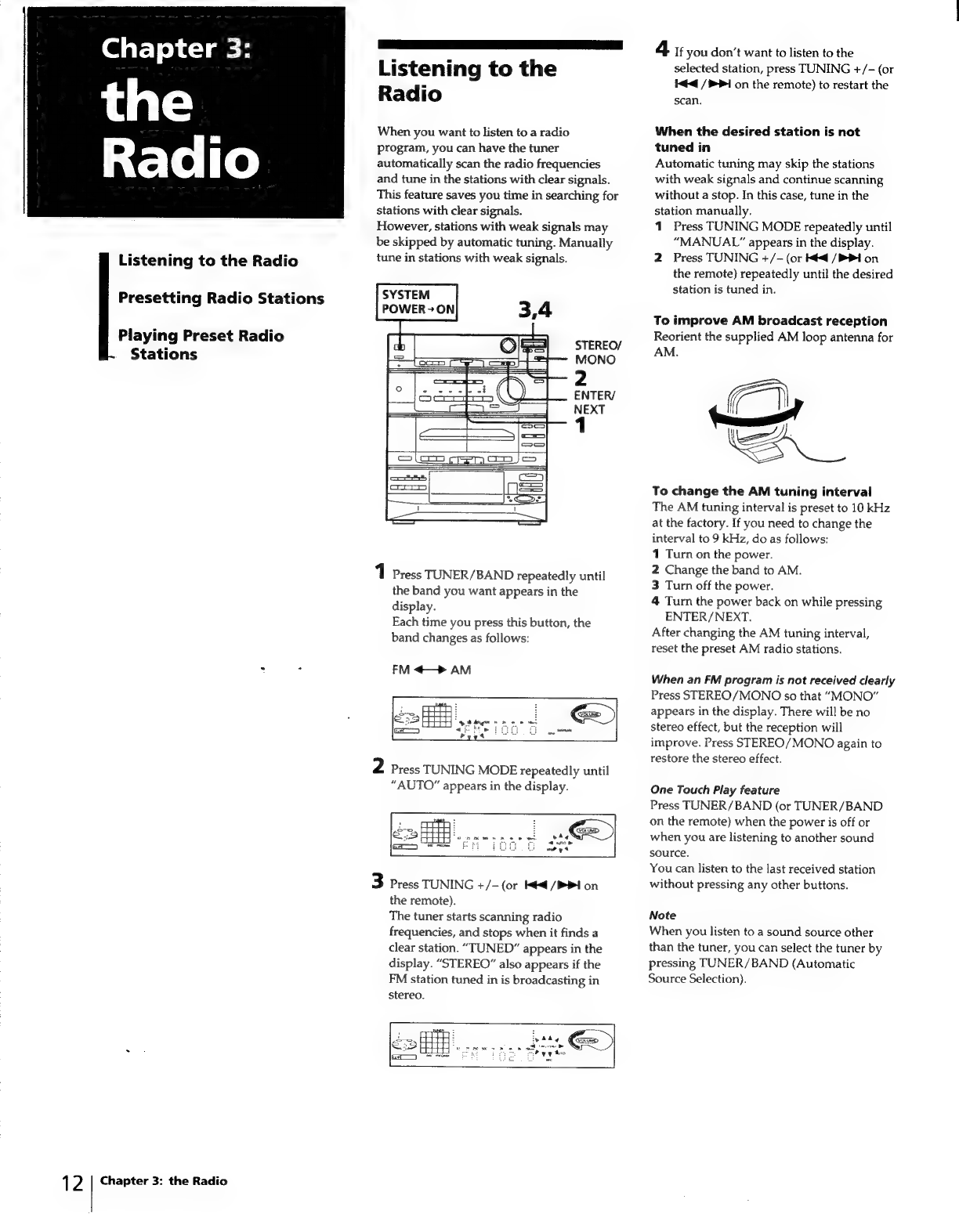

Listening to the Radio 12

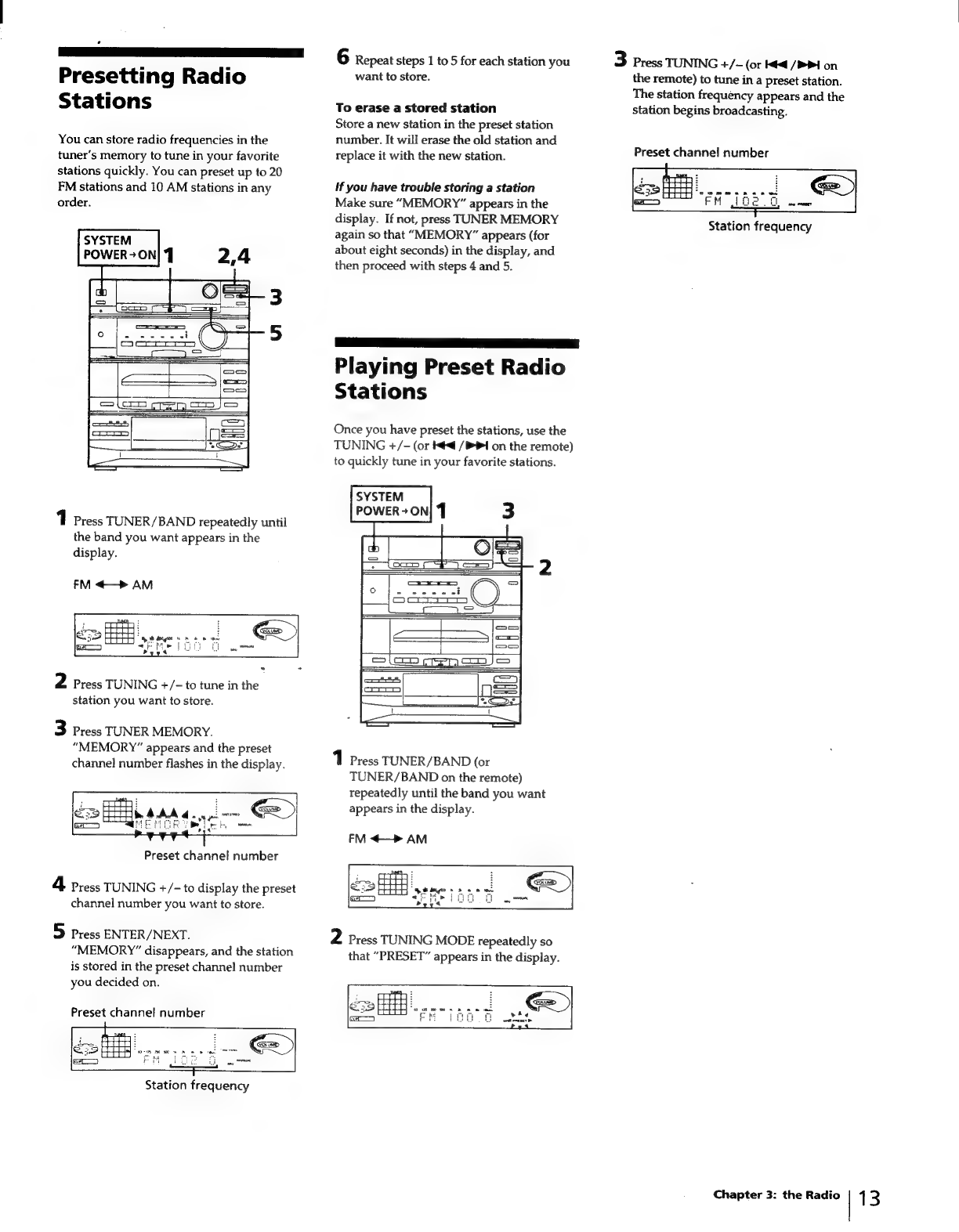

Presetting Radio Stations 13
Playing Preset Radio Stations 13
Chapter 4: the Tape Player
PlayingaTape 14

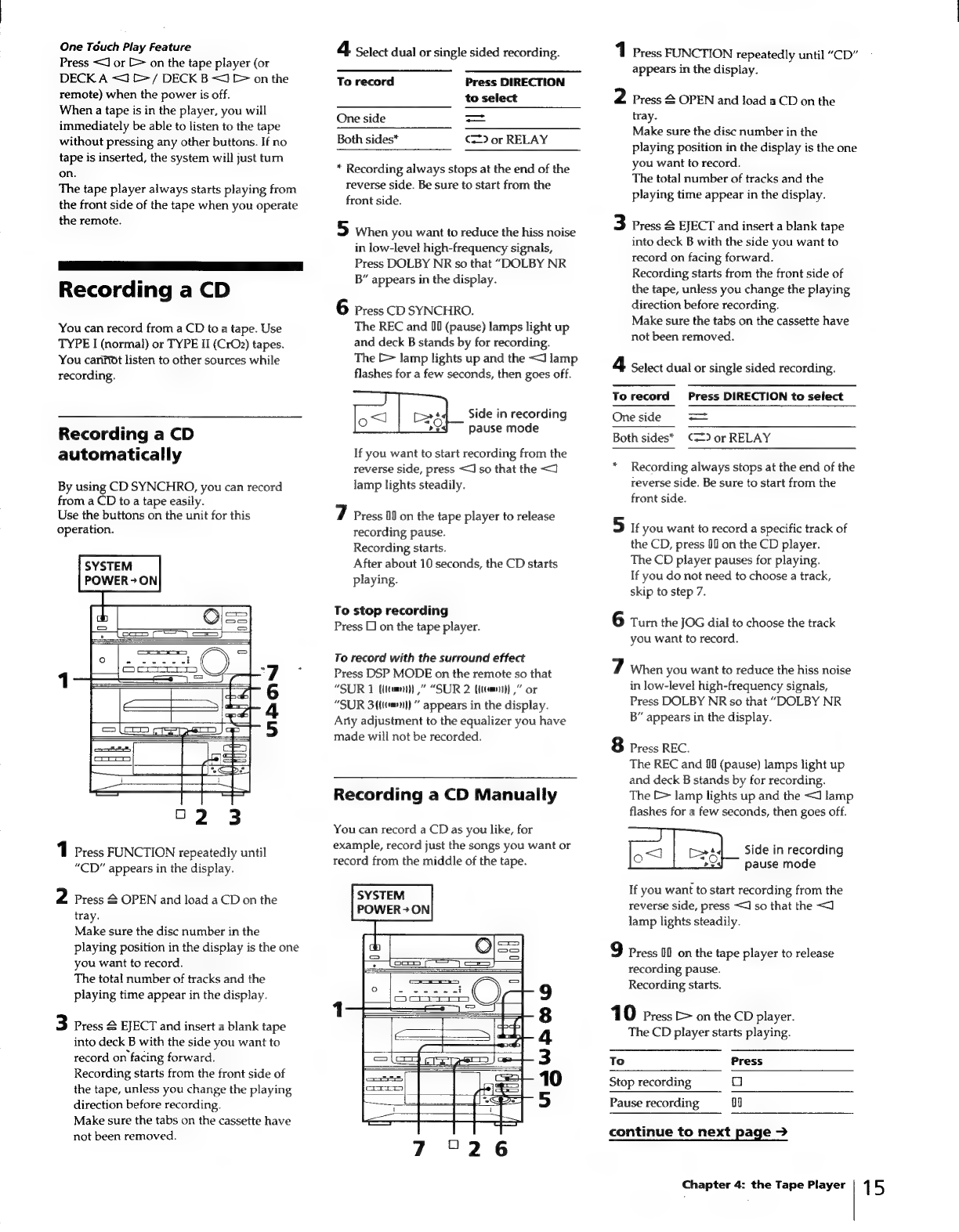

RecordingaCD 15
Recording a CD: Selecting Tape Length (tape select edit) 16
Recording a CD: Specifying Tape Length (time edit) 16
Recording a CD: Specifying Track Order (program edit) 17
Recording From the Radio 18
Recording From Another Tape (dubbing) 18
Chapter 5: Sound Adjustment
Adjusting the Sound 20
: : Selecting the Audio Emphasis 20
Adjusting the Audio Emphasis 21
Making a Personal Audio Emphasis File (personal file) 22
Chapter 6: Dolby Pro Logic Surround
What is Dolby Pro Logic Surround 23
Connecting Optional Video Equipment 24
Enjoying Dolby Pro Logic Surround Effects 24
Chapter 7: Additional Features
Falling Asleep to Music 26
Waking Up to Music 26
Timer-Recording Radio Programs 27
Connecting Optional Equipment 28
For Your Information
Precautions 29
Troubleshooting Guide 29
Maintenance 30
Specifications 30
Index to Parts and Controls 31
Index 33
3

Oa) 0 <=) aw
eTaadiale
Up
Connecting the Stereo
Setting up the Speakers for
Dolby Pro Logic Surround
nserting the Batteries
Setting the Clock
4 Chapter 1: Setting Up
——EEE eee ee
Connecting the Stereo
Use the illustrations below to connect your
stereo.
If you want to connect any optional
components to the stereo, see “Connecting
Optional Video Equipment” in Chapter 6
and “Connecting Optional Equipment” in
Chapter 7.
Gicuk Connecting the
Speakers
Before connecting the speakers
Twist the speaker cable coating and pull it
from the end of the cable.
—
Connecting the front speakers
Connect the right front speaker to the
FRONT SPEAKER R connectors and the left
front speaker to the FRONT SPEAKER L
connectors with the red cord to + and the
black cord to -.
Connect this portion
Connecting the center speaker
Connect the center speaker to the
SURROUND SPEAKER CENTER
connectors with the gray cord to + and the
gray with black stripes cord to -.
Connect this portion
Connecting the rear speakers
Connect the right rear speaker to the
SURROUND SPEAKER REAR R connectors
and the left rear speaker to the ;
SURROUND SPEAKER REAR L connectors
with the gray cord to + and the gray with
black stripes cord to -.
Connect this portion

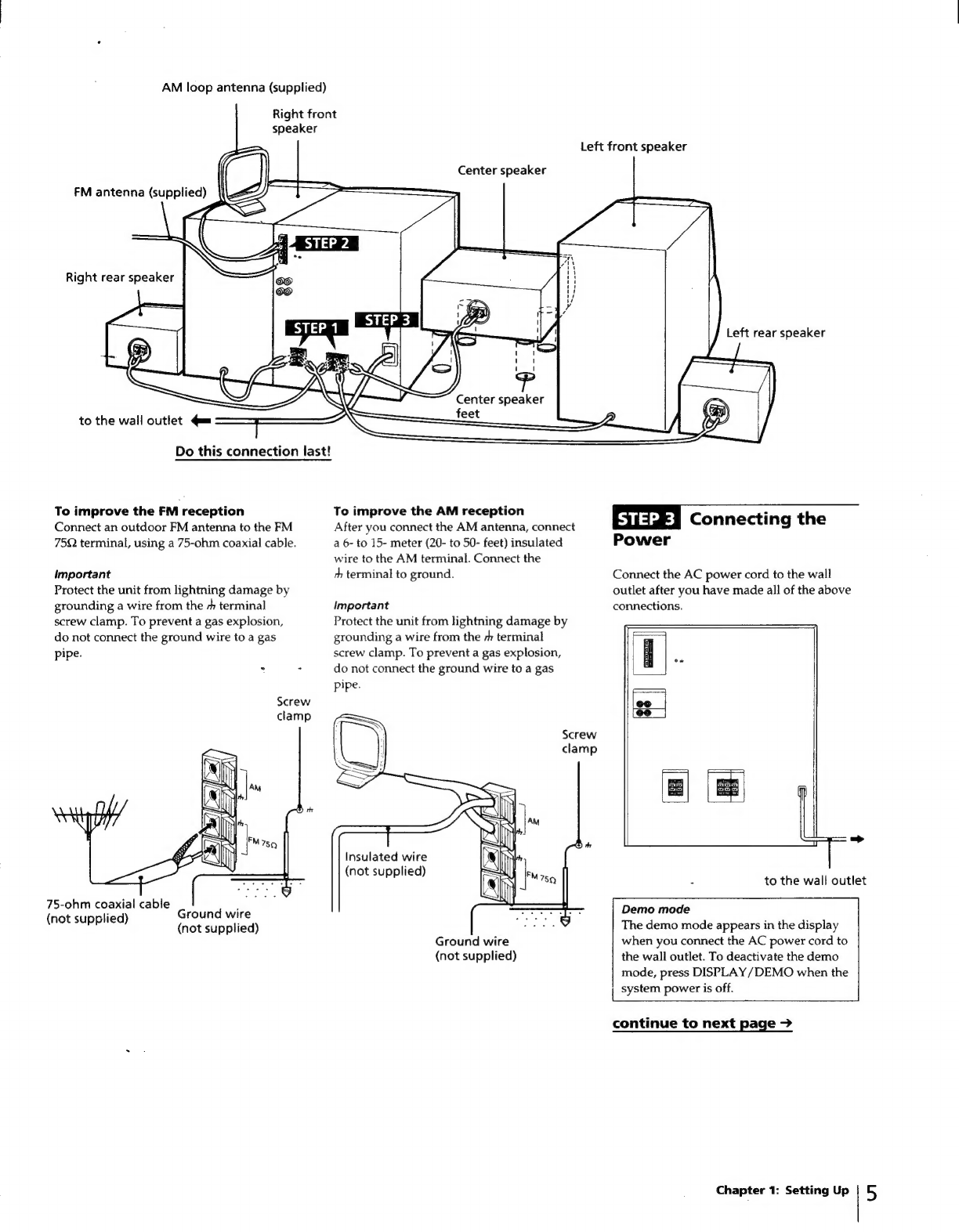

ISTEP 2 | Connecting the
Antenna
AM loop
antenna
FM wire antenna*
(supplied)
*Note: Extend it horizontally
To set up the AM loop antenna

AM loop antenna (supplied)
to the wall outlet <=
Do this connection last!
To improve the FM reception
Connect an outdoor FM antenna to the FM
75Q terminal, using a 75-ohm coaxial cable.
important
Protect the unit from lightning damage by
grounding a wire from the sh terminal
screw clamp. To prevent a gas explosion,
do not connect the ground wire to a gas
pipe.
Screw
clamp
5)
2
fy
75-ohm coaxial cable
(not supplied)
Ground wire
(not supplied)
Right front
speaker
Center speaker
Center speaker
feet
To improve the AM reception
After you connect the AM antenna, connect
a 6- to 15- meter (20- to 50- feet) insulated
wire to the AM terminal. Connect the
+h terminal to ground.
Important
Protect the unit from lightning damage by
grounding a wire from the 7; terminal
screw clamp. To prevent a gas explosion,
do not connect the ground wire to a gas
Pipe.
Insulated wire
(not supplied)
Ground wire
(not supplied)
Left front speaker
Left rear speaker
ISTEP 3 | Connecting the
Power
Connect the AC power cord to the wall
outlet after you have made all of the above
connections.
- to the wall outlet
Demo mode
The demo mode appears in the display
when you connect the AC power cord to
the wall outlet. To deactivate the demo
mode, press DISPLAY /DEMO when the
system power is off.
continue to next page >
Chapter 1: Setting Up
5

.
> continued
Note
When you turn on the system power for the
first time, the disc tray starts rotating. You
can operate the CD player after the disc
tray stops rotating and “CD NO DISC”
appears in the display.
a ee

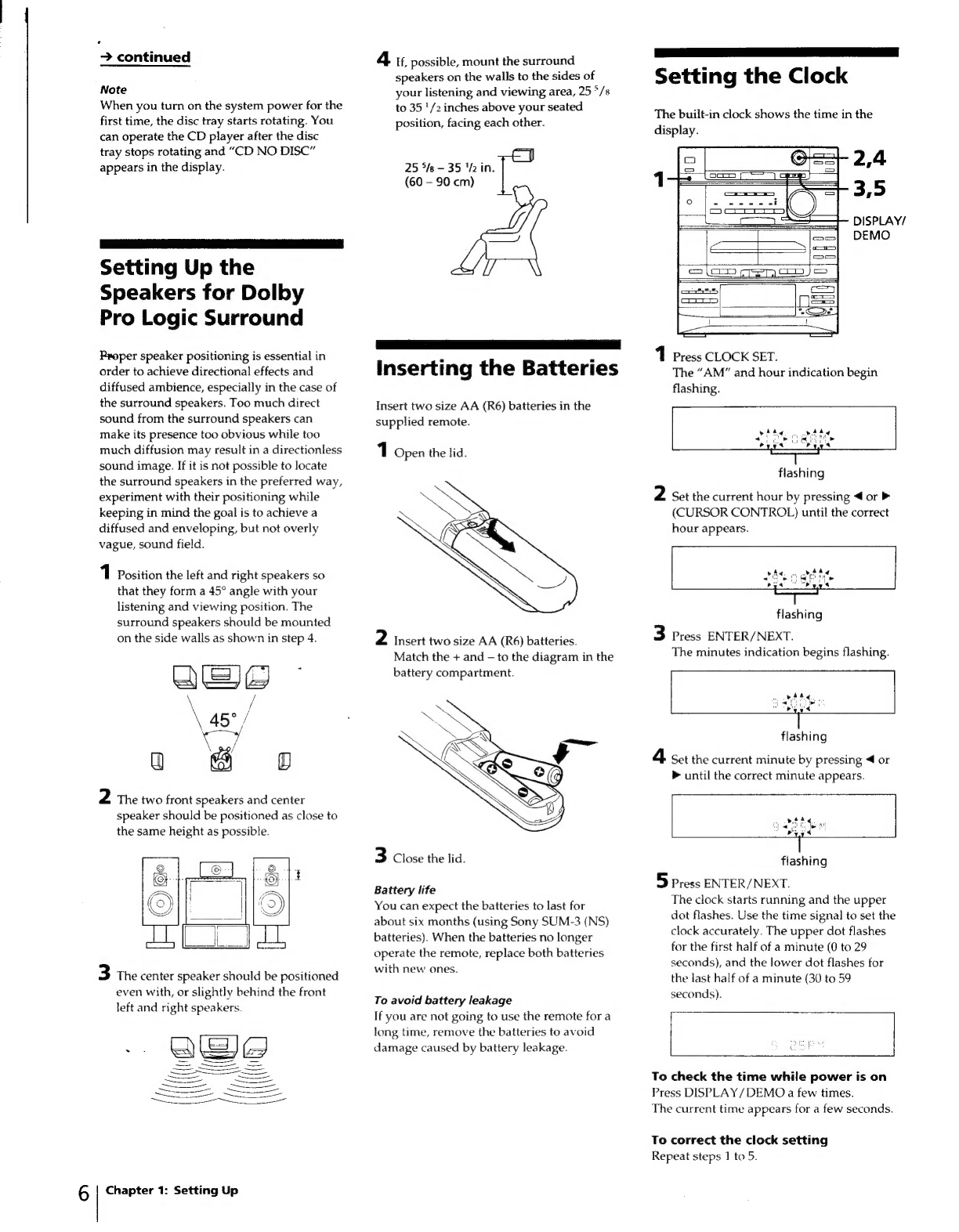

Setting Up the
Speakers for Dolby
Pro Logic Surround
Proper speaker positioning is essential in
order to achieve directional effects and
diffused ambience, especially in the case of
the surround speakers. Too much direct
sound from the surround speakers can
make its presence too obvious while too
much diffusion may result in a directionless
sound image. If it is not possible to locate
the surround speakers in the preferred way,
experiment with their positioning while
keeping in mind the goal is to achieve a
diffused and enveloping, but not overly
vague, sound field.
1 Position the left and right speakers so
that they form a 45° angle with your
listening and viewing position. The
surround speakers should be mounted
on the side walls as shown in step 4.
\ Ay rs
ao 6hCOD
2 The two front speakers and center
speaker should be positioned as close to
the same height as possible.
3 The center speaker should be positioned
even with, or slightly behind the front
left and right speakers.
- QWS&ea
TE) qa [ES
=
SS —_ Oo
————
———— Se
Puremesnes a
Chapter 1: Setting Up
4 If, possible, mount the surround
speakers on the walls to the sides of
your listening and viewing area, 25 */s
to 35 '/2 inches above your seated
position, facing each other.
25 %/e — 35 2 in.
(60 — 90 cm)
~~ Se aeee)
Inserting the Batteries
Insert two size AA (R6) batteries in the
supplied remote.
1 Open the lid.
2 Insert two size AA (R6) batteries.
Match the + and — to the diagram in the
battery compartment.
3 Close the lid.
Battery life
You can expect the batteries to last for
about six months (using Sony SUM-3 (NS)
batteries). When the batteries no longer
operate the remote, replace both batteries
with new ones.
To avoid battery leakage
If you are not going to use the remote for a
long time, remove the batteries to avoid
damage caused by battery leakage.
a a
Setting the Clock
The built-in clock shows the time in the
display.
2,4
3,5
DISPLAY/
DEMO
1 Press CLOCK SET.
The “AM” and hour indication begin
flashing.
flashing
2 Set the current hour by pressing < or >
(CURSOR CONTROL) until the correct
hour appears.
flashing
3 Press ENTER/NEXT.
The minutes indication begins flashing.
a ee!
gS: »
“aed
flashing
4 set the current minute by pressing <4 or
> until the correct minute appears.
| EES
“ ai Pd
flashing
5 Press ENTER/NEXT.
The clock starts running and the upper
dot flashes. Use the time signal to set the
clock accurately. The upper dot flashes
for the first half of a minute (0 to 29
seconds), and the lower dot flashes for
the last half of a minute (30 to 59
seconds).
To check the time while power is on
Press DISPLAY /DEMO a few times.
The current time appears for a few seconds.
To correct the clock setting
Repeat steps 1 to 5.

Chapter 2:
14a\-m @ DB)
Player
Playing CDs (normal play)
Playing Tracks in Random
Order (shuffle play)
Playing Tracks in the
Desired Order (program
play)
Playing Tracks Repeatedly
(repeat play)
Playing Tracks by
Repeating a Specified
Portion (loop play)
Grouping Tracks
(music clip)
ESE SSS eae
Playing CDs (normal
play)
After you load up to five CDs, you can play
all tracks or discs in the original order
consecutively (normal play).
You can also play them in four modes:
normal, shuffle, program, or repeat.
Before you play a CD, decrease the volume
level by turning the VOLUME control
counterclockwise, to prevent damage to the
speakers.
SYSTEM
POWER > ON} DISPLAY/DEMO
00
>
0
AUTO
3
1 Press FUNCTION repeatedly until
“CD” appears in the display.
2 Press & OPEN and load a CD (label side
facing up) on the disc tray in the loading
position.
3 Press DISC SKIP (or D.SKIP on the
remote) to load up to four more CDs on
the disc tray.
The disc tray rotates so that you can
load other CDs.
4 Press CONTINUE on the CD player to
choose “1 DISC” or “ALL DISCS.”
Choose To play
1 DISC Only the CD you have
selected.
ALL DISCS All CDs consecutively in
order. Empty disc trays are
’ skipped.
5 Close the front cover.
Play starts automatically from the CD in
the loading position. The disc number
(of which color is orange) appears in the
disc calendar .
Disc number in Disc number in
playing position
Disc number Track number
When AUTO indicator is not lit
Press C> on the CD player (or CDE> on
the remote) to play a CD.
To Press
Stop play Cl (@*')
Pause 00 (a8*')
Resume play [> or 00 (CDC>*' or I’)
Go forward
to another
track
During play or pause, turn
the JOG dial clockwise*’.
Or press AMS** BPI on the
remote.
Go back toa
previous the JOG dial
track _counterclockwise*’.
Or press AMS** K@<@ on the
remote.
Select a The corresponding DISC
particular 15",
cD Or DISC SKIP (D.SKIP*")
repeatedly.
Remove or & OPEN*
exchange a
CD
*! Remote
*” Turning the JOG dial quickly skips to
the next CD.
43
Auto Music Sensor
continue to next page >
Chapter 2: the CD Player
During play or pause, turn
loading position Music calendar
Playing time
7

continued >
“* Tf there is no disc at that number, the
disc tray rotates and plays the next CD.
If there is no disc at that number with
the front cover opened, the disc tray
rotates to the loading position.
* The disc tray rotates and brings the CD
in the playing position to the loading
position automatically when AUTO is
selected (the AUTO indicator is lit).
To remove or exchange the CD in the
loading position while playing
Press & OPEN and remove or exchange the
CD in the loading position.
Note
When you exchange the CD while playing,
the exchanged CD is the next CD to be
played and its disc number flashes.
To play tracks consecutively (non-
stop piay)
Press and hold down E> on the CD player
for a second.
To cancel non stop play
Press (J on the CD player.
Note
You cannot use this feature when the CD
play mode is SHUFFLE or PROGRAM.
Press CONTINUE so that “SHUFFLE” or
“PROGRAM” disappears from the display.
To locate a particular point in a track
You can locate a particular point in a track
while playing or pausing a CD. Use the
buttons on the remote to opemte this
function.
To locate a point Press
bP (forward) or <<
While monitoring
the sound (backward) on the
remote and hold down
until you find the
point.
Quickly by > (forward) or <<
observing the (backward) on the
display during remote and hold down
pause until you find the
point. You will not
hear the sound during
this operation.
Chapter 2: the CD Player
To check the remaining or total
playing time
Press DISPLAY/DEMO repeatedly.
Each time you press DISPLAY /DEMO
while playing a CD, the display changes as
follows:
| Playing time on the current
track |
Remaining time on the
current track
'
Remaining time on the CD (1
DISC play mode) or “PLAY”
indication (ALL DISCS play
mode) |
Clock (appears for a few
seconds) |
EFFECT (or P FILE) name
(appears for a few seconds in
the display)
Note
“.-,--" appears in the display when the
remaining time is 100 minutes or more.
When AUTO indicator is lit
¢ The CD in the loading position starts
playing automatically when you close the
front cover.
¢ The CD in the playing position comes
back to the loading position when playing
is stopped and you open the front cover.
e When you exchange the CD while
playing, the exchanged CD is the next CD
to be played and its disc number flashes.
If you don’t want to use the auto play
function, press AUTO so that the AUTO
indicator goes off.
One Touch Play feature
Press [> on the CD player (or CD F> on
the remote) when the power is off. You can
listen to the last selected CD without
pressing any other buttons when a CD is
loaded in the CD player.
If you press > or DISC 1 - 5 while another
source is selected, the CD player is selected
and play starts automatically.
The music calendar display
This display lights according to the number
of the tracks on the CD. As each track is
played, the corresponding number
disappears.
Tracks numbered 21 or more are not
displayed.
What the orange and red numbers in the
disc calendar indicate
¢ The orange number in the disc calendar
indicates the disc number in the playing
position. When the CD player is not
playing and the AUTO indicator is not lit,
the CD whose disc number is orange is
the next CD to be played.
¢ The red number in the disc calendar
indicates the disc number in the loading
position.
You can remove the CD whose disc
number is red while playing.
[ne |
Playing Tracks in
Random Order
(shuffle play)
You can play all the tracks on a CD or all
CDs in random order.
SYSTEM
POWER->ON
DISC 1-5 CONTINUE 2
1 Press FUNCTION repeatedly until
“CD” appears in the display.
2 Press SHUFFLE to choose
“ALL DISCS” or “1 DISC”.
“ALL DISCS SHUFFLE” or “1 DISC
SHUFFLE” appears in the display.
3 Press > on the CD player (or CD >
on the remote).
“ €3” appears and then all the tracks
play in random order.
To skip to the next track, turn the JOG
dial clockwise on the CD player (or
press PI on the remote).
To replay the current track, turn the JOG
dial counterclockwise on the CD player
(or press #4 on the remote). You
cannot replay the previous track.

To stop playing
Press O (or & on the remote) on the CD
player.
To cancel shuffle play
Press CONTINUE.
To select the desired CD
Press DISC 1 - 5 on the CD player during
“1 DISC SHUFFLE” play.
a ee ey
Playing Tracks in the
Desired Order
(program play)
You can program up to 32 tracks from all
the CDs in the order you want them to be
played.
SYSTEM
POWER ->ON
1 Press FUNCTION repeatedly until
“CD” appears in the display.
2 Press PROGRAM.
“PROGRAM” appears in the display.
3 Press DISC SKIP (or D.SKIP on the
remote) repeatedly (or DISC 1-5) to
choose a CD.
4 Turn the JOG dial (or press Ke /P Pi
on the remote) to choose a track.
The chosen track number appears and
the playing time flashes for about 15
seconds in the display.
5 Press PROGRAM or ENTER/NEXT.
The chosen track is programmed and its
number appears in the music calendar.
If the track number disappears before
you press PROGRAM or
ENTER/NEXT, go back to step 3.
To program additional tracks from the
same CD, repeat steps 4 and 5.
To program additional tracks from
another CD, repeat steps 3 to 5.
Note
If “- -.--” appears instead of the total
playing time, this means:
~you have programmed a track number
which is more than 20, or
~the total time is 100 minutes or more.
6 Press E> on the CD player (or CD E>
on thge remote.)
All the tracks play in the programmed
order.
To Press
CHECK on the
remote repeatedly”'
00*? (or fl on the
remote)
Check the program
Program a pause
Stop play
remote)
Cancel program play CONTINUE*
Erase a track from CLEAR on the
the end remote in stop mode
Erase a specific CHECK on the
track remote repeatedly
so the number of
the track appears,
and press CLEAR
on the remote
Erase the entire
program remote) once in
stop mode or twice
while playing
0) (or @ on the
O (or @ on the
“\ After the last track appears, “CHECK
END” appears in the display.
*2 “P” appears in the display and the total
playing time is reset to 0.00.
* The program is erased.
To change the order of programmed
tracks
Erase the entire program and create a new
one.
The whole program is erased also when:
¢ you select another play mode.
¢ you exchange or remove the CDs.
|
Playing Tracks
Repeatedly (repeat
play)
The repeat play function repeats a single
CD or all CDs in normal, program, and
shuffle play.
In normal play mode only, the CD player
can also repeat a single track.
SYSTEM
POWER >ON
CONTINUE 1
Repeating all the tracks
1 Press REPEAT once so that “REPEAT”
appears in the display.
: apes i om
ons. le] = 4 A,
C3 AEE Ea ee =>)
(ele bapee, ,* '"
awe
2 Press [> on the CD player.
continue to next page >
Chapter 2: the CD Player
9

continued >
To Press
Repeat all the CONTINUE repeatedly
tracks on the until “1DISC” appears
current CD in the display.
Repeat all the CONTINUE repeatedly
tracks on allCDs until “ALL DISCS”
appears in the display.
REPEAT repeatedly
until “REPEAT 1”
appears in the display
while playing the track
you want to repeat.
Repeat only one
track (in normal
play only)
To cancel repeat play
Press REPEAT so that “REPEAT” or
“REPEAT 1” disappears from the display.
me
[i 32 eS
Playing Tracks by
Repeating a
Specified Portion
(loop play)
You can make a sampler sound effect by
playing a short portion of the track
repeatedly (loop play). This is useful for
making original dance music tapes.
Original song:
“Hey, Come on Everybody!”
When you make the effect :
“Hey, Co Co Co Co Come on
Everybody!”
SYSTEM
POWER > ON
1 0 Chapter 2: the CD Player
1 Press LOOP on the remote.
You can choose the repeating time from
about 0.25 sec. to about 1 sec. for
NORMAL 1-5 and RHYTHM 1 -- 5. For
more information on NORMAL and
RHYTHM, see “What is the difference
between NORMAL and RHYTHM ?” for
details.
he NORMAL‘ -* NORMAL2 —* NORMAL3
RHYTHMS NORMAL4
RHYTHM4 NORMALS
eo RHYTHM3 «— RHYTHM2 ~«- RHYTHM1
You can get the longest repeating time
by selecting NORMAL (RHYTHM) 5,
and the shortest with NORMAL
(RHYTHM) 1.
2 Press [> on the CD player (or CD C>
on the remote).
The CD player starts playing.
3 Press and hold down LOOP when you
hear the portion you want to repeat.
What is the difference between
NORMAL and RHYTHM
NORMAL differs from RHYTHM in
respect to the restarting point of the music
when the loop effect ends in step 3.
Select the repeating time while CD player is
in pause or stop mode.
When you play the loop for five seconds
NORMAL
A A’
7
= LOOP play =
In this case, the song restarts at the point
that you started the loop (A).
RHYTHM
A B
ime LOOP play =
In this case, the song restarts at the point 5
sec. after you started the loop (B).
SE ee
Grouping Tracks
(music clip)
The music clip function is an easy way to
create up to 3 groups of tracks from your
CDs. For example, you could store tracks
for the morning in CLIP A, tracks for your
friends in CLIP B, and tracks for relaxing in
CLIP C.
Once you store one or more tracks in a
music clip(s), the player recalls those tracks
whenever you play the respective disc.
Each music clip can store tracks from 10
different CDs even if you have removed or
exchanged CDs.
Storing Tracks in a Music
Clip
SYSTEM
POWER->ON
3 2
1 Press FUNCTION repeatedly until
“CD” appears in the display.
2 Play the track you want to store by
turning the JOG dial to select the track
you want.
3 Press CLIP (A, B, or C) to store the track
in the desired clip.
“CLIP FILE” and the indicator of the
music clip you selected appear in the
display. Normal playback continues.

4 Repeat steps 2 and 3 to store other
tracks into the same (or a different)
clips:
'f the memory becomes full
The music clip data for the oldest track is
erased to make room for a new track.
Notes
¢ In stop mode, you cannot store tracks in
music clips when “SHUFFLE” or
“PROGRAM” appears in the display.
¢ Only tracks numbered 1 - 20 on the disc
can be stored in music clips. The tracks
numbered 21 or more cannot be stored.
Playing Tracks in a Music
Clip —
(music clip play)
CLIP (A, B, or C) indicator appears in the
display to let you know when tracks on the
discs are stored in music clips.
SYSTEM
POWER > ON
1 Press MUSIC CLIP PLAY.
“SELECT A - C” and “PLAY A - C”
appear in the display alternately.
2 Press CLIP (A, B, or C).
“CLIP PLAY” and the selected music
clip indicator appear in the display.
The player starts playing tracks from the
selected music clip.
You can see the tracks in the music clip
with music calendar.
To cancel clip play
Press O on the CD player.
Notes
¢ In 1 DISC mode, the tracks stored for the
selected disc are played back once, then
clip play is canceled.
e In ALL DISCS mode, all the tracks stored
for the currently loaded discs are played
back once, then clip play is canceled.
¢ You cannot start clip play if “PROGRAM”
appears in the display.
Erasing Tracks from a
Music Clip
SYSTEM
POWER->ON
MUSIC
CLIP PLAY
MUSIC
CLIP ERASE
CLIP A, B, C JOG dial
Erasing a track
1 Press MUSIC CLIP PLAY.
2 Press CLIP (A, B, or C) for the clip
containing the tracks you want to erase.
3 Use the JOG dial to select the track you
want to erase.
4 Press MUSIC CLIP ERASE while the
track you want to erase is being played.
“ERASE A - C” and “TRACK A - C”
appear alternately in the display and the
selected CLIP indicator flashes.
5 Press the same CLIP button you pressed
in step 2 again while the indicator is
flashing.
Playing stops and the selected track is
erased.
Erasing all the tracks in CLIP A (B or
Cc)
1 Instop mode, press MUSIC CLIP
ERASE.
“ERASE A - C” and “ALL A - C” appear
alternately in the display, and all the
music clip indicators flash.
2 Press CLIP (A, B, or C) to specify the
music clip you want to erase.
“PUSH” and the selected “CLIP (A, B or
C)” appear in the display.
3 Press the same CLIP button you pressed
in step 2 again.
Note
You cannot erase tracks from a music clip if
the disc containing these tracks is not in the
playing position.
Chapter 2: the CD Player 1 1

Chapter 3:
the
stlelle
Listening to the Radio
Presetting Radio Stations
Playing Preset Radio
Stations
1 2 Chapter 3: the Radio
a el
Listening to the
Radio
When you want to listen to a radio
program, you can have the tuner
automatically scan the radio frequencies
and tune in the stations with clear signals.
This feature saves you time in searching for
stations with clear signals.
However, stations with weak signals may
be skipped by automatic tuning. Manually
tune in stations with weak signals.
STEREO/
MONO
2
ENTER/
NEXT
1 Press TUNER/BAND repeatedly until
the band you want appears in the
display.
Each time you press this button, the
band changes as follows:
FM <4—> AM
2 Press TUNING MODE repeatedly until
“AUTO” appears in the display.
3 Press TUNING +/-(or Ke /PPH on
the remote).
The tuner starts scanning radio
frequencies, and stops when it finds a
clear station. “TUNED” appears in the
display. “STEREO” also appears if the
FM station tuned in is broadcasting in
stereo.
4 i you don’t want to listen to the
selected station, press TUNING +/-— (or
<4 /PP1 on the remote) to restart the
scan.
When the desired station is not
tuned in
Automatic tuning may skip the stations
with weak signals and continue scanning
without a stop. In this case, tune in the
station manually.
1 Press TUNING MODE repeatedly until
“MANUAL” appears in the display.
2 Press TUNING +/- (or kd /PP1 on
the remote) repeatedly until the desired
station is tuned in.
To improve AM broadcast reception
Reorient the supplied AM loop antenna for
AM.
cy
A
To change the AM tuning interval
The AM tuning interval is preset to 10 kHz
at the factory. If you need to change the
interval to 9 kHz, do as follows:
1 Turn on the power.
2 Change the band to AM.
3 Turn off the power.
4 Tur the power back on while pressing
ENTER/NEXT.
After changing the AM tuning interval,
reset the preset AM radio stations.
When an FM program is not received clearly
Press STEREO/MONO so that “MONO”
appears in the display. There will be no
stereo effect, but the reception will
improve. Press STEREO /MONO again to
restore the stereo effect.
One Touch Play feature
Press TUNER/BAND (or TUNER/BAND
on the remote) when the power is off or
when you are listening to another sound
source.
You can listen to the last received station
without pressing any other buttons.
Note
When you listen to a sound source other
than the tuner, you can select the tuner by
pressing TUNER/BAND (Automatic
Source Selection).

.
Ee er eee
Presetting Radio
Stations
You can store radio frequencies in the
tuner’s memory to tune in your favorite
stations quickly. You can preset up to 20
FM stations and 10 AM stations in any
order.
1 Press TUNER/BAND repeatedly until
the band you want appears in the
display.
FM <¢+—> AM
2 Press TUNING +/- to tune in the
station you want to store.
3 Press TUNER MEMORY.
“MEMORY” appears and the preset
channel number flashes in the display.
Preset channel number
4 Press TUNING +/-to display the preset
channel number you want to store.
S Press ENTER/NEXT.
“MEMORY” disappears, and the station
is stored in the preset channel number
you decided on.
Preset channel number
Station frequency
6 Repeat steps 1 to 5 for each station you
want to store.
To erase a stored station
Store a new station in the preset station
number. It will erase the old station and
replace it with the new station.
if you have trouble storing a station
Make sure “MEMORY” appears in the
display. If not, press TUNER MEMORY
again so that “MEMORY” appears (for
about eight seconds) in the display, and
then proceed with steps 4 and 5.
Ere eee
Playing Preset Radio
Stations
Once you have preset the stations, use the
TUNING +/- (or kd /PP1 on the remote)
to quickly tune in your favorite stations.
SYSTEM
POWER->ON
1 Press TUNER/BAND (or
TUNER/BAND on the remote)
repeatedly until the band you want
appears in the display.
FM <+—> AM
2 Press TUNING MODE repeatedly so
that “PRESET” appears in the display.
3
Press
TUNING
+/-
(or
Ke
/
PH
on
the
remote)
to
tune
in
a
preset
station.
The
station
frequency
appears
and
the
station
begins
broadcasting.
Preset channel number
Station frequency
Chapter 3: the Radio
13

Cha
pte
r
4:
———
ee
4
Press
[>
(to
play
the
front
side)
or
<J
Playi nga Tape (to play the reverse side) on the tape
player.
th e F ca = You can use TYPE I (normal) and TYPE II The ape starts Playing:
(CrOz) tapes. When you insert a tape, the a SS
deck detects the tape type automatically. To Press
Player <a 3
SYSTEM Pause (deck B 00
POWER>ON only)
Resume play after 0, <J or >
pause
7 Fast forward D> for front side <<]
Playing a Tape 1 for reverse side
2 00 Rewind <1 for front side b>
Recording
a
CD
for
reverse
side
. 7 3 Remove the & EJECT
Recording a CD: Selecting 2 DOLBY cassette
Tape Length (tape select NR
edit) 2 To control the remote
1 Press DECK A <J [> or
Recording a CD: Specifyin DECK B <1] > to play the front side
T L 9 th (ti P dit) 9 OaIepe! O<c pe and press DECK A <1 > or
ape reng mec 4 DECK B <1 C> again to play the
reverse.
Recording a CD: Specifying 2. Press the desired operation button.
Track Order (program 1 Press FUNCTION repeatedly until bey eet decks i F
edit) “TAPE” appears in the display. To play both decks in succession
(relay play)
Relay play is according to the followin
i i 2 Press & EJECT t the t yey 8 8
Recording From the Radio aes a ai sequence. When the reverse side of the tape
. Insert a recorded tape in deck A or B in deck B finishes playing, the sequence
Recording From Another with the tape side facing down and the sone OUR miote Lanes:
Tape (dubbing) side you want to play facing forward.
Push to close the compartment. Deck A Deck A
rs
(Front side) (Reverse side)
a
EE
Deck 8 rae Deck B
(Reverse side) (Front side)
co
Press & EJECT and insert recorded
3 Press DIRECTION to choose single-side, tapes in both decks.
dual-side, or relay play. Press DIRECTION repeatedly until
The DIRECTION setting affects both “RELAY” appears in the display.
decks.
NI
3 Press <J or E> on either deck. To stop
relay play, press 0.
To play Press DIRECTION to
select To cancel relay
One side =— Press DIRECTION repeatedly until “==”
TO or “C=)” appears in the display.
Both sides* es i Pa
Both decks in RELAY When listening to a tape recorded with the
succession** Dolby* B-type noise reduction system
Press DOLBY NR button so that “DOLBY
NR B” appears in the display.
The settings affects both decks. Dolby noise
reduction system reduces tape hiss noise in
low-level high-frequency signals.
* The deck stops automatically after
repeating the sequence five times.
“See “To play both decks in succession
(relay play).”
* Dolby noise reduction manufactured
under license from Dolby Laboratories
Licensing Corporation. “DOLBY” and the
double-D symbol Dd are trademarks of
Dolby Laboratories Licensing
Corporation.
1 4 Chapter 4: the Tape Player

One Touch Play Feature
Press <] or [> on the tape player (or
DECK A <J >>/ DECK B <J [> on the
remote) when the power is off.
When a tape is in the player, you will
immediately be able to listen to the tape
without pressing any other buttons. If no
tape is inserted, the system will just turn
on.
The tape player always starts playing from
the front side of the tape when you operate
the remote.
a —— —
Recording a CD
You can record from a CD to a tape. Use
TYPE I (normal) or TYPE II (CrOz) tapes.
You carifot listen to other sources while
recording.
Recording a CD
automatically
By using CD SYNCHRO, you can record
from a CD to a tape easily.
Use the buttons on the unit for this
operation.
SYSTEM
POWER > ON
UAON
1 Press FUNCTION repeatedly until
“CD” appears in the display.
2 Press & OPEN and load a CD on the
tray.
Make sure the disc number in the
playing position in the display is the one
you want to record.
The total number of tracks and the
playing time appear in the display.
3 Press & EJECT and insert a blank tape
into deck B with the side you want to
record on facing forward.
Recording starts from the front side of
the tape, unless you change the playing
direction before recording.
Make sure the tabs on the cassette have
not been removed.
4 select dual or single sided recording.
To record
to select
One side a
Both sides* C2) or RELAY
* Recording always stops at the end of the
reverse side. Be sure to start from the
front side.
5 When you want to reduce the hiss noise
in low-level high-frequency signals,
Press DOLBY NR so that “DOLBY NR
B” appears in the display.
6 Press CD SYNCHRO.
The REC and 01 (pause) lamps light up
and deck B stands by for recording.
The E> lamp lights up and the <J lamp
flashes for a few seconds, then goes off.
o= | og
If you want to start recording from the
reverse side, press <I so that the <1
lamp lights steadily.
Side in recording
pause mode
7 Press 00 on the tape player to release
recording pause.
Recording starts.
After about 10 seconds, the CD starts
playing.
To stop recording
Press O on the tape player.
To record with the surround effect
Press DSP MODE on the remote so that
“SUR 1 (ttm) |” “SUR 2 (tem) ,” or
“SUR 3 (ta) ” appears in the display.
Any adjustment to the equalizer you have
made will not be recorded.
Recording a CD Manually
You can record a CD as you like, for
example, record just the songs you want or
record from the middle of the tape.
SYSTEM
Vig WR OO
Press DIRECTION
1 Press FUNCTION repeatedly until “CD”
appears in the display.
2 Press & OPEN and load a CD on the
tray.
Make sure the disc number in the
playing position in the display is the one
you want to record.
The total number of tracks and the
playing time appear in the display.
3 Press & EJECT and insert a blank tape
into deck B with the side you want to
record on facing forward.
Recording starts from the front side of
the tape, unless you change the playing
direction before recording.
Make sure the tabs on the cassette have
not been removed.
4 select dual or single sided recording.
Torecord Press DIRECTION to select
One side =
Both sides* ¢=> or RELAY
* Recording always stops at the end of the
reverse side. Be sure to start from the
front side.
5 you want to record a specific track of
the CD, press 00 on the CD player.
The CD player pauses for playing.
If you do not need to choose a track,
skip to step 7.
6 Turn the JOG dial to choose the track
you want to record.
7 When you want to reduce the hiss noise
in low-level high-frequency signals,
Press DOLBY NR so that “DOLBY NR
B” appears in the display.
8 Press REC,
The REC and Of (pause) lamps light up
and deck B stands by for recording.
The E> lamp lights up and the <I lamp
flashes for a few seconds, then goes off.
Side in recording
pause mode
If you want to start recording from the
reverse side, press <I so that the <1
lamp lights steadily.
9 Press 00 on the tape player to release
recording pause.
Recording starts.
10 Press E> on the CD player.
The CD player starts playing.
To Press
Stop recording oO
Pause recording 00
continue to next page >
Chapter 4: the Tape Player 1 5

. » continued
16
To record with the surround effect
Press DSP on the remote so that “SUR 1
Kuma,” “SUR 2 (tien) ,” or
“SUR 3{lmn| ” appears in the display.
Any adjustments to the equalizer you have
made will not be recorded.
Note
If you want to record specific tracks of the
CD, the “program edit” feature will make it
easier.
=a ee
Recording a CD:
Selecting Tape
Length (tape select
edit)
You can have the stereo system select and
indicate the most suitable tape length for
recording each disc automatically.
You cannot use tape select edit for discs
which contain 21 tracks or more.
SYSTEM
POWER >ON
Chapter 4: the Tape Player
1 Press FUNCTION repeatedly until
“CD” appears in the display.
2 Press 2 OPEN and load a CD on the
tray.
Make sure the disc number in the
playing position in the display is the
one you want to record.
The total number of tracks and the
playing time appear in the display.
3 Press EDIT on the remote.
“TAPE SELECT” appears in the display,
and tape player divides the selections
automatically.
Then the display changes as follows:
flashing
4 Press & EJECT and insert a blank tape
of the indicated length (or longer) into
deck B with the side you want to record
facing forward.
Recording will start from the front side
of the tape, unless you have changed the
playing direction before recording.
Make sure the tabs on the cassette have
not been removed.
5 select dual or single sided recording.
To record
select
One side =
Both sides*
=) or RELAY
* Recording always stops at the end of the
reverse side. Be sure to start from the
front side.
6 When you want to reduce the hiss noise
in low-level high-frequency signals,
press DOLBY NR so that “DOLBY NR
B” appears in the display.
7 Press CD SYNCHRO.
The REC and fl (pause) lamps light up
and deck B stands by for recording.
The [> lamp lights up and the <J lamp
flashes for a few seconds, then goes off.
Side in recording
pause mode
If you want to start recording from the
reverse side, press <J] so that the <1)
lamp lights steadily.
Press DIRECTION to
8 Press 00 on the tape player to release
recording pause.
Recording starts.
After about 10 seconds, the CD player
starts playing.
To stop recording
Press 0 on the tape player.
To check the order
Press CHECK on the remote.
To cancel tape select edit
Press CONTINUE on the CD player.
SS ree ey
Recording a CD:
Specifying Tape
Length (time edit)
You can have the stereo system create
programs based on the tape length. For
example, if you use a 46-minute tape to
record a 50-minute CD, the CD player will
automatically choose as many tracks as
possible to fit within the 46-minute tape. The
player will not program those tracks beyond
track number 20. Use the buttons on both the
unit and the remote for this operation.
SYSTEM
POWER >ON

1 Press FUNCTION repeatedly until
“CD” appears in the display.
2 Press 8 OPEN and load a CD on the
tray.
Make sure the disc number in the
playing position in the display is the one
you want to record.
The total number of tracks and the
playing time appear in the display.
3 Press 4 EJECT and insert a blank tape
into deck B with the side you want to
record on facing forward.
Recording starts from the front side of
the tape, unless you change the playing
direction before recording.
Make sure the tabs on the cassette have
not been removed.
4 select dual or single sided recording.
To record Press DIRECTION to
select
One side =
Both sides* C=) or RELAY
* Recording always stops at the end of the
reverse side. Be sure to start from the
front side.
5 when you want to reduce the hiss noise
in low-level high-frequency signals,
press DOLBY NR so that “DOLBY NR
B” appears in the display.
6 Press EDIT twice.
“TIME EDIT” then “SELECT” and
“TIME” appear alternately in the
display.
.
7 Press kd /PP1 on the remote to
designate the tape length or “HALF”.
As you press the button, the display
changes as follows:
HALF «+ C-46 ++ C-54
(23.00) (27.00)
C-90 «++ C-74 ++ C-60
(45.00) (37.00) — (30.00}
Choose “HALF” if you want the CD
player to record half of the total playing
time of the CD in the original order. You
cannot select “HALF” when recording
CDs with more than 20 tracks.
“PUSH EDIT” and half of the total time
of the tape you selected appears in the
display.
cmH wae...
uy
Half of the total time of the tape
8 Press EDIT on the remote.
The CD player determines the tracks to
be recorded on side A automatically.
The total time and tracks to be recorded
on side A appears in the display.
Tracks to be recorded on side A
Total playing time on side A
9 When you want to record on both sides,
press EDIT again. The CD player
determines the tracks to be recorded on
side B.
Tracks to be recorded on both sides
Total playing time on side B
10 Press CD SYNCHRO.
The REC and 00 (pause) lamps light up
and deck B stands by for recording.
The C lamp lights up and the <J lamp
flashes for a few seconds, then goes off.
Side in recording
pause mode
If you want to start recording from the
reverse side, press <I] so that the <1]
indicator lights steadily.
11 Press 00 on the tape player to release
recording pause.
Recording starts.
After about 10 seconds, the CD player
starts playing.
To stop recording
Press O on the tape player.
To check the order
Press CHECK on the remote repeatedly.
Each time you press CHECK, the number of
the programmed tracks appear in the
display.
To cancel time edit
Press CONTINUE on the CD player.
To select the desired tracks
beforehand
You can record certain tracks (up to 20) first
by selecting them before time editing. See
“Playing Tracks in the Desired Order
(program play).”
i Se |
Recording a CD:
Specifying Track
Order (program edit)
You can adjust the total recording time to
the tape length while making a program.
SYSTEM
POWER ON
AMUN
1 Following the procedure “Playing
Tracks in the Desired Order (program
play),” program the tracks you want to
record for side A.
Make sure to program the tracks so that
the total playing time of the side A does
not exceed the tape length of one side.
2 Press Hl on the remote to pause
recording at the end of the side A.
“P” appears in the display.
The total playing time “0.00” appears in
the display.
3 Program the tracks you want to record
for side B in the same way as you did
for side A.
continue to next page >
Chapter 4: the Tape Player 1 7

> continued
4 Press & EJECT and insert a blank tape
into deck B with the side you want to
record on facing forward.
Recording will start from the front side
of the tape, unless you have changed the
playing direction before recording.
Make sure the tabs on the cassette have
not been removed.
5 select dual or single sided recording.
To record
select
One side —
Both sides* C=) or RELAY
++ Recording always stops at the end of the
reverse side. Be sure to start from the
front side.
6 When you want to reduce the hiss noise
in low-level high-frequency signals,
press DOLBY NR so that “DOLBY NR
B” appears in the display.
7 Press CD SYNCHRO.
The REC and 08 (pause) lamps light up
and deck B stands by for recording.
The [> jamp lights up and the <I lamp
flashes for a few seconds, then goes off.
Side in recording
pause mode
If you want to start recording from the
reverse side, press <J sd that the <1
lamp lights steadily.
8 Press 00 on the tape player to release
recording pause.
Recording starts.
After about 10 seconds, the CD player
starts playing.
To stop recording
Press O on the tape player.
To check the order
Press CHECK on the remote repeatedly.
Each time you press CHECK, the number of
the programmed tracks appear in the
display.
To cancel program edit
Press CONTINUE on the CD player.
1 8 Chapter 4: the Tape Player
Press DIRECTION to
SS SSS a ees
Recording From the
Radio
You can record from the tuner onto a tape.
Use TYPE I (normal) or TYPE II (CrO2)
tapes.
SYSTEM
POWER->ON
VIAO~I
1 Press & EJECT and insert a blank tape
into deck B with the side you want to
record on facing forward.
Recording starts from the front side of
the tape, unless you change the playing
direction before recording.
Make sure the tabs on the cassette have
not been removed.
2 Press TUNER/BAND several times
until the desired radio band appears.
3 Tune in the radio station you want to
record. (See “Listening to the Radio” or
“Playing Preset Radio Stations” for
details.)
4 Select dual or single sided recording.
To record Press DIRECTION to
select
One side =
C=) or RELAY
Both sides*
* Recording always stops at the end of the
reverse side. Be sure to start from the
front side.
5 When you want to reduce the hiss noise
in low-level high-frequency signals,
press DOLBY NR so that “DOLBY NR
B” appears in the display.
6 Press REC.
The REC and 0 (pause) lamps light up
and deck B stands by for recording.
The &> lamp lights up and the <J lamp
flashes for a few seconds, then goes off.
a
| ox
Side in recording
pause mode
If you want to start recording from the
reverse side, press <J so that the <I
lamp lights steadily.
7 Press (1 on the tape player to release
recording pause.
Recording starts.
To stop recording
Press U1 on the tape player.
To reduce noise during AM recording
If a whistling noise is heard while
recording, reorient the AM loop antenna for
optimum reception.
i
Recording From
Another Tape
(dubbing)
Dubbing Another Tape
Automatically
You can record an entire tape onto another
automatically by using high speed dubbing.
Use the buttons on the unit and TYPE |
(normal) or TYPE IJ (CrOz) tapes for
dubbing.
SYSTEM
POWER > ON
1 Press FUNCTION repeatedly until
“TAPE” appears in the display.
2 Press & EJECT and insert a recorded
tape in deck A with the side you want to
play facing forward.
Also, insert a blank tape in deck B with
the side you want to record on facing
forward.
Recording and playback will start from
the front side of the tape, unless you
change the playing direction before
recording.
Make sure the tabs on the cassette in
deck B have not been removed.

3 Choose how you want the tape to record
and press DIRECTION repeatedly until
the desired mode appears.
Position Operation
—_— Dubbing stops at the end of
one side
[oan When the tape in one deck
comes to the end of the front
side, it reverses immediately
regardless of the tape position
in the other deck.
RELAY
reaches its end of the front
side, it stops until the other
tape comes to its end, and
then both tapes reverse
together.
—
4 Press HIGH SPEED DUBBING.
The REC and 00 (pause) lamps light and
deck B stands by for recording.
The [> lamp lights up and the <J lamp
flashes for a few seconds, then goes off.
<] Cos Side in recording
pause mode
If you want to start recording from the
reverse side, press <] so that the <I
lamp lights steadily.
5 Press Ul on the tape player.
The tape player starts dubbing at high
speed.
If you set DIRECTION to ¢=) or
RELAY, recording always stops_at the |
end of the reverse side.
To stop dubbing
Press 1] on deck A or deck B.
tf you select another sound source while
dubbing
Dubbing stops.
You do not have to press DOLBY NR with
high speed dubbing
The tape in deck B is automatically
recorded in the same state as the tape in
deck A.
When the tape in one deck
Dubbing Another Tape
Manually
When you want to dub only part of the
tape, dub manually at normal speed. Use
the buttons on the unit and TYPE I (normal)
or TYPE II (CrO2) tapes for recording.
SYSTEM
POWER->ON
1 Press FUNCTION repeatedly until
“TAPE” appears in the display.
2 Press & EJECT and insert a recorded
tape in deck A with the side you want to
play facing forward.
Also, insert a blank tape in deck B with
the side you want to record on facing
forward.
Recording and playing will start from
the front side of the tape, unless you
have changed the playing direction
before recording.
Make sure the tabs on the cassette in
deck B have not been removed.
3 Select dual or single sided recording.
To dub
select
One side —_—
C=) or RELAY
Both sides*
* Recording always stops at the end of the
reverse side. Be sure to start from the
front side.
4 Press REC.
The REC and 00 (pause) lamps light up
and deck B stands by for recording.
The E> lamp lights up and the <J lamp
flashes for a few seconds, then goes off.
a
os | oy
If you want to start recording from the
reverse side, press <I] so that the <J
lamp lights steadily.
Side in recording
pause mode
Press DIRECTION to
5 Press fll on the tape player to release
recording pause.
Recording starts on deck B.
If you set DIRECTION to C= or
RELAY, recording always stops at the
end of the reverse side.
6 Press <I] or & on deck A.
The tape on deck A starts playing.
To stop dubbing
Press UO on deck A or deck B.
Notes
e When dubbing tapes originally recorded
with Dolby NR B, the dubbed tape is
automatically recorded with Dolby NR B.
¢ When you want to record a tape recorded
without Dolby NR B onto another tape
using Dolby NR B, press DOLBY NR so
that “DOLBY NR B” appears in the
display.
Chapter 4: the Tape Player 1 9

Chapter 5:
Sound
Adjustment
Adjusting the Sound
Selecting the Audio
Emphasis
_Adjusting the Audio
Emphasis
Making a Personal Audio
Emphasis File (personal
file)
20 Chapter 5: Sound Adjustment
8 |
Adjusting the Sound
To fully enjoy the sound coming from your
stereo system, you can make the following
audio adjustments. See the sections
following this one for additional sound
adjustments.
SYSTEM
POWER +> ON
DBFB
VOLUME
PHONES
To adjust the volume
Turn VOLUME on the amplifier clockwise
or counterclockwise to increase or decrease
the sound, or press VOLUME +/~- on the
remote.
To reinforce bass
Press DBFB* repeatedly and choose
DBFB MANY or DBFB ANN .
“DBFB BANNAN ” is more effective than
“DBFB @N\ ..”
* DBFB = Dynamic Bass Feedback
To listen through the headphones
Connect the headphones to the PHONES
jack. No sound will come from the
speakers.
——————————_—S SES
Selecting the Audio
Emphasis
Your stereo system has been factory set to
ten specially recommended audio emphasis
settings. Choose from among these ten
preset settings according to the type of
music you are listening to.
SYSTEM
POWER > ON} pisp_LaY/DEMO
EFFECT
1 Press FILE SELECT (MUSIC MENU 4 /
V on the remote) repeatedly to select
SELECT 5 or MORE 5.
The SELECT 5 or MORE 5 indicator
lights up.
2 Press one of the FILE 1-5 buttons on
the unit (or MUSIC MENU <4 / P on the
remote).
The indicator of the selected preset
setting lights up.
The effects of preset settings are as
follows:
