Sony WX-GT90BT User manual

4-440-626-21(1)
WX-GT99BT/WX-GT90BT
Bluetooth®
Audio System
To switch the FM/AM tuning step, see page 6.
To cancel the demonstration (DEMO) display, see page 6.
Para cambiar el paso de sintonización de FM/AM, consulte la
página 6.
Para cancelar la pantalla de demostración (DEMO), consulte la
página 6.
Operating Instructions GB
Manual de
instrucciones
ES

2
Laser Diode Properties
• Emission Duration: Continuous
• Laser Output: Less than 53.3 W
(This output is the value measurement at a
distance of 200 mm from the objective
lens surface on the Optical Pick-up Block
with 7 mm aperture.)
The Bluetooth word mark and logos are
owned by the Bluetooth SIG, Inc. and any
use of such marks by Sony Corporation is
under license. Other trademarks and trade
names are those of their respective owners.
This product is protected by certain
intellectual property rights of Microsoft
Corporation. Use or distribution of such
technology outside of this product is
prohibited without a license from Microsoft
or an authorized Microsoft subsidiary.
Android is a trademark of Google Inc. Use
of this trademark is subject to Google
Permissions.
Be sure to install this unit in the
dashboard of the car for safety.
For installation and connections,
see the supplied installation/connections
manual.
ZAPPIN and Quick-BrowZer are
trademarks of Sony Corporation.
Windows Media is either a registered
trademark or trademark of Microsoft
Corporation in the United States and/or
other countries.
iPhone, iPod, iPod classic, iPod nano, and
iPod touch are trademarks of Apple Inc.,
registered in the U.S. and other countries.
App Store is a service mark of Apple Inc.
MPEG Layer-3 audio coding technology
and patents licensed from Fraunhofer IIS
and Thomson.
Note on the lithium battery
Do not expose the battery to excessive heat
such as direct sunlight, fire or the like.
Warning if your car’s ignition has no
ACC position
Be sure to set the Auto Off function
(page 32). The unit will shut off
completely and automatically in the set
time after the unit is turned off, which
prevents battery drain. If you do not set
the Auto Off function, press and hold
 until the display
disappears each time you turn the
ignition off.

3
Table of contents
Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Notes on Bluetooth function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Switching the FM/AM tuning step . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Canceling the DEMO mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Setting the clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Location of controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Main unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
RM-X231 Remote commander . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Storing and receiving stations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
RDS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
CD. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Playing a disc. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
USB devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Playing back a USB device. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
iPod. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Playing back iPod . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Operating an iPod directly — Passenger control. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
App Remote via USB (iPhone). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Two-way Music Control with iPhone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Searching and playing tracks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Playing tracks in various modes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Searching a track by name — Quick-BrowZer™. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Searching a track by listening to track passages — ZAPPIN™. . . . . . . . . . . . . . . . . . .17
Changing the illumination . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Changing the color of display and buttons — Dynamic Color Illuminator . . . . . . . 18
Advanced color setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
Connecting Bluetooth devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Bluetooth operations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Pairing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
Handsfree calling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
Music streaming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
Initializing Bluetooth Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
App Remote via Bluetooth wireless technology (Android phone) . . . . . . . . .28
Two-way Music Control with Android phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28

4
Sound Settings and Setup Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Enjoying sophisticated sound functions — Advanced Sound Engine . . . . . . . . . . . . 29
Adjusting setup items . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Using optional equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Auxiliary audio equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Additional Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39

5
Getting Started
Notes on Bluetooth
function
Caution
IN NO EVENT SHALL SONY BE LIABLE
FOR ANY INCIDENTAL, INDIRECT OR
CONSEQUENTIAL DAMAGES OR OTHER
DAMAGES INCLUDING, WITHOUT
LIMITATION, LOSS OF PROFITS, LOSS OF
REVENUE, LOSS OF DATA, LOSS OF USE
OF THE PRODUCT OR ANY ASSOCIATED
EQUIPMENT, DOWNTIME, AND
PURCHASER’S TIME RELATED TO OR
ARISING OUT OF THE USE OF THIS
PRODUCT, ITS HARDWARE AND/OR ITS
SOFTWARE.
IMPORTANT NOTICE!
Safe and efficient use
Changes or modifications to this unit not
expressly approved by Sony may void the
user’s authority to operate the equipment.
Please check for exceptions, due to national
requirement or limitations, in usage of
Bluetooth equipment before using this
product.
Driving
Check the laws and regulations on the use of
cellular phones and handsfree equipment in
the areas where you drive.
Always give full attention to driving and pull
off the road and park before making or
answering a call if driving conditions so
require.
Connecting to other devices
When connecting to any other device, please
read its user guide for detailed safety
instructions.
Radio frequency exposure
RF signals may affect improperly installed or
inadequately shielded electronic systems in
cars, such as electronic fuel injection systems,
electronic antiskid (antilock) braking systems,
electronic speed control systems or air bag
systems. For installation or service of this
device, please consult with the manufacturer
or its representative of your car. Faulty
installation or service may be dangerous and
may invalidate any warranty that may apply to
this device.
Consult with the manufacturer of your car to
ensure that the use of your cellular phone in
the car will not affect its electronic system.
Check regularly that all wireless device
equipment in your car is mounted and
operating properly.
Emergency calls
This Bluetooth car handsfree and the
electronic device connected to the handsfree
operate using radio signals, cellular, and
landline networks as well as user-programmed
function, which cannot guarantee connection
under all conditions.
Therefore do not rely solely upon any
electronic device for essential communications
(such as medical emergencies).
Remember, in order to make or receive calls,
the handsfree and the electronic device
connected to the handsfree must be switched
on in a service area with adequate cellular
signal strength.
Emergency calls may not be possible on all
cellular phone networks or when certain
network services and/or phone features are in
use.
Check with your local service provider.

6
Switching the FM/AM
tuning step
The FM/AM tuning step is factory-set to the
50 kHz (FM)/9 kHz (AM) position. If the
frequency allocation system of your country
is based on 200 kHz (FM)/10 kHz (AM) or
100 kHz (FM)/10 kHz (AM) step, set the
tuning step before use.
This setting appears when this unit is turned
off.
1Press , rotate the control dial
until “GENERAL” appears, then press
it.
2Rotate the control dial until “TUNER-
STP” appears, then press it.
3Rotate the control dial to select from
“50K/9K,” “100K/10K” or “200K/10K,”
then press it.
Receivable frequency by selected frequency
setup:
FM 50 kHz: 87.50 MHz, 87.55 MHz, 87.60
MHz...
FM 100 kHz: 87.5 MHz, 87.6 MHz, 87.7
MHz...
FM 200 kHz: 87.5 MHz, 87.7 MHz, 87.9
MHz...
AM 9 kHz: 531 kHz, 540 kHz, 549 kHz...
AM 10 kHz: 530 kHz, 540 kHz, 550 kHz...
Canceling the DEMO
mode
You can cancel the demonstration display
which appears while this unit is turned off.
1Press , rotate the control dial
until “DISPLAY” appears, then press
it.
2Rotate the control dial until “DEMO”
appears, then press it.
3Rotate the control dial to select
“DEMO-OFF,” then press it.
The setting is complete.
4Press (BACK) to return to the
previous display.
The display returns to normal reception/
play mode.
Setting the clock
The clock uses a 12-hour digital indication.
1Press , rotate the control dial
until “GENERAL” appears, then press
it.
2Rotate the control dial until “CLOCK-
ADJ” appears, then press it.
The hour indication flashes.
3Rotate the control dial to set the hour
and minute.
To move the digital indication, press
 +/–.
4After setting the minute, press
.
The setup is complete and the clock
starts.
To display the clock, press .

7
Location of controls

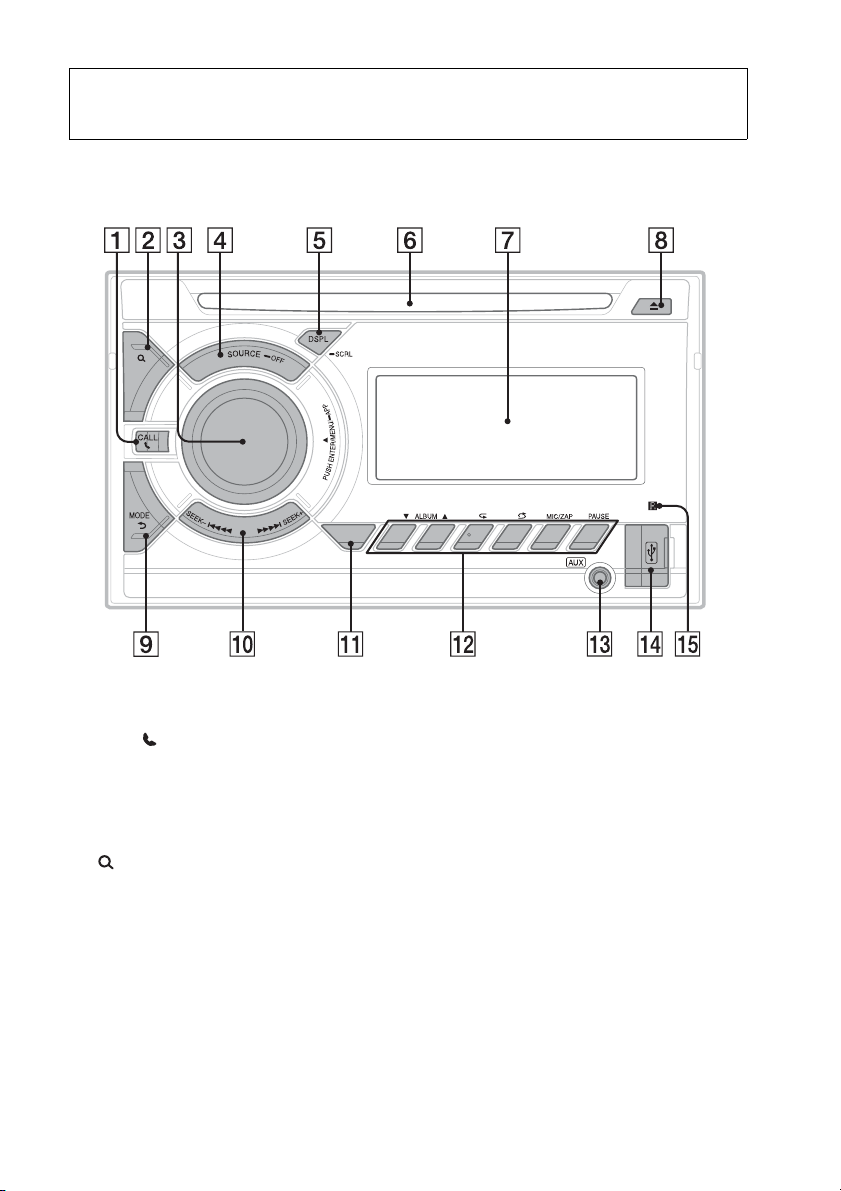

Main unit
This section contains instructions on the
location of controls and basic operations.
CALL button page 20
To enter the call menu (press); switch
the Bluetooth signal (press and hold
more than 2 seconds); receive/end a call
(press).
(BROWSE) button page 16
To enter the Quick-BrowZer™mode
(CD/USB).
Control dial/ENTER/MENU/APP
button page 14, 28, 31
Rotate to adjust volume.
Press to enter setup mode.
Press to receive/end a call.
Press and hold for more than 2 seconds
to establish App Remote.
After pressing , rotate
then press to change the source.
SOURCE/OFF button*1
Press to turn on the power; select the
source (Radio/CD/USB/AUX/
Bluetooth audio/Bluetooth phone).
Press repeatedly to change to another
source.
Press and hold for 1 second to turn off
the power.
Press and hold for more than 2 seconds
to turn off the power and the display
disappears.
DSPL (Display)/SCRL (Scroll) button
page 10, 11, 12, 13, 22, 26
To change display items (press); scroll a
display item (press and hold).
Disc slot
Insert the disc (label side up), playback
starts.
Display window
1 23456PTY

8
(Eject) button
To eject the disc.
(BACK)/MODE button page 10,
14, 25
Press to return to the previous display;
select the radio band (FM/AM).
Press and hold to enter/cancel the
passenger control (iPod).
Press to activate/deactivate the
appropriate device (this unit/cellular
phone) (Bluetooth phone).
SEEK +/– buttons
Radio:
To tune in stations automatically
(press); find a station manually (press
and hold).
CD/USB:
To skip a track (press); skip tracks
continuously (press, then press again
within about 2 seconds and hold);
reverse/fast-forward a track (press and
hold).
Bluetooth Audio*2:
To skip a track (press); reverse/fast-
forward a track (press and hold).
App Remote*3:
To skip a track (press).
PTY (Program Type) button page 11
To select PTY in RDS.
Number buttons
Radio:
To receive stored stations (press); store
stations (press and hold).
CD/USB:
/: ALBUM /(during MP3/
WMA/AAC playback)
To skip an album (press); skip
albums continuously (press and
hold).
: (Repeat)*4page 15
: (Shuffle) page 15
: ZAP page 17
: PAUSE
To pause playback. Press again to
resume playback.
Bluetooth Audio*2:
/: ALBUM /
: (Repeat)*4page 27
: (Shuffle) page 27
: PAUSE
To pause playback. Press again to
resume playback.
Bluetooth phone: page 24, 25
To call a stored phone number (press);
to store a phone number as a preset
(press and hold) (in the call menu).
: MIC (during a call) page 25
To set the MIC gain (press); to
select Echo Canceler/Noise
Canceler mode (press and hold).
App Remote*3:
: PAUSE
To pause playback. Press again to
resume playback.
AUX input jack page 34
USB port page 12, 13, 14
Receptor for the remote
commander
*1 If App Remote is established with iPhone/
Android™ phone, the application name
appears on the display when selecting the
source.
*2 When a Bluetooth audio device (supports
AVRCP of Bluetooth technology) is
connected. Depending on the device, certain
operations may not be available.
*3 When App Remote is established with
iPhone/Android phone. Depending on the
application, certain operations may not be
available.
*4 This button has a tactile dot.
Note
If the unit is turned off and the display
disappears, the unit cannot be operated with the
remote commander unless  on
the unit is pressed, or a disc is inserted to activate
the unit first.

9
RM-X231 Remote
commander
Remove the insulation film before use.
OFF button
To turn off the power; stop the source;
reject a call.
SOURCE button*1
Press to turn on the power.
Press repeatedly to change to another
source (Radio/CD/USB/AUX/
Bluetooth audio/Bluetooth phone).
()/() buttons
To control Radio/CD/USB/Bluetooth
audio/App Remote, the same as
 +/– on the unit.
Setup items can be operated by .
After pressing , press 
to change the source.
(BACK) button
To return to the previous display.
ENTER button
To apply a setting; receive a call; end a
call.
PTY (Program Type) button
VOL (Volume) +*2/– button
CALL button
To enter the call menu.
To receive/end a call.
MODE button
Press to select the radio band (FM/AM).
Press and hold to enter/cancel the
passenger control (iPod).
Press to activate/deactivate the
appropriate device (this unit/cellular
phone) (Bluetooth phone).
SOUND/MENU button
To enter the SOUND menu directly
(press); to enter setup mode (press and
hold).
(BROWSE) button
(+)/(–) buttons
To control CD/USB/Bluetooth audio
device, the same as / (ALBUM
/) on the unit.
Setup items can be operated by .
DSPL (Display)/SCRL (Scroll) button
Number buttons
To receive stored stations (press); store
stations (press and hold).
To call a stored phone number (press);
to store a phone number as a preset
(press and hold) (in the call menu)
(Bluetooth phone).
To pause playback (press ).
*1 If App Remote is established with iPhone/
Android phone, the application name appears
on the display when selecting the source.
*2 This button has a tactile dot.

10
Radio
Storing and receiving
stations
Tuning step setting is required (page 6).
Notes
• If the tuning step setting is changed, the stored
stations will be erased.
• If replacing the car battery or changing the
connections, the tuning step setting will be
erased, and you will need to set again.
Caution
When tuning in stations while driving, use
Best Tuning Memory (BTM) to prevent an
accident.
Storing automatically — BTM
1Press  repeatedly until
“TUNER” appears.
To change the band, press 
repeatedly. You can select from FM1,
FM2, FM3, AM1, or AM2.
2Press , rotate the control dial
until “GENERAL” appears, then press
it.
3Rotate the control dial until “BTM”
appears, then press it.
The unit stores stations in order of
frequency on the number buttons.
Tip
You can also press , rotate the
control dial to select “TUNER,” then press it to
select the source.
Storing manually
1While receiving the station that you
want to store, press and hold a number
button ( to ) until “MEM”
appears.
Receiving the stored stations
1Select the band, then press a number
button ( to ).
Tuning automatically
1Select the band, then press  +/–
to search for the station.
Scanning stops when the unit receives a
station. Repeat this procedure until the
desired station is received.
Tip
If you know the frequency of the station you want
to listen to, press and hold  +/–to locate
the approximate frequency, then press
 +/–repeatedly to fine adjust to the
desired frequency (manual tuning).
RDS
FM stations with Radio Data System (RDS)
service send inaudible digital information
along with the regular radio program signal.
Notes
• Depending on the country/region, not all RDS
functions may be available.
• RDS will not work if the signal strength is too
weak, or if the station you are tuned to is not
transmitting RDS data.
Changing display items
Press .

11
Selecting PTY (Program Types)
Use PTY to display or search for a desired
program type.
1Press  during FM reception.
The current program type name appears
if the station is transmitting PTY data.
2Rotate the control dial until the desired
program type appears, then press it.
The unit starts to search for a station
broadcasting the selected program type.
Type of programs
Note
You may receive a different radio program from
the one you select.
Setting CT (Clock Time)
The CT data from the RDS transmission
sets the clock.
1Set “CT-ON” in setup (page 32).
Note
The CT function may not work properly even
though an RDS station is being received.
CD
Playing a disc
This unit can play CD-DA (also containing
CD TEXT) and CD-R/CD-RW (MP3/
WMA/AAC files (page 35)).
1Insert the disc (label side up).
Playback starts automatically.
To eject the disc, press .
Notes
• When ejecting/inserting a disc, keep any USB
devices disconnected to avoid damage to the
disc.
• Corresponding codec is MP3 (.mp3), WMA
(.wma), and AAC (.m4a).
Changing display items
Press .
Displayed items may differ depending on
the disc type, recording format and settings.
NEWS (News), AFFAIRS (Current Affairs),
INFO (Information), SPORT (Sports),
EDUCATE (Education), DRAMA (Drama),
CULTURE (Culture), SCIENCE (Science),
VARIED (Varied), POP M (Pop Music),
ROCK M (Rock Music), EASY M (M.O.R.
Music), LIGHT M (Light classical),
CLASSICS (Serious classical), OTHER M
(Other Music), WEATHER (Weather),
FINANCE (Finance), CHILDREN
(Children’s program), SOCIAL A (Social
Affairs), RELIGION (Religion), PHONE IN
(Phone In), TRAVEL (Travel), LEISURE
(Leisure), JAZZ (Jazz Music), COUNTRY
(Country Music), NATION M (National
Music), OLDIES (Oldies Music), FOLK M
(Folk Music), DOCUMENT (Documentary)

12
USB devices
• MSC (Mass Storage Class)-type USB
devices (such as a USB flash drive, digital
media player, Android phone) compliant
with the USB standard can be used.
Depending on the digital media player or
Android phone, setting the USB
connection mode to MSC is required.
• Backup of data to a USB device is
recommended.
Notes
• Connect the USB device after starting the
engine.
Depending on the USB device, malfunction or
damage may occur if it is connected before
starting the engine.
• Corresponding codec is MP3 (.mp3), WMA
(.wma), AAC (.m4a), and AAC (.mp4).
• For details on the compatibility of your USB
device, visit the support site on the back cover.
Playing back a USB device

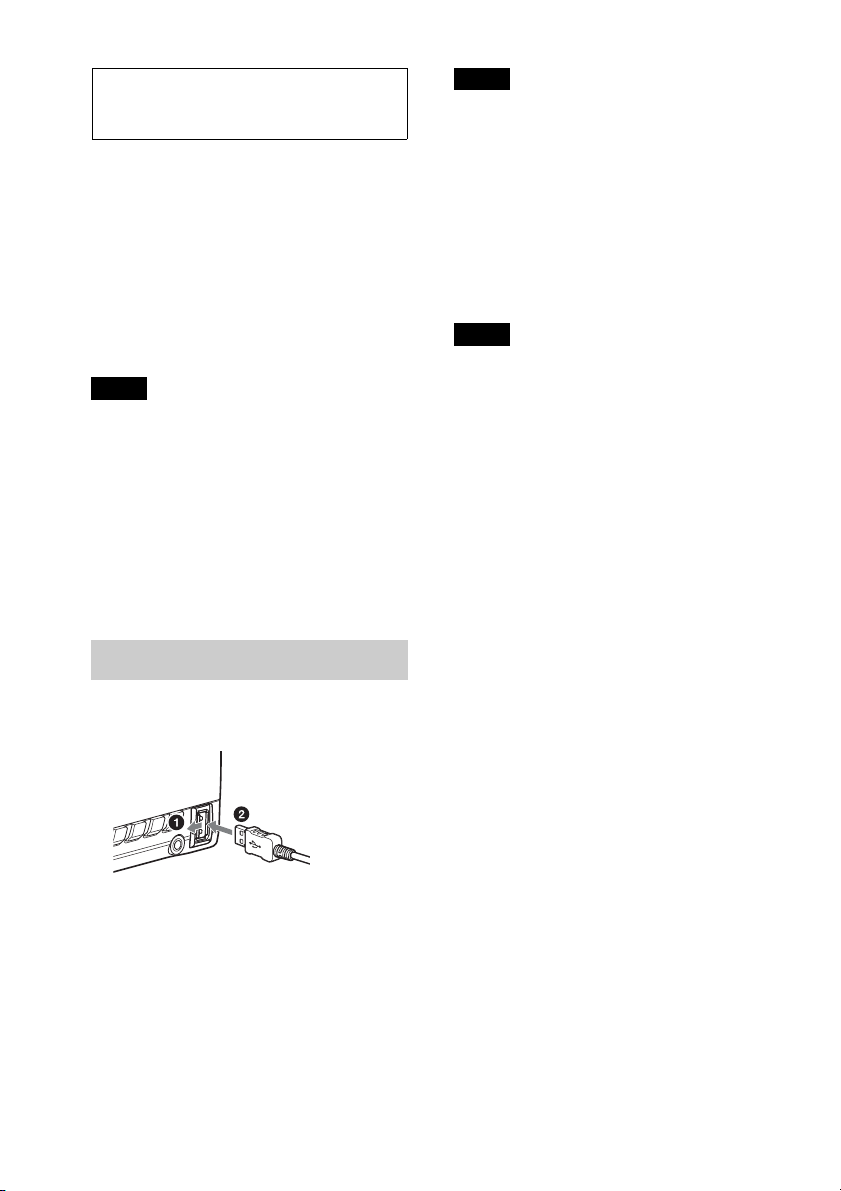

1Open the USB cover, then connect the
USB device to the USB port.
Playback starts.
If a USB device is already connected, to start
playback, press  repeatedly
until “USB” appears.
To stop playback, press and hold
 for 1 second.
To remove the USB device, stop the USB
playback, then remove the USB device.
Note
Do not use USB devices so large or heavy that
they may fall down due to vibration, or cause a
loose connection.
Changing display items
Press .
Displayed items may differ depending on
the USB device, recording format and
settings.
Notes
• The maximum number of tracks is 10,000.
• It may take time for playback to begin,
depending on the amount of recorded data.
• During playback or fast-forward/reverse of a
VBR (Variable Bit Rate) MP3/WMA/AAC file,
elapsed playing time may not display
accurately.
• Playback of the following MP3/WMA/AAC
files is not supported.
– lossless compression files
–copyright-protectedfiles
– DRM (Digital Rights Management) files
–Multi-channelaudiofiles

13
iPod
In these Operating Instructions, “iPod” is
used as a general reference for the iPod
functions on the iPod and iPhone, unless
otherwise specified by the text or
illustrations.
For details on the compatibility of your
iPod, see “About iPod” (page 36) or visit the
support site on the back cover.
Playing back iPod
Before connecting the iPod, turn down the
volume of the unit.
1Open the USB cover, then connect the
iPod to the USB port with a USB
connection cable for iPod (not
supplied)*.
* RC-100IP USB connection cable for iPod is
recommended.
The tracks on the iPod start playing
automatically from the point last played.
If an iPod is already connected, to start
playback, press 
repeatedly until “USB” appears. (“IPD”
appears in the display when iPod is
recognized.)
To stop playback, press and hold
 for 1 second.
To remove the iPod, stop the iPod playback,
then remove the iPod.
Caution for iPhone
When you connect iPhone via USB, phone call
volume is controlled by iPhone, not the unit. Do
not inadvertently increase the volume on the unit
during a call, as sudden loud sound may result
when the call ends.
Tip
The iPod is recharged while the unit is turned on.
Resuming mode
When the iPod is connected to the unit,
playback starts in the mode set by the iPod.
In this mode, the following buttons do not
function.
–  ()
–  ()
Changing display items
Press .
Note
Some letters stored in iPod may not be displayed
correctly.
Skipping albums, podcasts,
genres, playlists and artists
To Do this
Skip Press / (ALBUM /
) [press once for each
skip]
Skip
continuously
Press and hold /
(ALBUM /)
[hold to desired point]

14
Operating an iPod directly
— Passenger control
You can operate an iPod directly even when
it is connected to the unit.
1During playback, press and hold
.
“MODE IPOD” appears and you will be
able to operate the iPod directly.
To exit the passenger control, press and
hold .
“MODE AUDIO” will appear and direct
operation of the iPod will not be possible.
Note
The volume can be adjusted only by the unit.
App Remote via USB
(iPhone)
Downloading the “App Remote”
application from App StoreSM is required for
iPhone.
If the application is downloaded to iPhone
and connected to the unit, the following
features are available:
– Operate the unit to launch and control
compatible applications on iPhone.
– Operate iPhone with simple finger
gestures to control the source of the unit.
– Display detailed source information (song
title, artist name, album art, etc.) on
iPhone.
Available operations differ depending on
the application. For details on available
applications, visit the support site on the
back cover.
Notes
• For your safety, follow your local traffic laws
and regulations, and do not operate the
application while driving.
• The “App Remote” application via USB is only
available for iPhones with iOS 5 installed.
Two-way Music Control
with iPhone
1Open the USB cover, then connect
iPhone to the USB port with a USB
connection cable for iPhone (not
supplied)*.
* RC-100IP USB connection cable for iPhone
is recommended.
2Start up the “App Remote” application.

15
3Press and hold  (APP) on the
unit for more than 2 seconds.
Connection to iPhone starts.
When connection is established, the
name of the application on iPhone
appears when selecting a source, and
some playback operations for the
application become available. (Available
operations differ depending on the
application.) Likewise, some playback
operations of the unit can be controlled
by iPhone. For details on the operations
on iPhone, see the help of the
application.
Tip
You can also press , rotate the control
dial to select “APP REM,” then press it to
establish the connection. And then press
 to select the source.
To terminate connection
Press and hold .
Searching and
playing tracks
Playing tracks in various
modes
You can listen to tracks repeatedly (repeat
play) or in random order (shuffle play).
Available play modes differ depending on
the selected sound source.
1During playback, press  ()or
 ( ) repeatedly until the desired
play mode appears.
Playback in selected play mode may take
time to start.
Repeat play
Shuffle play
Select To play
TRACK track repeatedly.
ALBUM album repeatedly.
PODCAST*1podcast repeatedly.
ARTIST*1artist repeatedly.
PLAYLIST*1playlist repeatedly.
GENRE*1genre repeatedly.
OFF track in normal order
(Normal play).
Select To play
ALBUM album in random
order.
DISC*2disc in random order.
PODCAST*1podcast in random
order.
ARTIST*1artist in random order.
PLAYLIST*1playlist in random
order.

16
*1 iPod only
*2 CD only
*3 USB and iPod only
Searching a track by
name — Quick-BrowZer™
You can search for a track in a CD or USB
device easily by category.
1Press (BROWSE)*.
The unit enters the Quick-BrowZer
mode, and the list of search categories
appears.
When the track list appears, press
(BACK) repeatedly until the desired
search category appears.
* During USB playback, press (BROWSE)
for more than 2 seconds to directly return to
the beginning of the category list.
2Rotate the control dial to select the
desired search category, then press it to
confirm.
3Repeat step 2 until the desired track is
selected.
Playback starts.
To exit the Quick-BrowZer mode, press
(BROWSE).
Notes
• When entering the Quick-BrowZer mode, the
repeat/shuffle setting is canceled.
• “ ” lights up when there is an upper layer,
and “ ” lights up when there is a lower layer.
Searching by skip items
— Jump mode
When many items are in a category, you can
search for a desired item quickly.
1Press  + in Quick-BrowZer
mode.
The item name will appear.
2Rotate the control dial to select the
item near the one desired.
The list is skipped in steps of 10% of the
total number of items in the list.
3Press the control dial.
The display returns to the Quick-
BrowZer mode and the selected item
appears.
4Rotate the control dial to select the
desired item and press it.
Playback starts if the selected item is a
track.
To cancel Jump mode, press (BACK) or
 –.
Searching by alphabetical
order — Alphabet search
When an iPod is connected to the unit, you
can search for a desired item alphabetically.
1Press  + in Quick-BrowZer
mode.
2Rotate the control dial to select the first
letter of the desired item, then press it.
A list of items beginning with the
selected letter appears in alphabetical
order.
GENRE*1genre in random order.
DEVICE*3device in random
order.
OFF track in normal order
(Normal play).

17
3Rotate the control dial to select the
desired item, then press it.
Playback starts if the selected item is a
track.
To cancel Alphabet search, press
(BACK) or  –.
Notes
• In Alphabet search, a symbol or article (a/an/
the) before the selected letter of the item is
excluded.
• Depending on the search item you select, only
Jump mode may be available.
• Alphabet search may take some time,
depending on the number of tracks.
Searching a track by
listening to track
passages — ZAPPIN™
By playing back short track passages in a
CD or USB device in sequence, you can
search for a track you want to listen to.
ZAPPIN mode is suitable for searching for a
track in shuffle or shuffle repeat mode.
1Press  (ZAP) during playback.
Playback starts from a passage of the
next track. You can select the playback
time (page 32).
2Press  (ENTER) or  (ZAP)
when a track you want to listen is
played back.
The track that you select returns to
normal play mode from the beginning.
Pressing (BACK) will also play back
the chosen track.
Tips
•Press +/– in ZAPPIN mode to skip a
track.
•Press/ (ALBUM /) in ZAPPIN
mode to skip an album.

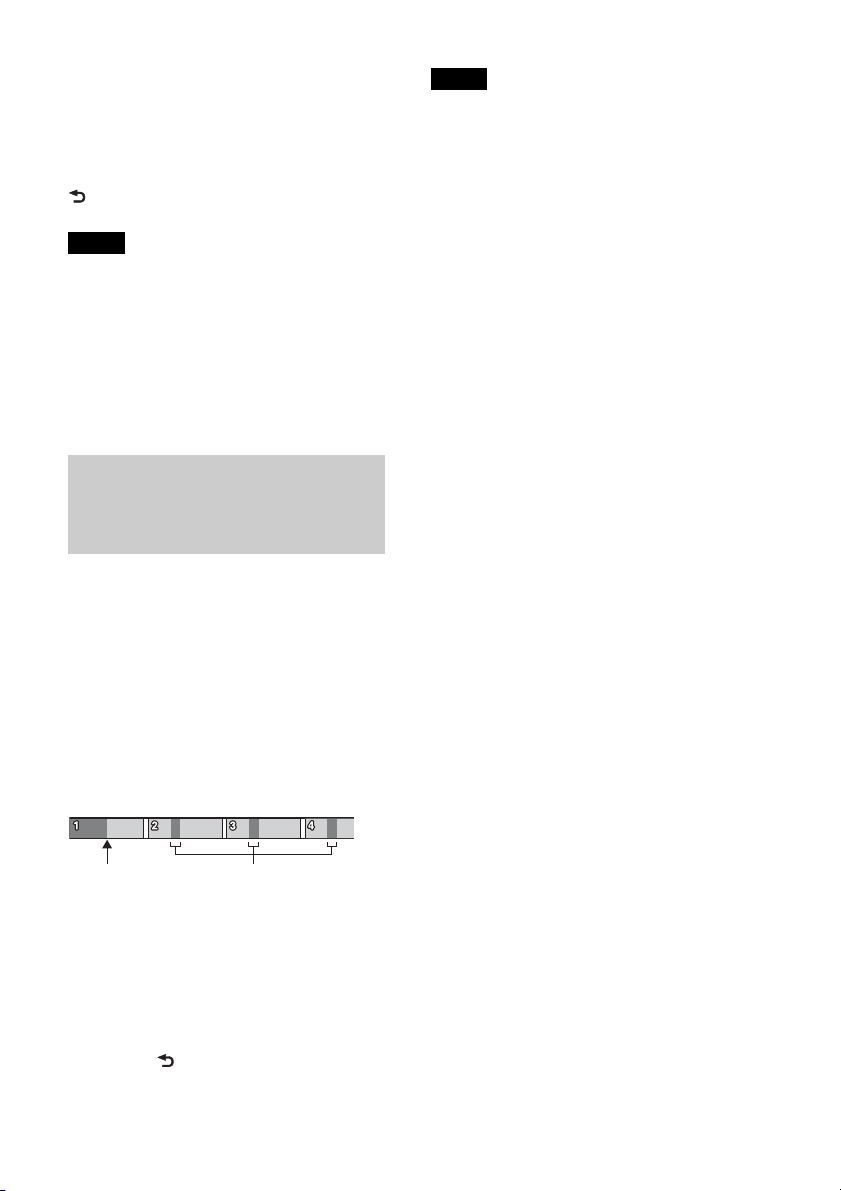

The part of each track to play
back in ZAPPIN mode.
Track
 pressed.

18
Changing the
illumination
Changing the color of
display and buttons —
Dynamic Color Illuminator
Dynamic Color Illuminator allows you to
change the color of the display and buttons
on the main unit to match the car’s interior.
You can select from 12 preset colors,
customized color and 5 preset patterns.
Preset colors:
RED, AMBER, M_AMBER, YELLOW,
WHITE, LIGHT GREEN, GREEN, LIGHT
BLUE, SKY BLUE, BLUE, PURPLE, PINK.
Preset patterns:
RAINBOW, OCEAN, SUNSET, FOREST,
RANDOM.
1Press , rotate the control dial
until “DISPLAY” appears, then press
it.
2Rotate the control dial until “COLOR”
appears, then press it.
3Rotate the control dial to select the
desired preset color or pattern, then
press it.
4Press (BACK) to return to the
previous display.
Note
If the control dial is rotated rapidly, the color of
the display and the buttons may change too
quickly.
Customizing the display and
button color — Custom Color
You can register a customized color for the
display and buttons.
1Press , rotate the control dial
until “DISPLAY” appears, then press
it.
2Rotate the control dial until
“CUSTOM-C” appears, then press it.
3Rotate the control dial until “BASE”
appears, then press it.
You can select a preset color as a basis
for further customizing.
When you select “BASE,” the
customized color is overwritten.
4Rotate the control dial to select from
“RGB RED,” “RGB GRN,” or “RGB
BLUE,” then press it.
5Rotate the control dial to adjust the
color range, then press it.
Adjustable color range: “0” – “32.”
You cannot set “0” for all color ranges.
6Press (BACK) to return to the
previous display.
Changing DAY/NIGHT color mode
You can set a different color for DAY/
NIGHT mode according to the dimmer
setting.
*1 For details on the DIMMER, see page 33.
*2 Available only when the illumination control
lead is connected.
1Select “DAYNIGHT” in step 3 of
“Customizing the display and button color
— Custom Color.”
Color mode DIMMER*1
DAY OFF or AUTO (turn
off the head light*2)
NIGHT ON or AUTO (turn on
the head light*2)

19
2Select “DAY” or “NIGHT.”
3Customize the preset color from step 3 to 5
of “Customizing the display and button
color — Custom Color.”
Advanced color setting
Changing the color with
sound synchronization
— Sound Synchronization
When you select a preset pattern, sound
synchronization becomes effective.
1Press , rotate the control dial
until “DISPLAY” appears, then press
it.
2Rotate the control dial until “SND
SYNC” appears, then press it.
3Rotate the control dial to select
“SYNC-ON,” then press it.
4Press (BACK) to return to the
previous display.
Displaying clear color
— White Menu
You can display the menu more clearly
(White) without concern for color setting.
1Press , rotate the control dial
until “DISPLAY” appears, then press
it.
2Rotate the control dial until “WHT
MENU” appears, then press it.
3Rotate the control dial to select
“WHITE-ON,” then press it.
4Press (BACK) to return to the
previous display.
To cancel White Menu, select “OFF” in step
3.
Start up effect
— Start White
In the Start White setting, when you press
, the display and buttons
on the main unit turn white once, then
change to the customized color.
1Press , rotate the control dial
until “DISPLAY” appears, then press
it.
2Rotate the control dial until “START-
WHT” appears, then press it.
3Rotate the control dial to select
“WHITE-ON,” then press it.
4Press (BACK) to return to the
previous display.
To cancel Start White, select “OFF” in step
3.

20
Connecting
Bluetooth devices
Bluetooth operations
The Bluetooth function allows for handsfree
calling and music streaming via this unit.
To use the Bluetooth function, the following
procedure is necessary.
Pairing
When connecting Bluetooth devices for
the first time, mutual registration is
required. This is called “pairing.”
Registration is required only for the first
time, as this unit and the other devices
will recognize each other automatically
thereafter.
Connection
To use the device after pairing is made,
start the connection. Sometimes pairing
allows for connection automatically.
Handsfree calling/Music streaming
You can make/receive handsfree calls
and listen to music when the connection
is made.
If pairing is not possible, your device may
not be compatible with this unit. For details
on compatible devices, visit the support site
on the back cover.
Installing the microphone
To capture your voice during handsfree
calling, you need to install the microphone
(supplied).
For details on how to connect the
microphone, refer to the supplied
“Installation/Connections” guide.
Operating the Bluetooth
functions
1Press .
The call menu appears.
2Rotate the control dial until the desired
item appears, then press it.
3Press (BACK)*.
The source returns to the Bluetooth
phone.
* For PAIRING, REDIAL, VOICE DIAL, and BT
SIGNL settings, step 3 is not necessary.
The following items can be set:
*1 You can also select these items by pressing
 and rotating the control dial to
select “BT.”
*2 Depending on the cellular phone, this unit’s
ringtone may be output even if set to “2
(cellular phone).”
*3 Appears on the setup menu when the unit is
turned off.
PAIRING*1(page 21)
PHONEBOOK (page 24)
REDIAL (page 25)
RECENT CALL (page 24)
VOICE DIAL (page 25)
DIAL NUMBER (page 24)
RINGTONE*1*2
Selects whether this unit or the
connected cellular phone outputs the
ringtone: “1 (this unit)”- “2 (cellular
phone).”
AUTO ANS*1(Auto Answer)
Sets this unit to answer an incoming call
automatically: “OFF”-“1 (about 3
seconds)”-“2 (about 10 seconds).”
BT SIGNL*1(Bluetooth Signal) (page 22, 23)
BT INIT*3(Bluetooth Initialize) (page 27)
