Sony SU-LW1 Instructions (SU-LW1 Wall-Mount... User manual

© 2003 Sony Corporation
4-100-573-22 (1)
SU-LW1
Wall-Mount Bracket
Instructions
Mode d’emploi
Gebrauchsanweisung
Instrucciones
Instructies
Bruksanvisning
Istruzioni
Instruções
Instrukcje
Инcтpyкции
Käyttöohje
Vejledning
Instruksjoner
GB
FR
DE
ES
NL
SE
IT
PT
PL
RU
FI
DK
NO

2(GB)
Thank you for purchasing this product.
To Customers
Sufficient expertise is required for installing this product. Be sure to subcontract the installation to Sony dealers
or contractors and pay adequate attention to safety during the installation. Sony is not liable for any damages
or injury caused by mishandling or improper installation. Your Statutory Rights (if any) are not affected.
WARNING
If the safety precautions are not observed and the product is used incorrectly, it may result in a fire or serious
injury.
This instruction manual shows the important precautions necessary to prevent accidents and to promote the correct
handling of the product. Be sure to read this instruction manual thoroughly and use the product correctly. Be sure
to keep this instruction manual available for future reference.
For Sony Dealers
Sufficient expertise is required for installing this product. Be sure to read this instruction manual thoroughly to do
the installation work safely. We are not liable for any damage or injury caused by mishandling or improper
installation. Your Statutory Rights (if any) are not affected. Please give this manual to the customer after
installation.
This Wall-Mount Bracket is designed by Sony for use with the specified product. Do not use this bracket with
equipment other than the following products.
Specified products: LCD Colour TV (KDL-L32MRX1/KLV-L32MRX1/KLV-30MR1/KLV-26HG2/KLV-L32M1)
On Safety
Products by Sony are designed with safety in mind.
If the products are used incorrectly, however, it may result in a serious injury through fire, electric shock, the
product toppling over, or the product dropping. Be sure to observe the precautions for safety to prevent such
accidents.

3(GB)
English
GB
For Customers
WARNING
If the following precautions are not observed, there is a possibility of either death or serious injury
through a fire, an electric shock or an explosion.
Be sure to subcontract the installation to qualified contractors and keep small
children away during the installation.
If persons other than qualified contractors install the Wall-Mount Bracket,
the following accidents may happen.
•The Display Unit may fall and cause a serious injury such as a bruise or a
fracture during an earthquake.
•If the wall on which the Wall-Mount Bracket is installed is unstable,
uneven, or not perpendicular to the floor, the unit may fall and cause
injury or property damage. The wall should be capable of supporting a
weight of at least four (4) times the Display Unit weight (KDL-
L32MRX1/KLV-L32MRX1: 23 kg ×4 = 92 kg, KLV-30MR1: 20 kg ×4 =
80 kg, KLV-26HG2: 15 kg ×4 = 60 kg, KLV-L32M1: 17 kg ×4 = 68 kg).
•If the installation of the Wall-Mount Bracket on the wall is not
sufficiently sturdy, the unit may fall and cause injury or property
damage.
Be sure to subcontract the installation to qualified contractors when moving
or dismounting the Wall-Mount Bracket.
If persons other than qualified contractors transport or dismount the Wall-Mount Bracket, the Display Unit may
fall and cause injury or property damage. Be sure that two or more persons carry or dismount the Wall-Mount
Bracket.
Do not spill liquid of any kind on the Display Unit.
If you allow the Display Unit to get wet, this may result in a fire or an electric shock.
Do not remove bolts, etc., after mounting the Display Unit.
If you do so, the Display Unit may fall.
Do not disassemble or make alterations to the parts of the Wall-Mount
Bracket.
If you do so, the Wall-Mount Bracket may fall and cause injury or property
damage.
Do not mount any equipment other than the specified product.
This Wall-Mount Bracket is designed for use with the specified product. If you mount equipment other than the
specified product, it may fall and cause injury or property damage.

4(GB)
Do not block the ventilating holes on the Display Unit.
If you block the ventilating holes on the Display Unit by covering the top of
the Display Unit with a cloth or the like, the Display Unit may become
overheated and this may cause a fire.
Do not apply any load other than the Display Unit on the Wall-Mount
Bracket.
If you do so, the Display Unit may fall and cause injury or property
damage.
Do not lean on or hang from the Display Unit.
The Display Unit may fall and the user may be caught under the weight of
the unit and suffer serious injury.
To prevent a fire or an electric shock, do not expose the Display Unit to rain
or moisture.
If you allow the Display Unit to get wet, this may result in a fire or an electric shock.
Never place the Display Unit in hot, humid or excessively dusty places. Do not
install the Display Unit where it may be exposed to mechanical vibrations.
If you do so, this may cause a fire or an electric shock.
Keep flammable objects or open flames (e.g. candles) away from the Display
Unit.
To prevent a fire, keep flammable objects or open flames (e.g. candles) away from the Display Unit.

5(GB)
CAUTION
If the following precautions are not observed, there is a possibility of injury or property damage.
Do not install the Wall-Mount Bracket on wall surfaces where the corners or
the sides of Display Unit would protrude away from the wall surface.
Do not install the Wall-Mount Bracket on wall surfaces such as a pillar,
where the corners or the sides of Display Unit would protrude away from
the wall surface. If a person or object happens to hit the protruded corner
or side of the Display Unit, this may cause injury or property damage.
Do not handle the product with excessive force during cleaning or
maintenance.
Do not apply excessive force on the topside of the Display Unit.
If you do so, this may cause injury or property damage by causing the Display Unit to fall.
Do not install the Display Unit over or under an air-conditioner.
If you do so, the Display Unit may be exposed to air currents from the air-conditioner. This may result in a
malfunction of the Display Unit.
Precautions
• If you use the Display Unit installed on the Wall-Mount Bracket for a long time, the wall behind or above the
Display Unit may become discolored or the wallpaper may come unstuck, depending on the material of the wall.
If the Wall-Mount Bracket is removed after installing them on the wall, the screw holes are left.
•If you have routed 300 ohm feeder cables behind the wall, we recommend that you change them to 75 ohm
coaxial cables.
If it is necessary to continue to use 300 ohm feeder cables, be sure to confirm that sufficient space is available
between the Display Unit and the feeder cables behind the wall before starting the installation.
Consult your contractor on an appropriate installation location where the Display Unit suffers no radio noise
before starting the installation.

6(GB)
Install the Wall-Mount Bracket
WARNING To Customers
Sufficient expertise is required for installing this product. Be sure to subcontract the installation to Sony dealers
or contractors and pay adequate attention to safety during the installation.
To Sony Dealers
The following instructions are for Sony Dealers only. Be sure to read the following safety precautions and pay
adequate attention to safety during the installation, maintenance and checking of this product.
Be sure to install the Wall-Mount Bracket securely to the wall following the
instructions in this instruction manual.
If any of the screws are loose or fall out, the Wall-Mount Bracket may fall
and cause injury or property damage. Be sure to use the screws appropriate
for the material of the wall and install the unit securely, using five or more
M6 or the equivalent screws.
Do not allow the Power Cord or the Display Cable to be pinched.
If the Power Cord or the Display Cable is pinched between the unit and the
wall or is bent or twisted by force, the metallic part of the cord or cable may
be exposed and cause a short circuit or a break in the cord or cable. This
may cause a fire or an electric shock.
Be sure to use the supplied screws and attachment parts properly following
the instructions given in this instruction manual. If you use substitute items,
the Display Unit may fall, and cause bodily injury to someone or damage to
the Display Unit.
Be sure to assemble the bracket properly following the instructed procedure
explained in this instruction manual.
If any of the screws are loose or fall out, the Display Unit may fall, and cause bodily injury to someone or damage
to the Display Unit.
Be sure to tighten the bolts and screws securely in the designated position.
If you fail to do so, the Display Unit may fall, and cause bodily injury to someone or damage to the Display Unit.
Be careful not to subject the Display Unit to shock during installation.
If the Display Unit is exposed to shock, it may fall or break apart. This may cause injury.
For Sony Dealers

7(GB)
Be sure to install the Display Unit on a wall that is both perpendicular and
flat.
If you fail to do so, the Display Unit may fall and cause injury.
After proper installation of the Display Unit, secure the cables properly.
If people or objects get tangled in the cables, this may result in injury.
Be careful not to hurt your hands or fingers during the installation.
Be careful not to hurt your hands or fingers when installing the Wall-Mount Bracket or the Display Unit.
The screws needed to secure the Wall-Mount Bracket to the wall are not
supplied.
Use the appropriate screws for the wall material and structure when mounting the Wall-Mount Bracket.

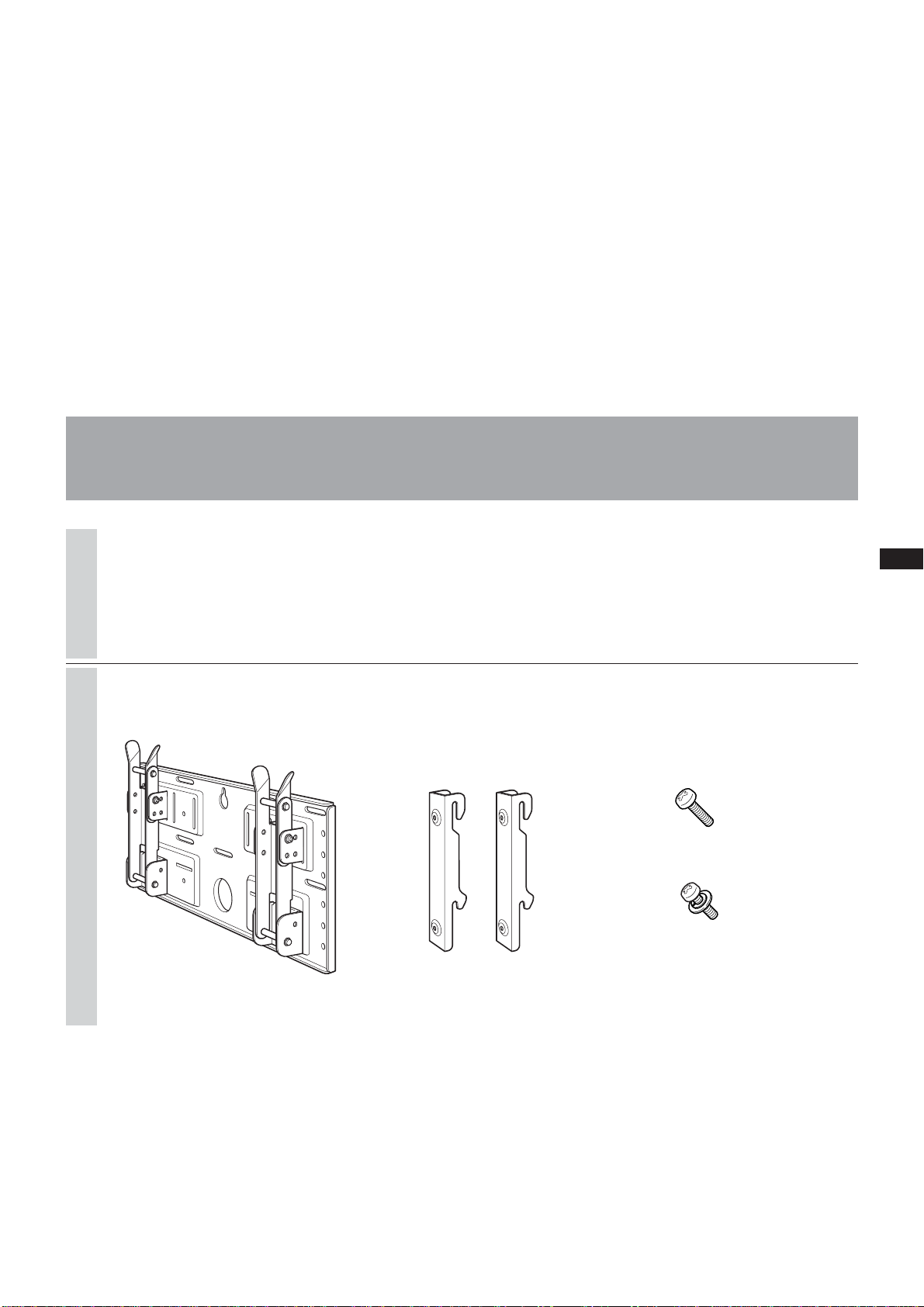

Step 1: Check to see that you have all the items
necessary for installation
1
2
Prepare five or more M6 or
equivalent screws (not supplied) and
a screwdriver. Select screws suitable
for the material of the wall.
Unpack the carton and check to see
that all the following items are
included.
Plate Unit (1) Mounting Hook Unit (2)
Screws (+B5 ×L12) (2)
Screws (+PSW5 ×L16) (4)
(For the KLV-26HG2)

8(GB)
Step 2: Adjust the position of the arm bases
(For the KLV-26HG2 and the KLV-L32M1 only)
1
Step 3: Decide on the location for installation
1
If you are going to install a KDL-L32MRX1,
a KLV-L32MRX1 or a KLV-30MR1, skip
Step 2 and go to Step 3.
1Remove the four (two for each arm
bases) tilt adjusters .
2Remove the four screws that secure the
arm bases to the Plate Unit.
3Remove the arm bases Aand put them
in the slots facing inward. Put both arms
and the arm bases Bon the arm bases
A.
4Secure the arm bases to the Plate Unit
using the four screws removed in 2.
5Secure the arms to the arm bases using
the four tilt adjusters removed in 1.
Notes
•If you are installing a display other than
the KLV-26HG2 or the KLV-L32M1, skip
Step 2.
•When using an electric screwdriver to
tighten the screws, the torque must be
approx. 2 N•m.
Leave spaces around the display. At
least the amount of space shown in
the diagram should be left between
the display and a ceiling or raised
portions of the wall.
Tip
Refer to the table (9 (GB)) for the display installation
dimensions.
2
2
5
5
3
3
3
4
4
1
1
Arm
Arm base B
Arm base A
Tilt adjuster
Arm
Tilt adjuster
Arm base A
Arm base B
Unit: mm
300
100
100 100
Arm base A
Arm base B
Arm base B
Arm base A

9(GB)
Display installation dimensions table
500
210
14
A
B
D
E
B
C
F
G
H
*The wall must be strong enough to support at least four times the weight of the display that you are installing.
Display Display Dimensions
Unit: mm Length for each mounting angle Unit: mm Weight
Model ABCDE
Mounting angle ( α °) FGH(×4)*
0° 147 188 336
5° 177 179 345
KLV-30MR1 971 524 93 68 268 10° 206 167 352 20 kg
15° 234 152 258 (80 kg)
20° 260 135 363
0° 151 247 322
5° 186 237 331
KDL-L32MRX1 1,052 569 97 31 291 10° 219 225 339 23 kg
KLV-L32MRX1 15° 252 209 345 (92 kg)
20° 282 190 350
0° 167 150 280
5° 194 139 291
KLV-26HG2 790 430 118 65 215 10° 220 129 301 15 kg
15° 244 122 310 (60 kg)
20° 266 113 318
0° 165 281 323
5° 198 273 333
KLV-L32M1 835 604 111 -5 328 10° 230 262 342 17 kg
15° 262 248 349 (68 kg)
20° 292 231 356

10(GB)

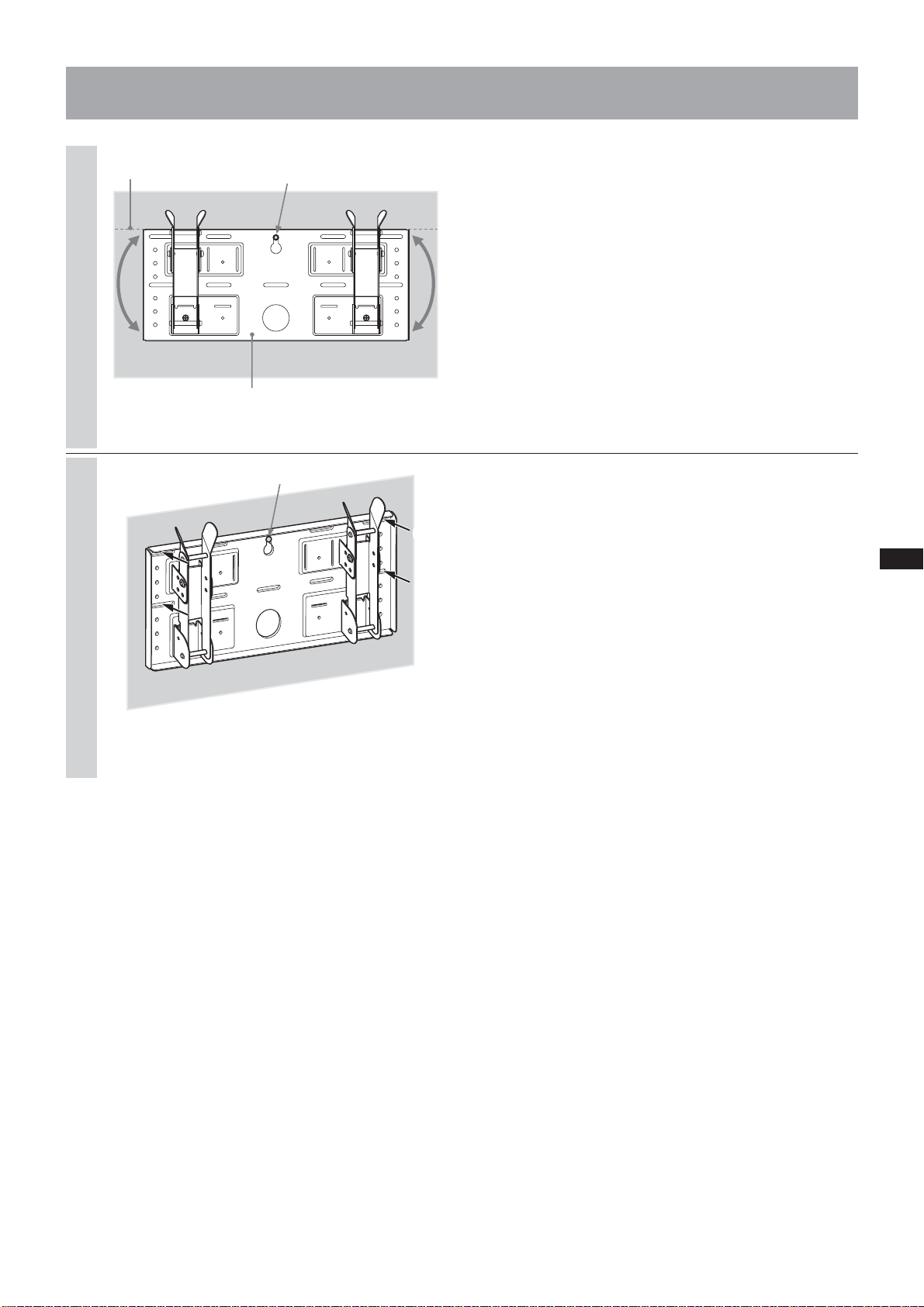

Wall installation diagram
Refer to the diagram above for wall installation requirements (when reinforcing the wall or routing cables in the
wall).
WARNING
The wall must be strong enough to support at least four times the weight of the display that you are installing
(9 (GB)). Make sure the wall has sufficient strength. Reinforce the wall if necessary.
Unit: mm
Hole for cable routing
500
210
252525
91 14
148
252525
454
430
215
φ60
12-φ7
9-7×40
Oblong hole

11(GB)
Step 4: Install the Plate Unit on the wall
1
2
Temporarily secure the Plate Unit to
the wall using a screw. Align the
Plate Unit to make it level with the
floor.
WARNING
• The screw used in this procedure is not supplied
with the unit.
•Select a screw suitable for the material and the
structure of the wall.
Plate Unit
Hole used for temporarily
attaching the Plate Unit
Align the Plate Unit.
Secure the Plate Unit to the wall
using four or more M6 or equivalent
screws (not supplied).
1Tighten the screws firmly so that the Plate Unit can
support the weight of the display.
2Tighten the screw used in 1.
WARNING
The wall must be strong enough to support at least
four times the weight of the display that you installing
(9 (GB)). Make sure the wall has sufficient strength.
Reinforce the wall if necessary.
2
1

12(GB)
Adjust the tilt of the arms.
If you want to install the display vertically, flush with
the wall (0°), skip 1and 2below. Check that the
arms are securely attached to the Plate Unit.
1Remove all four tilt adjusters.
2Put them into the screw holes corresponding to the
desired angle (5°, 10°, 15°, or 20°) and tighten them
firmly.
Notes
•The angle of the left and right arms must be the
same.
•Be careful not to catch your fingers when adjusting
the angle of the arms.
•When using an electric screwdriver to tighten the
screws, the torque must be approx. 2 N•m.
•Check that the arm bases are securely attached to
the Plate Unit.
2
1
Arm
Arm bases
Aand B
Tilt adjuster
3

13(GB)
KLV-26HG2
Step 5: Detach the display from the Tabletop Stand
The procedure differs depending on the display model. Apply the procedure
appropriate for the display you are installing.
1Pull the lower corner (either right or
left ) of the rear cover. Then pull the
other lower corner.
2Hold the rear cover with both hands
and pull it towards you. The rear
cover will separate from the display.
Note
Lay the display face down on a soft cloth
before going to 3.
3Remove the two small screws from
the clip. Detach the clip from the
Tabletop Stand.
4Remove the five screws from the
Tabletop Stand.
5Lift up the Stand slightly, then pull it
towards you. The Stand will separate
from the display.
Notes
•Lay the display face down on a stable
and level surface, leaving the base of
the Stand sticking out in the air.
Putting the display face and the base
of the Stand on the same level surface
makes the Display Unit inclined, thus
unstable, causing any danger.
•When removing the Tabletop Stand,
hold it firmly.
3
5
4
Soft cloth
Screws
removed in 4
1
2
Clip

14(GB)

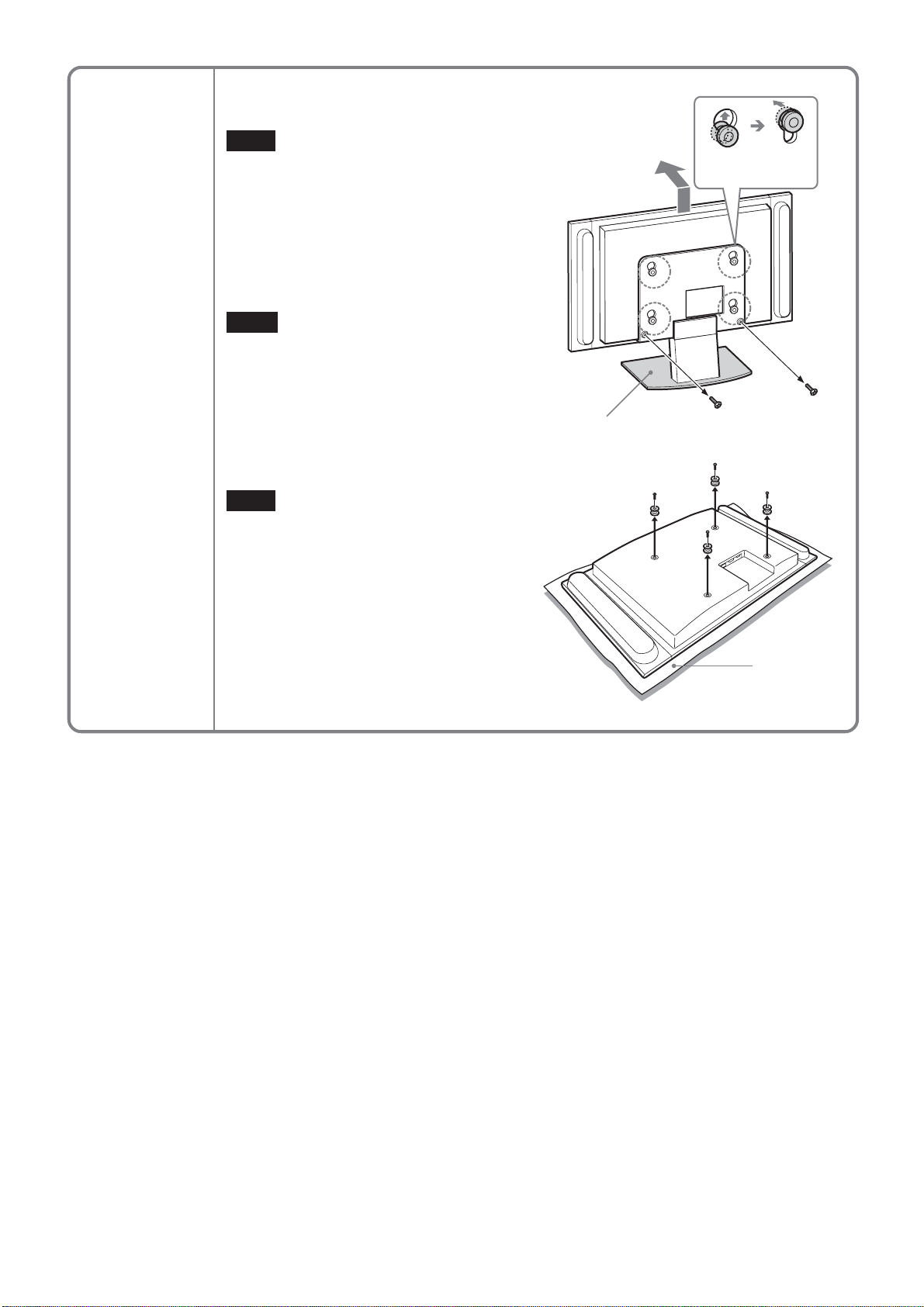

KLV-30MR1
1Remove the two screws from the Tabletop
Stand.
Note
Do not lay the display down when carrying
out the procedure.
2Holding down the base of the Stand, lift
up the display slightly, then move it away
from the Stand. The display will separate
from the Stand. At least two persons must
hold and carry the display.
Notes
•At least two persons must work together
on this procedure.
•When lifting up the display, hold the base
of the Stand so that it is not lifted along
with the display.
3Remove the four hooks on the rear cover
of the display.
Note
Lay the display face down on a soft cloth.
2
1
Lift up and carry
forward.
Base of the Stand
3
Soft cloth

15(GB)

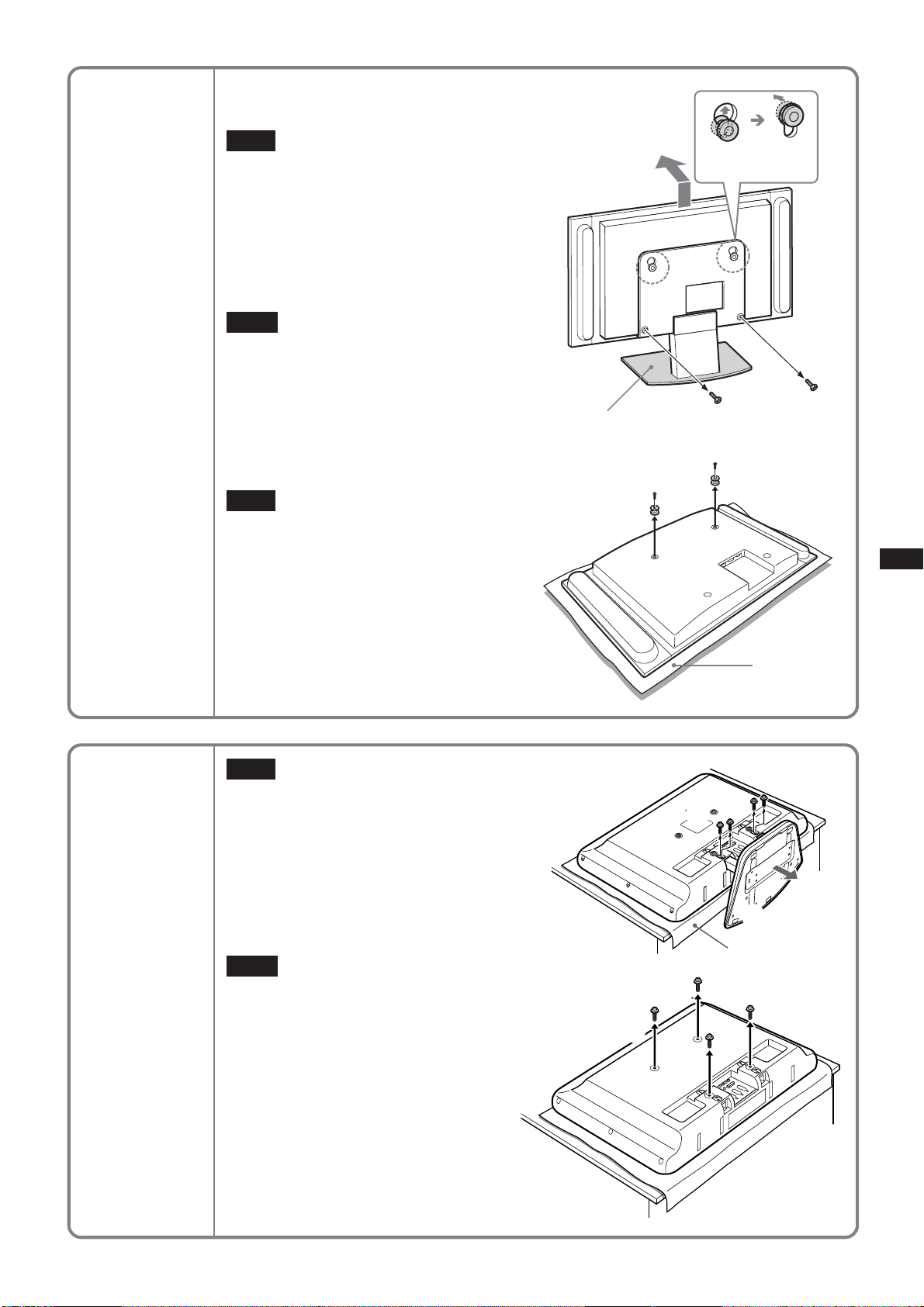

KDL-L32MRX1
KLV-L32MRX1
1Remove the two screws from the Tabletop
Stand.
Note
Do not lay the display down when carrying
out the procedure.
2Holding down the base of the Stand, lift
up the display slightly, then move it away
from the Stand. The display will separate
from the Stand. At least two persons must
hold and carry the display.
Notes
•At least two persons must work together
on this procedure.
•When lifting up the display, hold the base
of the Stand so that it is not lifted along
with the display.
3Remove the two hooks on the rear cover
of the display.
Note
Lay the display face down on a soft cloth.
2
1
Lift up and carry
forward.
Base of the Stand
3
Soft cloth
KLV-L32M1 Note
Lay the display face down on a soft cloth
before going to 1.
1Remove the four screws from the rear
cover of the display.
2Pull the stand towards you. The Stand
will separate from the display.
3Remove the four screws on the rear
cover of the display.
Notes
•Lay the display face down on a stable
and level surface, leaving the base of
the Stand sticking out in the air.
Putting the display face and the base
of the Stand on the same level surface
makes the Display Unit inclined, thus
unstable, causing any danger.
•When removing the Tabletop Stand,
hold it firmly.
3
1
2
Soft cloth

16(GB)

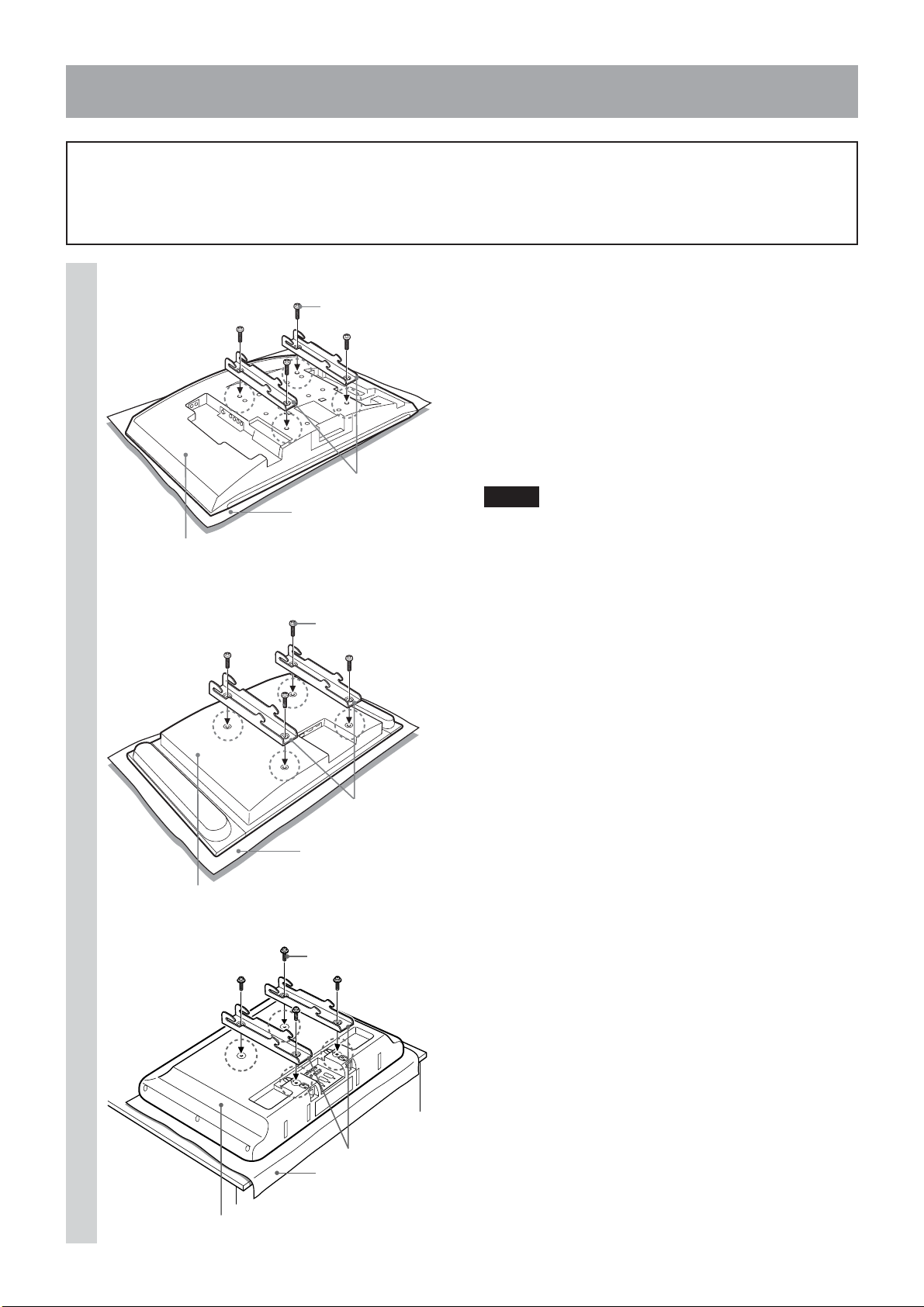

Step 6: Install the display on the Plate Unit
WARNING
Do not connect the power cord to a wall socket before the installation is completed. If the mains lead is
pinched, a short circuit may occur, causing an electric shock.
Be careful not to stumble over the cables or the display.
1Align the holes on the Mounting
Hook Units with the corresponding
holes on the rear of the display.
Secure them to the display using
four screws.
For the KLV-26HG2, use the screws supplied (+PSW5
×L16). For the KDL-L32MRX1, the KLV-L32MRX1,
the KLV-30MR1, and the KLV-L32M1 use the screws
you removed in Step 5.
Notes
•Lay the display face down on a soft cloth.
•When using an electric screwdriver to tighten the
screws, the torque must be approx. 2 N•m.
KLV-26HG2
KDL-L32MRX1/KLV-L32MRX1/KLV-30MR1
The supplied screws
(+PSW5 ×L16)
Mounting Hook Units
Soft cloth
Rear of the display
The screws removed
in Step 5
Mounting Hook Units
Soft cloth
Rear of the display
KLV-L32M1 The screws removed
in Step 5
Mounting Hook Units
Soft cloth
Rear of the display

17(GB)

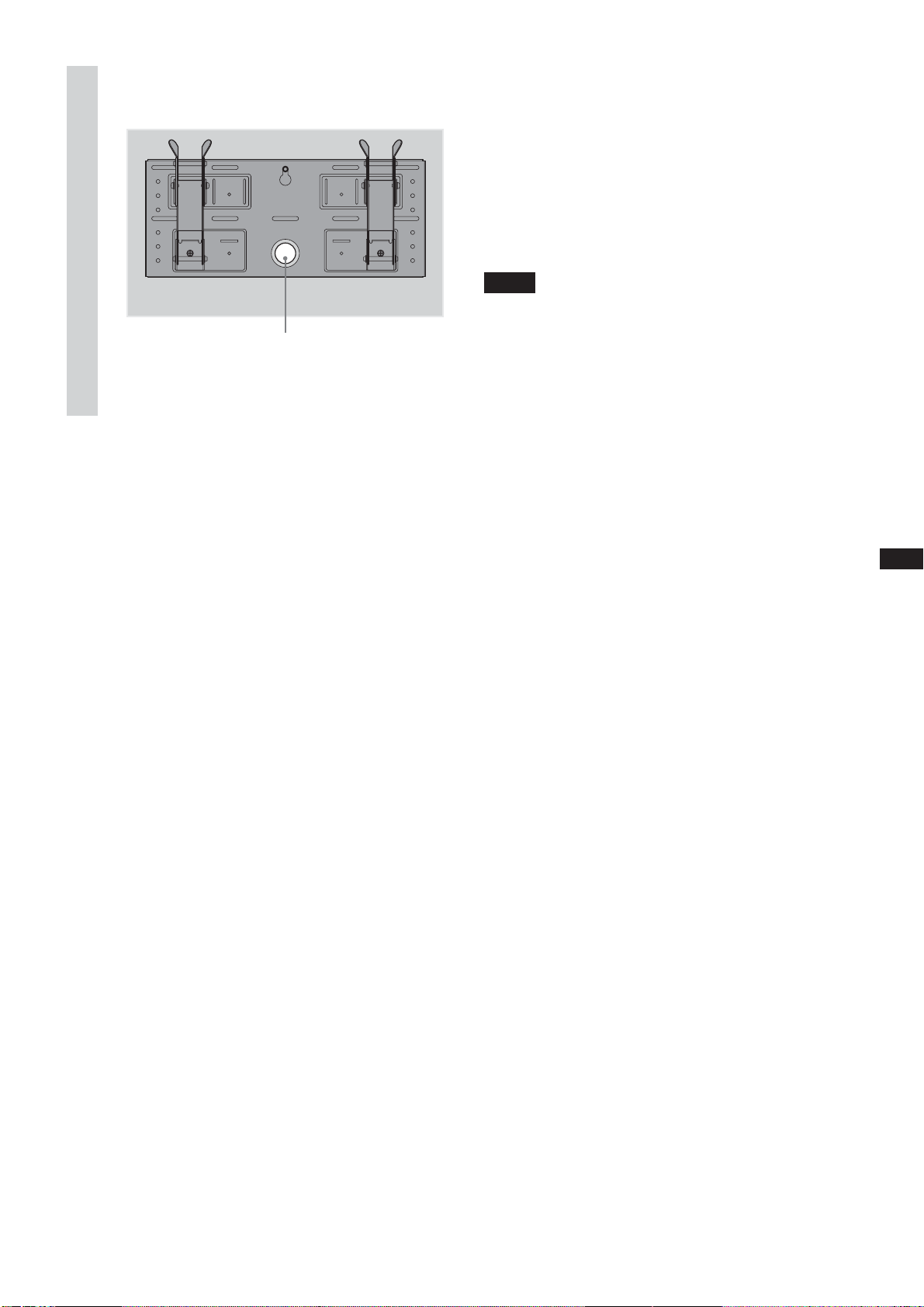

2Connect the supplied mains lead
and cables.
Connect the mains lead and cables to the
corresponding jacks on the rear of the display. For
details on the cable connection, see the Operating
Instructions for your display.
When routing cables in a wall, pass the cables through
a hole made in the wall for cable routing (10 (GB)).
Notes
•You cannot connect the cables to the display after
installing it on the Plate Unit.
•Subcontract the cable routing in the wall to
qualified contractors.
Hole for cable routing

18(GB)
3
1
2
3
4
6

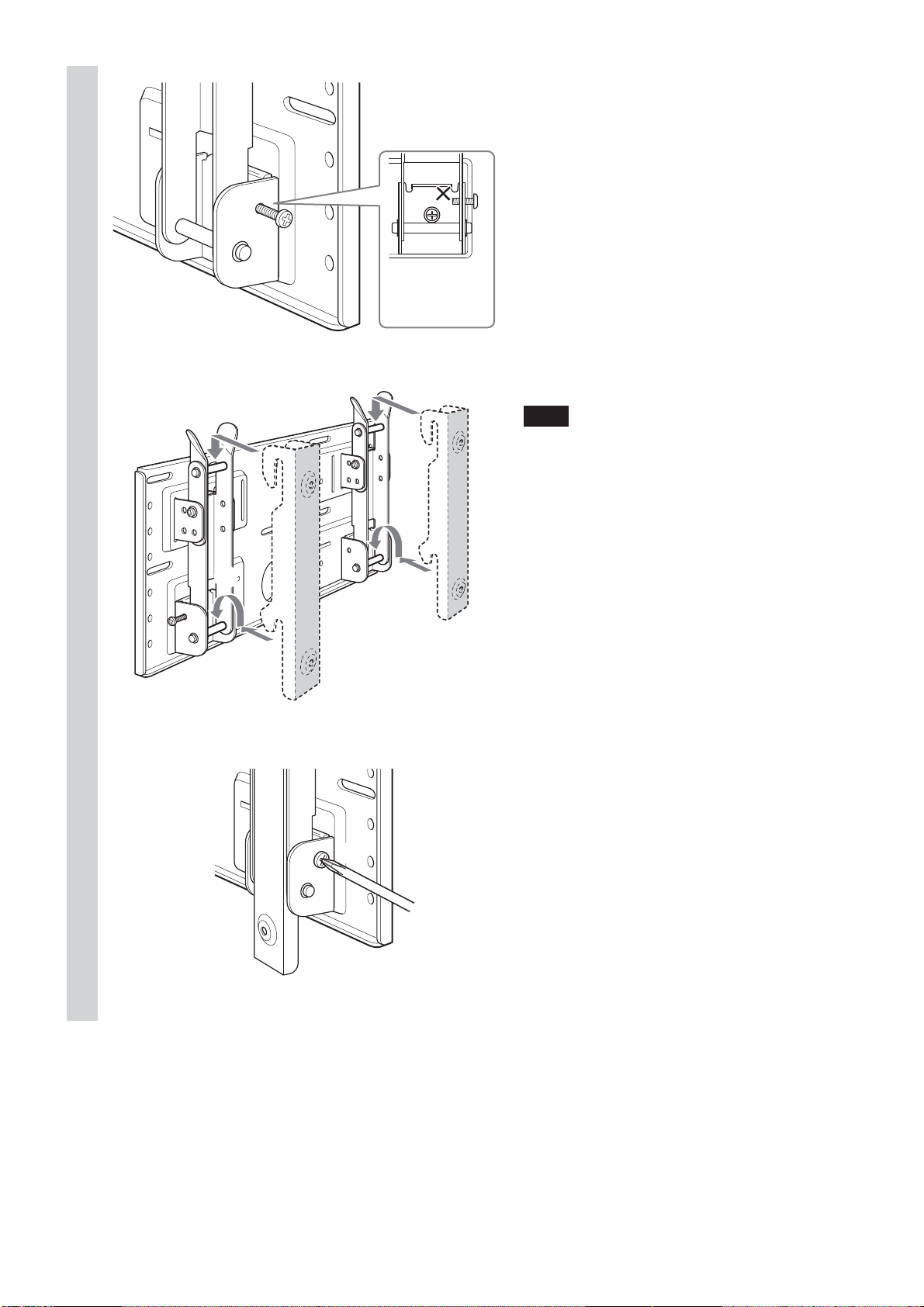

Mount the display on the Plate
Unit.
1To lock the arms temporarily, put the two
securing screws (+B5 ×L12, supplied) in the
holes on the arm bases Bfrom the outside.
2Hang the upper hooks of the Mounting Hook
Units on the upper shafts of the arms.
3Place the lower hooks of the Mounting Hook
Units on the lower shafts of the arms.
4Pushing the display towards the Plate Unit,
lift it up slowly and hang the lower hooks of
the arms onto the lower shafts.
5Check to make sure that all eight hooks are
properly hung on the corresponding shafts.
6Tighten the securing screws attached in 1.
Note
If you push the securing screws into the holes
too far (1), the tips of the screws will get in the
way when you hang the lower hooks on the
shafts (4).
Do not push
the screws in
too far.

19(GB)
Check to make sure all the procedures have been
properly completed
Check the following.
• All eight hooks are securely hung on the corresponding shafts.
•The cables are neither twisted nor pinched.
•The two securing screws are securely tightened.
WARNING
If not properly installed, the unit may fall, causing injury to persons or damage to the unit itself. If the cables
are not properly routed, a short circuit may occur, causing a fire or an electric shock. For your safety, be sure to
check that all the procedures have been properly carried out.

20(GB)
To dismount the display
1
2
3
For Sony Dealers
Unplug the mains lead from the wall
socket.
Remove the two securing screws.
Two or more persons should lift up
the display and dismount it from the
Plate Unit.
WARNING
•At least two persons must hold and carry the
display.
•When dismounting the display, be careful not to
catch the cables.
•When dismounting the display, be careful of your
hands and fingers.
