E-630-100-11(1)
To Customers and Sony Dealers
SU-WL500
© 2020 Sony Corporation
Wall-Mount Bracket
Installation Manual
Hướng dẫn lắp đặt
Manuel d’installation
Руководство по установке
Panduan Pemasangan
ﺐﻴﻛﺮﺘﻟا ﻞﻴﻟد
ﺐﺼﻧ یﺎﻤﻨﻫار
GB
CS
CT
VN
FR
RU
TH
AR
ID
PR

2 (GB)
Thank you for purchasing this product.
If the safety precautions are not observed or the
product is used incorrectly, it may result in serious
injury or fire.
This instruction manual shows the correct handling of
the product and important precautions necessary to
prevent accidents. It is your responsibility to read,
thoroughly understand, and follow all instructions in
this instruction manual. Failure to do so may result in
serious personal injury or property damage, and may
void the warranty. Keep this manual available for
future reference.
To Sony dealers
Sufficient expertise is required for installing this
product. Be sure to read this manual thoroughly to do
the installation work safely. Sony is not liable for any
damages or injury caused by mishandling or
improper installation. Please give this manual to the
customer after installation.
Products by Sony are designed with safety in mind. If
the products are used incorrectly, however, it may
result in a serious injury through fire, electric shock,
the product toppling over, or the product dropping.
Be sure to observe the precautions for safety to
prevent such accidents.
Specified products
The following products are subject to change
without notice, may be out of stock, or
discontinued.
Some models may not be available in certain
regions.
To Customers
Sufficient expertise is required for installing this
product. Be sure to subcontract the installation to
Sony dealers or licensed contractors and pay
special attention to safety during the installation.
Sony is not liable for any damages or injury
caused by mishandling or improper installation, or
installing any other than the specified product.
Your Statutory Rights (if any) are not affected.
WARNING
On Safety
CAUTION
LCD Monitor
FW-85BZ40H
FW-75BZ40H
FW-65BZ40H
FW-55BZ40H

3 (GB)
GB
English
Be sure to read thoroughly the all safety information
described in the instruction manual of SU-WL500.
Do NOT use SU-WL450 for installation in the way
noted in this manual.

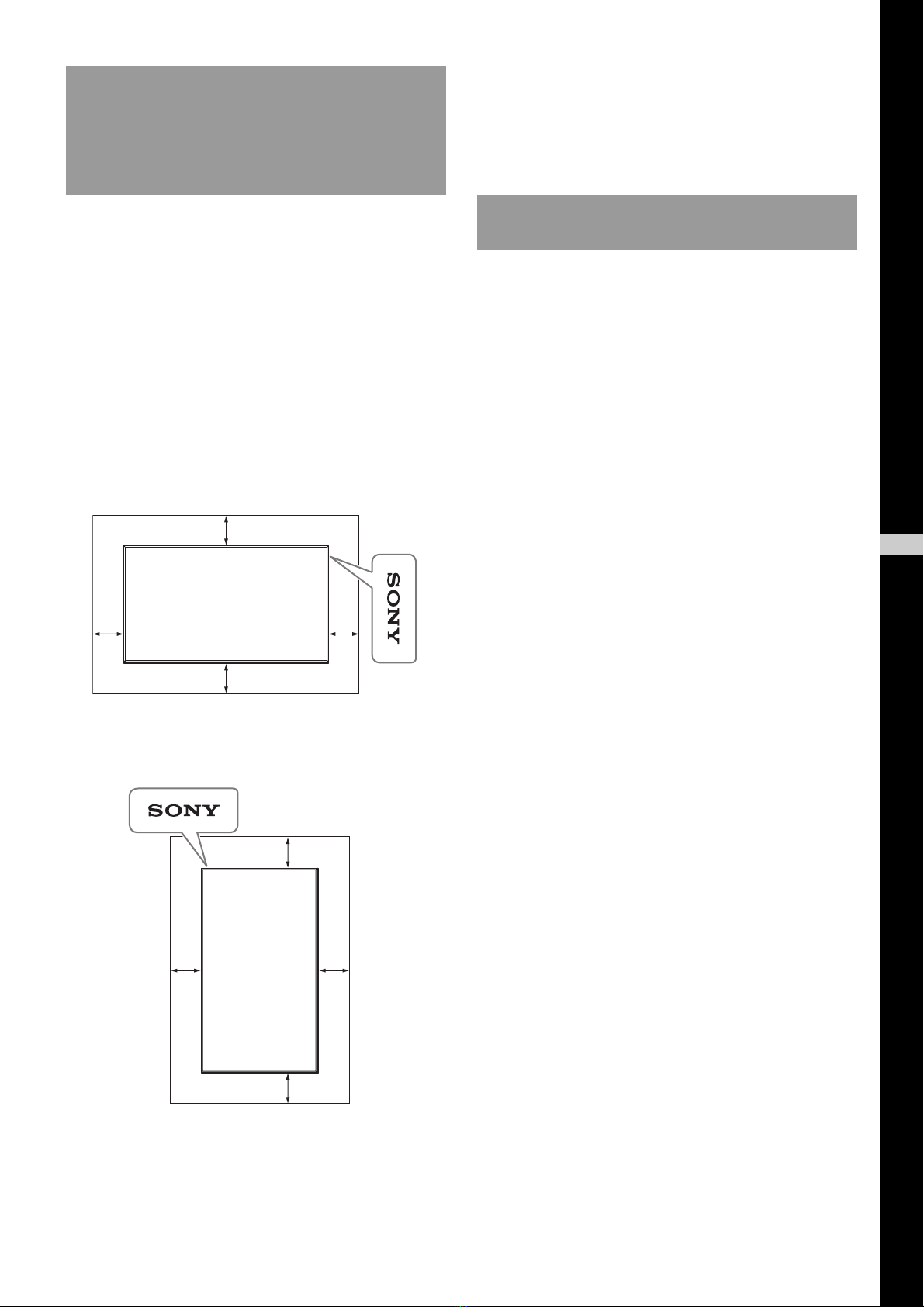

Provide adequate clearances
around the LCD Monitor.
The following illustration shows how much space is
required around the LCD Monitor.
Be sure to install the LCD Monitor in the orientation
shown in the following illustration.
Landscape
Portrait
Do not block the ventilation holes of
the LCD Monitor.
If you block the ventilation holes with tapes or other
objects, heat builds up inside the LCD Monitor and
may cause a fire.
• If you cover the LED and its surroundings with
tapes or other objects, the status of the LCD
Monitor cannot be recognized and the remote
control may not work.
• When carrying the LCD Monitor, hold it in
landscape orientation, and take care not to drop it
when installing. Do not apply excessive force to the
LCD Monitor; otherwise, it may be deformed.
Operating temperature: 35 °C and lower
WARNING
If the following precautions are not observed,
serious injury or death through fire, electric
shock, the product toppling over, or the
product dropping can result.
Unit: mm
100
100 100
100
Unit: mm
100100
100 100
Others

4 (GB)
This manual explains both normal and unique style wall mount using SU-WL500.
Please refer following pages.
About This Manual
Normal Landscape Style
Refer to page 5.
Leaning/Portrait Style
Refer to page 9.
Landscape, -20° leaning Landscape, +20° leaning
Portrait, no leaning Portrait, +20° leaning

5 (GB)
Follow Step 1 in the SU-WL500 instruction manual to
check the parts.
Follow Step 2 in the SU-WL500 instruction manual to
decide on the installation location. Refer to page 25
of this manual for the LCD Monitor installation
dimension table.
Follow Step 3 in the SU-WL500 instruction manual to
install the Base Bracket.
Normal Landscape Style
Step 1:
Checking the parts
required for the
installation
Step 2:
Deciding on the
installation location
Step 3:
Installing the Base
Bracket on the wall
Step 4:
Preparing for the
installation of the LCD
Monitor
1Remove the screws from the
rear of the LCD Monitor.
Note
• Be sure to store the removed screws in a safe place,
keeping them away from children. When attaching
the stands to the LCD Monitor again, be sure to
install the stored screws back in the original
position.
When using an electric screwdriver, set the torque
setting to approximately 1.5 N·m {15 kgf·cm}.
Do not lift the Mounting Hook before the screws
(two screws each for left/right) are secured. This
may distort the Mounting Hook or the LCD Monitor
cabinet.

6 (GB)

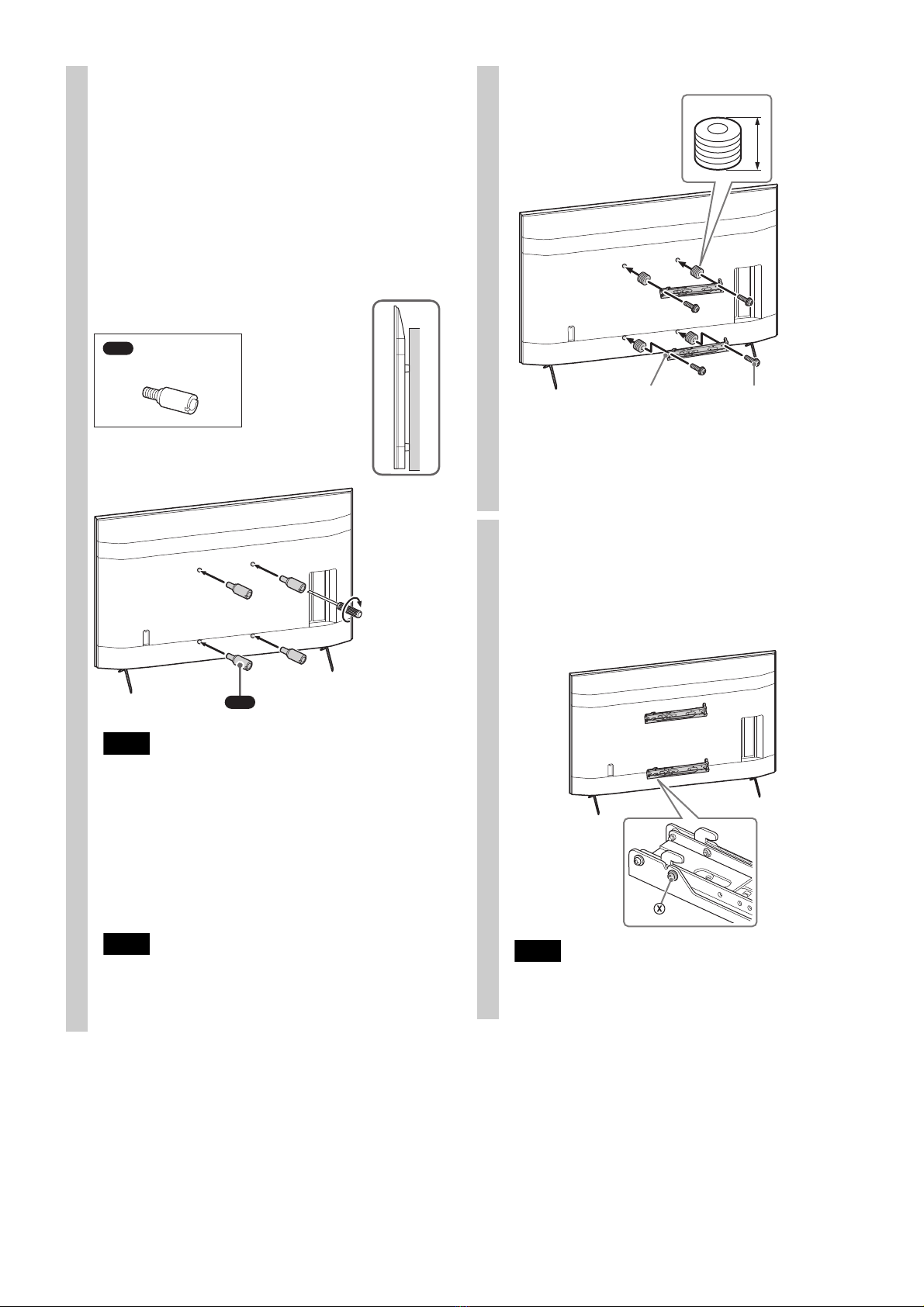

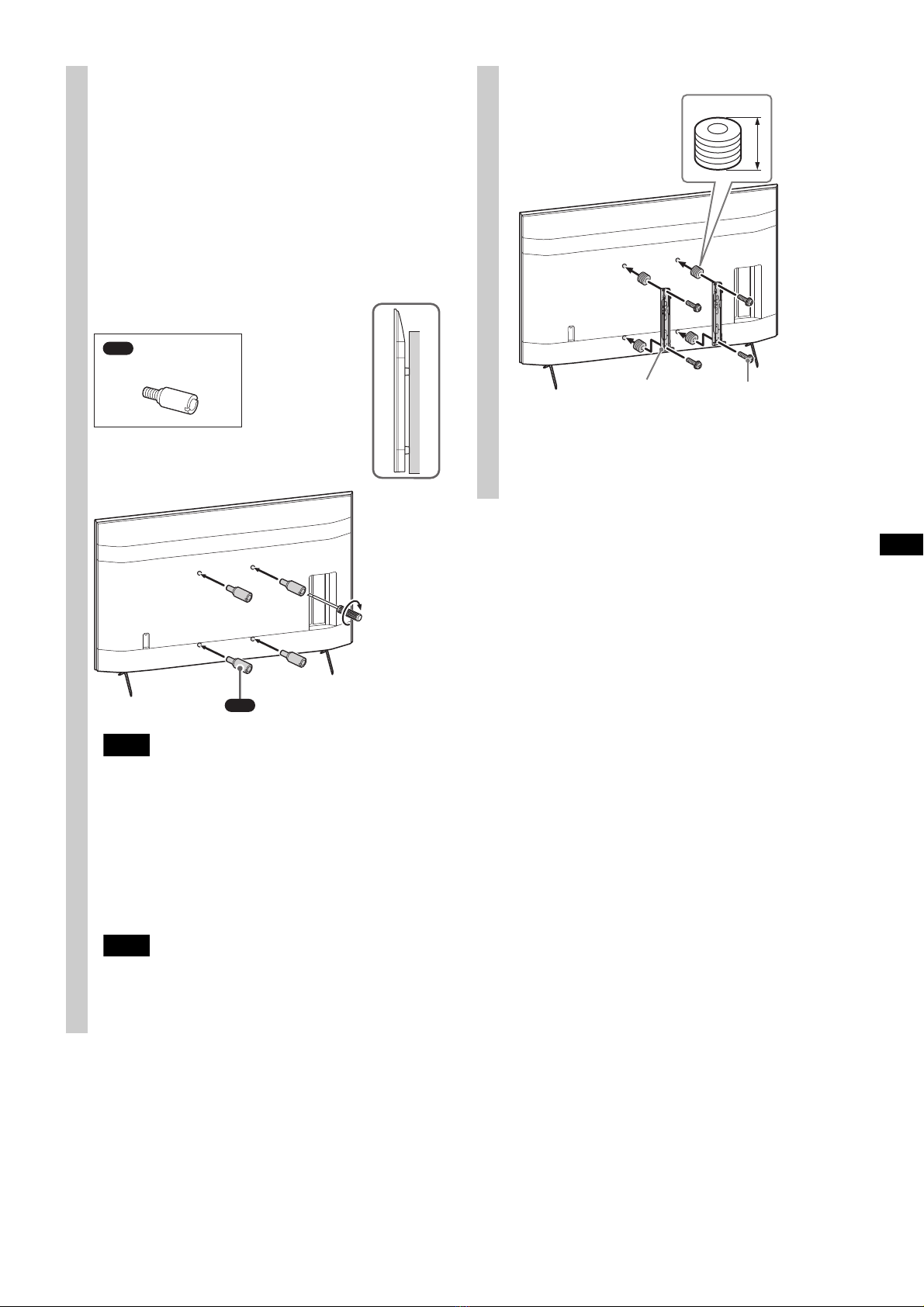

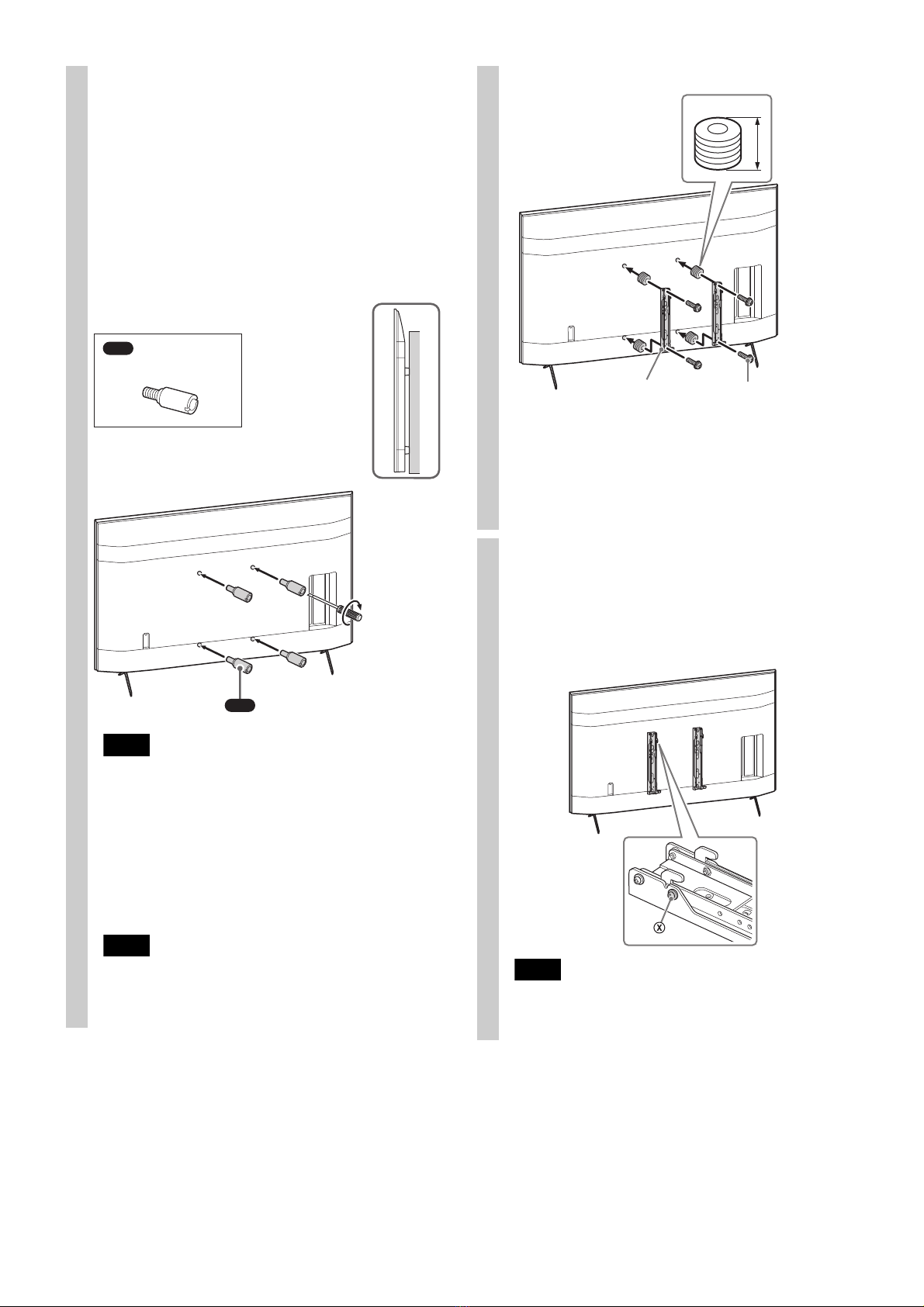

2Referring to the Screw and Hook
locations diagram/table on
page 28, determine the screw
positions, and secure the
Mounting Hook to the rear of the
LCD Monitor.
Attach Wall-Mount Attachment (supplied
with the LCD Monitor) to the rear of the LCD
Monitor (to make it parallel with the wall).
Note
• Be sure to fasten the Wall-Mount Attachment when
attaching them to the LCD Monitor. Use only a flat
head screwdriver to install the Wall-Mount
Attachment. Use of another tool might result in
over torqueing the Wall-Mount Attachment and
damaging the LCD Monitor.
Secure the Mounting Hook to the rear of the
LCD Monitor temporarily, using the four
screws (+PSW6 × 25).
Note
• Be sure that both screws are securely tightened
with equal torque strength to the rear of the LCD
Monitor.
VS
VS
Supplied with the
LCD Monitor
Wall-Mount
Attachment (4)
1.5 N·m
{15 kgf·cm}
*1Screws (+PSW6 × 25) (not supplied)
(SONY Part Number 4-577-326-01) × 4 (1 pk)
*2Needs 5 spacers (not supplied) with an outside
diameter of 18 mm, inside diameter of 10 mm, and
thickness of 2 mm.
(SONY Part Number 7-688-000-32) × 20

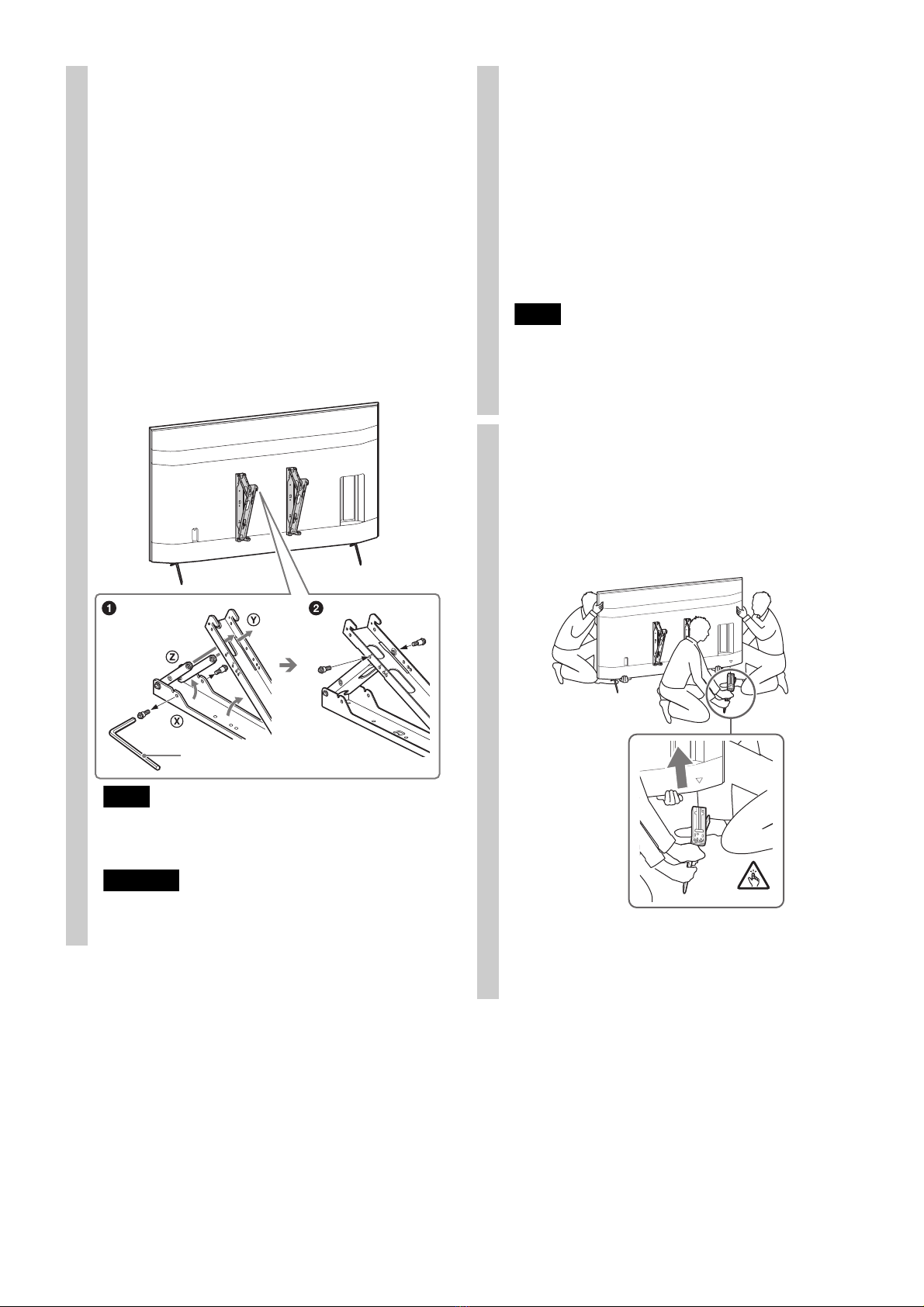

3Make sure that the screw 
firmly secures the arm base of
the Mounting Hook (both left
and right).
Note
• Make sure that the two arms are screwed in
securely.
Mounting Hook Screw*1
(+PSW6 × 25)
10 mm
*2

7 (GB)
4Connect the AC power cord
(mains lead) and the connecting
cable(s) supplied with the LCD
Monitor to the LCD Monitor.
Connect the AC power cord (mains lead) and the
connecting cable(s) to the connectors on the
rear of the LCD Monitor. For details on
connecting the AC power cord (mains lead) and
the connecting cable(s), refer to the instruction
manual of the LCD Monitor.
Note
• You cannot connect the cables to the LCD Monitor
after installing it on the Base Bracket.
• Subcontract the cable routing in the wall to a
licensed contractor.

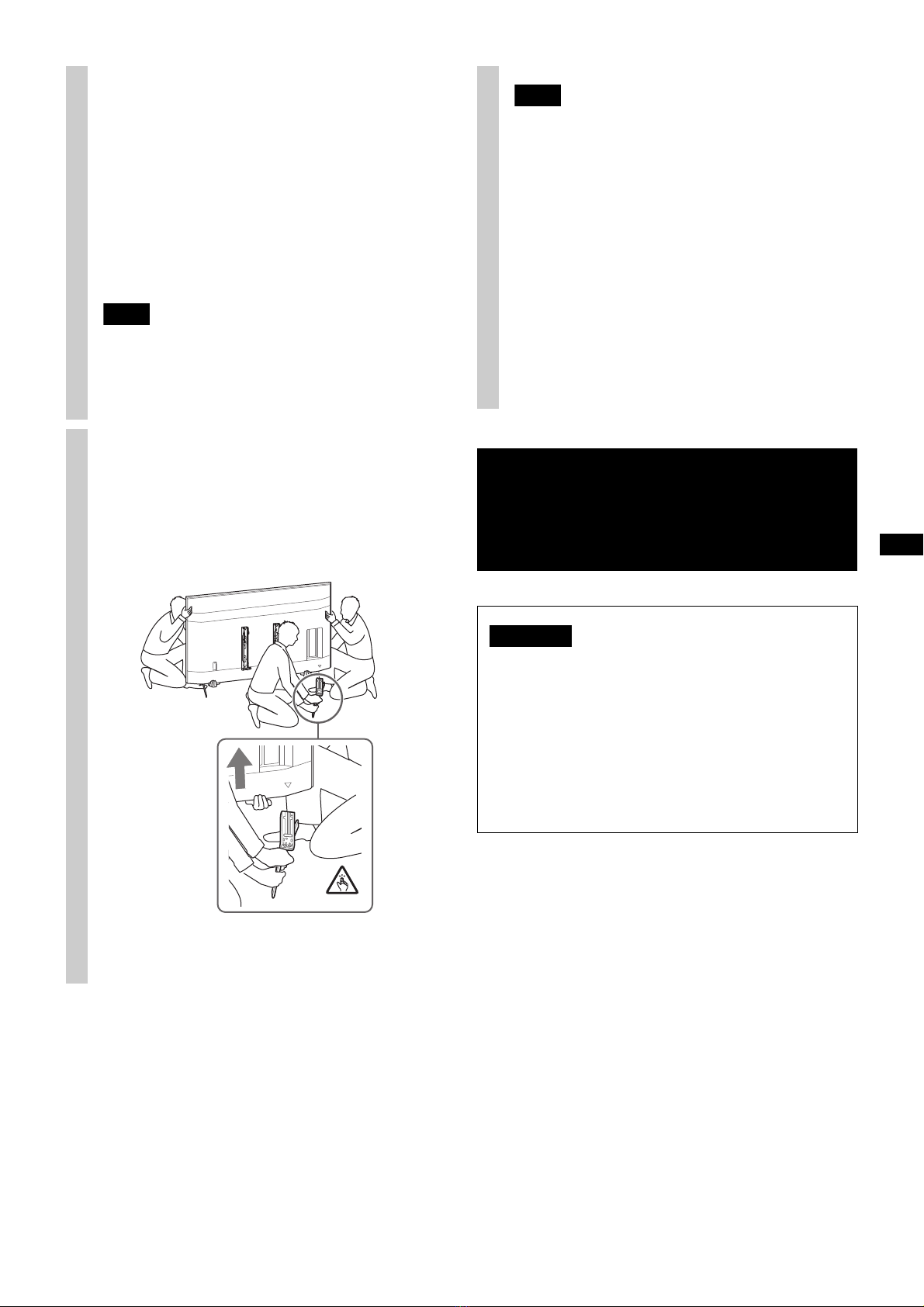

5Detaching the Table-Top Stand
from the LCD Monitor.
Remove one side of the Table-Top Stand at a
time. Firmly hold the Table-Top Stand
securely with both hands while the other
people lift up the LCD Monitor.
Repeat the previous step and remove the
other side of the Table-Top Stand.
Note
• Three or more people are required to detach the
Table-Top Stand.
• Be careful not to use excessive force while
detaching the Table-Top Stand from the LCD
Monitor as it may cause the LCD Monitor to fall
resulting in personal injury or physical damage to
the LCD Monitor.
• Take care when handling the Table-Top Stand to
prevent damage to the LCD Monitor.
• Be careful when lifting the LCD Monitor as the
Table-Top Stand is detached, the Table-Top Stand
may topple over and cause personal injury.
• Take care when removing the Table-Top Stand from
the LCD Monitor to prevent it from falling over and
damaging the surface that the LCD Monitor is
sitting on.
Step 5:
Installing the LCD
Monitor on the wall
WARNING
Be sure to complete the installation before
connecting the AC power cord (mains lead) to the
wall outlet. If you allow the AC power cord (mains
lead) to be pinched under or between pieces of
equipment, this may result in a short circuit or an
electric shock.
Be careful not to stumble over the AC power cord
(mains lead) or the LCD Monitor, as you may hurt
yourself.

8 (GB)
Follow the instructions in the SU-WL500 instruction
manual to confirm.
Follow the instructions in the SU-WL500 instruction
manual to remove.

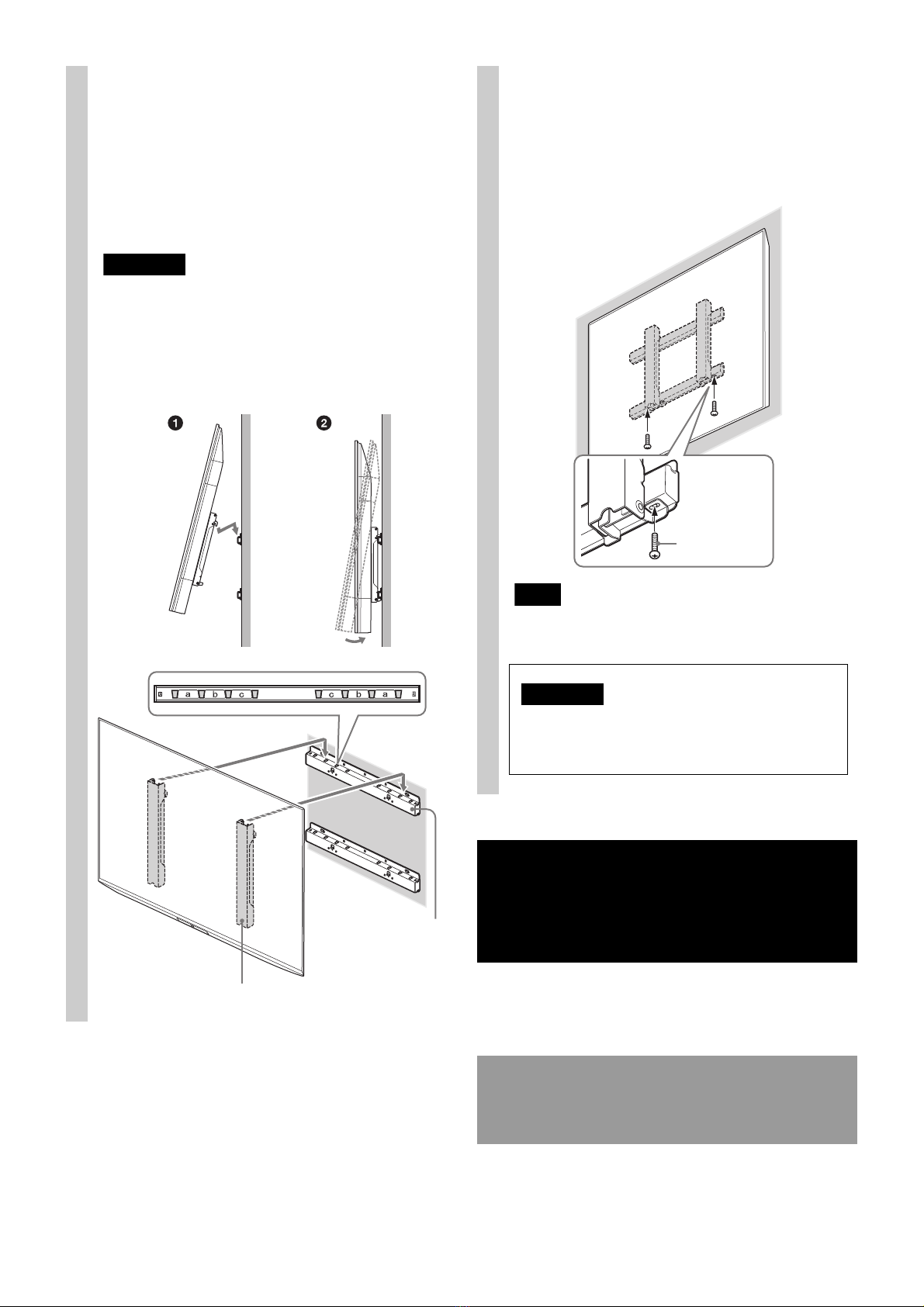

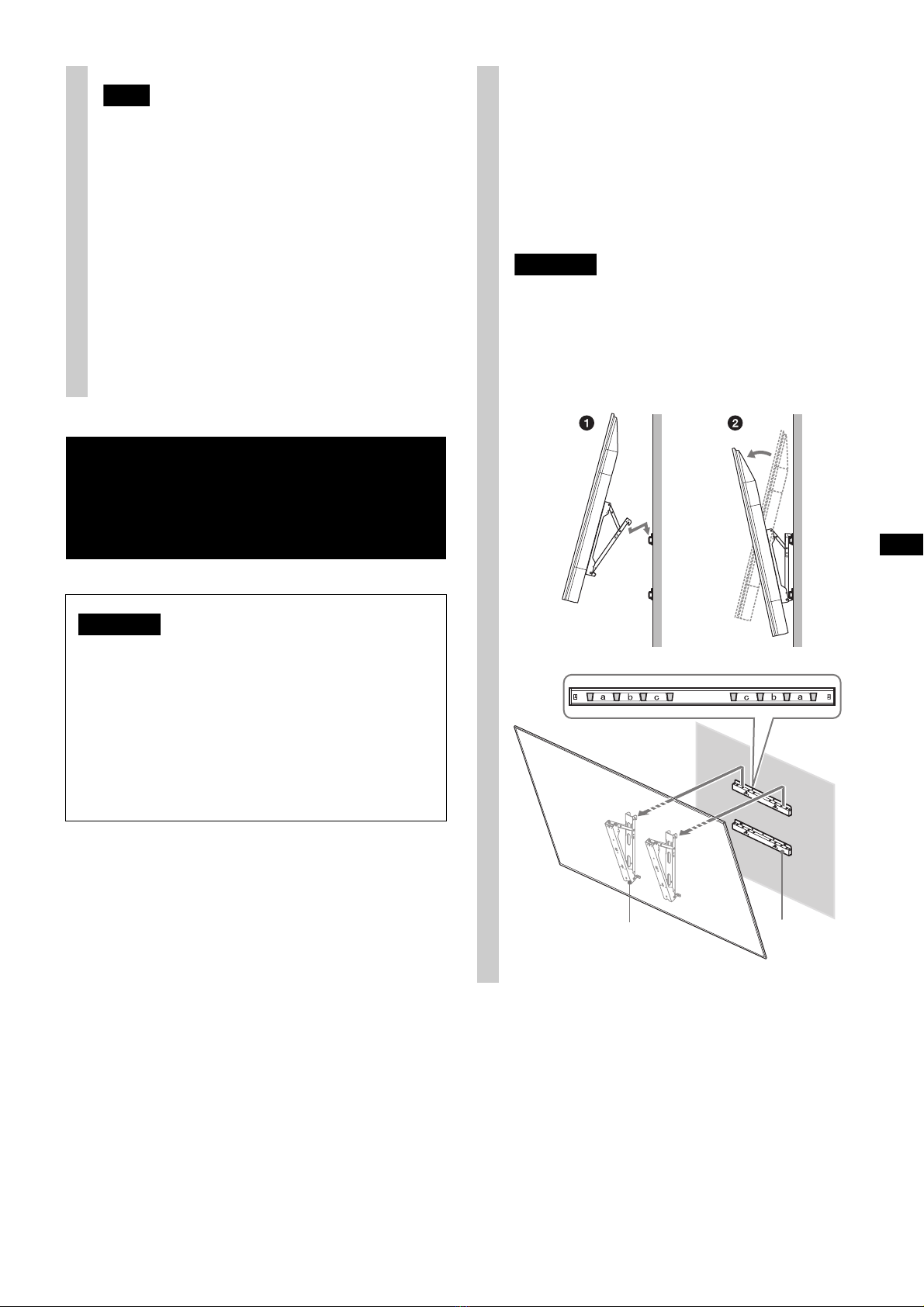

1Install the LCD Monitor onto the
Base Bracket.
Referring to the Screw and Hook locations
diagram/table on page 28, determine the
holes of the Base Bracket for latching the
upper hooks of the Mounting Hook.
Hold the LCD Monitor securely with both
hands, and gently align it on the wall.
WARNING
• Be sure that two or more persons (three or more
persons for 85 inches and above LCD Monitor set)
hold the LCD Monitor when carrying it.
• When carrying the LCD Monitor, hold it in
landscape orientation, and take care not to drop it
when installing. Do not apply excessive force to the
LCD Monitor; otherwise, it may be deformed.
Base Bracket
Mounting Hook

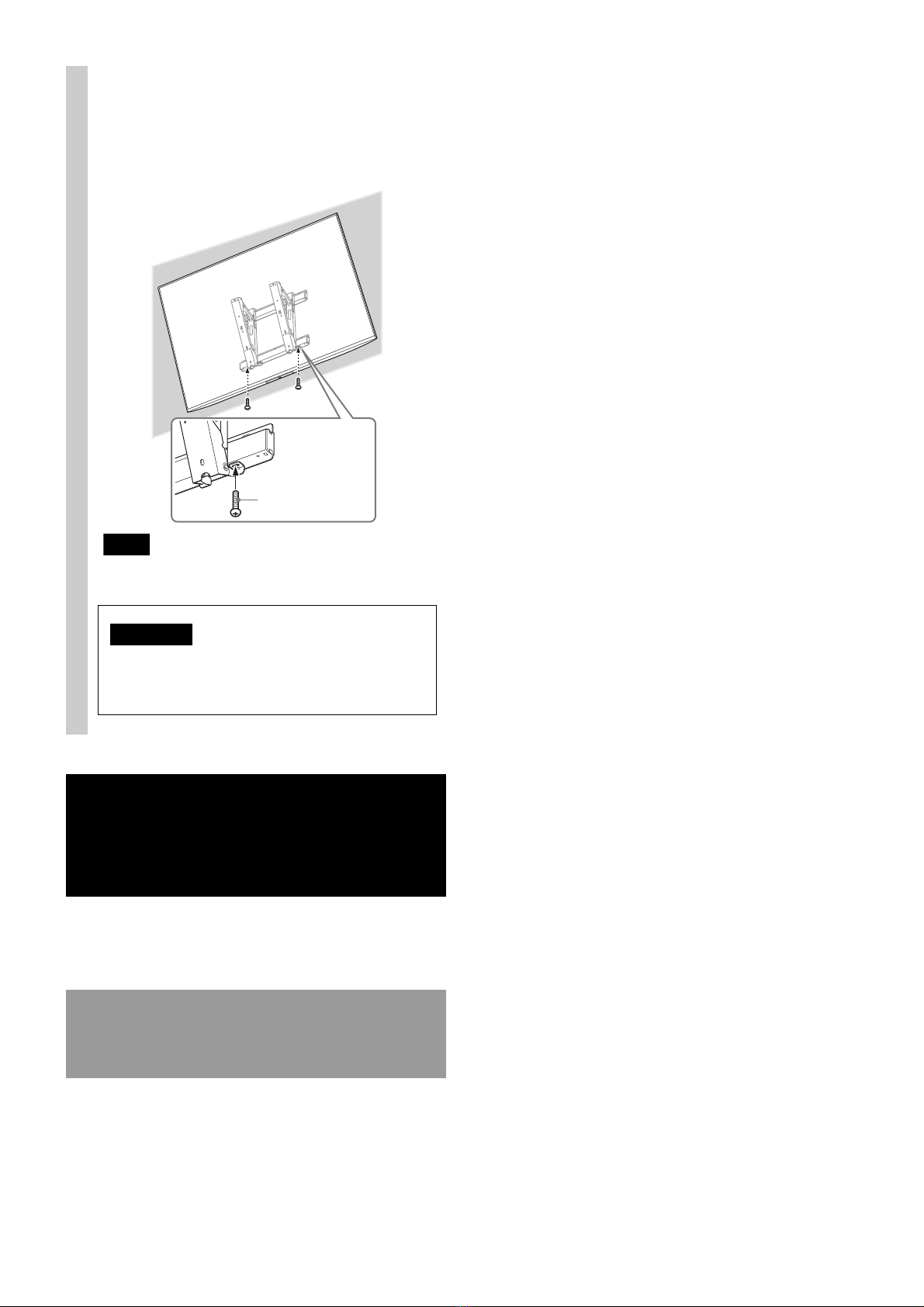

2Firmly secure the LCD Monitor
and the Base Bracket using the
screws supplied with SU-WL500
(+BVST4 × 12).
Note
• When using an electric screwdriver, set the torque
setting to approximately 1.5 N·m {15 kgf·cm}.
Confirming the
completion of the
installation
When removing the
LCD Monitor
Screw
(+BVST4 × 12)
WARNING
Be sure to tighten the securing screw firmly.
If you fail to do so, the LCD Monitor may fall
when it is pushed upward and cause injury.

9 (GB)
There are 4 types of installation. It may not be possible to install some types of LCD Monitors. Check the
following and install your LCD Monitor in the adequate way.
To install the LCD Monitor to the wall, the SU-WL500 Wall-Mount Bracket is necessary. Screws and spacers listed
below are also necessary depending on the way of installation.
For further details/terms & conditions, contact the sales representative for professional use.
*1 You cannot install the LCD Monitor other than the noted types.
*2 For the LCD Monitor with , the following are necessary.
Spacer: a washer with an outside diameter of 18 mm, inside diameter of 10 mm, and thickness of 2 mm
(SONY Part Number 7-688-000-32) × 20
Screw: PSW M6 × 25 mm (SONY Part Number 4-577-326-01) × 4 (1 pk)

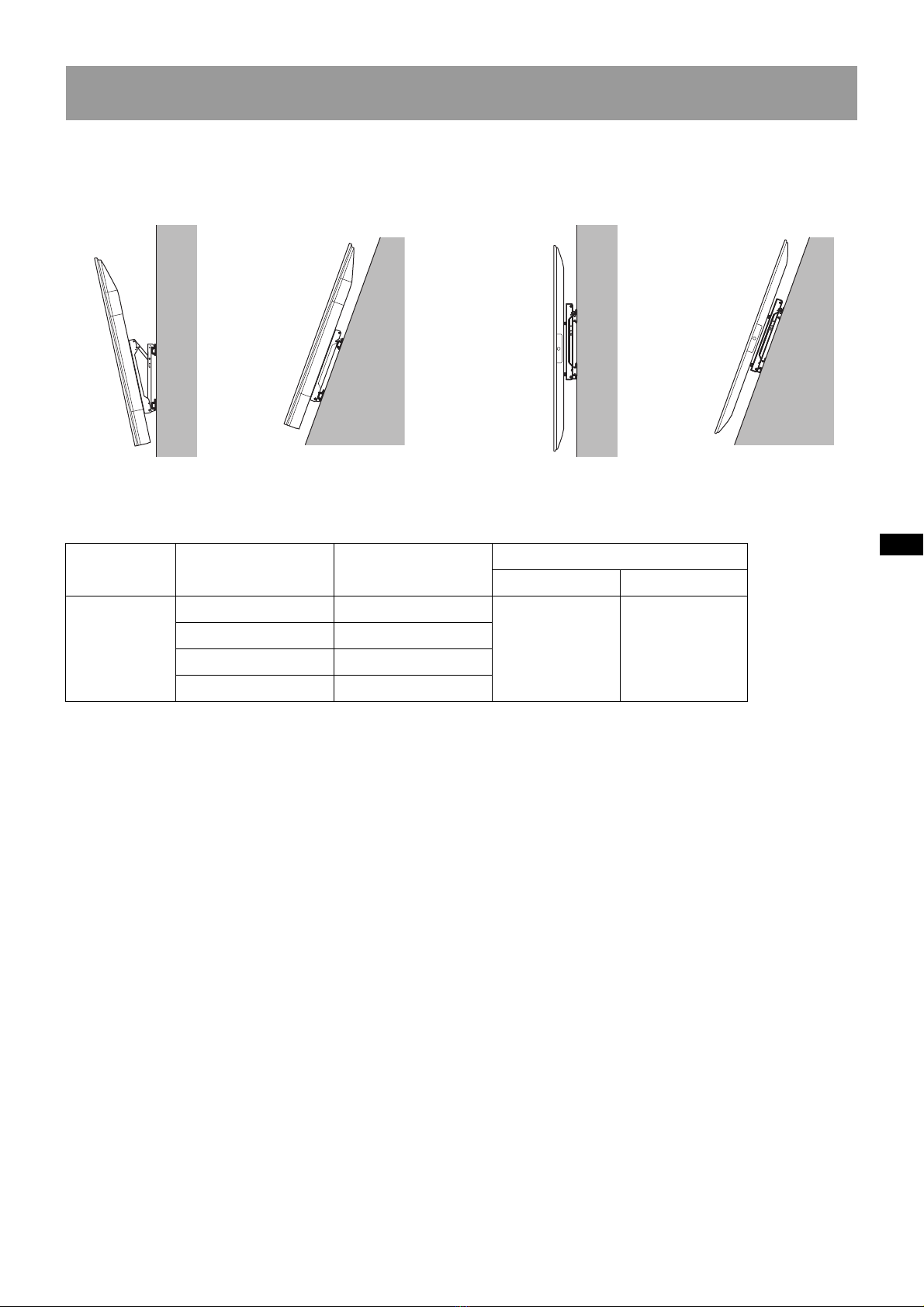

Leaning/Portrait Style
A: Landscape, -20° leaning B: Landscape, +20° leaning C: Portrait, no leaning D: Portrait, +20° leaning
LCD Monitor
model Installation type*1 Spacer*2 Wall-Mount Bracket
Model Qty
FW-85BZ40H
FW-75BZ40H
FW-65BZ40H
FW-55BZ40H
A
SU-WL500 1
B
C
D

10 (GB)
Follow Step 1 in the SU-WL500 instruction manual to
check the parts.
Follow Step 2 in the SU-WL500 instruction manual to
decide on the installation location. Refer to page 26
of this manual for the LCD Monitor installation
dimension table.
Follow Step 3 in the SU-WL500 instruction manual to
install the Base Bracket.
A: Landscape, -20° leaning
Step 1:
Checking the parts
required for the
installation
Step 2:
Deciding on the
installation location
Step 3:
Installing the Base
Bracket on the wall
Step 4:
Preparing for the
installation of the LCD
Monitor
1Remove the screws from the
rear of the LCD Monitor.
Note
• Be sure to store the removed screws in a safe place,
keeping them away from children. When attaching
the stands to the LCD Monitor again, be sure to
install the stored screws back in the original
position.
When using an electric screwdriver, set the torque
setting to approximately 1.5 N·m {15 kgf·cm}.
Do not lift the Mounting Hook before the screws
(two screws each for left/right) are secured. This
may distort the Mounting Hook or the LCD Monitor
cabinet.

11 (GB)
2Referring to the Screw and Hook
locations diagram/table on
page 28, determine the screw
positions, and secure the
Mounting Hook to the rear of the
LCD Monitor.
Attach Wall-Mount Attachment (supplied
with the LCD Monitor) to the rear of the LCD
Monitor (to make it parallel with the wall).
Note
• Be sure to fasten the Wall-Mount Attachment when
attaching them to the LCD Monitor. Use only a flat
head screwdriver to install the Wall-Mount
Attachment. Use of another tool might result in
over torqueing the Wall-Mount Attachment and
damaging the LCD Monitor.
Secure the Mounting Hook to the rear of the
LCD Monitor temporarily, using the four
screws (+PSW6 × 25).
Note
• Be sure that both screws are securely tightened
with equal torque strength to the rear of the LCD
Monitor.
VS
VS
Supplied with the
LCD Monitor
Wall-Mount
Attachment (4)
1.5 N·m
{15 kgf·cm}
*1Screws (+PSW6 × 25) (not supplied)
*2Needs 5 spacers (not supplied) with an outside
diameter of 18 mm, inside diameter of 10 mm, and
thickness of 2 mm.
Mounting Hook Screw*1
(+PSW6 × 25)
10 mm
*2

12 (GB)
3Adjust the angle of the
Mounting Hook with the
supplied hex key.
Perform following and . Make sure that
screw firmly secures the arm base of the
Mounting Hook (both left and right).
Remove the 2 screws from the arm base
of the Mounting Hook (both left and right)
and determine the screw holes for the angle
(20°) you plan to change to.
Fit screw holes of the upper arm and
lower arm in an adequate angle, put
screws removed in step into the holes,
then secure both arms.
Note
• Make sure that the adjusted angle of both arms are
the same.
• Make sure that both arms are screwed in securely.
CAUTION
• Be careful not to get your fingers caught while
adjusting the angle.
Hex key
4Connect the AC power cord
(mains lead) and the connecting
cable(s) supplied with the LCD
Monitor to the LCD Monitor.
Connect the AC power cord (mains lead) and the
connecting cable(s) to the connectors on the
rear of the LCD Monitor. For details on
connecting the AC power cord (mains lead) and
the connecting cable(s), refer to the instruction
manual of the LCD Monitor.
Note
• You cannot connect the cables to the LCD Monitor
after installing it on the Base Bracket.
• Subcontract the cable routing in the wall to a
licensed contractor.
5Detaching the Table-Top Stand
from the LCD Monitor.
Remove one side of the Table-Top Stand at a
time. Firmly hold the Table-Top Stand
securely with both hands while the other
people lift up the LCD Monitor.
Repeat the previous step and remove the
other side of the Table-Top Stand.

13 (GB)
Note
• Three or more people are required to detach the
Table-Top Stand.
• Be careful not to use excessive force while
detaching the Table-Top Stand from the LCD
Monitor as it may cause the LCD Monitor to fall
resulting in personal injury or physical damage to
the LCD Monitor.
• Take care when handling the Table-Top Stand to
prevent damage to the LCD Monitor.
• Be careful when lifting the LCD Monitor as the
Table-Top Stand is detached, the Table-Top Stand
may topple over and cause personal injury.
• Take care when removing the Table-Top Stand from
the LCD Monitor to prevent it from falling over and
damaging the surface that the LCD Monitor is
sitting on.
Step 5:
Installing the LCD
Monitor on the wall
WARNING
Be sure to complete the installation before
connecting the AC power cord (mains lead) to the
wall outlet. If you allow the AC power cord (mains
lead) to be pinched under or between pieces of
equipment, this may result in a short circuit or an
electric shock.
Be careful not to stumble over the AC power cord
(mains lead) or the LCD Monitor, as you may hurt
yourself.
1Install the LCD Monitor onto the
Base Bracket.
Referring to the Screw and Hook locations
diagram/table on page 28, determine the
holes of the Base Bracket for latching the
upper hooks of the Mounting Hook.
Hold the LCD Monitor securely with both
hands, and gently align it on the wall.
WARNING
• Be sure that two or more persons (three or more
persons for 85 inches and above LCD Monitor set)
hold the LCD Monitor when carrying it.
• When carrying the LCD Monitor, hold it in
landscape orientation, and take care not to drop it
when installing. Do not apply excessive force to the
LCD Monitor; otherwise, it may be deformed.
Base Bracket
Mounting Hook

14 (GB)
Follow the instructions in the SU-WL500 instruction
manual to confirm.
Follow the instructions in the SU-WL500 instruction
manual to remove.
2Firmly secure the LCD Monitor
and the Base Bracket using the
screws supplied with SU-WL500
(+BVST4 × 12).
Note
• When using an electric screwdriver, set the torque
setting to approximately 1.5 N·m {15 kgf·cm}.
Confirming the
completion of the
installation
When removing the
LCD Monitor
Screw
(+BVST4 × 12)
WARNING
Be sure to tighten the securing screw firmly.
If you fail to do so, the LCD Monitor may fall
when it is pushed upward and cause injury.

15 (GB)
Follow Step 1 in the SU-WL500 instruction manual to
check the parts.
Follow Step 2 in the SU-WL500 instruction manual to
decide on the installation location. Refer to page 26
of this manual for the LCD Monitor installation
dimension table.
Follow Step 3 in the SU-WL500 instruction manual to
install the Base Bracket.
B: Landscape, +20° leaning
Step 1:
Checking the parts
required for the
installation
Step 2:
Deciding on the
installation location
Step 3:
Installing the Base
Bracket on the wall or
mounting
Step 4:
Preparing for the
installation of the LCD
Monitor
1Remove the screws from the
rear of the LCD Monitor.
Note
• Be sure to store the removed screws in a safe place,
keeping them away from children. When attaching
the stands to the LCD Monitor again, be sure to
install the stored screws back in the original
position.
When using an electric screwdriver, set the torque
setting to approximately 1.5 N·m {15 kgf·cm}.
Do not lift the Mounting Hook before the screws
(two screws each for left/right) are secured. This
may distort the Mounting Hook or the LCD Monitor
cabinet.

16 (GB)
2Referring to the Screw and Hook
locations diagram/table on
page 28, determine the screw
positions, and secure the
Mounting Hook to the rear of the
LCD Monitor.
Attach Wall-Mount Attachment (supplied
with the LCD Monitor) to the rear of the LCD
Monitor (to make it parallel with the wall).
Note
• Be sure to fasten the Wall-Mount Attachment when
attaching them to the LCD Monitor. Use only a flat
head screwdriver to install the Wall-Mount
Attachment. Use of another tool might result in
over torqueing the Wall-Mount Attachment and
damaging the LCD Monitor.
Secure the Mounting Hook to the rear of the
LCD Monitor temporarily, using the four
screws (+PSW6 × 25).
Note
• Be sure that both screws are securely tightened
with equal torque strength to the rear of the LCD
Monitor.
VS
VS
Supplied with the
LCD Monitor
Wall-Mount
Attachment (4)
1.5 N·m
{15 kgf·cm}
*1Screws (+PSW6 × 25) (not supplied)
*2Needs 5 spacers (not supplied) with an outside
diameter of 18 mm, inside diameter of 10 mm, and
thickness of 2 mm.
3Make sure that the screw 
firmly secures the arm base of
the Mounting Hook (both left
and right).
Note
• Make sure that the two arms are screwed in
securely.
Mounting Hook Screw*1
(+PSW6 × 25)
10 mm
*2

17 (GB)
4Connect the AC power cord
(mains lead) and the connecting
cable(s) supplied with the LCD
Monitor to the LCD Monitor.
Connect the AC power cord (mains lead) and the
connecting cable(s) to the connectors on the
rear of the LCD Monitor. For details on
connecting the AC power cord (mains lead) and
the connecting cable(s), refer to the instruction
manual of the LCD Monitor.
Note
• You cannot connect the cables to the LCD Monitor
after installing it on the Base Bracket.
• Subcontract the cable routing in the wall to a
licensed contractor.
5Detaching the Table-Top Stand
from the LCD Monitor.
Remove one side of the Table-Top Stand at a
time. Firmly hold the Table-Top Stand
securely with both hands while the other
people lift up the LCD Monitor.
Repeat the previous step and remove the
other side of the Table-Top Stand.
Note
• Three or more people are required to detach the
Table-Top Stand.
• Be careful not to use excessive force while
detaching the Table-Top Stand from the LCD
Monitor as it may cause the LCD Monitor to fall
resulting in personal injury or physical damage to
the LCD Monitor.
• Take care when handling the Table-Top Stand to
prevent damage to the LCD Monitor.
• Be careful when lifting the LCD Monitor as the
Table-Top Stand is detached, the Table-Top Stand
may topple over and cause personal injury.
• Take care when removing the Table-Top Stand from
the LCD Monitor to prevent it from falling over and
damaging the surface that the LCD Monitor is
sitting on.
Step 5:
Installing the LCD
Monitor on the wall
WARNING
Be sure to complete the installation before
connecting the AC power cord (mains lead) to the
wall outlet. If you allow the AC power cord (mains
lead) to be pinched under or between pieces of
equipment, this may result in a short circuit or an
electric shock.
Be careful not to stumble over the AC power cord
(mains lead) or the LCD Monitor, as you may hurt
yourself.

18 (GB)
Follow the instructions in the SU-WL500 instruction
manual to confirm.
Follow the instructions in the SU-WL500 instruction
manual to remove.
1Install the LCD Monitor onto the
Base Bracket.
Referring to the Screw and Hook locations
diagram/table on page 28, determine the
holes of the Base Bracket for latching the
upper hooks of the Mounting Hook.
Hold the LCD Monitor securely with both
hands, and gently align it on the wall.
WARNING
• Be sure that two or more persons (three or more
persons for 85 inches and above LCD Monitor set)
hold the LCD Monitor when carrying it.
• When carrying the LCD Monitor, hold it in
landscape orientation, and take care not to drop it
when installing. Do not apply excessive force to the
LCD Monitor; otherwise, it may be deformed.
Base Bracket
Mounting Hook
2Firmly secure the LCD Monitor
and the Base Bracket using the
screws supplied with SU-WL500
(+BVST4 × 12).
Note
• When using an electric screwdriver, set the torque
setting to approximately 1.5 N·m {15 kgf·cm}.
Confirming the
completion of the
installation
When removing the
LCD Monitor
Screw
(+BVST4 × 12)
WARNING
Be sure to tighten the securing screw firmly.
If you fail to do so, the LCD Monitor may fall
when it is pushed upward and cause injury.

19 (GB)
Follow Step 1 in the SU-WL500 instruction manual to
check the parts.
Follow Step 2 in the SU-WL500 instruction manual to
decide on the installation location. Refer to page 27
of this manual for the LCD Monitor installation
dimension table.
Follow Step 3 in the SU-WL500 instruction manual to
install the Base Bracket.
C: Portrait, no leaning / D: Portrait, +20° leaning
Step 1:
Checking the parts
required for the
installation
Step 2:
Deciding on the
installation location
Step 3:
Installing the Base
Bracket on the wall or
mounting
Step 4:
Preparing for the
installation of the LCD
Monitor
1Remove the screws from the
rear of the LCD Monitor.
Note
• Be sure to store the removed screws in a safe place,
keeping them away from children. When attaching
the stands to the LCD Monitor again, be sure to
install the stored screws back in the original
position.
When using an electric screwdriver, set the torque
setting to approximately 1.5 N·m {15 kgf·cm}.
Do not lift the Mounting Hook before the screws
(two screws each for left/right) are secured. This
may distort the Mounting Hook or the LCD
Monitor cabinet.

20 (GB)
2Referring to the Screw and Hook
locations diagram/table on
page 28, determine the screw
positions, and secure the
Mounting Hook to the rear of the
LCD Monitor.
Attach Wall-Mount Attachment (supplied
with the LCD Monitor) to the rear of the LCD
Monitor (to make it parallel with the wall).
Note
• Be sure to fasten the Wall-Mount Attachment when
attaching them to the LCD Monitor. Use only a flat
head screwdriver to install the Wall-Mount
Attachment. Use of another tool might result in
over torqueing the Wall-Mount Attachment and
damaging the LCD Monitor.
Secure the Mounting Hook to the rear of the
LCD Monitor temporarily, using the four
screws (+PSW6 × 25).
Note
• Be sure that both screws are securely tightened
with equal torque strength to the rear of the LCD
Monitor.
VS
VS
Supplied with the
LCD Monitor
Wall-Mount
Attachment (4)
1.5 N·m
{15 kgf·cm}
*1Screws (+PSW6 × 25) (not supplied)
*2Needs 5 spacers (not supplied) with an outside
diameter of 18 mm, inside diameter of 10 mm, and
thickness of 2 mm.
3Make sure that the screw 
firmly secures the arm base of
the Mounting Hook (both left
and right).
Note
• Make sure that the two arms are screwed in
securely.
Mounting Hook Screw*1
(+PSW6 × 25)
10 mm
*2
