Communication Color Video Camera
EVI-D100/D100P
Unit: mm
VBS
Output
Y/C
Output
Normal
Shutter
Fixed
White
Balance
Manual
White
Balance
Long
Exposure
One-Push
White
Balance



 




 
1/4 Type
CCD Lens
Zoom
X10 Lens
Auto
Focus
ATW
White
Balance
AUTO
White
Balance
Horizontal
Flip
RS232C
Control
Power
Save
CCD
Iris
PTZ
Pan/Tilt/
Zoom
E-Zoom
X4
*For RS-232C control
***
*
***
Outline

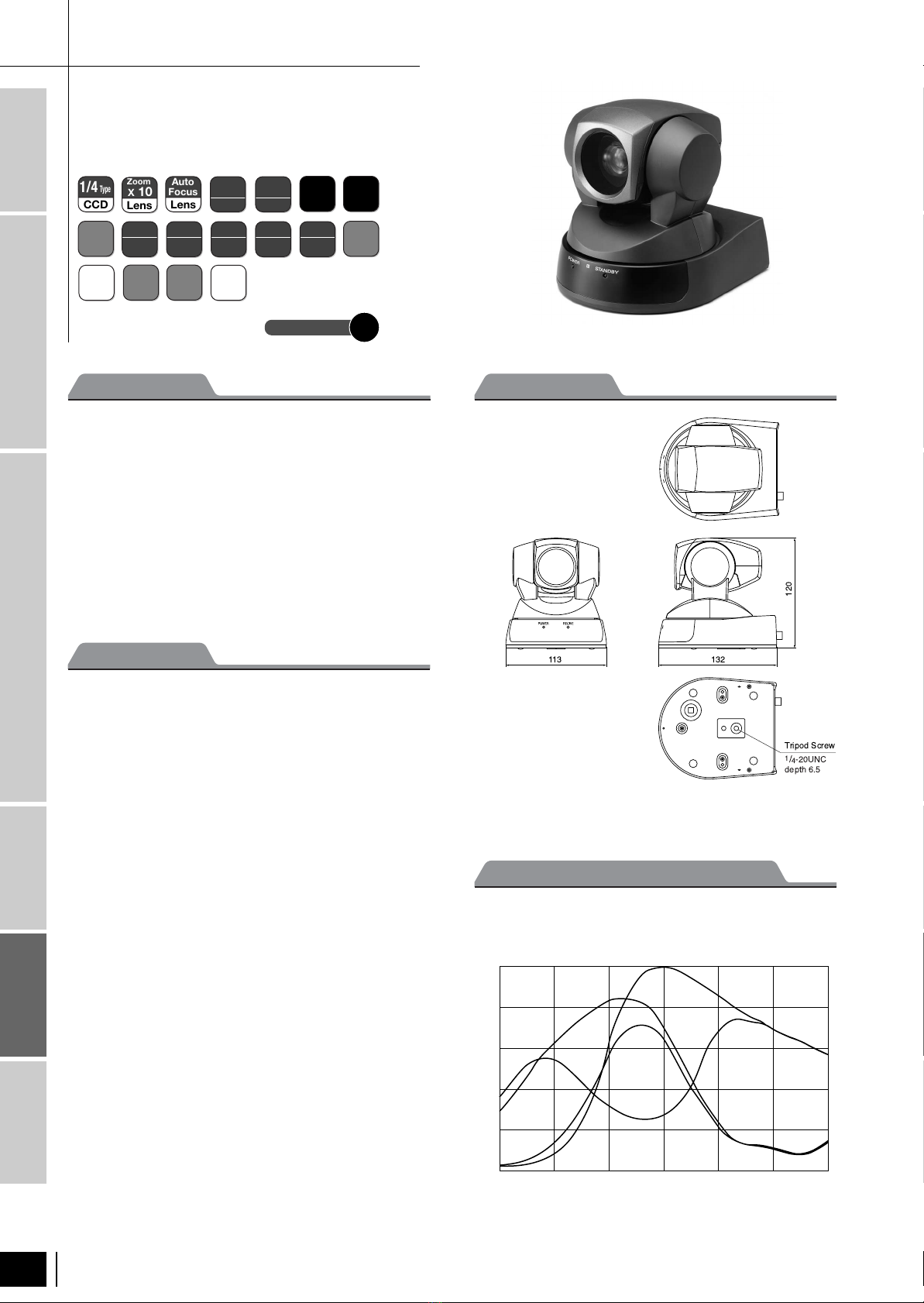

The EVI-D100/D100P is a CCD camera module that
combines a newly developed high-speed pan/tilt function
with a wide angle zoom lens, to offer pan/tilt/zoom in one
package. From the 65-degree wide angle (horizontal), 40x
zoom (optical 10x) is possible. In addition, the camera
features a direct drive mechanism that achieves high-speed
operation that is three times faster than other Sony models
and is significantly quieter. Furthermore, it is equipped with
a wide variety of functions such as digital effects, electronic
slow shutter, precise remote setting and control, etc. More
than ever, this camera is ideal for remote monitoring.
Features
■High-speed silent direct drive mechanism
■40x zoom (10x (optical), 4x (digital))
■Equipped with a wide-range zoom lens: Maximum field
angle 65-degree
■Minimum illumination of the object: 3.5 lx at
(1/60 sec, F1.8, 50 IRE)
■Electronic automatic slow shutter correspondence
■Various white balance correspondences
■Various digital effect functions such as horizontal flip and
still image
■Auto-sleep function
■Preset position, battery backup function
■Precise control through VISCA Protocol
■Supporting EVI-D30 emulation mode
■Infrared remote commander and AC power adaptor
supplied
* “VISCA” is a registered trademark of Sony Corporation
Dimensions
●EDV-D100/D100P
Wavelength (nm)
Relative sensitivity
(Typical Values)
Spectral Sensitivity Characteristics

109
EVI-D100/D100P
Non-TV Format B/W Model Color Model IEEE1394
Camera Link compatible
Accessories Color PTZ Model
Color Camara Block
TV Format
Intelligent
Digital Interface
Location and Function of Parts and Controls
③
④
①
②
① ④
⑤
⑥
②
③ ⑦
⑦
21
ON
⑥⑤
Front
Rear
①POWER lamp
②STANDBY lamp
③Lens
④Reference holes (at the bottom)
⑤BACKUP switch
⑥VIDEO jack
⑦S VIDEO jack
⑧IR SELECT switch
⑨DC IN 12 V jack
⑩VISCA OUT jack
⑪VISCA IN jack
⑫IR SELECT switch
Set this switch to ON to allow the camera output signals
transmitted from the Remote Commander to the Color Video
Camera via the VISCA OUT jack to be output.
When you don’t intend to do so, set it to OFF.
⑬D30/D31 mode switch
Set this switch to ON to enable you to operate the Color Video
Camera using the VISCA commands for the EVI-D30/D31.
When you don’t intend to do so, set it to OFF.
Note
You cannot use some of the commands of the EVI-D30/D31
even if you set this switch to ON.
⑭Tripod hole
Bottom
①
②
③
④
⑤
⑥
⑦
⑧
⑨
⑩
⑪
⑫⑬
⑭
EVI-D100 EVI-D100P
Image device 1/4 type IT CCD
Signal system NTSC PAL
Effective picture elements 768 (H) x 494 (V) 752 (H) x 582 (V)
Effective lines 470 TV lines (wide end) 460 TV lines (wide end)
Lens 10x zoom, f=3.1 to 31, F1.8 to F2.9
Digital zoom 4x (40x with optical zoom)
Horizontal angle of view 6.6 to 65 degrees
Minimum object distance 100 mm (Wide end), 600 mm (Tele end)
Minimum illumination 3.5 lx (F1.8) (50 IRE)
Auto exposure Auto/Manual/Priority AE, Exposure compensation, Back light Compensation
Shutter speed 1/4 to 1/10,000 s 1/4 to 1/10,000 s
White balance Auto/ATW/Manual/One Push/3200K/5800K
Digital effects Pastel/Neg.Art/Sepia/Black & White/Solarize/Mosaic/Slim/Stretch/Still/Flash/Lumi/Trail
S/N Ratio More than 50 dB
Pan/tilt Horizontal ±100 degrees (Max speed 300 degrees/s), Vertical ±25 degrees (Max speed 125 degrees/s)
Position preset 6 positions
Control terminal RS-232C (8-pin mini DIN) control (VISCA)/RS-422 (9-pin) control (VISCA), baud rate: 9.6 Kb/s, 38.4 Kb/s
Video output VBS, Y/C
Power requirement DC 10.8 to 13.0 V
Power consumption Max. 13.2 W (at 12 Vdc)
Operating temperature 0 to 40 ºC
Storage temperature -20 to +60 ºC
Dimensions (W x H x D) 113 x 120 x 132 mm
Mass 860 g
Supplied accessories AC adaptor (1), IR Remote Commander unit (1), Velcro tape (1), Operating instruction (1)
Specifications

110
EVI-D100/D100P
Non-TV Format
B/W Model
Color Model
IEEE1394
Camera Link compatible
Accessories
Color PTZ Model
Color Camara Block
TV Format
Intelligent
Digital Interface
8 7 6
5 4 3
2 1
1. DTR
2. DSR
3. TXD
4. GND
5. RXD
6. GND
7. IR OUT
8. N.C.
1. CD
2. RXD
3. TXD
4. DTR
5. GND
6. DSR
7. RTS
8. CTS
9. RI
1. DTR
2. DSR
3. TXD
4. GND
5. RXD
6. GND
7. IR OUT
8. N.C.
1. DTR
2. DSR
3. TXD
4. GND
5. RXD
6. GND
7. OPEN
8. OPEN
1. DTR
2. DSR
3. TXD
4. GND
5. RXD
6. GND
7. IR OUT
8. N.C.
1. FG
2. TXD
3. RXD
4. RTS
5. CTS
6. DSR
7. GND
20. DTR
● EVI-D100/P Windows D-Sub 25 pin
● EVI-D100/P EVI or Macintosh
● EVI-D100/P Windows D-Sub 9 pin
VISCA IN
Connector Pin Assignments
No Pins Signals
1DTR DataTransmission Ready (OUTPUT)
2DSR Data Set Ready (INPUT)
3TXD Transmit Data (OUTPUT)
4GND Ground
5RXD Receive Data (INPUT)
6GND Ground
7IR OUT IR Commander Signal (OUTPUT)
8N.C. No Connection
IR OUT outputs the signals of the Remote Commander at 0 to 5 V when
the IR OUT switch is set to ON. When the switch is set to OFF, signals
input to the VISCA IN jack are output through the VISCA OUT jack.

111
EVI-D100/D100P
Non-TV Format B/W Model Color Model IEEE1394
Camera Link compatible
Accessories Color PTZ Model
Color Camara Block
TV Format
Intelligent
Digital Interface
The “Initial mode” column shows the setting values at the time of
factory shipment.
A circle ( ) in the Backed up/Not backed up column indicates that
the setting is stored in the camera if the power is turned OFF while
the BACKUP switch located on the back side of the camera is ON.
An “X” indicates that the setting data is not stored in the camera.

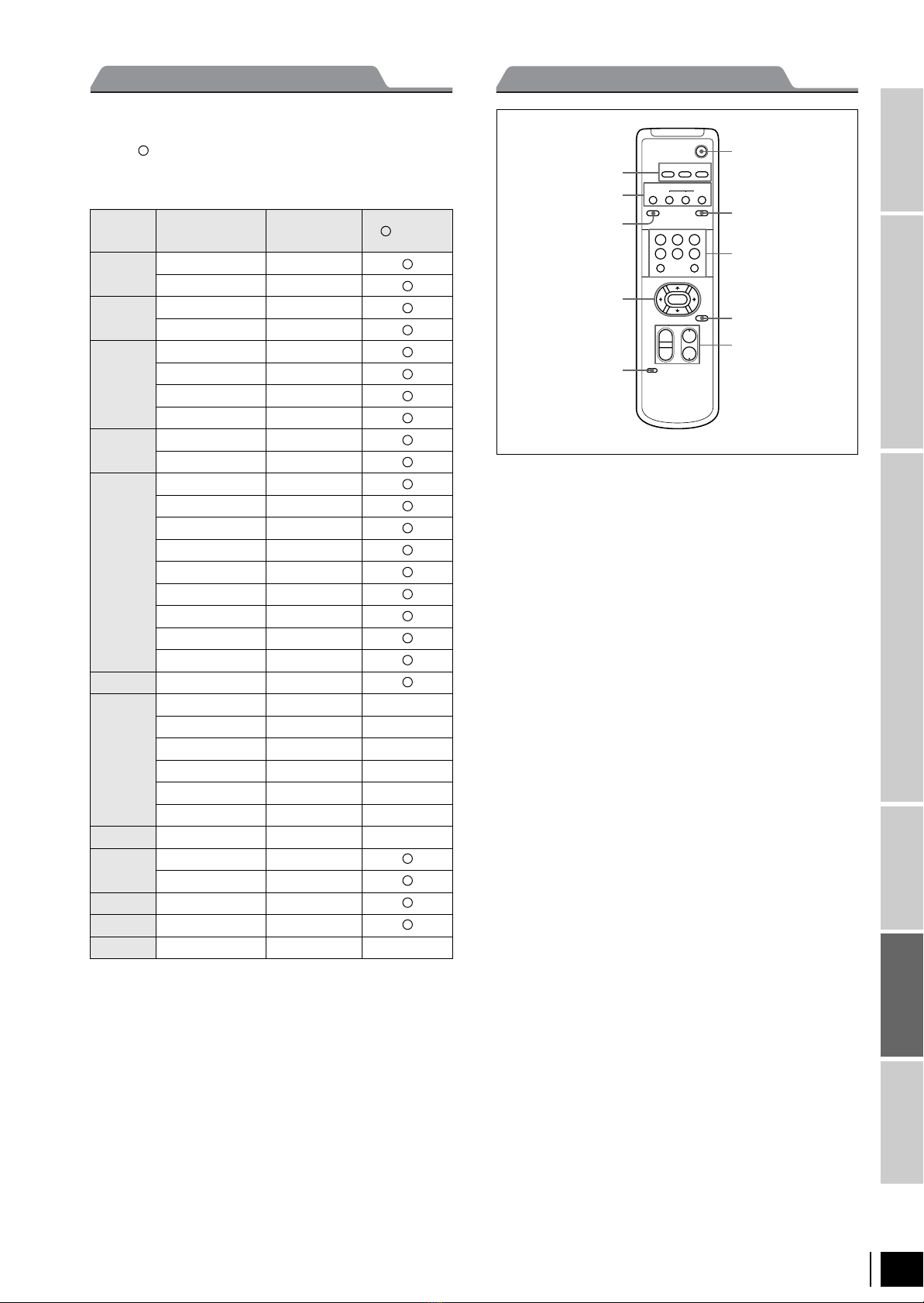

Initial Values and Backup
Category Mode/Position Initial values
Pan/Tilt Pan/Tilt Position Home position
Pan/Tilt Limit Position movable-range maximum
Zoom Zoom Position Wide end
Digital Zoom On/Off On
Focus Focus Mode Auto/Manual Auto
AF Sens High/Low High
Focus Position —
Near Limit Near end
WB WB Mode Auto
R/B Gain —
AE AE Mode Full Auto
Slow Shutter Auto/Manual Manual
Shutter Position —
Iris Position —
Gain Position —
Bright Position —
ExpComp On/Off Off
ExpComp Position ±0
Back Light On/Off Off
Aperture Aperture Gain 5
Effect Wide Mode Off ✕
LR Reverse On/Off Off ✕
Freeze On/Off Off ✕
Picture Effect Mode Off ✕
Digital Effect Mode Off ✕
Digital Effect Level 0 ✕
OSD Datascreen On/Off Off ✕
IR IR_Receive On/Off On
1)
IR_ReceiveReturn On/Off Off
1)
AutoPowerOff Auto Power Off Timer 0
1)
Memory Position Preset Data —
VISCA VISCA Address 1 ✕
1),2)
1) The data items are backed up when the power is turned OFF (standby
mode) using a VISCA command or remote control, regardless of
whether the BACKUP switch is ON or OFF.
2) When the camera is in D30/D31 mode, the VISCA address is backed up.
Backed up/Not backed
up ( : Backed up,
✕ : Not backed up)
Remote Commander
POWER
CAMERA SELECT
123
AUTO
POSITION
HOME
RM-EV100
RESET
PRESET
STD REV
BACK LIGHT
MANUAL
FAR
FOCUS
NEAR
W
T
W
T
123
456
PAN-TILT
SLOW FAST
ZOOM
L/R
DIRECTION SET
PAN-TILT
RESET
DATA SCREEN
⑧
⑨
⑩
②
⑦
⑥
①
⑤
③
④
①CAMERA SELECT buttons
②FOCUS buttons
AUTO button
FAR button
NEAR button
MANUAL button
③DATA SCREEN button
④PAN-TILT button
Arrow buttons
HOME button
⑤L/R DIRECTION SET button
⑥POWER switch
⑦BACK LIGHT button
⑧POSITION buttons
Numeric buttons (Button 1 also works as the STD button. Button
2 also works as the REV button.)
PRESET button
RESET button
⑨PAN-TILT RESET button
⑩ZOOM buttons
SLOW T button
SLOW W button
FAST T button
FAST W button
