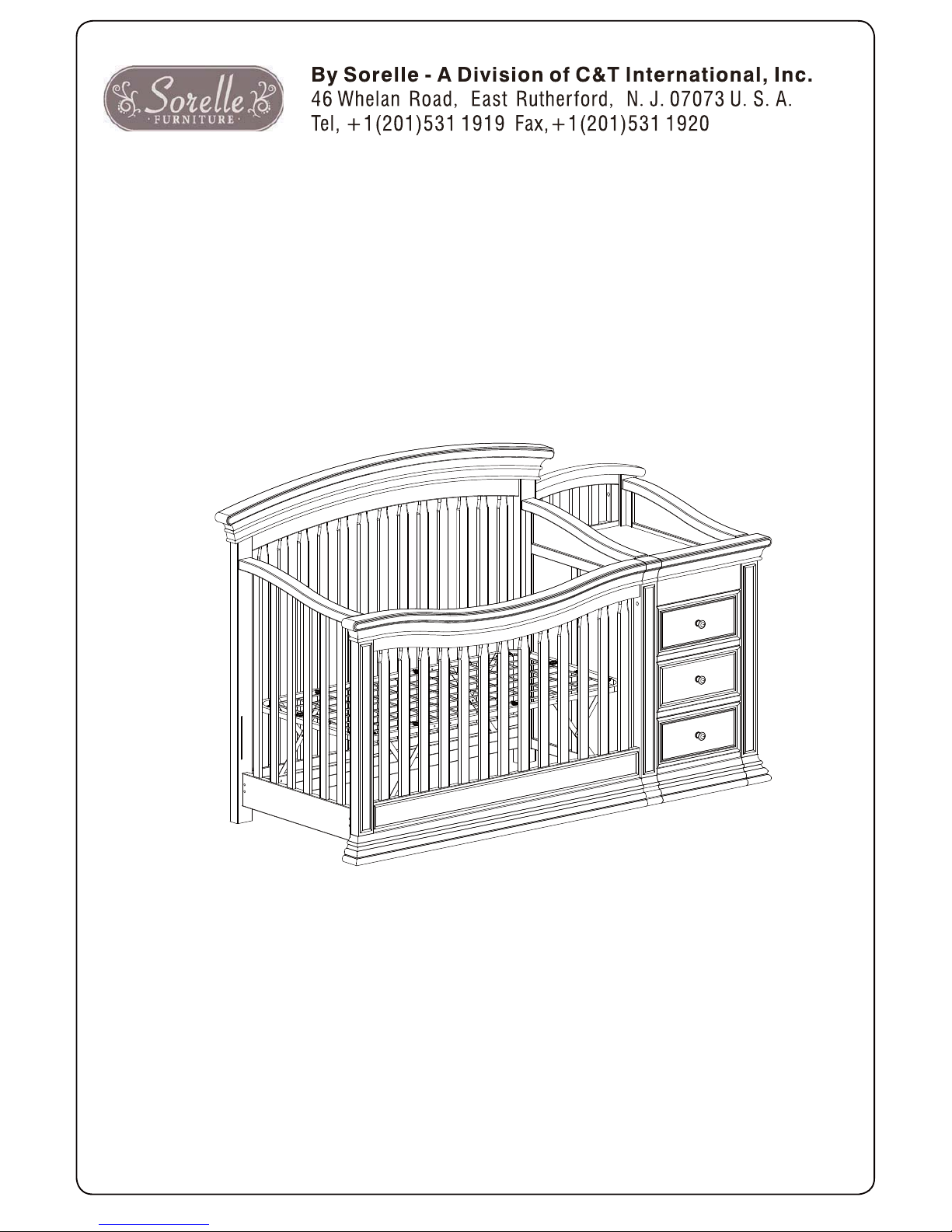

Sorelle Sedona Crib and Changer User manual

Made in Thailand
Important Information:
Sedona Crib and Changer
Assembly Instruction
Read all instructions BEFORE assembling crib.
KEEP INSTRUTIONS FOR FUTURE USE.
Website: www.sorellefurniture.com

Page 2
WARNING:
*Infants can suffocate on soft bedding. Never add a pillow or comforter. Never place additional padding
under an infant.
*Failure to follow these warnings and the assembly instructions could result in serious injury or death.
DO NOT use this crib if you cannot exactly follow the accompanying instructions.
*To reduce the risk of SIDS, pediatricians recommend healthy infants be placed on their backs to
sleep, unless otherwise advised by your physician.
*Strangulation Hazard: STRINGS CAN CAUSE STRANGULATION! Do not place items with a string
around a child's neck, such as hood strings or pacifier cords. Do not suspend strings over a crib or
attach strings to toys.
*Strangulation Hazard: To help prevent strangulation tighten all fasteners. A child can trap parts of
the body or clothing on loose fasteners.
*Strangulation Hazard: Do not place crib near window or patio door where cords from blinds or
drapes may strangle a child.
*Fall Hazard: When child is able to pull to a standing position, set mattress to lowest position and
remove bumper pads, large toys and other objects that could serve as steps for climbing out. This crib
has an adjustable mattress support. For the convenience of the parent when the baby is very small, the
mattress support may be used in the highest position.
*Fall Hazard: Stop using crib when child begins to climb out or reaches a height of 35in. (89cm),
whichever occurs first. The child should be placed in a youth or regular bed.
*Check this product for damaged hardware, loose joints, loose bolts or other fasteners, missing parts,
or sharp edges before and after assembly and frequently during use. Securely tighten loose bolts and
other fasteners.Do not use crib if any parts are missing,damaged or broken.Contact C&T International
/ Sorelle for replacement parts and instructional literature if needed. Do not substitute parts.
*Follow warnings on all products in a crib.
*If refinishing, use a non-toxic finish specified for children's products.
*Never use plastic shipping bags or other plastic film as mattress covers because they can cause
suffocation.
*Infants can suffocate in gaps between crib sides and a mattress that is too small.
*Ensure a safe environment for the child by checking regularly, before placing the child in the crib, that
every component is properly and securely in place.
*To avoid head injury, do not allow any child to play underneath the crib.
*Never add an accessory such as a bassinet or changing table that extends over the sleeping area.
C
Crib Warnings:
AUTION : ANYMATTRESSUSEDINTHISCRIBSHALL
BEAT LEAST 271/4”(69CM)x 515/8” (131 CM) WITH
ATHICKNESSNOT EXCEEDING 6”(15CM).
SORELLE

Page 3
Toddler Bed Warnings:
Changing Table Warnings:
WARNING
INFANTS HAVE DIED IN TODDLER BEDS FROM ENTRAPMENT.
Openings in and between bed parts can entrap head and neck of a small child.
NEVER use bed with children younger than 15 months.
ALWAYS follow assembly instructions.
The maximum user weight is 50lbs (22.7kg)
WARNING
STRANGULATION HAZARD
NEVER place bed near windows where cords from blinds or drapes may strangle a child.
NEVER suspend strings over a bed.
NEVER place items with a string, cord, or ribbon, such as hood strings or pacifier cords,
around a child's neck. These items may catch on bed parts.
CAUTION
ENTRAPMENT HAZARD
To avoid dangerous gaps, any mattress used in this bed shall be a full-size crib mattress
at least 51 5/8 in (1310mm) in length, 27 1/4 in (690mm) in width and 4 in (100mm) in
thickness. The mattress thickness must not exceed 6 in (150mm).
WARNING
FALL HAZARD - to prevent death or serious injury, always keep child within arm’s reach.
Read all instructions before use of the changing table.
KEEP THESE INSTRUCTIONS IN A SAFE PLACE FOR FUTURE USE.
Inspect the changing table periodically. Do not use the changing table if it is damaged or
broken. Contact C&T International Inc. with any questions.
Tighten all loose screws and bolts before each use.
The maximum recommended weight of the child is 30lbs for the changing table.
Use only the pad provided by C&T International / Sorelle or Manufacturer’s
Always secure the pad to the changing surface by inserting the strap through the hole in
the middle of the pad. See Instructions.
NEVER use crib without Changing Table attached
SORELLE

Page 4
C
AU
RIBMUST
BEA
CM) WITH
A THI
NOTES ON ASSEMBLY:
-During the assembly process whenever using screws or bolts, check each by placing the screw/bolt on
the diagram of the item which is drawn actual size and design. Be sure to use the proper size and shape
specified in the instructions.
-To assemble this unit you may be required to place the unit on it’s side and face. It is strongly
recommended that assembly is done on a soft, non-abrasive surface to avoid damaging the finish.
NOTES ON CARE AND MAINTENANCE:
- Do not scratch or chip the finish.
- Inspect the product periodically, contact C&T International / Sorelle for replacement parts or questions.
- Do not store the product or any parts in extreme temperatures and conditions such as a hot attic or a
damp, cold basement. These extremes can cause a loss of structural integrity.
-To preserve the luster of the high quality finish on your product, it is recommended to place a doily or
felt pad under any items you place on the finish.
-Clean with a damp cloth, then a dry cloth to preserve the original luster and beauty of this fine finish.
-Do not use abrasive chemicals.
-Do not spray cleaners directly onto furniture.
-Lift slightly when moving on carpeting to prevent leg breakage.
-Use of a vaporizer near furniture will cause wood to swell and finish to peel.
NOTES ON USE:
Keep children and others safe by following these simple rules:
- Do not allow any child to play on furniture
- Do not allow climbing on any piece of furniture.
- Do not allow hanging from any piece of furniture.
- Always monitor your child’s activity when in the nursery.
SORELLE

Page 5
(A) Left End (x1) (A1) Middle Panel (x1) (A2) Right End (x1) (C) Footboard (x1)
(B) Headboard (x1)
(D1) Middle - Front Leg (x1)
(D2) Right - Front Leg (x1)
(H) Front -Top Bar (x1)
(H2) Front- Middle Support Bar (x2)
(H3) Front- Bottom Support Bar (x1)
( I3 ) Middle-Bottom Support Bar (x1)
( I ) Changer Top Shelf
with Support Bar (x1) ( J ) Back Shelf (x3)
( L ) Changing Pad (x1)
( I2 ) Changer Middle MDF Panel (x1)
SORELLE
(K2) Drawer Back (x3)
(K3) Drawer Left (x3) (K4) Drawer Right (x3)
(K1) Drawer Front with Knob (x3)
Assembly Parts
(F): Stabilizer Bars (x2)
(E): Changer back panel (x1)
(K5) Drawer Bottom (x3)
(K6) Knob (x3)

Page 6

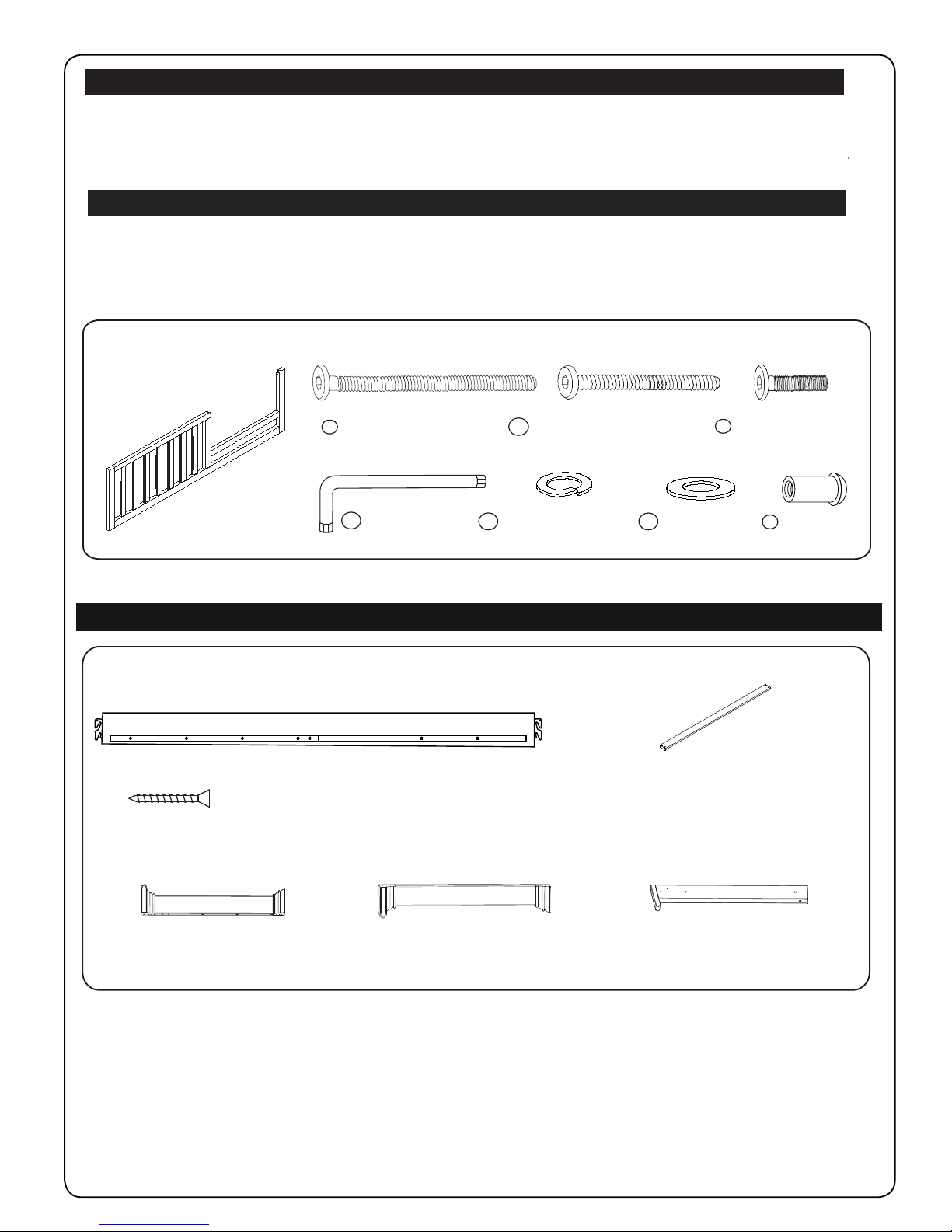

Hardware list
SORELLE
Assembly Parts
d
mm
Metal Shelf Support
g
ab
c
l
Mattress Support (x1)
o
z
f
Allen head bolt
Ø11XM5 X 32mm ( x8)
Wing Nuts ( x8)
p
q
r
Barrel Nut (x8)
M4 x 12mm Bolt (x8) M4 Nut (x8)
Wall Strap Kit (x1)
m
Allen Wrench ( X1 )
mm
e
sh

Page 7
SORELLE
Crib Assembly
( A )
( A1)
( D1)
( B )

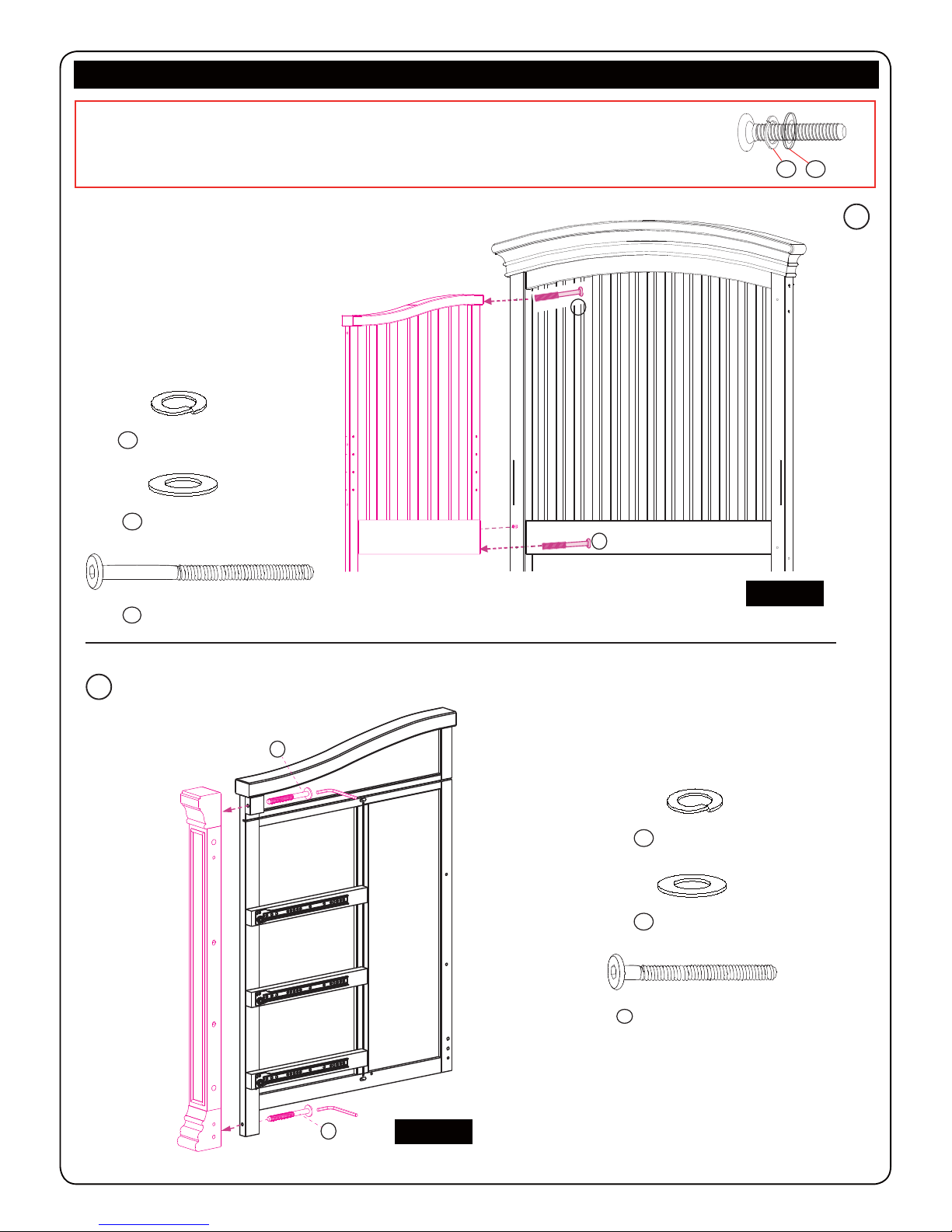

2. Attach the Middle-Front Leg (D1) to the
Middle Panel (A1) by using two(2) Bolts( c ).
See Figure 2.
1. Attach the Left End (A) to the Headboard (B)
by using two Bolts ( b ) and a Wooden Dowel ( j ).
See Figure 1.
1
2
M6* PP%ROW᧤;
F
/RFN:DVKHU᧤;᧥
f
f
0PP%ROWV᧤;᧥
b
:DVKHU᧤;᧥
g
g
/RFN:DVKHU᧤;᧥
f
:DVKHU᧤;᧥
g
b
b
Important: All Washers( g ) and Lock Washers ( f ) must be
inserted into bolts except (d&e) before assembly as figure.
Figure 1 :
Figure 2:
c
c

Page 8
( A1)
SORELLE
3
4
0PP%ROWV᧤;᧥
b
/RFN:DVKHU᧤;᧥
f
:DVKHU᧤;᧥
g
3. Attach Middle Panel ( A1) to Head board ( B ) using two (2) Bolts ( b ) .
See Figure 3.
.
Figure 4 :
Figure 3:
This crib has a high position setup on mattress support (o) for use during your baby’s first months. As soon as your
baby starts to sit up, you must use the lowest mattress level.
1
1
3
3
2
2
Lower level
Center level
Higher level
2
3
1
4x
q
p
f
o
Allen head bolt
Ø11XM5 X 32mm ( 4 pcs) Wing Nuts ( 4 pcs)
pq
/RFN:DVKHU᧤;᧥
f
b
b

Page 9
6
SORELLE
Figure 5 :
Figure 6 :
Attach the Mattress Base (O) to Stabilizer Bars(F) as shown Fig 2.
O
F
F
:DVKHU᧤;᧥
g
/RFN:DVKHU᧤;᧥
f
Attach completed Mattress Support Assembly to crib using eight (8) Bolts( a ). See Figure 6.
Allen Head Bolts ( a )
Lock Washer ( f )
Barrel Nut ( r )
Flat Washer ( g )
Stabilizer bars ( F )
r Barrel Nut (8 pcs)
0PP%ROWV[ a
Allen head bolt
Ø11XM5 X 32mm ( 4 pcs)
Wing Nuts ( 4 pcs)
p
q
F
F
p
f
q
4x
/RFN:DVKHU᧤;᧥
f
O

Page 10
( A1)
SORELLE
/RFN:DVKHU᧤;᧥
f
:DVKHU᧤;᧥
g
8. Attach Footboard (C) to Middle - Front Leg (D1). using two (2) Bolts(a) .
See Figure 8.
( H3 )
( C )
( H2 )
( H2 ) ( E)
( B )
( I3 )
Figure 7 :
Figure 8 :
a
a
c
c
0PP%ROWV[ a
M6* PP%ROW᧤[᧥
F
/RFN:DVKHU᧤;᧥
f
:DVKHU᧤;᧥
g
0PP%ROWV[ a

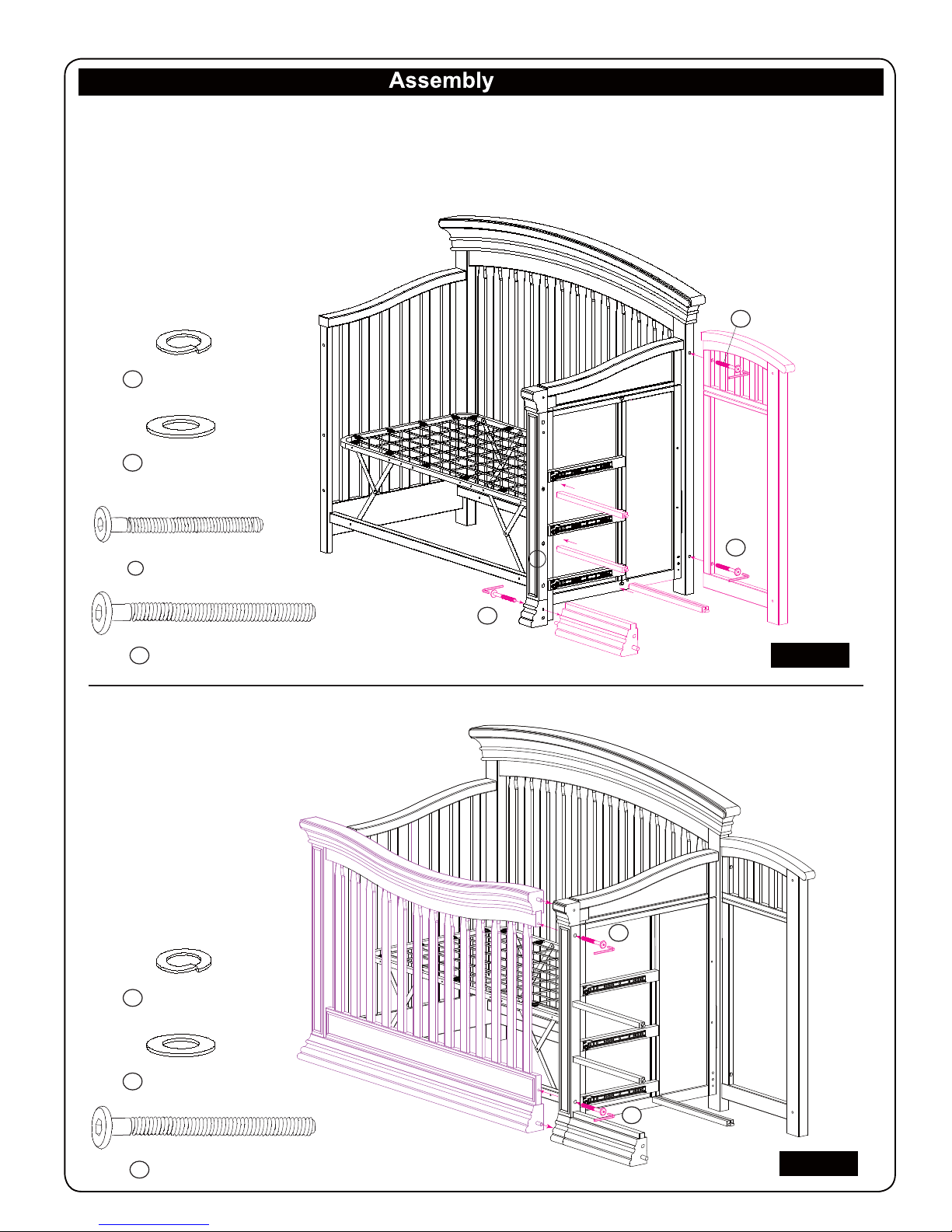

7. Attach Changer back panel (E) to Headboard ( B ) , Using two Bolt (c) .
Attach the Middle-Bottom Support Bar (I3) to Middle Panel (A1) .
Attach the Front- Middle Support Bar (H2) to Middle - Front Leg (D1).
Attach the Front- Bottom Support Bar (H3) , Using one Bolt (a).
See Figure 7.
a
D1

Page 11
SORELLE
( H )
( C )
( A )
Figure 9 :
Figure 10 :
/RFN:DVKHU᧤;᧥
f
:DVKHU᧤;᧥
g
d
M6* PP%ROW᧤[᧥
/RFN:DVKHU᧤;᧥
f
:DVKHU᧤;᧥
g
0PP%ROWV[ a

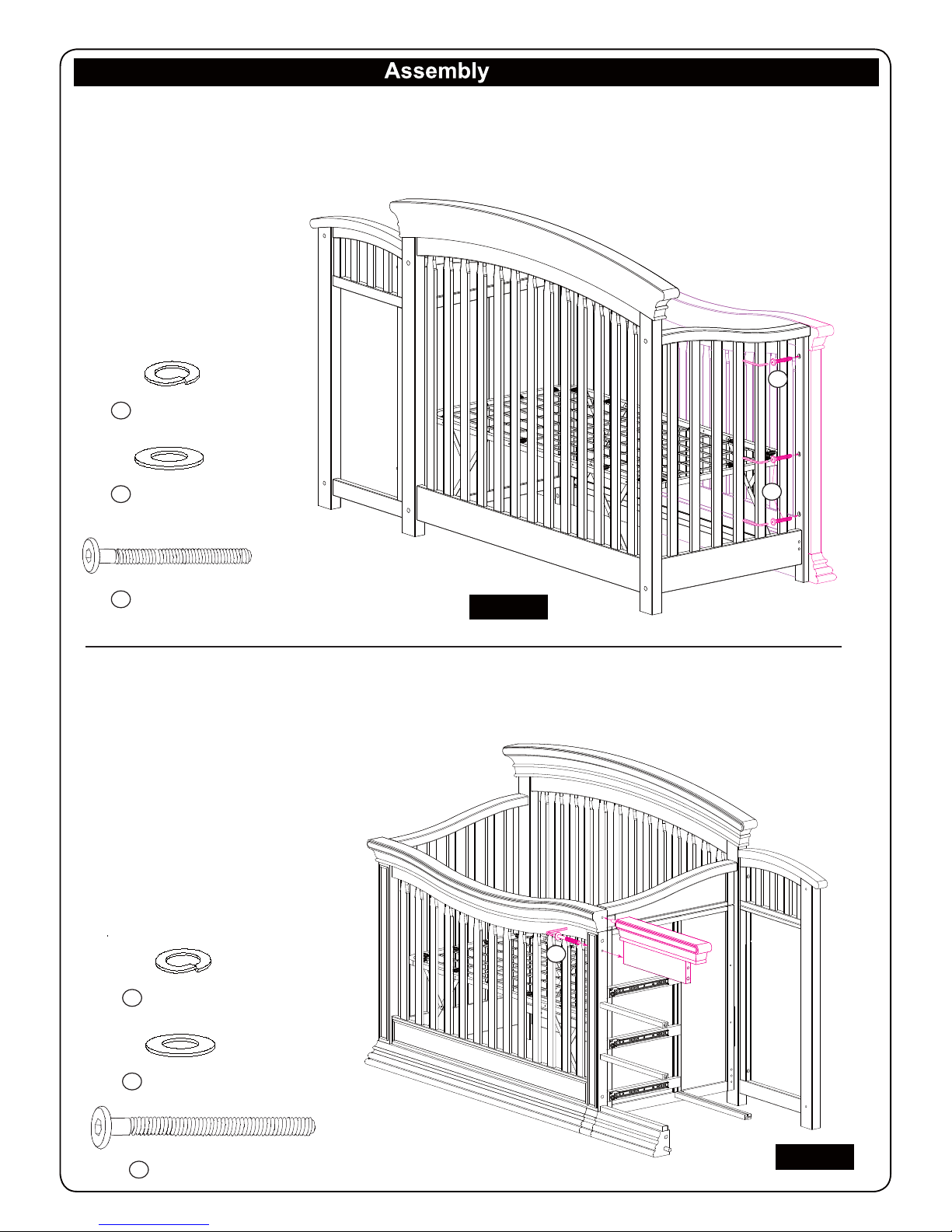

9. Using three (3) bolt (d) Assembly the Left End ( A ) and Footboard ( C ) .
See Figure 9.
10. Attach the Front -Top Bar (H) to Middle front post (D1) , Using one (1) bolt (a)
See Figure 10.
d
d
a

Page 12
12. Attach the right End (A2) to the Right - Front Leg (D2) and Changer back panel (E)
by using two Bolts ( b ) .
See Figure 12.
SORELLE
0PP%ROWV᧤;᧥
b
( D2 )
( I )
( I2 )
( A2 )
( A2 )
Figure 11 :
Figure 12 :
/RFN:DVKHU᧤;᧥
f
:DVKHU᧤;᧥
g
0PP%ROWV[
a
11. Assembly the Right - Front Leg (D2) , Using one (1) bolt (a) .
Assembly the Changer Top Shelf with Support Bar( I )
Assembly the Changer Middle MDF Pane ( I2 )
See Figure 11.
b
a
a
/RFN:DVKHU᧤;᧥
f
:DVKHU᧤;᧥
g
M6* PP%ROW᧤[᧥
F
b
c
c
D2

Page 13
13. Insert Metal Shelf Support ( l ) into holes Middle Panel & Right End
See Figure 13.
SORELLE
l
14. Attach three Shelf to changer. See Figure 14.
Metal Shelf Support
l
Figure 13
Figure 14
J
s
h
x 8
J
J
J
I

Page 14
SORELLE
Drawer Assembly
(K6) Knob (x3)
3
4
3. Secure both sides of
Drawer Front (K1) to drawer
assembly with four (4)
Bolts (e). Figure 3.
Check all Bolts for
tightness.
4. Using Drawer Knob
bolts (e), install one (1)
Knob (k6) on Drawer.
Figure 4.
Repeat for all drawers.
Set drawers aside for
later use.
(K6)
(K1)
(e)
(e)
(e)
(e)
(e)


mm
EROW[

e
Tool Required
1
Grooves
1.Working on a padded
flat surface, attach Drawer
Sides (K3 &K4) to Drawer
Back (K2) with bolts (e).
Figure 1.
2. Slide Drawer
Bottom (K5) into drawer
assembly. Figure 2.
(K4)
(K2)
2
(K5)
(K3)
(e)
(e)
(e)
(e)

Add changing pad to top of organizer.
Changing Pad Assembly
3. Make sure that safety belt is fastened around
child, and adjusted so safety belt is snug around
child’s mid-section. Make sure buckle is securely
latched. Figure 3.
CLICK!
1
2
3
2. Pull through front of pad completely. Make
sure pad is facing up and warnings are always
visible. Figure 2.
Important : If changing pad and safety belt are
assembled, make sure warnings are facing up and visible.
If not, reassemble by following the steps below.
1. Locate safety belt bolted to dresser top. Insert
safety belt through slit in changing pad from
back of pad. Figure 1.
Important : Tighten all bolts before use your Crib.
Page 15
SORELLE
Insert three (3) drawers into changer.

Page 16
Disassembling Crib For Storage
To disassemble crib for storage, follow assembly steps in reverse.
Store all parts and hardware together in a safe place. Store the instruction manual in the supplied
envelope attached to the mattress support assembly for future reference for re-assembly.
SORELLE
Converting to a Toddler Bed (Optional)
.
Follow all instructions supplied with the 229# Adult Rail System. NOTE: 229# Adult Rail System
is not included. Please see your crib retailer, visit WWW.Sorellefurniture.com or contact C&T
International / Sorelle for more information.
Follow all instructions supplied with the 152# Toddler Rail System. NOTE:152# Toddler Rail System
is not included. Please see your crib retailer, visit WWW.Sorellefurniture.com or contact C&T
International / Sorelle for more information.

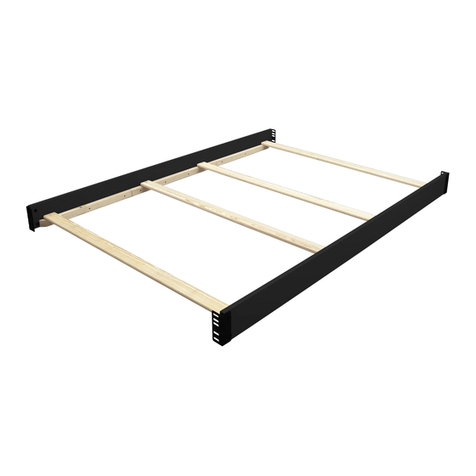

(A) 229# Bed Rail (x2) (B) 229# Mattress Support Bar (x4)
Fullsize Bed Conversion (Optional)
Additional Parts and Hardwares
( 229# Adult Rail System Not included, sold separately)
Wood Screw ( x 16 )
(D3) Additional Right - Front Leg
For Adult bed (x1)
(E) Additional Left - Rear Leg
For Changer table alone (x1)
(D4) Additional Left -Front Leg
For Changer table alone (x1)
Additional Parts and Hardwares
( 152# Toddler Rail System Not included, sold separately)
(A) 152 Toddler Rail (x1)
I
/RFN:DVKHU᧤[᧥:DVKHU᧤[᧥
ed
g
End Cap ( x5 )
Allen Wrench ( X2 )
M6* PP%ROW᧤[᧥
D
M6* PP%ROW᧤[᧥
F
b
0 mm EROWV[
