Soundcore Liberty Neo 2 User manual

Soundcore Liberty Neo 2
USER MANUAL

English 01
Čeština 07
Dansk 13
Deutsch 19
ελληνικά 25
Español 32
Suomi 38
Français 44
Magyar 50
Italiano 56
Nederlands 62
Norsk 68
Język polski 74
Português 80
Pусский 86
Slovenský Jazyk 93
Slovenski Jezik 99
Svenska 105
Türkçe 111
Portugues do Brasil 117
日本語 124
한국어 131
简体中文 138
繁體中文 144
ةيِبَ رَعل 150
תי ִ רבִע157

1
Charging
•Fully dry off the earbuds and the USB port before charging.
•Use a certified USB-C charging cable and charger to prevent any damage.
•Fully charge both the earbuds and the charging case before the first use.
1. Place the earbuds in the charging case and close it.
2. Connect the charging case to the power supply by using a USB-C charging
cable. Alternatively, position the charging case at the center of your wireless
charging for wireless charging.
•The LED indicators on the charging case indicate the charging status.

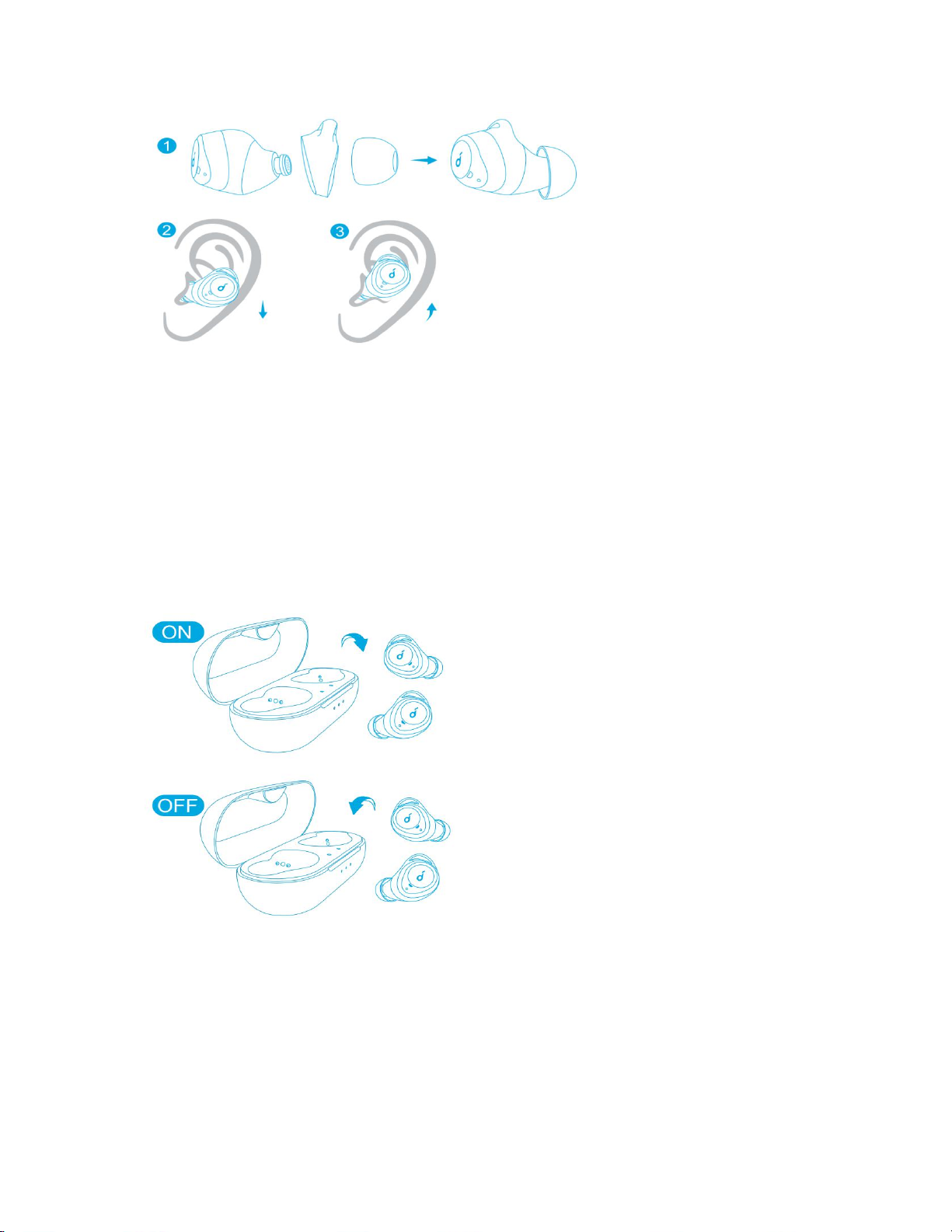

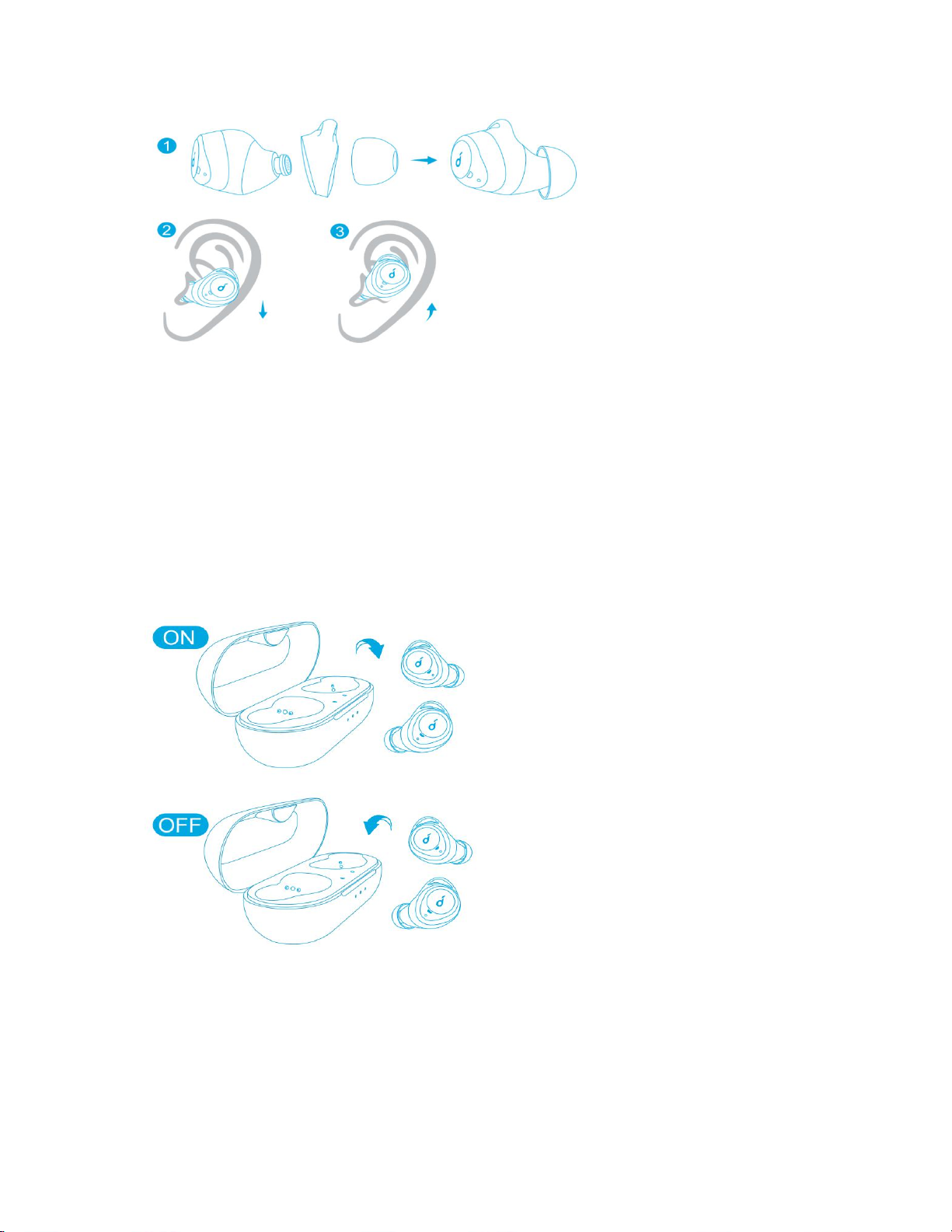

Wearing
1. Choose the EarTips and EarWings that fit your ears best.
2. Insert the earbuds into the inner canal of your ears and turn gently until you
find the most comfortable and secure position.

2
•Your earbuds come with multiple pairs of EarTips and EarWings, among which
Medium-sized are pre-installed.
Powering On/Off
The earbuds will automatically power on when taken out of the charging case.
•The LED indicator on earbuds will light up white for 1 second.
To power off, place the earbuds into the charging case.
•The earbuds will automatically power off after 2 minutes if no device is
connected.
•To manually power on, press and hold the multi-function button on both
earbuds for 2 seconds until the LED indicator turns white for 1 second.
•To manually power off, press and hold the multi-function button on either
earbud for 8 seconds until the LED indicator turns red for 1 second.

3

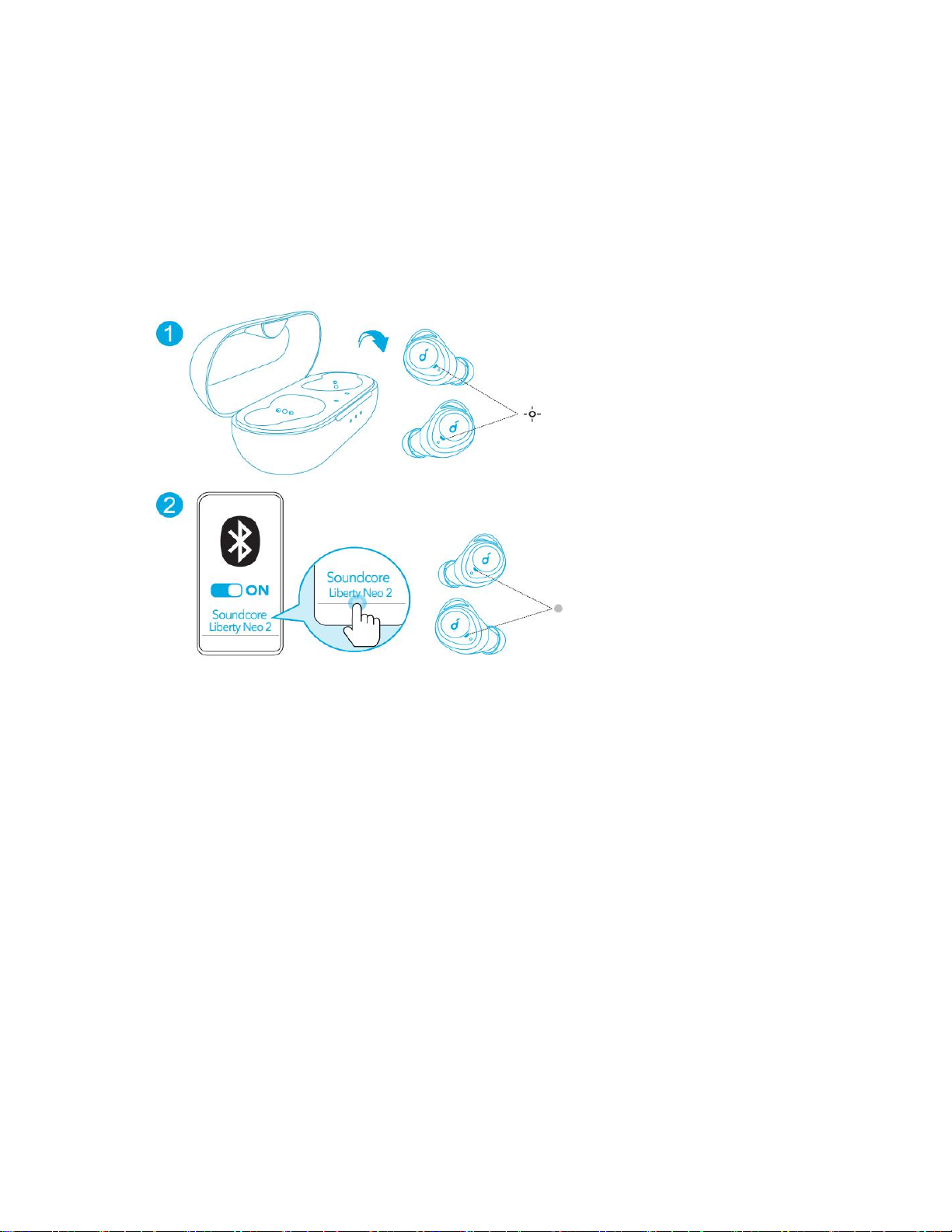

Bluetooth Pairing
1. Take the earbuds out of the charging case, the earbuds will automatically
enter the Bluetooth pairing mode.
•The LED indicator on earbuds will flash white.
2. Select “Soundcore Liberty Neo 2” on your device’s Bluetooth list to connect.
When successfully connected, the LED indicator on earbuds will turn off.
•To manually enter the pairing mode, take either earbud out of the charging case,
turn it off, and then press and hold the multi-function button for 3 seconds until
entering the pairing mode, and then take the other one from the case.
•Each time you power on your Soundcore earbuds, they will automatically
connect to your last successfully connected device if available within the
Bluetooth range.
•Mono mode: When Bluetooth connected, you can use either one of the earbuds
only by placing the other one into the charging case.
•When powered on and connected, if either one of the earbuds is out of battery
and powered off, you can keep using the other one.
•When you are on a call, place either one of the earbuds into the charging case,
and the microphone in the other earbud will be activated.

4
Controls
Play/Pause
Press twice (R)
Next track
Press and hold for 1 second (R)
Previous track
Press and hold for 1 second (L)
Volume up
Press once (R)
Volume down
Press once (L)
Answer/End a call
Press once (L/R)
Answer a second incoming call and put the
current call on hold
Reject a call
Press and hold for 1 second (L/R)
Transfer a call between earphones and
mobile phone
Switch between a call on hold and an
active call
Activate Siri or other voice assistant
software
Press twice (L)
Mono mode
Play/Pause
Press twice
Next track
Press and hold for 1 second
Volume up
Press once

5
Answer/End a call
Press once
Reject a call
Press and hold for 1 second
Activate Siri or other voice assistant
software
Press three times
Soundcore App
Download the Soundcore app to enhance your experience.
User interface customization: In stereo mode, all of the controls (e.g. adjust
volume, control playback, activate Siri) can be customized in the app.
EQ settings: There are more than 20 EQ settings you can choose from in the app
to optimize your experience while enjoying different music genres.
Earbuds firmware update: You will be informed once the new version of firmware
is detected when you connect the earbuds with the app. Ensure the earbuds are
out of the charging case and continuously connected with your device until the
firmware upgrade is completed. During the upgrade, ensure the earbuds are
close to your device and avoid any operation.
.
Reset
You might need to reset the earbuds if you experience any connectivity problems
or function issues.
1. Place the earbuds in the charging case and make sure they are being charged.

6
2. Press and hold the button on both earbuds for 8 seconds until the earbud LED
indicators flash red for 3 times.
3. Take the earbuds out of the charging case and wait until the LED indicator on
one of the earbuds flashes fast while the other breathes slowly. This confirms
that the reset was successful and your earbuds can be connected normally.
Specifications
•Specifications are subject to change without notice.
Input
5V 0.7A
Rated output power
5 mW (@1% THD)
Battery capacity
85 mAh x 2 (earbuds)
770 mAh (charging case)
Charging time
2 hours
Playtime
(varies by volume level and content)
Up to 10 hours
(Total 40 hours with the charging case)
Driver size
8 mm x 2
Frequency response
20 Hz - 20 kHz
Impedance
16 Ω
Waterproof level
IPX7
Bluetooth version
V 5.2
Bluetooth range
10 m / 33 ft

7
Nabíjení
•Sluchátka a port USB před nabíjením úplně vysušte.
•Použijte pouze certifikovaný nabíjecí kabel a nabíječku USB-C, abyste zabránili
poškození.
•Před prvním použitím sluchátka i nabíjecí pouzdro úplně dobijte.
1. Sluchátka vložte do nabíjecího pouzdra a zavřete ho.
2. Nabíjecí pouzdro pomocí nabíjecího kabelu USB-C připojte do elektřiny.
Pokud používáte bezdrátové nabíjení, můžete místo toho nabíjecí pouzdro
umístit do středu bezdrátového nabíjení.
•LED kontrolky na nabíjecím pouzdře zobrazují stav nabíjení.
Nošení
1. Zvolte si nástavce EarTip a raménka EarWing, které vám nejlépe sedí v uších.
2. Sluchátka vložte do vnitřních kanálků v uších a jemně je otáčejte, dokud
nenajdete nejpohodlnější a nejjistější polohu.

8
•Sluchátka jsou dodávána s několika páry nástavců EarTip a ramének EarWing,
nasazeny jsou ty střední velikosti.
Zapnutí/Vypnutí
Sluchátka se zapnou automaticky při vytažení z nabíjecího pouzdra.
•LED kontrolka na sluchátkách se rozsvítí po dobu 1 sekundy.
Chcete-li sluchátka vypnout, vložte je do nabíjecího pouzdra.
•Sluchátka se automaticky vypnou po 2 minutách, když není připojené žádné
zařízení.
•Pokud je chcete zapnout ručně, stiskněte a podržte multifunkční tlačítko na
obou sluchátkách po dobu 2 sekund, dokud se LED kontrolky nerozsvítí bíle na 1
sekundu.
