SOUNDMASTER UR2170 User manual

UR2170 / English Instruction Manual
1
General Description
•DAB/FM Digital Tuning System (20DAB+20FM Preset Stations by manual)
•AMS function (Automatic Memory System) （30DAB+30FM Preset Stations）
•RDS feature provide radio station name display & automatic time up-date
•CD|MP3|WMA and USB playback function provided
•Precise crystal is used for system operation
•Real time clock display with day-flag
•12|24 Hour clock display
•Built in calendar with auto leap year handling within 2000-2099
•4 mode dual alarms can be set to daily, weekday, week-end and single day independently
•Alarm output can be set to CD, DAB, FM or Buzzer sound
•Automatic or Manual search and Up, Down features are provided
•Electronic Volume Control (32 level )
•Back light with high-low dimmer
•Automatic change to standby mode after 15 minutes if not any sources playing.
•5 Preset EQ (Flat, Rock, Classic ,Jazz ,Pop)
•Radio Frequency range:
oFM: 87.5 ~ 108.0 MHz , 50 kHz | Step
oDAB Band III 174.928-239.2 MHz
• CD playback function provided incl. below feature:
•CD Disc & MP3 Disc & WMA Disc
o CD Disc
•Programmable Memories: (Max. 32 tracks)
oMP3 | WMA Disc
•Pre-Memories: Max. 99 tracks)
•8cm&12cm CD-R, CD-RW, Unclosed, Multi-Session, Mix Mode (CDDA only)
•High Speed Search for Pick-up
•Play, Pause, Fast Forward and Fast Backward Playback
•Repeat one / Repeat all /Repeat Folder/Random Playback
•USB Mode
o Pro Memories: (Max. 99 tracks)

UR2170 / English Instruction Manual
2

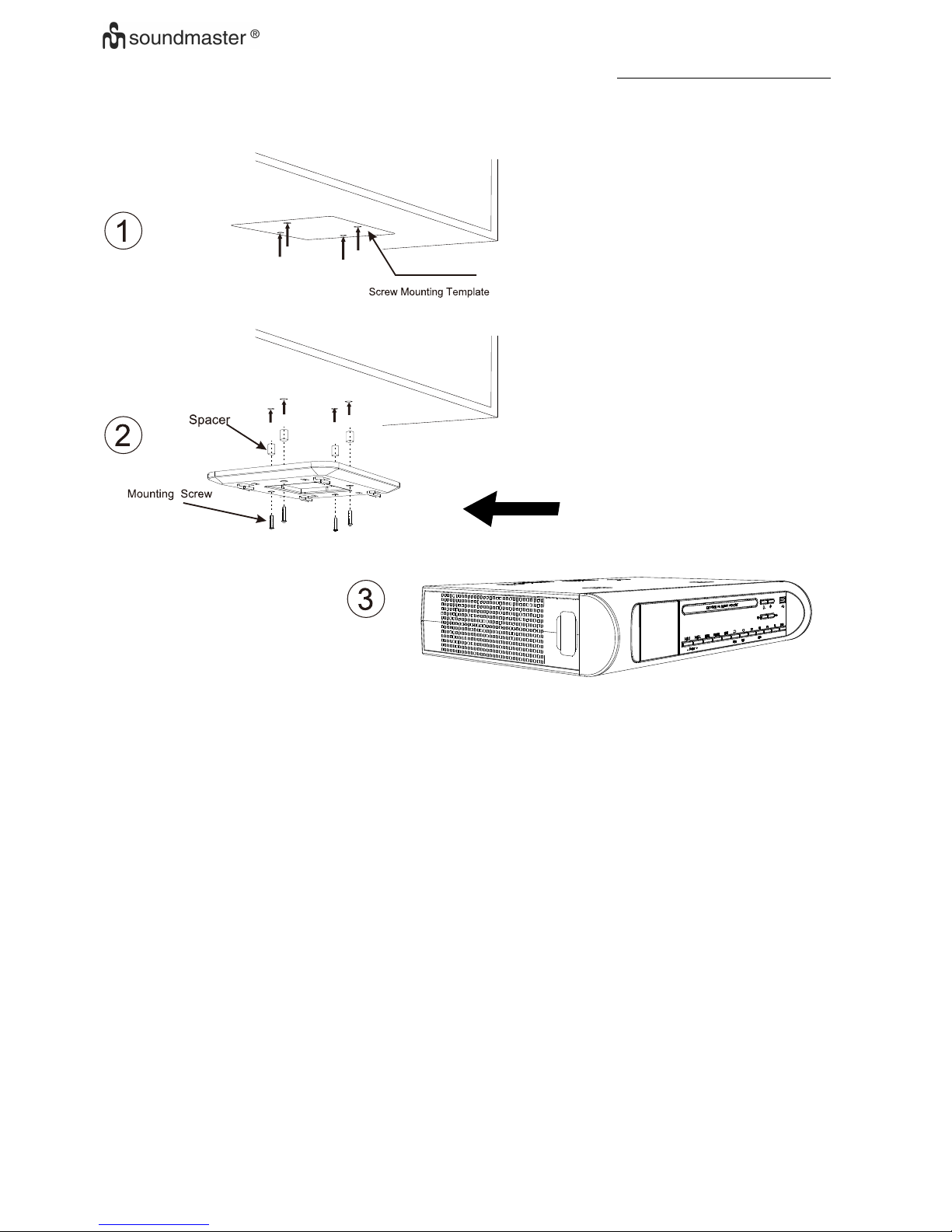

Assembly Drawing
Install the unit as below 3 steps:
1) Place the mounting/drill template under the cabinet with tape, so the unit will be located
where you want to and drill four holes with diameter 1/16 inch drill bit.
2) Fasten the screw as the above drawing with supplied Spacer+ mounting bracket+ long
screw or mounting bracket + short screw
3) Buckle the unit to the mounting bracket
Warning: To prevent damage, do not place any heating or cooking appliance beneath
the unit, install the unit as far as possible from a source of noise such as fridge,
microwave oven etc.

UR2170 / English Instruction Manual
3
Key List
K I T C H E N C D R A D I O S Y S T E M
K7
K8
USB
Re mote
K-1. Power: Device power On | Off
K-2. Open : Control of CD tray to open or close
K-3. UP | FF：Tune up Radio station and forward of CD playback at that mode
K-4. DOWN|RW：Tune down Radio Station and backward of CD play back at that mode
K-5. Stop.| Info Mode set and Stop of CD/USB playback ,
press to show information of station
K-6. AMS| Pause |Play：AMS( Auto Memory Setting for radio station ) , Play & Pause of CD/USB
play back at that mode
K-7. VOL+：Volume increase
K-8. VOL-：Volume decrease
K-9. Preset | Folder+/AL1：Call back preset station for up/Review alarm at standby mode
K-10. Preset | Folder-/AL2：Call back preset station for down/ Review alarm at standby mode
K-11. MEM：Station Memory entry/ Preset Station review
K-12. function：DAB、FM 、CD、USB selector
K-13. Dimmer/AOT：Display backup light level control/ Automatic OFF Timer
K-14. Timer: Operate for timer function
K-15. Enter: Function Setup | Exit Setting, Enter or Confirm
K-16. EQ: EQ(Flat | Rock | Classic | Jazz | Pop)
Getting start
Power Up
oWhen device connect to power and it’s powered up first time, Automatic update function will
start automatically and scrolling text “Update, Please Wait ” is display on LCD, it’s may need
few minutes depends signal strength and device working environment , when signal was
received, the right time should be display on LCD accordingly. To terminate it, press any key
during the period
oWhen the automatic system setting had been terminate by user or update un-succeed, the
date and clock are defaulted to 01.01.2014 , 0:00
oThe all alarms are defaulted to 0:00
oThe unit is switched to clock auto-run mode
oDefault back light automatically set to dim from 23:00 to 05:59

UR2170 / English Instruction Manual
4
Setup Device

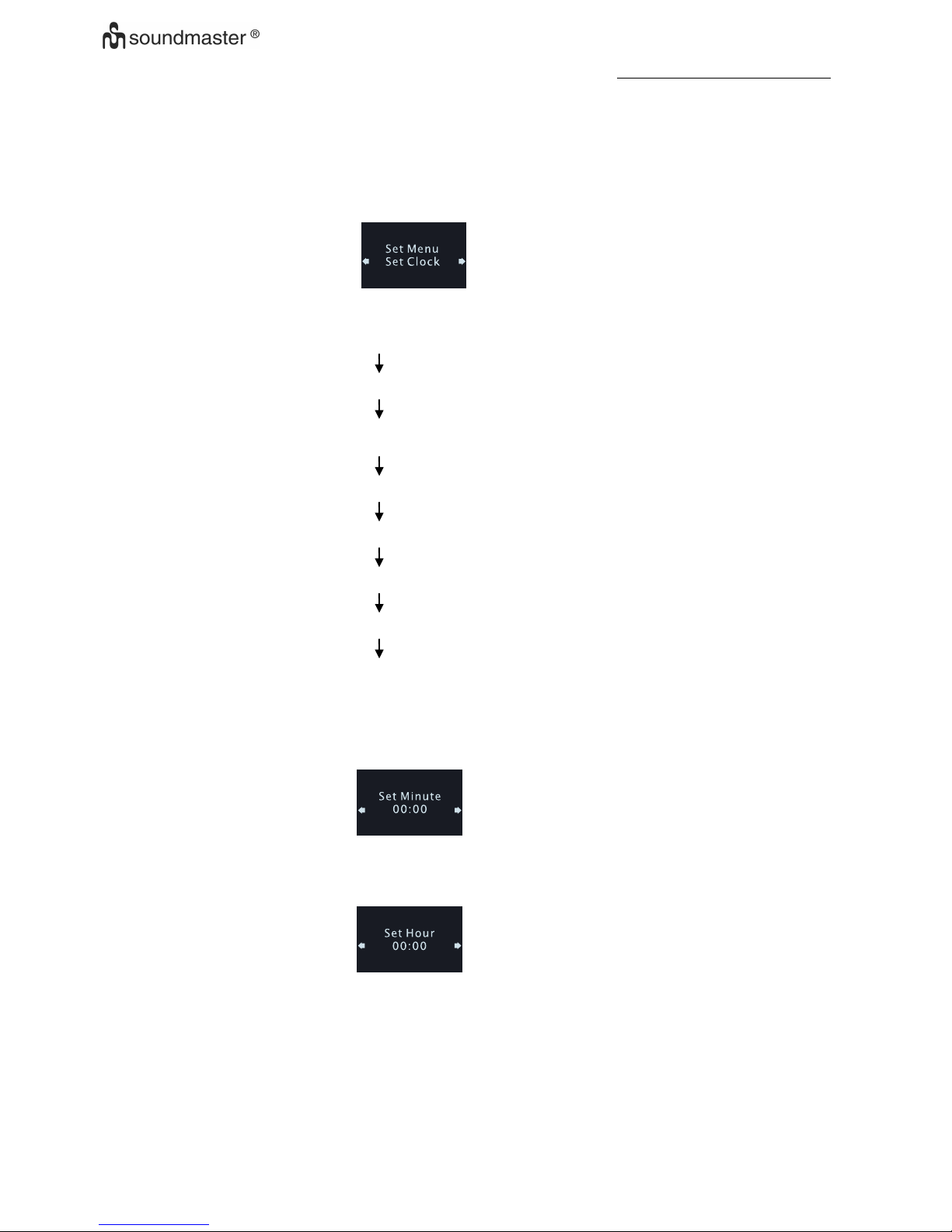

When Auto-Run Mode, Press <INFO> once will entry to setting mode, the LCD display should be show as
below:
Use <UP> or <DOWN> go to different mode sequentially as below
Device running as auto-run
Set Clock
Set the Calendar
Set the SDA
Set 12/24 hour
Set Alarm
Auto Dimmer
Factory Reset
Set the clock
•Press <UP> or <DOWN> to select 'Set Clock' when set menu mode
•Press <enter> to enter Set Clock and display will show as below
•Press <UP> or <DOWN> to set value of minutes.
•Press <enter> to Confirm minute Set and enter set hour mode, display show as below
•Press <UP> or <DOWN> to set value of hours.
•Press <Enter> to Confirm hour value and return to set menu

UR2170 / English Instruction Manual
5
Setup Calendar
• Press <UP> or <DOWN> to select 'Set Calendar' when set menu mode.
• Press <Enter> to setup value of calendar.
• Press <UP> or <DOWN> to set value of dates.
• Press <enter> to Confirm date value and enter to month selection, display show as
below.
• Press <UP> or <DOWN> to select value of months.
• Press <enter> to Confirm it and enter to setting up year value, display show as below
• Press < UP > or < DOWN > to select value of years, once it’s meeting right value, press
<Enter> confirm and return to setup Manu
Set the SDA
• Press < UP > or < DOWN > to set SDA when device stay on setting menu mode.
• Press <enter > to enter set SDA timer
• There are total 10 SDA timers for select .
• Press < UP > or < DOWN > to select number of SDA.
• Press <enter> to confirm selected timer and enter to set up it
• Press < UP > or < DOWN > to set value of date.
• Press <enter> to Confirm date and enter set month mode.

UR2170 / English Instruction Manual
6

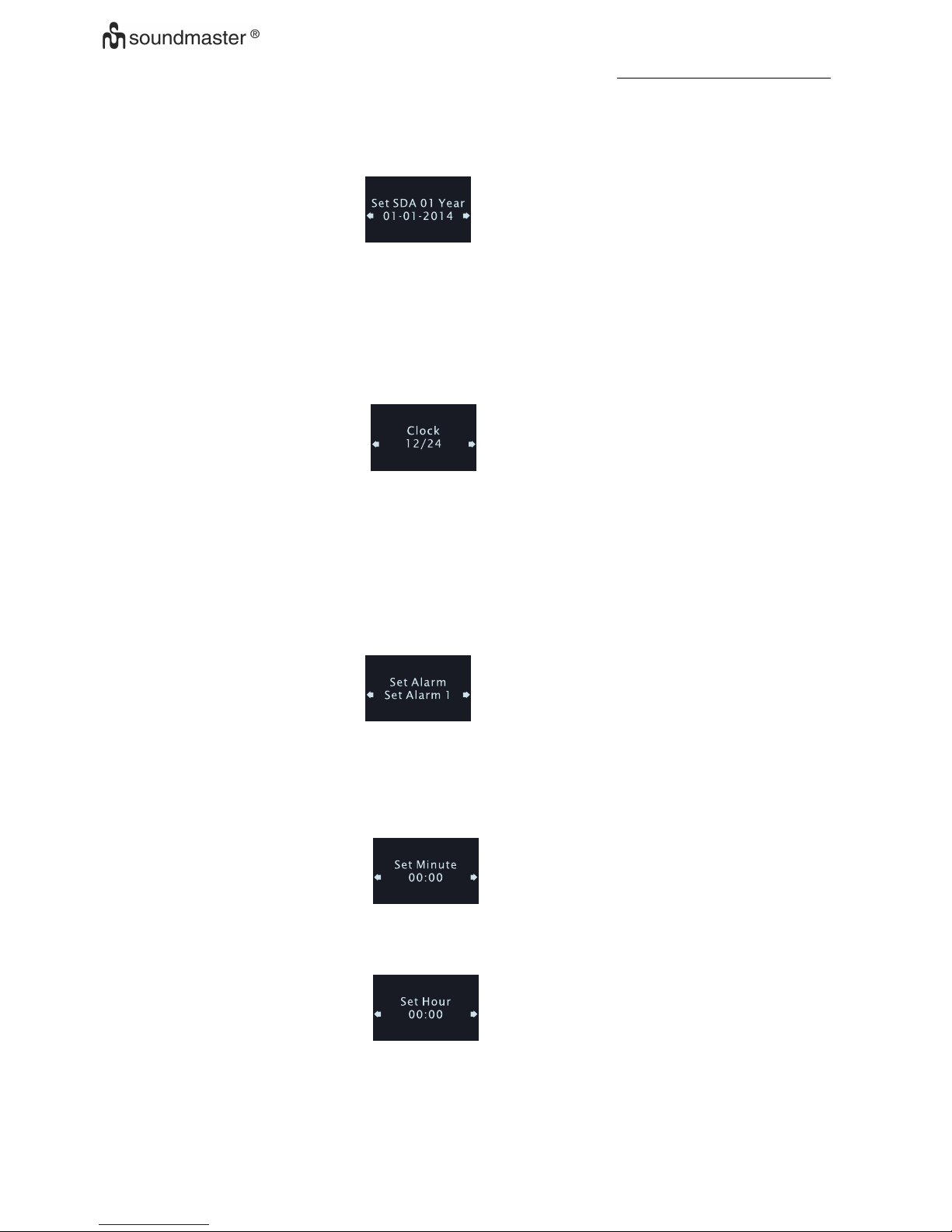

• Press <UP> or <DOWN> to set value of month.
• Press <enter> to Confirm month and enter set year mode.
• Press < UP > or < DOWN > to set value of year.
• Press <enter> to Confirm year and return to set menu.
Select Clock format which 12 or 24
• Press <UP> or <DOWN> to select 12/24 hour format when set menu mode, display
show as below:
• Press <enter> to enter set 12/24 hour format
• Press <UP> or <DOWN> to select 12 or24 hour format.
• Press <enter> to Confirm select and return to set menu.
Setup the alarm
• Press <UP> or <DOWN> to select 'Set Alarm' when stay on the setting menu display
show as below :
• Press <enter> to enter to be start setup alarm :
• Press <UP> or <DOWN> to select number of alarm.
• Press <enter> to confirm selected number and enter to Minute of alarm selection, display
show as below
• Press <UP> or <DOWN> to setup value of minute for alarm.
• Press <enter> to confirm minute and enter to hour of alarm selection, display show as below

UR2170 / English Instruction Manual
7
• Press <UP> or <DOWN> to set value of hour for alarm .

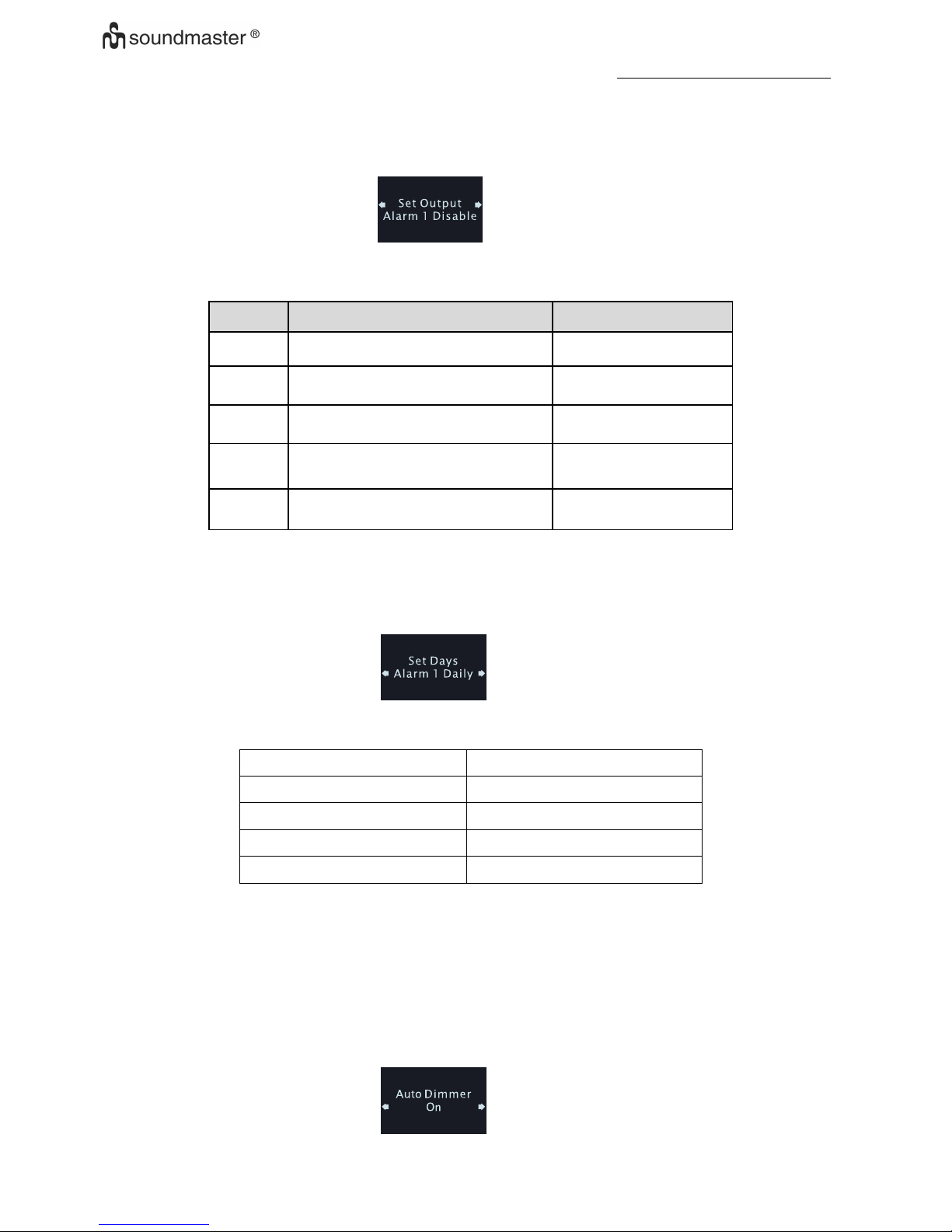

• Press <enter> to confirm selected hour value and enter to select output of alarm active:
• there are five kinds of choices, it is respectively as table 1
Kinds Means Alarm duration time
Disable Alarm is disable (default)
0
DAB DAB sound for alarm active
60 minutes
FM FM sound for alarm active
60 minutes
Buzzer Buzzer sound for alarm active
10 minutes
CD CD sound for alarm active
60 minutes
Table (1)
Press <UP> or <DOWN> to select the kind of output, if choose CD output mode, you have to
put the CD into the device, otherwise the alarm by Buzzer will take over
Press <enter> to Confirm it and enter to days selection, display show as below
There are ten kinds of choices, it is respectively as table 2
Table 2
Press <UP> or <DOWN> to select the kind alarm active arrangement
Press <enter> to Confirm the select and return to set menu.
Set Auto Dimmer
•Press <UP> or <DOWN> to select ' Auto Dimmer ' when stay on setup menu stage.
•Press <enter> to enter set auto dimmer and the LCD display screen show as bellow
Kinds Means
Daily Alarm work in every day
Weekday Alarm work in weekday
Weekend Alarm work in weekend
Sun, Mon … Sat Alarm work in one day of week

UR2170 / English Instruction Manual
8
Press <UP> or <DOWN> to select ON or OFF. Default is On
Press <enter> to Confirm selection and return to set up menu.
When you choose On, the default back light automatically set to dim from 23:00 to 05:59
When you choose Off, the device won’t dim the back light automatically.
Set factory reset ( Be careful to use this action )
When stay on setup menu and press <UP> or <Down> to select “Factory
Reset”
•Make sure you want delete all setup and reset the device to factory default, Press <enter>
to done it.
Using Device
Once Automatic done or finish all setup, Device ready for use now.
Using Cooking Timer
•Press <Timer> once to entry the timer mode, Display show as below:
•Press <UP> or <DOWN> to choose the five value (00:10 or 00:15 or 00:30 or 00:40 or
1:00) , press <Timer> to start counting.
•press <preset +> or <preset -> to choose the ten value(00:10 /00:15 / 00:30 / 00:40 /
1:00/01:10/01:20/01:30/01:40/02:00) , press <Timer> to start counting.
•if you want to set any time you need, press<timer>once, then press <Info> to set minute
by <UP> and <Down>,then press <Enter> to set hour by <UP> and <Down>,then press
<enter> to confirm the set,, press <Timer> to start counting.
•When the timer is running press <Timer> could be pause it or press <Timer> again to
continue.
•Press and hold <Timer> for 2 seconds to terminate the timer and leave, when the timer
is running.
•Beep sound alarm is selected,
a. Sound of beep toggles at the Speaker
b. The duration of alarm is 10 minutes
•Press any key to terminate the currently active alarm.

UR2170 / English Instruction Manual
9
Listen the radio DAB
• Press <Power> once to turn on the radio.
• Press <FUNC> to select device work mode to DAB
• Electronic Volume Control
a. Press <VOL+ > once, to increase speaker volume by one step. Hold for
continually.
b. Press <VOL-> once, to decrease speaker volume by one step. Hold for
continually.

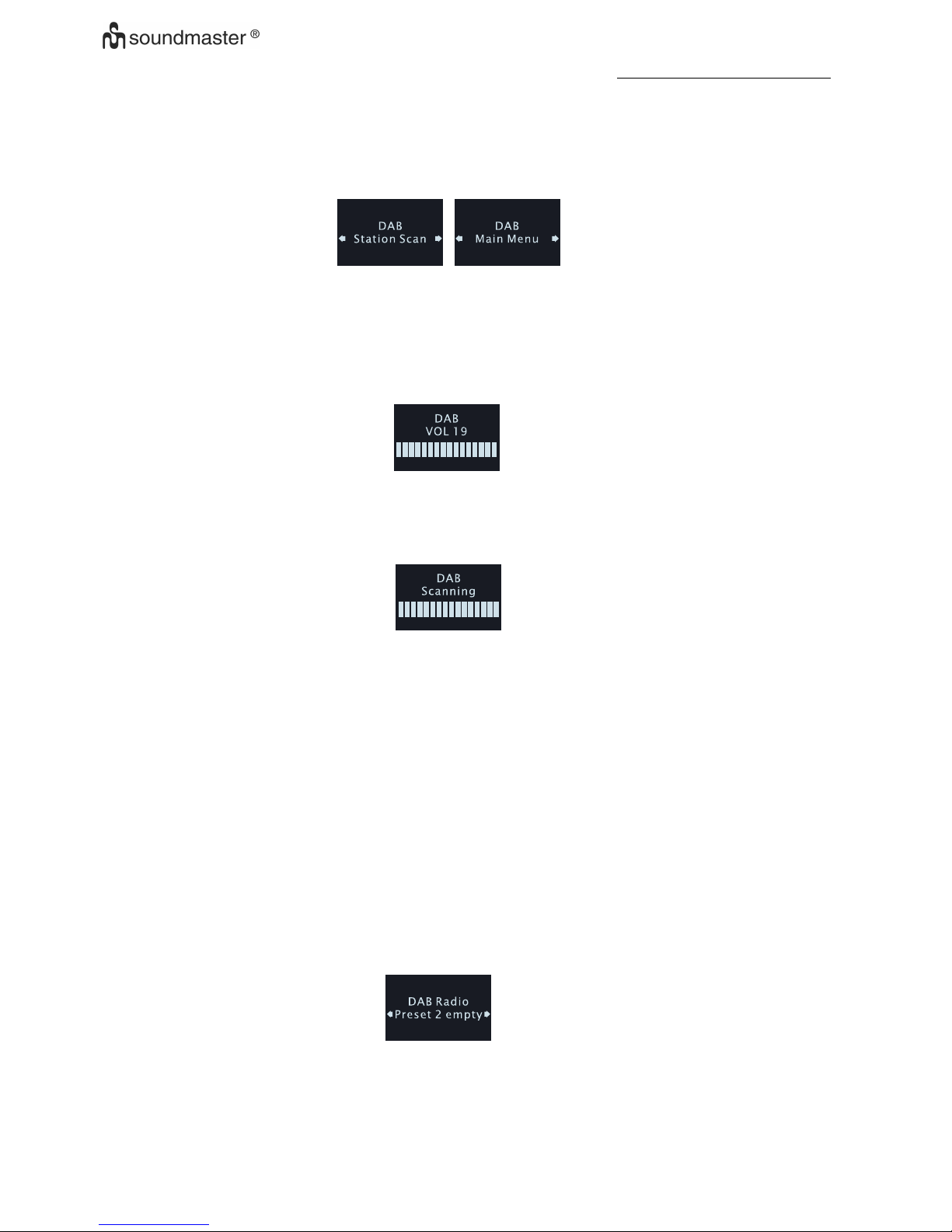

• How to listen DAB station
a. When device first to using DAB , Automatic Scan function will start automatically and
"Scanning” on LCD as below :
b. Till the action finish ,Select DAB station
c. Press <UP> or <DOWN>once to select DAB station list.
d. Press < enter > once to confirm and tune to the station.
e. Store station into preset
f. Press <Preset> once to select location of preset mode.
g. Press <Up> or <Down> to change location.
h. Press and hold < enter > to store value of station into current location.
i. Another way to search stations, In DAB mode, Press and hold <Info> until the display
show “Station scan”, then press <Enter> to choose “Manual tune” from
174.928-239.200 MHz
• Recall the preset
a. Press <MEM> once to select location of preset mode, display show on below
information
b. Press <Up> or <Down> to change location.
c. Press <Enter> to confirm select and recall the frequency.

UR2170 / English Instruction Manual
10
• How to using Auto Scan
a. Press and hold <AMS> for 2 seconds to active about function mode.
b. At the moment, the device will automatically scan the DAB station and store the
station that had been scanned until scan up all the frequency or stored all the
memory station, it will exit automatically.
• Review the information of station
a. Press <info> to review information of station.
b. There are Seven kinds of choices, it is respectively:
1. Station frequency and block number
2. Data rate
3. Station RSSI
4. Signal error Rate
5. DLS (Scrolling text)
6. Program type
7. Station name
How to Listen FM Radio
Press <Power>key to turn device on, press <Func> select work mode to FM, Display should be show as
below:
• How to search station
1. When the radio is ON, press <UP> once to change the receiving frequency up by 1 step
2. Press <DOWN> once to change the receiving frequency down by 1 step.
3. Press and hold <UP> to search the next radio station automatically by moving the
receiving frequency up.
4. Press and hold <DOWN> to search the next radio station automatically by moving the
receiving frequency down.
• How to store station into preset location
1. Press <MEM> once to select location of preset mode.
2. Press <Up> or <Down> to change location.
3. Press and hold < enter > to store value of station into The current location.
• Recall the presented station
1. Press <MEM> once to select location of preset.
2. Press <Up> or <Down> to change location.
3. Press <enter> to Confirm select and recall the frequency.

UR2170 / English Instruction Manual
11
• How to set up station by AMS (Automatic Memory Setup)
1. Press and hold <AMS> for 2 seconds to active AMS mode.
2. In this mode, the radio will automatically scan the radio station and store the station
that had been scanned until scan up all the frequency or stored all the memory station,
it will exit automatically.
• How to Review stored station:
1. Press and hold <MEM> to enter select list of AMS store mode.
2. Press <Up> or <Down> to select station.
3. Press <Enter> to confirm select and tune to new frequency
• How to enable or disable stereo feature
If received a weak station that may cause background noise, user can be stereo feature
to improve sound quality.
1. Press <INFO> for 2 seconds to 'FM set menu' mode.
2. Press <UP> or <DOWN> to select 'Audio setting'.
3. Press <Enter> Confirm select and enter 'Audio setting' set mode.
4. Press <Up> or <DOWN> to select set.
5. Press <enter> Confirm and return to 'FM set menu' mode.
Review information of station
1. Press <info> to review information of station.
2. There are there kinds of choices, it is respectively:
Station text
Station Program type
Station RSSI
Listen Music from CD
Press <Power>key to tune device on , press <Func> select work mode to CD or press
< “Open|Close” >key to open CD tray, Display should be show as below:
How to play a CD|MP3 CD
1. Press <Open> to open tray of CD and put CD media to tray, press <Open|Close>
key again to close door of CD tray, at the moment , device will catch data from CD
and “Reading, … “ for about 5-10 seconds, it’s will depends CD quality .
2. Once the CD read and confirm it’s workable format, device will play from beginning
of play list if not any key press.
3. When need to pause for the moment under playing, press “Play|Pause” once, press
once will play again.

UR2170 / English Instruction Manual
12
4. Press “Repeat/Enter” to select play back mode as “rep one”, “rep all” or “random”
5. Press and hold “UP | FF” to fast speed forward, press once to next track
6. Press and hold “Down | RW” to Fast speed rewind, press once back to previously
track.
7. Press folder <UP> or <DOWN> to select folder for first of program list.
8. Let device play under Pre-Program selected music (Pre-Program play)
a. Press <MEM> once to program mode when stop mode.
b. Press <UP> or <DOWN> to select tack for first of program list.
c. Press <MEM> again to select tack for next. Up to 64
d. Press <play> to confirm the setting and play.
e. Press <stop> twice to cancel program play
Listen music from a USB

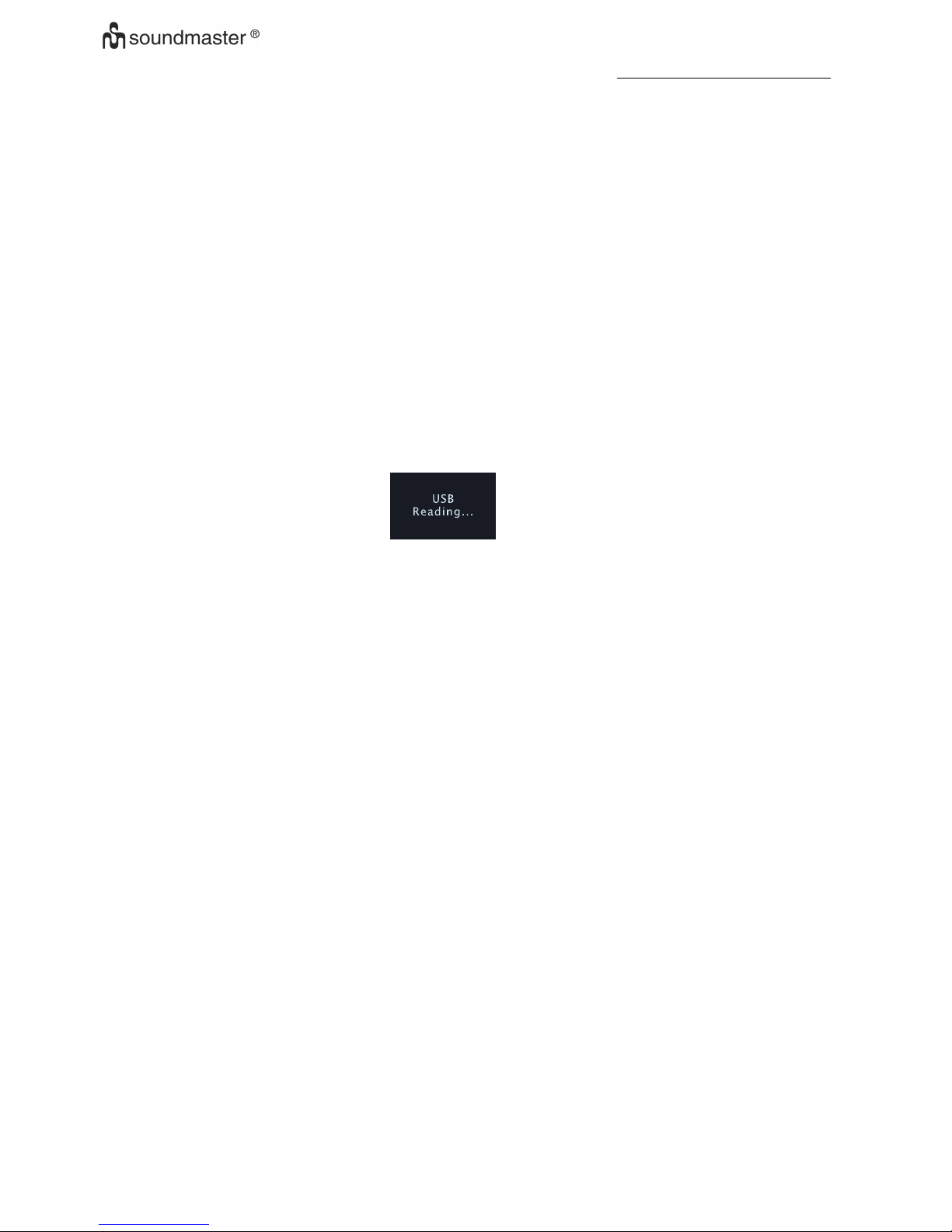

Press <Power>key to turn device on , press <Func> select work mode to USB work mode,
Display should be show as below:
a. Insert USB-Disk into UBS jack, device will reading.
1. The device seek complete, device will play from beginning of play list if not any
key press.
2. Press “Play|pause” to play or Pause under music play back
3. Press “Enter” to select play back mode as Rep one ,rep all, rep fol,random
4. Press and hold “UP | FF” to fast speed forward, press once to next track
5. Press and hold “Down | RW” to Fast speed rewind, press once back to
previously track.
b. Program play
1. Press <MEM> once to program mode when stop mode.
2. Press <UP> or <DOWN> to select tack for first of program list.
3. Press folder <UP> or <DOWN> to select folder for first of program list.
4. Press <MEM> again to select tack for next. Up to 64
5. Press <Play> to confirm the setting and play.
6. Press <Stop> twice to cancel program play
Electronic Volume Control
1. Press <VOL+ > once, to increase speaker volume by one step. Hold for continually.
2. Press <VOL-> once, to decrease speaker volume by one step. Hold for continually.
3. Adjust Volume control sound output to a comfortable level , don’t make it too loud

UR2170 / English Instruction Manual
13

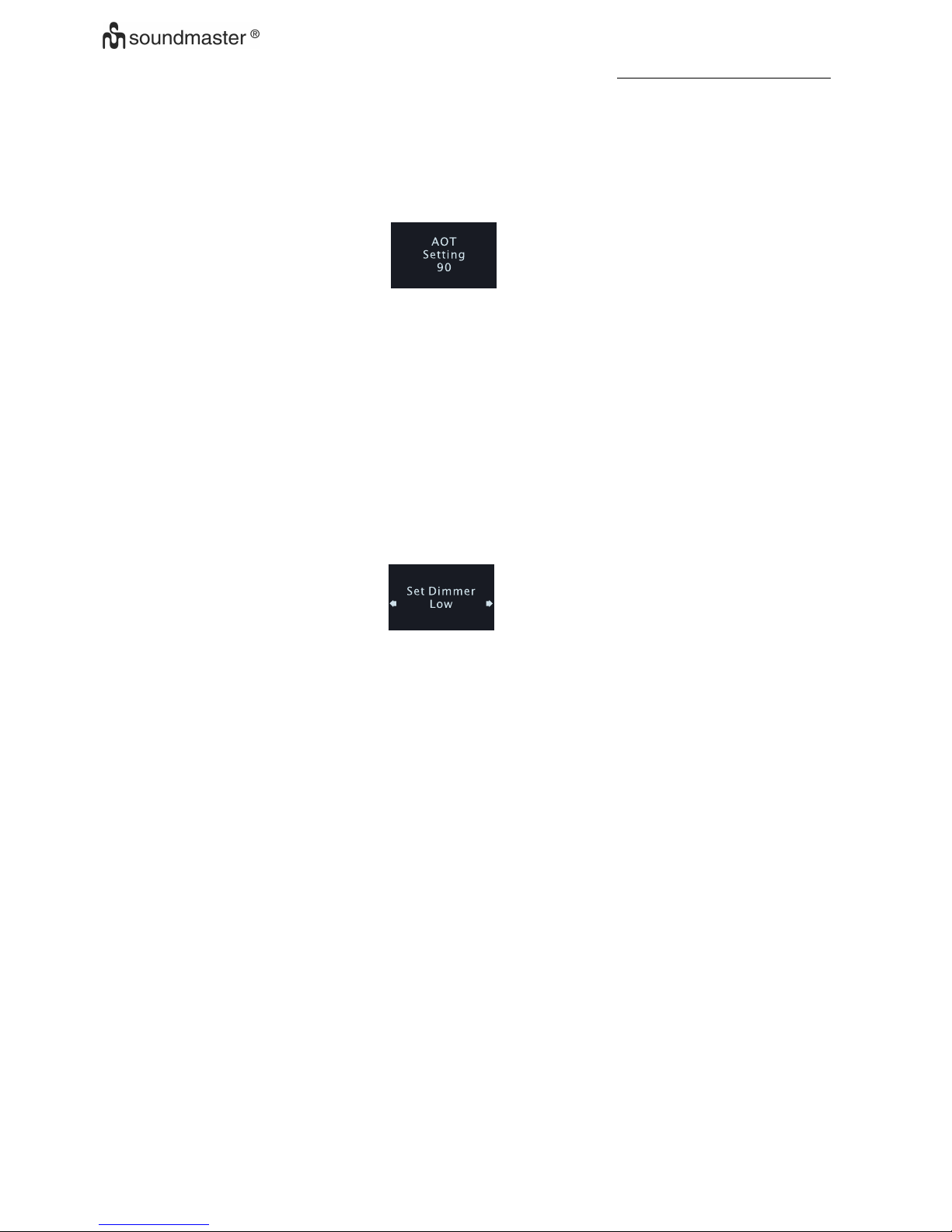

Using AOT (Automatic OFF Timer)
The function let user setup a onetime timer to let device automatic power off
1. Press <AOT> once to active AOT function, if device stay on the standby, will turn on the
device. the display will show as below:
2. Press the key every time will change each 5 minutes, value of timer since 90 to OFF.
3. Press other key to start its corresponding function with the AOT timer is run at
background
4. When no key has been pressed for 15 seconds, the system exit AOT timer display
mode, but the AOT timer is run at background
5. Once <AOT> was press, the current AOT value should show on display.
6. If want to cancel the AOT, press <AOT> several times until it to OFF.
LED Back Light Dimmer
1. At the any mode, press <Dimmer> 2 seconds to select dimmer high or dimmer low,
the display will show as below:
2. Select dimmer high with high level back light, select dimmer low with low level back
light

UR2170 / English Instruction Manual
14
Remote control:
Key Mark Function
Device power On | Off
EQ EQ(Flat | Rock | Classic | Jazz | Pop)
VOL- Volume decrease
VOL+ Volume increase
Repeat Select play mode of rep one/rep all/random
for CD/USB
Tune down Radio Station and backward of
CD/USB play back at that mode
,AMS( Auto Memory Setting for radio station ) ,
Play & Pause of CD/USB play back at that
mode
Tune up Radio station and forward of
CD/USB playback at that mode
Func DAB、FM 、CD、USB selector
/Fol- Call back preset station for down
/Info Mode set and Stop of CD/USB playback ,
press to show information of station
/Fol+ Call back preset station for up
Control of CD tray to open or close
DIM/AOT Display backup light level control/Automatic
OFF Timer
MEM Station Memory entry/ Preset Station review
Function Setup | Exit Setting, Enter or Confirm
AL1 Review Alarm1
AL2 Review Alarm2
TImer Operate for timer function
Turn off the sound
Technical Data
Input voltage: DC 5.5V,2A
Power consumption: 12W
Radio Frequency range: FM: 87.5 ~ 108.0 MHz , 50kHz | Step
DAB Band III 174.928-239.2 MHz
Store temperature: -10°to +65°
Operating temperature: 0°to +45°
Specifications are subject to change without further notice.
Copyright by Wörlein GmbH
