SOUTH AFRICA LiTHIUM BATTERIES LIFEPO4 User manual

LBSA 51.2V 105AH LIFEPO4 BATTERY PACK USER MANUAL www.LBSA.co.za

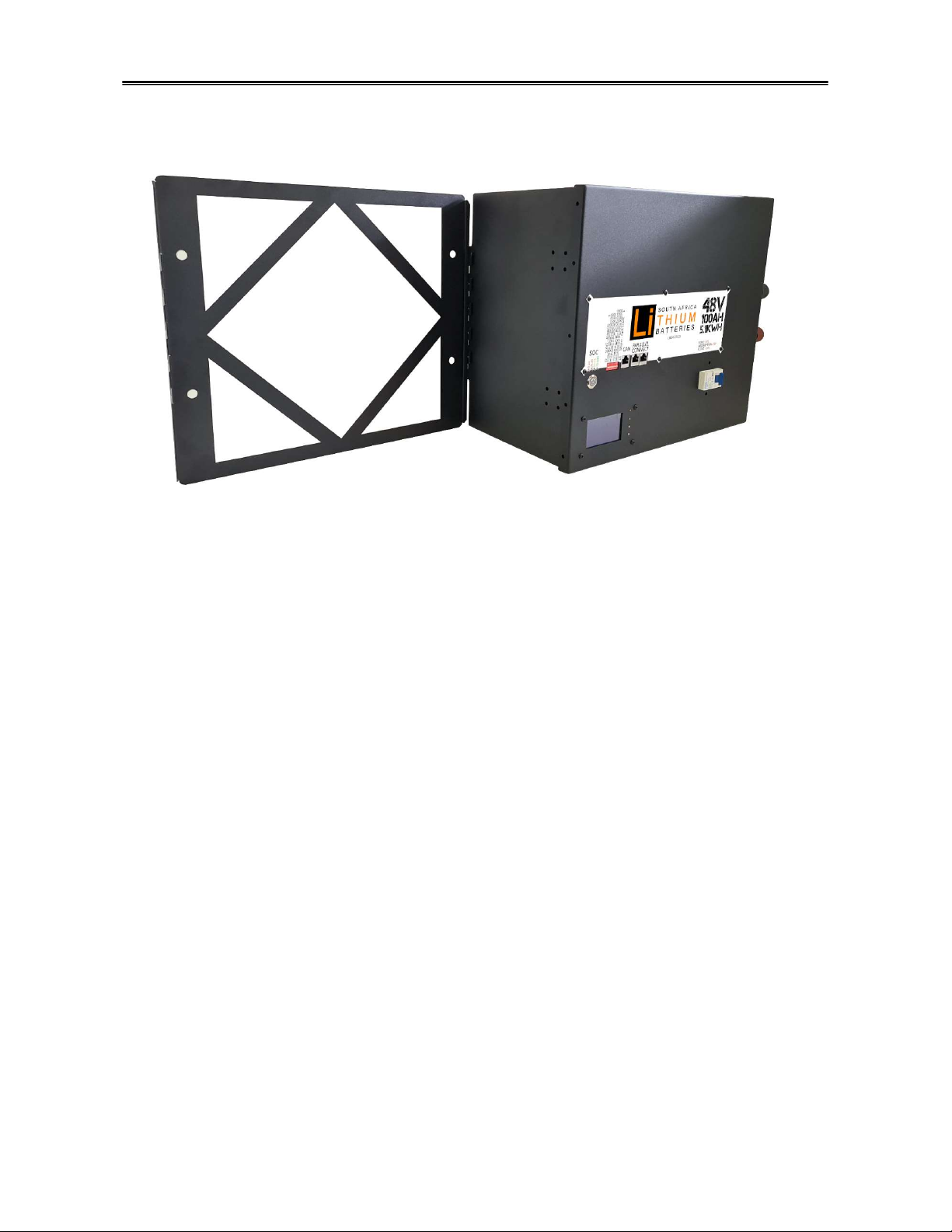

LBSA 48V(51.2V) 105AH SMART BATTERY
Please read this manual carefully before operating
and retain it for future reference.

LBSA 51.2V 105AH LIFEPO4 BATTERY PACK USER MANUAL www.LBSA.co.za
Lithium Batteries SA (PTY) Ltd
This manual introduces LBSA Smart Battery by Lithium Batteries SA. Please read this manual before installation
of the battery module and follow the instruction carefully during the assembly. Any confusion, please contact
Lithium Batteries SA for advice and clarification.
CONTENT
1. Safety Precautions.............................................................................................................................
1.1 Precautions...............................................................................................................................
1.2 Warning....................................................................................................................................
2. Introduction......................................................................................................................................
2.1 Features....................................................................................................................................
2.2 Specifications...........................................................................................................................
2.3 Interfaces.................................................................................................................................
2.4 Cell Features...........................................................................................................................
2.4.1 Specifications...............................................................................................................
2.5 Battery Management System................................................................................................
2.5.1 BMS Functions.............................................................................................................
2.5.2 Compatible Inverters...................................................................................................
3. Installation.......................................................................................................................................
1. Safety Precautions
This section describes the safety information that must be observed when working with battery
packs. To prevent any damages, or personal injury, and to ensure the performance of the battery
packs, please read this section carefully and observe the safety precautions at all times.
1.1 Precautions
 It is very important and necessary to read the user manual carefully before installing or using
the product. Failure to do so or to follow any of the instructions or warnings in this document
can result in electrical shock, serious injury or death, and could damage the battery, or
potentially rendering it inoperable.
 If the battery pack is stored for long time, it is required to charge them every six months, and

LBSA 51.2V 105AH LIFEPO4 BATTERY PACK USER MANUAL www.LBSA.co.za
the SOC should be no less than 90%.
 Please recharged the battery pack within 12 hours, after fully discharged.
 All the battery pack terminals must be disconnected before any maintenance.
 Do not use cleaning solvents to clean battery pack.
 Do not expose battery pack to flammable or harsh chemicals, or corrosive gases or liquids.
 Do not paint any part of battery pack, include any internal or external components.
 Do not expose the battery pack to direct sunlight for extended periods of time.
 Do not connect battery pack with PV solar wiring directly.
 Do not insert any foreign object into any part of the battery pack.
1.2 Warning
 Do not touch the battery pack with wet hands.
 Do not crush, drop or puncture the battery pack.
 Always dispose of the battery pack according to local safety regulations.
 Store and recharge the battery pack in a manner in accordance with this user manual.
 Ensure reliable grounding.
 Do not reverse the polarity when installing.
 Do not short circuit the terminals, remove all jewellery items that could cause a short circuit
before installation and handling.
 Disconnect battery from power or loads, and then power off battery before installation and
maintenance.
 The battery packs should be not stacked more than specified numbers.
 Continued operation of a damaged battery pack can result in a fire.

LBSA 51.2V 105AH LIFEPO4 BATTERY PACK USER MANUAL www.LBSA.co.za
2. Introduction
LBSA lithium iron phosphate battery pack is a household renewable energy storage solution
developed and produced by Lithium Batteries SA. After fully installation, it is a low-voltage DC
battery system with an operating voltage of 51.2V, and works with a low voltage inverter to realize
the goal of energy storage for home application.
The battery pack supports parallel connection to expand capacity, which can meet various capacity
requirements. It has built-in battery management system (BMS), which can manage and monitor
the pack and cells information including voltage, current and temperature. What’s more, BMS can
balance cells charging and discharging to extend cycle life.
2.1 Features
 Battery cell is 3.2V 105Ah aluminium case prismatic cell.
 Battery cell is made from lithium iron phosphate (LiFePO4) with safety performance and longer
cycle life.
 BMS has over-discharge, over-charge, over-current, high and low temperature warning and
protection functions.
 BMS monitors charge and discharge state, and balance current and voltage of each cell.

LBSA 51.2V 105AH LIFEPO4 BATTERY PACK USER MANUAL www.LBSA.co.za
 Flexible configuration, max. 16 packs can be connected in parallel for expanding capacity and
power with 8 DIP switches.
 Working temperature range is from -20℃~50℃ (Charging 0℃~50℃; discharging -20℃~50℃
)
with excellent discharge performance and cycle life.
2.2 Specifications
Basic Parameters
Nominal Voltage (V) 51.2V
Nominal Capacity (Ah) 105Ah(> 105Ah)
Nominal Power (Wh)
>
5.
2
KWh
@ 0.4c
(tested)
Dimension (mm)
408
*
362
*
191
mm
Weight (Kg)
49
KG
Discharge
Cut
-
off Voltage (V)
4
4
V
Charge Voltage (V)
5
6
V
Max. Charge/Discharge Current (A)
100A
Communication Interface
CAN,RS485
Configuration
16S1P
Working Temperature
0～50℃(Charge)
-20～50℃(Discharge)
-20～55℃(Storage)
Cell chemistry Lithium iron phosphate (LiFePO4)
Cycle life
≥80% capacity state after 4800
cycles at 0.5C, 25℃, 100% DOD
IP level
IP 20
2.3 Interfaces
RESET

LBSA 51.2V 105AH LIFEPO4 BATTERY PACK USER MANUAL www.LBSA.co.za
Reset button: to start the battery pack, hold the button for 2s to turn on battery pack.

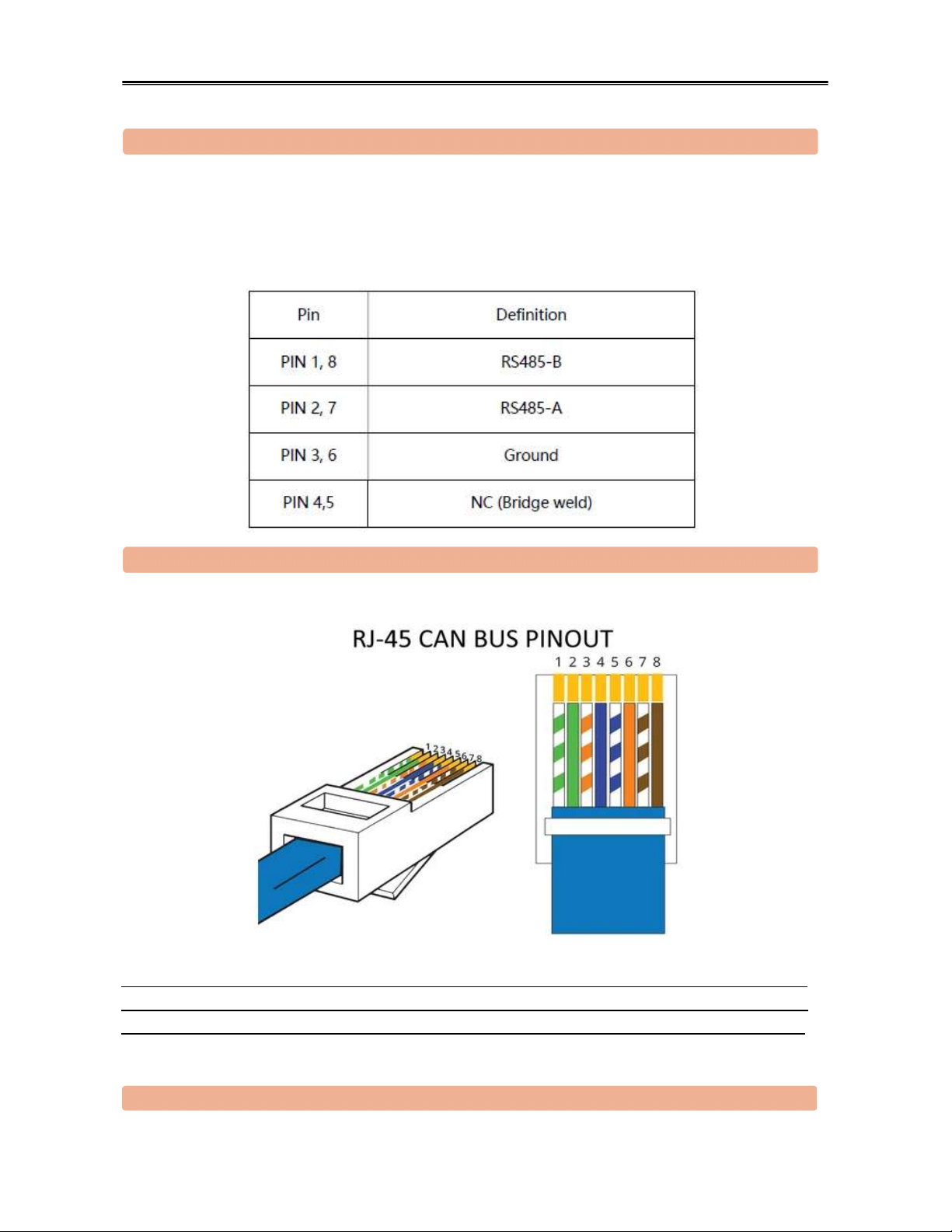

RS485 communication interface: RJ45 port, follow RS485 protocol. For transmitting battery pack
information between paralleled packs.
Use a standard RJ45 cable.
CAN communication interface: follow CAN BUS protocol, for output pack information to inverter.
Pin 3: Ground
Pin 4: CAN-H
Pin 5: CAN-L
RS485
CAN
ADDRESS

LBSA 51.2V 105AH LIFEPO4 BATTERY PACK USER MANUAL www.LBSA.co.za
ADS Switch: To setup battery address, and to communicate between battery and BMS.
NOTE: There are 8-bit DIP switches, keep the switch on down side means ‘OFF’, turn up the switch to top side
means ‘ON’.
RS485 communication DIP address should setup as the following table.
RS485 Communication
Single pack address setting: #1, #2, #3, #4, #5, #6, #7, #8 all set OFF
8 7 6 5 4 3 2 1
1
st
PACK OFF OFF OFF OFF OFF OFF OFF ON
2nd PACK OFF OFF OFF OFF OFF OFF ON OFF
3rd PACK OFF OFF OFF OFF OFF OFF ON ON
4
th
PACK OFF OFF OFF OFF OFF ON OFF OFF
5th PACK OFF OFF OFF OFF OFF ON OFF ON
6th PACK OFF OFF OFF OFF OFF ON ON OFF
7
th
PACK OFF OFF OFF OFF OFF ON ON ON
8th PACK OFF OFF OFF OFF ON OFF OFF OFF
9th PACK OFF OFF OFF OFF ON OFF OFF ON
10
th
PACK OFF OFF OFF OFF ON OFF ON OFF
11th PACK OFF OFF OFF OFF ON OFF ON ON
12th PACK OFF OFF OFF OFF ON ON OFF OFF
13th PACK OFF OFF OFF OFF ON ON OFF ON
14
th
PACK OFF OFF OFF OFF ON ON ON OFF
15th PACK OFF OFF OFF OFF ON ON ON ON

LBSA 51.2V 105AH LIFEPO4 BATTERY PACK USER MANUAL www.LBSA.co.za
CAN communication DIP address should setup as the following table.
CAN Communication
Master Packs (#1, #2, #3, #4 set OFF)
#5, #6, #7, #8 set as follows
Slave Packs (#5, #6, #7, #8 set OFF)
#1, #2, #3, #4 set as follows
8
7 6 5
4
3 2 1
One pack OFF OFF OFF OFF
2 packs in
parallel OFF OFF OFF ON 1st slave pack OFF OFF OFF ON
3 packs in
parallel OFF OFF ON OFF 2nd slave pack OFF OFF ON OFF
4 packs in
parallel OFF OFF ON ON 3rd slave pack OFF OFF ON ON
5 packs in
parallel OFF ON OFF OFF 4th slave pack OFF ON OFF OFF
6 packs in
parallel OFF ON OFF ON 5th slave pack OFF ON OFF ON
7 packs in
parallel OFF ON ON OFF 6th slave pack OFF ON ON OFF
8 packs in
parallel OFF ON ON ON 7th slave pack OFF ON ON ON
9 packs in
parallel ON OFF OFF OFF 8th slave pack ON OFF OFF OFF
10 packs in
parallel ON OFF OFF ON 9th slave pack ON OFF OFF ON
11 packs in
parallel ON OFF ON OFF 10th slave pack ON OFF ON OFF
12 packs in
parallel ON OFF ON ON 11th slave pack ON OFF ON ON
13 packs in
parallel ON ON OFF OFF 12th slave pack ON ON OFF OFF
14 packs in
parallel ON ON OFF ON 13th slave pack ON ON OFF ON
15
packs in
parallel ON ON ON OFF 14th slave pack ON ON ON OFF
16 packs in
parallel ON ON ON ON 15th slave pack ON ON ON ON

LBSA 51.2V 105AH LIFEPO4 BATTERY PACK USER MANUAL www.LBSA.co.za
ALARM light: red LED flash to show the battery alarm status.
And red light permanently to show the battery in protection status of abnormal temperature, over-
current, or short-circuit.
Working light: green LED to show the battery working status.
Details as follows,
Battery
status
Operating
Mode
RUN ALM LED Light
Remark
● ● ● ● ● ●
Power off Standby OFF OFF OFF OFF OFF OFF OFF
Standby Normal Solid Green OFF According to battery SOC status
Standby
mode
Charge
Mode
Normal Solid Green OFF
According to battery SOC status
Over current
warnings
Solid Green Blink type 2
Over voltage
protection
Blink type1 OFF OFF OFF OFF OFF
Temperature,
over current
protection
Blink type1 OFF OFF OFF OFF OFF
Discharge
Mode
Normal Blink type 3 OFF
According to battery SOC status
Warning Blink type 3 Blink type 3
Over current,
temperature,
short-circuit
protection
OFF Solid Red OFF OFF OFF OFF
Termination
of discharge
ALARM
RUN

LBSA 51.2V 105AH LIFEPO4 BATTERY PACK USER MANUAL www.LBSA.co.za
Under voltage
protection
OFF OFF OFF OFF OFF OFF
Termination
of discharge
SOC light: 4 green LED lights to show the capacity status of battery pack. Each LED represents 25%
the capacity.
Status Charge Discharge
Capacity
indicator
●
L4
●
L3
●
L2
●
L1
●
L4
●
L3
●
L2
●
L1
0-25% OFF OFF OFF Blink OFF OFF OFF Solid Green
25%-50% OFF OFF Blink Solid Green OFF OFF Solid Green Solid Green
50%-75% OFF Blink Solid Green Solid Green OFF Solid Green Solid Green Solid Green
>75% Blink Solid Green Solid Green Solid Green Solid Green Solid Green Solid Green Solid Green
Operating
indicator
Solid Green Blink
Power terminals: one pairs of power terminals to go directly to a single inverter if one pack is used.
If more than one pack is used the batteries must be connected to a busbar with equal length cable
to ensure there is equal discharge and charge between the batteries
Power cable uses 10.0mm lug to connect to the battery terminals.
CAPACITY
P+/P
-

LBSA 51.2V 105AH LIFEPO4 BATTERY PACK USER MANUAL www.LBSA.co.za
2.4 Cell Features
2.4.1 Specifications

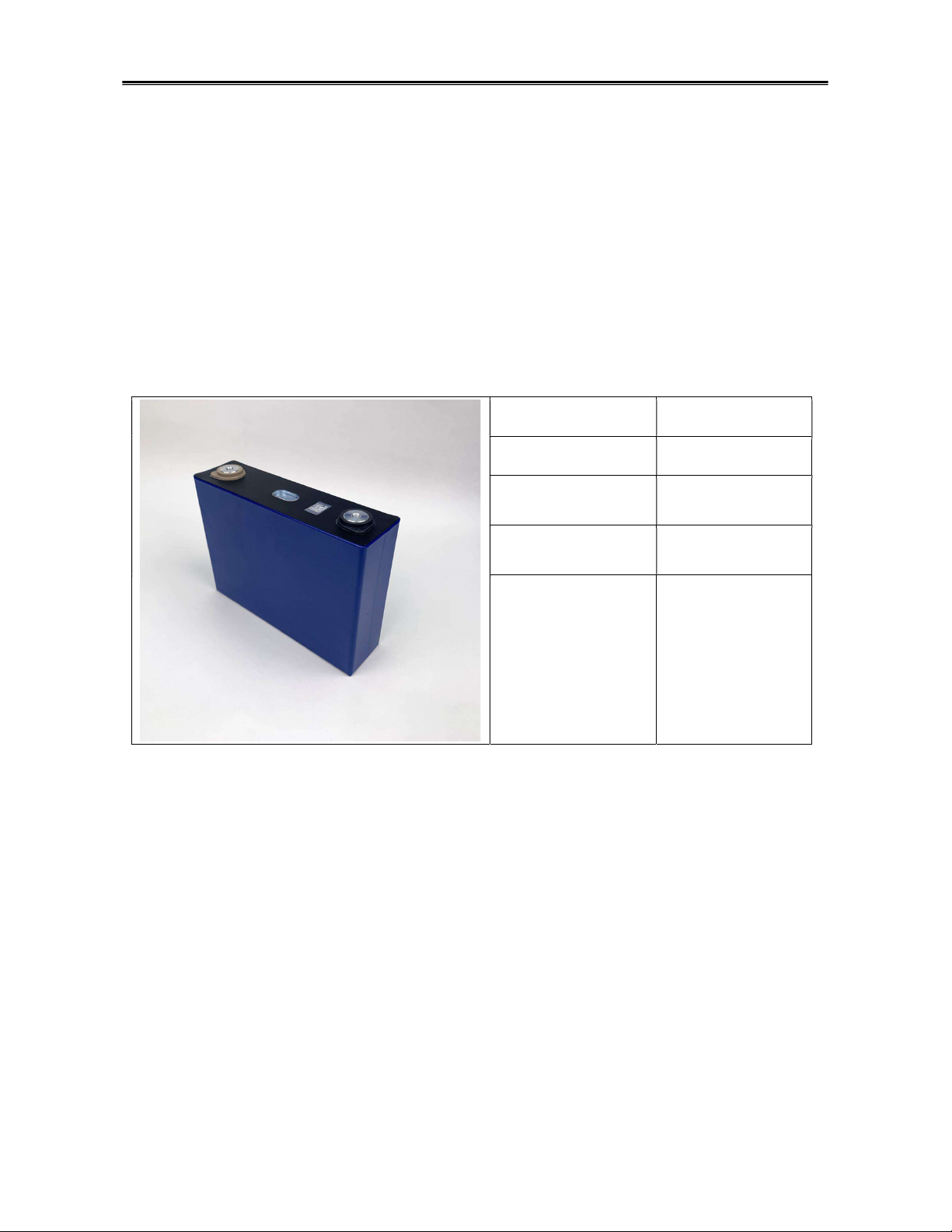

GFB 3.2V 100Ah lithium iron phosphate (LiFePO4) aluminium case prismatic rechargeable
battery cell.
Nominal Voltage 3.2V
Nominal Capacity 105Ah
Weight ≤2.25Kg
Self-discharge Rate ≤3.5% per month
Initial Internal
Resistance（1KHz） ≤0.35mΩ
Refer to the cell specification for more detailed information.
High quality Grade A cells are inside the battery box
Judging by the current testing report below, if the battery pack charging and discharging at 0.2C,
the battery pack could reach a cycle life of 6000 times or more at the remaining capacity of 80%
capacity state at 25℃ room temperature, 100%DOD.

LBSA 51.2V 105AH LIFEPO4 BATTERY PACK USER MANUAL www.LBSA.co.za
 The real capacity of each single cell is 105Ah.
 The module inside comes with 16 cells in series.
2.5 Advanced Battery Management System (BMS) inside
The BMS is applied to monitor current, voltage, temperature, protection against over-charge, over-
discharge, over-current, over-temperature, under-temperature and short circuit. The BMS provides
cell balancing and current limitation during charging process to ensure a reliable safety and
performance.
The BMS will automatically adjust the Available capacity after evert full charge of 56v when
discharge.
This capacity will be influenced by the Temperature as the cells generally have less capacity
available under very cold temperatures.
2.5.1 BMS Functions
 Over charge protection
 Over discharge protection
 Over current protection
 Cell balancing

LBSA 51.2V 105AH LIFEPO4 BATTERY PACK USER MANUAL www.LBSA.co.za
 Temperature protection
 CAN communication to inverters and RS485 communication between battery packs

LBSA 51.2V 105AH LIFEPO4 BATTERY PACK USER MANUAL www.LBSA.co.za
This document is subject to change without notice.
©2020 Lithium Batteries SA
1 Keerom Road, Cleveland, Johannesburg, 2022
TEL: [phone]
mail: [email protected]
http://www.lbsa.co.za
