Operating Instructions
10020N 3in1 MULTIMETER
Hz%
MODE
®
TESTING EQUIPMENT
E361819
Instrucciones de Operación
MULTÍMETRO 10020N 3en1

Introduction
WARNINGS
1
The Southwire 10020N measures AC/DC voltage and current,
resistance, frequency, and duty cycle. Other functions include
non-contact AC voltage detection, continuity and diode test.
 This meter
is fully tested and calibrated and, with proper use, will provide
many years of reliable service.

Instructions in this manual before using this meter.



measurements.

always disconnect the test leads from the circuit under test.





damaged.

electrical storms.


Protection may be compromised.


2
Input Limits
Function Maximum Input
Voltage AC, Voltage DC
Frequency, Duty Cycle
Amperage µA, mA AC/DC
Resistance, Diode &
Continuity Test
600V AC/DC
600V AC/DC
Maximum Amperage 200mA,
Maximum Voltage 500V
250V AC/DC

Max input voltage
Diode Test
Continuity Check
Display
Over range indication
Polarity
Low Battery Indication
Input Impedance
AC Response
ACV Bandwidth
Auto Power Off
Fuse
Batteries
Operating Temperature
Storage Temperature
Operating Altitude
Size/Weight
Safety
600V AC/DC
Test current 1mA max., open circuit voltage of 1.5V typical
Audible signal if the resistance is <30Ω, sound off at >150Ω
4000 count 3 -3/4 digit LCD
LCD displays “OL”
Minus (-) sign for negative polarity
“ ” symbol indicates low battery condition
>7.5MΩ(VDC & VAC)
Average responding
45 to 450Hz
15 minutes (approximately)
mA, µA ranges; 0.2A/500V fast acting Resettable Fuse
Two 1.5V AAA
41oF to 104oF (5oC to 40oC)
14oF to 140oF (-10oC to 60oC)
7000ft. (2000meters) maximum
4”x 2.165”x 1.28”/0.32 lb. (104x55x32.5mm/145g)
UL61010-1 CAT IV-600V Pollution Degree 2, CE Approved

3
Potential danger. Indicates the user must refer to the
manual for important safety information
Indicates hazardous voltages may be present
Equipment is protected by double or reinforced insulation
Indicates the terminal(s) so marked must not be connected to a circuit where the
voltage with respect to earth ground exceeds the maximum safety rating of the meter
Indicates the terminal(s) so marked may be subjected to hazardous voltages.
MAX
600 V
International Safety Symbols
Brief Description Typical Applications
Category
Rating
Single phase receptacles
and connected loads
Three phase circuits and
single phase lighting
circuits in commercial
buildings
- Household appliances, power tools
- Outlets more than 30ft (10m) from a CAT III source
- Outlets more than 60ft (20m) from a CAT IV source
- Equipment in fixed installations such as 3-phase
motors, switchgear and distribution panels
- Lighting circuits in commercial buildings
- Feeder lines in industrial plants
- Any device or branch circuit that is close to a CAT III source
CAT II
CAT III
The measurement category (CAT) rating and voltage rating is determined by a combination of the meter, test probes and any
accessories connected to the meter and test probes. The combination rating is the LOWEST of any individual component.
CAT IV
Connection point to
utility power and
outdoor conductors
- Primary distribution panels
- Overhead or underground lines to detached buildings
- Incoming service entrance from utility
- Outdoor pumps
WARNING:
Operation is limited to CAT II applications when the insulated tips are removed
from one or both test probes. Refer to Input Limits section of this manual for maximum voltage ratings.
CAT III 1000V
CAT IV 600V
CAT II
1000V
Insulated Tip On
Insulated Tip Removed
4
Hz%
MODE
®
Maintenance
This Multimeter is designed to provide years of dependable service,
if the following care instructions are performed:
1. KEEP THE METER DRY. If it gets wet, wipe it off.
2. USE AND STORE THE METER IN NORMAL TEMPERATURES. Temperature
extremes can shorten the life of the electronic parts and distort or melt
plastic parts.
3. HANDLE THE METER GENTLY AND CAREFULLY. Dropping it can damage the
electronic parts or the case.
4. KEEP THE METER CLEAN. Wipe the case occasionally with a damp cloth.
DO NOT use chemicals, cleaning solvents, or detergents.
5. USE ONLY FRESH BATTERIES OF THE RECOMMENDED SIZE AND TYPE.
Remove old or weak batteries so they do not leak and damage the unit.
6. IF THE METER IS TO BE STORED FOR A LONG PERIOD OF TIME, the batteries
should be removed to prevent damage to the unit.
Meter Description
1. Non-contact AC voltage
detector probe tip
2. Non-contact AC voltage
indicator light
3. LCD display
4. MODE button
5. Rotary function switch
6. Flashlight
7. Flashlight button
8. Hz/% Duty Cycle button
9. Battery Cover
10. Test leads
1.
2.
9.
10.
3. 7.
6.
8.
4.
5.

5

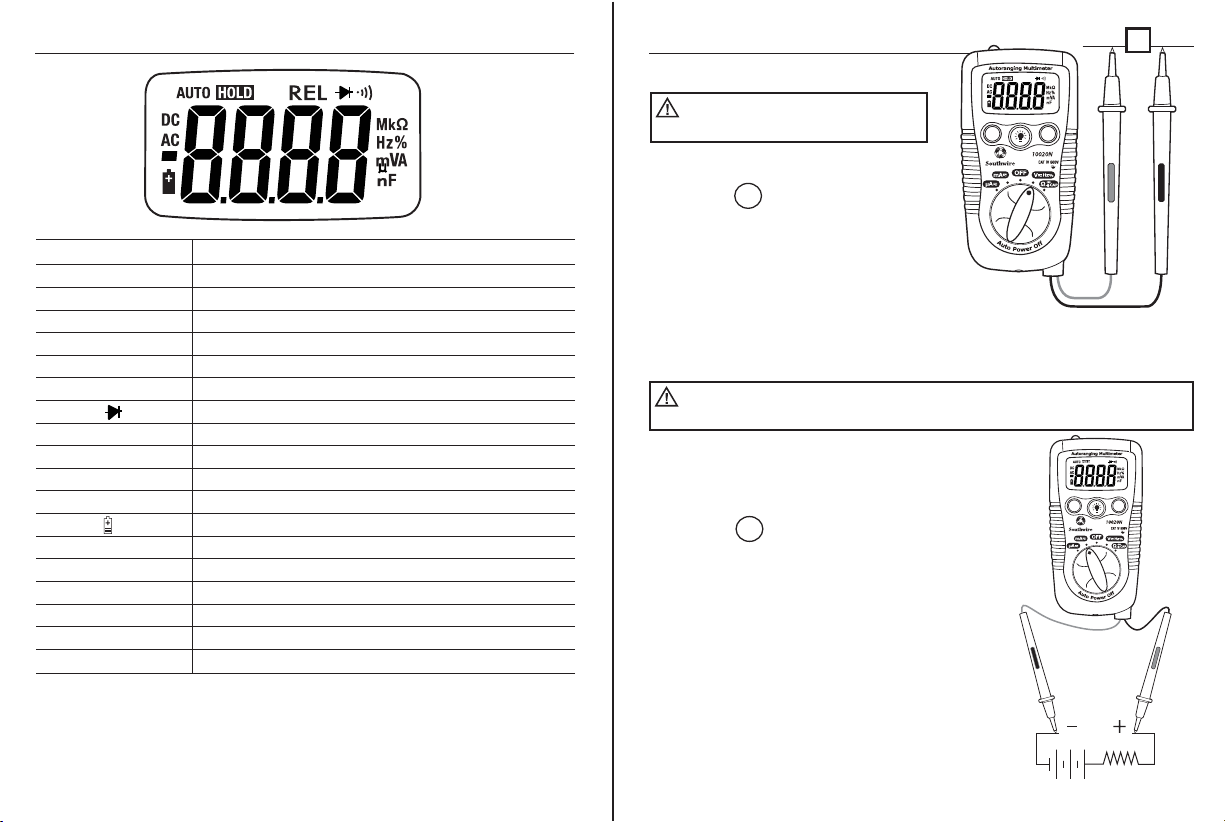

Symbols Used on LCD Display
V Volts
A Amps
AC Alternating current
DC Direct current
- Minus sign

•))) Continuity
Diode test
F Farads (capacitance)
Hz Hertz (frequency)
% Percent (duty ratio)
 Autoranging
Battery status
n nano (10-9 )
µ micro (10-6)
m milli (10-3)
k kilo (103)
M mega (106)
 
6
Operation
AC/DC Voltage Measurements
1. Set the rotary function switch to the
V Hz% position.
2. Press the button to select AC or DC
voltage.
3. Connect the test leads in parallel to the
circuit under test. For DC measurements
touch the red test probe to the positive side
of the circuit and the black test probe to the
negative side of the current.
4. Read the voltage on the LCD display
AC/DC Current Measurements
Observe all safety precautions when working on live voltages.
Do not measure current on circuits that exceed 500 V.
WARNINGS:
Observe all safety
precautions when working on live voltages.
WARNING:
Hz%
MODE
®
V
MODE
1. For current measurements up to 200mA AC/DC,
set the rotary function switch to the mA position.
2. For current measurements up to 4000µA AC/DC,
set the rotary function switch to the µA position.
3. Press the button to select AC or DC current.
4. Remove power from the circuit under test,
then open up the circuit at the point where
you wish to measure current.
5. Touch the test probe tips in series with the
circuit being measured. For DC current,
touch the black test probe to the negative
side of the circuit and touch the red test
probe to the positive side of the circuit.
6. Apply power to the circuit.
7. Read the current on the LCD display.
NOTE: 0.2A/500V fast acting Resettable Fuse on mA and µA ranges.
No replacement required.
MODE
Hz%
MODE
®

7
Operation cont.
Resistance Measurement
Never test resistance
on a live circuit.
WARNING:
Hz%
MODE
®
1. Set the rotary function switch to the
Ω•))) CAP position.
2. Press the button until the “MΩ”
symbol appears on the display.
3. Touch the test probe tips across the circuit
or part under test. It is best to disconnect
one side of the part under test so the rest
of the circuit will not interfere with the
resistance reading.
4. Read the resistance in on the LCD display.
MODE
Ω
Red Black Black Red
Probe Probe Probe Probe
Forward test Reverse test
1. Set the rotary function switch to the
Ω•))) CAP position.
2. Press the button until the “ ”
symbol appears on the display.
3. Touch the test probes to the diode under test.
4. Forward voltage will indicate 0.4V to 0.7V on
the LCD display. Reverse voltage
will indicate “OL”. Shorted diodes
will indicate near 0V and an open
diode will indicate “OL” in both
polarities.
MODE
Diode Test
Never test diodes in a live circuit.
WARNING:
Hz%
MODE
®
8
Operation cont.
Continuity Test
Never test continuity
on a live circuit.
WARNING:
1. Set the rotary function switch to the
Ω•))) CAP position.
2. Press the button until the “•)))”
symbol appears on the display.
3. Touch the test lead probes to the device
or wire being tested.
4. A tone will sound if the resistance is
approximately 30 ohms or less.
MODE
Capacitance Measurements
Safely discharge capacitors
before taking capacitance measurements.
WARNING:
1. Set the rotary function switch to the
Ω•))) CAP position.
2. Press the button until the “nF ”
symbol appears on the display.
3. Connect the test leads to the capacitor
to be measured.
4. Read the capacitance on the LCD display.
It may take up to a minute to obtain a
stable reading on large capacitors.
MODE
Hz%
MODE
®
Hz%
MODE
®
Wire

9
Operation cont.

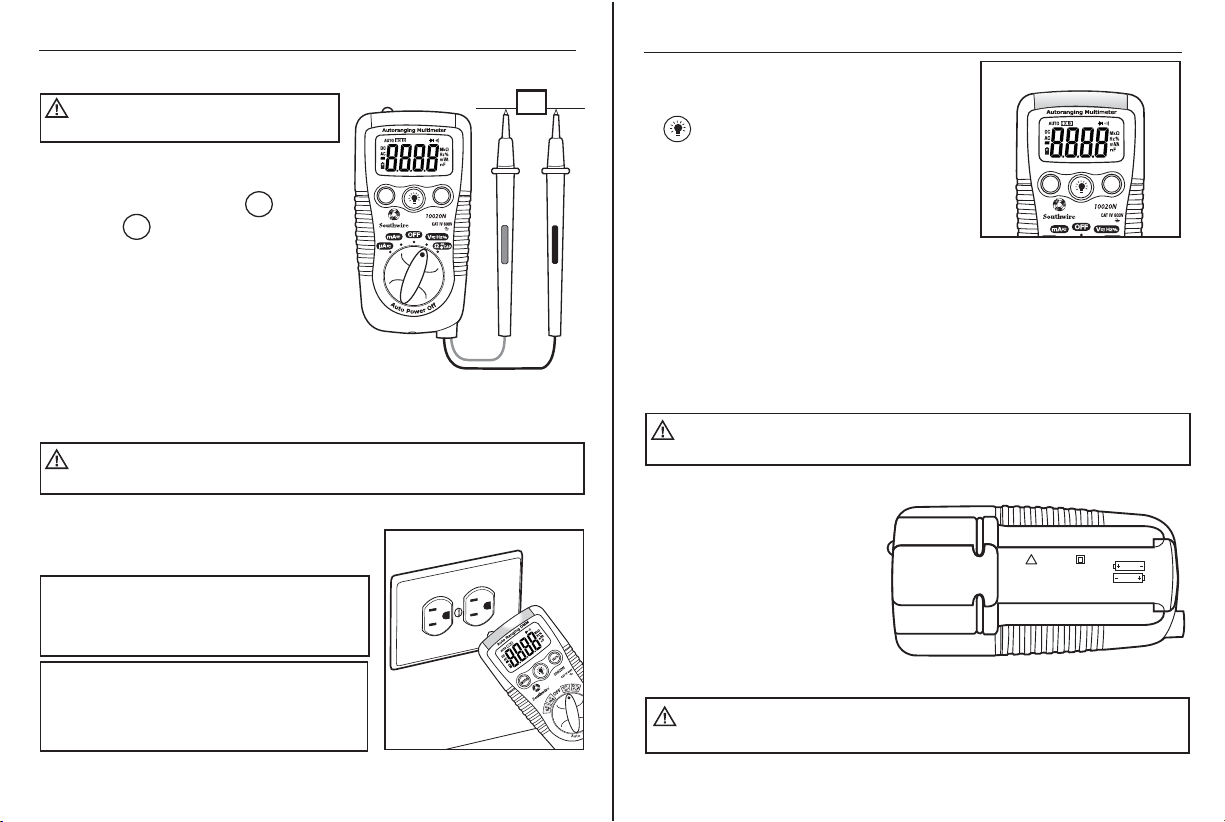

Frequency and % Duty Cycle Measurements
Observe all safety
precautions when working on live voltages.
WARNING:
1. Set the rotary function switch to the
V HZ % position.
2. Select AC voltage using the button.
3. Press the button once to display
Hz (frequency). Pressing the button again
will toggle the display to % (duty cycle).
4. Touch the test probe tips to the circuit
under test.
5. Read the value on the LCD display.
Non-contact AC Voltage Detection
(Detection range 100 to 600V)
Risk of Electrocution. Before use, always test the Voltage
Detector on a known live circuit to verify proper operation.
WARNING:
1. Hold the detector probe tip close to an AC voltage.
2. If AC voltage within the specified range
is present, the indicator light will illuminate.
NOTE: Insulation type and thickness, and
distance from the voltage source and other
factors may effect operation. Use other methods
to verify live voltage if there is any uncertainty.
NOTE: The detector is designed with high
sensitivity. Static electricity or other sources
of energy may randomly trip the sensor.
This is normal operation.
Hz%
MODE
®
Hz
MODE
Hz%
10
REPLACING THE BATTERY
To avoid electric shock, disconnect test leads from any
source of voltage before removing the battery cover.
WARNING:
To avoid electric shock, do not operate the meter until
the battery cover is in place and fastened securely.
WARNING:
1. Remove the one Phillips screw
on the bottom of the meter.
2. Remove the battery cover.
3. Replace old batteries with
two “AAA” 1.5V batteries.
4. Observe correct polarity.
(See label on back of meter.)
5. Close the battery cover and
secure the screw.
Operation cont.
Flashlight
1. Press and hold the button with the
symbol to turn on flashlight.
2. Release the button to turn off flashlight.
Hz%
MODE
®
WARNING
TO AVOID ELECTRICAL SHOCK,
REMOVE TEST LEADS BEFORE
OPENING CASE OR BATTERY DOOR.
!
1.5V AAA
1.5V AAA

11
Specifications
Function Range Accuracy
DC Voltage
AC Voltage
(50-400Hz)
DC Current
AC Current 50-60Hz
Resistance
Capacitance
Frequency
Duty Cycle
400mV,
4.000V,40.00V,
400.0V, 600V
4.000V, 40.00V
400.0V, 600V
400.0µA, 4000µA
40.00mA, 200.0mA
400.0µA, 4000µA
40.00mA, 200.0mA
400.0Ω
4.000kΩ, 40.00kΩ,
400.0kΩ
4.000MΩ
40.00MΩ
4.000nF
40.00nF
400.0nF
4.000µF, 40.00µF,
100.0µF
9.999Hz, 99.999Hz,
999.9Hz, 9.999kHz,
0.5-99%
± (0.8% rdg + 3d)
± (1.2% rdg + 3d)
± (1.0% rdg + 8d)
± (2.3% rdg + 10d)
± (2.0% rdg + 8d)
± (2.5% rdg + 10d)
± (0.8% rdg + 5d)
± (1.2% rdg + 5d)
± (5.0% rdg + 5d)
± (10.0% rdg + 5d)
± (5.0% rdg + 0.6nF)
± (5.0% rdg + 30d)
± (3.0% rdg + 15d)
± (5.0% rdg + 25d)
± (2.0% rdg + 5d)
± (2.0% rdg + 5d)
12
REGISTER YOUR PRODUCT
Register your product purchase at www.southwiretools.com or by scanning
the QR code on this manual. At Southwire, we are dedicated to providing you
with the best customer experience. By following a few quick steps to register,
you can experience quicker service, more efficient support, and receive
information on our future products. Simply provide your model number,
serial number, and just a few pieces of information about yourself –
it is that quick and easy.
LIMITED WARRANTY AND LIMITATION OF LIABILITY ON
SOUTHWIRE METERS & TESTERS
Southwire Company, LLC warrants this product to be free from defects in material
and workmanship for two years from the date of purchase. This warranty does not
cover fuses, disposable batteries, or damage arising from an accident, neglect,
misapplication, contamination, modification, improper maintenance or repair,
operation outside of specifications, or abnormal handling of the product.
Southwire’s sole liability, and the purchaser’s exclusive remedy, for any breach
of this warranty is expressly limited to Southwire’s repair or replacement of the
product. Whether Southwire repairs or replaces the product will be a determination
that Southwire makes at its sole discretion.
SOUTHWIRE MAKES NO WARRANTY THAT THE PRODUCT WILL
BE MERCHANTABLE OR FIT FOR ANY PARTICULAR PURPOSE.
SOUTHWIRE MAKES NO OTHER WARRANTY, EXPRESSED OR
IMPLIED, OTHER THAN THE WARRANTY SPECIFICALLY SET FORTH HEREIN.
SOUTHWIRE WILL NOT BE LIABLE FOR ANY INCIDENTAL,
CONSEQUENTIAL, INDIRECT, SPECIAL, OR PUNITIVE DAMAGES FOR
ANY BREACH OF THIS WARRANTY.
This warranty is void if this product is used for rental purposes. No product reseller is
authorized to extend any other warranty on Southwire’s behalf relating to this product,
and no such reseller warranty will be binding on Southwire. If you have a warranty
claim, or if the product needs to be
serviced during or after the warranty period set forth above, please contact
the Customer Service Department at 855-SWTOOLS (855-798-6657).
The sender is responsible for all shipping, freight, insurance, and packaging costs
associated with sending a product to Southwire. Southwire will not be responsible for
lost or damaged products returned pursuant to this warranty.
All products returned to Southwire under this warranty should be mailed to:
Southwire Company, LLC
Attention: Tool Warranty Return
840 Old Bremen Road
Carrollton, GA 30117
