Overview The FTS Systems Sample Extractor allows the operator to select and remove a serum
bottle or vial from the trays at any time during the freeze drying run. The selection and
removal process is accomplished with virtually no interruption or alteration of the
drying protocol. The simplicity of the design and ease of use provides operators with a
cost effective methodology for periodic removal of stoppered product containers for
sample analysis. The Sample Extractor is a pivotal option when the operator’s mission
is product development or stability studies.

Introduction
Lyo-SEA
2 Rev 005, 05/11
© SP Scientific 2011
Key Features

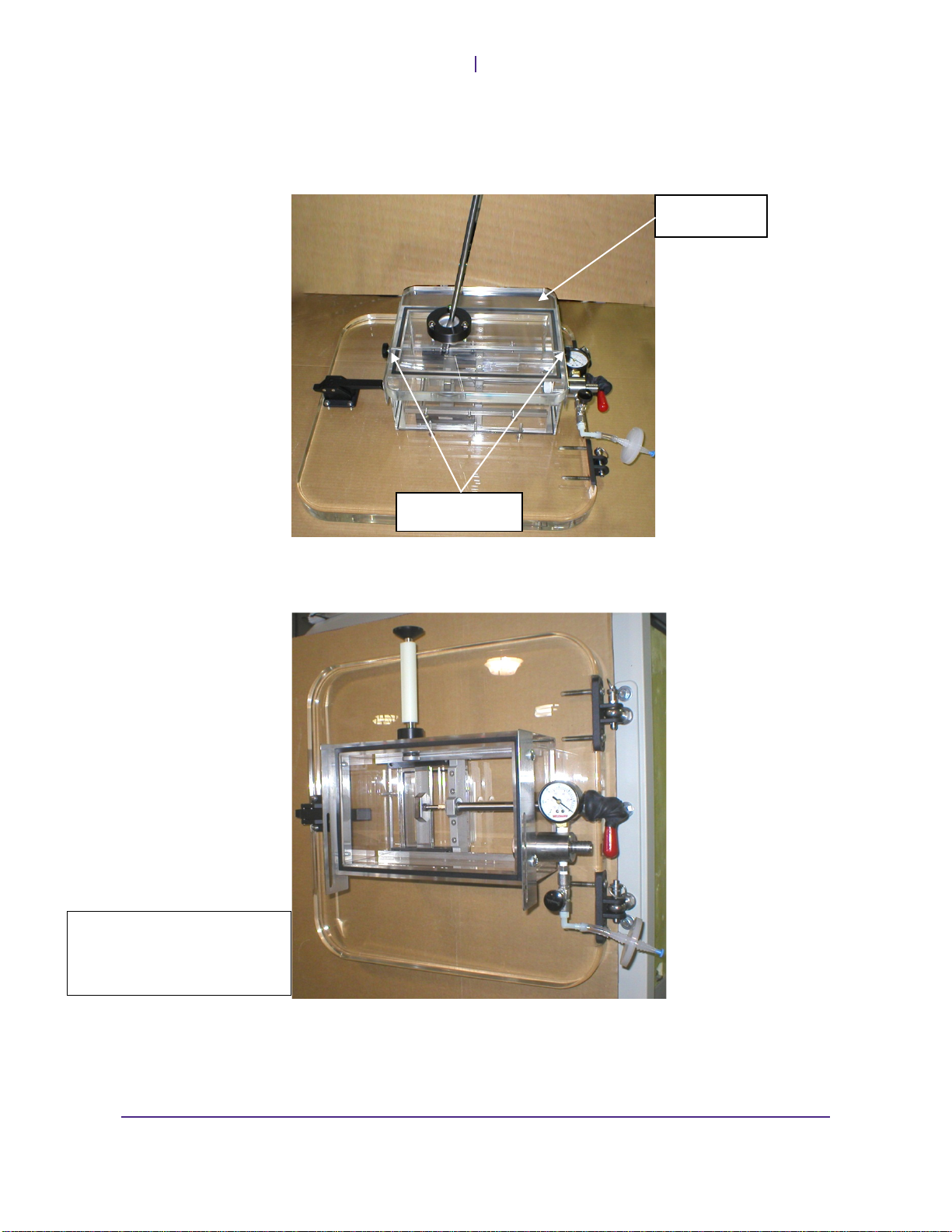

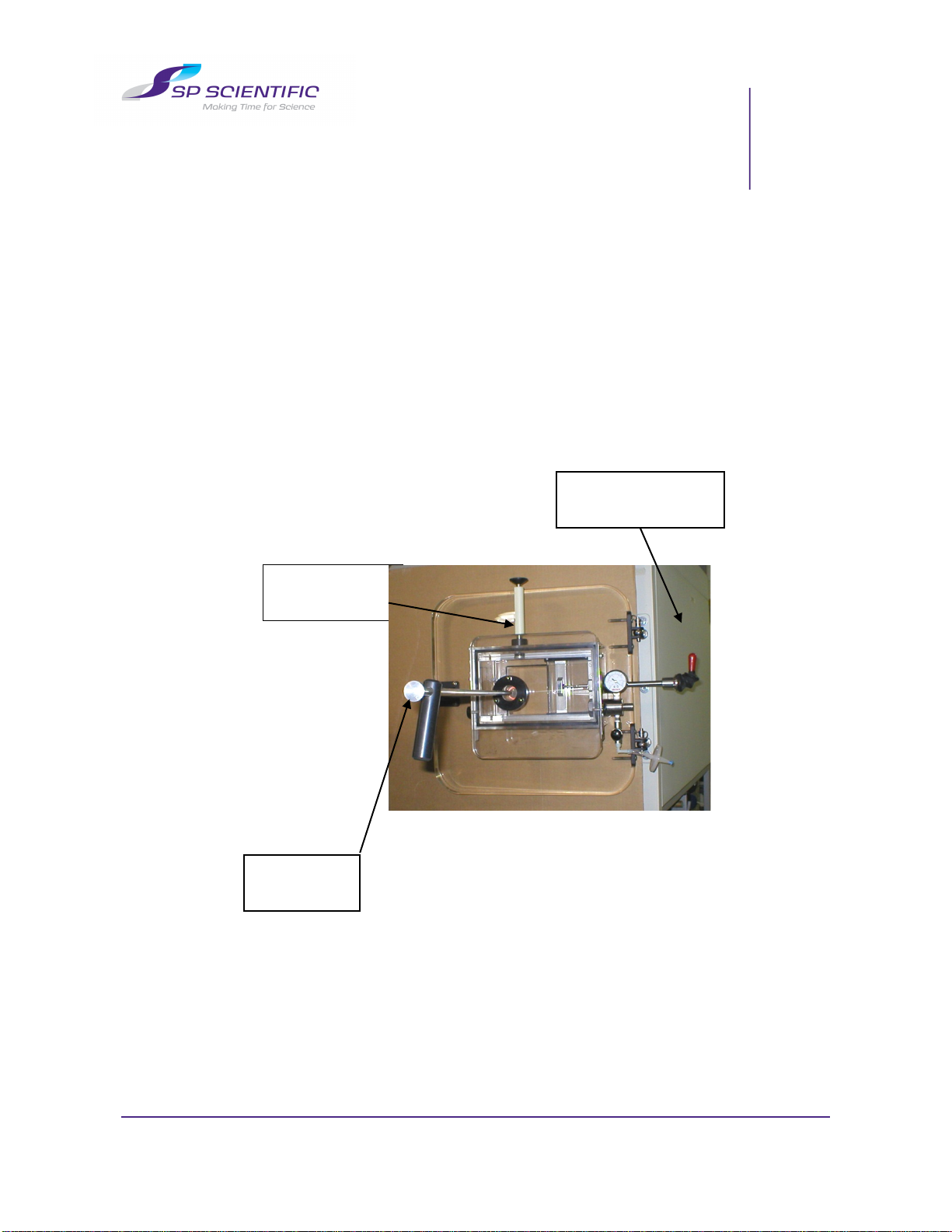

The Sample Extractor is mounted on a modified acrylic door of the LyoStar II. It
consists of an:
Acrylic vacuum antechamber•
with stoppering ram•
Acrylic antechamber isolation door•
Vacuum pump•
Inert gas back-fill valve•
Vacuum gauge•
Stainless steel selector arm.•

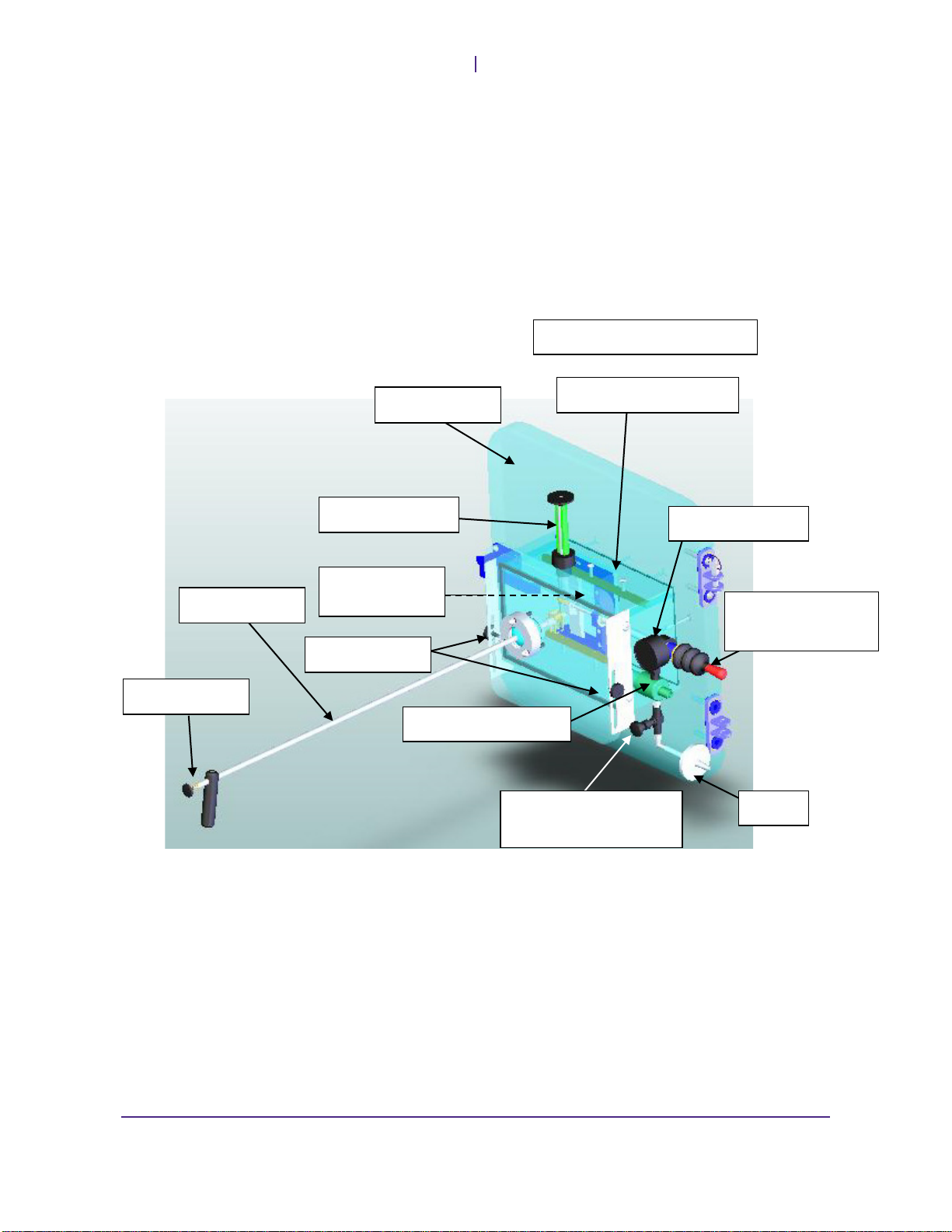

Vacuum Pump (not shown)
Acrylic Door Vacuum Antechamber
Stoppering Ram
Selector Arm
Inert Gas Backfill/
Vacuum Break Valve
Vacuum Gauge
Isolation Door
Locking Handle
Vacuum Pump Port
Antechamber
Isolation Door
Jaw Controls
Filter
Thumbscrews

Rev 005, 05/11 3
© SP Scientific 2011
Chapter
2
Installation and Startup
Initial Inspection
Your Lyo-SEA tissue-freezing bath was carefully packed and thoroughly inspected
before leaving the SP Scientific factory. However, in the unlikely event that shipping
damage has occurred, retain all packing material and contact your freight carrier
immediately.
DO NOT ACCEPT DAMAGED SHIPMENTS FROM A CARRIER WITHOUT A SIGNED
NOTIFICATION OF DAMAGES.
Upon receiving your shipment, inspect all contents of your equipment for damage.
Uncrate and/or unwrap the unit. Carefully remove all packing material from the unit
and inspect for visible damage. Check packing material for small accessory items.
Inspect the inside of the unit and related parts for visible damage and leaks. Check for
visible liquid at or near the base of the unit. The bath chamber should be clean and
dry.
If concealed damage or loss is discovered, contact the freight carrier immediately.1
Keep all contents, packing material and related paperwork intact until a written report
is obtained.
Note: SP Scientific will cooperate in the matter of collecting your claim, but is not responsible
for the collection or free replacement of the material. When possible, replacement parts will be
shipped and invoiced to you, making them a part of your claim.
1“Concealed damage or loss” refers to damage or loss that does not become apparent until the merchandise has been
unpacked and inspected. Should damage or loss be discovered, you may make a written request for inspection by the carrier's
agent within 15 days of the delivery date. You may then file a claim with the freight carrier or SP Scientific, depending on the
terms of your shipment. If your shipment was “FOB Destination” file your claim with SP Scientific and include the inspection
report and any other supporting documents. If your shipment was “FOB Shipping Point” file your claim with the freight carrier
and include the inspection report and any other supporting documents.

Installation and Startup
Lyo-SEA
4 Rev 005, 05/11
© SP Scientific 2011
Setup and Installation
Note: Field replacement of the standard door, with a Sample Extractor door, requires two
people.
Standard Door Removal

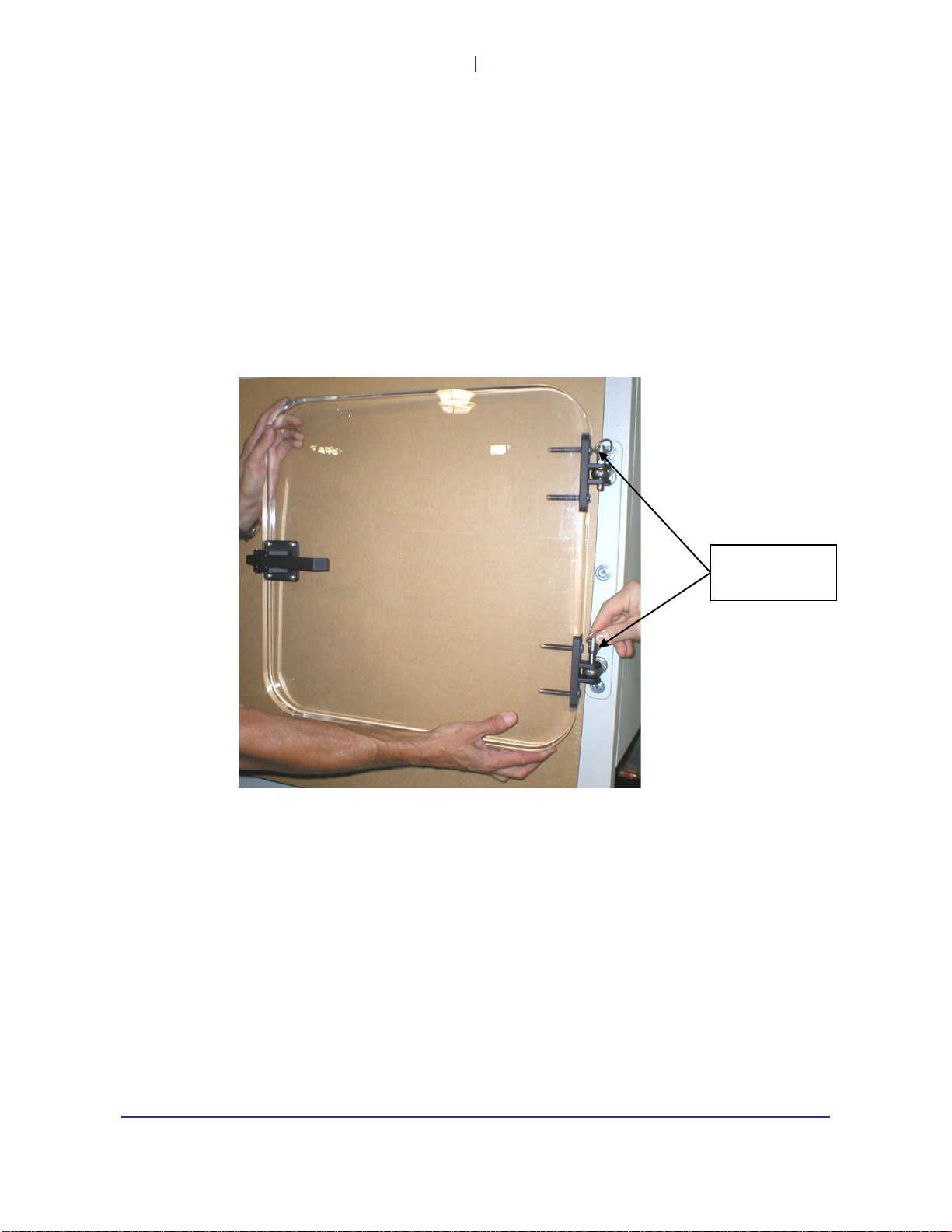

Open the standard door. An assistant should take position to support the1. door.
Remove the upper and lower quick release pins.2.
Note: The quick-release pins may be saved for replacement pins.
Remove the standard door.3.
Quick Release
Pins

Lyo-SEA
Installation and Startup
Rev 005, 05/11 5
© SP Scientific 2011
Sample Extractor Door Installation
Unscrew and remove both thumb screws.1.
Remove the front antechamber plate with selector arm.2.
With help from an assistant, align the Sample Extractor door in the hinge3. brackets.
Re-install the quick release pins.4.
Re-install the front plate with selector arm.5.
Extractor door without front
antechamber cover and selector
arm.
Thumb Screw
Front Plate

Installation and Startup
Lyo-SEA
6 Rev 005, 05/11
© SP Scientific 2011

Rev 005, 05/11 7
© SP Scientific 2011
Chapter
3
Operation
Sample Extractor Assembly Operation
Note: Make sure that the front plate is closed and the inert gas/vacuum break valve is closed.
Activate the auxiliary vacuum pump to decrease the pressure in the1. antechamber.
After the gauge stabilizes at the maximum position, allow the vacuum pump to2. operate for an additional 15 minutes.
Open the antechamber isolation door. With locking handle in the up, or3. unlocked position, the antechamber door can be slid open.
When antechamber isolation door is fully open, lower the handle to lock the4. isolation door in position.
Manipulate the selector arm to select and extract the vial(s) of choice. Vials5. are securely held in spring loaded jaws. Push the button to open the jaws and
release to close them.
Place the sample(s) in the antechamber directly beneath the stoppering ram.6.
Shut the isolation door then lower the handle to seal it closed.7.
Raise handle up to
unlock the door
Push to
open the jaws
Remove shroud
to stopper vials

Operation
Lyo-SEA
8 Rev 005, 05/11
© SP Scientific 2011
Inert gas back fill may be performed at this time if gas is supplied to the8. vacuum break valve.
Remove the shroud from the stoppering ram to manually stopper the vial(s).9.
Open the inert gas fill/vacuum break valve until the antechamber is back to10. atmospheric pressure.
Loosen the thumb screws and slide the front plate down until it can be11. opened.
Remove the stoppered vials.12.
13.
Close the front plate to reseal the chamber for the next run.14.
Lower handle to
lock shut
Press to stopper
Open front plate
to remove the vials

Lyo-SEA
Operation
Rev 005, 05/11 9
© SP Scientific 2011
Shelf Area
Note: Latching one shelf up will position the other shelves so that a 20 ml vial can be used and
increases the accessible shelf area to 240 sq.in. This configuration requires vials to be rotated
90 degrees, to a horizontal position, to be removed.
Electrical Requirements
120V/60hz 6 Amps•
LYO3 (shown below)
The profile shows 190 sq. in. of area that can be
reached on the middle shelf.
The 5 ml vial is the tallest vial
that can be used on a 3 shelf LyoStarII .

Operation
Lyo-SEA
10 Rev 005, 05/11
© SP Scientific 2011

SP Scientific
815 State Route 208
Gardiner, NY 12525 USA
3538 Main Street
Stone Ridge, NY 12484
www.SPScientific.com
[phone]
[phone]
