Sparta Huskie Tools REC-B6750 User manual

OPERATION MANUALOPERATION MANUAL
REC-B6750
REC-B6750: 6.2 Ton Flip-Top Dieless Compression Tool
Read and understand all of the instructions and safety information
in this manual before operating or servicing this tool.
195 Internationale Blvd
Glendale Heights, IL 60139
Phone [phone]
Fax [phone]
www.spartacogroup.com

www.spartacogroup.com 800-860-6170
2
REGISTRATION/ TABLE OF CONTENTS
THANK YOU...
for purchasing a Huskie Tools product. Our
mission is to supply the finest steel cable
connecting and cutting tools and cable-related
products to the transmission and distribution
markets. Huskie Tools products represents the
state-of-the-art tools and are dependable & safe.
Trust, integrity, teamwork and mutual respect -
these words are something we take to heart here
at Huskie Tools.
Please take the time to read this manual carefully
to learn how to correctly operate and maintain
your tool.
Table of Contents
Registration/ Contents.......................... 2
Warranty................................................. 3
Safety...................................................... 4
Kit Includes........................................... 5
Specications......................................... 6
Operating Instructions......................... 7- 8
Operating Precautions...........................9

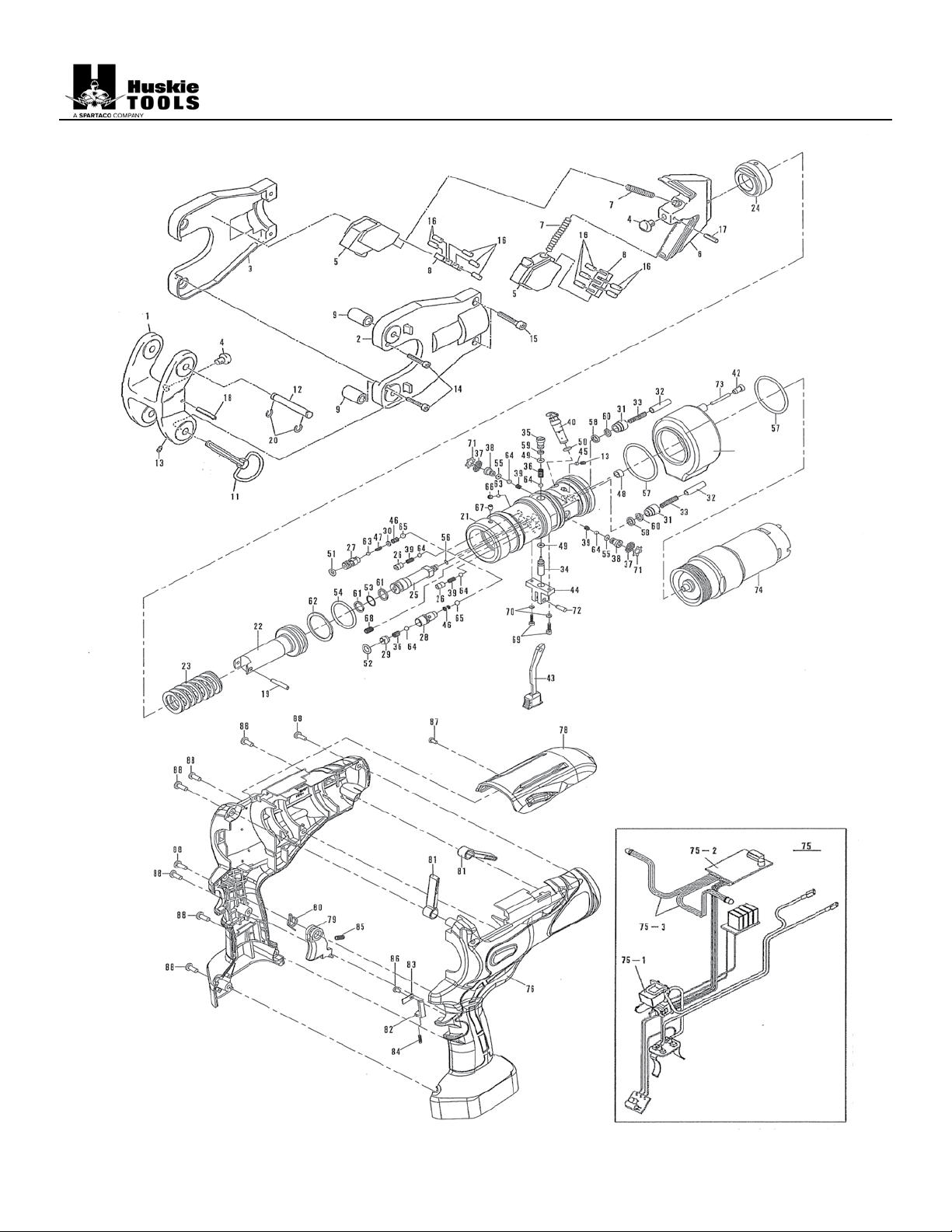

Breakdown.............................................10
Parts List.................................................11
TroubleShooting Guide........................12

www.spartacogroup.com 800-860-6170
3
WARRANTY
Warranty
Huskie Tools products carry a warranty that makes us a leader in the tool industry. No other manufacturer dares to back
its tools as we do.
All Huskie REC-SERIES battery operated products carry a 5 year warranty. The ECO-SERIES battery operated products
carry a 1 year warranty. The BP-80 & BP-84 batteries carry a 5 year warranty from the date stamped on the battery. The
BP-82 battery carries a 1 year warranty.
PRODUCT WARRANTY
REC-Series battery operated products 5 Years
ECO-Series battery operated products 1 Years
Batteries (BP-80, BP-84) 5 years/ (BP-82) 1 year
Chargers (CH-90, CH-94) 5 Years
The warranty does not cover any damages incurred from a Huskie tool including damages to property, bodily injuries
and lost wages resulting from such injuries. This warranty solely covers the repair or replacement of tools supplied by
Huskie. These remedies are exclusive, and the total liability of Huskie Tools, LLC whether based on contract, warranty,
negligence, indemnification, strict liability or otherwise, shall not exceed the purchase price of the tool. In no event shall
Huskie Tools, LLC be liable for consequential, incidental or special damages.
HUSKIE TOOLS, LLC MAKES NO OTHER WARRANTIES OF ANY KIND, EXPRESSED OR IMPLIED, AND ALL IMPLIED
WARRANTIES INCLUDING ANY WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE
DISCLAIMED.
Huskie reserves the right to determine all warranty claims. Huskie will not warranty tools containing parts or batteries not
originally supplied by Huskie. Failure due to misuse, improper maintenance, misapplication, not following instructions or
warnings, abuse or repairs attempted by anyone other than Huskie Tools, LLC, or an authorized service center renders
this warranty null and void.
Repair and Warranty Claims
All claims must be sent to Huskie for inspection and authorization. A Return Goods Authorization (RGA) is required
before shipping tools to Huskie. Secure the authorization by telephoning or writing to Huskie’s main oce with details
of the claim. Non-warranty repairs are handled using the same procedure. Repairs exceeding 50 percent of the cost of a
new tool will be advised before repairs are made.
Payment Terms
Upon credit approval Huskie’s standard payment terms are net-30 days. Visa, Mastercard, Discover and American
Express are also accepted.
Freight
All Huskie tools are FOB, Glendale Heights, Illinois. Goods will be shipped pre-paid and added, unless otherwise
specified. Freight shipments over $17,000 are pre-paid.
Quotations
Special quantity quotations should be phoned in to discuss the scope of your tool requests.
Complete Support Services
Our customers have direct access to us for training, service, and problem solving. As specialists in tools, we maintain
a trained repair sta and a large stock of parts. This contrasts with many tool suppliers who carry tools as a sideline
without oering support services. Here are some reasons why our customers love to do business with us:
• Quick delivery
• We maintain inventory at our headquarters.
• Training and troubleshooting services.
• Fast repair service.
• Design and engineering service for special tool needs.

www.spartacogroup.com 800-860-6170
4

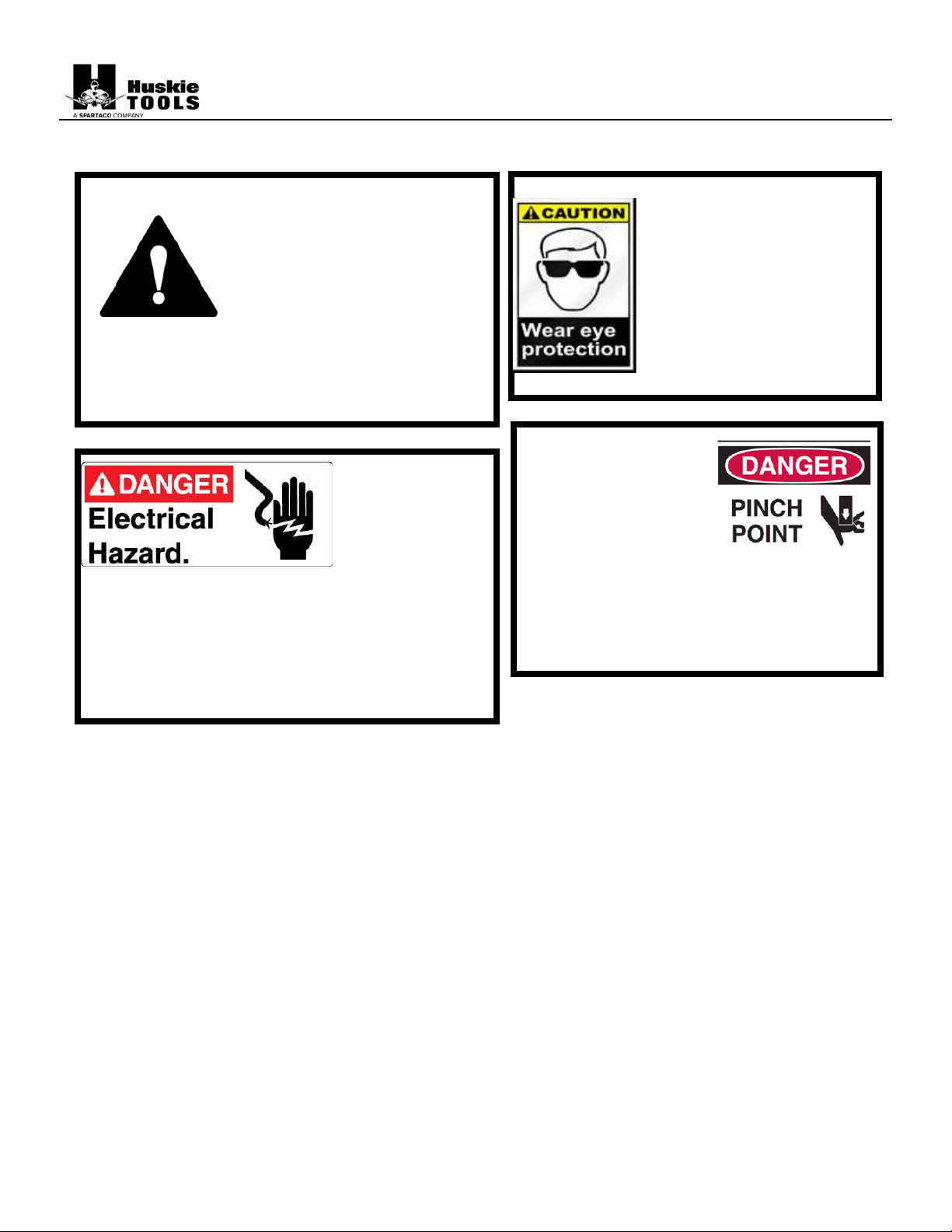

SAFETY
Safety Alert Symbol:
is safety alert symbol indicates a potential per-
sonal injury hazard; it is not used for messages
related to property damage only.
Wear eye protection:
when operating this tool.
Failure to wear eye protec-
tion could result in serious
eye injury from ying debris.
Electric Shock hazard:
Use proper personal protective equipment when
using this unit on or near energized electrical lines.
Pinch Point Hazard:
Compression Dies at high
force can cause severe per-
sonal injury. Keep all body
parts away from moving
parts of the tool while
operating.

www.spartacogroup.com 800-860-6170
5
KIT INCLUDES
• 1 Battery Powered Tool
• 1 Carrying Case
• 1 CH-94 Charger
• 2 BP-84 Lithium-Ion Batteries
• 1 Carrying Strap
Battery and Charger
• BP-84 Huskie Tools Lithium Ion Battery
• CH-94 Huskie Tools Charger
• The BP-84 can be charged with any of the Huskie
Lithium-Ion chargers including the CH-80, CH-90 &
CH-94.
The REC-B6750 is a flip-top, dieless tool used to crimp cables up to 750 MCM. The flip-top latch opens to allow for easy cable
positioning and removal. The dieless system is used for non-tension splices and terminations. There is one stationary and three movable
indenting nibs which close at 90° angles to each other so that the connector is squeezed equally at four strategic points with 6 tons of
force. Typical applications include in-line splicing connectors and lug terminations.
*NOTE: The tool is designed to crimp Anderson Style connectors. Other brand connectors manufactured to ANSI specifications
C119.4 can be used. For range-taking connectors, the cable must be maximum size specified for the connector. Consult your connector
manufacturer for dieless applications. It also has an external bypass cartridge for pressure adjustment & repair uses.

www.spartacogroup.com 800-860-6170
6
SPECIFICATIONS
REC-B6750
Specifications
Output 6.2 Ton
Weight 11.7 lbs. with Battery
Size 16.5”L x 10.8”H x 3.1”W
Jaw Opening 1.5”
Crimping Estimates
BP-84
4/0 Cu 90
500 MCM Cu 110
Features
• Four-Sided Dieless Crimp System
•*Designed to Crimp Anderson Connectors &
Other Brand Connectors Manufactured to
ANSI C119.4
•Eliminates the Need for Dies
• One Hand Operation
• Tested Up to 75kV
• Rotational Head
• Rapid Advance
• Ergonomically designed for Balance and Grip
• Weather Resistant Housing
• Audible Bypass when Predetermined Pressure
is Achieved
•Flip-Top Head Design
•5 Year Warranty on Tool, Battery & Charger
Connector Range
Lugs and Splices #6 AWG - 750 MCM Cu/Al
The new 6 series battery operated tools with “B” designation are Bluetooth enabled products.
These tools are able to communicate data to your Bluetooth enabled PC via the downloadable software available on
Spartaco website.
In addition to the audible beeps and visual Led indicators on these tools identifying battery connection, full compres-
sion cycles, proper achieved pressure, and incomplete crimps, the tools also record data to be viewed later via the
Bluetooth connection at you PC.
The data includes locked fields for model and serial number of the tool connected. It has cycle count data, and it has
fields for read / write capabilities for the user to enter notes such as truck or job number, repair history, or any note the
user or maintenance technician may feel important to record.
Complete operation instructions as well as the downloadable computer software is available at: www.spartacogroup.
com

www.spartacogroup.com 800-860-6170
7
OPERATING INSTRUCTIONS
1. Insert the plug end into a 120V power source. The LED (Power) indicator will
be steady green indicating the charger is now in “stand-by” mode and ready to
charge the battery. Do not plug the charger into a generator as this will likely
cause the fuse in the charger to short, and will not operate.
2. To charge a drained battery, insert the battery into the charger. The LED
indicator shows a steady amber while charging. A depleted battery will be
completely charged in approximately 50-70 minutes. The LED indicator will show
a steady green when the battery is fully charged.
3. If the LED indicator goes out or is flashing quick amber, this could be a possible
short in the battery circuit, or a problem with the charger itself. It is best to consult
the factory at 1-800-860-6170 for service if such a condition occurs.
4. For technical questions or difficulty in operation, please call our customer
service department at 1-800-860-6170.
CHARGING THE BATTERY
1. While pressing the latch, pull out the battery cartridge. To replace the battery
cartridge, push the new cartridge firmly into place.
2. After inserting a battery cartridge, check that it is securely in
place by pulling gently. Do not press the latch when pulling the cartridge.
ATTACHING THE BATTERY CARTRIDGE
1. The ram advances when the trigger is pressed and stops when the trigger is
released.
2. To retract the ram, push the release button. The ram continues to retract while
the release button is pressed.
TRIGGER AND RELEASE BUTTON

www.spartacogroup.com 800-860-6170
8
OPERATING INSTRUCTIONS
CUTTING
MAINTENANCE AND INSPECTION
1. Consult your connector manufacturers recommendations on using a dieless compression
tool with the connector and cable being used. Not all connectors are suitable for dieless
tool applications.
2. Retract the indenting nibs by pressing the release button.

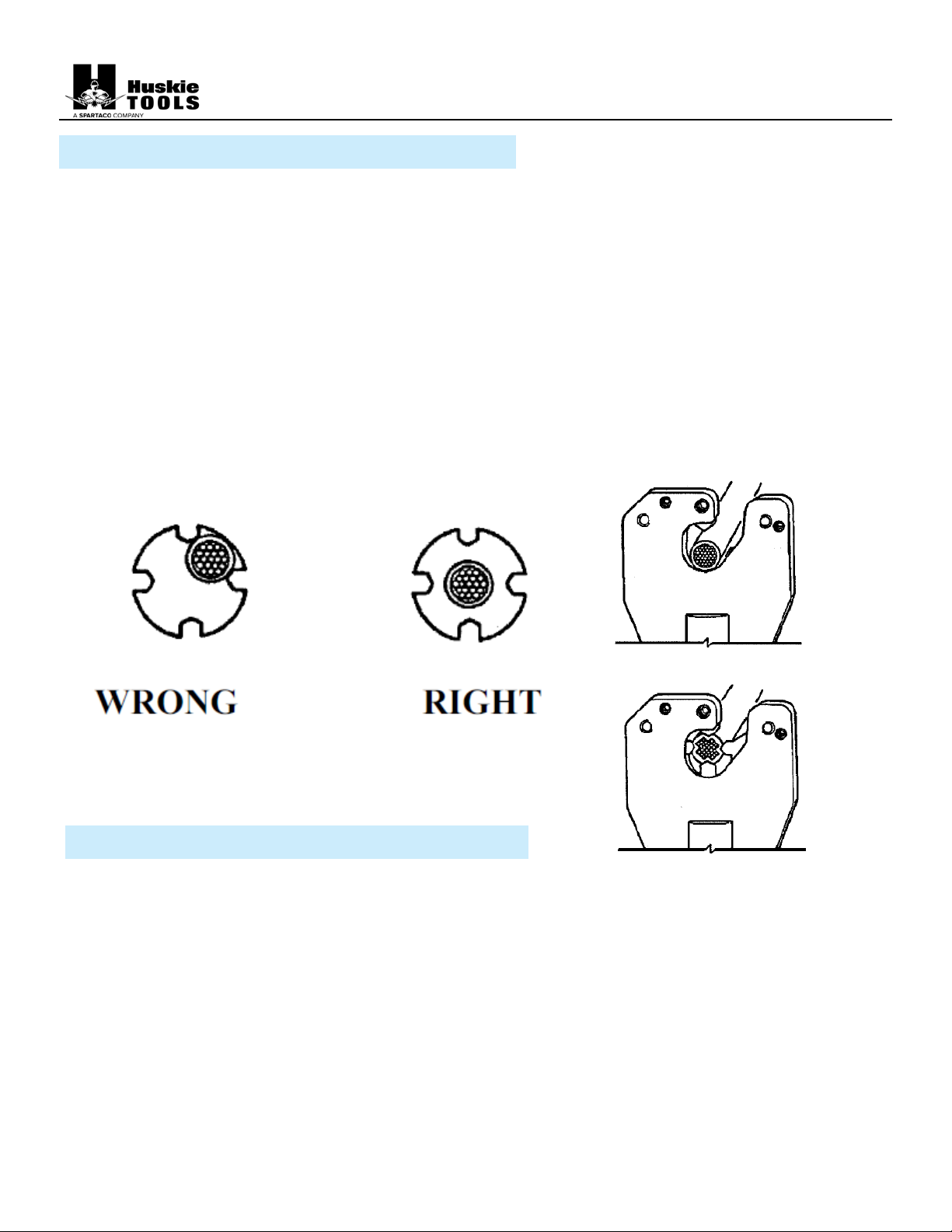

3. Position the connector, and center it between the indenting nibs. Activate the trigger and
advance the nibs so the connector is held in place. Check connector for correct positioning.
4. Insert the cable into the connector and activate the trigger until the compression is
completed. A series of clicks will be heard while the compression is being made, followed by
the tool running in a “free” mode. This indicates a completed cycle and a full compression.
5. Press release button to retract the indenting nibs. and remove the connector from the tool.
1. Daily maintenance is required to ensure that the tool is kept in good working condition.
2. Sharpen blades occasionally with a sharpening stone on the back side of the blades to
remove any burrs that may occur.
3. Do not store the tool in a humid environment.
4. Wipe away any excess oil with a soapy cloth.
5. Provided that maintenance of the tool is carried out regularly, the tool should provide
many years of service.
6. Should you experience any difficulty with the operation and maintenance of this tool,
contact Huskie’s technical support department at 1-800-860-6170.

www.spartacogroup.com 800-860-6170
9
OPERATING PRECAUTIONS
PRECAUTION FOR THE TOOL
PRECAUTION FOR THE CHARGER
1. Always point the tool AWAY from other people.
2. If the tool is stored for an extended period at a temperature of less than 25º F (-5ºC), the tool
should be allowed to return to room temperature to ensure smooth operation Use the tool only
after it has been at room temperature for 1 hour.
3. Do not drop the tool. Dropping the tool may damage the hydraulic circuit and result in the tool
not functioning correctly.
4. Keep the head and ram clean and free of debris. Solvents can be used to clean the head, but
should not be used on the plastic body. Use soap and water to clean the body.
5. Do not use tool for continous use. If any sign of over heating, allow the tool to cool for 15 mins.
6. Do not allow tool to be submerged in water. The tool may be used to in damp or wet
environments. However it is recommended for tool to be air-dried before use.
PRECAUTION FOR THE BATTERY CARTRIDGE
1. Do not short circuit the contacts or expose the cartridge to water, oil or solvents.
2. Do not disassemble or attempt to repair the battery cartridge or dispose of in a fire.
3. Do not drop or otherwise abuse the battery cartridge.
4. Do not leave the cartridge in locations where it will be exposed to a temperature greater than
140ºF (60ºC) for an extended period.
5. The battery has a limited life. When the crimping capacity becomes about 1/2 that of the
original capacity, the battery should be replaced.
6. If the battery cartridge is stored without being charged, natural drainage will cause the power
to be reduced. The battery should be charged every 3 months if not in use.
1. The LED indicator lights up amber and remains lit when the unit starts charging a battery
cartridge. The indicator turns green when charging is completed.
2. The BP-84 can be charged with any of the Huskie Lithium-Ion chargers including the CH-80,
CH-90 & CH-94.
3. Allow battery cartridges to cool before charging. Allow at least 15 minutes between charges
when charging several cartridges in succession.
4. Charge batteries at an ambient temperature of 50º-95ºF (10º-35º C). Charging time is
approximately 50-70 minutes for the BP-84.
5. Never short circuit the output terminals.
6. Do not expose the charger to water, oil or solvents.
7. Do not disassemble, attempt to modify, drop or otherwise abuse charger.

www.spartacogroup.com 800-860-6170
10
BREAKDOWN

www.spartacogroup.com 800-860-6170
11
PARTS LIST
NO. CODEDESCRIPTIONQTY. NO. CODE
1
DESCRIPTIONQTY.
Yoke 1 466H-04B 2
2
Spring (686) EZ-26
Head (1) 6 1 47 19H2-02
3
Spring (420)
Head (2) 6 1 48 Bush 1
4
R14A-19
Nib 2UC-34 49 16-36 2
5
P-3 O-Ring
2Side Jaw 506H-10D 1610F-18
6
P-5 O-Ring (B)
1 51UC-33BCam Yoke 1P-5 O-Ring 5N-35
7 26H-11 52Spring (390) 116-60
8
P-7 O-Ring
2UC-08 53Roller Retainer 100-14 1
9
P-10 O-Ring
2 546H-08BRoller 1300-21
11
P-28 O-Ring
1 556H-01ASlide Pin 2
12
EZ-21P-3 O-Ring (U801)
1 566H-02APin (156) 351-20 1
13
S-5 O-Ring
2UC-37A 57M3 X 5 Screw 2658-11
14
G35 O-Ring
2 58M4 X 30 Screw ET-46 2
15
EZ-14PS-6 Pent Seal
2E3-49 59M6 X 30 Screw 19H-38
16 10 60Roller UC-07
P-3 Back-Up Ring (B.C.)
2
17
UC-28P-6 Back-Up Ring (B.C.)
1 61RF-333 X 18 Drive Pin (AW) 2100-13
18
P-10 Back-Up Ring (B.C.)
138A-01 623 X 28 Drive Pin (AW) 155D-03
19
P-28 Back-Up Ring (B.C.)
1DCM-05 634x 22 Dowel Pin (AW) 40-20 2
20
1/8" Ball
16-09 2 64CE-8 Snap Ring 622-21
21
5/32" Ball
Body 6630-01 1 65 16-49 2
22
3/16" Ball
Ram 16750-01 66 85-47 1
23
M4 X 4 Screw (F.P.)
6630-03 1 67Spring(708) 1
24
R5PD-02M4x6 Screw (D.P.)
16630-04 68Cam Yoke Holder 1410-49
25
M5 X 8 Screw
16630-05 69Inner Piston 658-08 2
26
M3x10 Screw
2 70SL5-16auto-suction screw 25N-61
27
M3 Lock Washer
1 71SL5-18Both-way plug 2
28
R14A-23SI-12.7 Ring
1 72SL5-11LP control plug 1658-10
29
G4x12 Dowel Pin
1 73SL5-10Valve Screw Magnet 1
30
ROB-25
1 74SL5-19Stopper Ring 1
31
Power Unit SLND-11
2 75EZ-13Cylinder Insert 658-12A 1
32
Switch Unit(14)
2Pump Piston 76EZ-15 Housing Set 1
33
6HS-Small
2 78Spring (552) EZ-16 1658-15
34
Top Cover
658-06 1 79Push Pin 1658-16
35
Switch Knob
1 80EZ-24Release Plug 658-17 1
36
Spring(693)
2 81EZ-23Spring (689) 558-07A 2
37
Hanging Strap
2 82R14A-22Filter Screen 558-08 1
38
Lever Stopper
2 83EZ-20Suction Valve 458-01 1
39
Retaining Plate
4 84Spring (688) EZ-22 458-02 1
40
Spring (639)
EZ-25F 1 85Valve Cartridge 410-01 1
41
Spring (177)
1658-01 86Oil Reservoir(43) 1
42
ROB-94
Plug
M3 X 5 Screw (T.P.)
1 87SLND-12 1R150-02
43
M3 X 6 Screw
658-09 1 88Release Lever 8
44
M4 X 10 Screw ROB-159
658-05 1
45
Lever retainer
1Retainer SLND-14
75-1
75-2
75-3
Main Switch Unit
Circuit Board
LED Harness
658-18
651-14
558-05
1
1
1

www.spartacogroup.com 800-860-6170
12
TROUBLESHOOTING GUIDE
PROBLEM CAUSE SOLUTION
MOTOR RUNS, BUT THE
TOOL JAWS WILL NOT
ADVANCE
Insufficient Hydraulic Oil Consult Factory for Repair
Service
Air Block in Hydraulic System
Invert tool to allow air to rise
towards the top of the oil
bladder
Defective Hydraulic Circuit Consult Factory for Repair
Service
MOTOR RUNS, TOOL JAWS
ADVANCE, BUT WILL NOT
BUILD PRESSURE
Insufficient Hydraulic Oil Consult Factory for Repair
Service
Defective Suction Valve or
Bypass Cartridge
Consult Factory for Repair
Service
MOTOR WILL NOT RUN AT
ALL
Defective Battery Charge or Replace Battery
Bad Contact or Loose Battery
Connections
Check all Connections and
Wires
Misaligned Switch
Check to Make Sure that
Switch is Properly Aligned with
Trigger
Consult Factory for Repair
Service
TOOL JAWS WILL NOT
RELEASE
Tool Did Not Complete a Full
Cycle and Bypass
Press Trigger and allow Tool
to Bypass, Then Release Tool
Jaws
Connector is Jammed in Tool
Jaws
Press and Hold Release Trigger
While Prying Tool Jaws Apart
Release Trigger is Bent or Mis-
aligned
Consult Factory for Repair
Service

www.spartacogroup.com 800-860-6170
13
NOTES

www.spartacogroup.com 800-860-6170
14
NOTES

www.spartacogroup.com 800-860-6170
15
NOTES

195 Internationale Blvd
Glendale Heights, IL 60139
Phone [phone]
Fax [phone]
www.spartacogroup.com
