Spartherm ebios-fire architecture SL User manual

Installation and operating instructions
ebios-fire - architecture SL
GB

GB 2
FOREWORD / QUALITY PHILOSOPHY
You have decided in favour of a SPARTHERM ebios-fire - thank you for your
confidence in our company.
In a world of excess and mass production, our company stands for the values
expressed by our owner Gerhard Manfred Rokossa:
„High technical quality combined with contemporary design and a customer
service which ensures not only utmost satisfaction but also that we are
recommended.“
Together with our specialist partners, we offer first-class products which will
touch your emotions and evoke a sense of security and comfort. To achieve
this, we recommend that you read the operating instructions carefully in order
to get a quick and comprehensive overview of your decorative fireplace.
In addition to information on use, these instructions also include important
details on care and operation to guarantee your safety and the maintenance of
your ebios-fire as well as useful tips and guidance.
For further enquiries, please contact your specialist dealer.
We hope you enjoy your new fireplace.
Your SPARTHERM Team
G.M. Rokossa

GB 3
GB
CONTENTS
1. General Information 4
1.1 Scope of Supply 5
2. Installation Instructions 6
2.1 Technical data 6
2.2 Dimensions of the architecture SL 6
2.3 2.3 CERAMAT FN burner mat 6
2.4 Basic requirements for installation 6
2.5 Installation location 7
2.6 Installation / assembly 8
2.6.1 Positioning of the burner 8
2.7 Fire precautions 9
2.8 Combustion air supply 9
3. Operating instructions 9
3.1 General information on operation 9
3.2 Fire protection 10
3.3 Fuel 10
3.4 Start-up 11
3.5 Refilling the burner 13
3.6 Taking out of operation safely 14
4. Cleaning and care 15
4.1 Cleaning cladding parts 15
5. Maintenance/troubleshooting 15
5.1 Furniture and glass (depending on the model) becomes sooted
heavily, rapidly and unevenly 15
5.2 Fire is difficult to ignite 15
5.3 Unpleasant odours 15
5.4 Appearance of flames changes 15
5.5 Spilt ethanol ignites 16
6. General warranty conditions 16
6.1 Area of application 16
6.2 General information 16
6.3 Warranty period 16
6.4 Requirements for this warranty to be effective 16
6.5 Exclusion of warranty 16
6.6 Elimination of defects / repair 17
6.7 Extension of the warranty period 17
6.8 Spare parts 17
6.9 Liability 17
6.10 Final comments 17
7. Declaration from the builder of a custom-made piece of
furniture/fireplace with the architecture SL 18

GB 4
1. GENERAL INFORMATION
Small children, elderly or infirm persons: As is the case with all open flames,
it is expedient that you attach a protective fixture for these groups of per-
sons Risk of burns! Never leave these groups of persons unattended near
an ebios-fire when a fire is burning or has just been extinguished! The
ebios-fire must not be operated without supervision!
State-specific and local directives and regulations, in particular the fire
safety regulations of the German Federal State or the Association of Swiss
Canton Fire Insurance companies (VKF) must be complied with for the set-
up and operation of your ebios-fire.
Ensure sufficient stability when setting up the fireplace and choose a loca-
tion where movement of the burner during operation as a result of impacts
etc. is ruled out.
This model may only be operated when the housing cover is closed.
Please note that the fuel must not be refilled when the device is either warm
or alight. The device may ONLY be refilled via the filling opening and NOT via
the burner channel! (see Fig. 1) We recommend extinguishing the ebios-fire
by burning the fuel until the tank is empty. The cover plates must be placed
on the burner when it is not in operation.
Only allow the device to be refilled by individuals who are familiar with the
safety instructions and who you been trained on its operation.
The ebios-fire is not a heater but a decorative fire.
IMPORTANT INFORMATION
As per the German Equipment and Product Safety Act (GPSG) and our
statutory duty to notify, we would like to inform you about heating with this
product.
The combustion heat of the Bio ebios-fire at 0.5 l/h is approx. 3,300 W. The
heating value of 96% ethanol is approx. 29,600 kJ/kg. With fuel consump-
tion of 0.5 l/h (approx. 0.4 kg/h) the heat released is approx. 3,300 W.
However, the decorative fireplace requires a plentiful supply of fresh air
when operated as otherwise the amount of carbon dioxide created exceeds
the permitted concentration in the room air.
As a rule, the fresh air supplied is cooler than the room air to be heated up
which results in a loss of energy. The effective heat output of a Bio ebios-
fire is thus minimal and, as such, decorative fireplaces which use biofuel
are not sources of heat.
Rather these are merely decorative and are not intended for heating or
continuous operation. Nevertheless, it should be taken into account that
heat is generated as a by-product of the combustion process. This can
cause increased heating in the room where the fireplace is installed. Read
the safety instructions and measures for rear ventilation carefully.
Observe these operating instructions.

GB 5
GB
Slight imperfections and unevenness in the concrete surface are typical of
this material and are not a reason for complaint!
Bioethanol is a dangerous substance and must only be stored in the pre-
scribed quantities as per the regulations:
Storage in a cellar: max. 20 litres
Storage in living space: max. 5 litres
1.1 SCOPE OF SUPPLY
ebios-fire with the following features:
• Concrete furniture
• 1 burner made of stainless steel
• 1 burner mat made of Ceramat FN
• Safety container for all burner types made of stainless steel
• Cover plate (with recess for grip stick) made of stainless steel
• Bottle for moistening the burner mat
• Tank lock with seal
• Fill level indicator
• Key for opening and closing the tank seal
• Grip stick for lifting off and positioning the cover plate
• Funnel for filling the burner
• Stick lighter
• Rating plate (on the top of the burner)
• 3l ethanol canister with outlet valve for initial operation
• Supplied pre-assembled in transport-friendly disposable cardboard
packaging
ACover plate
BBurner channel
CFilling opening
DTank
EFill level indicator
FSafety container
Fig.1

GB 6
2. INSTALLATION INSTRUCTIONS
The device must not be able to tilt and must be positioned horizontally.
2.1 TECHNICAL DATA
ebios-fire
Fuel type Bioethanol
(ethanol content 96%)
Fill quantity max. 2,6 l
Fuel consumption 0,5 l/h
Burning time ca. 5 h*
Temperature in the tank < 65 °C
Total weight approx. 45 kg
Minimum room volume per burner ** 84 m³ 167 m³ 418 m³
Air exchange with an air exchange rate ** 10,5 0,2
Corresponding room size with room height of 2.5m ** 34 m² 67m² 167 m²
As a rough rule of thumb the following air exchange figures*** can be stated:
Air exchange [1/h] Comment
0…0,5 Windows, doors closed
0,3…1,5 Windows tilted open, no shutters
5…10 Windows half open
*** Please note that the luminosity of the flame can decrease to such an
extent that the flame is no longer clearly visible. Make children and
others in the home aware of this.
***These figures refer exclusively to the combustion air requirements of
the . Should you have additional air-consuming devices installed in the
room, these must be taken into consideration separately.
*** Recknagel, Sprenger, Schrameck: Heizung + Klimatechnik
2.2 DIMENSIONS OF THE ARCHITECTURE SL
Fig.2
2.3 2.3 CERAMAT FN BURNER MAT
The CERAMAT FN burner mat (black) included should only be touched when
wearing gloves as there is otherwise a risk of skin irritations. The material
can be easily damaged. As such, the mat should not be folded, bent or
similar.
2.4 BASIC REQUIREMENTS FOR INSTALLATION
All the relevant national and European standards as well as the local regula-
tions (fire protection regulations etc.) must be observed and applied during
installation and operation of the ebios.fire! The list of regulations given
below is not exhaustive.

GB 7
GB
BetrSichV German Ordinance on Industrial Safety and Health
Vbf German Ordinance on Flammable Liquids
BsV Fire Regulations of the respective Federal German State
LBO German Federal State Construction Ordinances
GefStoffV German Ordinance on Hazardous Substances
GPSG German Product Safety Act
The ebios-fire may only be set up in rooms and locations where there are
no hazards due to the site, structural conditions and type of use. The floor
area of the installation room must be designed and dimensioned so that the
ebios-fire can be operated properly and as per the intended use.
Only permitted and sufficiently strong transport aids may be used to trans-
port the ebios-fire. The following points must be noted to ensure safe and
problem-free transport.
• Transport aids (if necessary), special hand trucks must only be loaded
with the rear of the ebios-fire facing down.
• There must be no fuel in the tank during transportation.
DAMAGE DURING TRANSIT should be reported immediately to the supplier.
Protect the cladding and visible elements of the fireplace furniture from
soiling and damage during installation and transportation.
2.5 INSTALLATION LOCATION
When setting up/installing the ebios-fire ensure that the device is not posi-
tioned within the direct radiation area of large heat sources (heaters, stoves
etc.) or in rooms exposed to high temperatures (e.g., saunas). If the ethanol
fireplace is heated up externally when not in use, this can cause fuel in the
tank to be expelled over the burner channel and accumulate in the safety
tray.
In such cases, the burner is to be removed and the tray emptied before the
ebios-fire is lit.
The ebios-fire architecture SL is designed for use both indoors and out-
doors. The following information must be noted if the fireplace is set up
outdoors:
• Place the ebios-fire on a free surface and make sure that there are no
flammable materials such as trees, umbrellas etc. which could be blown
over and land in the proximity of the flames. A minimum distance of 30
cm to flammable materials must be guaranteed in all scenarios.
• Protect the ebios-fire from moisture and adverse weather conditions.
When not in use, the burner is to be taken out of the concrete base and
stored in a dry place.
• The ebios-fire can also be operated as a stand-alone unit without the
concrete base. To ensure that it is safely supported, there are adjustable
feet on the bottom of the burner. Ensure that the unit is the necessary
distance away from nearby components!
Your ebios-fire must not be installed in:
• In stairways, unless they are in residential buildings with two or fewer
flats.
• In hallways with general access.
• In garages
• In rooms in which highly combustible or potentially explosive substances
or mixtures are processed, stored or manufactured in quantities that
would be hazardous in the event of ignition or explosion
• In insufficiently ventilated rooms.
• In areas accessible to the public which are not supervised.
• In areas which are not protected against transverse ventilation
• On tables, pieces of furniture, shelves etc.

GB 8
2.6 INSTALLATION / ASSEMBLY
The architecture SL must be aligned horizontally
and protected against tilting. Take the safety dis-
tances into account (see 2.7). Rear ventilations
must not be closed. Place the burner with safety
container and cover plate in the holders in the
holders in the furniture.
The architecture SL may only be set up on floors with sufficient load-bearing
capacity. If the load-bearing capacity is not sufficient, suitable measures
(e.g,. plate for load distribution) must be taken to remedy this.
The concrete base is solid and weighs > 40kg. At least 2 people are
required in order to set and move the concrete base. Take care to prevent
the edges and corners of the base from either being damaged or causing
damage when moving it.
Slight imperfections and unevenness in the concrete surface and chipped
edges are typical of this material and are not a reason for complaint!
2.6.1 POSITIONING OF THE BURNER
The burner should be placed in the furniture by two people.
Proceed as follows:
1. After unpacking the architecture SL, position the concrete base where
you wish to set it up whilst observing points 2.5, 2.6 and 2.7.
2. Firstly place the burner in the holder (Fig. 3a).
3. Then insert the four glass holders. (Fig. 3b).
4. Finally insert the glass (Fig. 3c).
Fig. 3a
Fig. 3b
Fig. 3dFig. 3c
Burner
HolderConcrete furniture

GB 9
GB
3. OPERATING INSTRUCTIONS
Read these installation and operating instructions carefully before installing
and starting up your ebios-fire. All items are to be removed from the ebios-
fire furniture (except the burner unit).
Please follow the regulations for fire protection and dangerous goods
3.1 GENERAL INFORMATION ON OPERATION
• Small children, elderly or infirm persons: As is the case with all open
flames, it is expedient that you attach a protective fixture (available from
specialist dealers) for these groups of persons. Risk of burns! Never
leave these groups of persons unattended near an ebios-fire when a fire
is burning or has just been extinguished! Make these individuals award
of these risks.
• No combustible objects may be placed or laid on the free surfaces of the
ebios-fire. Do not place items of clothing on the ebios-fire furniture to
dry. Racks for drying clothing may only be placed outside the radiation
area (Fig. 4)! Fire risk!
• Thermal energy is released during the combustion process which causes
the burner, the housing surfaces, the glass panes (depending on the
model) and the protective glass panes to heat up. It is not permitted to
touch these items without taking the necessary precautions (e.g., heat-
resistant glove). Risk of burns!
• Never leave the fire unattended whilst it is alight!
2.7 FIRE PRECAUTIONS
In order to guarantee sufficient thermal insulation, there must be a mini-
mum distance of 300 mm (see Fig. 4) to flammable components, furniture,
decorations and curtains! There must be no objects between the ebios-fire
furniture and room ceiling (distance to the ceiling > 1000 mm)!
2.8 COMBUSTION AIR SUPPLY
Your ebios-fire draws its combustion air from the room in which it is
installed (dependent on indoor air). It must be ensured that there is a
sufficient supply of fresh air to the room in which the fire is installed. It is
possible that there is not a sufficient supply of fresh air if the windows and
doors are sealed (e.g., in combination with energy saving measures). This
can compromise your well-being and, under certain circumstances, also
your safety and the combustion performance.
Open a window to ensure a sufficient supply of fresh air.
Fig. 4
Radiation area

GB 10
• Ensure that the housing cover is closed and the protective panes are
inserted.
• It is recommended to open a window during operation.
• Several decorative ethanol fireplaces may only be operated if the fuel
consumption rate of all devices together does not exceed 0.5 l/h and if
additional measures are taken to ensure sufficient ventilation. Please
note the table on page 6 under point 2.1 for more details. Technical
data.
• The burner may only be operated with the burner mat and these wicks.
It is not permitted to change the number of wicks, the wick material or
the burner mat.
• The ebios-fire furniture must not be modified.
• This is merely a decorative fireplace for use in the home and is not
intended for heating or continuous operation! Nevertheless, it should
be taken into account that heat (approx. 3 kW) is generated as a by-
product of the combustion process. Amongst other things this can cause
increased heating in the room where the fireplace is installed.
• There should never be any fuel in the tank and the cover must always be
placed on the burner when the latter is not in use.
• The burners are designed for the fuel to be burnt until all gone. If you
only wish to enjoy the flames for a short period of time, use a cor-
respondingly smaller amount of fuel. If you wish to take the burner out
of operation prematurely, place the cover on the burner with the aid of
the grip stick. Allow the burner to rest for at least one hour after it has
been extinguished!
• The burner must NOT be filled when warm or alight and must NOT be
filled via the burner channel! DANGER TO LIFE!
• The handling of fuel in the vicinity of the hot or burning device is associ-
ated with significant risks and is not permitted!
• Only fill the burner via the filling opening and never via the burner chan-
nel! (see Fig. 1).
• Should you accidentally spill ethanol, clean this up immediately and
before lighting the burner!
• Please note that the luminosity of the flame can decrease to such an
extent that the flame is no longer clearly visible. Make children and
others in the home aware of this.
• Minimum waiting time between extinguishing and refilling the burner
= 1 hour!
• Do not smoke when handling fuel and operating the ebios-fire.
• Never extinguish the fire with water!!!
Failure to follow these basic rules can result in uncontrolled ignition or even
explosions!
3.2 FIRE PROTECTION
There must be no flammable objects (decorations, clothing etc.) in the
radiation area. In order to guarantee sufficient thermal insulation, there
must be a minimum distance of 300 mm to flammable components at the
side, furniture, decorations and curtains! There must be no objects between
the fireplace and room ceiling (distance to the ceiling >1000mm)!
3.3 FUEL
Bioethanol (chemical formula C2H6O) with an ethanol content of 96% is used
as the fuel, this is available from your specialist dealer. It is a dangerous
substance as per ADR: Class 3 PG II, UN 1170.

GB 11
GB
Under no circumstances should other fuels such as petrol, spirit or similar
flammable liquids be used. Do not mix the fuels together or with other
substances. The burners may only be operated using the prescribed fuel
otherwise the warranty will be rendered void and the device may be unsafe
to operate.
Ethanol is a highly flammable liquid which must be stored well sealed, pro-
tected from light and away from sources of fire. It is permitted to store max.
5 l in the living space and max. 20 l in the cellar. Keep bioethanol out of
the reach of children. For your safety only fill the burner just before use to
prevent it from being ignited unintentionally or by unauthorised persons and
to also stop the fuel from evaporating.
Please note that ethanol is used exclusively for combustion and it not suit-
able for consumption. Supervise your children! If swallowed consult a doctor
immediately and present the fuel label.
3.4 START-UP
The architecture SL is supplied with empty burners to prevent any ethanol
from flowing out or evaporating during transit.
Ensure (particularly before being put into use) that there is no fuel in the
safety container.
1Operating Instructions 9Fill level indicator
2Concrete base 10 Filling opening
3Burner housing 11 Cover plate
4Cold hand 12 Stick lighter
5Key 13 Bottle for wetting the burner
6Tank 14 Filling aid
7Burner mat 15 Funnel
8Burner channel 16 Bioethanol canister
1
2
4
5
3
6
78
9 10
2
1
11
12 13
14
15
16

GB 12
9. Take the bottle to wet the burner. Insert the bottle with the opening
into the tank opening so that it projects into the fuel. Press the bottle
together so that the air escapes and the fuel is sucked up when it is
released. Wait until the bottle returns to its original shape.
10. Seal the filling plug securely using the key.

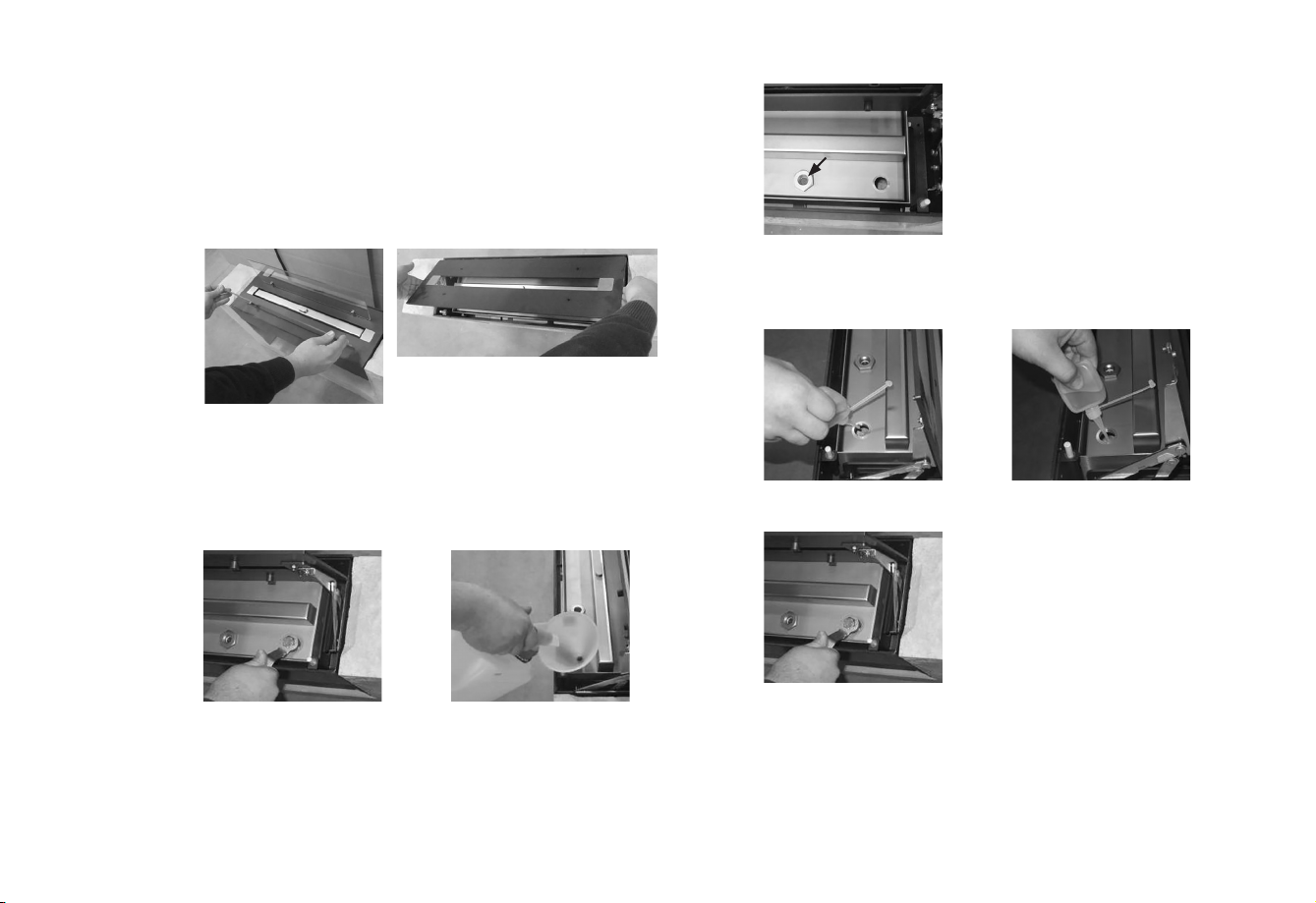

Proceed as follows:
1. Ensure that the air supply is sufficient.
2. Make sure that the burner has gone out and has cooled down fully
(minimum waiting time after being extinguished = 1 hour).
3. The burner remains in the housing when being refilled. For this remove
the protective panes and then open the housing cover.
4. Check the tank content.
5. Make sure that the cover plate is placed on the burner and covers the
burner mat.
6. Use a key to open the filling screw.
7. Insert the funnel into the filling opening and pour in a maximum of 2.6
l of bioethanol.
8. The fill level indicator shows the maximum permitted fill level.
The maximum fill level is reached when the bioethanol runs out of the
slit (see arrow) into the reflector curve.

GB 13
GB
11.Close the housing cover of the fireplace furniture, ensure that the cover
does not project into the flames but remains a uniform distance from the
burner channel. Then insert the protective panes.
12.Insert the grip stick to grip the cover plate and lift it off.
13.Wet the burner mat with fuel using the bottle which has just been filled.
14.Put the bottle to one side.
15.Wait approx. 2 minutes before igniting the fire to allow the wick to be
fully saturated with ethanol.
16.Ignite the fire on the burner mat and step back from the flames. It may
take a few minutes until uniform flames appear.
Should you ever pour in too much fuel and cause the burner to overflow,
the ethanol collects in the safety container. Empty this immediately and
before lighting the burner. Clean the surface of the burner until it is dry and
completely free of ethanol.
3.5 REFILLING THE BURNER
The burner must NOT be filled when warm or alight and must NOT be filled
via the burner channel! DANGER TO LIFE!
Minimum waiting time between extinguishing and refilling the burner = 1
hour!
Please also leave the protective panes which may still be hot on the device
during this time! Risk of burns!
The burners are designed for the fuel to be burnt until all gone. If you only
wish to enjoy the flames for a short period of time, use a correspondingly
smaller amount of fuel. If you wish to take the burner out of operation
prematurely, place the cover on the burner with the aid of the grip stick.

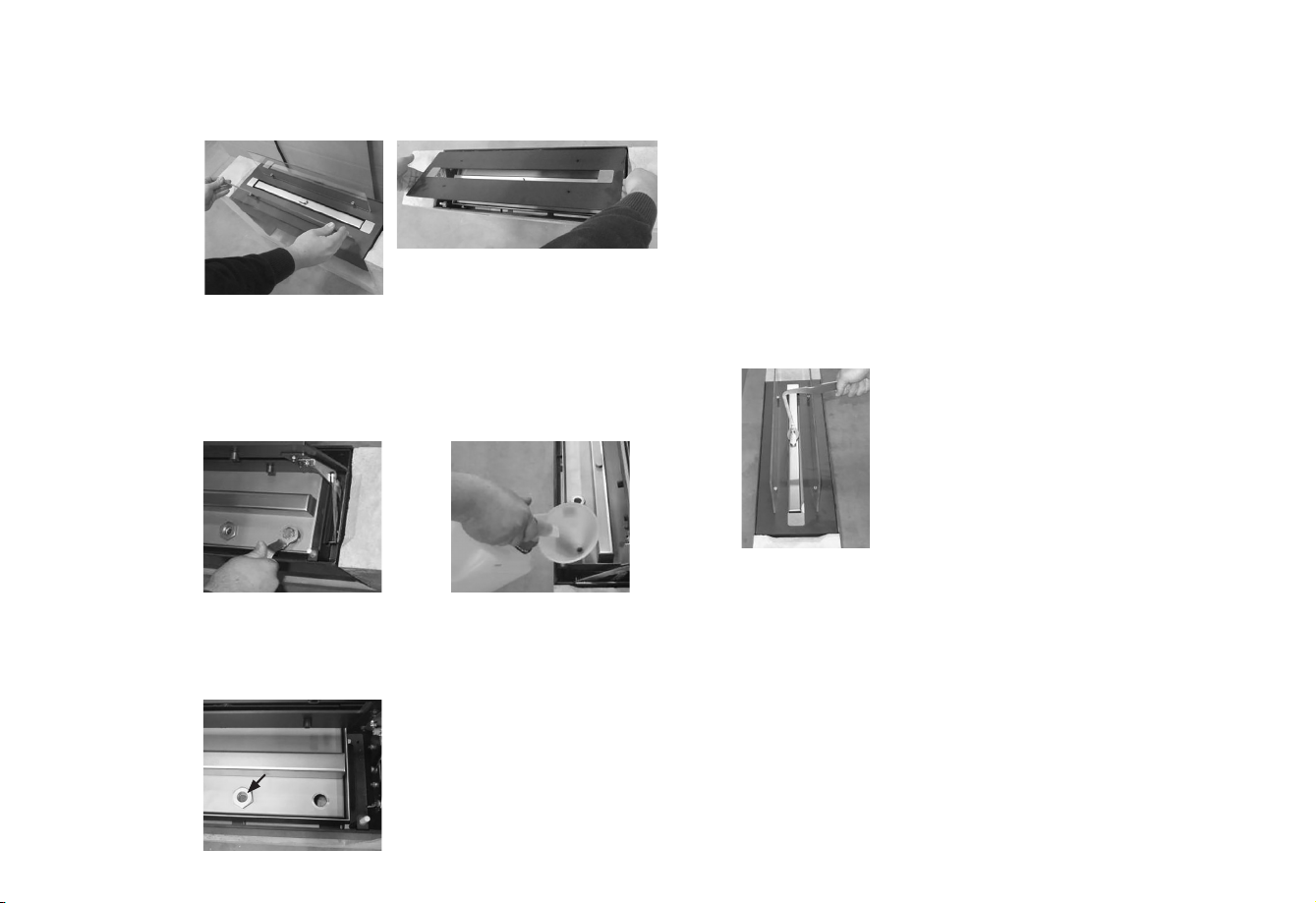

Proceed as follows to refill:
1. Ensure that the air supply is sufficient.
2. Make sure that the burner has gone out and has cooled down fully
(minimum waiting time after being extinguished = 1 hour).

GB 14
3. The burner remains in the housing when being refilled. For this remove
the protective panes and then open the housing cover.
4. Check the tank content.
5. Make sure that the cover plate is placed on the burner and covers the
burner mat.
6. Use a key to open the filling screw.
7. Insert the funnel into the filling opening and pour in a maximum of 2.6
l of bioethanol.
8. The fill level indicator shows the maximum permitted fill level.
The maximum fill level is reached when the bioethanol runs out of the
slit (see arrow) into the reflector curve.
Should you ever pour in too much fuel and cause the burner to overflow,
the ethanol collects in the safety container. Empty this immediately and
before lighting the burner. Clean the surface of the burner until it is dry and
completely free of ethanol.
To ignite the burner follow the steps 9-16 described in point 3.4.1!
3.6 TAKING OUT OF OPERATION SAFELY
If you wish to take the burner out of operation prematurely, place the cover
on the burner with the aid of the grip stick. Insert the grip stick to grip the
cover plate and then cover this over the burner channel.

GB 15
GB
4. CLEANING AND CARE
The architecture SL may only be cleaned when cold.
4.1 CLEANING CLADDING PARTS
• Wait until the device has cooled down before cleaning (at least 1 hour)!
• Decorative metal surfaces and the cladding parts can be cleaned with a
moist cloth (do not use a microfibre cloth!).
• Glass surfaces can be cleaned with a standard glass cleaner and a soft
cloth (do not use a microfibre cloth!)
• Stainless steel surfaces can be cleaned with a standard stainless steel
cleaner.
• Only use in the direction of the finish!
Remove any dust on and below the ebios-fire furniture regularly as dust
particles can burn or char. This can cause dirt in the room and on the
furnishings where the fire is installed.
5. MAINTENANCE/TROUBLESHOOTING
The wick and burner mat must be visually inspected at regular intervals.
The material can be easily damaged. As such, the burner mat should not be
folded, bent or similar. It is not permitted to change the burner mat or wick.
• The burner mat must be replaced after approx. 380 service hours (corre-
sponds to a fuel throughput of around 190 l bioethanol). Please contact
your specialist dealer.
• Only use our original spare parts.
• The tank seal must be examined occasionally for cracks or brittleness
and should be replaced if necessary.
• Please contact your specialist dealer should you have any questions.
5.1 FURNITURE AND GLASS (DEPENDING ON THE
MODEL) BECOMES SOOTED HEAVILY, RAPIDLY
AND UNEVENLY
If this did not occur from the very start, please check the following points:
• Has the correct fuel been used?
• Cladding/cover correctly positioned?
5.2 FIRE IS DIFFICULT TO IGNITE
If this did not occur from the very start, please check the following points:
• Is there fuel in the burner?
• Have you ignited the ignition mats?
• Has the correct fuel been used?
5.3 UNPLEASANT ODOURS
• Fuel in a burner which is not in use?
• Cover plate in position?
• Fuel was spilt when filling the device?
5.4 APPEARANCE OF FLAMES CHANGES
• Is the burner mat damaged?
• Has the correct fuel been used?
• Were all safety distances observed?
• Is the site of installation sufficiently ventilated?
• Is the installation site protected from transverse ventilation?
Should the appearance of the flames change, in particular if the flames
should rise above the glass panes, the device should be switched off (see
3.6) and the dealer must be notified!

GB 16
5.5 SPILT ETHANOL IGNITES
If spilt ethanol is ignited, attempt to put out the flames immediately. Use,
for example, foam fire extinguishers with alcohol-resistant foam or suitable
fire blankets. We recommend that such extinguishing agents be kept at the
ready.
Should it not prove possible to extinguish the fire quickly, the fire service
must be notified immediately and their instructions must be followed!
6. GENERAL WARRANTY CONDITIONS
6.1 AREA OF APPLICATION
These standard warranty terms apply for the contractual relationship bet-
ween the manufacturer, Spartherm Feuerungstechnik GmbH, and the dealer/
distributor. They are not congruent with the contractual and warranty terms
which the dealer/distributor offers his customers in individual cases.
6.2 GENERAL INFORMATION
This product has been manufactured in compliance with current standards
of quality control. The materials used have been carefully selected and - like
the production process - are subject to on-going quality control.
Specialist knowledge is required when assembling and installing the pro-
duct. The product must, therefore, only be installed and commissioned into
service by specialist technical staff, in compliance with current statutory
provisions.
6.3 WARRANTY PERIOD
The standard warranty terms only apply within Germany and the European
Union. The warranty period and scope of the warranty are ensured within the
framework of these conditions outside the statutory warranty which remains
unaffected.
Spartherm Feuerungstechnik GmbH grants a 24-month warranty on ebios-
fire devices (Solitaire and inserts)
Spartherm Feuerungstechnik GmbH grants a 6-month warranty on wearing
parts in the fire area, e.g., wicks, burner mats, seals and glass ceramic.
6.4 REQUIREMENTS FOR THIS WARRANTY TO BE
EFFECTIVE
The warranty period shall begin on the date, on which the product is deli-
vered to the dealer / distributor. Invoices or delivery notes may be used as
confirmation of the warranty commencement date. The warranty certificate
for the product must be presented by the claimant upon making a warranty
claim. Spartherm Feuerungstechnik GmbH is not obliged to satisfy any claim
if such documentation is not presented.
6.5 EXCLUSION OF WARRANTY
This warranty does not cover:
• component wear
Wick/burner mat due to thermal stress
• the fireplace surfaces:
Discolouration of the finish or on the galvanic surfaces of the furniture
and/or burner which are a result of thermal stresses or overloading
• the glass panes:
contamination, due to soot or other burnt-on combustion materials and
visual deterioration due to thermal loading.

GB 17
GB
• Use of unsuitable or non-designated fuel.
• We recommend bioethanol from Spartherm Feuerungstechnik GmbH
with a concentration in excess of 96% for your ebios-fire device.
• incorrect transportation and/or incorrect storage:
• inappropriate or careless handling of fragile components, such as glass
or ceramics
• improper operation and/or use
• incorrect filling of system
• lack of maintenance
• incorrect set-up/installation of device
• failure to comply with Installation and Operating Manual
• technical modifications made to the appliance by third parties
6.6 ELIMINATION OF DEFECTS / REPAIR
Independent of any statutory provisions acknowledged as taking precedence
over the terms of this warranty, all necessary repair works resulting from
material or manufacturing defect shall be carried out free-of-charge and
shall not invalidate the remaining provisions of the warranty.
Within the scope of this warranty promise Spartherm
Feuerungstechnik GmbH reserves the right to either remedy the fault or
replace the device free of charge. The elimination of defects shall take
precedence.
The terms of this warranty shall not extend to any damage or compensation
not covered by statutory provisions.
6.7 EXTENSION OF THE WARRANTY PERIOD
The warranty period shall automatically be extended, where claims made in
respect of these warranty provisions result in the repair or replacement of
defective equipment.
6.8 SPARE PARTS
Only the manufacturer’s own components, or replacement parts recom-
mend-ed and approved by the manufacturer, shall be used for appliance
servicing and repair.
6.9 LIABILITY
Damages and claims for compensation which are not the result of delivery
of a defective appliance from Spartherm Feuerungstechnik GmbH are exclu-
ded and are not part of this warranty promise.
The above shall not include claims made in respect of statutory legal
requirements.
6.10 FINAL COMMENTS
In addition to these warranty conditions and our commitment to them, our
dealers and contractual partners are pledged to assist you in both word
and deed.
It is expressly recommended to have ebios-fire products checked regularly
by a stove fitter/specialist dealer.
We reserve the right to make alterations to the technical data con-
tained herein and accept no liability in respect of any errors made.

GB 18
7. DECLARATION FROM THE BUILDER
OF A CUSTOM-MADE PIECE OF
FURNITURE/FIREPLACE WITH THE
ARCHITECTURE SL
The furniture/stove builder must confirm to the buyer of the custom-made
piece of furniture with the architecture SL that it has been properly con-
structed (piece of furniture/stove) and installed (burner). The builder con-
firms that all the points listed in these instructions have been taken into
account and included in his design. Furthermore, the builder must hand
over these instructions to the buyer. The builder submits his declaration to
the buyer in writing.
IMPORTANT: Keep in a safe place!
Store these instructions with valid and clearly dated proof of purchase and
have the documents ready for our technicians in the event of service work.

GB 19
GB
NOTE

GB 20
SPARTHERM
DIE WELTMARKE FÜR IHR WOHNZIMMER
The Global brand for your living room | La référence mondiale pour votre salon | Il marchio mondiale per il vostro soggiorno
La marca mundial para su salón | Het merk van wereldformaat voor uw woonkamer | Światowa marka do Państwa salonu
Торговая марка № 1 для Вашего дома
D Ihr Fachhändler | UK Your specialist dealer | F Votre revendeur spécialisé
IT Il vostro rivenditore specializzato | E Sus comercios especializados
NL Uw vakhandelaar | PL Państwa sprzedawca | РУС Ваш дилер
A1-SP-GB/0.000/11/2015
SPARTHERM Feuerungstechnik GmbH · Maschweg 38 · D-49324 Melle
Phone [phone] · Fax [phone] · www.spartherm.com
