Sper scientific 850007 User manual

Visible Light
SD Card Datalogger
850007
Instruction Maual

2 3
Visible Light SD Card Datalogger - 850007
Copyright ©2015 by Sper Scientic
ALL RIGHTS RESERVED
Printed in the USA
The contents of this manual may not be reproduced or transmitted in any
form or by any means electronic, mechanical, or other means that do not
yet exist or may be developed, including photocopying, recording, or any
information storage and retrieval system without the express permission
from Sper Scientic.
INTRODUCTION ..........................................3
FEATURES ..............................................3
MATERIALS SUPPLIED ....................................3
POWER SUPPLY ..........................................4
METER COMPONENTS & KEYPAD...........................4
SETUP ..................................................5
MEASUREMENT PROCEDURES.............................6
DATALOGGER ...........................................10
BATTERY REPLACEMENT .................................12
TROUBLESHOOTING .....................................12
SPECIFICATIONS ........................................13
WARRANTY.............................................16
TABLE OF CONTENTS

3
INTRODUCTION
The Sper Scientic Visible Light SD Card Datalogger (Model 850007) is an
intelligent meter that reads light in Lux or Foot Candles and functions as a
Type K/J thermocouple thermometer.
This meter features a real time SD memory card datalogger. Standard,
portable SD memory cards provide unlimited data storage and upload
pre-formatted data directly to Excel, eliminating the need for cables or
software. Each data set includes light measurement, time and date.
FEATURES
• Functions as a light meter
and Type K/J thermometer
• Three ranges for light
measurement
• Auto range for light measurement
• Lux or Foot Candles
unit selection
• SD memory card datalogger
• Manual datalogger option
• Photo sensor spectrum
meets CIE
• Zero adjustment
• Highly accurate
microcomputer circuit
• Direct upload of data to Excel
• Detachable probe for measuring
exibility
• Internal clock and calendar
• Touch-tone
• Tripod mounting screw
• Built-in tabletop stand
• Maximum and minimum
• Hold function
• Auto-power-o󰀨
• Low battery indicator
• Backlight
MATERIALS SUPPLIED
• Meter
• Sensor
• SD Card
• 6 AA Batteries
• Instruction Manual
• Soft Carrying Case

4 5
POWER SUPPLY
This meter can be powered by six AA (1.5 V, UM3) batteries or an
optional 9 Volt DC adapter. See battery replacement instructions.
Plug the adaptor into the power port labelled “DC 9V,” located on the
side of the meter.
Note…
When using the adapter, the meter will remain permanently
ON and the POWER button will be disabled.

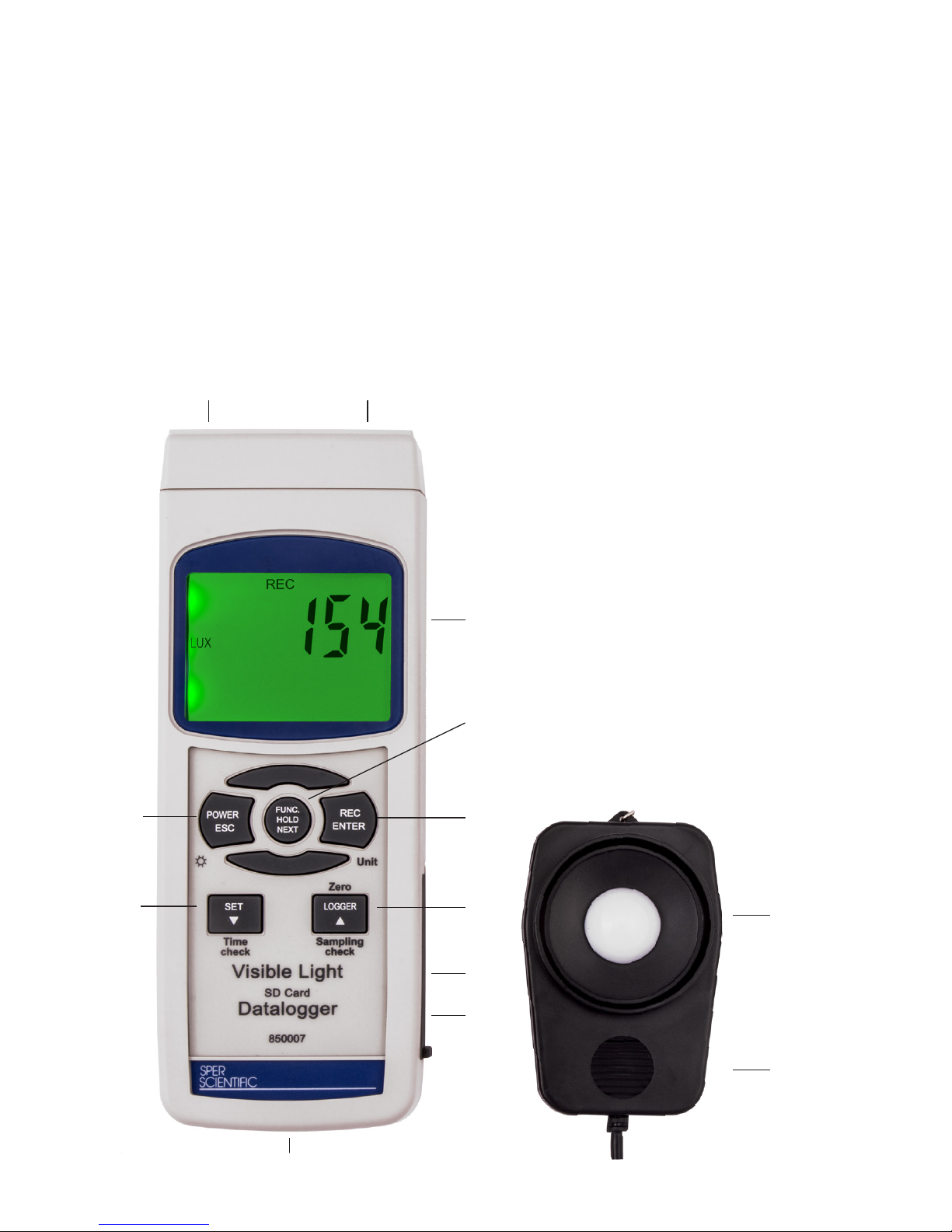

METER COMPONENTS & KEYPAD
1 2
3
4
5
612
11
7
8
9
10
13
1. Type K/J Thermocouple Socket
2. Light Sensor Input Socket
3. LCD Screen
4. Function/Hold/Next Button
5. Record/Enter Button
6. Logger/Sampling Check/Zero/
▲ Button
7. Reset
8. CD 9V Adapter Input Socket
9. SD Card Socket
10. Set/Time Check/▲ Button
11. Power/Esc Button
12. Light Sensor
(sensor cover not pictured)
13. Sensor Handle

5
SETUP MODE
The advanced Setup Mode allows you to customize the
following meter preferences and defaults:
• Real Time Clock
• Decimal Type
• Auto Power O󰀨
• Touch-Tone
• Thermometer Type K/J
• Temperature Units
• Sampling Time
• SD Memory Card Format
Note…
The setup functions can be performed under any parameter but not
while utilizing the datalogger function. Once selections are saved, the
meter will default to the selected preferences. Once a selection is saved,
the meter automatically advances to the next setup function (i.e., after
setting the real time clock, the meter will automatically enter the decimal
type setup function).
1. Press POWER to turn the meter on.
2. Press SET for 2 seconds or longer to enter Setup Mode.
3. Press NEXT to cycle through the setup functions.
Note…
Press ESC to exit Setup Mode. The meter will return to Normal Mode.
Real Time Clock
1. Enter the clock function from Setup Mode (as described above).
“dAtE” appears on the LCD.
2. Press ENTER. The year will appear on the LCD.
3. Press ▲ or ▼ to adjust the value. Press ENTER to save the value.
4. Repeat Step 3 to adjust the month, date, hour, minute and second.
Note…
This procedure adjusts the meter’s internal clock. The internal clock will
function when the meter is turned o󰀨 but only when the batteries have
adequate power (not with low battery power.)

67
Decimal Type
Although the decimal is commonly expressed as the “.” symbol (i.e., 20.6
or 1000.53), some (European) countries use a “,” symbol to represent the
decimal (i.e., 20,6 or 1000,53). The meter defaults to the period symbol.
To adjust:
1. Enter the decimal type function from Setup Mode (see page 5).
“dEC” appears on the LCD.
2. Press ▲ or ▼ to select Basic (.) or Euro (,). Press ENTER to
save the selection.
Auto Power O󰀨
The meter automatically turns o󰀨 after 10 minutes of inactivity,
however this function can be disabled.
1. Enter the auto power o󰀨 function from Setup Mode (see page 5).
“PoFF” appears on the LCD.
2. Press ▲ or ▼ to select yes (auto power o󰀨 enabled) or no
(auto power o󰀨 disabled). Press ENTER to save the selection.
Touch-Tone
1. Enter the touch-tone function from Setup Mode (see page 5).
“bEEP” appears on the LCD.
2. Press ▲ or ▼ to select yes (touch-tone enabled) or no
(touch-tone disabled). Press ENTER to save the selection
Thermometer Type K/J
1. Enter the thermometer type function from Setup Mode
(see page 5). “tYPE” appears on the LCD.
2. Press ▲ or ▼ to select K or J. Press ENTER to save
the selection.
Temperature Units
1. Enter the temperature units function from Setup Mode
(see page 5). “t-CF” appears on the LCD.
2. Press ▲ or ▼ to select C (degrees Celsius) or F (degrees Fahrenheit).
Press ENTER to save the selection.

7
Sampling Time
The sampling time is the time allotted between successive
measurements. To adjust the sampling time (in seconds):
1. Enter the sampling time function from Setup Mode (see page 5).
“SP-t” appears on the LCD.
2. Press ▲ or ▼ to adjust the value (0, 1, 2, 5, 10, 30, 60, 120, 300,
600, 800, 1800, 3600 seconds). Press ENTER to save the value.
SD Memory Card Format
Enabling this function will format the SD memory card to work
specically with your meter. Formatting the SD card will erase any
previous memory on the card. New SD cards should be formatted
to work with your meter.
1. Enter the SD memory card format function from Setup Mode
(see page 5). “Sd F” appears on the LCD.
2. Press ▲ or ▼ to select yes (format the SD memory card) or no
(do not format the SD memory card). Press ENTER to conrm your
selection. If selecting yes, “yES Enter” will appear on the LCD,
press ENTER again and the meter will format the SD card.
MEASUREMENT PROCEDURES
Turning the Unit On/O󰀨
Press POWER to turn the meter on.
Press and hold POWER for 2 seconds to turn the meter o󰀨.
Selecting the Function
1. Press and hold FUNC to cycle through the options listed below.
Release FUNC when you reach the desired function.
Light Meter: “LIgHt” appears on the LCD.
Type K/J thermometer: “tP” appears on the LCD.
Note…
The meter will default to the last function setting used when it is
turned o󰀨 and on again.

89
Light Meter
1. Press POWER to turn the meter on.
2. Plug the probe plug into the probe input socket.
3. Remove the sensor cover from the light sensor.
4. Press and hold FUNC to cycle through the options until “LIgHt”
appears on the LCD. Release the FUNC button.
5. While holding the sensor handle, point the light sensor directly toward
(facing) the light source. The light measurement will appear on the LCD.
Note…
This meter measures light in Lux or Foot Candles (Ft-cd). To change the
light unit, press and hold REC ENTER. Release REC ENTER when the
desired unit appears on the LCD.
Zero Adjustment
During light measurement, if the display does not show a value of
0 when the sensor cover is placed on the light sensor, zero adjustment
is needed:
1. With the sensor cover on, press ZERO for longer than 3 seconds.
A value of 0 will appear on the LCD.
2. Remove the sensor cover to resume normal measurement.
Type K/J Thermometer
1. Press POWER to turn the meter on.
2. Press and hold FUNC to cycle through the options until “tP”
appears on the LCD. Release the FUNC button.
3. Plug a thermocouple temperature probe (type K or J) into the
thermometer socket. The temperature measurement will appear on
the LCD along with “K” or “J” to indicate the thermocouple type.
Note…
When using the meter for the rst time, the meter will default to K
type thermocouple. See page 6 for instructions on changing the
thermocouple type.
Hold Function
1. When measuring any parameter, press HOLD to freeze the reading
on the display. “HOLD” will appear on the LCD.
2. Press HOLD again to release the hold function. “HOLD” will
disappear from the LCD.

9
Maximum and Minimum
To record maximum and minimum readings:
1. When measuring any parameter, press REC to begin recording the
maximum and minimum values. “REC” appears on the LCD.
2. Press REC . The maximum value and “REC MAX” will appear on the LCD.
3. Press REC. The minimum value and “REC MIN” will appear on the LCD.
4. To delete the maximum or minimum value, press HOLD. “REC”
appears on the LCD and the meter will begin recording the maximum
and minimum values again.
5. To exit the min/max function, press and hold REC for 2 seconds.
The meter will return to Normal Mode.
Note…
The meter cannot be turned o󰀨 from the memory record function.
Exit the function, then press and hold POWER to turn the meter o󰀨.
Backlight
The backlight turns on automatically when the meter is turned on.
Press  to turn the backlight o󰀨.
Press  to turn the backlight on.
View Real Time Clock
To view the time function during normal measurement (not during
datalogging):
1. Press TIME CHECK. The time information (Year, Month/Date,
Hour/Minute) will appear on the lower display of the LCD.
View Sampling Time
To view the sampling time function during normal measurement
(not during datalogging):
1. Press SAMPLING CHECK. The sampling time (in seconds)
will appear on the lower display of the LCD.

10 11
DATALOGGER
Preparing the Datalogger
1. Insert the SD card into the SD card socket on the bottom of the meter,
ensuring that the front of the SD card faces the back of the meter.
2. Format the SD card as needed (see page 7).
3. Set the clock if using the meter for the rst time (see page 7).
4. Set the decimal type if using the meter for the rst time (see page 6).
Auto Datalogging
1. Set the sampling time to ≥ 1 second. Refer to page 7.
2. Press REC. “REC will appear on the LCD.
3. Press LOGGER. “REC” will ash on the LCD and the alarm will sound
while the measurement data and time information are saved to memory.
4. To pause datalogging, press LOGGER. The meter will temporarily
stop recording and “REC” will stop ashing on the LCD. Press
LOGGER again to resume datalogging. “REC” will ash on the LCD.
5. To nish datalogging, pause the datalogger. Press REC for 2 secs. or
longer. “REC” will disappear from the LCD to indicate that datalogging
has ended.
Note…
To enable/disable the touch-tone feature, see page 6.
Manual Datalogging
1. Set the sampling time to 0 seconds. Refer to page 7.
2. Press REC. “REC will appear on the LCD.
3. Press LOGGER. “REC” will ash on the LCD and the alarm will
sound while the measurement data and time information are saved to
memory. The position (location) number will appear on the bottom of
the LCD and will also be recorded on the SD card.
Note…
To enable/disable the touch-tone feature, see page 15. To change the
position number, press ▼. The position number will ash on the LCD.
Press ▲ or ▼ to set the position number (from 1 to 99). To indicate the
position location, P x (x = 1 to 99) will appear on the lower display. After
selecting the position number, press ENTER to conrm.
4. To nish datalogging, press REC for longer than 2 seconds. “REC”
will disappear from the LCD to indicate that datalogging has ended.

11
SD Card Data Structure
1. The rst time a SD card is used in this meter, a folder LXA01 will
be generated.
2. If the datalogger is being used for the rst time, a new le LXA01001.
XLS will be generated under the route LXA01\. After exiting the
datalogger and executing the function again, the data is saved to the
LXA01001.XLS le until the data reach 30,000 data columns. A new
le will then be generated (i.e., LXA01002.XLS).
3. The folder LXA01\ will hold 99 les. A new route (i.e., LXA02\) will be
generated when exceeding 99 les.
4. The le’s route structure:
LXA01\
LXA01001.XLS
LXA01002.XLS
…………………
LXA01099.XLS
LXA02\
LXA02001.XLS
LXA02002.XLS
…………………
LXA02099.XLS
LXAXX\
…………………
…………………
Note…
XX: Maximum value is 10.

12 13
BATTERY REPLACEMENT
This meter uses six AA (1.5 V, UM3) batteries. When the low battery
indicator appears on the LCD, battery replacement is needed. After the
icon appears on the LCD, in-spec measurement can still be made for
several hours before becoming inaccurate.
1. Press and hold POWER for 2 seconds to turn the meter o󰀨.
2. Unscrew the battery cover and remove from the meter.
3. Remove the old batteries and replace with six new AA batteries,
ensuring correct polarity.
4. Replace the battery cover. Tighten the screws on the battery cover to
secure to the meter.
TROUBLESHOOTING
System Reset
If the meter is not functioning properly (i.e., the system is frozen and the
keypad is non-operational), reset the meter:
1. Press POWER to turn the meter on.
2. Use a small tool (such as a disassembled paperclip or a pin) to press
the RESET button (located on the right side of the meter under the
protective black cover). Wait a few seconds for the meter to restart.

13
SPECIFICATIONS
Circuit Custom one-chip of microprocessor LSI circuit
Display LCD size: 52 mm x 38 mm. Backlight function.
Measurement Unit Light: Lux or Foot Candle
Type K/J Thermometer: °C or °F
Light Sensor Structure Photo diode and color correction lter,
spectrum designed to meet CIE
Temperature
Compensation
Automatic temperature compensation for the
humidity function and the type K/J thermometer.
Sampling Time of Display Approximately 1 second
Data Output RS232/USB PC computer interface
Memory Card SD card 1 GB to 16 GB
Operating Temperature 0 to 50°C
Operating Humidity < 85%RH
Power Supply
Alkaline or heavy duty DC 1.5 V battery
(UM3, AA) x 6 pieces
DC 9V adapter input
(AC/DC power adapter is optional)
Power Current
Normal Operation (without use of the datalogger
or backlight): Approximately DC 6.5 mA
Datalogger Operation (backlight is o󰀨):
Approximately DC 30 mA
If the backlight is on, the power consumption
will increase by approximately 16 mA.
Dimensions 7" × 2¾" × 1¾" (178 × 70 × 44 mm)
Weight 11.4 oz (323 g)

14 15
SPECIFICATIONS
The following specication tests were performed in an ambient
temperature of 23 ± 5°C:
Light
Unit Range Maximum In-Range Display
Lux
(Auto Range)
2,000 Lux 0 to 1,999 Lux
20,000 Lux 1,800 to 19,990 Lux
100,000 Lux 18,000 to 99,900 Lux
Foot Candles
(Auto Range)
200 Ft-cd 0 to 186 Ft-cd
2,000 Ft-cd 167 to 1,860 Ft-cd
10,000 Ft-cd 1,670 to 9,290.7 Ft-cd
Range Resolution Accuracy
2,000 Lux 1 Lux
± (4% reading + 2 dgt)
20,000 Lux 10 Lux
100,000 Lux 100 Lux
200 Ft-cd 0.1 Ft-cd
2,000 Ft-cd 1 Ft-cd ± (4% reading + 2 Ft-cd)
10,000 Ft-cd 10 Ft-cd ± (4% reading + 20 Ft-cd)
Note...
The accuracy for the specications shown above was tested with a
standard parallel light tungsten lamp of 2856 K temperature.

15
Type K/J Thermometer
Sensor Type Range Resolution Accuracy
Type K
-50.0 to 1300°C
-50.1 to -100°C 0.1°C ± (0.4% reading + 0.5°C) ± (0.4% reading + 1°C)
-58.0 to 2372°F
-58.1 to -148°F 0.1°F ± (0.4% reading + 1°F) ± (0.4% reading + 1.8°F)
Type J
-50.0 to 1200°C
-50.1 to -100°C 0.1°C ± (0.4% reading + 0.5°C) ± (0.4% reading + 1°C)
-58.0 to 2192°F
-58.1 to -148°F 0.1°F ± (0.4% reading + 1°F) ± (0.4% reading + 1.8°F)

16 PB
WARRANTY
Sper Scientic warrants this product against defects in materials
and workmanship for a period of ve (5) years from the date
of purchase, and agrees to repair or replace any defective unit
without charge. If your model has since been discontinued, an
equivalent Sper Scientic product will be substituted if available.
This warranty does not cover probes, batteries, battery leakage, or
damage resulting from accident, tampering, misuse, or abuse of the
product. Opening the meter to expose its electronics will break the
waterproof seal and void the warranty.
To obtain warranty service, ship the unit postage prepaid to:
SPER SCIENTIFIC LTD.
8281 East Evans Road, Suite #103
Scottsdale, AZ 85260
The defective unit must be accompanied by a description of the
problem and your return address. Register your product online at
www.sperwarranty.com within 10 days of purchase.
Rev 3/8/2018
