SPIERINGS AT3 User manual

MANUAL SPIERINGS TRUCK AT3
T AT3-EN-051115 truck.doc
I
Preface
Dear user,
This operating manual provides the user of the Spierings folding crane with information concerning the crane's
construction and operation. You will find detailed technical specifications and maintenance instructions in the
maintenance part of this manual.
© Copyright Spierings Cranes.
All rights reserved.
No part of this publication may be reproduced or published, in any form or in any way, by print, photo print, microfilm or any other means without prior permission from the
manufacturer.
365054

MANUAL SPIERINGS TRUCK AT3
T AT3-EN-051115 truck.doc
II
Liability clause
SECTION 1. OPERATION
1.1 The Spierings truck may only be used for the purpose it was manufactured and designed for and only as
described in the user manual or in the additions to it.
1.2 Any use of the Spierings truck that differs from its design purpose or as described in the use manual or
the additions to it, will cause the product warranty and the manufacturer’s liability, for any direct or
indirect damage, to expire.
1.3 Only qualified, skilled personnel are allowed to operate the truck. The driver should have a special
driving license for driving heavy vehicles. The driver/operator must be in good physical and mental
health, so that he/she is able to carry out the work without restrictions and react with responsibility in all
given situations.
1.4 The driver/operator/user of the Spierings truck should be informed immediately of any additions/changes
to the user manual.
SECTION 2. SAFETY
2.1 For safety reasons the driver/operator/user should carry out all operations as stated in the user manual
or in the additions to it.
2.2 If more stringent safety demands are locally placed on the truck/crane than specified in the Spierings
truck user manual or additions to it, these more stringent requirements must be strictly complied with. If
not, all warranty will expire and the manufacturer will not be liable for any damage or costs.
2.3 The Spierings truck manufacturer points out explicitly, that the driver/operator/user and local personnel
should not enter the cranes/trucks danger zone. If, for any reason or cause, an unexpected situation
occurs during operation one should contact the technical department or Spierings Service department
first before proceeding.
SECTION 3. WARRANTY
3.1 It is prohibited to carry out modifications or welding to the Spierings truck without prior written permission
of the manufacturer of the Spierings truck.
3.2 Frequent maintenance and periodic checks should be carried out in accordance with the user manual, or
in the additions to it. If maintenance or checks are carried out otherwise, or less frequent, without prior
written permission of the manufacturer of the Spierings truck, all warranty will expire and any liability, for
direct or indirect damage, is explicitly excluded.
365054

MANUAL SPIERINGS TRUCK AT3
T AT3-EN-051115 truck.doc
III
Explanation of the symbols used
CAUTION!
Wear safety goggles!
Wear safety gloves!
Wear safety boots!
Wear head protection!
Use safety belt!
Check!
Manual action!
Automatic action!
Wrong!
Right!
Information!
365054

MANUAL SPIERINGS TRUCK AT3
T AT3-EN-051115 truck.doc
IV
Index
PREFACE ................................................................................................................................................................ I
LIABILITY CLAUSE................................................................................................................................................ II
EXPLANATION OF THE SYMBOLS USED.......................................................................................................... III
INDEX ....................................................................................................................................................................IV
1. GENERAL DATA AT3.............................................................................................................................. 1-1
2. OPERATION............................................................................................................................................. 2-1

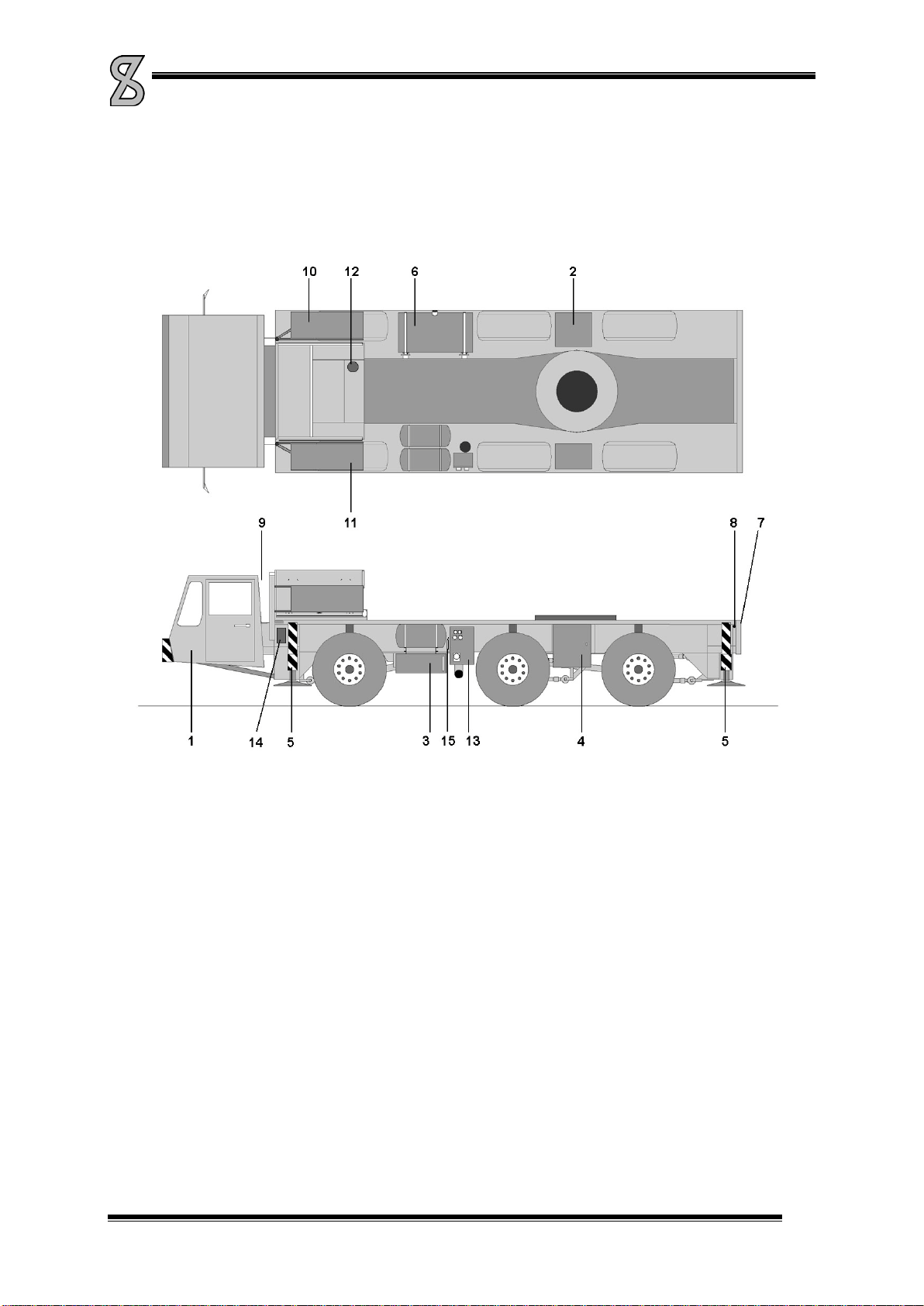

2.1. Get to know the truck .................................................................................................................. 2-1
2.2. Truck cab .................................................................................................................................... 2-4
2.2.1. Getting in....................................................................................................................... 2-4
2.2.2. Doors............................................................................................................................. 2-4
2.2.3. Wing mirrors.................................................................................................................. 2-4
2.2.4. Seats............................................................................................................................. 2-4
2.2.5. Fuse box........................................................................................................................ 2-4
2.2.6. Windscreen washer reservoir........................................................................................ 2-5
2.2.7. Battery charger remote control batteries ....................................................................... 2-5
2.2.8. Fire Extinguisher............................................................................................................ 2-5
2.3. Control panel............................................................................................................................... 2-6
2.4. Driving the Spierings crane carrier............................................................................................ 2-13
2.4.1. Starting........................................................................................................................ 2-13
2.4.2. Turning off the engine.................................................................................................. 2-14
2.5. Driving on the road.................................................................................................................... 2-14
2.6. Driving off the road.................................................................................................................... 2-15
2.6.1. Off the road gear shift road/terrain transfer case......................................................... 2-15
2.6.2. Front wheel drive......................................................................................................... 2-15
2.6.3. Transverse differential lock.......................................................................................... 2-15
2.7. Braking system.......................................................................................................................... 2-16
2.7.1. Operating brake........................................................................................................... 2-16
2.7.2. Parking brake .............................................................................................................. 2-16
2.7.3. Vacuum brake/engine stop.......................................................................................... 2-16
2.8. Parking...................................................................................................................................... 2-16
2.9. Towing the crane....................................................................................................................... 2-17
2.9.1. Towing free.................................................................................................................. 2-17
2.9.2. Towing on the road...................................................................................................... 2-17
2.9.3. Switching the transfer case to neutral.......................................................................... 2-18
2.10. Driving with erected tower......................................................................................................... 2-18
2.11. Axle height adjustment.............................................................................................................. 2-19
2.11.1. Levelling.................................................................................................................... 2-19
2.11.2. Block suspension....................................................................................................... 2-19
2.11.3. Off the road mode...................................................................................................... 2-19
3. MAINTENANCE........................................................................................................................................ 3-1
3.1. General ....................................................................................................................................... 3-1
3.1.1. Clothing......................................................................................................................... 3-1
3.1.2. Surroundings................................................................................................................. 3-1
3.1.3. Diesel engine................................................................................................................. 3-1
3.1.4. Moving parts.................................................................................................................. 3-1
3.1.5. Oils and coolant............................................................................................................. 3-1
3.1.6. Environment .................................................................................................................. 3-2
365054

MANUAL SPIERINGS TRUCK AT3
T AT3-EN-051115 truck.doc
V
3.1.7. Welding ......................................................................................................................... 3-2
3.1.8. Refreshing oil/cooling system........................................................................................ 3-2
3.1.9. Fire extinguisher............................................................................................................ 3-2
3.1.10. Fire-risk ....................................................................................................................... 3-2
3.1.11. Cleaning of components.............................................................................................. 3-2
3.2. Maintenance plan AT3 truck........................................................................................................ 3-3
4. GREASING............................................................................................................................................... 4-1
4.1. Central grease system (Option) .................................................................................................. 4-1
4.1.1. Timer central lubrication system (optional).................................................................... 4-1
4.1.2. Grease reservoir central lubrication system .................................................................. 4-1
4.1.3. Greasing points central lubrication system.................................................................... 4-2
4.2. Manual lubrication....................................................................................................................... 4-3
4.2.1. Outrigger cylinders ........................................................................................................ 4-3
4.2.2. Gear change mechanism .............................................................................................. 4-4
4.2.3. Driven axles................................................................................................................... 4-4
4.2.4. Tower support................................................................................................................ 4-5
4.2.5. Cardan shafts................................................................................................................ 4-5
4.2.6. Steering system............................................................................................................. 4-6
4.2.7. Miscellaneous grease points ......................................................................................... 4-6
5. DRIVE LINE.............................................................................................................................................. 5-1
5.1. The diesel engine........................................................................................................................ 5-2
5.1.1. Specification diesel engine............................................................................................ 5-2
5.2. Maintenance plan diesel engine.................................................................................................. 5-3
5.2.1. Maintenance A-service interval...................................................................................... 5-3
5.2.2. Maintenance B-service interval...................................................................................... 5-3
5.2.3. Check components and hose connections for leaks...................................................... 5-3
5.3. Engine oil .................................................................................................................................... 5-4
5.3.1. Check engine oil level.................................................................................................... 5-4
5.3.2. Fill up engine oil............................................................................................................. 5-4
5.3.3. Engine oil change.......................................................................................................... 5-5
5.4. Oil filter........................................................................................................................................ 5-6
5.4.1. Oil filter replacement...................................................................................................... 5-6
5.5. Cooling system............................................................................................................................ 5-7
5.5.1. Check coolant level ....................................................................................................... 5-7
5.5.2. Changing coolant........................................................................................................... 5-8
5.5.3. Check antifreeze concentration..................................................................................... 5-8
5.5.4. Radiator and intercooler element inspection/cleaning................................................... 5-8
5.5.5. Cooling system hoses ................................................................................................... 5-9
5.6. Air inlet system.......................................................................................................................... 5-10
5.6.1. Air cleaner cleaning/replacement ................................................................................ 5-10
5.6.2. Check the air inlet system ........................................................................................... 5-10
5.7. Fuel system............................................................................................................................... 5-11
5.7.1. Fuel filter replacement................................................................................................. 5-11
5.7.2. Cleaning filter bolt fuel system..................................................................................... 5-11
5.7.3. Bleeding the fuel system ............................................................................................. 5-12
5.7.4. Check for fuel leaks..................................................................................................... 5-12
5.8. Water separator ........................................................................................................................ 5-13
5.8.1. Draining water separator............................................................................................. 5-13
5.8.2. Clean filter water separator.......................................................................................... 5-13
5.8.3. Replace filter water separator...................................................................................... 5-14
5.9. V-belts....................................................................................................................................... 5-14
5.9.1. V-belts inspection........................................................................................................ 5-14
365054

MANUAL SPIERINGS TRUCK AT3
T AT3-EN-051115 truck.doc
VI
5.9.2. V-belts tensioning........................................................................................................ 5-16
5.9.3. V-belt replacement: ..................................................................................................... 5-16
5.10. Exhaust system......................................................................................................................... 5-16
5.11. Valve clearance......................................................................................................................... 5-16
5.11.1. Valve clearance check and adjustment..................................................................... 5-16
5.12. Injectors..................................................................................................................................... 5-18
5.12.1. Injectors opening pressure inspection and adjustment.............................................. 5-18
5.13. Clutch and gear box.................................................................................................................. 5-20
5.13.1. Specifications gear box ............................................................................................. 5-20
5.13.2. Check oil level gearbox ............................................................................................. 5-20
5.13.3. Bleeding gearbox....................................................................................................... 5-20
5.13.4. Gear box oil change .................................................................................................. 5-21
5.13.5. Clutch fluid level ........................................................................................................ 5-21
5.13.6. Clutch bleeding.......................................................................................................... 5-22
5.13.7. Check clutch.............................................................................................................. 5-22
5.13.8. Maintenance gear box............................................................................................... 5-22
5.14. Transfer case............................................................................................................................ 5-23
5.14.1. Specifications transfer case....................................................................................... 5-23
5.14.2. Maintenance transfer case........................................................................................ 5-23
5.14.3. Check oil level transfer case...................................................................................... 5-23
5.14.4. Transfer case oil change........................................................................................... 5-24
5.15. Axles ......................................................................................................................................... 5-25
5.15.1. Maintenance axles..................................................................................................... 5-25
5.15.2. Check oil level differentials........................................................................................ 5-25
5.15.3. Differential oil change................................................................................................ 5-26
5.15.4. Check oil level hubs................................................................................................... 5-26
5.15.5. Hubs oil change......................................................................................................... 5-27
5.16. Tires.......................................................................................................................................... 5-27
5.16.1. Maintenance tires...................................................................................................... 5-27
5.16.2. Tire pressure ............................................................................................................. 5-27
5.17. Check the brake lining thickness............................................................................................... 5-28
5.17.1. Brakes....................................................................................................................... 5-28
6. THE HYDRAULIC SYSTEM ..................................................................................................................... 6-1
6.1. Structure hydraulic system.......................................................................................................... 6-1
6.1.1. Hydraulic pump system................................................................................................. 6-1
6.1.2. Hydraulic steering system ............................................................................................. 6-2
6.1.3. Hydraulic suspension .................................................................................................... 6-2
6.1.4. Hydraulic outrigger system............................................................................................ 6-2
6.2. Maintenance hydraulic system.................................................................................................... 6-3
6.2.1. Check oil level ............................................................................................................... 6-3
Change hydraulic oil.................................................................................................................... 6-3
6.2.2. Replace oil filter............................................................................................................. 6-4
6.2.3. Check the accumulators of the suspension................................................................... 6-4
6.2.4. Check the hydraulic system........................................................................................... 6-4
7. STEERING SYSTEM................................................................................................................................ 7-1
7.1. Structure mechanical steering system ........................................................................................ 7-1
7.2. Maintenance mechanical steering system................................................................................... 7-2
7.2.1. Check steering arms, ball joints and steering rods for play and deformation................. 7-2
7.2.2. Check steering system joints and splains for sufficient lubrication ................................ 7-2
7.2.3. Truck aligning................................................................................................................ 7-2
8. THE PNEUMATIC SYSTEM..................................................................................................................... 8-1
365054

MANUAL SPIERINGS TRUCK AT3
T AT3-EN-051115 truck.doc
VII
8.1. Structure pneumatic system........................................................................................................ 8-1
8.1.1. Braking system.............................................................................................................. 8-1
8.1.2. Accessories................................................................................................................... 8-1
8.2. Maintenance pneumatic system.................................................................................................. 8-2
8.2.1. Change filter element air-dryer...................................................................................... 8-2
8.2.2. Check air vessels .......................................................................................................... 8-2
8.2.3. Check air hoses and connections.................................................................................. 8-3
8.2.4. Check brake pressure ................................................................................................... 8-3
9. ELECTRICAL SYSTEM............................................................................................................................ 9-1
9.1. Structure electrical system.......................................................................................................... 9-1
9.1.1. Power for powering the crane........................................................................................ 9-1
9.1.2. Fuses............................................................................................................................. 9-1
9.1.3. Lighting.......................................................................................................................... 9-2
9.1.4. Check the batteries........................................................................................................ 9-3
9.1.5. Recharging the batteries ............................................................................................... 9-3
9.1.6. Replacing batteries........................................................................................................ 9-3
10. TECHNICAL DATA................................................................................................................................. 10-1
11. ENCLOSURES ....................................................................................................................................... 11-1
365054

MANUAL SPIERINGS TRUCK AT3
T AT3-EN-051115 truck.doc
1-1
1. General data AT3
The AT3 carriage is especially designed for the Spierings SK365 folding crane. Extra attention is paid to a smooth
and comfortable transport to the work site. The crane is suited for driving on public roads, fully equipped with
counterweight and tools. The chassis is an especially rigid structure to create a good crane support.
In Picture 1-1 you will find the measurements of the SK365 with the AT3 carriage. The dimensions given are the
overall dimensions, axle bases and turning circle.
Picture 1-1
Drive unit:
•8.65 litres DAF diesel engine with turbo compressor and intercooler (type RS 222L).
•ZF gearbox with 8 gears forward, a slow speed gear and one gear reverse.
•STEYR high/low gear shift, transfer case, with high speed (road) and low speed (off the road) transmission.
•Three Ginaf axles, where axles one and three are driven.
365054

MANUAL SPIERINGS TRUCK AT3
T AT3-EN-051115 truck.doc
1-2
Steering:
•Axles one and two are steered.
•Mechanically coupled steering, where axle three is steered in the opposite direction of axle one, realizing a
small turning circle.
•Hydraulically powered 1-circuit steering system.
•Hydraulically powered 2-circuit steering system (serial no. 36550 and higher)
•Fitted with an emergency steering pump, so when the main steering pump malfunctions, the truck remains
steerable until it is at a standstill.
•Provisions for driving off the road:
- Axle height adjustable
- high/low gear shift transfer case can be put in low gear for driving off the road
- longitudinal and transverse differentials can be locked
Suspension:
•Hydro-pneumatic suspension
•The suspension can be blocked (e.g. when driving with erected tower).
Braking system:
•Pneumatic brakes.
4-point outrigger system:
•Wide support base : 6.90 m x 5.80 m
•Narrow support base : 6.90 m x 4.20 m
Power supply:
The superstructure can be supplied with power in two different ways:
•External power-supply 40 kVA during erecting and folding, 40 kVA during operation.
The truck built-in Leroy Somer 75 kVA generator is used for power supply to the superstructure when (sufficient)
external power is lacking.
Further data:
•Maximum speed limited to 84 km/h.
•Minimum speed at 1400 rpm: 2.3 km/h (is 38 m/min) .
•Truck weight including superstructure and counterweight 36,000 kg.
•The axle load is 12,000 kg per axle.
365054

MANUAL SPIERINGS TRUCK AT3
T AT3-EN-051115 truck.doc
1-3
Identification:
•Engine number: on top of the engine block.
•Carriage frame number: On the identification plate in the co-driver's leg-room
(See Picture 1-2) and stamped in the right frame girder in front of the
first axle (See Picture 1-3)
Picture 1-2
Picture 1-3
365054

MANUAL SPIERINGS TRUCK AT3
T AT3-EN-051115 truck.doc
2-1
2. Operation
2.1. Get to know the truck
Picture 2-1
1. Truck cab
Besides driving the crane, with the controls in the truck cab you can adjust the carriage axle height and switch the
generator (PTO) on and off.
2. Storage box / battery box
In this storage box, the batteries are placed.
3. Hydraulic oil tank / air pressure tanks
On this side of the truck you will find the hydraulic oil tank. A gauge glass is mounted for checking the level. On
top of the oil tank, the air tanks are mounted.
4. Storage box
This box is lockable and can be used for hoisting equipment.
365054

MANUAL SPIERINGS TRUCK AT3
T AT3-EN-051115 truck.doc
2-2
5. Outriggers
At both sides of the truck there are 2 extending outrigger beams, and to each beam a hydraulically operated
outrigger (See Picture 2-2). These outriggers provide stability during hoisting operation.
A: Outrigger pad holder
B: Outrigger beam
C: Antiskid
D: Outrigger cylinder
E: Outrigger pad
Picture 2-2
6. Fuel tank and battery switch
The fuel tank capacity is 400 litres. Above the fuel tank the battery switch is mounted. Turn the battery switch off,
before doing welding activities to the carrier or crane.
7. Bumper
The crane has a standard bumper at the rear.
8. Jib turning pipe
Through a hole in the deck you can reach the jib turning pipe. This pipe is used to swing the jib in front of the
tower during erecting and folding the crane.
9. Work lamps
Behind the truck cab work lamps are mounted on each side, which can be
switched on/off from the cab (see Picture 2-3).
Picture 2-3
10. Sling box (optional)
On the right-hand engine cowling (2) you can install a
sling box (1) to store your chains and slings. The sling
box can be turned aside so the engine housing remains
accessible.
Picture 2-4
365054

MANUAL SPIERINGS TRUCK AT3
T AT3-EN-051115 truck.doc
2-3
11. Spare tire / Sling box / pallet hook support / Hullo clamp support (optional)
On this location you can install one of the following options:
•Spare tire support fitted with a winch
•Sling box
•Pallet hook support
•Hullo clamp support
All these options can be turned aside so the engine housing remains accessible.
12. Underneath the engine cowling
Under the engine cowling at the
left hand side the filter for the
truck’s hydraulics (1) can be
found, as well as the breather (7)
and the filler cap (8). Also, the
fuel filter (9), the air dryer (3) and
the air vessel (2) for the air dryer
are mounted on the left side.
On the right hand side the inlet-
air filter (5), grease pump (4) for
automatic lubrication (optional)
and the electrical cabinet (6) are
located. (See Picture 2-5).
Picture 2-5
13. Power box
With the selector switch on the power-box, the power supply for the crane is selected. Either an external power
supply can be connected to this power box, or the built-in generator supplies the power. Power can also be
branched off for accessory equipment.
14. Outrigger control box
Two control boxes for the outriggers are located just behind the truck cabin. One on the left hand side and one on
the right hand side.
15. Exhaust valve handle
By operating the exhaust valve handle (1) the engine
exhaust gasses can be leaded either through the upper
exhaust pipe or the lower exhaust pipe.
Picture 2-6
365054

MANUAL SPIERINGS TRUCK AT3
T AT3-EN-051115 truck.doc
2-4
2.2. Truck cab
In the truck cab you drive the crane safely and comfortably to its destination. This chapter makes you familiar with
the cab.
2.2.1. Getting in
Use the step under the door. Make use of the steering wheel to hold on to.
2.2.2. Doors
Turn the handle up to open the door from the inside. The door can only be locked up from the outside.
There is an ashtray on the inside of the door. After opening the ashtray, you push the locking device down to
remove the ashtray from the holder to empty it.
2.2.3. Wing mirrors
The wing mirrors may be adjusted by hand. Make sure the mirrors are adjusted before driving off, so that you
have satisfactory view. The mirror heating (optional) can be switched on with the switch on the control panel.
2.2.4. Seats
The cab has room for the driver and a co-driver. Both seats
are damped by spring load. The seats can be adjusted. This
should only be done when the vehicle stands still.
1. Adjusting knob lumbar support
2. Adjusting knob back position
3. Height adjusting knob
4. Adjusting knob seat position
5. Adjusting lever seat forward/backward
6. Adjusting knob seat height
Picture 2-7
2.2.5. Fuse box
The fuse box is mounted right-handed at the co-driver's side. You will find the fuses listed in the enclosures.
365054

MANUAL SPIERINGS TRUCK AT3
T AT3-EN-051115 truck.doc
2-5
2.2.6. Windscreen washer reservoir
The windscreen washer reservoir (2) is mounted on the left-handed side below the dashboard on the co-driver’s
side. (See Picture 2-8)
Picture 2-8
2.2.7. Battery charger remote control batteries
You will find the battery charger (1) for the remote control of the crane on the middle console of the cabin (See
Picture 2-8). The remote control of the crane comes with 2 batteries.
While the batteries are charging, an indicator lamp will light up. As soon as they are fully charged, the lamp starts
flashing.
2.2.8. Fire Extinguisher
One fire extinguisher is behind the co-driver's seat.
On the right behind the control box in the crane cab is the second fire extinguisher.
The fire extinguishers must be inspected every year by a certified company.
365054

MANUAL SPIERINGS TRUCK AT3
T AT3-EN-051115 truck.doc
2-6
2.3. Control panel
Picture 2-9
1. Airflow heater
2. Heater (this knob can also be located on the
left hand side of the tunnel)
3. Radio
4. Voltmeter batteries
5. Oil-pressure gauge (diesel engine)
6. Fuel gauge
7. Coolant temperature gauge
8. Revolution counter, hours counter
9. Indicator lamp full head beam
10. Indicator lamp charging batteries
11. Indicator lamps blinker
12. Indicator lamp air pressure
13. Indicator lamp air cleaner
14. Indicator lamp flame starting system
15. Indicator lamp oil pressure (diesel engine)
16. Battery charge gauge
17. Speed switch fan heater
18. Air-pressure gauge circuit 1
19. Air-pressure gauge circuit 2
20. Indicator lamp parking brake
21. Switch / indicator lamp working lights
22. Switch rotating beacon
23. Switch fog tail light
24. Light switch; off, parking light, dipped beam
25. Switch windscreen wiper
26. Switch windscreen washer
27. Switch cab interior light on the left
28. Switch cab interior light on the right
29. Switch alarm light
30. Switch transverse differential lock
31. Indicator lamp transverse differential lock
axle 1
32. Indicator lamp transverse differential lock
axle 3
33. Switch front wheel drive
34. Indicator lamp front wheel drive
35. Switch transfer case road/terrain gear
36. Maximum pressure outrigger system
37. Switch all axles in/out
38. Switch axle 1 in/out
39. Switch axles 2 and 3 left side in/out
40. Switch axles 2 and 3 right side in/out
41. Switch drive/levelling
42. Switch suspension blocked
43. Main switch PTO
44. Switch PTO on/off
49. Frequency meter generator
50. Voltmeter generator
52. Reservoir windscreen washer fluid
53. Dashboard cabinet
54. Fuse cabinet
55. Tachograph, speedometer, mileage, counter,
clock
56. Reservoir clutch fluid
57. Vacuum brake / engine stop
58. Lever for blinker and full beam
59. Ignition lock
60. Clutch pedal
61. Steering wheel
62. Brake pedal
63. Accelerator pedal
64. Manual pedal hold
65. Lever parking brake
66. Gear-lever
67. Indicator lamp emergency steering pump
(optional)
Right hand side of the cab:
365054

MANUAL SPIERINGS TRUCK AT3
T AT3-EN-051115 truck.doc
2-7
2. Knob heater warm / cold
turning this knob the air of the heater can be set warmer or colder. This knob can also be
located on the left hand side of the tunnel.
4. Voltmeter Batteries
On this meter you can read the battery condition. The meter must be in the middle (approx. 24 Volt)
5. Oil-pressure gauge diesel engine
When starting this gauge will read approx. 5 bar. As soon as the oil of the diesel engine is warmed
up it will read approx. 3 bar.
6. Fuel gauge
This gauge only functions when the ignition is switched on.
7. Coolant temperature gauge
On this gauge you can read the coolant temperature. In the diesel engine safety system an
overheating sensor is built-in. As soon as the temperature exceeds 110 °C, it activates the horn.
Also the Indicator light “oil pressure” (15) will light up. The engine must be switched off immediately.
10. Warning lamp charging voltage batteries
If the charging voltage of the batteries is too low, this indicator lamp will light up.
12. Warning lamp air-pressure
If the air-pressure in brake circuit 1 or 2 is below 5.5 bar, this indicator lamp will light up. The crane
can and must not be driven. If this lamp is on after starting the engine, leave the engine running at
idling speed until the air-pressure is 5.5 bar. The lamp will go out.
14. Indicator lamp pre-heating diesel engine
This lamp lights up when pre-heating the diesel engine. The light remains on while holding the
ignition key in position 1. Check pre-heating times in chapter “driving with the crane”
15. Oil-pressure indicator lamp
Immediately stop the engine when this lamp lights up. The oil pressure of the diesel engine is too
low or the coolant temperature is too high.
365054

MANUAL SPIERINGS TRUCK AT3
T AT3-EN-051115 truck.doc
2-8
18. Air-pressure gauge circuit 1
It indicates the air-pressure in brake circuit 1. When the pressure is below 5.5 bar, indicator lamp 12
will light up. The crane must not be driven.
19. Air-pressure gauge circuit 2
This gauge indicates the air-pressure in brake circuit 2. When the pressure is below 5.5 bar, indicator
lamp 12 will light up. The crane must not be driven.
20. Indicator lamp parking brake
As long as the parking brake is engaged, this lamp is on (when starting the engine the parking
brake remains engaged as long as the air-pressure is below 5.5 bar).
21. Work Lamps (optional)
At the rear of the cab or at the rear truck bumper work lamps can be installed. With this switch the
work lamps are switched on and off.
22. Rotating beacon
With this switch the Rotating beacon can be switched on and off.
23. Fog tail-light
With this switch the fog tail-light on the cab can be switched on and off.
24. Light switch
By pressing this switch halfway, the parking lights are switched on. By pressing the switch all the
way, the dipped beams are switched on.
25. Windscreen wiper
By pressing this switch halfway, the windshield wipers wipe at normal speed. By pressing the
switch all the way the windshield wipers wipe at high speed. There is no intermittent position.
365054

MANUAL SPIERINGS TRUCK AT3
T AT3-EN-051115 truck.doc
2-9
26. Windscreen washer
By pressing this switch the windshield wiper washer is activated.
27/28. Cab lighting
The driver can operate the cab lighting by operating the switches on the dashboard. The lighting will
also go on when opening the door. We advise you not to switch on the cab lighting when driving in
the dark, to prevent annoying reflections in the windscreen.
30/31/32. Switch / indicator lamp transverse differential lock.
Engage the transverse differential locks on axle 1 and 3. (30)
The two indicator lamps (31 and 32) show if the transverse differential locks on axle 1 and 3 are
engaged.
33/34. Switch / indicator lamp front wheel drive
Engage the front wheel drive. (33)
The indicator lamp (34) shows if the longitudinal differential lock on axle 1 is engaged.
35. Switch transfer case road/terrain gear
With this switch (35) the terrain (Low) or the road (High) gear can be selected on the transfer case.
Transfer case gear shift high (road) / low (terrain) may only be operated when the vehicle
stands still!
365054

MANUAL SPIERINGS TRUCK AT3
T AT3-EN-051115 truck.doc
2-10
36. Oil pressure suspension and outriggers
This lamp goes on and a buzzer sounds at the rear outriggers as soon as the pressure in the
outrigger/suspension system becomes too high, due to the fact, that the outriggers, axles or
outrigger beams are blocked while extending or retracting the cylinders.
During levelling operation and when moving the axles up or down, this light could also go on. This
does not present a problem.
If no outrigger/suspension function is operated, the lamp indicates a malfunction.
37. Switch all axles in/out
With this switch the cylinders of all axles are moved in and out simultaneously (e.g. when
supporting the crane on outriggers).
38. Switch axle 1 in/out
With this switch the cylinders of axle 1 are moved in and out.
39. Switch axles 2 and 3 left side in/out
With this switch the cylinders on the left side of axles 2 and 3 are moved in and out.
40. Switch axles 2 and 3 right side in/out
With this switch the cylinders on the right side of axles 2 and 3 are moved in and out.
41. Switch drive/levelling
With this selector switch either drive or levelling mode is selected.
42. Switch suspension blocked
When lowering the carrier – before putting the crane on outriggers – the suspension has to be
blocked.
365054
