Spirit XBR95 User manual

XBR95 RECUMBENT
BIKE
Scan to quickly and easily
register your new Spirit
Fitness machine.
If you require assistance or are
experiencing issues with your
Spirit Machine, please contact
customer care for additional help.
1-800-258-8511
questions@spirittness.com
Online Support
Warranty Registration
XBR95_951123_OM_20230725

1
Table of Contents
Product Registration.........................................................2
Warning / Safety Instructions
Product Labels .....................................................................3
Warnings, Compliance, and Notes.................................4
Safety Instructions .............................................................5
Parts and Assembly
Parts Included ..................................................................... 6
Parts of Your Recumbent Bike........................................7
Pre-Assembly ...................................................................... 8
Assembly............................................................................... 9
Setting Up Your Unit ........................................................13
Quick Start..........................................................................15
Technology and Features
About Your Machine ........................................................16
Console Screen - Overview............................................ 17
Console Screen - Workout Mode.................................18
Using the Spirit+ App.......................................................19
Features ..............................................................................20
Heart Rate Monitoring
Heart Rate Chest Strap.................................................. 22
Chest Strap Warning....................................................... 23
Heart Rate Exertion ........................................................ 24
Programs
Programs Intro.................................................................. 26
Programs - Preset ............................................................ 28
Maintenance
Maintenance & Care........................................................ 34
Engineering Mode............................................................ 35
Exploded View Diagram ................................................ 36
Parts List............................................................................. 37
Warranty
Warranty .............................................................................41

2
PRODUCT REGISTRATION
WARRANTY REGISTRATION
Use your smartphone to scan the QR code
above to quickly and easily register your
new Spirit Fitness machine.
You can also go to spirittness.com/
warranty under the Support tab to
register online.
Congratulations on your new Recumbent Bike, and welcome to the
Spirit Fitness family!
Thank you for your purchase of this quality unit from Spirit Fitness.
Your new unit was manufactured by one of the leading tness
manufacturers in the world and is backed by one of the most
comprehensive warranties available. Through your dealer, Spirit Fitness
will do all we can to make your ownership experience as pleasant as
possible for many years to come.
If not purchased direct from Spirit Fitness, the local dealership where
you purchased this unit is your administrator for all Spirit Fitness
warranty and service needs. Their responsibility is to provide you
with the technical knowledge and service personnel to make your
experience more informed and any diculties easier to remedy.
Please take a moment at this time to record the name of the dealer,
their telephone number, and the date of purchase below to make any
future, needed contact easy. We appreciate your support and we will
always remember that you are the reason that we are in business.
Serial
Number
Date of
Purchase
Dealer /
Place of
Purchase Version: 3.0
Revision: 07.25.23

3
PRODUCT LABELS
SERIAL NUMBER
[phone]
SERIAL NUMBER STICKER
This sticker will be found on the front stabilizer tube. Please
record the number below the barcode for the purpose of
registering your Recumbent Bike’s warranty.
PROPOSITION 65 WARNING
This sticker will be found on the interior side of
your Recumbent Bike’s upright. The State of
California requires us to inform you that this unit
was manufactured using chemicals that could
cause harm with improper use.
SAFETY WARNING STICKER
This sticker will be found on the interior side
of your Recumbent Bike’s upright. The same
warning can be found in this manual. Please
read and be aware of the precautions before
operating your unit.
1234 5678 9876

4
WARNINGS, COMPLIANCE AND NOTICES
NOTE: This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is
no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by
turning the equipment o and on, the user is encouraged to
try to correct the interference by one or more of the following
measures:
1. Reorient or relocate the receiving antenna.
2. Increase the separation between the equipment and
receiver.
3. Consult the dealer or an experienced radio/TV technician for
help.
CAUTION:
• To comply with FCC RF exposure compliance requirements,
a separation distance of at least 20 cm must be maintained
between the antenna of this device and all persons.
• This transmitter must not be co-located or operating in
conjunction with any other antenna or transmitter
This product has been certied to meet the following
standards:
• FCC part 15
• UL
• Bluetooth (with FTMS)
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1)
this device must not cause harmful interference, and (2)
this device must not accept any interference received,
including interference that may cause undesired
operation.

5
SAFETY INSTRUCTIONS
To reduce risk of injury to persons:
Read all instructions before using this appliance.
WARNING - To reduce the risk of burns, re electric shock, or
injury to persons:
1. This exercise equipment is not intended for use by persons
with reduced physical, sensory or mental capabilities, or lack of
experience and knowledge.
2. Use this appliance only for its intended use as described in this
manual. Do not use attachments not recommended by the
manufacturer.
3. Never operate the appliance with the air openings blocked. Keep the
air openings free of lint, hair, and the like.
4. Never drop or insert any object into any opening.
5. Do not use outdoors.
6. The appliance is intended for household use.
7. Do not operate equipment on deeply padded, plush or shag carpet.
Damage to both carpet and equipment may result.
8. Before beginning this or any exercise program, consult a physician.
This is especially important for persons over the age of 35 or persons
with pre-existing health conditions.
9. Keep hands away from all moving parts.
10. The pulse sensors are not medical devices. Various factors, including
the user’s movement, may aect the accuracy of heart rate readings.
The pulse sensors are intended only as exercise aids in determining
heart rate trends in general.
11. Do not attempt to use your equipment for any purpose other than
for the purpose it is intended.
12. Wear proper shoes. High heels, dress shoes, sandals or bare feet are
not suitable for use on your equipment. Quality athletic shoes are
recommended to avoid leg fatigue.
13. User Weight Limit: 350 lbs.
!
Please ensure that you review and adhere to the user
weight restrictions and power requirements of your
new machine. Failure to do so may result in serious
injury or damage to your machine.
!

6
PARTS INCLUDED
TOOLS INCLUDED:
12/14mm Wrench
13/15mm Wrench
13/14mm Wrench
Phillips Head Screwdriver
PARTS INCLUDED:
1 Main Frame
1 Console Mast
1 Rear Stabilizer
1 Seat Back Frame
1 Front Handle Bar
1 Handle Bar
1 Seat Back Cover
1 Console Tablet Holder
1 Console
1 Seat Cushion
2 Cup Holders
2 Pedals
1 Hardware Kit
Step.1
Step.2
Step.3
Tools
#112. 12/14mm Wrench #113. 13/15mm Wrench #130. 13/14mm Wrench#114. Phillips Head Screwdriver
#82. 5/16” x 1.5T
Split Washer (2 pcs)
#84. 3/8” x 25 x 2T
Flat Washer (2 pcs)
#89. 3/8” x 7T
Nyloc Nut (2 pcs)
#65. 3/8” x 53mm
Carriage Bolt (2 pcs)
#191. 3/8”
Cap Nut (2 pcs)
#67. 3/8” x 4”
Hex Head Bolt (2 pcs)
#83. 5/16” x 19 x 1.5T
Curved Washer (2 pcs)
#68. 5/16” x 5/8”
Hex Head Bolt (8 pcs)
#70. 5/16” x 1-1/4”
Hex Head Bolt (1 pc)
#76. 5/16” x 18 x 1.5T
Flat Washer (6 pcs)
#76. 5/16” x 18 x 1.5T
Flat Washer (1 pc)
#91. 5/16"×6T
Nyloc Nut (1 pc)
#99. M5 x 12mm
Phillips Head Screw (7 pcs)
#98. M6 x 15mm
Phillips Head Screw(4 pcs)
Step.4
#89. 3/8” x 7T
Nyloc Nut (4 pcs)
#77. 3/8” x 19 x 1.5T
Flat Washer (4 pcs)
#71. 3/8” x 1-3/4”
Hex Head Bolt (4 pcs)
#105. 4 x 16mm
Sheet Metal Screw (4 pcs)

7
PARTS OF YOUR RECUMBENT BIKE
A. Tablet Holder
B. LCD Screen
C. Standing Grip Handlebars
D. Adjustable Fan
E. Console Buttons
F. Console Mast
G. Adjustable Pedals
H. Pulse Grip Handlebars
I. Mesh Seat Back
J. Cup Holders
K. Seat Slide Rail
L. Rear Frame
M. Rear Stabilizer
N. Transport Wheel
A
B
D
E
F
C
GH
I
J
K
L
N
M

8
PRE-ASSEMBLY
1. Cut the straps, then lift the box over the unit and unpack.
2. Carefully remove all parts from the carton and inspect
for any damage or missing parts. If parts are damaged or
missing, contact your dealer immediately.
3. Locate the hardware package. Remove the tools rst.
4. Remove the hardware for each step as needed to avoid
confusion. The numbers in the instructions that are in
parenthesis (#) are the item number from the assembly
drawing for reference.

9

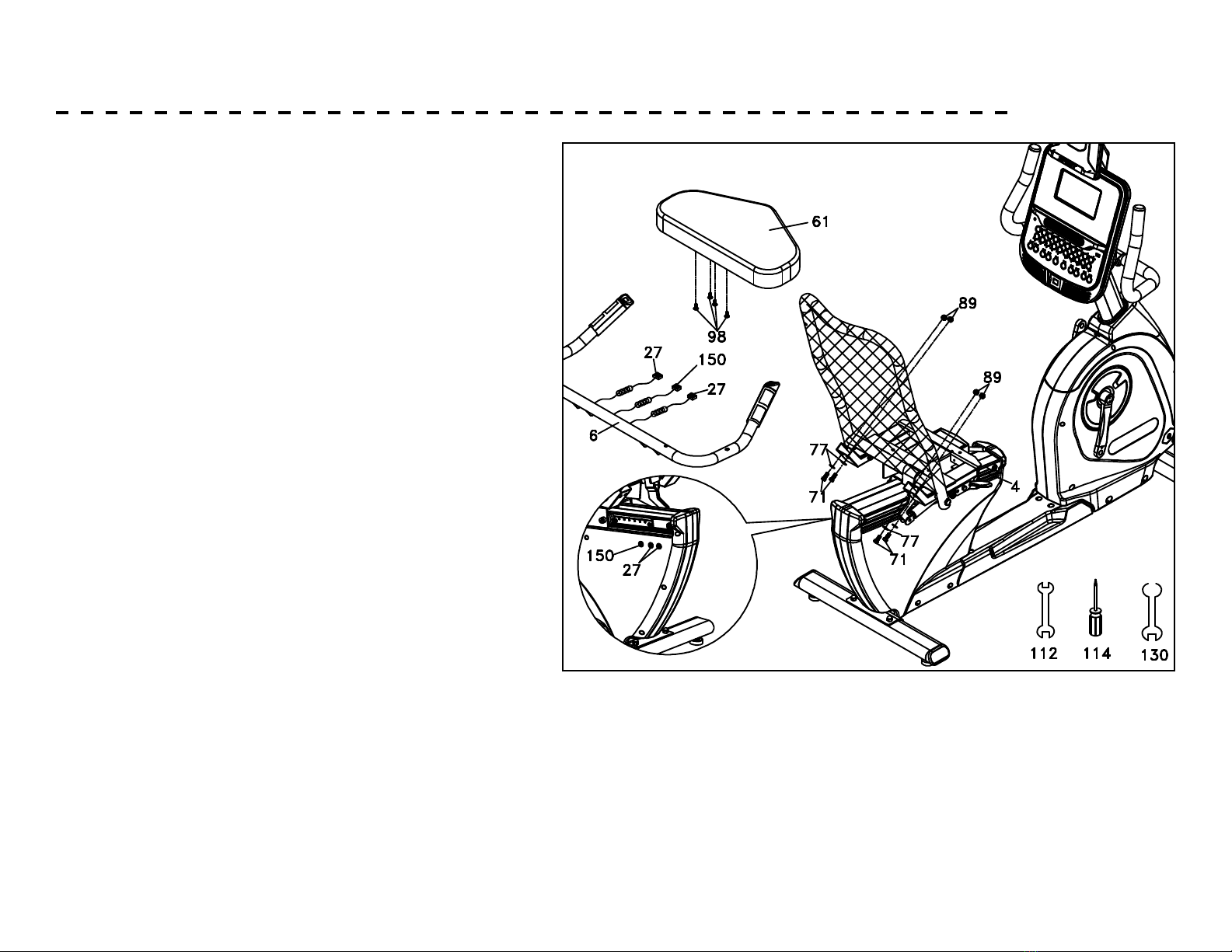

ASSEMBLY - STEP ONE - STABILIZER & SEAT BACK
1. Attach the REAR STABILIZER (7) to the MAIN FRAME
(1) with the 2 BOLTS (65) and 2 FLAT WASHERS (84)
and 2 CAP NUTS (191). Tighten completely with the
WRENCH (112).
2. Attach the SEAT BACK (5) to the SEAT CARRIAGE (4) of
the main frame. Slide 1 BOLT (67) through each side, then
attach a NYLON NUT (89) to each bolt. Tighten the bolts
just enough so there is no side to side play, but freedom
of movement front to back. Use the WRENCHES
provided (112 & 130).
3. Insert an END CAP (32) into each opening of the Front
Stabilizer Tube. You may need to tap them in with a
rubber mallet if they are resistant to being put in.
Step.1 Step.2 Step.3 Step.4

10
ASSEMBLY - STEP TWO - CONSOLE MAST
Step.1 Step.2 Step.3 Step.4
1. Slide the COMPUTER CABLE (44), HANDLEBAR
RESISTANCE CONTROL CABLE (148), and HAND PULSE
CABLE(45) through the bottom of the CONSOLE MAST
COVER (31) and then the bottom of the CONSOLE MAST (2).
Make sure the Console Mast Cover is correctly oriented (see
illustration).
Install the CONSOLE MAST (2) into the receiving tube (make
sure not to pinch cables; damage to the electronics could
occur) of the MAIN FRAME (1). Insert 2 BOLTS (68) and 2
FLAT WASHERS (76) on each side. Insert 2 BOLTS(68) and
2 CURVED WASHERS (83)on the front. Tighten all 6 bolts
rmly with the WRENCH (112). Remove the white styrofoam
pad (factory installed to prevent bolts from being accidentally
dropped into the Console Mast Tube).
2. Insert the COMPUTER CABLE (44), HANDLEBAR
RESISTANCE CONTROL CABLE (148), and HAND PULSE
CABLE (45) into their respective connectors in the back of
the CONSOLE ASSEMBLY (19). Attach the console onto
the mounting plate with 4 PHILLIPS HEAD SCREWS (99).
Tighten with the PHILLIPS HEAD SCREW DRIVER (114).
3. Attach the CONSOLE HOLDER (153) to the CONSOLE
ASSEMBLY (19) with 3 PHILLIPS HEAD SCREWS (99).
Tighten with the PHILLIPS HEAD SCREW DRIVER (114).
4. Attach the HANDLE BAR ASSEMBLY (3) onto the CONSOLE
MAST (2) bracket with 2 BOLTS (68),2 SPLIT WASHERS
(82), and 2 FLAT WASHERS (76).Completely tighten with the
WRENCH (112).

11
ASSEMBLY - STEP THREE - SEAT & HANDLE BAR
1. Install the SEAT (61) on the SEAT CARRIAGE (4) with
4 PHILLIPS HEAD SCREWS (98). Tighten with the
PHILLIPS HEAD SCREW DRIVER (114).
2. Attach the SEAT HANDLE BAR (6) to the SEAT
CARRIAGE (4) with the 4 Hex Head Bolts (71),4FLAT
WASHERS (77), and 4 NYLON NUTS (89). Tighten
with the WRENCHES provided (112 & 130).
3. Plug the HAND PULSE SENSOR CABLES (27) into
the rear two holes on the left side of the rear plastic
cover. Plug the HANDLEBAR RESISTANCE CABLES
(150) into the remaining front hole.
Step.1 Step.2 Step.3 Step.4

12
ASSEMBLY - STEP FOUR - PLASTIC PARTS
1. Install the GAS CYLINDER (57) on the SEAT BACK
FRAME (5) with 1 BOLT (70), 1 FLAT WASHER (76) and 1
NYLON NUT (91) by using the WRENCHES provided (112
& 113).
2. Attach the PEDALS (116) to the CRANK ARMS
(51L, 51R). Tighten with the WRENCH (113).
Remember that the LEFT PEDAL has a reverse
thread and will be threaded onto the Crank arm in a
COUNTERCLOCKWISE motion. There is an “L” stamped
in the end of the threaded post of the left pedal and an
“R” in the right. Make sure to tighten the pedals as rmly
as you can. It may be necessary to re-tighten the pedals if
you feel a thumping while pedaling the bike. A thumping
or clicking noise is usually caused by loose pedals.
3. Attach the DRINK BOTTLE HOLDERS (39L & 38R) to
the sides of the SEAT HANDLE BAR (6) with 4 SHEET
METAL SCREWS (105). Tighten with the PHILLIPS
HEAD SCREW DRIVER (114).
Step.1 Step.2 Step.3 Step.4

13
SETTING UP YOUR BIKE
Leveling
Use a M14 Wrench to adjust the height of the Leveling Feet.
Powering On
The XBR95 Recumbent Bike has a built-in generator for
power and does not need to be plugged into an AC outlet. To
power up the bike simply start to pedal, the console will turn
on automatically.
When initially powered on the console will perform an
internal self-test. During this time all the lights will turn on.
When the lights go o, the Message Center will show the
software version (i.e.: VER 1.0). The distance window shows
the distance in miles and the time window shows the total
hours of use.
The odometer will remain displayed for only a few seconds
then the console will go to the star t up display. The dot
matrix display will be scrolling through the dierent proles
of the programs and the Message Center will be scrolling the
start up message. You may now begin to use the console.

14
SETTING UP YOUR BIKE - CONTINUED
Moving The Recumbent Bike

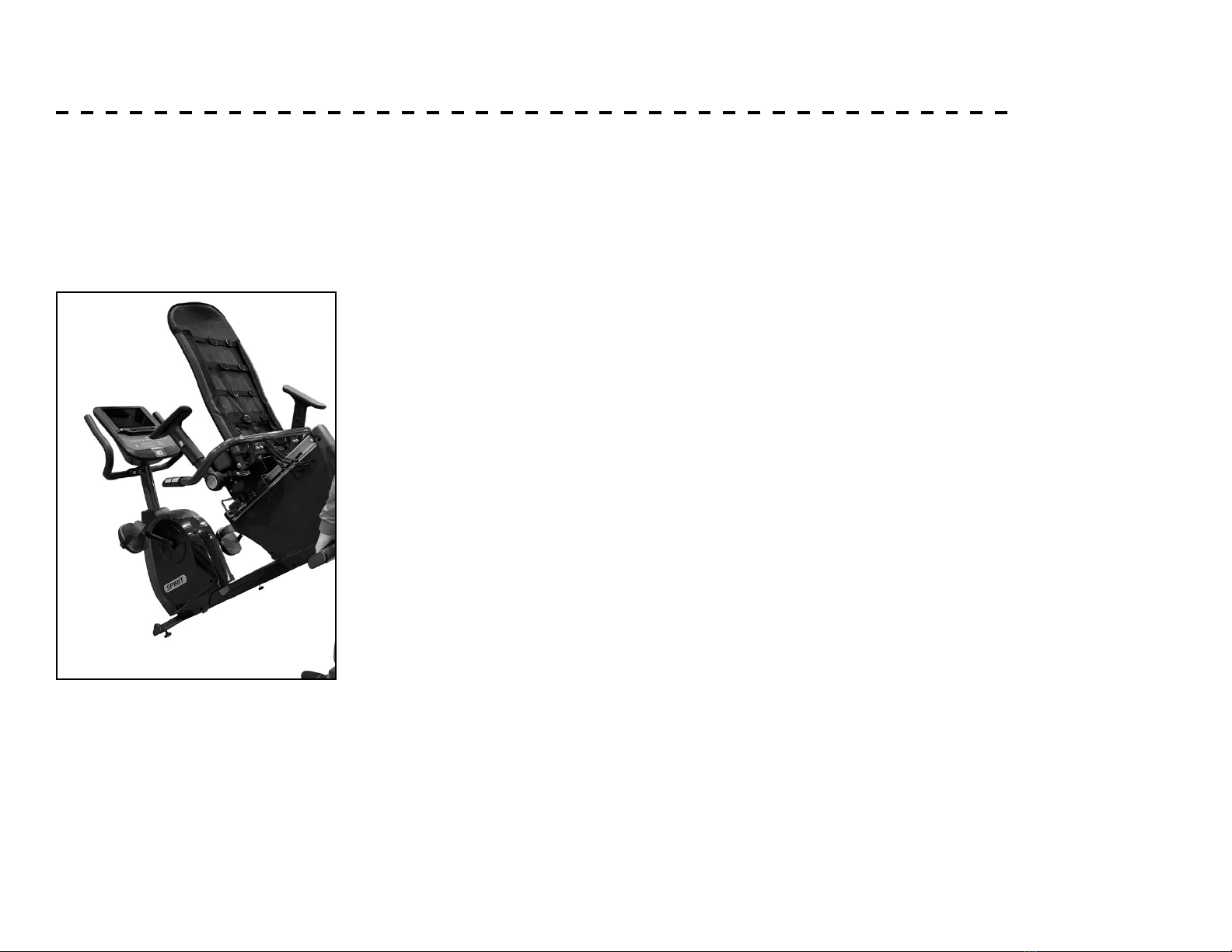

The Recumbent Bike is equipped with 2 transport wheels
on the front stabilizer. Lift the bike by the rear stabilizer and
gently tilt the bike up and roll it away.

15
QUICK START
1. After the console powers up you just press the Start key to
begin, this will initiate the Quick Start mode. In Quick Start the
Time will count up from zero and the workload may be adjusted
manually by pressing the Level + / - buttons. The dot matrix
display will have only the bottom row lit at rst. As you increase
the work load more rows will light indicating a harder workout.
The tness bike will get harder to pedal as the rows increase.
2. There are 40 levels of resistance available for plenty of variety.
The rst 10 levels are very easy workloads and the changes
between levels are set to a good progression for de-conditioned
users. Levels 11-20 are more challenging, but the increases in
resistance from one level to the next remain small. Levels 21-30
start getting tough as the levels jump more dramatically. Levels
31-40 are extremely hard and are good for short interval peaks
and elite athletic training.

16
ABOUT YOUR MACHINE
Always use care and caution when operating your
machine. Follow instruction in this manual to ensure safe
operation and maintenance of your Recumbent Bike
Your new Spirit Fitness Recumbent Bike has Bluetooth
connectivity to give you access to the most advanced
workout experiences available. Follow the instructions on
page 18 and 19 to learn more about using the Bluetooth
capabilities to their fullest potential.
Downloading the Spirit+ app will help unlock more features
- such as tracking workouts and sharing data via Google
Fit and Apple Fitness. Simply search for “Spirit+” in the app
store on your smartphone or tablet, or scan the QR code on
the right
Did you know that you can personalize your experience with
your new Recumbent Bike? Create a prole and save custom
workout programs by following the instructions on page 31.
!The Spirit Fitness app is
available on Google Play and
the Apple App Store. Scan
the QR Code below, and
quickly and easily sign up to
start taking your workout
experience to a whole new
level.
Be sure to follow Spirit Fitness on your favorite social
media platforms to view and share the latest tness videos,
images, and news.
facebook.com/SpiritFitnessProducts
www.instagram.com/spirit/
youtube.com/user/SpiritFitnessOnline

17

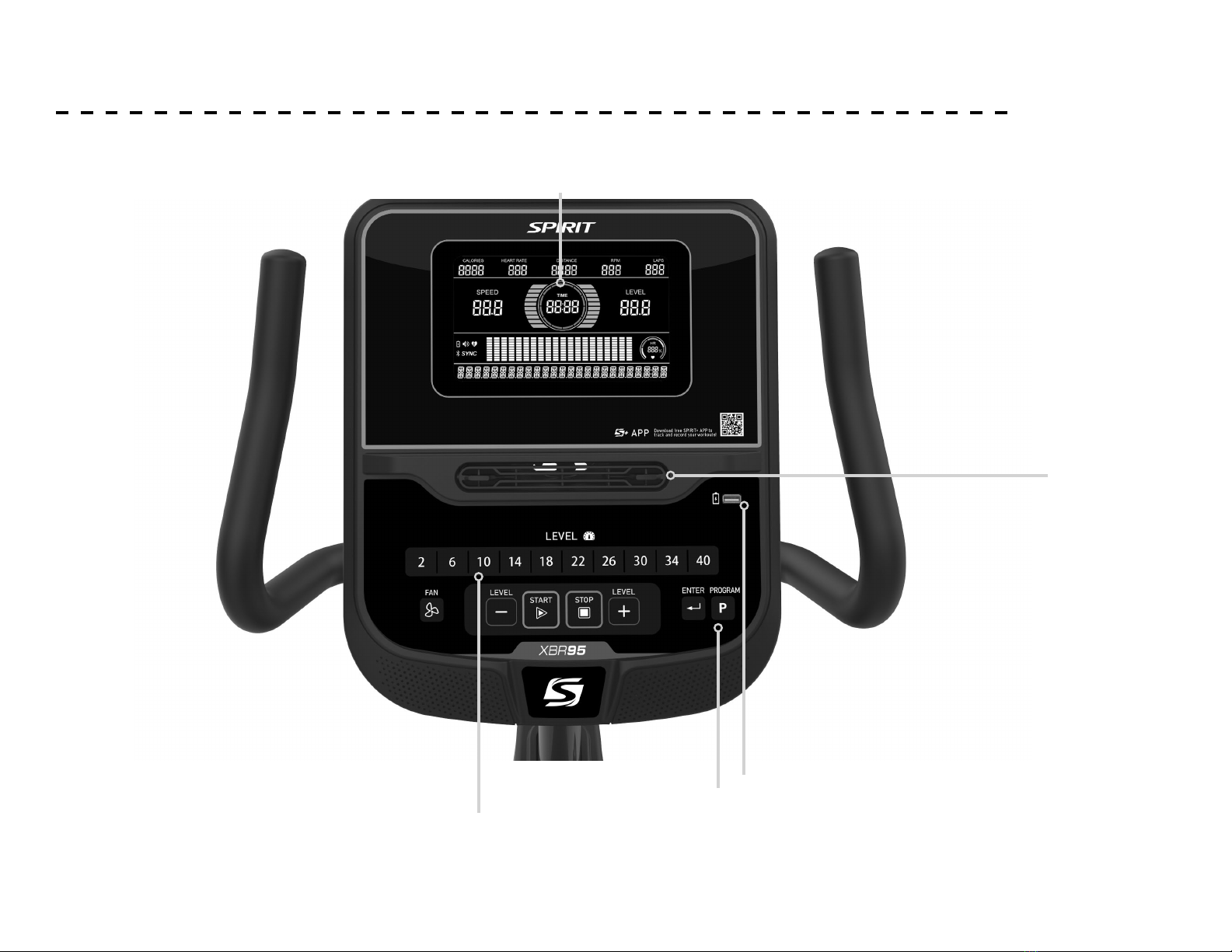

CONSOLE SCREEN - OVERVIEW
Adjustable Fan
LCD Window
Direct Resistance
Level Buttons
Program
Buttons
USB Charging

18
CONSOLE SCREEN - WORKOUT MODE
Current
Resistance
Level
Maximum
Heart Rate
Percentage
Resistance
Program Prole
Current Time
(Elapsed or Count-
down based on
Program)
Message
Center
Current
Speed
Bluetooth
On/O
USB Charge Icon
Bluetooth Speaker
Bluetooth Heart
Rate Icon
Total Calories Burned Current Heart Rate
Cumulative Total
Mileage
Current
Resistance
Level
Current
Speed
Level
Current Revolutions
per minute Total Laps Completed
