Upright Bike
OWNER’S MANUAL
Please carefully read this entire manual before operating your new upright bike .

1
TABLE OF CONTENTS
Important Safety Instructions………………………………………………………………… 2
Important Operation Instructions…………………………………………………………….. 3
Assembly Instructions…………………………………………………………….…………… 4
Console Operation…………………………………………………………….…….............. 10
Using heart rate transmitter………………………………………………………............... 29
System Maintenance Suite………………………………………………………………….. 30
Exploded View Diagram………………………………………………………………………. 33
Parts List..………………………………………………………………………………………. 34
SU8800-WB002_1612(SP)A

2
IMPORTANT SAFETY INSTRUCTIONS
WARNING - Read all instructions before using this appliance.
WARNING - Heart rate monitoring systems may be inaccurate. Over exercising may result in
serious injury or death. If you feel faint stop exercising immediately.
Do not operate bike on deeply padded, plush or shag carpet. Damage to both carpet and bike
may result.
Keep children away from the bike. There are obvious pinch points and other caution areas
that can cause harm.
Keep hands away from all moving parts.
Never drop or insert any object into any openings.
Do not use outdoors.
Do not attempt to use your bike for any purpose other than for the purpose it is intended.
The hand pulse sensors are not medical devices. Various factors, including the user’s
movement, may affect the accuracy of heart rate readings. The pulse sensors are intended
only as exercise aids in determining heart rate trends in general.
Wear proper shoes. High heels, dress shoes, sandals or bare feet are not suitable for use on
your bike. Quality athletic shoes are recommended to avoid leg fatigue.
This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the appliance by a person responsible for
their safety.
This appliance can be used by children aged from 8 years and above and persons with
reduced physical, sensory or mental capabilities or lack of experience and knowledge if they
have been given supervision or instruction concerning use of the appliance in a safe way and
understand the hazards involved. Children shall not play with the appliance. Cleaning and
user maintenance shall not be made by children without supervision.
Children should be supervised to ensure that they do not play with the appliance.
Notes on the correct posture and the fact the pedal crank training equipment of class B and C
are not suitable for therapeutic purposes
“WARNING! Heart rate monitoring systems may be inaccurate. Over exercising may result in
serious injury or death. If you feel faint stop exercising immediately”.
The bike is not a medical device

3
Important Electrical Instructions
WARNING!
NEVER expose this bike to rain or moisture. This product is NOT designed for use outdoors, near a
pool or spa, or in any other high humidity environment. The operating temperature specification is 5 to
48 degrees Celsius (40 to 120 degrees Fahrenheit), and humidity is 95 non-condensing (no water
drops forming on surfaces).
Important Operation Instructions
NEVER operate this bike without reading and completely understanding the results of any
operational change you request from the computer.
Understand that changes in resistance do not occur immediately. Set your desired resistance
level on the computer console and release the adjustment key. The computer will obey the
command gradually.
NEVER use your bike during an electrical storm. Surges may occur in your household power
supply that could damage bike components. Unplug the bike during an electrical storm as a
precaution.
Use caution while participating in other activities while pedaling on your bike; such as watching
television, reading, etc. These distractions may cause you to lose balance which may result in
serious injury.
Do not use excessive pressure on console control keys. They are precision set to function
properly with little finger pressure.
Always hold on to a handle bar while making control changes.
Do not use excessive pressure on console control keys. They are precision set to function
properly with little finger pressure. If you feel the buttons are not functioning properly with normal
pressure contact your dealer.

4
ASSEMBLY INSTRUCTIONS
UNPACKING
1. Cut the straps then lift the box over the unit and unpack.
2. Locate the hardware package. The hardware is separated into four steps. Remove the tools first.
Remove the hardware for each step as needed to avoid confusion. The numbers in the instructions
that are in parenthesis (#) are the item number from the assembly drawing for reference.

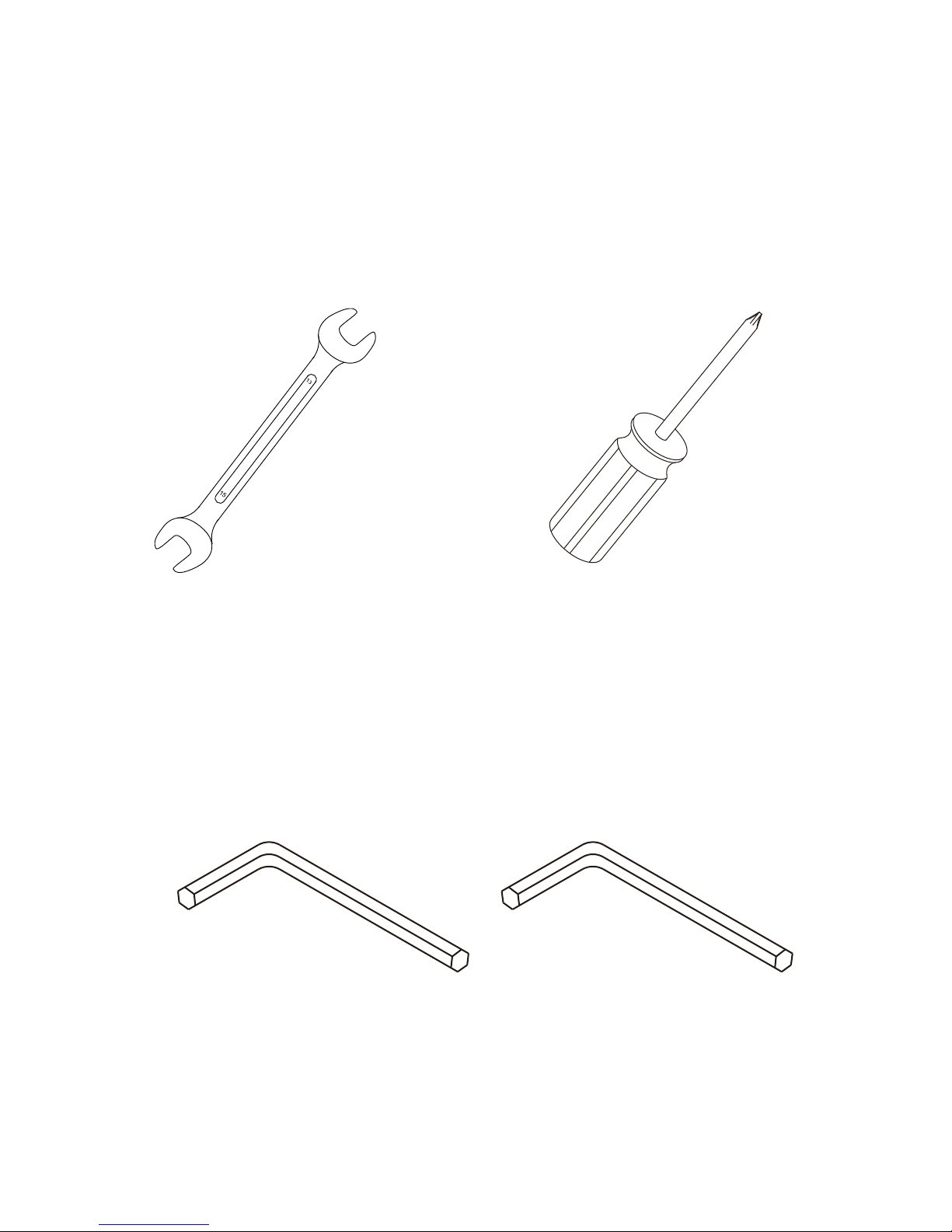

ASSEMBLY TOOLS
#97. Phillips Head Screw driver (1 pc)
#100. 13/15mm Wrench (1 pc)
#99. 6mm L Allen Wrench (1 pc)#107. 8mm L Allen Wrench (1 pc)

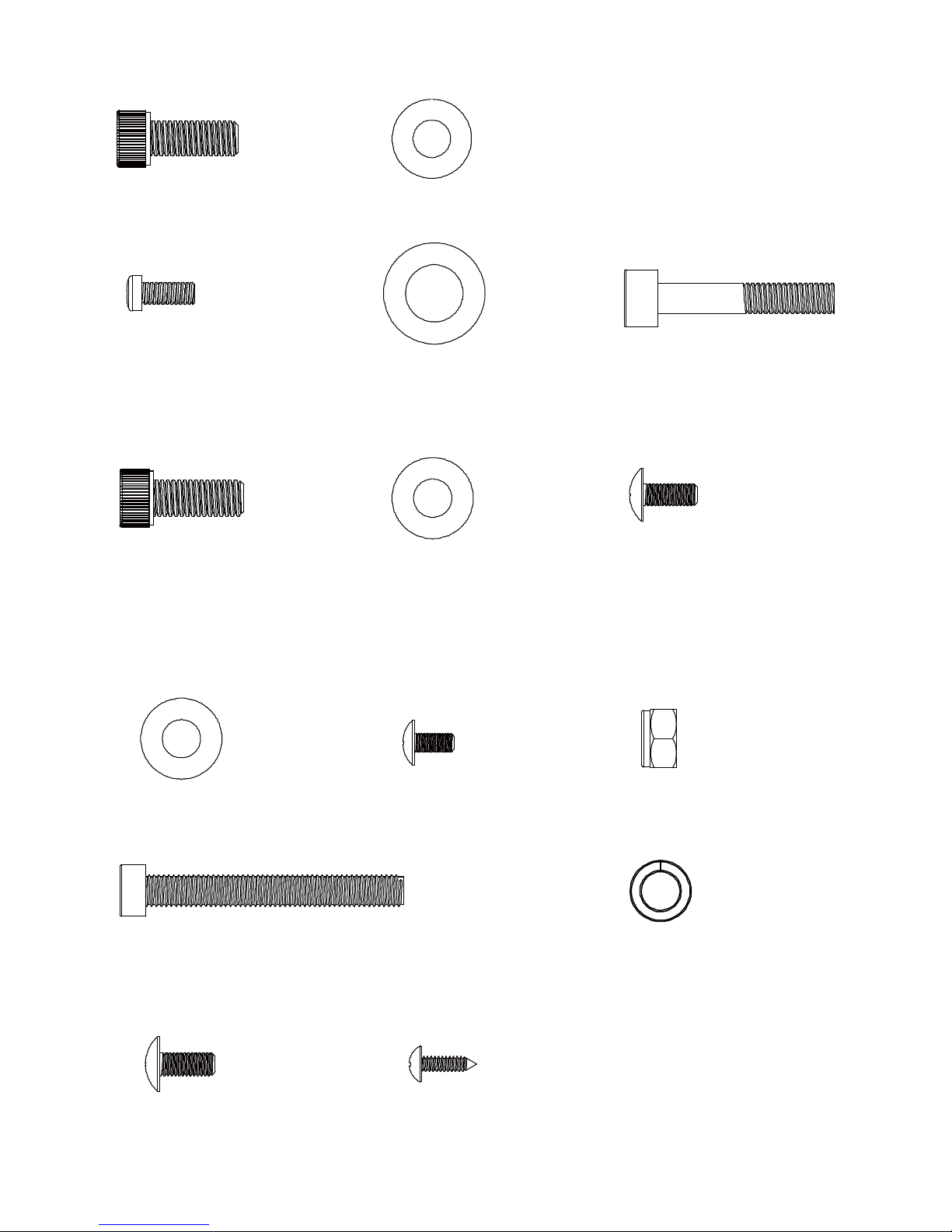

5
STEP 1
STEP 2
#
52
-
M8 × 20mm
Socket Head Cap Bolt
(4pcs)
STEP 3
STEP 4
#
53
-
Ø8.5 × Ø18 × 1.5T
Flat Washer (4pcs)
#
59
-
M5 ×12mm
Phillips Head Screw
(4pcs)
#
60
-
Ø13 × 23 ×
2.0T Flat Washer
(3pcs)
#
61
-
M10 × 55mm
Socket Head Cap Bolt
(3pcs)
#
52
-
M8 × 20mm
Socket Head Cap Bolt
(6pcs)
#
112
-
Ø8.5 × Ø18 × 1.5T
Flat Washer (6pcs)
#
54
-
M5 × 12mm
Phillips Head Screw
(4pcs)
#
53
-
Ø8.5 × Ø18 × 1.5T
Flat Washer (8pcs)
#
66
-
M5 × 6mm
Phillips Head Screw
(2pcs)
#
56
–
M8 × 65mm
Socket Head Cap Bolt
(4pcs)
#
54
-
M5 × 12mm
Phillips Head Screw
(2pcs)
#
58
-
M8 × 7T
Nyloc Nut (2pcs)
#
55
-
3.5 × 12mm
Sheet Metal Screw
(4pcs)
#
57
–
Ø8 × 1.5T
Split Washer (4pcs)

6

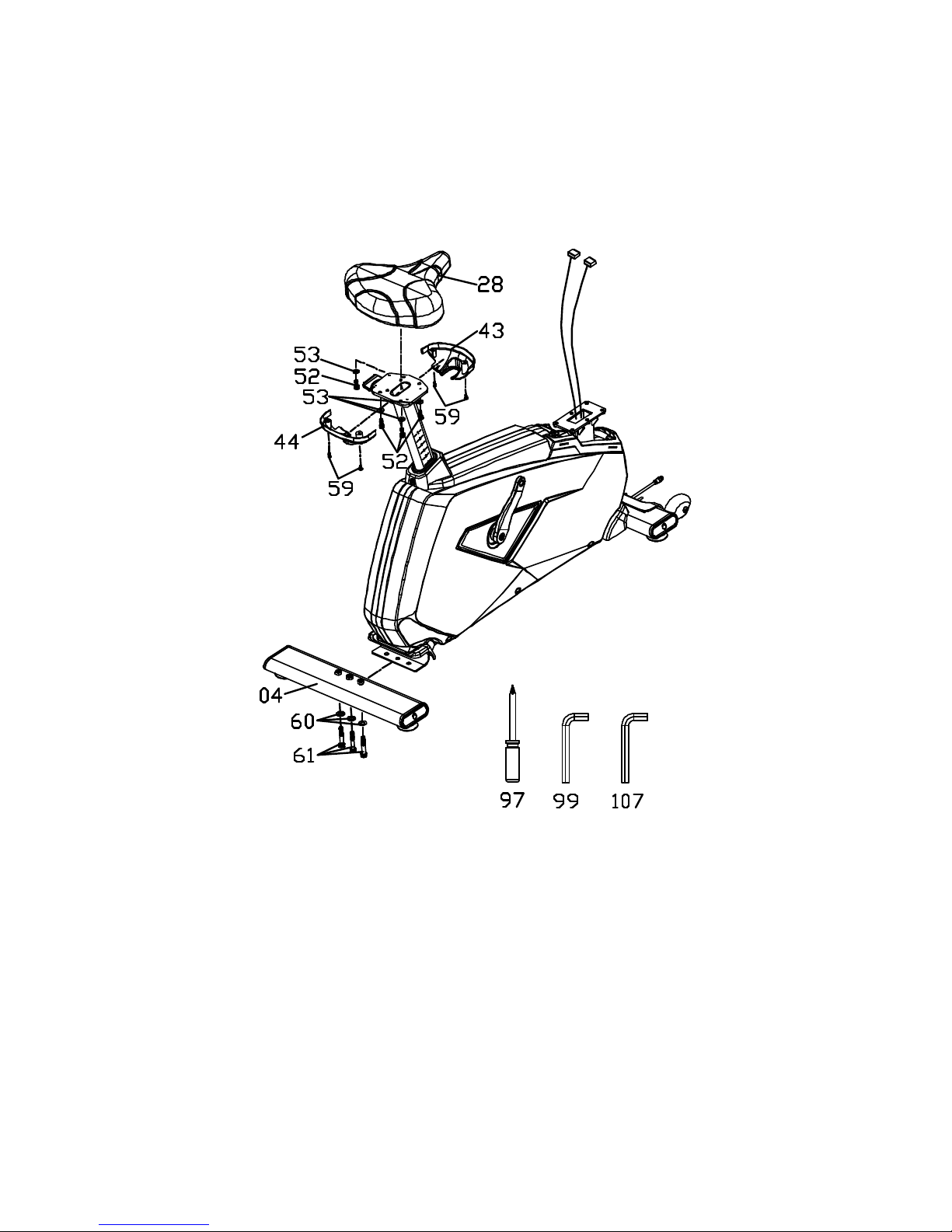

STEP 1
1. Install REAR STABILIZER (4) to MAIN FRAME (1) with 3 BOLTS (61) and 3 WASHERS (60).
2. Install SEAT (28) to SEAT POST (8) with 4 BOLTS (52) and 4 WASHERS (53).
3. Attach SEAT BRACKET COVERS (43 & 44) to SEAT POST (8) with 4 round head SCREWS (59).

7

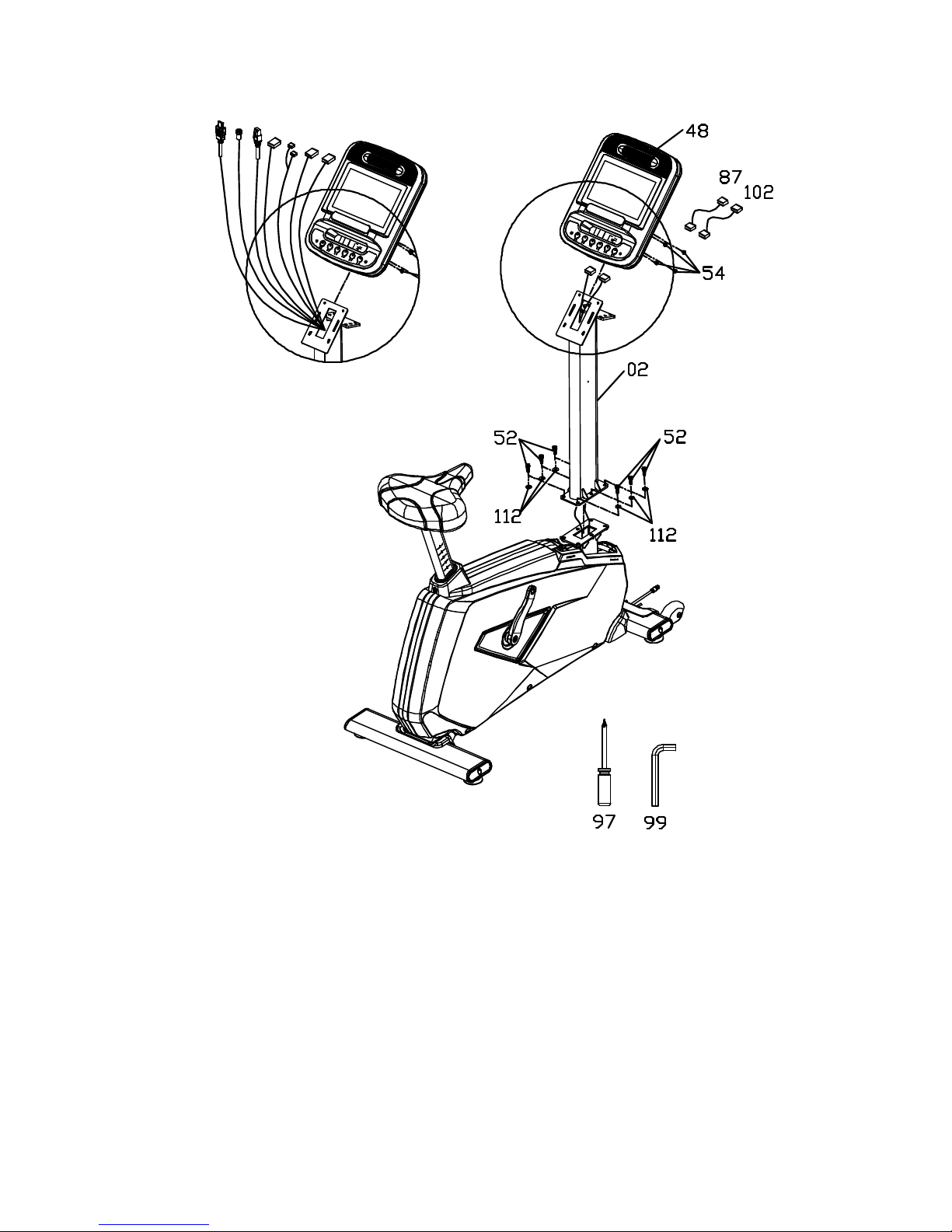

STEP 2
1. Run the WIRING HARNESS through the CONSOLE MAST (2) and out the top.
2. Install CONSOLE MAST (2) to MAIN FRAME (1) with 6 BOLTS (52) and 6 WASHERS (112). Do
not pinch any wires.
3. Connect HGP CONNECTOR CABLES (87 & 102) to CONSOLE (48). Run cables through center
of console bracket and out the back.
4. Connect all WIRING HARNESSES to corresponding connectors at the back of the CONSOLE
(48).
5. Attach CONSOLE (48) to CONSOLE MAST (2) using 4 SCREWS (54). Be careful not to pinch
any wires.

8

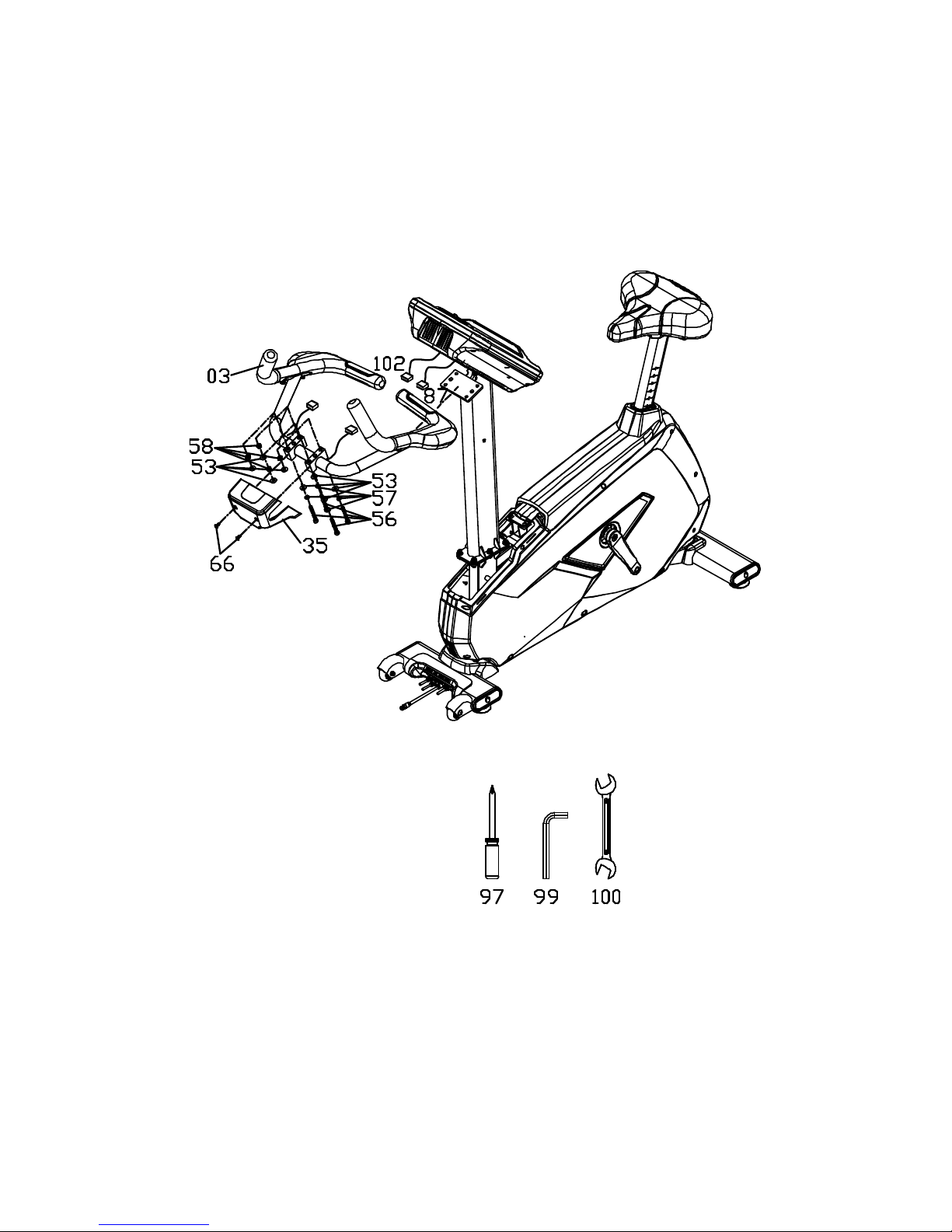

STEP 3
1. Install HANDLEBARS (3) to CONSOLE MAST (2) with 4 BOLTS (56), 4 LOCK WASHERS (57), 8
WASHERS (53), and 4 NUTS (58). 4 WASHERS (53) should be installed on each side of the
handlebars (3).
2. Connect HGP CONNECTOR CABLES (87 & 102) to HGP cables coming out of HANDLEBARS
(3).
3. Attach CONSOLE BRACKET COVER (35) to HANDLEBARS (3) using 2 SCREWS (66).

9

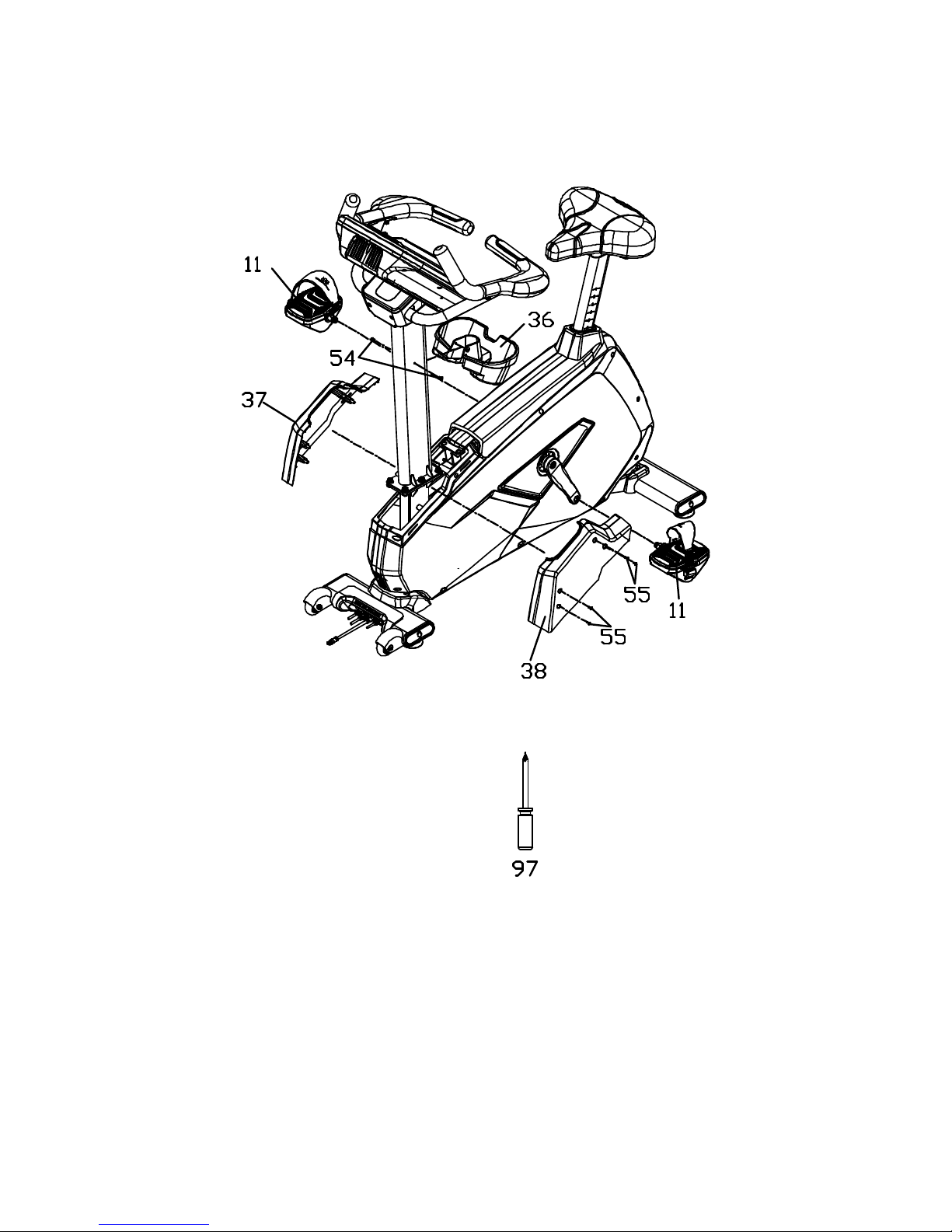

STEP 4
1. Attach CUP HOLDER (36) to CONSOLE MAST (2) using 2 SCREWS (54).
2. Attach CONSOLE MAST COVERS (37 & 38) over CONSOLE MAST (2) using 4 SELF-TAPPING
SCREWS (55).
3. Install PEDALS (11) into CRANK ARMS (9 & 10).The left pedal has a reverse thread and will be
screwed in counterclockwise. Tighten to 300 in-lb (34 Nm) of torque.

10
CONSOLE OPERATION
Starting the operation

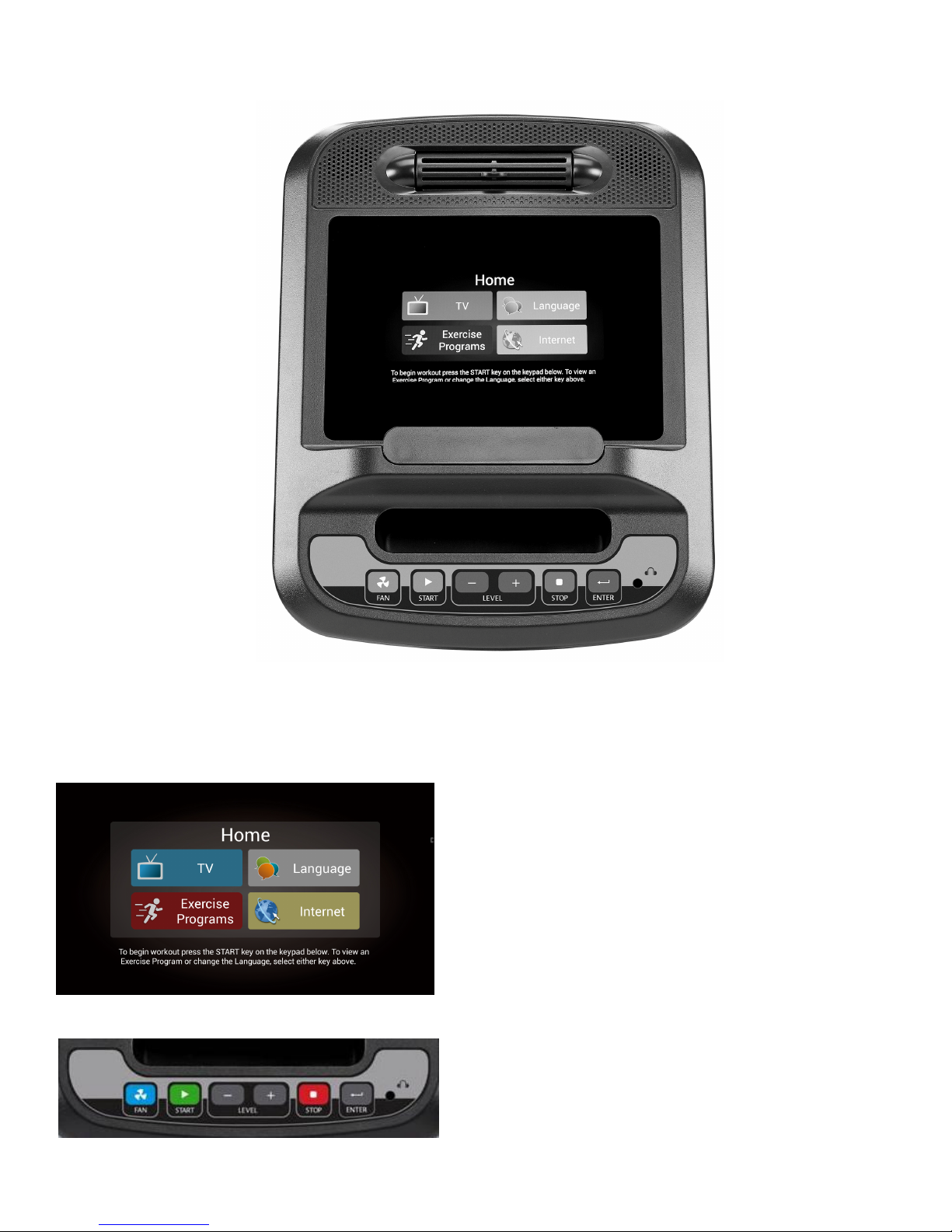

• Plug in the power cord at the front of the bike.
•When the power cord is plugged in the screen will show the initial image and then enter the ready
mode which is the beginning of the bike operation.
Main Home page: Begin operation by touching the
icons.
Quick operating buttons are convenient for basic bike
functions.

11
QuickStart
• Press Start button and the console starts the Quick Start program.Press Level up/down buttons to
change the resistance level you desire.
• Press first page Home button or Stop button to stop the program.
Featured functions of this bike
The Touch-control screen is used for operating all functions of the bike. You can directly touch any key
on the screen or through quick keys on the bottom to control functions. On the lower portion of the
console there is the Start key to begin the workout, Stop button to pause/stop programs, Level keys
to change workload and a Fan key to turn the fan on or off.
Pause/Stop
• Press Stop key once or Home key on the screen, the bike will stop and keep values of time,
distance and calorie on the screen. The screen will count down for 5 minutes then reset and return
to the initial status.
• Press Start key to continue the workout during pause.
• Press Stop key twice will terminate the setting with displaying the workout summary.If Stop
key is pressed the third time, the console will return to the initial status (the beginning).
Heart Rate Feature
The Pulse (Heart Rate) on the screen shows the current value of your heart rate in beats per
minute. You must use both left and right stainless steel sensors to pick up your pulse. Pulse values
are displayed anytime the computer is receiving a Grip Pulse signal. You may use the Grip Pulse
feature while in Heart Rate Control. The Console will also pick up wireless heart rate
transmitters that are 5 khz Polar compatible.
To Turn the Bike Off
The screen will automatically turn off (go to sleep) after 30 minutes of inactivity. This function is
called sleep mode. In sleep mode, the bike will power down everything except for a minimum of
circuitry for detecting key presses, so it will start up again if this is activated. There is only a tiny
amount of current used in sleep mode (about the same as yourTV when it is turned off) and it is
perfectly fine to leave the main power switch on in sleep mode.

12

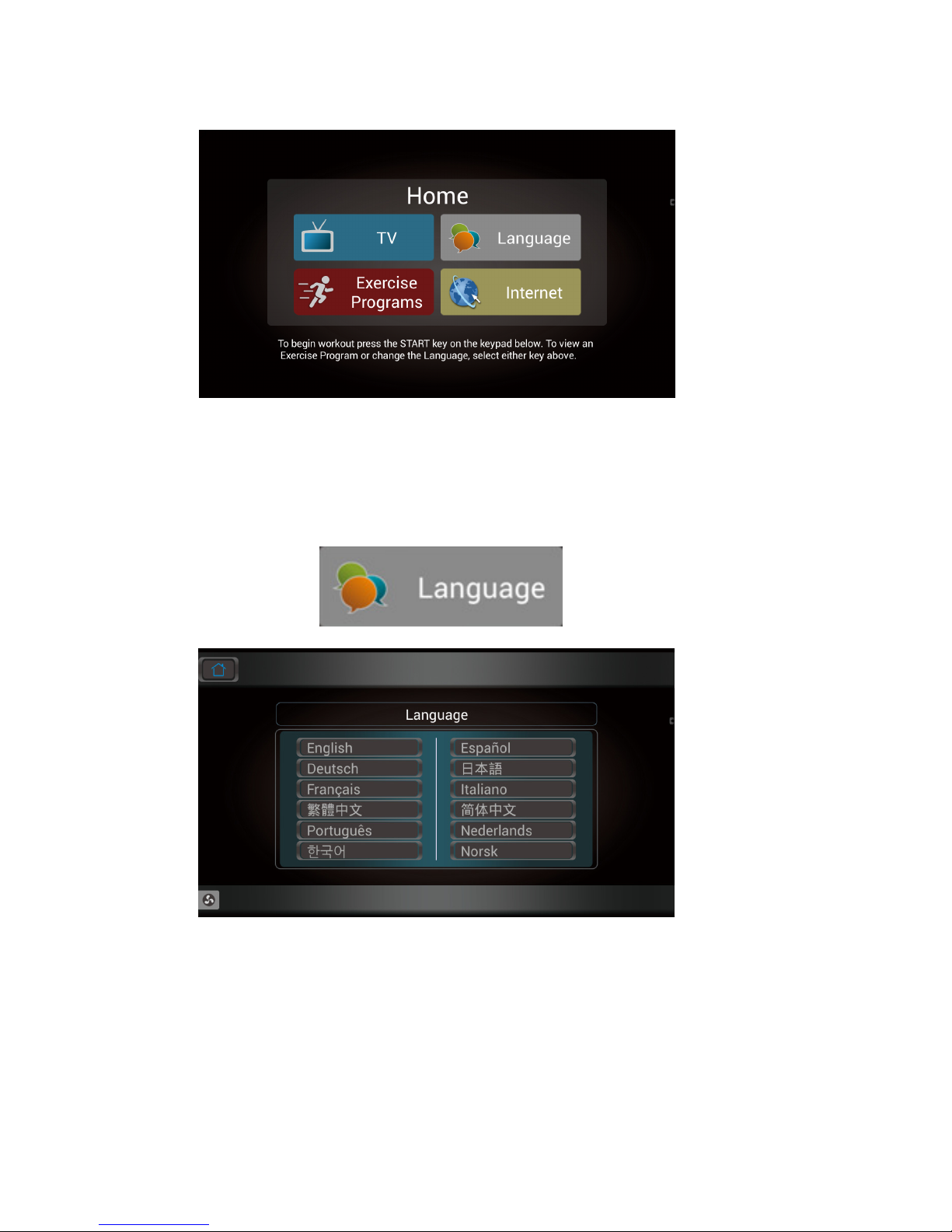

Below is the instruction for touch screen operation:
• First page HOME
There are four selections. Usually the “Language” is the first selection.
•When you press “Language” button, it enters the menu with all language selections.
There are 12 languages to choose.
Touch the desired language button to set and the system will return to the first page for the program
operation. If you don’t want to change the language, press HOME button at the upper left corner to
return to the first page or touch the return button at right upper right corner to return to the previous
page to continue the operation.

13

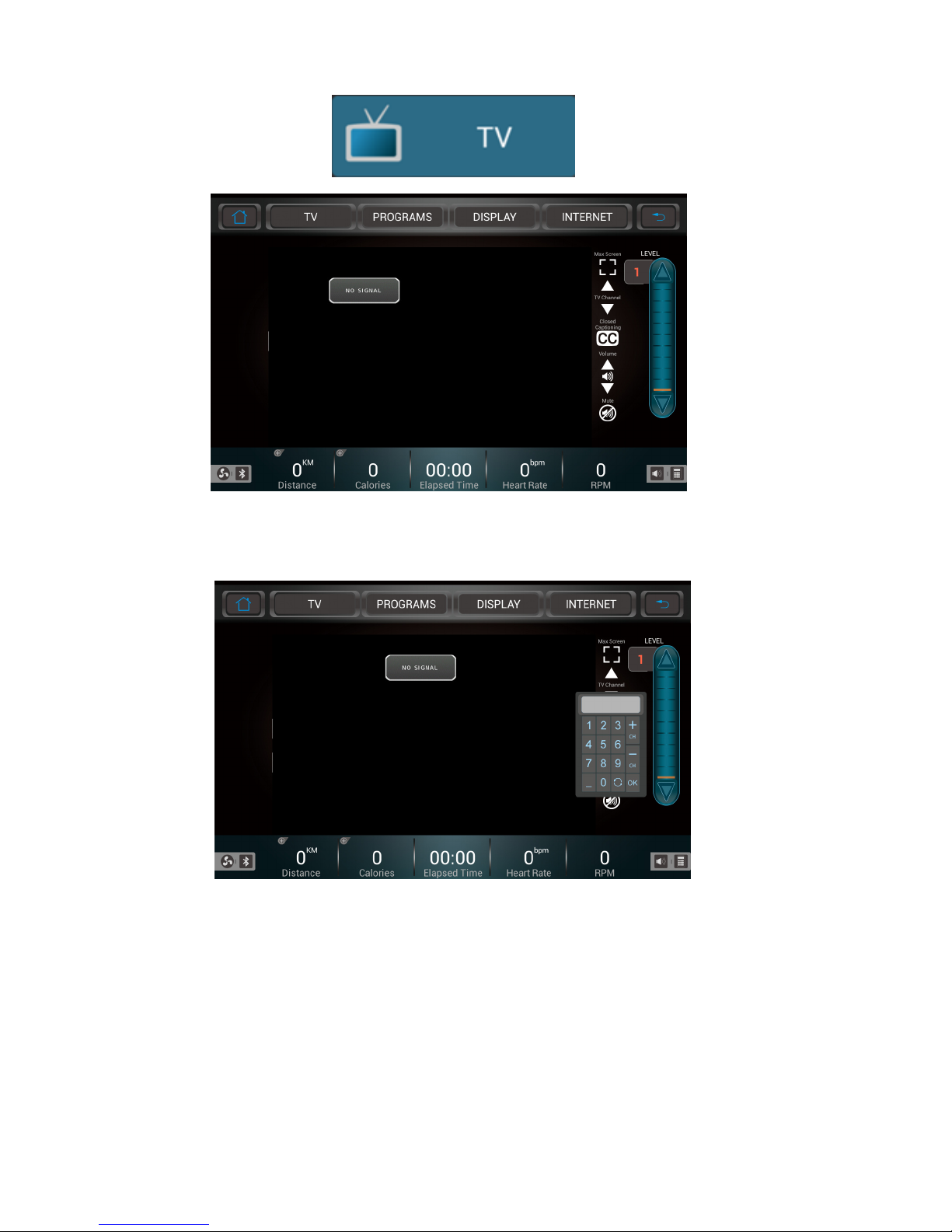

• When TV button on the first page HOME is pressed, it enters TV interface.
Now you can enjoy TV programs. If you want to workout and enjoy TV program simultaneously, press
“START” button to start the bike.
You can change the TV channel by using up/down buttons on the TV channel or channel remote
control at bottom right to change the channel. You can use the Volume up/down keys to change the
sound levels. Press “Mute” button to switch to silence. Touch Max Screen icon to switch to full screen.
Touching anywhere on the screen will return it to the original screen size. Use level up/down buttons
to control the resistance level. When you want to pause, just press “HOME” button at left top of the
screen or press “STOP” button once and the pause window will show up. If you want to stop, you can
choose to end the program or press “STOP” button again to end the program and display the workout
summary. Pressing the “STOP” button third time and the console returns to the initial status (the
beginning).

14

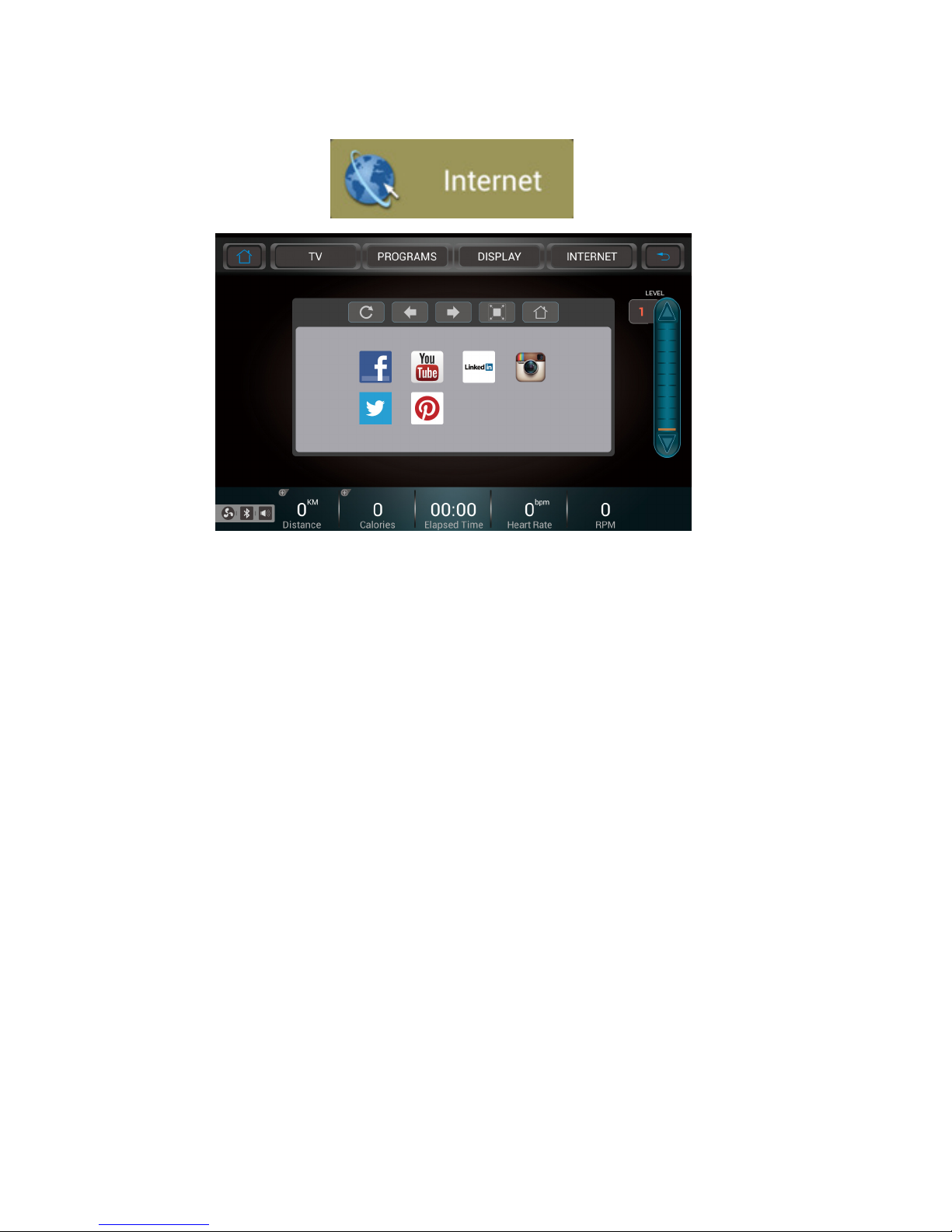

• When you touch “Internet” button on HOME page, it rapidly enters internet
interface.
There are 6 internet connections to choose for you to go internet while you are exercising. (internet
cable connection or WIFI connection is required) Press “START” button of the bike to begin exercise.
Use “level up/down buttons to control the resistance level during the exercise. When you want to
pause, just press “HOME” button at left top or press “STOP” button once and the pause window will
show up. If you want to end, you can choose to end the program or press “STOP” button again to
show the workout summary. If “STOP” button is pressed the third time, the console will return to the
initial status. (the beginning)

15

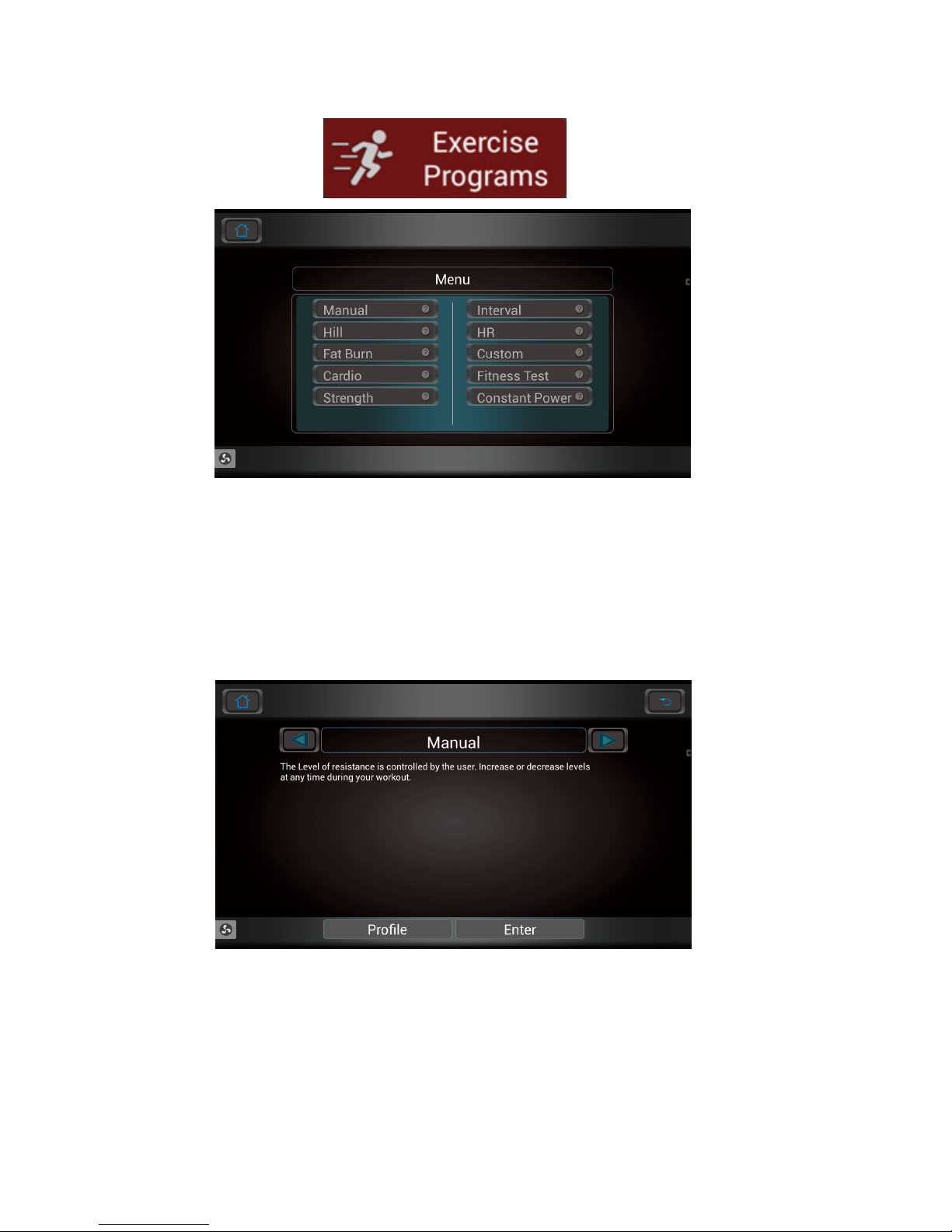

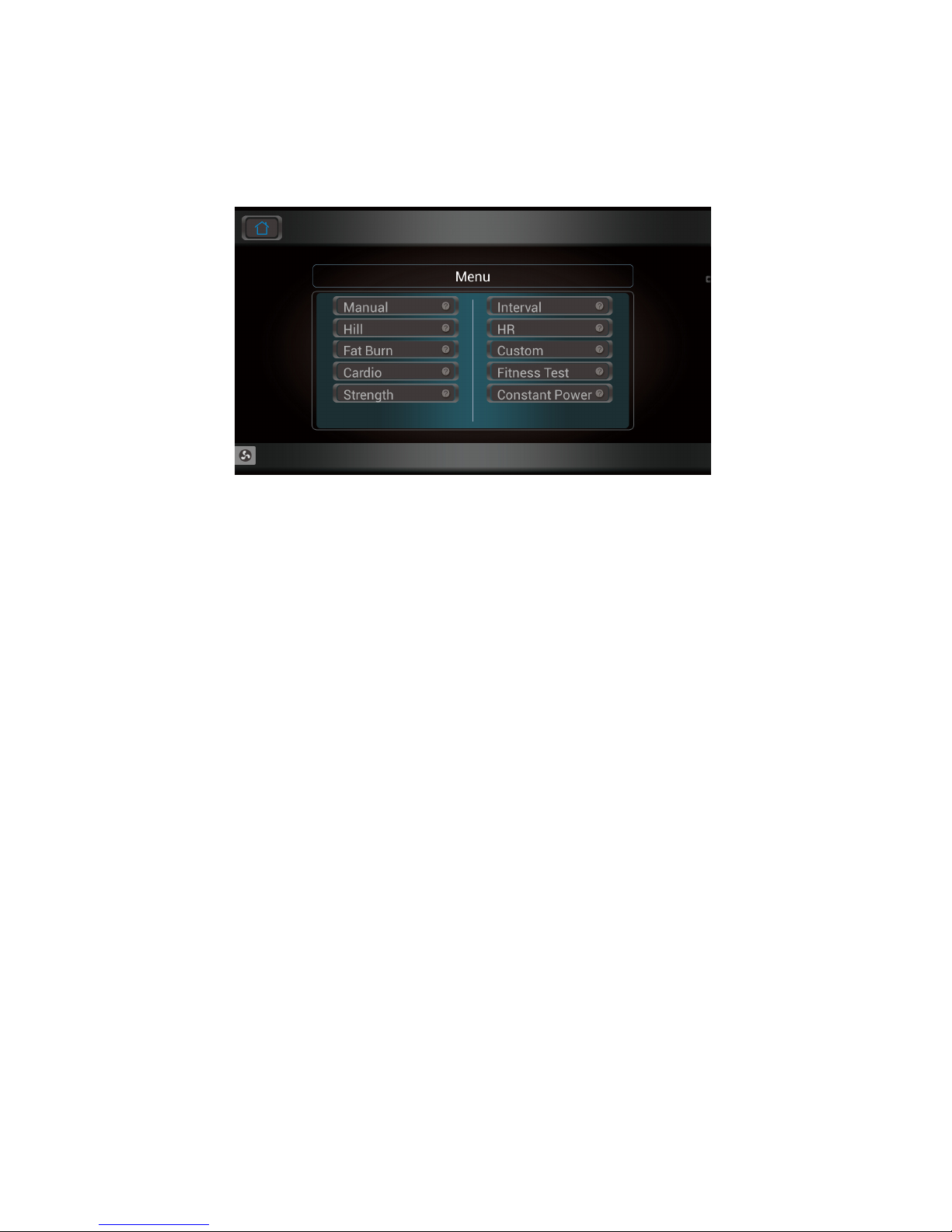

• When you touch “Exercise Program” button on HOME page, it enters
“Menu“ interface.
There are 10 program modes in Menu interface.
If you want to choose Manual Program, just touch Manual button on the screen to enter the program
for Manual.
MANUAL program:
Then touch the “Profile” button to enter profile interface. If you do not want to do this program, just
touch “HOME” icon at left top corner to return to the first page or press “Return” icon at right top
corner to return to continue the previous operation. If profile selection is desired, press left or right
arrow button to select the program you want.

16
The image entering the “Profile” interface is as below.
After entering the profile image which is the program you want to perform, press “ENTER” button to
enter next image. If not, touch “HOME” icon at left top corner to return to the first page or press
“Return” icon at right top corner to return to continue the previous operation. If profile selection is
desired, press left or right arrow button to select the program you want.
This image is for setting program time, user’s age and weight. Press “ENTER” button after entering
parameters to confirm. Then press “START” button to start the Manual Program. If not, press “HOME”
button at left top corner to return to the first page or press “Return” icon at right top corner to return to
continue the previous operation.

17

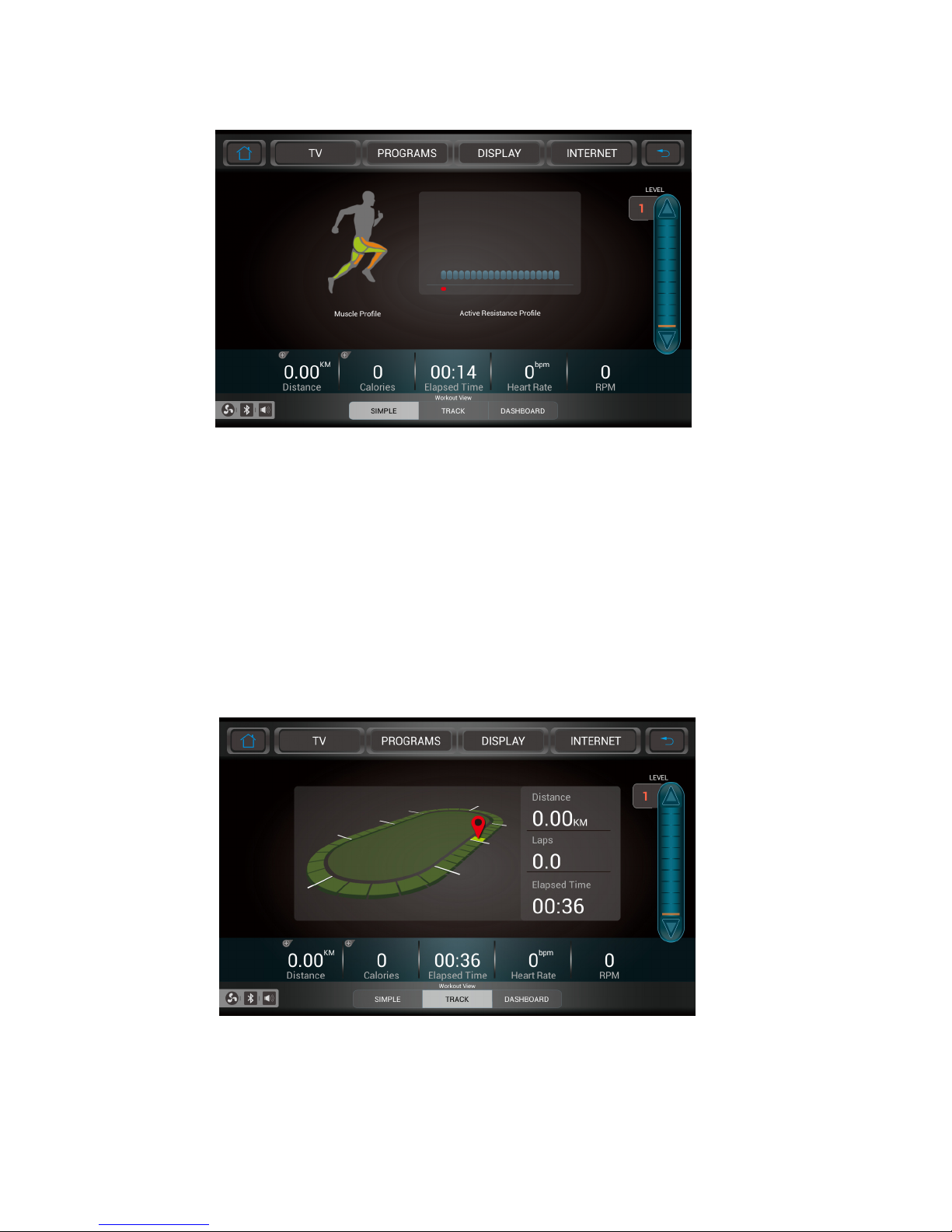

The “SIMPLE” display screen will be shown when the program begins.
The initial screen shown after start is the “SIMPLE” display which shows all values on the bottom
concerning your workout. The resistance level is at the right side and is adjustable with “UP” or
“DOWN” button.
The bar chart for the resistance level is in the middle. TV interface button is on top to touch for
entering the TV mode, or touch “INTERNET” for entering the internet interface. If “PROGRAM” button
is touched, the system will ask you if you want to return to the first page.To select a different type of
exercise information display press either the Track or Dashboard keys at the bottom of the screen.
Touch “TRACK” button to enter the track interface.
The operating is similar with different interface only. The image shows the track with number of laps
and other values.

18

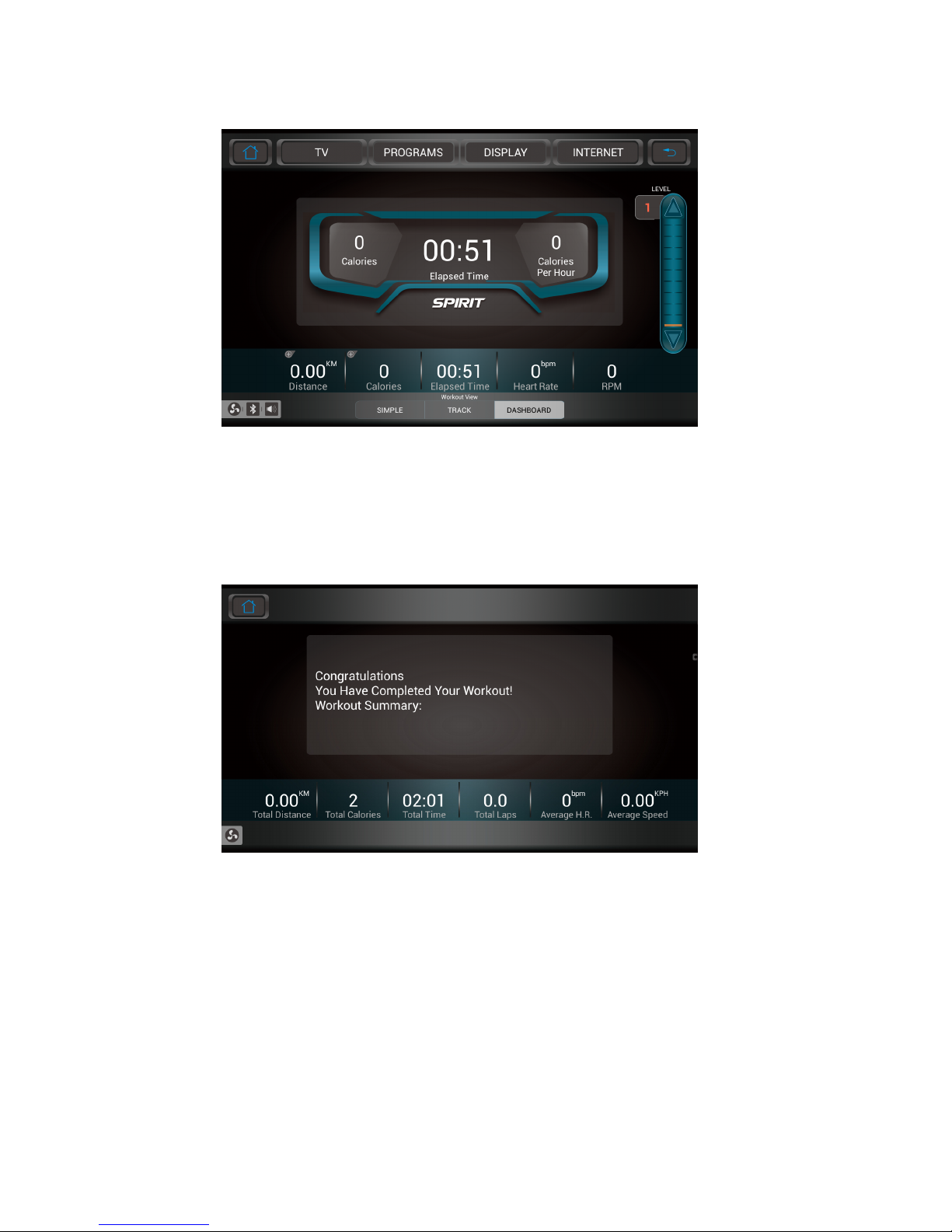

Touch “DASHBOARD” button on the bottom to enter the dashboard interface.
The operating is similar with different interface only. You can choose one of three interfaces on the
bottom with your own preference.
When using the first page button or “STOP” button to end the program, it enters the summary image.
On the summary image, all accumulating values concerning the workout are displayed.
You can touch the HOME button at left top or press “STOP” button to return to the first page image.

19
Programmable Features
The console offers ten preset programs, HILL, FAT BURN, CARDIO, STRENGTH, INTERVAL, HR,
CUSTOM, Fitness Test, Constant Power and one Manual program.
Preset Features:
To choose and start preset program:
•Select a program then press the ENTER key to begin customizing the program with your
personal data, or just press the start key to begin the program with the default settings.
•After selecting a program and pressing ENTER to set your personal data, the touch Time
window will darken with the default value of 20 minutes. You may use numeric keypads to
adjust the time. After adjusting the time, press ENTER confirm and continue.
(Default time is 20 minutes)
•The touch Age window will now display a value indicating your Age. Entering the correct Age
will affect the Heart rate bar graph accuracy and also needed for the HR programs. Use
numeric keypad to make adjustments, and then press ENTER confirm and continue.
(Default age is 30 years old. Range=10 to 110 )
•The touch Weight window will now display a value indicating your Bodyweight. Entering your
correct bodyweight affects the Kcal readout accuracy. Use numeric keypad to make
adjustments, and then press ENTER confirm and continue.
(Default weight is 70KG. Range=10 to 150 )
•The touch Mix Level window will now display a value indicating your resistance. Entering your
correct level affects the Max level readout accuracy. Use numeric keypad to make adjustments,
and then press ENTER confirm and continue.
(Default max Level is 5. Range=5 to 40 )
•Now press the START key to begin your workout.
