Spirit CU800 ENT User manual

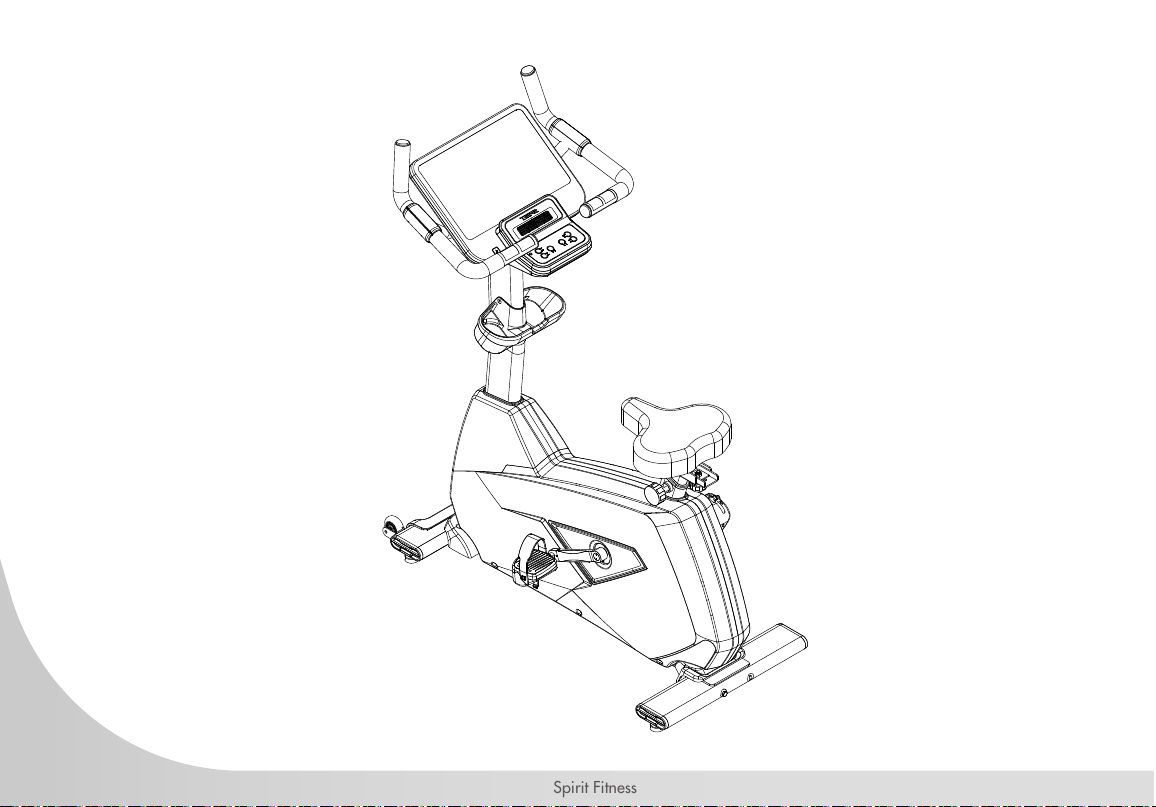

CU800ENT Upright Bike
OWNER’S MANUAL

Spirit Fitness

www.spirittness.com

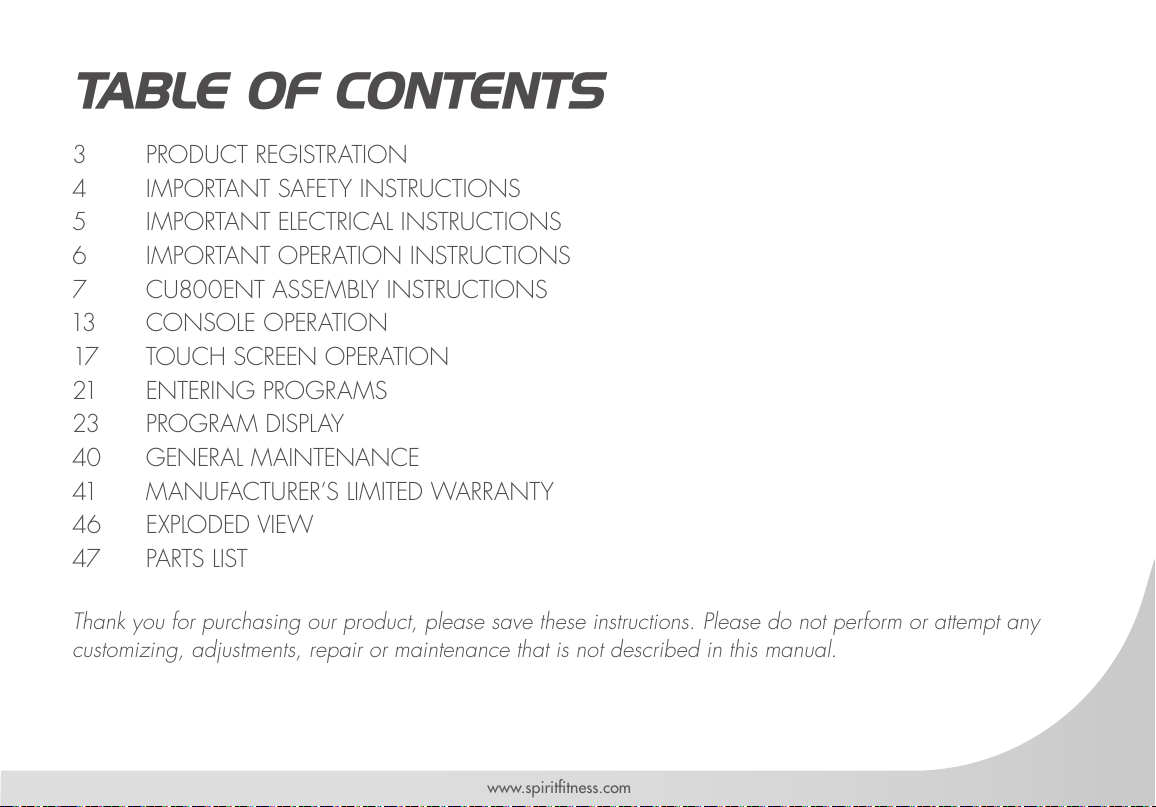

TABLE OF CONTENTS
3 PRODUCT REGISTRATION
4 IMPORTANT SAFETY INSTRUCTIONS
5 IMPORTANT ELECTRICAL INSTRUCTIONS
6 IMPORTANT OPERATION INSTRUCTIONS
7 CU800ENT ASSEMBLY INSTRUCTIONS
13 CONSOLE OPERATION
17 TOUCH SCREEN OPERATION
21 ENTERING PROGRAMS
23 PROGRAM DISPLAY
40 GENERAL MAINTENANCE
41 MANUFACTURER’S LIMITED WARRANTY
46 EXPLODED VIEW
47 PARTS LIST
Thank you for purchasing our product, please save these instructions. Please do not perform or attempt any
customizing, adjustments, repair or maintenance that is not described in this manual.

2
Spirit Fitness
Congratulations on your new Upright Bike and welcome to the Spirit Fitness family!
Thank you for your purchase of this quality Upright Bike from Spirit Fitness. Your new Upright Bike
was manufactured by one of the leading tness manufacturers in the world and is backed by one
of the most comprehensive warranties available. Through your dealer, Spirit Fitness will do all we
can to make your ownership experience as pleasant as possible for many years to come. If not
purchased direct from Spirit Fitness, the local dealership where you purchased this Upright Bike is
your administrator for all Spirit Fitness warranty and service needs. Their responsibility is to provide
you with the technical knowledge and service personnel to make your experience more informed and
any difculties easier to remedy.
Please take a moment at this time to record the name of the dealer, their telephone number, and the
date of purchase below to make any future, needed contact easy. We appreciate your support and
we will always remember that you are the reason that we are in business.
Yours in Health,
Spirit Fitness
NAME OF DEALER _____________________________________
DEALER PHONE # _____________________________________
PURCHASE DATE _____________________________________

3
www.spirittness.com
RECORD YOUR SERIAL NUMBER
Please record the serial number of this tness product in the space
provided below.
Serial Number:
REGISTER YOUR PURCHASE
The self-addressed product registration card must be completed in full and returned to Spirit
Fitness. You can also go to http://www.spirittness.com/commercialwarrantyregistration.html
under the Support tab to register online.

4
Spirit Fitness
IMPORTANT SAFETY
INSTRUCTIONS
WARNING
When using an electrical appliance, basic
precautions should always be followed, including
the following:
Read all instructions before using this appliance.
DANGER – To reduce the risk of electric shock:
Always unplug this appliance from the electrical
outlet immediately after using and before cleaning.
WARNING – To reduce the risk of burns, re,
electric shock, or injury to persons, install the upright
bike on a at level surface with access to a 110-
volt, 5-amp grounded outlet with only the upright
bike plugged into the circuit.
DO NOT USE AN EXTENSION CORD UNLESS
IT IS A 14AWG OR BETTER, WITH ONLY ONE
OUTLET ON THE END:
• Do not operate upright bike on deeply padded,
plush or shag carpet. Damage to both carpet and
upright bike
may result.
• Keep children away from the upright bike. There are
obvious pinch points and other caution areas that
can cause harm.
• Keep hands away from all moving parts.
• Never operate the upright bike if it has a damaged
cord or plug. If the upright bike is not working
properly, call your dealer.
• Keep the cord away from heated surfaces.
• Do not operate where aerosol spray products are
being used or where oxygen is being administered.
Sparks from the motor may ignite a highly gaseous
environment.
• Never drop or insert any object into any openings.
• Do not use outdoors.
• To disconnect, turn all controls to the off position,
then remove the plug from the outlet.
• Do not attempt to use your upright bike for any
purpose other than for the purpose it is intended.
• The hand pulse sensors are not medical devices.
Their purpose is to provide you with an approximate
measurement in relation to your target heart rate.
Use of a chest transmitter strap (sold separately)

5
www.spirittness.com
is a much more accurate method of heart rate
analysis. Various factors, including the user’s
movement, may affect the accuracy of heart rate
readings. The pulse sensors are intended only as
exercise aids in determining heart rate trends in
general.
• Wear proper shoes. High heels, dress shoes,
sandals or bare feet are not suitable for use on
your upright bike. Quality athletic shoes are
recommended to avoid leg fatigue.
• This appliance is not intended for use by
persons with reduced physical, sensory or
metal capabilities, or lack of experience and
knowledge, unless they have been given
supervision or instruction concerning use of the
appliance by a person responsible for their safety.
• Keep children under the age of 13 away from
this machine.
• Weight Limit: 450lb
SAVE THESE INSTRUCTIONS - THINK SAFETY!
IMPORTANT ELECTRICAL
INSTRUCTIONS
WARNING
NEVER remove any cover without rst disconnecting AC
power. If voltage varies by ten percent (10%) or more,
the performance of your Upright bike may be affected.
Such conditions are not covered under your warranty. If
you suspect the voltage is low, contact your local power
company or a licensed electrician for proper testing.
NEVER expose this upright bike to rain or moisture.
This product is NOT designed for use outdoors, near a
pool or spa, or in any other high humidity environment.
The operating temperature specication is 40 to 120
degrees Fahrenheit, and humidity is 95% non-condensing
(no water drops forming on surfaces).
Circuit Breakers: Some circuit breakers used in homes
are not rated for high inrush currents that can occur
when a upright bike is rst turned on or even during use.
If your upright bike is tripping the house circuit breaker
(even though it is the proper current rating) but the circuit
breaker on the upright bike itself does not trip, you will
need to replace the home breaker with a high inrush
type. This is not a warranty defect. This is a condition
we as a manufacture have no ability to control. This
part is available through most electrical supply stores.
Examples: Grainger part # 1D237, or available online at
www.squared.com part #QO120HM. The electrical outlet
used should have a dedicated 5 amp circuit breaker.

6
Spirit Fitness
IMPORTANT OPERATION
INSTRUCTIONS
• NEVER operate this upright bike without reading
and completely understanding the results of any
operational change you request from the computer.
• Understand that changes in resistance do not occur
immediately. Set your desired resistance level on the
computer console and release the adjustment key.
The computer will obey the command gradually.
• Use caution while participating in other activities
while pedaling on your upright bike; such as
watching television, reading, etc. These distractions
may cause you to lose balance which may result in
serious injury.
• Do not use excessive pressure on console control
keys. They are precision set to function properly with
little nger pressure.
WARNING
This product can expose you to chemicals including
Toluene and Acrylamide which are known to the
State of California to cause Cancer and birth defects
or other reproductive harm. For more information, go
to www.P65Warnings.ca.gov

7
www.spirittness.com
CU800ENT PRE-ASSEMBLY
UNPACKING
1. Cut the straps, then along the dotted line on the bottom of the box; lift
the box over the unit and unpack.
2. Locate the hardware package. The hardware is separated into four
steps. Remove the tools rst. Remove the hardware for each step as
needed to avoid confusion. The numbers in the instructions that are
in parenthesis (#) are the item number from the assembly drawing for
reference.
TOOLS INCLUDED:
13/15mm Wrench
12/14mm Wrench
Phillips Screwdriver
PARTS INCLUDED:
1 Main Frame
1 Rear Stabilizer
1 Console Mast
1 Handlebar
1 Console Mast Cover
1 Console
1 Drink Bottle Holder
2 Pedals
1 Hardware Kit

8
Spirit Fitness
CONSOLE
HAND PULSE SENSORS
FRONT STABILIZER
PEDALS
REAR STABILIZER
CONSOLE FAN
SEAT
CUP HOLDER

9
www.spirittness.com
CU800ENT STEP ONE
HARDWARE FOR STEP 1
PART TYPE DESCRIPTION QTY
50 Hex Head Bolt 3/8” x 135mm 2
151 Curved Washer Ø3/8” x 23 x 2.0T 2
1. Install the Rear Stabilizer (No.5) onto the Main
Frame with 2 Bolts (No.50) and 2 Washers
(No.151).

10
Spirit Fitness

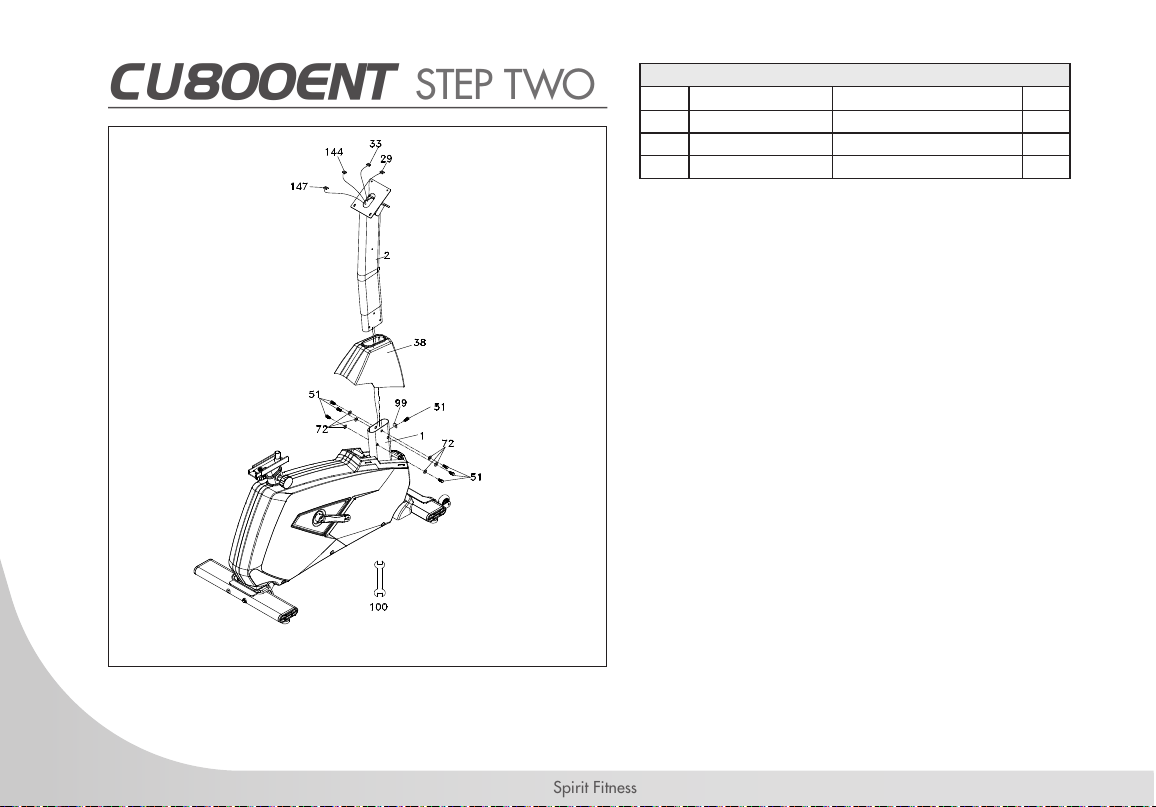

CU800ENT STEP TWO
HARDWARE FOR STEP 2
PART TYPE DESCRIPTION QTY
51 Hex Head Bolt 5/16” x UNC18 x 5/8” 7
72 Flat Washer Ø8 x Ø19 x 5/8” 6
99 Curved Washer Ø5/16” x 19 x 1.5T 1
1. Slide the Console Mast Cover (No.38) through
the Console Mast (No.2).
2. Making sure not to pinch the wires, run them
through the Console Mast (No.2) and Console
Mast Cover (No.38). The wires are: Computer
Cable (No.29), CSAFE Connecting Wire
(No.33), Network Connecting Cable (No.144),
and HDMI Connecting Wire (No.147).
3. Secure the Console Mast (No.2) to the Main
Frame (No.1) using 6 Bolts (No.51) and 6 Flat
Washers (No.72) on the sides of the Mast. On
the back of the Mast, use1Bolt (No.51) and 1
Curved Washer (No.99).

11
www.spirittness.com
CU800ENT STEP THREE
HARDWARE FOR STEP 3
PART TYPE DESCRIPTION QTY
51 Hex Head Bolt 5/16” x UNC18 x 5/8” 2
72 Flat Washer Ø8 x Ø19 x 1.5T 2
103 Split Washer Ø5/16” x 1.5T 2
1. Thread the Handpulse w/Cable (No.26) and Handpulse
w/Cable (No.28) and Computer Cable (No.29) through
the Console Mast (No.2).
2. Secure the Handlebar (No.3) to the Console Mast (No.2)
using 2 Bolts (No.51), 2 Split Washers (No.103), and 2
Flat Washers (No.72).

12
Spirit Fitness
CU800ENT STEP FOUR
HARDWARE FOR STEP 4
PART TYPE DESCRIPTION QTY
58 Philips Head Screw M5 x 12mm 6
1. Connect the Wires on the back of the console to
their respective places: Computer Cable (No.29),
Handpulse Wires (No.26 & 28), CSAFE Connecting
Wire (No.33), Network Connecting Cable (No.144),
HDMI Connecting Wire (No.147). Tuck excess cable
into the Console Mast (No.2) being careful not to
pinch the wires.
2. Secure the Console (No.34) to the Console Mast
(No.2) using 4 Screws (No.58) using the Screwdriver
(No.93).
3. Fasten the Beverage Holder (No.116) to the Console
Mast (No.2) using 2 Screws (No.58).
4. Install the Pedals (No.45L/R) onto the Crank Arms
(No. 16L/16R) carefully using the Wrench (No.92)
to hold the Pedal pivot then rmly fasten the pivot
clockwise.
5. Install the Seat (No.19) onto the Sliding Seat Mount
(No.7) then fasten the attached nut using the Wrench
(No.100).

13
www.spirittness.com
CU800ENT CONSOLE OPERATION

14
Spirit Fitness
Adjustable fan
angle
Tablet-friendly
reading rack
USB Charging
port
Start, Stop, Level controls
Touchscreen

15
www.spirittness.com

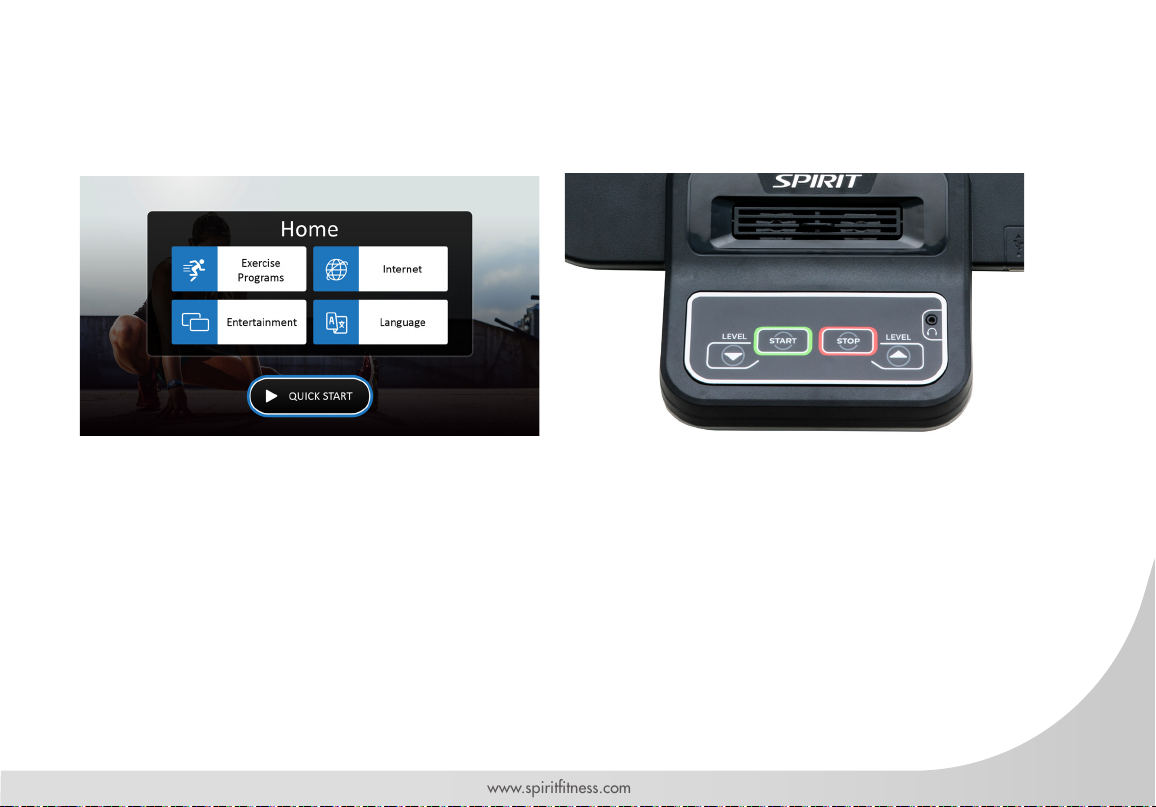

STARTING OPERATION
• When the power is turned ON, the screen will show a brief loading screen and then display the
Home Screen which indicates that the machine is ready to operate.
Quick operating buttons are conveniently located
for basic Upright Bike functions.
Home Screen: Begin operation by touching the icons.
CSAFE FEATURE
Your console is equipped with a CSAFE feature. The Power (POWER) port can be used for powering
a remote controlled audio-visual system by connecting a cable from the remote to the Power port
at the back of the console. The Communication port (COMM) can be used to interact with tness
software applications.

16
Spirit Fitness
FUNCTIONS OF THIS UPRIGHT BIKE
The Touchscreen is used for operating all functions. You can directly touch any button on the screen or
through quick button on the bottom to control functions. On the lower portion of the console there is the
Start button to begin the workout, Stop button to pause/stop programs, Level button to change workload.
QUICK START
This is the quickest way to start a workout. After the console powers up you just press the Start button to
begin. This will initiate the Quick Start mode. In Quick Start the Time will count up from zero, all workout
data will start to accrue and the workload may be adjusted manually by pressing on the screen or the Up
and Down buttons on lower control panel.
HEART RATE FEATURE
The Pulse (Heart Rate) on the screen shows the current value of the heart beats per minute. You must use
both left and right stainless steel sensors to pick up your pulse. Pulse values are displayed anytime the
computer is receiving a signal from the hand pulse sensors. You may use the hand pulse sensors while in
Heart Rate Control. The CU800ENT will also pick up wireless heart rate transmitters that are Polar and
Bluetooth compatible.

17
www.spirittness.com
TOUCHSCREEN OPERATION
LANGUAGE
There are 13 languages to choose from. Select
your desired language by tapping it on the
screen. Once selected, the system will return
to the Home Screen with your new language
being used. To return to the Home Screen with-
out selecting a new language, press the Home
button in the upper left corner of the screen.
INTERNET
The Internet section offers various streaming, news,
and social media options. The machine must be
connected to the internet in order for the apps to
work. Simply click on the app of your choice to
connect. Follow any on-screen prompts to continue
login or other authorizations as needed.

18
Spirit Fitness

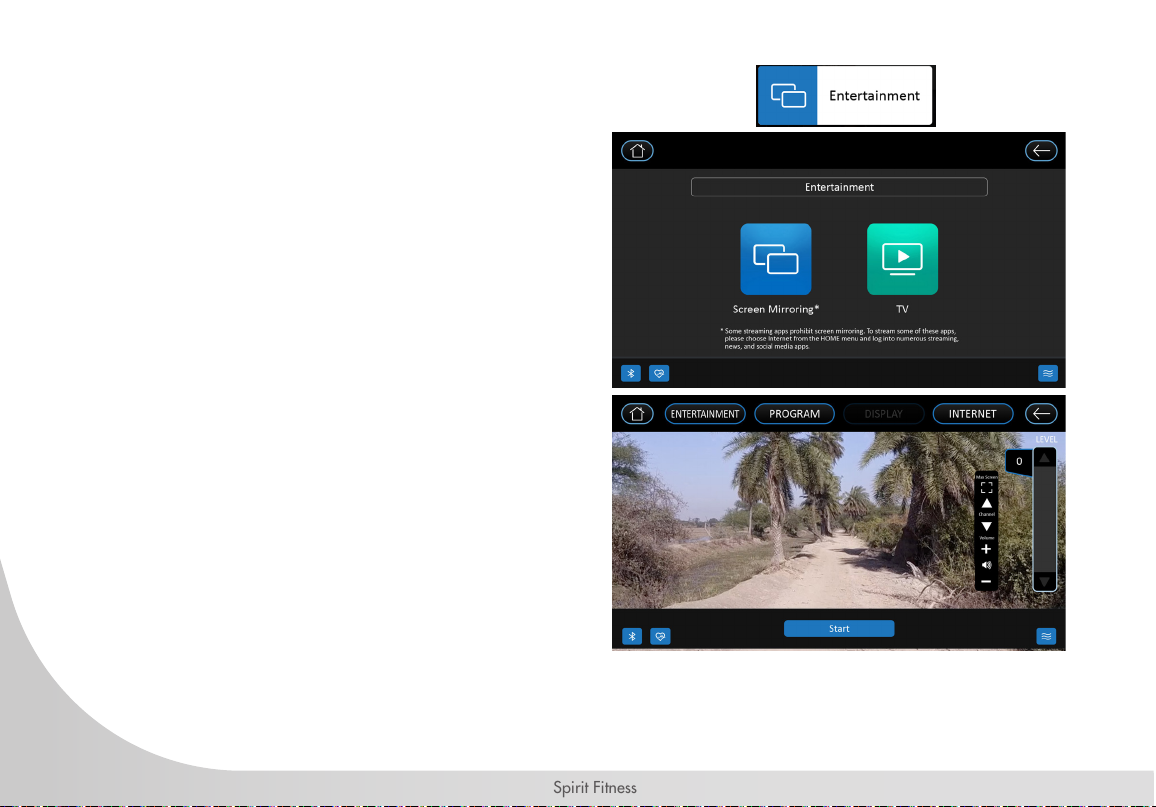

ENTERTAINMENT OPTIONS
TV Mode
From the Home Screen, tap Entertainment to go to the
entertainment menu. You will be given the options of
Screen Mirroring and TV mode interface.
When properly connected to the Set-Top Box (STP) via
the HDMI port and TV mode selected, you can enjoy TV
programs after selecting TV mode from the Entertainment
screen on your Upright Bike.
Once TV mode has begun:
• Use the ▲/▼buttons on the right hand side of the
touchscreen to switch between channels.
• Use the +/-volume buttons on the right hand side of
the touchscreen to control the sound volume level.
• Tap the “⛶” button to display the media in full screen
mode. To resume to normal screen size, simply tap
the “⛶“ button again to minimize the screen view
back to normal size.
• Use the on-screen or physical Level controls to make
updates to your workout while in TV mode.
• To Pause, press the Stop button once.
• To end your workout, press the Stop button twice to show the workout summary. Pressing the Stop button
a third time will return you to the Home Screen.
