1. SAFETY INSTRUCTIONS
Please read these instructions carefully
they include the important information
about the installation usage and
maintenance of this products


• Please keep this User Manual for future consultation. If you sell the xture to another user, be sure that
they also receive this instruction booklet.
• Unpack and check carefully there is no transportation damage before using the xture.
• It’s important to ground the yellow/green conductor to earth in order to avoid electric shock.
• Disconnect main power before servicing and maintenance.
• The unit must be installed in a location with adequate ventilation, at least 50cm from adjacent surfaces.
Be sure that no ventilation slots are blocked.
• Maximum ambient temperature is Ta : 40°C. Don’t operate it where the temperature is higher than this.
• Unit surface temperature may reach up to 85°C. Don’t touch the housing bare-hand during its operation.
Turn o the power and allow about 15 minutes for the unit to cool down before replacing or serving.
• In the event of serious operating problem, stop using the xture immediately. Never try to repair the
xture by yourself. Repairs carried out by unskilled people can lead to damage or malfunction. Please
contact the nearest authorized technical assistance center. Always use the same type spare parts.
• Do not connect the device to any dimmer pack.
• Do not touch any wire during operation and there might be a hazard of electric shock.
• To prevent or reduce the risk of electrical shock or re, do not expose the xture to rain or moisture.
• The housing must be replaced if they are visibly damaged.
• Do not look directly at the LED light beam while the xture is on.
• There are no user serviceable parts inside the xture. Do not open the housing or attempt any repairs by
yourself. In the unlikely event your xture may require service, please contact your nearest dealer.
• Due to the magnifying type lens, please keep the lens out of contact with direct sunlight. Direct sunlight
can cause heat to build up inside of the unit, which will seriously damage unit.

Manual | Aura Bar & Matrix Beam Light 100
2. Technical Specications
• DMX 1/2/4/12/14/16 channels switchable.
• Smooth 0~100% dimming and variable strobe speeds.
• Three operation modes: DMX, Mater/Slave mode, Sound Active.
• Ideal for discotheques, clubs, bars, parties, Mobile DJs, ect.
• Power Supply: 120~230V 50/60Hz
• Power consumption: 70W
• LED: 12PCS 3WCREE (2800K WW)/ 48PCS 5050SMD RGB
• Dimension: 1000* 83* 109mm
• Weight: 3.9 kgs
3. Installation
The unit should be mounted via its screw holes on the bracket. Always ensure that the unit is rmly xed to avoid
vibration and slipping while operating.
Always ensure that the structure to which you are attaching the unit is secure and is able to support a weight
of 10 times of the unit’s weight. Also always use a safety cable that can hold 12 times of the weight of the unit
when installing the xture.
The equipment must be xed by professionals. And it must be xed at a place where is out of the touch of people
and has no one pass by or under it, the range of mounting height is 0~30 M.

Manual | Aura Bar & Matrix Beam Light 100

4. How to set the unit

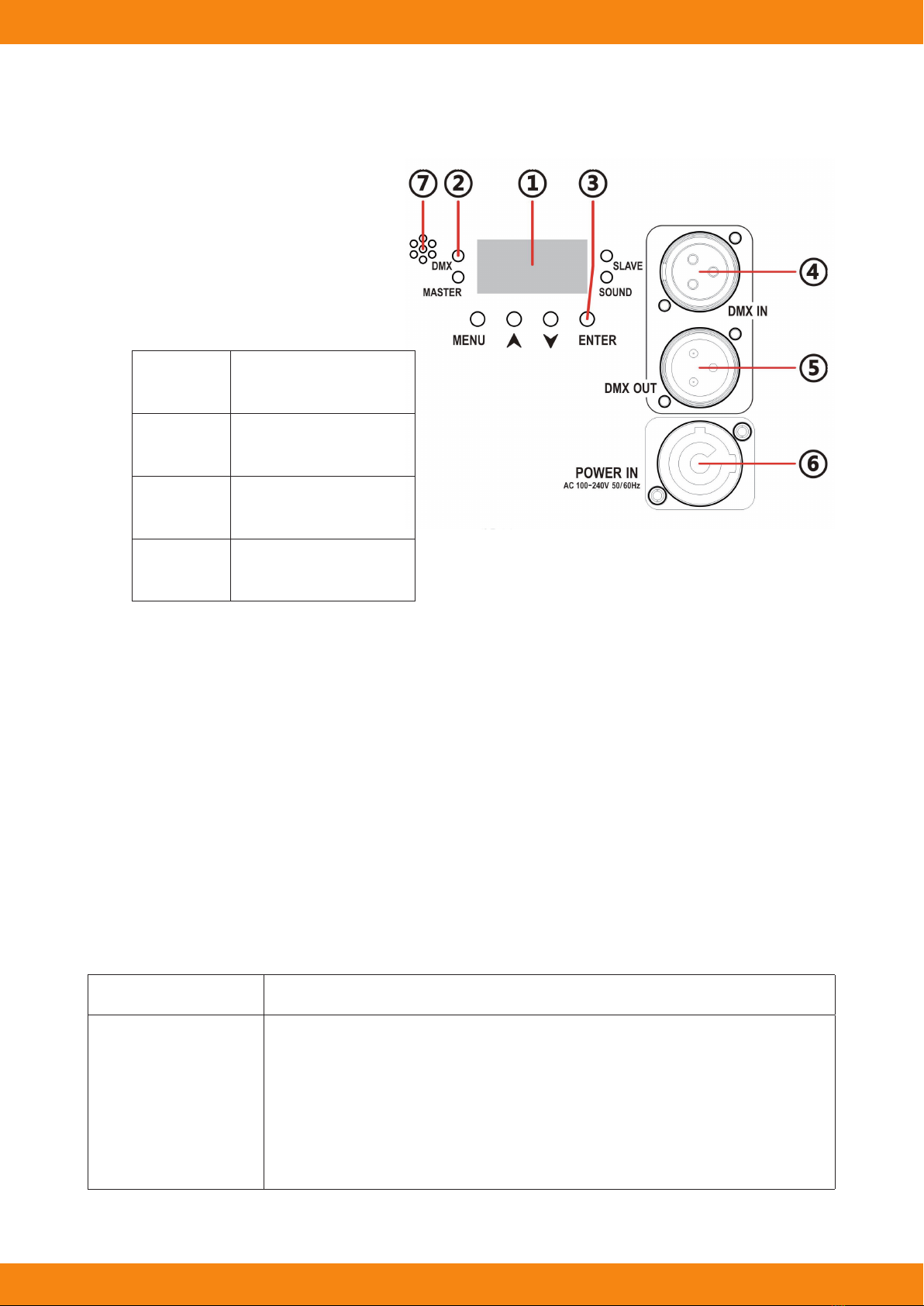

4.1 Rear Panel
• 1 - Display:To show the various
menus and the selected functions
• 3 - Button:
MENU To select the programming
functions with short press.
DOWN To go backward in the
selected functions
UP To go forward in the
selected functions
ENTER To conrm the selected
functions
• 4 - DMX input: For DMX512 link, use 3/5-pin XLR plug cable to input DMX signal.
• 5 - DMX output: For DMX512 link, use 3/5-pin XLR plug cable to link the next unit.
• 6 - POWER input: Connect to supply mains power.
7 - Microphone: Receive music for the sound active.
4.2 Main Function
To select any functions, press MENU button until the required one is shown on the display. Select the function by
ENTER button and the display will blink. Use DOWN and UP button to change the mode. Once the required mode
has been selected, press ENTER button to setup or it will automatically return to the main functions without any
change after idling 30 seconds. Back to the functions without any change press MENU button. The main func-
tions are shown below:
DMX Address 1-512
Channel Mode
4CH
5 CH
7CH
24 CH
26CH
28 CH

Manual | Aura Bar & Matrix Beam Light 100
Slave Mode Master
Slave 1- Slave 15
Show Mode Show0~Show12 Manual
Show Mode-C Show0~Show4
Manual Mode Dimmer 0 - 255 Strobe 0 - 255
Sound State Sound mode
On - O
Sound Sense Sound sense 0-100%
Blackout Yes
No
Blackout-C On - O
Back Light On - O
Auto Test
Fixture Time Fixture hours
0 ~ 9999
Version V 10
DMX Address
Press the MENU button up to when the DMX Address is shown on the display. Pressing the ENTER button and
the display will blink. Use the DOWN and UP button to change the DMX 512 address.
Once the address has been selected, press the ENTER button to setup or automatically exit menu mode without
any change after 7 seconds. Back to the previous functions without any change press the MENU button.
Channel Mode
Press the MENU button up to when the Channel Mode is shown on the display. Pressing the ENTER button,
Use the DOWN and UP button to select the (1 channel) or (2 channels) or (4 channels) or (12 channels) or
(14 channels) or (16 Channels) mode. Once selected, press the ENTER button to setup or automatically exit
menu mode without any change after 7 seconds.To go back to the functions without any change press the
MENU button.

Manual | Aura Bar & Matrix Beam Light 100
Slave Mode
Press the MENU button up to when the Slave Mode is shown on the display. Pressing the ENTER button.
Use the DOWN and UP button to select the (slave 1) or (Slave 2) … or (Slave 15)mode.
Once selected, press the ENTER button to setup or automatically exit menu mode without any change after
7 seconds. To go back to the functions without any change press the MENU button.
Show Mode
Press the MENU button up to when the Show Mode is shown on the display. Pressing the ENTER button.
Use the DOWN and UP button to select the Show0 (Random show) or Show1 (show 1) or Show2 (Show 2)
or … or Manual (Manual).
Once selected, press the ENTER button to store or automatically exit menu mode without any change after
7 seconds. To go back to the functions without any change press the MENU button.
Manual Mode
Press the MENU button up to when the Manual Mode is shown on the display. Pressing the ENTER button.
Use the DOWN and UP button to select the strobe (strobe) or dimmer (dimmer). Once selected strobe,
Pressing the ENTER button, Use the DOWN and UP button to change the strobe 0 – 255.
Once selected, press the ENTER button to store. If you select dimmer, Pressing the ENTER button. Use the DOWN
and UP button to change the dimmer 0 – 255, Once selected, press the ENTER button to setup or automatically
exit menu mode without any change after 60 seconds.To go back to the functions without any change press the
MENU button.
Sound State
Select Sound State, press the ENTER button to conrm, present mode will blink on the display. Use the DOWN
and UP button to select the On (sound on) or O (sound o) mode.
Once the mode has been selected, press the ENTER button to setup, to go back to the functions without any
change press the MENU button again. Hold and press the MENU button about one second or wait for one minu-
te to exit the menu mode.
Sound Sense
Press the MENU button up to when the Sound Sense is shown on the display. Press the ENTER button and
the display will blink. Use the DOWN and UP buttons to adjust the sound sensitively (0-100) of the unit.
Once selected, press the ENTER button to setup or automatically exit menu mode without any change after
7 seconds. To go back to the functions without any change press the MENU button.

Manual | Aura Bar & Matrix Beam Light 100
Blackout Mode
Press the MENU button up to when the Blackout Mode is shown on the display. Pressing the ENTER button,
Use the DOWN and UP button to select the yes (blackout) or no (normal).
Once selected, press the ENTER button to setup or automatically exit menu mode without any change after
7 seconds. To go back to the functions without any change press the MENU button.
Back Light
Select Back Light, press the ENTER button to conrm, present mode will blink on the display. Use the DOWN
and UP button to select the On (Led on) or O (Led o) mode.
Once the mode has been selected, press the ENTER button to setup, to go back to the functions without any chan-
ge press the MENU button again. Hold and press the MENU button about one second or wait for one minute.
Auto-Test
Press the MENU button up to when the Auto-Test is blinking on the display. Pressing ENTER button and the
unit will run self-test by built-in program. To go back to the functions press the MENU button again. Hold and
press the MENU button about one second or wait for one minute to exit the menu mode.
Fixture Time
Press the MENU button up to when the Fixture Time is blinking on the display. Pressing ENTER button and the
display will show the number of working hours of the unit.
To go back to the functions press the MENU button again. Hold and press the MENU button about one second or
wait for one minute to exit the menu mode.
Firmware Version
Press the MENU button up to when the Firmware version is blinking on the display. Pressing ENTER button
and the display will show the version of software of the unit.
To go back to the functions press the MENU button again. Hold and press the MENU button about one second or
wait for one minute to exit the menu mode.

Manual | Aura Bar & Matrix Beam Light 100
5. How To Control The Unit
You can operate the unit in three ways:
1. By master/slave built-in preprogram function
2. By easy controller
3. By DMX controller
No need to turn the unit o when you change the DMX address, as new DMX address setting will be aected
at once. Each time you turn the unit on, it will show“M312”on the display. After that the unit will be ready to
receive DMX signal or run the built in programs.
5.1 Master/Slave Built In Preprogrammed Function
By linking the units in master/slave connection, the rst unit will control the other units to give an automatic,
sound activated, synchronized light show. This function is good when you want an instant show.
You have to set the rst unit in master mode and select Show0 (random show), Show1 (show 1) or …or Show8
(show 8). Its DMX input jack will have nothing plugged into it, and Its master LED will be constantly on and
sound LED will ash to the music.
5.2 DMX Controller
Using universal DMX controller to control the units, you have to set DMX address from 1 to 512 channel so that
the units can receive DMX signal.
Press the MENU button up to when the DMX Address is showing on the display. Pressing ENTER button and
the display will blink. Use DOWN and UP button to change the DMX512 address. Once the address has been
selected, press and keep ENTER button pressed up to when the display stops blinking or storing automatically
8 seconds later. To go back to the functions without any change press the MENU button again. If you use please
refer to the following diagram to address your DMX512 channel for the rst 4 /2 units.
Channel Mode Unit 1 Unit 2 Unit 3 Unit 4
4 Channel 15913
5 Channel 1 9 17 25
7 Channel 1 8 15 23
24 Channel 1 25 49 73
26 Channel 1 27 53 79
28 Channel 1 29 57 85

Manual | Aura Bar & Matrix Beam Light 100
4-CH Mode
CH1 warm white 000-107 Strobe
108-255 Strobe
CH2 Red 000-255 0% - 100%
CH3 Green 000-255 0% - 100%
Ch4 Blue 000-255 0% - 100%
5-CH Mode
CH1 Dimmer 000-255 0% - 100%
CH2 Strobe 000-255 0% - 100%
CH3 Red 000-255 0% - 100%
Ch4 Green 000-255 0% - 100%
CH5 Blue 000-255 0% - 100%
7-CH Mode
CH1 Dimmer 000-255 0% - 100%
CH2 Strobe 000-255 0% - 100%
CH3 Warm white 000-007 LED Blackout
008-247 LED Chase1 - LED Chase12
248-255 Sound random mode
Ch4 LED Chase speed 000-255 0% - 100%
CH5 Red 000-255 0% - 100%
CH6 Green 000-255 0% - 100%
CH7 Blue 000-255 0% - 100%

Manual | Aura Bar & Matrix Beam Light 100
24-CH Mode
CH1 - CH12 Warm white 000-255 0% - 100%
CH13 Red 000-255 0% - 100%
CH14 Green 000-255 0% - 100%
CH15 Blue 000-255 0% - 100%
CH16 Red 000-255 0% - 100%
CH17 Green 000-255 0% - 100%
CH18 Blue 000-255 0% - 100%
CH19 Red 000-255 0% - 100%
CH20 Green 000-255 0% - 100%
CH21 Blue 000-255 0% - 100%
CH22 Red 000-255 0% - 100%
CH23 Green 000-255 0% - 100%
CH24 Blue 000-255 0% - 100%
26-CH Mode
CH1 - CH12 Warm white 000-255 0% - 100%
CH13 Dimmer 000-255 0% - 100%
CH14 Strobe 000-255 0% - 100%
CH15 Red 000-255 0% - 100%
CH16 Green 000-255 0% - 100%
CH17 Blue 000-255 0% - 100%
CH18 Red 000-255 0% - 100%
CH19 Green 000-255 0% - 100%
CH20 Blue 000-255 0% - 100%
CH21 Red 000-255 0% - 100%

Manual | Aura Bar & Matrix Beam Light 100
CH22 Green 000-255 0% - 100%
CH23 Blue 000-255 0% - 100%
CH24 Red 000-255 0% - 100%
CH25 Green 000-255 0% - 100%
CH26 Blue 000-255 0% - 100%
28-CH Mode
CH1 - CH12 Warm white 000-255 0% - 100%
CH13 Dimmer 000-255 0% - 100%
CH14 Strobe 000-255 0% - 100%
CH15 Warm white 000-007 LED Blackout
008-247 LED Chase 1 - LED Chase 12
248-255 Sound random mode
CH16 LED Chase Speed 000-255 0% - 100%
CH17 Red 000-255 0% - 100%
CH18 Green 000-255 0% - 100%
CH19 Blue 000-255 0% - 100%
CH20 Red 000-255 0% - 100%
CH21 Green 000-255 0% - 100%
CH22 Blue 000-255 0% - 100%
CH23 Red 000-255 0% - 100%
CH24 Green 000-255 0% - 100%
CH25 Blue 000-255 0% - 100%
CH26 Red 000-255 0% - 100%
CH27 Green 000-255 0% - 100%
Ch28 Blue 000-255 0% - 100%

Manual | Aura Bar & Matrix Beam Light 100
7. DMX512 Connections
mode connection
• Connect the xture together in a“daisy chain”by XLR plug cable from the output of the xture to the input
of the next xture. The cable cannot be branched or split to a“Y”cable. Inadequate or damaged cables,
soldered joints or corroded connectors can easily distort the signal and shut down the system.
• The DMX output and input connectors are pass-through to maintain the DMX circuit when one of the units’
power is disconnected.
• At last xture, the DMX cable has to be terminated with a terminator to reduce signal errors. Solder a
120-ohm 1/4W resistor between pin 2(DMX-) and pin 3(DMX+) into a 3-pin XLR-plug and plug it in the
DMX-output of the last xture.
• Each lighting xture needs to have an address set to receive the data sent by the controller. The address
number is between 0-511 (usually 0 & 1 are equal to 1).
• 3 pin XLR connectors are more popular than 5 pins XLR.
• 3 pin XLR: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal (+)
• 5 pin XLR: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal (+),Pin4/5:
• not used
8. Troubleshooting
Following are a few common problems that may occur during operation. Here are some suggestions for easy
troubleshooting:
A. The xture does not work, no light
• Check the connection of power and main fuse.
• Measure the mains voltage on the main connector.

Manual | Aura Bar & Matrix Beam Light 100
B. Not responding to DMX controller
• DMX LED should be on. If not, check DMX connectors, cables to see if link properly.
• If the DMX LED is on and no response to the channel, check the address settings and DMX polarity.
• If you have intermittent DMX signal problems, check the pins on connectors or on PCB of the xture or the
previous one.
• Try to use another DMX controller.
• Check if the DMX cables run near or run alongside to high voltage cables that may cause damage or inter-
ference to DMX interface circuit.
C. Some xtures don’t respond to the easy controller
• You may have a break in the DMX cabling.
• Check the LED for the response of the master/ slave mode signal.
D. No response to the sound
• Make sure the xture does not receive DMX signal.
• Check microphone to see if it is good by tapping the microphone.
E. One of the channels is not working well
• The stepper motor might be damaged or the cable connected to the PCB is broken.
• The motor’s drive IC on the PCB might be out of condition.
9. Fixture Cleaning
The cleaning of internal must be carried out periodically to optimize light output. Cleaning frequency depends on
the environment in which the xture operates: damp, smoky or particularly dirty surrounding can cause greater
accumulation of dirt on the xture’s optics.
• Clean with soft cloth using normal glass cleaning uid.
• Always dry the parts carefully.
• Clean the external optics at least every 20 days. Clean the internal optics at least every 30/60 days

Manual | Aura Bar & Matrix Beam Light 100
Das Lichttechnikhaus Vertriebs GmbH
Rudolf-Diesel-Str. 3, D-89312 Günzburg
Telefon [phone]
Fax [phone]
E-Mail [email protected]
Web www.lth-gmbh.de
