Operating instructions
Additional languages r-stahl.com
EN
Floodlight
Series 6121

2
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
Floodlight
Series 6121
Contents
1 General Information ............................................................................................3
1.1 Manufacturer .......................................................................................................3
1.2 Information regarding the operating instructions .................................................3
1.3 Further documents ..............................................................................................3
1.4 Conformity with standards and regulations .........................................................3
2 Explanation of the symbols .................................................................................4
2.1 Symbols in these operating instructions .............................................................4
2.2 Warning notes .....................................................................................................4
2.3 Symbols on the device ........................................................................................5
3 Safety notes ........................................................................................................5
3.1 Operating instructions storage ............................................................................5
3.2 Safe use ..............................................................................................................5
3.3 Intended Use .......................................................................................................6
3.4 Modifications and alterations ..............................................................................6
4 Function and device design ................................................................................6
4.1 Function ..............................................................................................................6
4.2 Device design .....................................................................................................7
5 Technical data .....................................................................................................8
6 Transport and storage .......................................................................................12
7 Mounting and installation ..................................................................................12
7.1 Dimensions / fastening dimensions ..................................................................13
7.2 Mounting / dismounting, operating position ......................................................13
7.3 Installation .........................................................................................................17
8 Commissioning .................................................................................................22
9 Operation ..........................................................................................................23
9.1 Troubleshooting ................................................................................................23
10 Maintenance, Overhaul, Repair ........................................................................24
10.1 Maintenance .....................................................................................................24
10.2 Repair ...............................................................................................................26
10.3 Returning the device .........................................................................................26
11 Cleaning ............................................................................................................26
12 Disposal ............................................................................................................26
13 Accessories and Spare parts ...........................................................................27

224476 / 6121605300
2019-06-13·BA00·III·en·06
General Information
3
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
Floodlight
Series 6121
1 General Information
1.1 Manufacturer
1.2 Information regarding the operating instructions
ID-No.: 224476 / 6121605300
Publication Code: 2019-06-13·BA00·III·en·06
The original instructions are the English edition.
They are legally binding in all legal affairs.
1.3 Further documents
• Data sheet
For documents in additional languages, see r-stahl.com.
1.4 Conformity with standards and regulations
See certificates and EU Declaration of Conformity: r-stahl.com.
The device has IECEx approval. For certificate please refer to the IECEx homepage:
http://iecex.iec.ch/
Further national certificates can be downloaded via the following link:
https://r-stahl.com/en/global/support/downloads/.
R. STAHL Schaltgeräte GmbH
Am Bahnhof 30
74638 Waldenburg
Germany
R. STAHL (P) LTD., Plot No. - 5
Malrosapuram Road, Sengundram Indl. Area
Singaperumal Koil, Kancheepuram Dist.,
Tamil Nadu – 603 204, INDIA
Phone:
Fax:
Internet:
E-mail:
[phone]
[phone]
r-stahl.com
[email protected]
Phone:
Fax:
Internet:
E-mail:
[phone]
[phone]
rstahl.net
[email protected]
R. STAHL Schaltgeräte GmbH
Business Unit Lighting & Signalling
Nordstr. 10
99427 Weimar
Germany
Phone:
Fax:
Internet:
E-mail:
[phone]
[phone]
r-stahl.com
[email protected]

Explanation of the symbols
4224476 / 6121605300
2019-06-13·BA00·III·en·06
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
Floodlight
Series 6121
2 Explanation of the symbols
2.1 Symbols in these operating instructions
2.2 Warning notes
Warnings must be observed under all circumstances, in order to minimize the risk due to
construction and operation. The warning notes have the following structure:
• Signalling word: DANGER, WARNING, CAUTION, NOTICE
• Type and source of danger/damage
• Consequences of danger
• Taking countermeasures to avoid the danger or damage
Symbol Meaning
Tips and recommendations on the use of the device
Danger due to explosive atmosphere
Danger due to live components
DANGER
Danger to persons
Non-compliance with the instruction results in severe or fatal injuries to
persons.
WARNING
Danger to persons
Non-compliance with the instruction can result in severe or fatal injuries to
persons.
CAUTION
Danger to persons
Non-compliance with the instruction can result in light injuries to persons.
NOTICE
Avoiding material damage
Non-compliance with the instruction can result in material damage to the device and / or
its environment.

224476 / 6121605300
2019-06-13·BA00·III·en·06
Safety notes
5
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
Floodlight
Series 6121
2.3 Symbols on the device
3 Safety notes
3.1 Operating instructions storage
• Read the operating instructions carefully.
• Store the operating instructions at the mounting location of the device.
• Observe applicable documents and operating instructions of the devices to be
connected.
3.2 Safe use
Before mounting
• Read and observe the safety notes in these operating instructions!
• Ensure that the contents of these operating instructions are fully understood by the
personnel in charge.
• Use the device in accordance with its intended and approved purpose only.
• Always consult R. STAHL Schaltgeräte GmbH if using the device under operating
conditions which are not covered by the technical data.
• We cannot be held liable for damage to the device caused by incorrect or unauthorised
use or non-compliance with these operating instructions.
For assembly and installation
• Observe national assembly and installation regulations (e.g. IEC/EN 60079-14).
• Observe national safety and accident prevention regulations.
• During installation and operation, observe the information (characteristic values and
rated operating conditions) on the type plates and data plates and information signs
located on the device.
• Before installation, make sure that the device is not damaged.
Maintenance, repair, commissioning
• Before commissioning, make sure that the device is not damaged.
• Work on the device, such as installation, maintenance, overhaul, repair, may only be
carried out by appropriately authorised and trained personnel.
• Perform only maintenance work or repair described in these operating instructions.
Symbol Meaning
05594E00
CE marking according to the currently applicable directive.
02198E00
According to marking, device approved for hazardous areas.

Function and device design
6224476 / 6121605300
2019-06-13·BA00·III·en·06
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
Floodlight
Series 6121
3.3 Intended Use
The luminaire is equipment
• for lighting areas, work spaces and objects
• can be used indoors and outdoors
• for stationary mounting
• for use in Zones 1, 21, 2, 22 and in the safe area
3.4 Modifications and alterations
4 Function and device design
4.1 Function
Application range
The floodlight is equipment used for lighting areas, work equipment and objects.
It can be used indoors and outdoors and is suitable for halogen lamps,
high-pressure sodium vapour lamps and metal halide lamps.
DANGER
Explosion hazard due to modifications and alterations to the device!
Non-compliance results in severe or fatal injuries.
• Do not modify or alter the device.
No liability or warranty for damage resulting from modifications and
alterations.
DANGER
Explosion hazard due to improper use!
Non-compliance results in severe or fatal injuries.
• Use the device only in accordance with the operating conditions
described in these operating instructions.
• Use the device only for the intended purpose specified in these
operating instructions.

224476 / 6121605300
2019-06-13·BA00·III·en·06
Function and device design
7
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
Floodlight
Series 6121
4.2 Device design
16696E00
1 Lamp enclosure 4 Control gear enclosure
2 Opening for replacing
lamps
5 Opening for connecting
the luminaire
3 Mounting bracket 6 Cable gland
6
6
4
2
1
3
5
5

Technical data
8224476 / 6121605300
2019-06-13·BA00·III·en·06
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
Floodlight
Series 6121
5 Technical data
Explosion Protection
Global (IECEx)
Gas and dust IECEx BVS 14.0071X
Ex db eb IIB + H2 T* Gb
Ex db eb IIC T* Gb
Ex tb IIIC T* °C Db
* temperature classes and surface temperatures see technical data
Europe (ATEX)
Gas and dust BVS 14 ATEX E 110 X
E II 2 G Ex db eb IIB + H2 T* Gb
E II 2 G Ex db eb IIC T* Gb
E II 2 D Ex tb IIIC T* °C Db
* temperature classes and surface temperatures see technical data
Certifications and certificates
Certificates IECEx, ATEX, India (PESO), Kazakhstan (TR), Russia (TR),
Belarus (TR)
Ship approval BV
only for 6121/1312-2151-....-...-..3-. and 6121/1312-2251-....-...-..3-.
150 W and 250 W HID, broad beam with spezialised bracket and
armoured cable between lamp enclosure and control gear enclosure.
Technical Data
Electrical data
Lamps
Control gear
Rated operational
voltage Ue
QT IEC 60357
HIT IEC 61167
HST IEC 60662
QT without
HIT /
HST
magnetical control gear
Lamps
QT HIT HST
500 W 150 W 250 W 400 W 150 W 250 W 400 W 600 W
230 (+/- 6%) V AC,
50 Hz
xxxxxxxx
240 (+/- 6%) V AC,
50 Hz
xxxxxxx
208 (+/- 6%) V AC,
60 Hz
xxxx
220 (+/- 6%) V AC,
60 Hz
xxxxxxx
240 (+/- 6%) V AC,
60 Hz
xxxxxx

224476 / 6121605300
2019-06-13·BA00·III·en·06
Technical data
9
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
Floodlight
Series 6121
Current consumption
Technical Data
Lamp
Lamp power Supply current in A
220 to 230 V AC/DC 0, 50, 60Hz
QT 500 W 2.17
Compensated Uncompensated
Lamp
Lamp power Power factor cos φ Supply current in A Inrush current in A Power factor cos φ Supply current in A Inrush current in A
230 V AC, 50 Hz
HIT / HST 150 W 0.95 0.79 1.50 0.40 1.80 2.70
HIT / HST 250 W 0.92 1.30 2.00 0.40 3.00 4.20
HIT 400 W 0.93 2.00 2.40 0.43 4.20 5.80
HST 400 W 0.91 2.10 2.50 0.43 4.45 6.00
HST 600 W 0.92 2.95 3.80 0.44 6.20 8.50
240 V AC, 50 Hz
HIT / HST 150 W 0.96 0.76 1.50 0.40 1.80 2.70
HIT / HST 250 W 0.94 1.23 2.00 0.40 3.00 4.20
HIT 400 W 0.96 1.90 2.40 0.43 4.20 5.80
HST 400 W 0.92 2.00 2.50 0.43 4.45 6.00
HST 600 W 0.93 2.80 3.80 0.44 6.20 8.50
208 V AC, 60 Hz
HIT / HST 150 W 0.94 0.80 1.50 0.42 1.80 2.70
HIT 400 W 0.97 1.90 2.50 0.44 4.20 5.80
HST 400 W 0.96 2.30 2.80 0.44 4.45 6.00
220 V AC, 60 Hz
HIT / HST 150 W 0.96 0.75 1.50 0.42 1.80 2.70
HIT / HST 250 W 0.90 1.50 2.00 0.40 3.00 4.20
HIT 400 W 0.98 1.80 2.40 0.44 4.20 5.80
HST 400 W 0.98 2.20 2.70 0.44 4.45 6.00
240 V AC, 60 Hz
HIT / HST 150 W 0.97 0.68 1.50 0.42 1.80 2.70
HIT / HST 250 W 0.91 1.35 2.00 0.40 3.00 4.20
HIT 400 W 0.97 1.60 2.30 0.44 4.20 5.80
HST 400 W 0.98 2.00 2.60 0.44 4.45 6.00

Technical data
10 224476 / 6121605300
2019-06-13·BA00·III·en·06
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
Floodlight
Series 6121
Inrush current max. light fittings per circuit breaker with the maximum network impedance
of 1 Ω:
Energy efficiency
class
EEI A2
Connection cable
between control gear
and luminaire
enclosure
prewired with special ignition silicone cable - armoured or unarmoured
Ambient conditions
Temperature class,
max. surface
temperature
Technical Data
compensated uncompensated
QT HIT/HST HIT/HST
500 W 150 W 250 W 400 W 600 W 150 W 250 W 400 W 600 W
B10A 45321211–
B16A 785324211
B20A 9106425322
B25A 11128536422
C10A 475324211
C16A 7117426321
C20A 9149537432
C25A 11 17 11 7 4 9 5 4 2
Lamp Lamp power Temperature class max. surface
temperature
Ta ( +50 °C Ta ( +60 °C Ta = +40 °C Ta = +60 °C
QT 500 W T3 T3 +158 °C +178 °C
HIT /
HST
150 W T4 T4 +86 °C +106 °C
HIT /
HST
250 W T4 T3 +120 °C +140 °C
HIT /
HST
400 W T3 T3 +152 °C +172 °C
HST 600 W T3 (Ta ( +40 °C) +161 °C –

224476 / 6121605300
2019-06-13·BA00·III·en·06
Technical data
11
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
Floodlight
Series 6121
Alternative material:
Bracket:
• stainless steel S304 (1.4301 or V2A) without powder-coated
For further technical data, see r-stahl.com.
Ambient
temperature,
gas group
Mechanical data
Degree of protection IP66 (IEC 60529)
Protection class I
Enclosure material seawater-resistant cast aluminium (AlSiMg) (LM25)
Material cover lamp
enclosure
Brass powder-coated
Colour Standard single powder-coated,
Offshore double powder-coated, RAL 7032, other on request
Bracket Standard: sheet steel, single powder coated
Offshore: stainless steel SS316L (1.4404 or. V4A) without powder-coating
Mounting / Installation
Operating position Horizontal mounting
Cable entry HIT / HST
3x M20x1.5 with 1 cable gland and 2 stopping plugs or
3x M25x1.5 with 1 cable gland and 2 stopping plugs
QT
2x M20x1.5 with 1 cable gland and 1 stopping plug or
2x M25x1.5 with 1 cable gland and 1 stopping plug
Connection L + N + PE, max. 4 mm2 or max. 6mm2
Technical Data
Lamp Lamp power Ambient temperature Gas group Note
QT 500 W Ta = -20 to +60 °C IIC
Ta = -60 to +60 °C IIB + H2
HIT /
HST
150 W,
250 W
Ta = -20 to +60 °C IIC
Ta = -60 to +60 °C IIB + H2lamp
start at
Ta ) -35 °C
400 W Ta = -20 to +60 °C IIC
Ta = -60 to +60 °C IIB + H2lamp
start at
Ta ) -35 °C
HST 600 W Ta = -20 to +40 °C IIC
Ta = -60 to +40 °C IIB + H2lamp
start at
Ta ) -35 °C

Transport and storage
12 224476 / 6121605300
2019-06-13·BA00·III·en·06
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
Floodlight
Series 6121
6 Transport and storage
• Transport and store the device only in the original packaging.
• Store the device in a dry place (no condensation) and vibration-free.
• Do not drop the device.
7 Mounting and installation
DANGER
Explosion hazard due to incorrect installation of the device!
Non-compliance results in severe or fatal injuries.
• Carry out installation strictly according to the instructions and national
safety and accident prevention regulations to maintain the explosion
protection.
• Select and install the electrical device so that explosion protection is not
affected due to external influences, i.e. pressure conditions, chemical,
mechanical, thermal and electric impact such as vibration, humidity and
corrosion (see IEC/EN 60079-14).
• The device must only be installed by trained qualified personnel who is
familiar with the relevant standards.
NOTICE
Malfunction or device damage caused by condensation.
Non-compliance can result in material damage!
• operate the luminaire continuously or periodically over extended periods of time.
• avoid thermal bridges.

224476 / 6121605300
2019-06-13·BA00·III·en·06
Mounting and installation
13
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
Floodlight
Series 6121
7.1 Dimensions / fastening dimensions
7.2 Mounting / dismounting, operating position
Dimensional Drawings (All Dimensions in mm [inches]) – Subject to Alterations
6121/1 Floodlight,
Halogen (QT)
6121/1 Floodlight,
Halogen metal halide lamps (HIT),
High pressure sodium lamps (HST)
18558E00
18557E00
6121/13..-....-....-...-..3-.
6121/13..-....-....-...-..4-.
DANGER
Explosion hazard due to inadmissible heating!
Non-compliance results in severe or fatal injuries.
• Avoid external heat sources and/or direct sunlight
(risk of change of temperature class or change of maximum permissible
surface temperature).
• Do not exceed the maximum ambient temperature due to external heat
sources (premature failure of equipment).
NOTICE
Risk of overheating due to high thermal radiation!
Non-compliance can result in material damage!
• Maintain a minimum distance of 0.5 m to the lighting object.
The light fitting is suitable for wall and ceiling mounting.
Outdoors, the mounting position with cable outlet at top is not allowed.
[]3 x ø 0,51
3 x ø 13
250 [9,84]
400 [15,75]
6 0 [2 ]8 6,77
370 [14,57]
520 [20,47]
540 [21,26]
285 [11,22]
[]3 x ø 0,51
3 x ø 13
250 [9,84]
400 [15,75]
6 0 [2 ]8 6,77
370 [14,57]
410 [16,14]
45 [17, ]280
4[1 ]86 9,13
53 [2 ]2 0,94
285 [11,22]

Mounting and installation
14 224476 / 6121605300
2019-06-13·BA00·III·en·06
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
Floodlight
Series 6121
• Mount the floodlight in a suitable position using the bracket
(torque value for fixing screw bracket to floodlight M8 = 8 Nm and for M10 = 10 Nm).
• Use suitable screws.
• Observe the weight of the floodlight.
Selection Table
Mounting the floodlight with halogen lamp QT
• minimum mounting angle
• maximum mounting angle
Lamps Lamp holder Lamp wattage
[W]
Typical weight
[kg]
QT E40 500 24
HIT / HST E40 150 31
HIT / HST E40 250 32
HIT / HST E40 400 34
HST E40 600 36
16677E00
16679E00 16681E00
Wall mounting Ceiling mounting Ground mounting
16678E00
16680E00 16682E00
Wall mounting Ceiling mounting Ground mounting

224476 / 6121605300
2019-06-13·BA00·III·en·06
Mounting and installation
15
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
Floodlight
Series 6121
Mounting of floodlight with halogen metal halide lamp HIT und
high-pressure sodium lamp HST
• minimum mounting angle
• maximum mounting angle
16662E00
16664E00 16666E00
Wall mounting Ceiling mounting Ground mounting
16663E00 16665E00 16667E00
Wall mounting Ceiling mounting Ground mounting

Mounting and installation
16 224476 / 6121605300
2019-06-13·BA00·III·en·06
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
Floodlight
Series 6121
Mounting of accessories

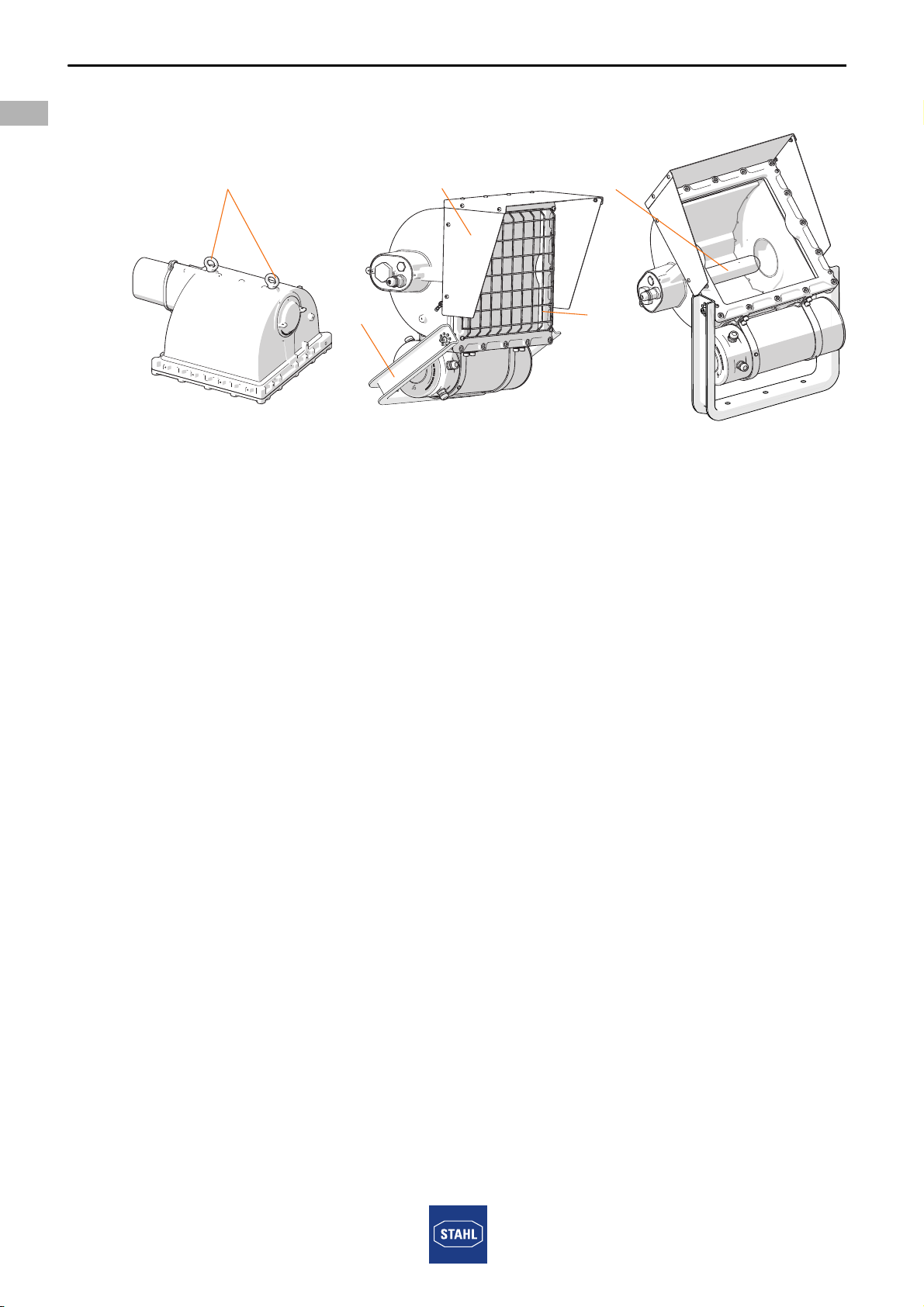

16597E00
1 Ring eye for additional prevention
of dropping the device
4 Protective wire grid
2 Wall bracket for ceiling,
wall or floor mounting
5Lamp
3 Anti-glare frame
1
2
3
4
5

224476 / 6121605300
2019-06-13·BA00·III·en·06
Mounting and installation
17
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
Floodlight
Series 6121
7.3 Installation
7.3.1 Opening and Closing of the Enclosure
DANGER
Explosion hazard due to hot built-in components!
Non-compliance results in severe or fatal injuries.
• Only open the enclosure in switched-off state.
• The device must be allowed to cool down for at least 15 minutes before
opening it.
DANGER
Risk of electric shock due to improper opening!
Non-compliance results in severe or fatal injuries.
• Open luminaires without switch only in de-energized state
(see information plate on the lock)!
Recommendation
Opening and closing of the luminaire by using a socket wrench from
R. STAHL Schaltgeräte GmbH.
16995E00
16994E00

Mounting and installation
18 224476 / 6121605300
2019-06-13·BA00·III·en·06
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
Floodlight
Series 6121
Lamp enclosure
Connection enclosure HIT/HST variant
Connection enclosure QT variant

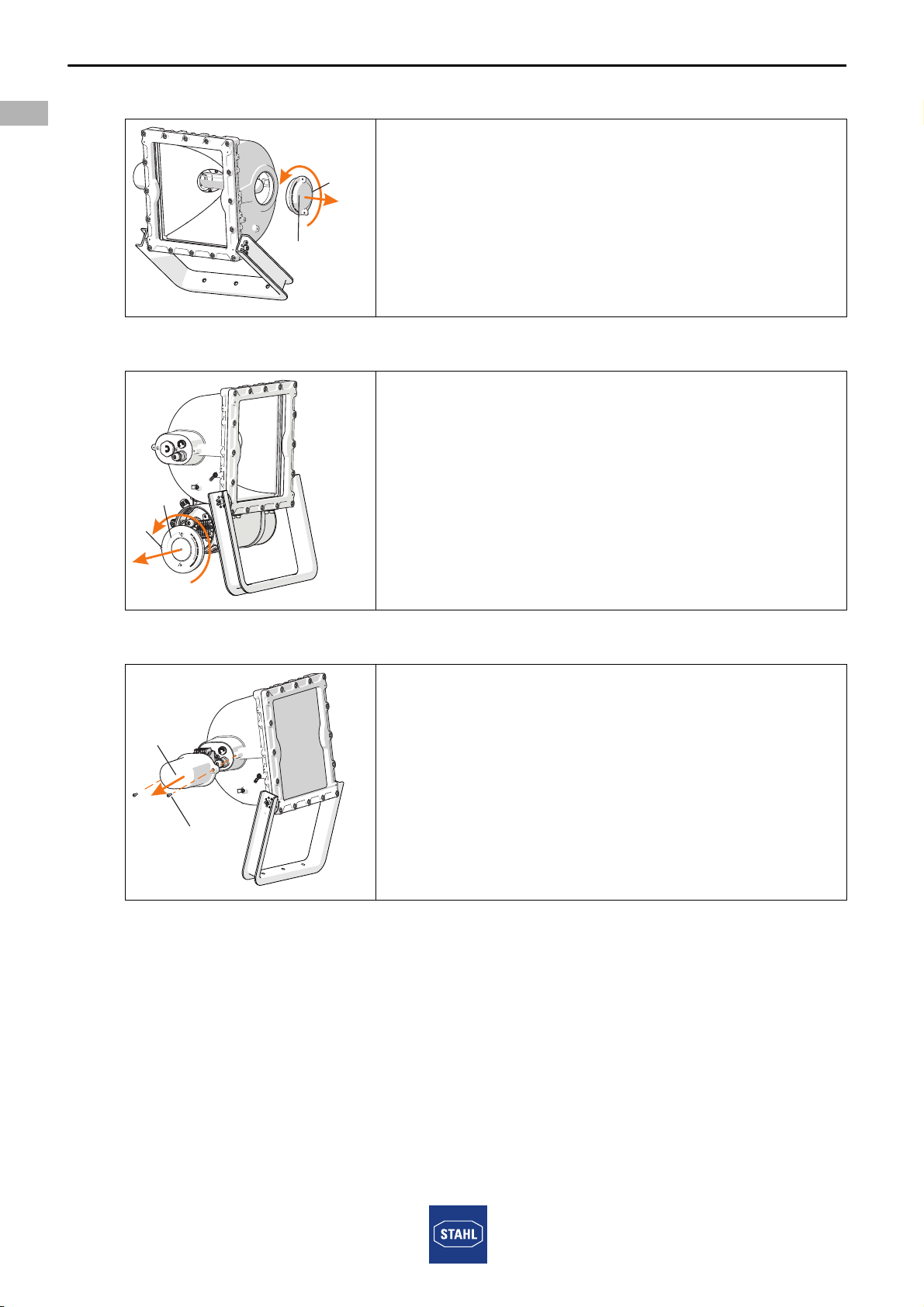

16703E00
Opening:
• Loosen the safety screw (1).
• Unscrew the cover (2).
Proceed in reverse order to close:
• Screw down the cover (2) up to gentle compression
of the "O"-ring.
• Tighten the safety screw (1)
(tightening torque 1 Nm).
16704E00
Opening:
• Loosen the safety screw (1).
• Unscrew the cover (2).
Proceed in reverse order to close:
• Screw down the cover (2) up to gentle compression
of the "O"-ring.
• Tighten the safety screw (1)
(tightening torque 1 Nm).
16713E00
Opening:
• Loosen the screws (1)
• Remove the cover (2).
Proceed in reverse order to close:
• Place the cover (2).
• Tighten the screws (1)
(tightening torque 2.5 Nm).
2
1
2
1
2
1

224476 / 6121605300
2019-06-13·BA00·III·en·06
Mounting and installation
19
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
Floodlight
Series 6121
7.3.2 Electrical connections
Electrical connection
Observe the maximum clamping possibility of the connecting terminals
(see chapter "Technical data").
Observe the following when connecting to the main supply:
• Clamping must be carried out precisely!
• Do not clamp any part of the conductor insulation!
• Do not interchange the conductors!
• Observe the technical regulations when connecting the conductor!
• Clamp the conductor firmly.

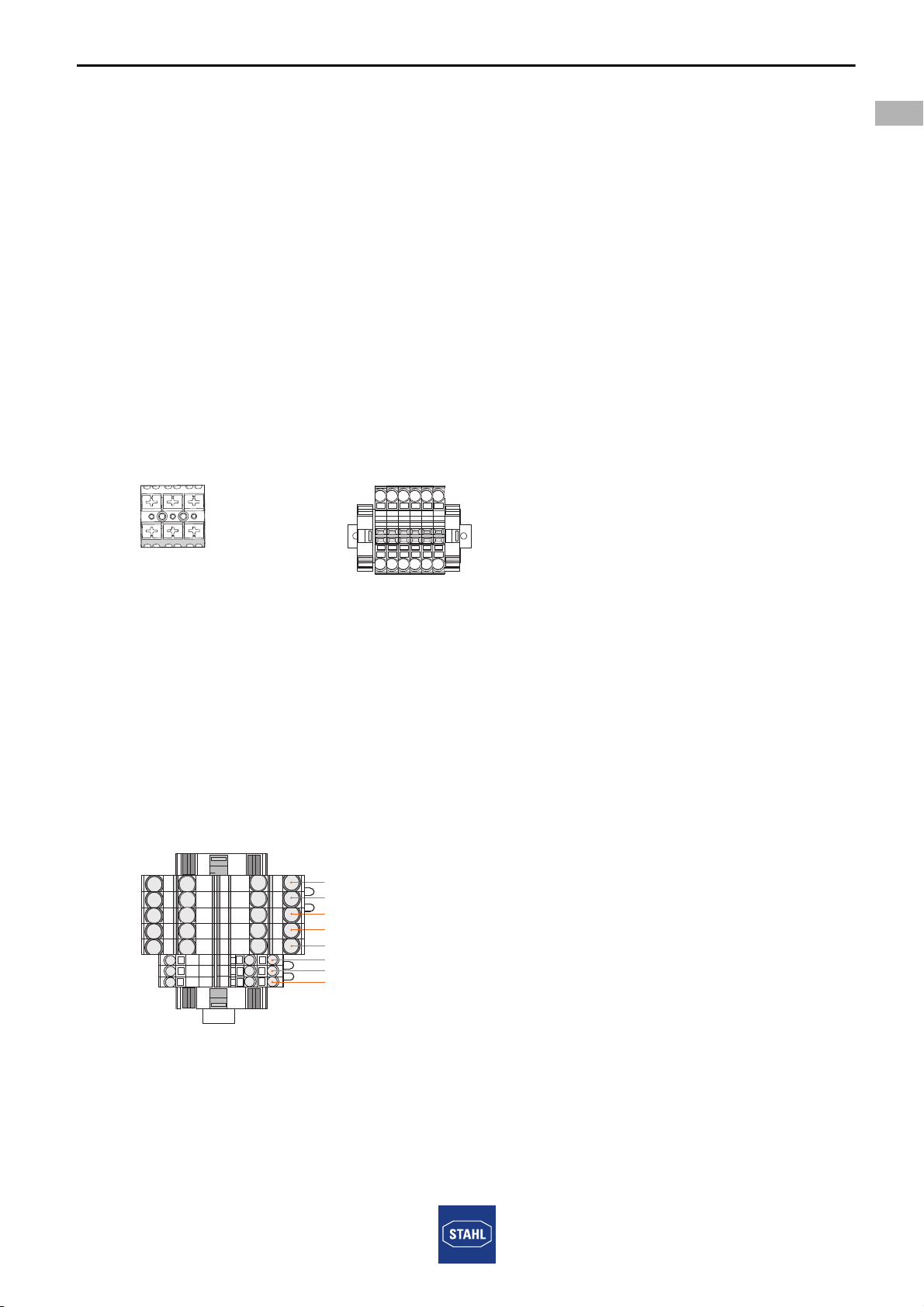

Connection terminals
Connection terminal only for version 6121/....-....-....-...-88.-.
Note:
• Multi tapping 230 V / 240 V with 50 Hz / 60 Hz is possible at site.
• Must change the tappink in terminal (link), which is provided in the EX e chamber,
according to the power supply requirements, as shown in the picture below.
Standard:
Spring clamp terminals
up to 4 mm2
Optional:
Spring clamp terminal
up to 6 mm2
16653E00
16658E00
Link frequency (up to 2.5 mm2)
18484E00
Z - Z50 at mains frequency 50 Hz
Z - Z60 at mains frequency 60 Hz
Connection mains (up to 6 mm2)
PE protective conducter
N neutral conducter
L phase
Link mains (up to 6 mm2)
L - L230 at mains voltage 230 V
L - L240 at mains voltage 240 V
NL1
E
NL1
E
3-pole
L1 = phase
N = neutral
conductor
PE = protective
conductor
Z50
N
L240
Z
Z60
L
L230
PE

Mounting and installation
20 224476 / 6121605300
2019-06-13·BA00·III·en·06
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
Floodlight
Series 6121
7.3.3 Cable entries
Tightening torques for components from R. STAHL Schaltgeräte GmbH
Luminaires with installed cable entries and stopping plugs from
R. STAHL Schaltgeräte GmbH must be tightened using the following values:
Versions
Version spring clamp terminal up to 4 mm2 or spring clamp terminal up to 6 mm2
19927E00
Tightening torque
Connection thread Pressure screw
Cable entry
8161
M20 x 1.5 2.3 Nm 1.5 Nm
M25 x 1.5 3.0 Nm 2.0 Nm
Stopping plugs
8290
M20 x 1.5 1.0 Nm –
M25 x 1.5 1.5 Nm –
1 Cable entry
for factory wiring
(lamp enclosure –
connection enclosure)
3 Connection terminal
2 Cable entry
for customer wiring
(electrical connection)
4, 5 Stopping plugs
(possibility to use an additional
cable entry)
1
2
3
4
5
