Stahls Hotronix The MAXX Press User manual

16Ǝx20Ǝ
15Ǝx15Ǝ
11Ǝx15Ǝ
D I G I T A L C L A M
The MAXX™Press
OPERATOR’S MANUAL

S E R V I C E H O T L I N E : 8 0 0 . 7 2 7 . 8 5 2 0
Read all instructions.
Use heat press only for its intended use.
To reduce the risk of electric shock, do not immerse the heat press in water or other liquids.
Never pull cord to disconnect from outlet, instead grasp plug and pull to disconnect.
Do not allow cord to touch hot surfaces, allow heat press to cool completely before storing.
Do not operate heat press with a damaged cord or if the equipment has been dropped or damaged.
To reduce the risk of electric shock, do not disassemble or attempt to repair the heat press. Take it
to a qualified service person for examination and repair. Incorrect assembly or repair could increase
the risk of fire, electric shock, or injury to persons when the equipment is used.
This appliance is not intended for use by persons (including children) with reduced physical, sensory
or mental capabilities, or lack of experience and knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a person responsible for their safety.
Close supervision is necessary for any heat press being used by or near children. Do not leave equip-
ment unattended while connected.
Burns can occur when touching hot metal parts.
To reduce the likelihood of circuit overload, do not operate other high voltage equipment on the same
circuit.
If an extension cord is necessary, then a 20 amperage rated cord should be used. Cords rated for
less amperage may overheat. Care should be taken to arrange the cord so that it cannot be pulled
or tripped over.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
When using your heat press,
basic precautions should always be followed,
including the following:
Safety Instructions
Product Warranty Registration
Log onto www.Hotronix.com/registration
You must provide the Hotronix®heat press
serial number and model information.

H O T R O N I X . C O M
The MAXX™Press
Safety Instructions
Machine View
Control Panel Guide
Operating Instructions
Connecting the System
Turning the System On
Adjusting the Temperature
Adjusting the Time
Adjusting the Pressure
Pressing
Replacement Parts List
Parts Location Guide

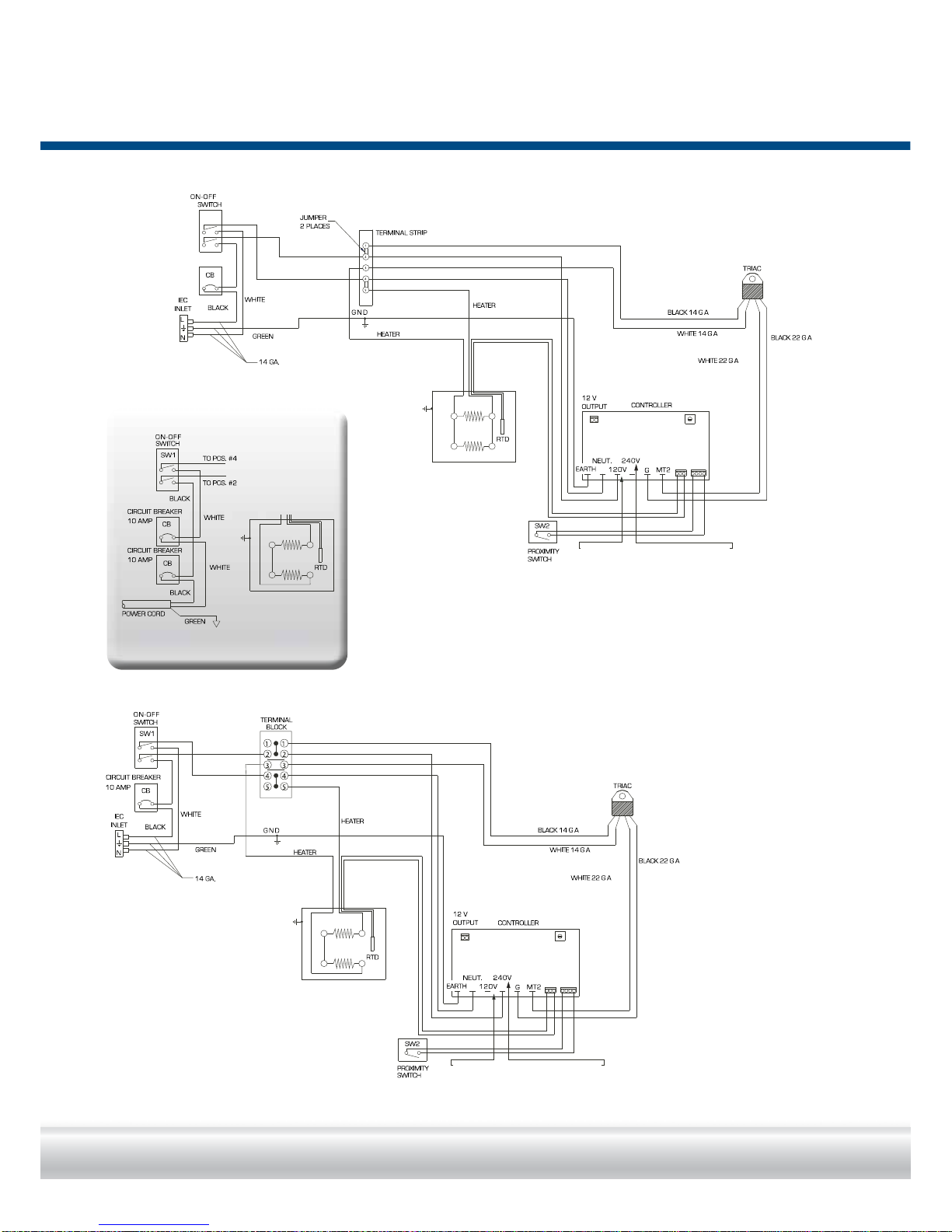

Electrical Schematic
Contact
2
4
5
6-11
6
7
8
9
10
11
12
13
14
15
Table of Contents

ON OFF
S E R V I C E H O T L I N E : 8 0 0 . 7 2 7 . 8 5 2 0
The MAXX™Press
PAGE 4
FRONT VIEW
SIDE VIEW
LED Display
Lift Handle
Over-the-Center
Pressure Adjustment Knob
Machine View
Power ON/OFF Switch
Located in the Back
of the Press
Circuit Breaker
Power Supply

M
MO
M
M
H O T R O N I X . C O M
The MAXX™Press
P A G E 5
Digital Display
Temperature Indicator
Set Indicator
Time Indicator
Increase
Mode Select
Decrease
MODE
ODE
ODE
ODE
DE
DE
E
MODE
MODE
MODE
T
S
T
M
D
Control Panel Guide

S E R V I C E H O T L I N E : 8 0 0 . 7 2 7 . 8 5 2 0
The MAXX™Press
Connecting the System
CONNECT THE POWER CORD
Connect the power cord into a properly grounded electrical outlet with a sufficient amperage rating.
VOLTAGE:
120 Volt - The MAXX™ Press Digital Clam requires a full 20 amp grounded circuit for 120 volt operation.
220 Volt - The MAXX™ Press Digital Clam requires a full 10 amp grounded circuit for 220 volt operation.
EXTENSION CORDS: If used, should be as short as possible and not less than 12 gauge.
Heavy duty cords are recommended.
CIRCUITS: that have less than 15 amps or that have other high demand equipment or heat presses
plugged in should not be used.
NOTE: If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or a similarly
qualified person in order to avoid hazard. Use SJT type rated 300 V cord for replacement.
CAUTION: Failure to follow these instructions will cause:
1. Erratic controller functions. 2. Inaccurate displays and slow heat-up. 3. The circuit breaker to disengage.
The MAXX™Press DIGITAL CLAM
The MAXX™Press Digital Clam Operating Instructions are designed with the user in mind. Carefully read and follow the
step-by-step instructions for best results.
To avoid burns, do not touch the heated platen
during use.
Keep hands clear of the upper platen of the press
during platen lock down as the pressure may
cause injury.
Press should be placed on a sturdy, suitable stand
at least 36”L x 24”W x 29”H.
Work area must be kept clean, tidy and free of
obstructions.
Power supply cord must be disconnected before
cleaning or servicing press.
1.
PAGE 6
Operating Instructions
1.1

ON OFF
H O T R O N I X . C O M
The MAXX™Press
Turning the System On
SWITCH THE SYSTEM ON
See the diagram below for switch placement.
Locate the lift handle and position the heat platen in the “UP” (load) position.
Now, locate the Power ON/OFF
Switch on the side of the press,
then turn the Power Switch on.
2.
P A G E 7
Power ON/OFF Switch

S E R V I C E H O T L I N E : 8 0 0 . 7 2 7 . 8 5 2 0
The MAXX™Press
Adjusting the Temperature
ADJUST THE TEMPERATURE
Locate the LED Display on the Press.
Press the Mode Select button located in the center of the Control Panel.
The (SET) and (TEMP) lights located next to the display will illuminate indicating you are in the adjust
temperature mode.
Next, press the (-) button located to the left of the Mode Select button to lower the temperature setting,
or press the (+) button located to the right of the Mode Select button to raise the temperature setting.
The temperature can be set from 205° F (96° C) to 430° F (220° C).
The LED will display changes as you make them.
NOTE: The temperature indicator will only display temperatures 200°F (93°C) and up.
3.
Digital Display
Temperature Indicator
Set Indicator
Time Indicator
Increase
Mode Select
Decrease
MODE
MODE
D
T
S
T
I
M
D
PAGE 8
3.1
3.2

H O T R O N I X . C O M
The MAXX™Press
ADJUST THE TIME
Once you have adjusted the temperature, press the Mode Select button again. This will advance you to the
Time mode. The set and time lights will illuminate, indicating that you are in the Time mode.
Adjust the time in the same manner that you adjusted the temperature. Select the desired time and push
the Mode Select button again to exit the time settings. All lights will be off and the press will return to the
Print Mode.
Adjusting the Time
4.
P A G E 9

S E R V I C E H O T L I N E : 8 0 0 . 7 2 7 . 8 5 2 0
The MAXX™Press
PAGE 10
Adjusting the Pressure
5.ADJUST THE PRESSURE
The MAXX™ Press Digital Clam features a patented, Over-the-Center Pressure Adjustment located in the
center of the heat platen.
Adjust the pressure by turning the knob clockwise to increase pressure and counter clockwise to decrease
pressure.
REMEMBER: To allow for the thickness of your garment when adjusting the pressure.
WARNING: Structural damage caused by excessive pressure is not covered under the limited warranty!
Over-the-Center
Pressure Adjustment Knob

H O T R O N I X . C O M
The MAXX™Press
PRESS
Once your equipment has reached the designated temperature, position the garment and application and
proceed to press.
Lower and lock the heat platen into the press position. This
procedure will start the automatic timing process.
The timer will automatically count down
and audibly signal you to lift the heat
platen into the “UP” position when
the press cycle is complete.
The time will automatically re-set
and you are ready to continue
with the next application.
P A G E 1 1
Printing/Pressing
6.
6.3

S E R V I C E H O T L I N E : 8 0 0 . 7 2 7 . 8 5 2 0
The MAXX™Press
PAGE 12
Replacement Parts List
16 x 20 15 x 15
16 x 20 15 x 15
16 x 20 15 x 15
16 x 20 15 x 15
16 x 20 15 x 15 11 x 15
16 x 20 15 x 15 11 x 15
16 x 20 15 x 15 11 x 15
Item #
1
2
3
4 A-B
5
6
7 A-B
7 C
8
9
10 A
10 B-C
11
12
13
14
15
16
17 A
17 B
17 C
18 A
18 B
18 C
19 A
19 B
19 C
20 A
20 B
20 C
21
22
23
24
25
26 A-B
26 C
27
28
29
30
31
32
33
34
35 A-B-C
36
37
38
39
40
41
42
43
44 A-B-C
45
46
47 A-B-C
48
49
50
51
52
53
54
55
56
Part #
3 - 1011 - 164
1 - 1256
3 - 1011 - 182
3 - 1011 - 41
2 - 1006 - 43
3 - 1011 - 62
1 - 1279
0140
2 - 1006 - 20
1 - 1939
1 - 2243
1 - 2246
1 - 2114
KIT 3 - 6906
1 - 1048 - 3
1 - 2091
1 - 2098
1 - 2092
2 - 1029
3 - 1086
3 - 1199 - 1
1 - 1011
1 - 1473
1 - 1875
2 - 1002 - 3
3 - 1320
3 - 1199
3 - 1332
3-1337
3 - 1331
1 - 1063
3 - 1011 - 217
2 - 1081
1 - 1012
3 - 1011 - 238
1 - 1940
1 - 1353
3 - 1011 - 55
1 - 2093
3 - 1011 - 215
2 - 1006 - 12
1 - 2094
1 - 2097
2 - 1006 - 20
1 - 1256
KIT 3 - 6903
2 - 1006 - 2
1-1540
1 - 2096
1 - 1042 - 1
KIT 3 - 6905
1 - 1107 - 1
1 - 1219
1 - 2085
KIT 3 - 6904
3 - 1011 - 152
4 - 1172
KIT 3 - 6901
1 - 1211
1 - 1290
1 - 1059
2 - 1661
1 - 2017
1 - 2087
1 - 1331
1 - 2018
1 - 1272 - 1
Qty.
4
4
4
2
2
4
2
1
2
4
2
2
2
2
6
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
4
4
1
1
1
1
1
1
2
2
2
2
4
1
1
1
2
1
1
1
2
8
1
1
1
4
1
1
1
1
1
1
1
1
1
1
1
16 x 20
16 x 20
16 x 20
16 x 20
15 x 15
15 x 15
15 x 15
15 x 15
11 x 15
11 x 15
11 x 15
11 x 15
11 x 15
11 x 15
11 x 15
Part Name
Hex Soc Button HD # 10 - 32 x 1/2”
Rubber Foot
Acorn Hex Nut
Hex Cap HD Screw - 3/8“ -16 x 3/4”
Lock Spring Washer
Hex Soc Screw 1/4 - 20 x 1 1/4”
Lower Platen Spacer
Lower Platen Spacer
Nylon Hex Nut
Ball Stud - 10mm
Gas Spring
Gas Spring
Steel Spacer
Bridle Links
Nylon Washer
Threaded Pin 1/4” - 20 x 3”
PVC Spacer 1/2” I.D. x 2.48
Threaded Pin 3 5/8” x .5” Dia. _1/4” - 20
Lower Platen
Lower Platen
Lower Platen
Silicone Pad Gray
Silicone Pad Gray
Silicone Pad Gray
Heat Platen
Heat Platen
Heat Platen
Heat Platen Cover
Heat Platen Cover
Heat Platen Cover
Finish Washer
Cover Screw 10 - 24 x 1/2”
Adjustment Spindle
Pressure Adj. Knob
Safety Bolt “ - 18 x 4 1/2”
Elbow 90 degress with tubing
Topaz Connector with flex tubing
Shoulder Bolt
Steel Pin 1/2” Dia. x 4.38
Soc HD Cap Screw 1/4” - 20 x 3/8”
Hex HD Nut - 1/4 “ - 20
Steel Pin - 1/2” Dia. x 6.45
PVC Spacer - 1/2” 1.D. x 1.1
Nylon Nut
Rubber Foot
Adjustment Arm Assembly
JCN Nut
Foam Grip
PVC Spacer 1/2” I.D. x 5”
All Thread Pin - 1/4” - 20 x 4 3/4”
Lift Links
Hucap 1/2”
Magnet
Magnet Bracket
Handle Assembly
Phillips Pan HD Screw - #6-32 x 1/2”
Housing
Base Assembly
Proximity Switch
Terminal Block
Triac
Controller Bracket
SSTT Control Board
On/Off Switch
Circuit Breaker
Display Overlay
Probe

7 A
20 A 20 B 20 C
17 A 17 B 17 C
18 A 18 B 18 C
19 A 19 B 19 C
10 A 10 C
26 A 26 C
H O T R O N I X . C O M
The MAXX™Press
Parts Location Guide
P A G E 1 3
When ordering replacement parts, refer to the following color codes
For a 16Ǝx20Ǝpress - use color code
For a 15Ǝx15Ǝpress - use color code
For a 11Ǝx15Ǝpress - use color code
A
C
B
The MAXX™ Press Digital Clam is available in three sizes: 16 x 20, 15 x 15, 11 x 15

- 1800 W for 16 x 20
- 1800 W for 15 x 15
- 1000 W for 11 x 15
120V
- 1800 W for 16 x 20
- 1800 W for 15 x 15
- 1000 W for 11 x 15
220V
- 1800 W for 16 x 20
- 1800 W for 15 x 15
- 1000 W for 11 x 15
230V
IMPORTANT: MAKE SURE TO USE CORRECT
VOLTAGE CONNECTION TO THE CONTROLLER
IMPORTANT: MAKE SURE TO USE CORRECT
VOLTAGE CONNECTION TO THE CONTROLLER
US 220 V Version
The MAXX™Press
PAGE 14
US 120 V Version
CE 230 V Version
Electrical Schematic

Rev. A 9-12 Doc. MAXX11 - MAXX15 - MAXX20 9-12
Stahls’ Hotronix®
One Paisley Park
Carmichaels, PA 15320
U.S.A.
Technical Support
800 . 727 . 8520
Monday - Friday
8am - 7pm EST
Customer Service
800 . 727 . 8520
Monday - Friday
8am - 5pm EST
Replacement Parts
800 . 727 . 8520
8am - 7pm EST
Web
Hotronix.com
Contact Us
This document includes multiple trademarks and describes equipment covered by many patents
that are owned by GroupeSTAHL and/or its subsidiaries. GroupeSTAHL enforces its rights
to protect these intellectual properties. © 2012

One Paisley Park . Carmichaels, PA 15320, U.S.A.
Tech Support - Customer Service - Replacement Parts: 800 . 727 . 8520
Web: Hotronix.com
Proudly made in the U.S.A.
