Standard FLUO LED 120 V User manual

Installation guide
FLUO LED
120 V
SAFETY WARNINGS
• Suitable for use in damp locations.
• Use only on 120 VAC, 60 Hz circuits.
• Operating temperatures: -20 °C to 40 °C (-4 °F to 104 °F)
• 5 year limited warranty.
• For complete dimmer compatibility and warranty information visit www.standardpro.com
Read the installation instructions and all product labels before proceeding with the installation. This product must
be installed in full accordance with applicable electrical and building codes. Installation should be performed by
a qualied electrician in accordance with the Canadian national electrical standards and relevant local codes.
TO PREVENT ELECTRICAL SHOCK, POWER SHOULD BE TURNED OFF FROM THE ELECTRICAL PANEL BEFORE INSTALLATION
OR MAINTENANCE.
INCLUDED IN THE BOX
End to End connector (1 unit) Fixing Clips (2 units) Screws (2 units)

Installation guide
FLUO LED
120 V
PC-01-6
ETE-01
LEDT5-5W
LEDT5-8W
LEDT5-10W
LEDT5-12W
LEDT5-15W
LEDT5-20W
LEDT5-25W
300-350lm
480-560lm
600-700lm
720-840lm
900-1050lm
1200-1400lm
1500-1750lm
5W
8W
10W
12W
15W
20W
25W
INSTRUCTIONS FOR LED 120V T5 TUBES
See reverse side for more instructions
Sold separately: 1.8 m (6’) power cord
Approved for installation inside, under or over cabinets, with light shining in any directions
Install the brackets on a straight line
Push fixtures in brackets until a “click” is heard, then connect the power cord to fixture
Plug others fixtures directly with the included end-to-end connector or with the extension
cords.
Linears can be directly connected on to junction box, or be used with an extension cord.
Lumen
per fixture
Total
consumption
Dimmable with most regular low voltage electronic dimmers
67202
Sold separately: 1.8m (6') power cord
INSTALLATION – STEPS
Turn OFF the power before proceeding with the installation.
PLUG-IN INSTALLATION
1. Attach the power cord to the "INPUT" receptacle on one end of the luminaire. Do not force connection, it
should snap in easily.
2. Plug the power cord into the power supply.
3. Refer to the ‘Surface Mount’ section for the following steps.
HARDWIRE INSTALLATION
The Hardwire Box is required (sold separately - 67261)
Connection guide provided with the hardwire box
PC-01-6
ETE-01
LEDT5-5W
LEDT5-8W
LEDT5-10W
LEDT5-12W
LEDT5-15W
LEDT5-20W
LEDT5-25W
300-350lm
480-560lm
600-700lm
720-840lm
900-1050lm
1200-1400lm
1500-1750lm
5W
8W
10W
12W
15W
20W
25W
INSTRUCTIONS FOR LED 120V T5 TUBES
See reverse side for more instructions
Sold separately: 1.8 m (6’) power cord
Approved for installation inside, under or over cabinets, with light shining in any directions
Install the brackets on a straight line
Push fixtures in brackets until a “click” is heard, then connect the power cord to fixture
Plug others fixtures directly with the included end-to-end connector or with the extension
cords.
Linears can be directly connected on to junction box, or be used with an extension cord.
Lumen
per fixture
Total
consumption
Dimmable with most regular low voltage electronic dimmers

Installation guide
FLUO LED
120 V

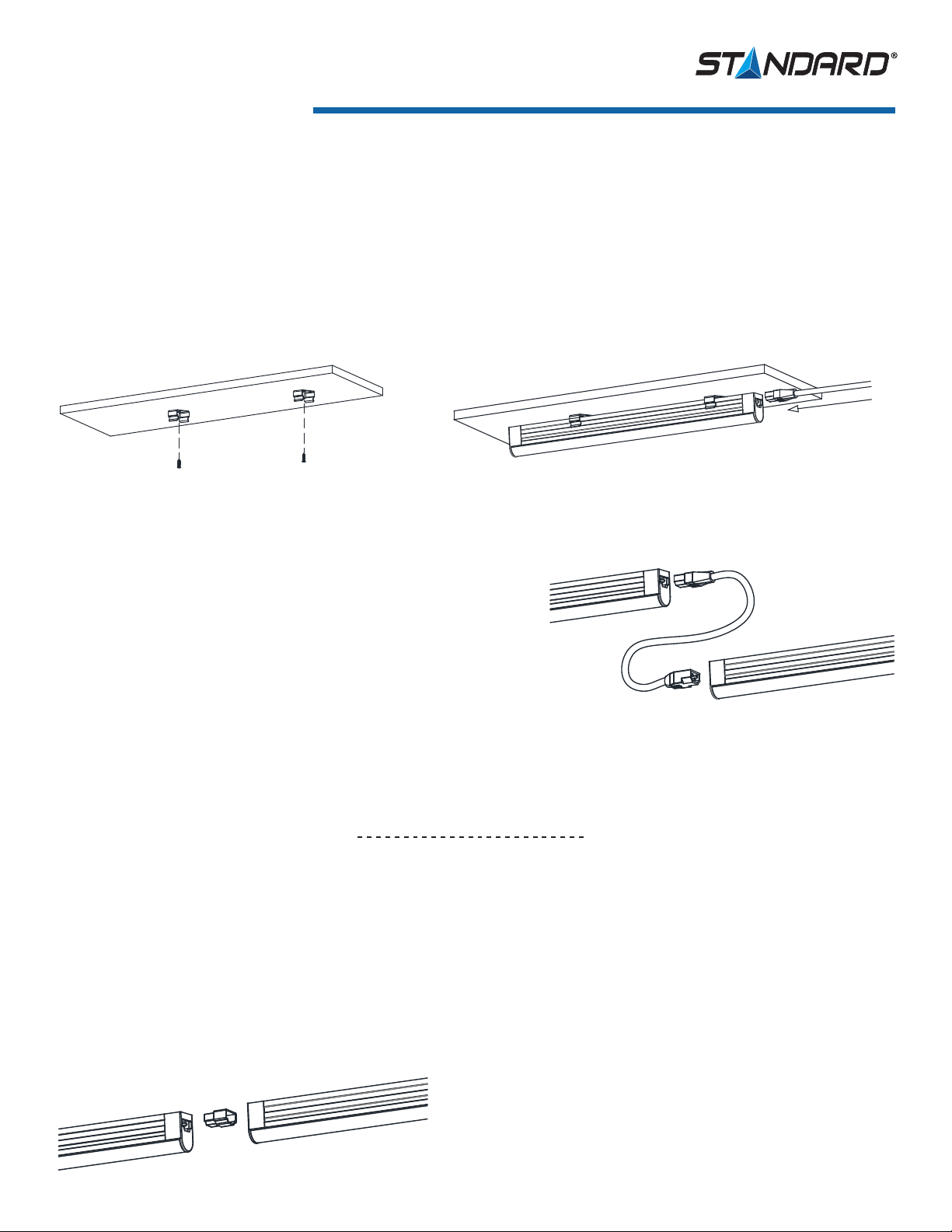

SURFACE MOUNT INSTALLATION
1. Determine the position and location of the FLUO LED and mark the position of the screws. The rst luminaire
must be installed within 6 ft of a power outlet; otherwise the power cord will not be long enough.
2. Attach the xing clips to the desired surface using the mounting screws. Tighten the screws securely. (Fig.1)
3. Push the luminaire until a ‘’click’’ is heard and then connect the power cord to the luminaire. (Fig. 2)
JOINING MULTIPLE LUMINAIRES USING JUMPERS
1. Remove the screws on the plastic cap that covers the
power port on the luminaire.
2. The linking cord is tted with a distinct cord connector
plug at each end and will only connect one way.
Try inserting one end of the linking cord into the power port,
if that fails try the other end of the linking cord. Do not try to
force the plug into the port. Make sure plugs on both ends
are fully inserted into ports on both xtures.
INSTALLING OF THE END TO END CONNECTOR
1. Remove the screws on the plastic cap that covers the power port on the luminaire.
2. The End to End connector is tted with a distinct cord connector plug at each end and will only connect one
way. Try inserting one end of the End-to-End connector into the power port of the new xture, if that fails try the
other end of the End-to-End connector. Do not try to force the plug into the port.
3. Align the End-to-End connector on end of both luminaires.
4. Push the new luminaire to existing luminaire until they are ush and connectors snap together. The luminaires
should t fully and squarely end-to-end when mounting is complete.
Figure 1 Figure 2
NOTE
- Linkable total wattage is 300 watts.
- Do not use jumper cord as a means to turn luminaires on and off. Each light can be individually operated by
the on/off switch located on each xture.
