Stanley COMERAGH - 50 User manual

To ensure safety, satisfaction and maximum service, this quality Cooker should be installed by a trained
and competent Service Engineer. The provision of a Central Heating or Domestic Hot Water facility requires
that the hot water system involved conforms fully to good plumbing practice and established standards.
INSTALLATION AND OPERATION INSTRUCTIONS
TO BE LEFT WITH END USER
Comeragh 50
Solid Fuel Cooker

TABLE OF CONTENTS
PAGE NO.
1. Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
2. Control of Substances Harmful to Health . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
3. Specification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
4. Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
5. Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
6. Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
7. Pre-Installation Check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
8. Clearances to Combustibles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
9. Chimney Height . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
10. Flue Pipes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
11. Chimney Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
12. Hearth Construction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
13. Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
14. Down Draughts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
15. Use of Existing Chimneys and Flues . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
16. Ventilation & Combustion Air Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
17. Plumbing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
18. Heating System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
19. Boiler Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
20. Gravity Circuit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
21. Heating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
22. Pipe Fitting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
23. Fuels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
24. Water Circuit Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
25. Injector Tee . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
26. Care for your Central Heating System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
27. Draining . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
28. General Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
29. Draught Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
30. Important Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
31. Lighting the Fire . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
32. Operating the Cooker . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
33. Fuelling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
34. Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
35. Direct Flue Damper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
36. Oven Damper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
37. Over Firing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
38. Fire Door Spin Valve . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
39. The Hot Plate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
40. Main Oven . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
41. Warming Oven . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
42. Operating The Cooker Contd, . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
43. Overnight Burning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
44. Boiler Summer Conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
45. Domestic Boiler Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
46. Riddling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
48. Cooker Flue Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
49. Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
50. Enamel Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
51. Mild Steel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
52. Ovens . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
53. Hot Plate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
54. Fault Findings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
55. Installation Check List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
1

INTRODUCTION
Congratulations on purchasing this fine Irish made Solid Fuel Cooker. It is built to exacting standards and it
will give you every satisfaction in use.
Please read the following information before operating this excellent product.
This appliance is hot while in operation and retains its heat for a long period of time after use.
Children, aged or infirm persons should be supervised at all times and should not be allowed to touch
the hot working surfaces while in use or until the appliance has thoroughly cooled.
The complete installation must be done in accordance with current Standards and Local Codes. It should be
noted that the requirements and these publications may be superseded during the life of this manual.
As manufacturers and suppliers of
cooking and heating appliances, we
take every possible care to ensure, as
reasonably practicable, that these
appliance are so designed and constructed
as to meet the general safety
requirements.
IMPORTANT: Any alteration to this
appliance that is not approved in writing
by Waterford Stanley, will render
the guarantee void.

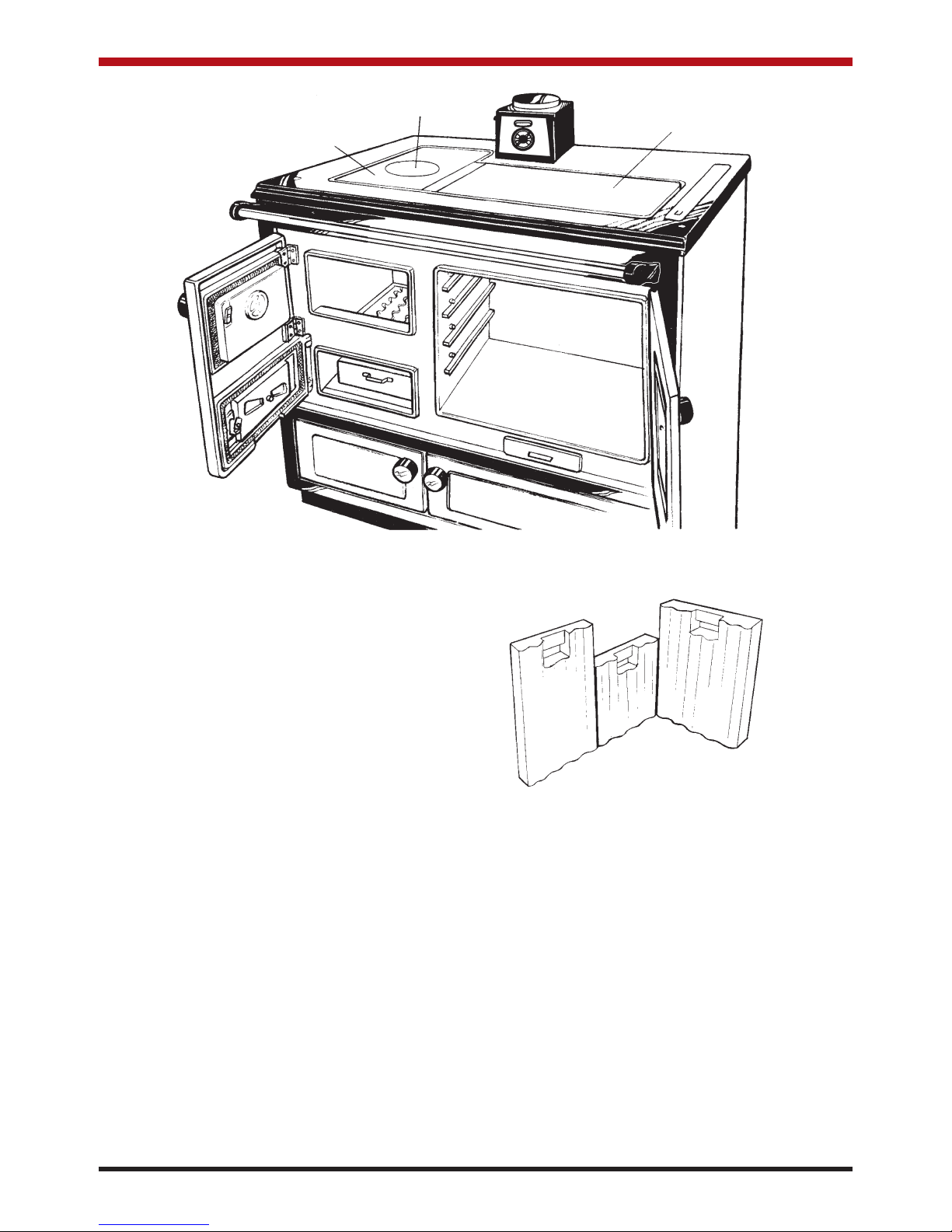

1. Plate Rack (to order)
2. Splash Back (to order)
3. Hot Plate Cover (De Luxe model)
4. Hot Plate
6. Hob
7. Bonnet
8. Towel Rail
9. Fire Door
10. Air Valve Control Knob
11. Main Oven
12. Oven Thermometer
13. Warming Oven
14. Side Flue Cleaning Plate
15. Bottom Flue Cleaning Plate
16. Storage Compartment
Domestic Boiler Capacity 2.5 litres = 0.6 Gallon.
Central Heating Boiler Capacity:
47K (5.6 litres = 1.25 Gallons)/30K (3.6 litres = 0.80 Gallons)
Cooker Weight: 274Kg = 604lbs.
IMPORTANT - CONTROL OF SUBSTANCES HARMFUL TO HEALTH:
It is the Users/Installers responsibility to ensure that the necessary personal protective clothing is worn when
handling materials that could be interpreted as being injurious to health and safety.
When handling Firebricks, Fire Cement or Fuels, use disposable gloves. Exercise caution and use dispos-
able masks and gloves when handling glues and sealants. When working with fibre glass, mineral wool, insu-
lation materials, ceramic blanket/board or kerosene fuel oil, avoid inhalation as it may be harmful. Avoid con-
tact with skin, eyes, nose and throat. Use disposable protection. Installation should be carried out in a well
ventilated area.
The manufacturers reserve the right to make alterations to design, materials or construction for manufacturing or other reasons subsequent
to publication.
Fig.1
2

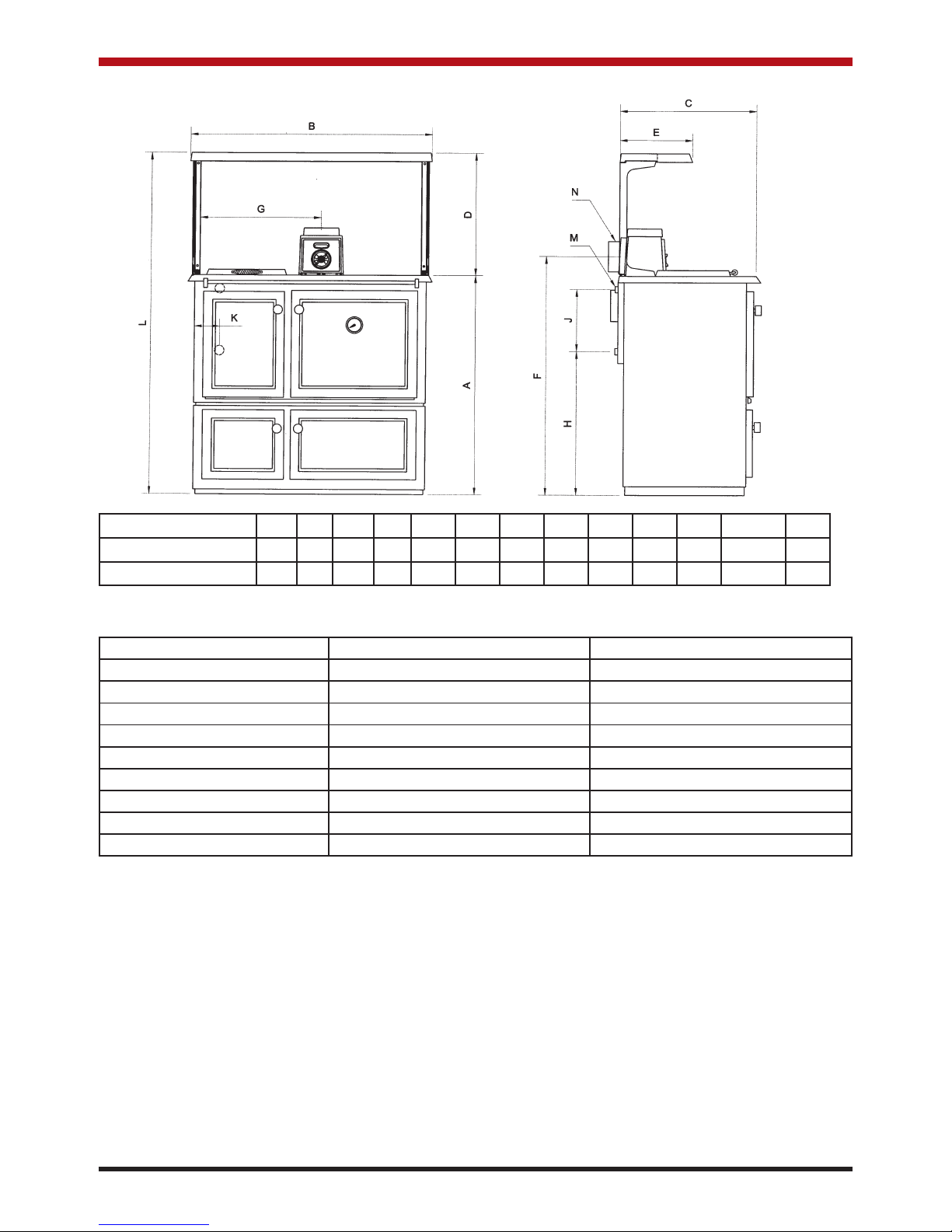

SPECIFICATION
NOTE: Dimensions stated above may be
subject to a slight +/- variation.
TECHNICAL DATA
47K
Cooker Output: At 2.7 kg = 6 lbs Coal/Ph - 12,300 BTUs/lb = 7.9 kW/Kg
Gross Output: Coal - 21.7 Kw = 73,800 BTU’s per hour. Nett to Water 47,000 BTU’s
Cooker Output: At 2.7 kg = 6 lbs Timber - 8,600 BTU’s/lb = 5.54 kW/Kg
Gross Output: Timber - 15.12 Kw = 51,600 BTU’s per hour. Nett to Water 33,000 BTUs
30K
Cooker Output: At 2.7 Kg = 6 lbs Coal/Ph - 12,300 BTUs/lb = 7.9 kW/Kg
Gross Output: Coal - 16.7kW = 57,000 BTU’s per hour. Nett to Water 30,000 BTU’s
Cooker Output: At 2.7 Kg = 6 lbs Timber - 8,600 BTU’s/lb. = 5.54 kW/Kg
Gross Output: Timber -12kW = 41,000 BTU per hour. Nett to Water 21,000 BTU’s
All technical data are taken under laboratory conditions and may vary in use.
DIMENSIONS A B C D E F G H J K L M N
METRIC (Millimetres) 920 889 568 505 283 1002 450 610 251 104 1400 1” BSP 127
IMPERIAL (Inches) 361/4 35 223/8 20 111/8 394/9 175/7 24 97/8 41/4 55 1” BSP 5”
FEATURE METRIC (MM) IMPERIAL (ins.)
HOTPLATE 268 x 252 105/8 x 10
SIMMER PLATE 390 x 246 153/8 x 93/4
MAIN OVEN 400W x 324H x 396D 153/4W x 123/4H x 153/8D
WARMING OVEN 492W x 300H x 435D 193/8W x 113/4H x 171/8D
STORAGE COMPARTMENT 325W x 300H x 435D 123/4W x 113/4H x 171/8D
FIREBOX 250W x 329H x 381D 97/8W x 13H x 15D
ASHBOX 250W x 113H x 381D 97/8W x 41/2H x 15D
FUEL CAPACITY .017 CU. METERS 0.6 CUBIC FT
LOG SIZE 350 LONG 13 LONG
Fig. 2
3

adequate air supply for correct combustion and
operation.
b) Adequate space for maintenance and air
circulation.
c) Solid floor or base of non-combustible material
which is capable of supporting the total weight.
PRE-INSTALLATION CHECK
Before installing your new Cooker, check that the
chimney is clean and clear of obstructions.
Cracked brickwork and leaking joints should be
made good and tested accordingly. The chimney
should have a cross sectional area of at least
176sq.cm (28.28 in) or an inner diameter of 15 to
23cm (6 to 9in).
Do not connect to a chimney serving another appli-
ance. Always ensure that the connection is to a
chimney of the same size - never connect to one of
smaller dimensions. Chimneys wholly constructed
of single skin pipe are not recommended under any
circumstances. Due to their inability to retain heat
such chimneys will inevitably give rise to smoking,
down draught and the formation of condensation.
CLEARANCES TO COMBUSTIBLES
The cooker should not be installed at zero clear-
ance to combustible materials. The sides should
have a minimum clearance of at least 7.5cm
(3inches) from combustible materials unless other-
wise fully insulated.
When the cooker is backed up against a wall of
combustible material it should have adequate
protection in the form of non-asbestos millboard
covered with sheet steel.
CHIMNEY HEIGHT
The flue must be high enough (more than 4.6m in
any case) to allow the flue gases to vent into
clear air, away from the turbulence that may be
caused by roof structures, other chimney
stacks etc. The venting position should be in
accordance with the Building Regulations.

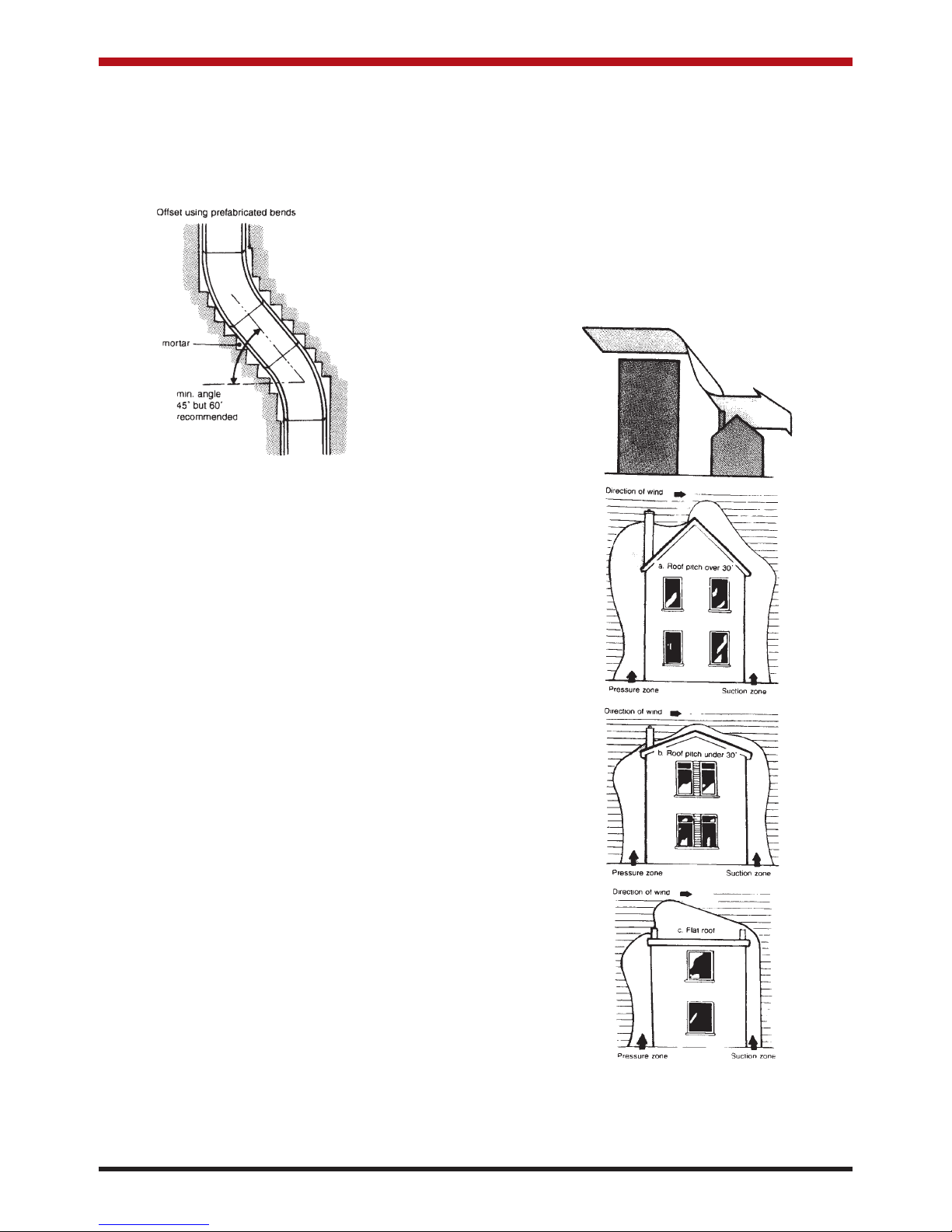

FLUE PIPES
Where the standard masonry chimney is not
available, a proprietary type of non-com-
bustible and noncorrosive 6” (150mm) twin
wall, fully insulated pipe may be used. The pipe
must terminate at a point not lower than the
main ridge or adjacent outside obstructions.
With such installations access to the chimney
must be provided for cleaning purposes.
INSTALLATION
The installation must comply with the following:
The Building Regulations : Part J England & Wales,
Part F Section III Scotland, Part L Northern Ireland.
The Building Regulations: Part J Ireland.
Health and Safety at Work Act.
B.S. 8303, Part 1, 2 & 3 - Installation of domestic
heating and cooking appliances burning solid
mineral fuels.
B.S. 7593: Treatment of water in domestic hot
water systems.
B.S. 7074: Part 1 & 2 - Hot water supply.
I.S. 258: Part 1 & 2 - Domestic Solid Fuel cookers
with integral boilers.
LOCATION
When choosing a location for this appliance you
must have:
a) Sufficient room for the installation (see clear-
ances), a satisfactory flue and
4
Fig.3
