Star Micronics TSP 654IID User manual

THERMAL PRINTER
TSP650II SERIES
Hardware Manual

Federal Communications Commission
Radio Frequency Interference
Statement
is device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) is device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
NOTE: is equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to
Part 15 of the FCC Rules. ese limits are designed to provide reasonable protection against harmful interference
when the equipment is operated in a commercial environment. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at his own expense.
FCC WARNING
Changes or modifications not expressly approved by the party responsible for compliance could void the user’s
authority to operate the equipment.
For compliance with the Federal Noise Interference Standard, this equipment requires a shielded cable.
For RF interference suppression, if a ferrite core is provided with this device, ax it to the interface cable.
is statement will be applied only for the printers marketed in U.S.A.
Statement of
e Canadian Department of Communications
Radio Interference Regulationst
is Class A digital apparatus complies with Canadian ICES-003.
e above statement applies only to printers marketed in Canada.

Trademark acknowledgments
TSP650II : Star Micronics Co., Ltd.
Notice
•All rights reserved. Reproduction of any part of this manual in any form whatsoever, without STAR’s express
permission is forbidden.
•e contents of this manual are subject to change without notice.
•All eorts have been made to ensure the accuracy of the contents of this manual at the time of going to press.
However, should any errors be detected, STAR would greatly appreciate being informed of them.
•e above notwithstanding, STAR can assume no responsibility for any errors in this manual.
Copyright © 2013 Star Micronics Co., Ltd..
< For Bluetooth models >
Federal Communications Commission
Radio Frequency Interference
Statement
is device complies with Part 15 of the FCC Rules and RSS-Gen of IC Rules. Operation is subject to the following
two conditions:
(1)this device may not cause harmful interference, and
(2)this device must accept any interference received,including interference that may cause undesired operation.
This equipment complies with FCC/IC radiation exposure limits set forth for an uncontrolled environment and
meets the FCC radio frequency (RF) Exposure Guidelines in Supplement C to OET65 and RSS-102 of the IC radio
frequency (RF) Exposure rules. is equipment has very low levels of RF energy that it deemed to comply without
maximum permissive exposure evaluation(MPE). But it is desirable that it should be installed and operated keeping
the radiator at least 20cm or more away from person's body (excluding extremities: hands,wrists,feet and ankles).
is statement will be applied only for the printers marketed in U.S.A and Canada.
CE MARKING WARNING
Hereby, Star Micronics Co., Ltd. declares that this device is in compliance with the essential requirements and other
relevant provisions of Directive 1999/5/EC.
Notice) is device can be operated in all European countries.
Italy: e public use is subject to general authorisation by the respective service provider.
Norway: is subsection does not apply for the geographical area within a radius of 20 km from the centre of Ny-
Alesund.
is statement will be applied only for the printers marketed in Europe.

TABLE OF CONTENTS
1. Unpacking and Installation......................................................................... 1
1-1. Unpacking ................................................................................................... 1
1-2. Notes about Installation............................................................................... 1
2. Parts Identication and Nomenclature....................................................... 2
3. Setup ............................................................................................................ 3
3-1. Connecting the Interface Cable to the PC ..................................................... 3
3-2. Connecting the Interface Cable to the Printer .............................................. 4
3-3. Connecting the AC Adapter.......................................................................... 7
3-4. Turning the Power On.................................................................................. 8
3-5. Connecting to a Peripheral Device ............................................................... 8
3-6. Loading a Paper Roll.................................................................................... 9
3-7. Bluetooth Setting (For Bluetooth Interface Model only) .................................... 12
3-8. Setup Precautions ...................................................................................... 14
4. Attaching the Accessories.......................................................................... 16
4-1. Attaching the Holder Plate ......................................................................... 16
4-2. Attaching the Rubber Feet.......................................................................... 18
4-3. Switch Cover Installation........................................................................... 18
5. Error Indicators......................................................................................... 19
5-1. Recoverable errors ..................................................................................... 19
5-2. Unrecoverable errors.................................................................................. 19
6. Preventing and Removing Paper Jams...................................................... 20
6-1. Preventing Paper Jams ............................................................................... 20
6-2. Removing Paper Jams................................................................................. 20
6-3. Releasing the Cutter Lock .......................................................................... 21
7. Maintenance............................................................................................... 22
7-1. Thermal Head ............................................................................................ 22
7-2. Platen Rubber Roller.................................................................................. 22
7-3. Paper Holder ............................................................................................. 22

-
1
-
1. Unpacking and Installation
* Accessories vary depending on the model and the
region where the printer was purchased.

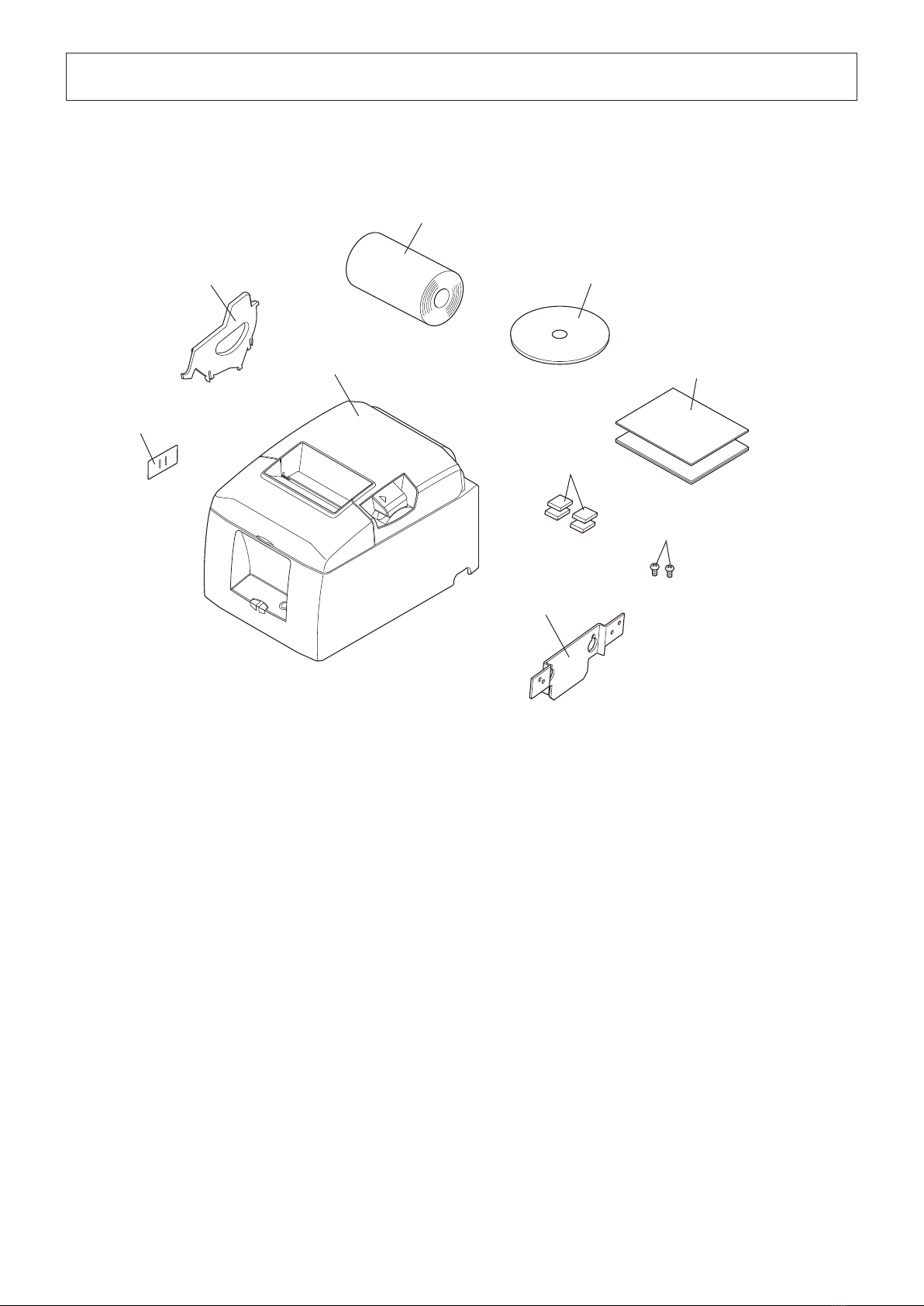

Paper roll
Printer
Holding plate
Screws
Switch blind
Safety Instruction
&
Setup sheet
CD-ROM
Paper roll guide
Rubber feet
1-1. Unpacking
Aer unpacking the unit, check that all the necessary accessories are included in the package.
1-2. Notes about Installation
1. Choose a rm, level surface where the printer will not be exposed to vibration.
2. Make sure that the printer is connected to a reliable power outlet. It should not be on the same electric circuit as copi-
ers, refrigerators, or other appliances that cause power spikes.
3. e power outlet you plan to connect to for power should be nearby and unobstructed.
4. Make sure that the printer is not exposed to direct sunlight.
5. Make sure that the printer is well away from heaters and other sources of extreme heat.
6. Make sure that the printer is connected to a reliable power outlet. It should not be on the same electric circuit as copi-
ers, refrigerators, or other appliances that cause power spikes.
7. Make sure that the room where you are using the printer is not too humid.
8. Use the printer within the boundaries indicated in the environmental requirements. Even when the ambient tem-
perature and humidity are within the specications, avoid radical changes in environmental conditions. e suitable
operating temperature range is as follows:
Operating temperature: 5°C to 45°C
9. When disposing of the printer, obey local regulations.

-
2
-
ERROR
FEED
POWER
TSP650
2. Parts Identication and Nomenclature
Control panel
Features lamps that indicate printer
status and a button for operating
the printer.
Printer cover
Open to replace paper.
Do not open while printing.
Power switch
Turns theprinteron
and o.
Connects to peripheral devices
such as cash drawers.
Do not connect this to a tel-
ephone line.
Peripheral drive connector
Connects to an optional
AC adapter.
Power inlet
Connects to a host PC
through a cable.
Interface connector
Lights when the printer is online.
This lamp also indicates errors, in
combination with other lamps.
POWER lamp (green)
Lights when the cover is open.
This lamp also indicates errors, in
combination with other lamps.
ERROR lamp (red)
When the printer is online, pressing
this button feeds the paper roll.
FEED button
Cover open lever
Use this lever to open the
printer cover.

-
3
-
3. Setup

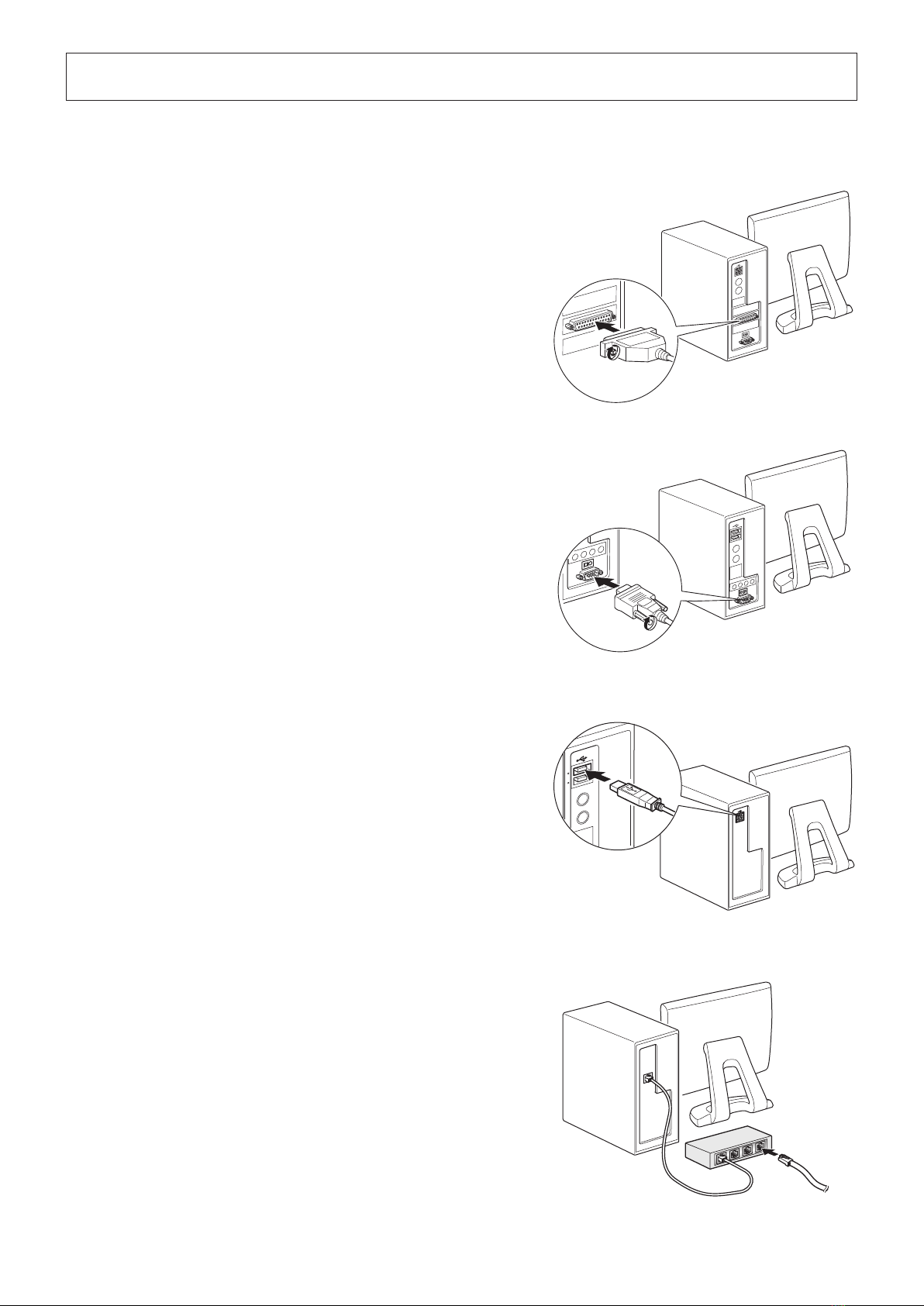

3-1. Connecting the Interface Cable to the PC
3-1-1. Parallel Cable
Connect the parallel cable to a parallel port on your PC.
3-1-2. RS-232C Cable
Connect the RS-232C cable to a RS-232C port on your PC.
3-1-3. USB Cable
Connect the USB cable to a USB port on your PC.
3-1-4. Ethernet Cable
Connect the Ethernet cable to a USB port on your PC.

-
4
-
Parallel interface cable
Ferrite core
Interface cable
5 cm
(maximum)
Fastener
Pull and cut
3-2. Connecting the Interface Cable to the Printer
Printer cables are not included in the package.
Obtain an appropriate cable that complies with the specications beforehand.
Because the appropriate interface cable diers depending on the system that you are connecting the printer to, contact
the dealer that you bought the product from if you are unsure about what cable to use.
Before connecting or disconnecting an interface cable, be sure to disconnect the AC adapter’s power cord from the outlet.
3-2-1. Parallel Interface Cable
To connect a parallel cable, follow the procedure given below.
(1) Make sure the printer is turn o.
(2) Ax the ferrite core onto the cable as shown in the illustration.
(3) Pass the fastener through the ferrite core.
(4) Loop the fastener around the cable and lock it. Use scissors to cut
o any excess.
(5) Connect the interface cable to the connector on the rear panel of
the printer.
(6) Fasten the connector clasps.

-
5
-
RS-232C interface cable
USB cable
Cable hook
4 cm (maximum)
3-2-2. RS-232C Interface Cable
(1) Make sure that the AC adapter’s power cord is not connected to the outlet.
(2) Connect the interface cable to the connector on the rear panel of the printer.
(3) Tighten the connector screws.
3-2-3. USB Cable
To connect a USB cable, follow the procedure given below.
(1) Make sure that the AC adapter’s power cord is not connected to the outlet.
(2) Connect the USB cable to the USB port.
(3) As shown in the gure, pass the cable through the cable hooks to hold it in place.

-
6
-

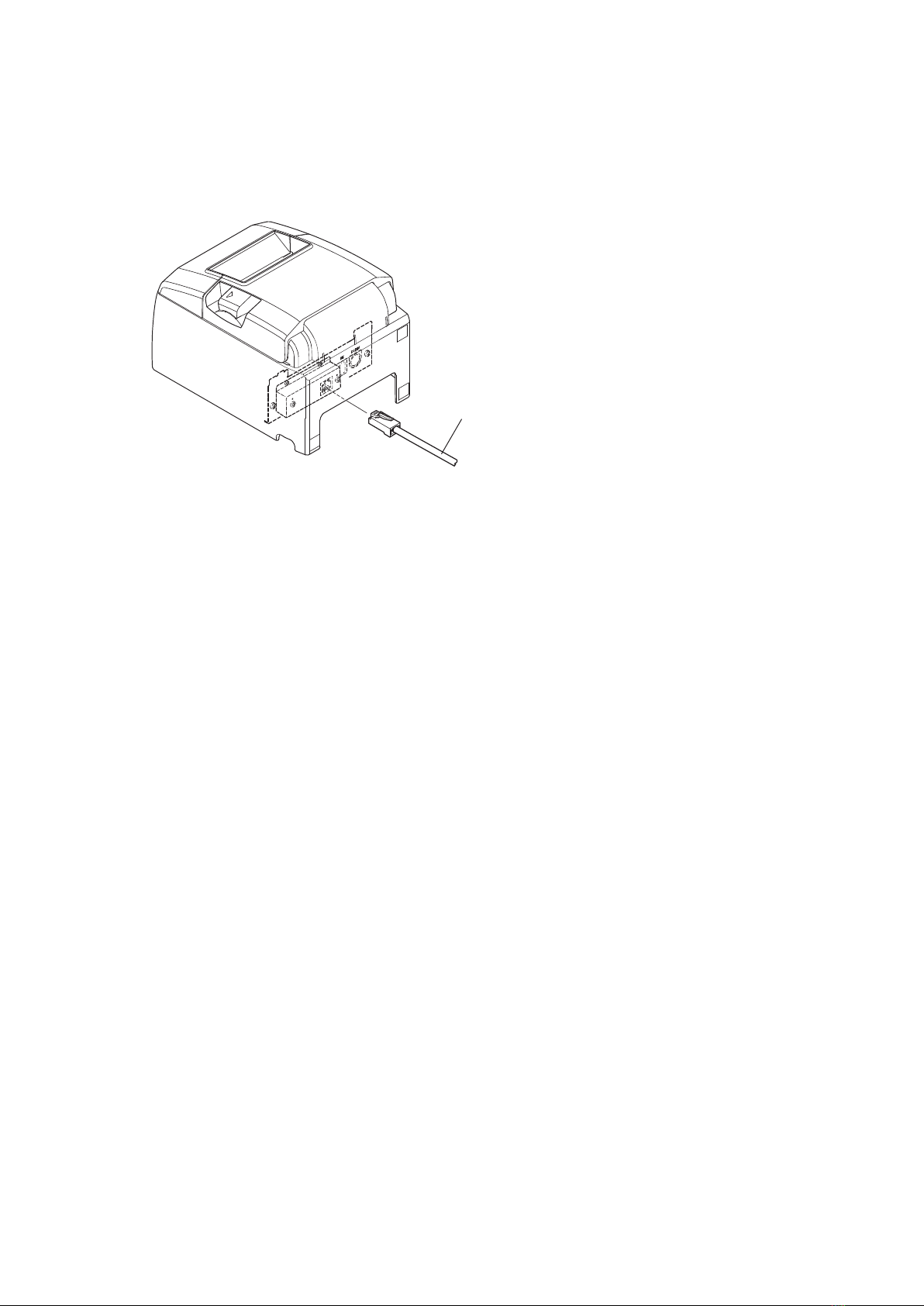

Ethernet cable
IFBD-HE07
3-2-4. Ethernet Cable
To connect the cable, follow the procedure given below.
(1) Make sure that the AC adapter’s power cord is not connected to the outlet.
(2) Connect the Ethernet cable to the Ethernet port.
g Link disconnection detection feature
e Ethernet interface model is equipped with a link disconnection detection feature.
If the printer is turned on when an Ethernet cable is not connected to it, the POWER and ERROR lamps are simul-
taneously turned on and o at 2-second intervals to indicate the disconnection.
Be sure to connect the Ethernet cable from a PC or hub to the printer, and then turn the printer on.

-
7
-
3-3. Connecting the AC Adapter
Note: Before connecting or disconnecting the AC adapter, make sure that the printer and all the devices connected
to it are turned o.
en remove the power cord from the outlet.
(1) Connect the AC adapter to the power cord.
(2) Connect the AC adapter to the connector on the printer.
(3) Insert the power cable plug into an AC outlet.
CAUTION
When disconnecting the cable, take hold of the cable
connector to pull it out. Releasing the lock makes it easy
to disconnect the connector.
Pulling the cable excessively could cause damage to the
connector.
Note: We recommend that you use the standard AC adapter and power cord.
If you are not using the optional AC adapter (PS60A-24B1 series) and are instead preparing your own power
supply, note the following points.
• Useapowersupplythatis24VDC±10%and2.1Aormore.
(Select a power supply with current capacity that is appropriate for the actual printing ratio.)
• UseapowersupplythatsupportswithSELVoutputorLPS(LimitedPowerSource).
• Takeintoconsiderationthenoiseintheenvironmentthattheprinterisinstalledin,andtakeappropri-
ate measures to protect the printer from static electricity, AC line noise, etc.

-
8
-
Power switch
3-4. Turning the Power On
Connect the power cord according to the procedure in section 3-3, “Connecting the AC Adapter”.
Turn on the power switch, which is on the le side of the printer.
e POWER lamp on the control panel will light.
3-5. Connecting to a Peripheral Device
You can connect a peripheral device to the printer using a modular plug.
Follow the procedure given below.
1) Make sure that the AC adapter’s power cord is not connected to the outlet.
2) Connect the modular jack plug to the peripheral drive connector on the rear panel of the printer.
Connect the other end of the cable to the modular jack of the peripheral device.
CAUTION: Do not connect a telephone line to the peripheral drive connector. Doing so may cause the printer
to malfunction. Also, for safety purposes, do not connect a wire that may carry excessive voltage to
the peripheral drive connector.

-
9
-
Cover open lever
Paper roll
3-6. Loading a Paper Roll
Use a paper roll that complies with the printer specications.

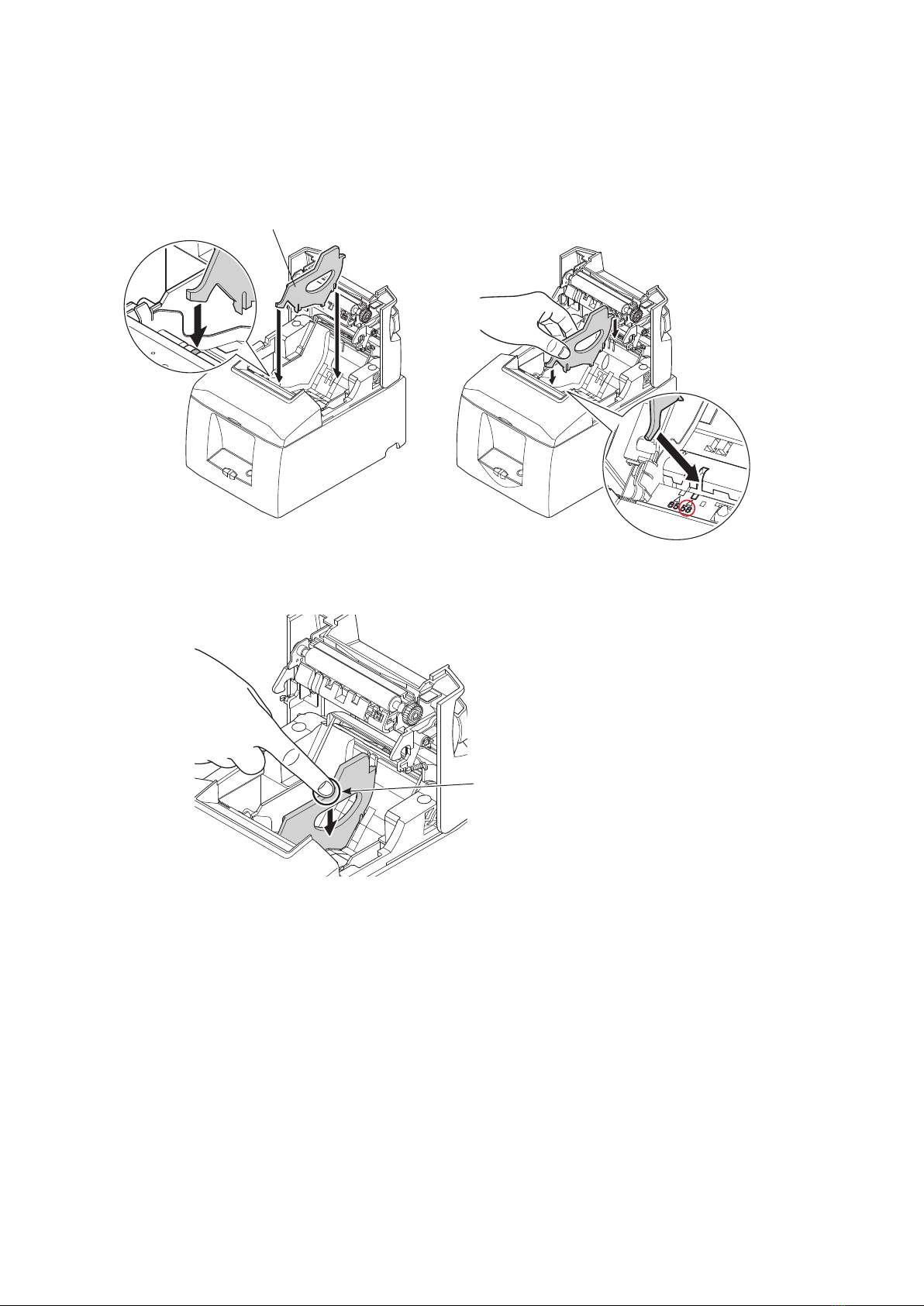

(1) Push the cover open lever, and open the printer cover.
(2) Load the paper roll into the printer in the direction indicated by the gure, and pull the leading edge of the paper
straight toward you.
(3) Push on both sides of the rear cover to close it.
Note 1: Be careful not to pull the paper out at an angle, because doing so may cause the paper to jam or skew.
2: Be sure not to close the printer cover by pushing only one side.
3: Be careful not to get your ngers caught when opening or closing the printer cover.
4: Aer the printer cover is closed, the printer performs initial operations (from paper feeding to paper
cutting). Do not open the printer cover until the initial operations are complete.

-
10
-
3-6-1. Compliant Paper Roll Specications
Paper thickness 53 μm to 85 μm
Paper width
79.5 ± 0.5 mm
57.5 ± 0.5 mm
External dimensions
 •Rolldiameter Max. f83 mm
 •Takeuppaperrollwidth 80 +0.5
mm / 58 +0.5
mm
Core inner and outer diameters Inner diameter f12 ± 1 mm, external diameter f18 ± 1 mm
Printed surface Outer edge of roll
Note 1: Do not glue or tape the paper roll and sha core together.
2: Do not fold the tail end of the paper.
3: For details on recommended thermal paper, see the following webpage.
http://www.starmicronics.com/support/
- 1- 1

-
11
-
Paper roll guide
A
3-6-2. Changing the Paper Width
When using 57.5 mm width paper rolls, attach the supplied paper roll guide to the printer. When you change the eective
print width (paper roll width), change the printer utility’s memory switch setting.
For details, see the printer utility help.
(1) Insert the paper roll guide rmly into the slot in the printer labeled "r58" as shown in the gure below.
(2) Secure the paper roll guide in place by pushing the section marked as “A” in the gure.
Note1 : Do not insert the paper roll guide into the slot labeled "r65".
2: Do not change the paper width while the printer is in use.
e amount of wear on the thermal head, rubber roller, and cutter varies depending on the paper width.
is varying amount of wear may cause problems in printing and cutting.

-
12
-
PAIR
RST
PAIR
RST
PAIR button
3-7. Bluetooth Settings (For Bluetooth Interface Models only)
Pair the printer with the master device by following the procedure below.
3-7-1. Pairing using SSP (Simple Secure Pairing) [Default]
(1) Aer turning the printer's power switch on, press and hold the PAIR button on the rear interface of the printer for 5
seconds or more, and then release it. e LED will ash green.
(2) Pairing will be possible for 60 seconds from when the LED begins ashing green.
During this time, perform pairing from the master device.
Device name: Star Micronics (default)
(3) Aer performing pairing, wait until the LED stops ashing green, or turn the printer o and back on again, to enable
the connection.
With some master devices, aer pairing, the LED will automatically begin ashing blue, and the printer will be au-
tomatically connected.
(4) Connect to the printer from the master device application and perform printing. If the printing is successful, the
pairing process has been completed.
Note: e printer performs various processes immediately aer connecting to or disconnecting from a master
device.
Please wait approximately 0.1 seconds aer connecting, and approximately 0.5 seconds aer disconnecting,
before beginning communications with the printer. is wait will ensure that the next action you perform
is executed correctly.
3-7-2. Pairing using PIN code
Enter the following information in the master device if it does not support SSP, or when otherwise necessary.
PIN: 1234 (default)
Device name: Star Micronics (default)
It is recommended that you change the PIN code for greater security.
For details regard changing the PIN code, please see the “Bluetooth Utility Soware Manual”.

-
13
-
PAIR
RST
PAIR
RST
“Made for iPod” ,“Made for iPhone” and “Made for iPad” mean that an electronic accessory has been designed to
connect specifically to iPod, iPhone, or iPad, respectively, and has been certified by the developer to meet Apple
performance standards.
Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards.
iPod is a trademarks of Apple Inc., registered in the U.S. and other countries. iPod touch, iPad and iPhone are
trademark of Apple Inc.
iPod, iPhone and iPad compatibility list
Made for
•iPod touch (5th generation)
•iPod touch (4th generation)
•iPhone 5
•iPhone 4S
•iPhone 4
•iPad (4rd generation)
•iPad (3rd generation)
•iPad 2
•iPad
•iPad mini
Note: as of December. 2012
RST button
3-7-3. Resetting Bluetooth Settings
e PIN code, device name, and other settings can be reset by following the procedure given below.
(1) Use a ne pointed pen or other similar object to press and hold the RST button. While holding the RST button, turn
the printer's power switch on.
(2) e reset process will begin, and the LED at the front of the printer will ash green. When the settings have been
reset, the LED will stop ashing.
(3) Turn the printer's power switch o, and delete the pairing settings from the master device.

-
14
-
Caution Symbol
ese symbols are located near the thermal print head.
Because the thermal print head is hot immediately aer printing, do not touch it. Static
electricity can damage the thermal print head. To protect the thermal print head from
static electricity, do not touch it.
is symbol is located near the cutter.
Never touch the cutter blade, as you could injure your ngers.
is symbol is located near the peripheral drive connector.
Do not connect this to a telephone.
is symbol is located near the screws securing the case or the protective plate, which
should not be opened by individuals other than service personnel. Individuals, other
than service personnel, should not remove these screws. High voltage areas in the case
can be dangerous.
WARNING
lIf you notice smoke or strange odors coming from this product, turn the power switch o immediately, and remove
the power cord from the AC outlet. For repairs, contact the dealer that you bought the product from.
lNever attempt to repair the product yourself. Doing so can be dangerous.
lNever disassemble or modify the product. Doing so may result in injury, re, or electric shock.
lOn models that have cutters or tear bars, do not touch the cutter blade or the tear bar.
- ere is a cutter or tear bar inside the paper outlet slot. Never put your hand in the slot regardless of whether or
not the printer is in operation.
- You must open the printer cover to replace paper. However, because the cutter blade or tear bar is located inside
of the cover, be careful not to bring your face and hands too close to the blade or tear bar when the cover is open.
lDuring and immediately aer printing, the area around the print head is very hot. Don’t touch it because you could
be burned.
lBe sure to turn o the printer before performing maintenance on the cutter. Failing to do so is dangerous.
CAUTION
lWe recommend that you unplug the printer from the power outlet whenever you do not plan to use the printer for
long periods.
Because of this, you should locate the printer so that the power outlet it is plugged into is nearby and easy to access.
lIf an AC cord set is supplied with the product, the power cord that is included has been specially designed for the
product.
lMake sure that the printer and the PC are turned o and unplugged from their AC outlets before you make connec-
tions.
lDo not connect a telephone line to the peripheral drive connector, which is used for devices such as cash drawers.
Doing so may cause the printer to malfunction. Also, for safety purposes, do not connect a wire that may carry ex-
cessive voltage to the peripheral drive connector.
3-8. Setup Precautions

-
15
-
lDo not open the printer covers while the printer is printing or cutting.
lDo not pull out paper when the printer cover is closed.
lIf liquid or foreign objects (such as coins and paper) enter the inside of the printer, turn the power switch o,
disconnect the power cord from the AC outlet, and consult the dealer that you bought the product from.
Continuing to use the printer may lead to a short-circuit, which may cause electric shock or re.
le heating element and the driver IC of the thermal print head are easily damaged. Do not touch them with metal
objects, sandpaper, etc.
lDo not touch the thermal print head heating element. Doing so may make it dirty, which will decrease the printing
quality.
lStatic electricity can damage the driver IC and other components of the thermal print head. Avoid touching it di-
rectly.
lDo not operate the printer if there is moisture (which has been caused by condensation or another factor) on the
front surface of the head.
le printing quality and the thermal print head’s service life cannot be guaranteed if paper other than the recom-
mended paper is used.
Inparticular,thermalpapercontainingNa+,K+,orC1-maydrasticallyreducetheservicelifeofthethermalprinthead.
We recommend that you use paper with the following maximum ion densities: 500 ppm of Na+, 150 ppm of K+, and
300 ppm of Cl-.
For details on recommended thermal paper, see the following webpage.
http://www.starmicronics.com/support/
CAUTION
Wireless Communication
lDo not use the device where using wireless devices is prohibited or may cause interference or danger.
le radio waves generated by the device may interfere with the operation of electronic medical devices. If you are
using any electrical medical device, contact its manufacturer for the restrictions on the use of the device.
lSecurity functionality for Bluetooth is installed in this product. Congure the security settings according to the
manual (available on the Star Micronics website) to reduce the risk of security issues.
lis device supports Bluetooth.
Since this functionality may be limited by local regulations, rst review the radio laws specic to the country in
which the product will be used.
lBelow is a list of laws this device has been approved by. As Star Micronics is committed to constant innovation, revi-
sions may be made without an announcement. Access the Star Micronics website for the latest listing of approvals.
lPlease refer to Star Micronics website for the latest information and manuals.

-

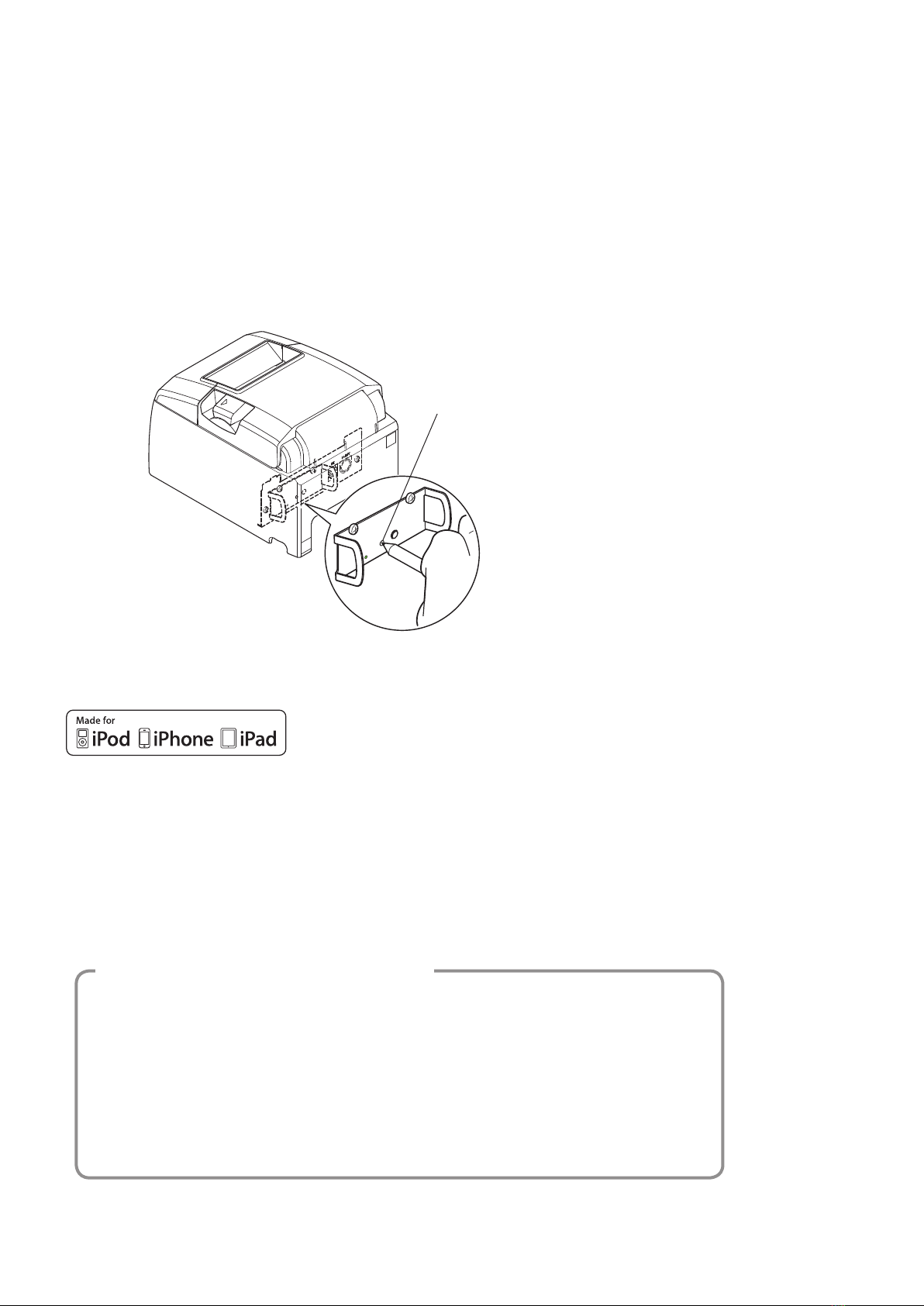

16
-
2〜3mm
4. Attaching the Accessories
e following accessories are necessary when mounting the printer to a wall.
• Holder plate and two angeless screws
e following accessories are necessary when positioning the printer vertically.
• Four rubber feet
e following accessories do not necessarily have to be attached. Attach it if necessary.
• Switch cover
4-1. Attaching the Holder Plate
<Precoutions>
ne holder plate is attached to the printer using the included screws and is hooked onto screws that are installed
into the wall.
ne screws on the wall are not included.
Use commercially available screws (4 mm diameter) that are suitable for the wall material (wood, steel beam,
concrete, etc.).
ne printer’s weight is approximately 2.4 kg when the largest diameter roll paper is loaded.
Use screws on the wall that have both shear strength and pulling-out strength to withstand a force of at least
12 kgf (118 N).

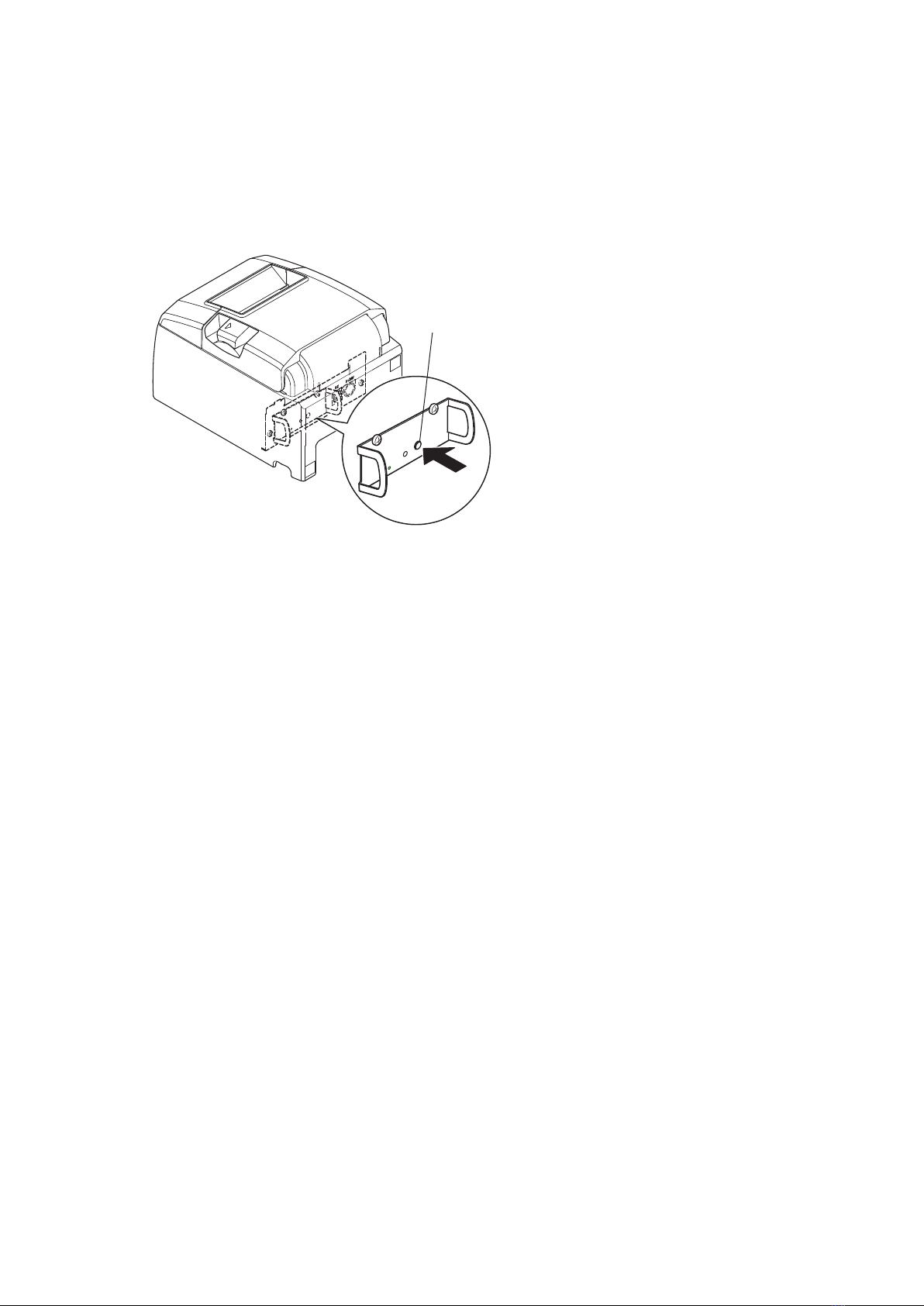

(1) Attach the holding plate to the printer. en tighten the two screws that were supplied to secure it in place.
(2) Position the printer over the screws, etc., on the wall and then slide it downward to set it in place.
Aer setting the printer in place, check the screws on the wall again to make sure that they are able to support the
printer’s weight.
