Star RTW14EA User manual

Rolling Tortilla Warmer
Owner’s Manual
Models
RTW14EAand RTW19EA
patent no. 9,516,883
This manual includes material related to installation,
use , cleaning, and care. Exploded view[s], as well
as any available parts list[s] and wiring diagram[s]
pertaining to the unit[s] covered by this manual are also
included.
This manual must be read and understood by all
persons using or installing this appliance. Contact your
Star dealer if you have any questions concerning
installation, use, or maintenance of this equipment.
DO NOT DISCARD THIS MANUAL.
2M-Z19213 - Rev.G- 08.2018
RTW19EA

i
WARRANTY EXCLUSIONS
THE FOLLOWING WILL NOT BE COVERED UNDER WARRANTY.
•Any product which has not been used, cleaned, maintained,
or installed in accordance with the directions published in the
appropriate installation sheet and/or owner's manual as well
as national and local codes, including incorrect gas, electrical,
or water connection. Star is not liable for any unit which has
been mishandled, abused, misapplied, subjected to chlorides, harsh
chemicals, or caustic cleaners, damaged from exposure
to hard water, modified by unauthorized personnel, damaged
by flood, fire, or other acts of nature [or God], or which have
an altered or missing serial number.
• Installation, labor, and job checkouts, calibration of heat controls,
air and gas burner/bypass/pilot adjustments, gas or electrical
system checks, voltage and phase conversions, cleaning
of equipment, or seasoning of griddle surface.
• Replacement of fuses or resetting of circuit breakers, safety
controls, or reset buttons.
• Replacement of broken or damaged glass components, quartz
heating elements, and light bulbs.
• Labor charges for all removable parts in gas charbroilers and
hotplates, including but not limited to burners, grates, and
radiants.
• Any labor charges incurred by delays, waiting time, or operating
restrictions that hinder a service technician’s ability to perform
service.
•Parts that fail or are damaged due to normal wear or labor for
replacement of Items that can easily be replaced during a daily
cleaning routine. such as but not limited to silicone belts, PTFE
non-stick sheets, knobs, control labels, bulbs, fuses, quartz heating
elements, baskets, racks, and grease drawers.
•Components that should be replaced when damaged or worn,
but have been field-repaired instead [eg. field-welded fry pots]
• Any loss of business or profits.
ADDITIONAL WARRANTIES
Specialty/chain specific versions may also have additional
and/or extended warranties.
LIMITED EQUIPMENT WARRANTY
Star Manufacturing [as well as its subsidiaries] warranties new products
to be free from defects in material and/or workmanship for a period
of one [1] year from the date of original installation, except as noted
below. Defects that occur as a result of normal use, within the time
period and limitations defined in this warranty, will at Star’s discretion
have the parts replaced or repaired by Star or a Star-authorized service
agency.
THIS WARRANTY IS SUBJECT TO ALL LISTED CONDITIONS.
Repairs performed under this warranty are to be performed by a Star-
authorized service agency. Star will not be responsible for charges
incurred or service performed by non-authorized repair agencies.
In all cases, the nearest Star-authorized service agency must be used.
Star will be responsible for normal labor charges incurred in the repair
or replacement of a warrantied product within 50 miles (80.5 km) of
an authorized service agency. Time and expense charges for anything
beyond that distance will be the responsibility of the owner. All labor
will need to be performed during regular service hours. Any overtime
premium will be charged to the owner. For all shipments outside the
U.S.A. and Canada, please see the International Warranty for specific
details.
It is the responsibility of the owner to inspect and report any shipping
damage claims, hidden or otherwise, promptly following delivery.
No mileage or travel charges will be honored on any equipment that is
deemed portable. In general, equipment with a cord and plug weighing
less than 50 lb. (22.7 kg) is considered portable and should be taken or
shipped to the closest authorized service agency, transportation prepaid .
PORTABLE EQUIPMENT EXAMPLES
• J4R popcorn machine
•12NCPW and 15NCPW nacho
merchandisers
• nacho cheese warmers except
11WLA-series models
•specialty food warmers except
130R, 11RW, and 11WSA models
• all butter dispensers
• all nacho chip merchandisers
• 514LL fryer
• 15MC and 18MCP hot food
merchandisers
• QCS1, QCS2, and RCS2 toasters
• 16PD-A pretzel merchandisers
• condiment dispensers except
HPD- and SPD-series models
• all pop-up toasters
• all pastry display cabinets
• all heat lamps • all accessories
CONTACT
Should you require any assistance regarding the operation or
maintenance of any Star equipment; write, phone, fax or email
our service department. In all correspondence mention the
model number and the serial number of your unit, as well as
the voltage or type of gas you are using.
Business hours are 8:00 a.m. to 4:30 p.m. Central Standard Time
Telephone Star/Toasmaster 314.678.6306
Fax [phone]
Email c[email protected]
www.star-mfg.com • www.toastmastercorp.com
PRODUCTS PARTS LABOR
Star Ultra-Max® griddles,
charbroilers, and hotplates 2 years 2 years
Star-Max® fryers, griddles,
charbroilers, and hotplates 2 years 2 years
Jetstar® popcorn poppers 2 years 2 years
Staltek™ roller grill coatings 5 years
chrome griddle surfaces [against
peeling] 5 years
cast iron grates, burners,
and burner shields 180 days
original Star or Toastmaster parts
sold to repair Star or Toastmaster
equipment
90 days
The foregoing warranty is in lieu of any and all other warranties expressed or implied and constitutes the entire warranty. 2M-Z21647 • Rev C • 02.2018
Service First 1 year

TABLE OF CONTENTS
Warranty i
General Information and Installation 1–2
Daily Operation 3–4
Cleaning 5
Maintenance 6
Wiring Diagram 7
Exploded Views 8–13
Parts List 14–17
Wall Mount Installation 18–19
Specifications 20
Factory Settings Adjustment 21
ii

iii
NOTES

2M-Z19213 Rev G- Owner's Manual for RTW Rolling Tortilla Warmer
1
SAFETY SYMBOLS
These symbols are intended to alert the user to the
presence of important operating and maintenance
instructions in the manual accompanying the appliance.
THOROUGHLY INSPECT YOUR UNIT ON ARRIVAL
This unit has been tested for proper operation before leaving our plant to ensure delivery of your unit
in perfect condition. However, there are instances in which the unit may be damaged in transit. In the
event you discover any type of damage to your product upon receipt, you must immediately contact
the transportation company who delivered the item to you and initiate your claim with that company.
If this procedure is not followed, it may aect the warranty status of the unit. Please record the model
number, serial number, voltage, and purchase date in the area below at the time of receipt..
Model Number
Serial Number
Voltage
Purchase Date
NOTICE
Using any part other than genuine Star factory supplied parts relieves the manufacturer of all liability.
Due to periodic changes in designs, methods, procedures, policies, and regulations, the specifications
contained in this sheet are subject to change without notice. Star reserves the right to change product
specifications and design without notice. Such revisions do not entitle the buyer to corresponding
changes, improvements, additions or replacements for previously purchased equipment. While Star
International Holdings Inc. exercises good faith eorts to provide information that is accurate, we are
not responsible for errors or omissions in information provided or conclusions reached as a result
of using the specifications. By using the information provided, the user assumes all risks in connection
with such use.
PLEASE REFER TO THE WARRANTY PAGE FOR SPECIFIC WARRANTY INFORMATION.
MAINTENANCE AND REPAIRS
Contact your local authorized service agent for service or required maintenance. Please have the
information in the above fields ready when you call to ensure a faster service.
AUTHORIZED SERVICE AGENT LISTING
Reference the listing provided with the unit or for an updated listing go to the website or call customer
service to find an agent.
Business hours: 8:00 a.m. to 4:30 p.m. Central Standard Time
Telephone: [phone]
Fax: [phone]
Email: [e-mail]
Website: www.star-mfg.com

2
GENERAL SAFETY INFORMATION
This equipment is designed and sold for commercial use only, and is intended for use by personnel
trained and experienced in its operation. This is not sold for consumer use in and around the home
nor for use directly by the general public in food service locations.
Before using your new equipment, read andunderstand all the instructions andlabels associated
with the unit prior to putting it into operation. Make sure all people associated with its use understand
the units operation and safety before they use the unit.
GENERAL INSTALLATION INFORMATION
The unit is shipped fully assembled and ready to plug into a standard outlet specified for its voltage
and amp draw. Ifimproper electrical supply can bedetermined through troubleshooting, contact
a qualified electrician prior to using the unit. Removal or replacement of the power cord or plug will
void the warranty. Should you require assistance, contact your local authorized service agent for any
service orrequired maintenance.
Level unit using the adjustable feet under the unit [there is approximately 0.5 (1/2) inch of adjustment].
Allow enough space around the unit for adequate ventilation. It is recommended that you leave a ten
(10) inch gap on the top for cleaning if the unit is to remain stationary. The sides and back of the unit
require no additional clearance.
Before using the unit for the first time, make certain to clean it properly. Refer to the "Cleaning Procedure"
document for cleaning instructions. The inlet and outlet trays will also need to be placed on the unit prior to
use. The outlet tray slides on the lip under and in front of the drum area and the inlet tray sits on a rod,
resting against the stop pins.
ELECTRICAL CONNECTION
Before making any electrical connection to this unit, check that the power supply is adequate for the
voltage, amperage, and requirements stated on the rating plate. RTW14EAunits will require a NEMA
5-20P receptacle. RTW19EAunits will require a NEMA 6-15Preceptacle. Make certain to disconnect the
unit from the power source before installing or removing any parts. Be absolutely sure that the ground
connection for the receptacle isproperly wired. Donotconnect equipment topower without proper
ground connections. Improper grounding may result in personal injury or fatality.
DO NOT CUT OR REMOVE THE PLUG OR DO NOT IMMERSE OR LET THE UNIT STAND
GROUNDING PRONG FROM THE PLUG. IN WATER.
CONNECT UNIT INTO DEDICATED AC LINE DO NOT HOSE DOWN THE UNIT OR THE
ONLY AS SPECIFIED ON THE DATA PLATE TABLE/COUNTER IF THE UNIT IS ON THE
OF THE UNIT. TABLE/COUNTER.

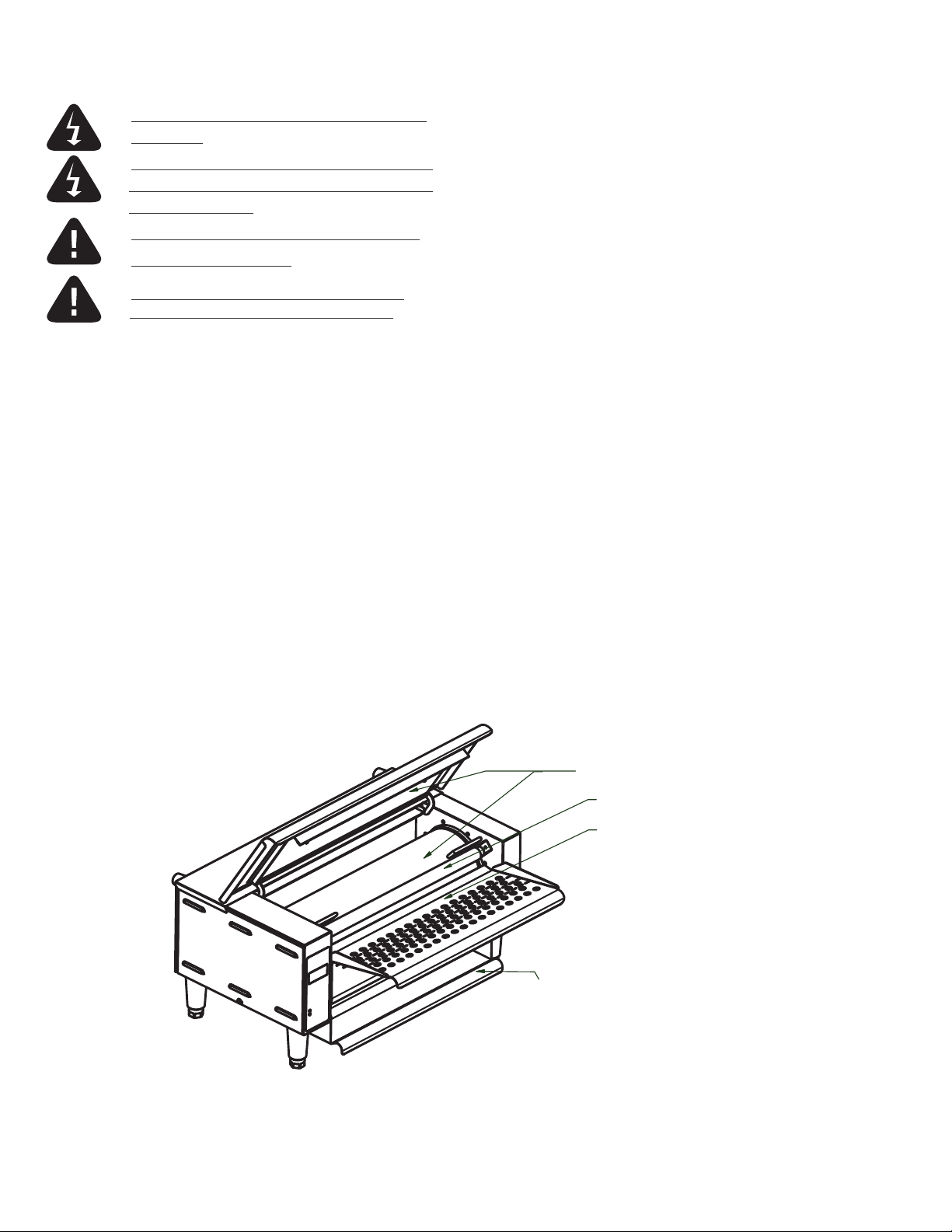

belt guide
belt roller
inlet tray stop pin
place here
outlet tray

2M-Z19213 Rev G- Owner's Manual for RTW Rolling Tortilla Warmer
3
1/2 scale RTW
control panel
DAILY OPERATION
CERTAIN SURFACES ARE EXTREMELY HOT DURING OPERATION AND
CARE SHOULD BE TAKEN WHILE USING THIS UNIT.
THIS UNIT IS DESIGNED TO WARM DRY, FLEXIBLE PRODUCTS ONLY.
DO NOT ATTEMPT TO RUN WET OR LOOSE MATERIAL THROUGH IT.
ELECTRONIC CONTROLS
BUTTONS (PRIMARY USES)
• ON/OFF—Turns power on or o to the electrical components of the unit.
• SET/TEMP—Allows adjustment of the roller heating element temperature
up to 480°F (249°C).
•▲/CLEAN—Accesses “CLEAN” mode and adjusts settings upward in menus.
•▼/RUN— Accesses “RUN” mode and adjusts settings downward in menus.
FUNCTIONS/MODES
•ON/OFF—All power is turned on, or removed from, the drum motor, heating
elements, and cooling fan. After powering down, the screen will
display “OFF” until the “ON/OFF” button is pressed again. Cooling
fan will be on in all modes other than when the unit is powered down.
•PREHEAT—Drum motor runs at the set “TORT” speed. Heaters bring the drum
temperature up to the set operating temperature.
•TORT—Drum motor runs at the set “TORT” speed. Heaters maintain the drum
temperature at the set operating temperature.
•BREAD—Drum motor runs at the set “BREAD” speed. Heaters maintain the
drum temperature at the set operating temperature. This mode only
lasts for 1–40 seconds before defaulting back to TORT mode.
•COOL— Drum motor runs at the set “TORT” speed. Heaters are off.
•CLEAN— Drum motor does not run. Heaters are off.
START-UP
i. When the unit is initially plugged in, the display will read “OFF” for a brief time. No outputs will
receive power at this time.
ii. When “ON/OFF” is pressed, the drive motor, heating elements, and fan motor will be turned on.
The PREHEAT mode will start immediately and will take approximately twenty (20) minutes
to complete. During this time, “PREHT” will appear on the display. Do not attempt to adjust
temperature or speed settings until PREHEAT has completed.
iii. The temperature of the drum can be checked at any time in PREHEAT or TORT modes by pressing
the “SET/TEMP” button. If the temperature has not yet reached 100°F (38°C), the words “LOW”
and “TEMP” will flash on the screen.
iv. There will be a small dot on the lower right of the screen which will remain on whenever the heating
elements are on. When the PREHEAT mode has completed, “TORT” will be displayed on the screen.

4
TEMPERATURE ADJUSTMENT
This can be performed in RUN (TORT or BREAD) and CLEAN modes.
i. Press and hold the “SET/TEMP” button for three (3) seconds. The display flashes the drum temperature
setting and the “DRUM TEMP” light on the front label illuminates as well.
ii. Use the ▲and ▼buttons to adjust the drum heat to the desired temperature. The display will stop
flashing while ▲or ▼are pressed and will indicate the temperature and units. The temperature can be
adjusted from 210°F–480°F (99°C–249°C). Adjustments of 10°F or 10°C at a time can be made
depending on which the unit is set to read at the time adjusted. The default setting is 480°F (249°C).
iii. Press the “SET/TEMP” button when you are satisfied with your adjustment and move on to a screen
which will allow you to toggle between Fahrenheit and Celsius.
iv. Press the “SET/TEMP” button again to save and exit this mode.
DRUM SPEED ADJUSTMENT
This can be performed in RUN mode (TORT or BREAD).
i. Press and hold the ▲and ▼buttons simultaneously for three (3) seconds. The display will sequence
through “TORT”, “SPEED”, and the current “TORT SPEED” speed setting number.
ii. Press the ▲button to increase the set speed and the ▼to decrease the set speed. The speed setting can
range from 1–99 and holding the ▲or ▼button will make the setting increase or decrease until a limit
is reached.
iii. Press “SET/TEMP” again to save the selected setting. The display will now sequence through “BREAD”,
“SPEED”, and the current “BREAD SPEED” setting number. This is adjusted using the same procedure
as the above “TORT SPEED” in the section above.
iv. Press the “SET/TEMP” again to save the selected setting. The display will now sequence through
“BREAD”, “TIME”, and the current time setting. Bread mode is only activated for a brief time determined
by this setting. Press the ▲button to increase the set time and the ▼to decrease the set time anywhere
from 1–40 seconds and holding the ▲or ▼button will make the setting increase or decrease until
a limit is reached.
v. Pressing “SET/TEMP” one more time will exit speed adjustment.

2M-Z19213 Rev G- Owner's Manual for RTW Rolling Tortilla Warmer
5
CLEANING
DO NOT IMMERSE OR LET THE UNIT STAND
INWATER.
DO NOT HOSE DOWN THE UNIT OR THE
TABLE/COUNTER IF THE UNIT IS ON THE
TABLE/COUNTER.
DO NOT USECAUSTIC CLEANERS ON ANY
SURFACE OF THE UNIT.
DO NOT USE ANY ABRASIVE CLEANING
UTENSILS ON ANY PART OF THE UNIT.
Preventive maintenance for your unit consists of the following recommended cleaning procedures.
In order to keep your tortilla warmer in top operating condition, these steps should be performed
daily or weekly as indicated.
CLEAN MODE
CLEAN mode is a cool down notification feature alerting the user when the unit reaches a safe handling
temperature. Press the “ON/OFF” button once to activate CLEAN mode. The inlet and outlet trays and
scraper areremovable for easy access for cleaning. The recommended cleaner touse isKay QSR
heavy-duty degreaser.
CLEANING PROCEDURE
i. Press and hold the “ON/OFF”button once to enter COOL DOWN mode. The screen will read “COOL”
until the unit reaches a safe temperature.
ii. Remove the silicone belt with the belt roller and wipe them down with a damp cloth.
iii. Remove the inlet and outlet tray. Wash using warm water and mild detergent.
iv. Wipe the drum using a damp cloth.
v. Reassemble the parts previously removed.
Wipe with damp cloth.
Clean using warm water
and detergent.
Clean using warm water
and detergent.
RTW14EA
Belt Roller

6
MAINTENANCE
POWER MUST BE REMOVED FROM THE UNIT
BEFORE ATTEMPTING MAINTENANCE OR SERVICE.
CLEANING THE AIR INTAKE
DISCONNECT UNIT FROM POWER SOURCE
i. Use a vacuum or wipe down with a damp cloth to remove debris.
LUBRICATING THE CHAIN AND SPROCKETS (recommended every 6 months)
DISCONNECT UNIT FROM POWER SOURCE
i. Remove the screw holding the right side panel and remove the panel.
ii. Use an extreme pressure synthetic chain lubricant rated up to at least 400°F (204°C) [Star part number
1L-Z12397] and liberally lubricate the chain and sprockets.
iii. Reinstall the side panel using the previously removed hardware.
§REPLACING THE FAN MOTOR
DISCONNECT UNIT FROM POWER SOURCE
i. Remove the screws holding the rear panel and lower the panel.
ii. Remove the four [4] screws holding the fan motor and fan guard in place.
iii. Unplug the power supply cord from the fan motor and remove the old motor.
iv. Place the replacement motor and existing fan guard in place and secure with previously removed hardware.
v. Reconnect the power supply cord to the fan motor.
vi. Secure the rear panel using the previously removed hardware.
REPLACING THE BELT DRIVE MOTOR
DISCONNECT UNIT FROM POWER SOURCE
i. Remove the screws holding the right side panel and remove the panel.
ii. Remove the drive motor sprocket and chain from drive motor.
iii. Remove the screws holding the rear panel and lower the panel.
iv. Disconnect the tachometer connection on the top of the drive motor.
v. Disconnect the drive motor wire connection from the control board.
vi. Remove the four [4] screws securing the drive motor and remove the drive motor out of the rear of the unit.
vii. Install the new drive motor using the previously removed hardware.
viii. Connect the new drive motor wire connection from the control board.
ix. Reconnect the tachometer to the top of the drive motor.
x. Connect the drive motor sprocket and chain, making sure to line it up with the driven sprocket. The two
sprockets should line up parallel with each other, so the chain does not twist any during operation.
xi. Reinstall the rear and side panels using the previously removed hardware.§

2M-Z19213 Rev G - Owner's Manual for RTW Rolling Tortilla Warmer
WIRING DIAGRAM
POWER MUST BE REMOVED FROM THE UNIT BEFORE ATTEMPTING REPAIR OR SERVICE.
MAKE CERTAIN TO CHECK ALL CONNECTIONS THOROUGHLY BEFORE RESTORING POWER
TO THE UNIT. THE BELOW INFORMATION IS FROM WIRING DIAGRAM 2M-Z22547.
Please review the following information before proceeding with any electrical diagnosis or repair.
DRUM ELEMENT:
TEMP CONTROL
CF
TSS
7
i. Check for proper voltage jumper connection on power board.
ii. Fan cord, communication cable, IR sensor cable, and tachometer are not numbered.
iii. Hold back-up nut when tightening element terminals to prevent twisting the cold pin.
iv. Make certain that infrared sensor is supported when inserting connector.

CENTER DRUM, ROLLERS, AND ELEMENTS
RTW1 pictured
6
5
7
98
12 10
13 11
14
20
15
21
16
17
18
19
8
22
63

2M-Z19213 Rev G - Owner's Manual for RTW Rolling Tortilla Warmer
9

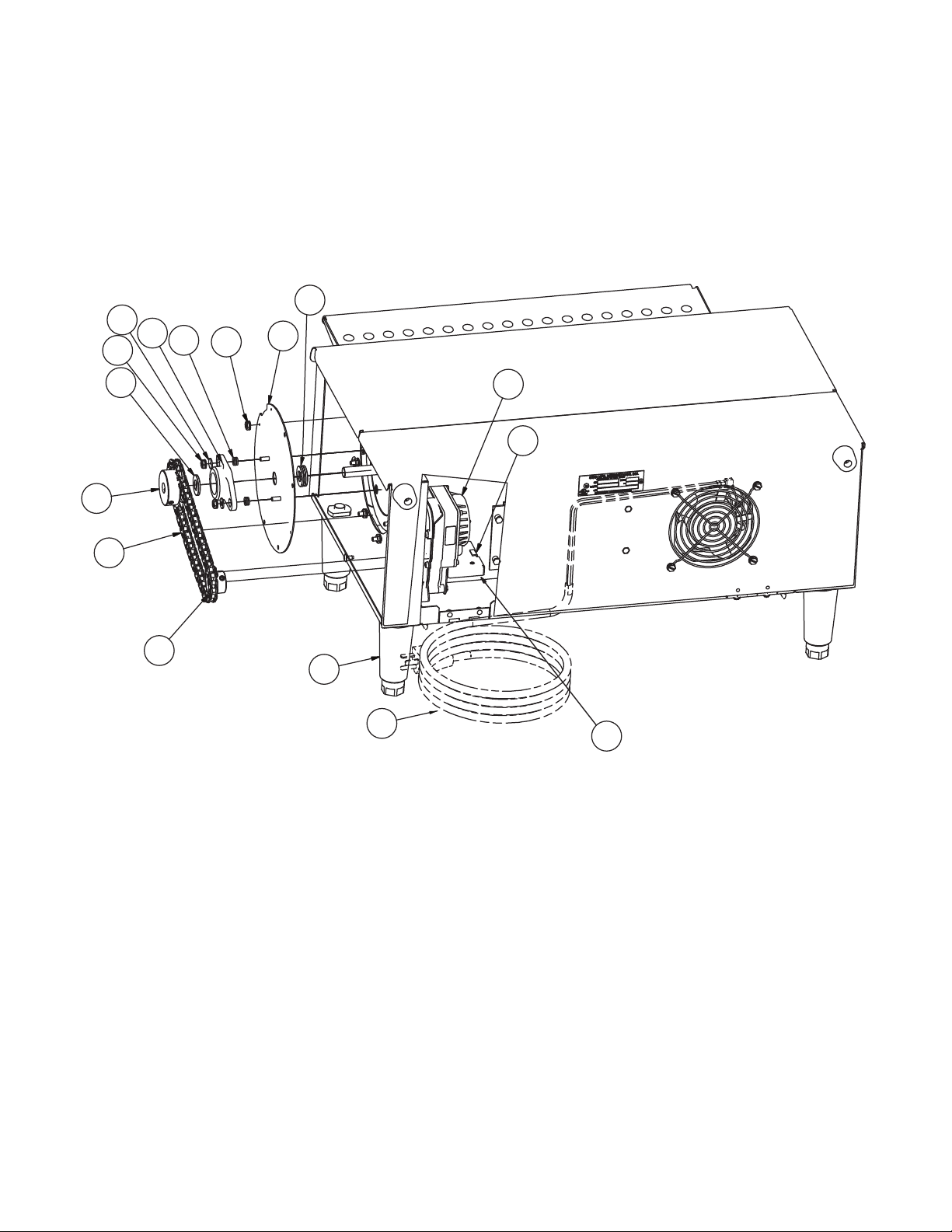

RIGHT SIDE [CHAIN DRIVE]
RTW19EApictured
28
30
31 32 29 33
29
28 24
23
27
26
25
18
52
41

10

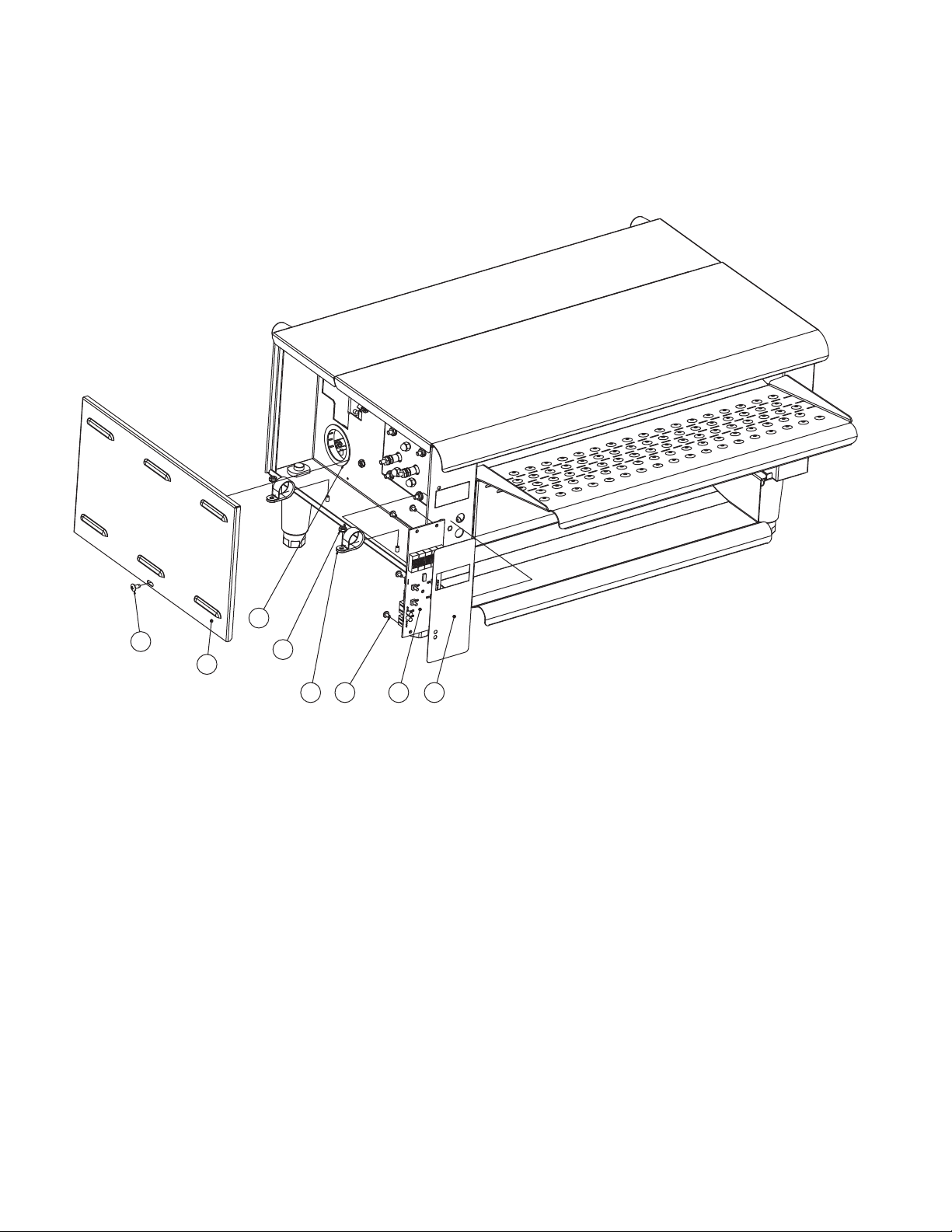

LEFT SIDE [PANEL]
RTW19EA pictured
36
34
37
35
38 39 40 17

2M-Z19213 Rev G- Owner's Manual for RTW Rolling Tortilla Warmer
11
REAR [1]
RTW19EA pictured
43
49
44
22
45 29
42 36 46 51
50 53 54
47
64 55
56
48
61 60
35
22
59
34 50
51
57
58
18 41

12
REAR [2]
RTW19EA pictured
51
50
5051 53 39 64 54

62 4LOCTITE
3
1
2
LOCTITE
4
2M-Z19213 Rev G - Owner's Manual for RTW Rolling Tortilla Warmer
CENTER SECTION
RTW14EA pictured
13

14
PARTS LIST
REF NO MODEL PART NUMBER DESCRIPTION QTY PAGE NO
RTW14EA 2D-Z20320 DRUM RTW14 1
RTW19EA 2D-Z22549 DRUM RTW19
2 ALL RTW 2A-Z20247 DRUM INSERT - DRIVE END 1 13
3 ALL RTW 2A-Z20248 DRUM INSERT - ELEMENT END 1 13
4 ALL RTW 2C-Z20246 1/4-20X3/4 LOW EHEAD SOC CAP SCREW 8 13
RTW14EA D6-RTW086 ASSY,TOP,FRONT, RTW-14 8
RTW19EA D6-RTW068 ASSY,TOP,FRONT, RTW-19 8
6 ALL RTW 2I-Z22463 BELT,SILCON,12"W 1 8
RTW14EA D6-RTW090 ASSY,ROLLER,IDLER,RTW-14 8
RTW19EA D6-RTW075 ASSY,ROLLER,IDLER,RTW-19 8
8 ALL RTW 2A-Z22577 BEARING,ROLLER,IDLER 2 8
9 ALL RTW 2C-70381 SCREW 1/4-20X3/4 SL TR MS 2 8
RTW14EA D6-RTW091 ASSY,ELEMENT,120V,1750W 8
RTW14EA D6-RTW092 ASSY,ELEMENT,208-240V,1750W 8
RTW19EA D6-RTW074 ASSY,ELEMENT,208-240V,1750W 8
11 ALL RTW 2P-Z21755 BEARING AND ELEMENT MOUNT 1 8
12 ALL RTW D6-Z22466 SUPPORT,ELEMENT,DRUM 1 8
13 ALL RTW 2C-200121 WASHER #10 SPLIT SS 3 8
14 ALL RTW 2C-20301-32 NUT HEX ACORN 10-24 S/S 3 8
RTW14EA D6-Z22649 8
RTW19EA D6-Z22592 8
RTW14EA 2A-Z18673 INFEED SUPPORT ROD RTW14 8
RTW19EA 2A-Z22560 INFEED SUPPORT ROD RTW19 8
17 ALL RTW 2M-Z18246 LABEL, CONTROL TW ELEC 1 8
18 ALL RTW 2A-Z5942 FOOT, 1/2-13 X 4"L. 4 8
RTW14EA D6-Z22648-1 8
RTW19EA D6-Z22576-1 8
20 ALL RTW D6-Z22489-1 SUPPORT,BEARING,PEM 2 8
RTW14EA D6-RTW089 ASSY,INFEED,RTW-14 8
RTW19EA D6-RTW067 ASSY,INFEED,RTW-19 8
RTW14EA D6-RTW083 ASSY,CHASSIS,RTW-14 8
RTW19EA D6-RTW065 ASSY,CHASSIS,RTW-19 8
23 ALL RTW D6-Z20933 POWER SUPPLY BRACKET 1 9
24 ALL RTW 2U-Z19838 GEARMOTOR 24V BLDC 15RPM 1 9
25 ALL RTW 2P-Z22457 SPROCKET,35BS11 .375ID 1 9
26 ALL RTW 2P-Z18415 CHAIN #35 18.75" 50 LINKS 1 9
131
15
17
10 1
16 1
GUIDE,BELT 215
19 CATCH PAN WELDMENT 1
1
22 1
21

2M-Z19213 Rev G- Owner's Manual for RTW Rolling Tortilla Warmer
15
REF NO MODEL PART NUMBER DESCRIPTION QTY PAGE NO
27 ALL RTW 2P-Z22458 SPROCKET,35BS18 .500 ID 1 9
28 ALL RTW 2P-Z18423 THRUST WASHER HI-TEMP 4 9
29 ALL RTW 2C-Z6929 10-24 KEPS NUT S.S. 16 9
30 ALL RTW 2C-1810 WASHER 3/16 BURR STL NP 29
31 ALL RTW 2P-Z18417 FLANGE BEARING,1/2" 1 9
32 ALL RTW 2C-Z18418 BURR WASHER 3/16 X 3/8 SS 6 9
33 ALL RTW D6-Z22468-1 PLATE,DRUM,END 1 9
34 ALL RTW 2C-6349 SCREW #8X3/8 B THP STL NP 2 10
35 ALL RTW D6-Z22470 PANEL,SIDE 2 10
36 ALL RTW 2K-Y8571 BUSHING SNAP 2 1/8 1 10
37 ALL RTW 2C-31053 NUT 8-32 KEPS MS NICKEL 20 10
38 ALL RTW 2C-200467 CLAMP, NYLON WIRE 5/8 2 10
39 ALL RTW 2C-200067 SCREW 6-32X1/4 THP SS 9 10
40 ALL RTW 2J-Z20026 CONTROLLER, RTWE IR TEMP 1 10
RTW14EA 2E-200375 CORDSET, 14/3 5-15P TERMS
RTW14EA 2E-Z13852CORDSET, 14/3 5-20P TERMS
41 ALL RTW2E-Z19137 CORDSET, 14/3 6-15P TERMS 1 11
ALL RTW2E-GR0411 CORDSET, 14/3 CH2-16P TERMS
42 ALL RTW 2K-Y6764 BUSHING - STRAIN RELIEF 1 11
RTW14EA D6-RTW087 ASSY,DEFLECTOR,AIR RTW14 11
43 1
RTW19EA D6-RTW072 ASSY,DEFLECTOR,AIR RTW19 11
44 ALL RTW 2T-Z22461 THERMOSTAT,HI-LIMIT 1 11
45 ALL RTW 2C-200200 NUT, 6-32 HEX 2 11
46 ALL RTW D6-Z20718 IR SENSOR RETAINER 1 11
47 ALL RTW 2A-Z20443 SENSOR HOLDER 1 11
48 ALL RTW 2E-Z20415 IR TEMP SENSOR 1 11
49 ALL RTW 2C-8833 SCREW 8-18X1/2 HEX STL NP 6 11
50 ALL RTW 2C-Z9632 10-32 X 1/2 SCREW FZA 6 11
51 ALL RTW 2R-200562 GUARD, FAN - WIRE 2 11
52 ALL RTW 2E-Z20780 POWER SUPPLY 24VDC 10W 1 11,12
RTW14EA 2U-200559 MOTOR,FAN 120V 23BTM
53 RTW14EA 1 11,12
2U-200561 MOTOR,FAN208-240V 23BTM
RTW19EA
RTW14EA D6-Z22634-1 COVER,TOP,REAR,PEM
COVER,TOP,REAR,PEM
111.12
54 RTW19EA D6-Z22567-1 1 11.12
55 ALL RTW 2I-Z0057 FOOT, RUBBER 2 11
56 ALL RTW 2C-3033 SCREW-MACH8-32X3/4 THP SS 2 11
57 ALL RTW 2C-Y6138 RIVET 1/8X.250 POP SS SM 14 11

16
REF NO MODEL PART NUMBER DESCRIPTION QTY PAGE NO
58 ALL RTW 2M-Z18710 NAMEPLATE, BLANK RTW 1 11
59 ALL RTW 2P-Z8478 HINGE 2 11
60 ALL RTW 2M-Z7207 STICKER, GROUND SYMBOL 1 11
61 ALL RTW 2C-35736 NUT 8-32 HEX KEPS MS GREEN 1 11
RTW14EA D6-RTW093 ASSY,DRUM,RTW-14
62 1 13
RTW19EA D6-RTW071 ASSY,DRUM,RTW-19
RTW14EA D6-RTW085 ASSY,DRUM,SPROCKET,RTW-14
63 1 8
RTW19EA D6-RTW070 ASSY,DRUM,SPROCKET,RTW-19
64 ALL RTW 2E-Z17513 POWER BOARD 1 11
