Installation
and
Operating
Instructions
2M-Z5890 Rev. D 1/20/2012
SPLIT LID TABLE TOP
TWO SIDED TOASTER
MODEL
CG14SPTE120V
CG14SPTE120C
CG14SPTE-CAR
ANSI/NSF 4
COOKING AND/OR HOT FOOD
STORAGE EQUIPMENT
9N47 120V = UL/US
120C = UL/US & CANADA

2
These symbols are intended to alert the user to the presence of
important operating and maintenance instructions in the manual
accompanying the appliance.
RETAIN THIS MANUAL FOR FUTURE REFERENCE
NOTICE
Using any part other than genuine Star factory supplied parts relieves the
manufacturer of all liability.
Star reserves the right to change specications and product design without
notice. Such revisions do not entitle the buyer to corresponding changes,
improvements, additions or replacements for previously purchased
equipment.
Due to periodic changes in designs, methods, procedures, policies and
regulations, the specications contained in this sheet are subject to change
without notice. While Star International Holdings Inc., Company exercises
good faith efforts to provide information that is accurate, we are not
responsible for errors or omissions in information provided or conclusions
reached as a result of using the specications. By using the information
provided, the user assumes all risks in connection with such use.
MAINTENANCE AND REPAIRS
Contact your local authorized service agent for service or required maintenance.
Please record the model number, serial number, voltage and purchase date in the area below and have it ready when
you call to ensure a faster service.
SAFETY SYMBOL
Model No.
Serial No.
Voltage
Purchase Date
Business 8:00 am to 4:30 p.m. Central Standard Time
Hours:
Telephone: [phone]
Fax: [phone]
E-mail [email protected]
[email protected]
W[email protected]
Website: www.star-mfg.com
Service Help Desk
Authorized Service Agent Listing
Reference the listing provided with the unit
or
for an updated listing go to:
Website: www.star-mfg.com
E-mail [email protected]
Mailing Address: Star International Holdings Inc., Company
10 Sunnen Drive
St. Louis, MO 63143
U.S.A

3
GENERAL INSTALLATION DATA
This equipment is designed and sold for commercial use only by personnel trained and experienced in
its operation and is not sold for consumer use in and around the home nor for use directly by the general
public in food service locations.
The unit time and temperature are preset by the factory to the customer requirements. If adjustments
are required, refer to the time or temperature programming sections in this manual.
INSTALLATION
1. Plug unit into dedicated 120V A.C. line with 20AMP receptacle.
2. DO NOT plug into 220V line. Doing so will damage the unit and void the warranty.
3. Each machine has been properly wired and inspected at the factory for operation on the voltage and
type of current specied on the nameplate.
4. DO NOT operate without top burn guard in place.
DO NOT CONNECT TO ANY OTHER TYPE OF CURRENT OR THE MACHINE WILL BE
SERIOUSLY DAMAGED.
INITIAL START UP
Before using the unit for the rst time, clean and heat for approximately 45 minutes.
OPERATING INSTRUCTIONS
Make sure unit is plugged into 20AMP receptacle and is on a dedicated 120VA.C. line.
1. Turn unit on by placing switch in "ON" position. For approximately 3 seconds the current grill setpoint
temperature will display. After this time, the "Heat On" indicator will remain lit and all four displays
will ash indicating the unit is heating. When the preset temperature is reached, the "Heat On" light
will turn off, all four displays will stop ashing, and 3 beeps will sound. Initial start-up heating time is
approximately 30 minutes.
2. Open lid on side where product will be cooked. Place product on bottom cooking surface of the unit
and close the lid.
3. Press the "START/STOP" button for the same cooking area that the product is being cooked. The
display time will start to count down from the programmed time to "0:00." The countdown may be
stopped at any time by pressing and releasing the same "START/STOP" button. The display will
return to the programmed time.
4. When the countdown ends, the display will blink, read "0:00," and the alarm will beep every second. To
turnoffthealarm,presstherelative"START/STOP"button. Thedisplaywillreturntotheprogrammed
time.
5. Raise lid until it engages into the rst stop position and remove food. Using spatula, scrape residue
into grease catcher cup.
Note: Metal utensils may be used, however, using nonmetal utensils will prolong the life of the cooking
surface.
6. Turn the unit off when not in use.
Note: The right and left sides will operate independently of each other. All timers can be in operation at
the same time. The "0:00" display will show which cooking area is timed out.
CAUTION
WARNING

4
TEMPERATURE/TIMER CONTROLLER OPERATION SPECIFICATIONS
Start-up:
1. Initially, for approximately 3 seconds the preset grill temperature will be displayed in the top left
display.
2. After 3 seconds, the "Heat On" indicator will remain lit and all four time displays will ash until the
preset temperature is reached.
3. When the control reaches the preset temperature, the "Heat On" light will turn off, all four displays
will stop ashing, and 3 beeps will sound.
Temperature:
1.To view the actual temperature, press and hold "Temp Button".
Display will read "Lo F" if temperature is below 150°F.
To Program Time and Temperature:
Note: The controler comes with the default program settings of 450°F at 1:45 seconds.
While programming, if no input is received for approximately 15 seconds, the unit will exit programming
mode and revert to operational mode.
1. Press and hold "Temp" (actual temperature displays).
2. While holding "TEMP", press and hold the "START/STOP" button on the left side for 3 seconds.
The display above the "START/STOP" button will change from the time to "- - - -."
3. Release the "TEMP" and "START/STOP." The display on the left side will continue to
display "- - - -." This indicates the unit is in program mode.
4. Press and release the "TEMP" button. The display will now be the current programmed time for
the upper left "START/STOP" button.
5. Change and set the time by pressing and releasing or holding the "START/STOP" button on the
left side to change the time. The time will scroll forward from the current programmed time. Once
the time reaches 9:59, the time will change to 0:00 and continue to go forward. Hold the "START/
STOP" button down for faster changing of the time.
6. Once the time is set, press and release the "TEMP" button.
7. The current programmed temperature will now be displayed.
8. Change and set the temperature by pressing and releasing or holding the "START/STOP" button
on the left side. The temperature will scroll forward from the current programmed temperature.
Once the display reaches 550°F, the display will change to 273°F and continue to go forward.
Hold the "START/STOP" button down for faster changing of the temperature.
9. Once the temperature is set, press and release the "TEMP" button two times.
THE TIME AND TEMPERATURE ARE NOW SET AND STORED IN MEMORY.
Notes:
The "HEAT ON" and "START/STOP" indicator and display will ash until the new programmed temperature
is reached.
Temperature setting is done with the Upper Left Button only. If the time setting is programmed on the
upper left button, that time will also be programmed onto all the other timers. If not time change is made,
all the other timers will remain as programmed with no changes.
All Other Timers Only:
All other timers can be individually programmed by using the following steps:
1. To change the time on any of the other timers, press and hold the "TEMP" button and the "START/
STOP" button on the relative display you want to change. The display for that timer will change to
"- - - -." All other displays will go blank. Release the "TEMP" and "START/STOP" buttons.
2. Press the "TEMP" button. The programmed display will now be the current programmed time.
3. Change and set the time by pressing and releasing or holding the "START/STOP" button for that
display. The time will scroll forward from the current programmed time. Once the time reaches 9:59,
it will change to 0:00 and continue to go forward. Hold the "START/STOP" button down for faster
changing of the time.
4.Once the time is set, press and release the "TEMP" button twice.
THE TIME AND TEMPERATURE ARE NOW SET AND STORED FOR THE OTHER
TIMER DISPLAYS.

5
MONTHLY INSPECTION
Check all bolts/screws and tighten if necessary.
CLEANING
All surfaces except the cooking grids are stainless steel and can be cleaned with a warm, damp
cloth and detergent.
DO NOT IMMERSE OR LET THE UNIT STAND IN WATER.
DO NOT HOSE DOWN.
DO NOT CLEAN THE UNIT WITH ICE.
KEEP AWAY FROM RUNNING WATER.
To remove burned on grease or food residue use the following mixture:
1 Tablespoon liquid dish detergent
1 Cup of warm water
DAILY CLEANING PROCEDURES
Begin toaster cleaning procedure by using operating procedures within your organization, or follow the
steps below:
1. Turn toaster off, unplug the unit, and open the top lids to the rst stop position and let sit for a
minimum of 20 minutes.
2. Scrape toaster with a spatula to remove loose food debris.
3. Pour 1/4 cup of above cleaning solution onto the bottom cooking surface of warm toaster.
4. Immediately spread cleaning solution around the toaster with cleaning pad.
Use moderate pressure to scrape away burnt-on food.
5. Apply cleaning solution to cleaning pad.
6. Use moderate pressure to scrape away burnt-on food on top cooking surfaces.
7. Drain cleaning solution to grease trap.
8. Wipe off remaining cleaning solution with thick damp cloth until clean.
9. Empty and clean grease catcher cup as required using detergent and water after removing cup
from unit.
DO NOT SPLASH CONTROL HOUSING!
Do not splash conduit connecting top and bottom of the toaster!!
MAINTENANCE AND REPAIRS
Contact your local authorized service agent for service or required maintenance. Refer to the authorized
service center listing provided with the unit.
STAR Service Help Desk: 314-678-6303
Please have your serial number and model number for faster service. The serial number and model
number are located on a nameplate situated toward the front on the bottom.
CAUTION
CAUTION

6
4
8
6 2
1 0
BA
C
D
SENSOR - RIGHT
(SENSORIO)
BOTTOM ELEMENT
(ELEMENTO MAS BAJO)
TOP ELEMENT
RIGHT
(ELEMENT MAS ALTO)
GREEN
(VERDE)
BLACK
(NEGRO)
WHITE
(BLANCO)
20 AMP PLUG
E4
E3
E1
E8E5
E6
E7
13
2
15
16
14
13
65
3
4
21
4
10
9
10
9
877811
12
11 12
14
15
13
16
REAR OF CONTROLLER
E2
E11
E12
SENSOR - LEFT
(SENSORIO)
TOP ELEMENT
LEFT
(ELEMENT MAS ALTO)
TRANSFORMER
(TRANSFORMADOR)
RELAY
(RELE)
TERMINAL BLOCK
(BLOQUE TERMINAL)
FOR REFERENCE
WIRING DIAGRAM IS SHOWN AS UNIT IS ASSEMBLED
WITH THE BOTTOM PLATE REMOVED. THE TOP
DESCRIPTIONS ARE THEIR POSITIONS WHEN UPRIGHT.
1 0
84
6 2
SWITCH
(INTERRUPTOR)
5
6
WIRE DIAGRAM, 120V, 2300 WATT (2J-Z5887
CONTROLLER ONLY)
SOME ITEMS ARE INCLUDED FOR
ILLUSTRATIVE PURPOSES ONLY AND IN
CERTAIN INSTANCES MAY NOT BE AVAILABLE
STAR MANUFACTURING INTERNATIONAL, INC.
MODEL CG14SPTE SK1911 REV. - 9/10/02

7
45
32
2
33
41
ON
OFF
28
24 47
7
26
17
11
27
39
15
21
25
3
49
1
6
16 18
20
19
23
14
22
50
4
5
48
36
37
35
10
46
34
40
9
8
38
12 13
44
30
TIME/TEMP
STOP
ON
HEAT
TEMP
STOP
START
TIME
START
START
STOP
STOP
START
TIME/TEMP
TIME
51
SOME ITEMS ARE INCLUDED FOR
ILLUSTRATIVE PURPOSES ONLY AND IN
CERTAIN INSTANCES MAY NOT BE AVAILABLE
STAR MANUFACTURING INTERNATIONAL, INC.
MODEL CG14SPTE SK1910 REV. A 1/28/04
51
43
41

8

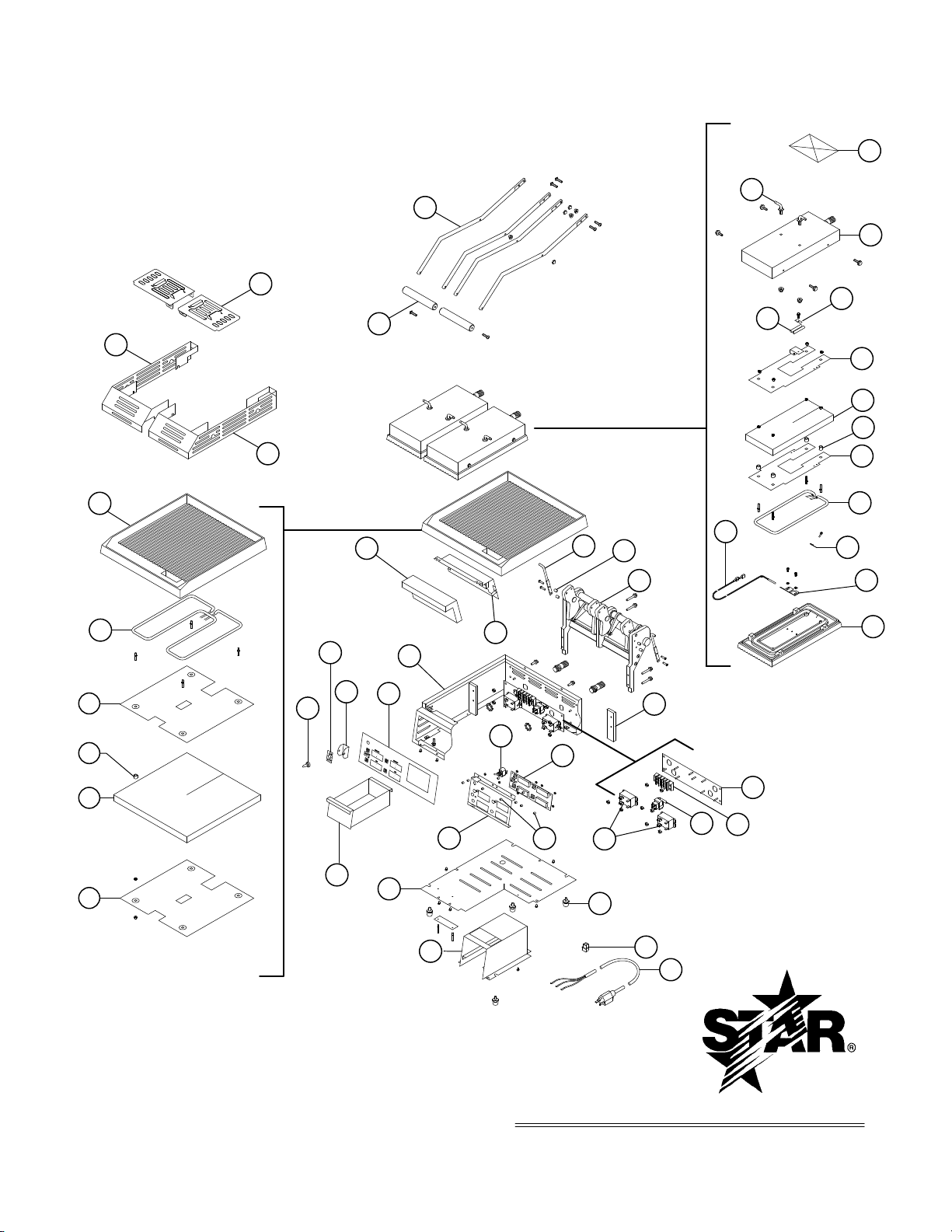

PARTS LIST January 20, 2012, Rev. D
Some items are included for illustrative purposes only and in certain instances may not be available.
Model: CG14SPTE, Tabletop Clam Shell Toaster
Fig No Part No Qty Description Application
1 D9-GR0032 2 TORQUE BOXASSEMBLY
2D9-GR0150 1 GREASE CABINETASSEMBLY
3D9-GR0152 1 BODYASSEMBLY
4D9-GR0177 1 BURN GUARDASSEMBLY - LEFT
5D9-GR0176 1 BURN GUARDASSEMBLY - RIGHT
6D9-GR0156 1 REAR PLATEASSEMBLY
7D9-GR0518 1 GREASE DRAWERASSEMBLY
8D9-GR0182 2 TOP RETAINING PLATE ASSEMBLY
9 PART OF ITEM #34
10 2A-Y6142 4 SLEEVE HANDLE
11 2A-Z11501 4 FOOT 1” SOLID RUBBER
12 2B-Z3336 4 14” GR14SPTARM
13 2C-Z3200 4 PIN - TOP HOUSING
14 2C-Z3350 2 HALF CLAMP - .188 DIA.
15 2E-Z3808 1 SWITCH TOGGLE
16 2E-05-07-0351 1 TRANSFORMER 115/10V 6VA
17 2E-Z4119 1POWER CORD, 12/3 5-20P CG14SPTE-120
D9-GR0193 POWER CORDASSY CG14SPTE120C,
CG14SPTE-CAR
18 2E-Z2894 1 TERMINAL BLOCK (304)
19 D9-Z3903 2 BRACKET, PROBE MOUNT
20 2E-Z3278 2 RTD PROBE - 48” LONG WIRE
21 2E-Z3335 2 RELAY DBL POLE-SNGLTHR
22 PS-GR0362 1 KIT, 2F-Z1947 CASTING, GROOVED BOTTOM,ALUMINUM
23 PS-GR0355 2 KIT, 2F-Z5615 CASTING - TOP, GROOVED
24 2I-05-07-0013 1 BOOT SWITCH
25 2J-Z5887 1TIME/TEMPERATURE CONTROL
D9-GR0546 CONTROL-PROGRAM CARA CG14SPTE-CAR
26 2K-Y6764 1 BUSHING 90 SR 17-2
27 2K-Z1971 14 SPACER
28 2M-12-07-0038 1 LABEL ON & OFF
30 2M-Z2620 2 LABEL CAUTION, BI-LINGUAL
32 2M-Z5816 1 OVERLAY
33 2N-Z9324 1 HTNG, ELMNT, BTM-1300W@120V
34 PS-Z9325 2 ELEMENT, HEATING, TOP 500W
35 2R-Z3345 1 COUNTER BALANCE - SPLIT TOP
36 2V-Z3152 2 HANDLE
37 2V-Z3252 2 TOP HOUSING LATCH ROD
38 B9-04-WB-0046 2 CLAMP WIRE SUPPORT
39 D9-GR0208 1 FACEPLATEASSEMBLY
40 D9-Z2133 2 INSULATION FIBERGLAS TOP
41 D9-Z13338 2 BTM ELEMENT RET. PLATE
43 D9-Z2888 1 INSULATION - 14”
44 D9-GR0181 2 TOP HOUSING & CONDUITAY.
45 D9-Z3259 1 BASE BOTTOM
46 D9-Z3902 2 PLATE - TOP ELEMENT RET.
47 Z1-70-07-0343 1 SWITCH GUARD
48 D9-GR0189 2 TOP BURN GUARD AY.
49 D9-GR0183 1 INSULATION BAFFLEAY.
50 D9-Z3826 1 INSULATION - BAFFLE
