Starke Seamless Smart Lock User manual

Special Attention:
1. Mechanical keys please keep outdoor, just in case keys lock in doors.
2. Please replace for the battery when low wattage alarm.
3. Reading this manual carefully before installation, and keep it for future reference.

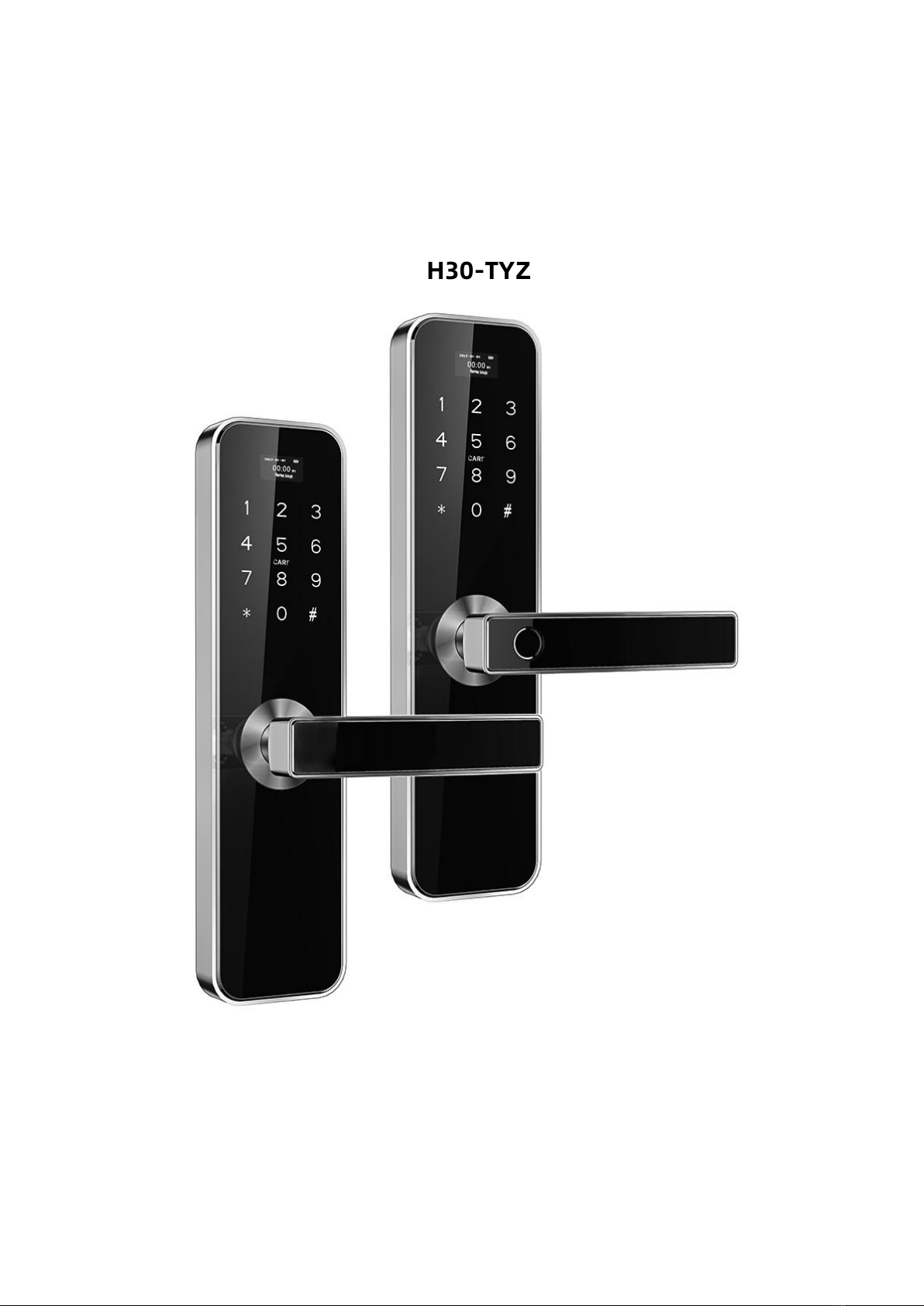

Smart Lock
H30-TYZ
User Manual
Text

1
1. Introduction
1.1.Lock structure
1.2.Packing List
Check the following drawing to check whether the package contains all the parts
NO
Name
Qty
NO
Name
Qty
1
Front Pane
1
9
Sliding Screws:16*5mm
2
2
Back Panel
1
10
Mortise Screws:10*5
(For Aluminum Door)
4
3
Mortise:55*72
1
11
Mortise Screws:25*4mm
(For Wooden Door)
4
4
Card
3
12
M5*20mm Screw for
Door Thickness 35-50mm
1
5
Mechanical Key
2
13
M5*30mm Screw for
Door Thickness 30-65mm
1
6
Waterproof Rubber
Plate
2
14
M5*50mm Screw for
Door Thickness 50-65mm
1
7
Screw
Stubs:M5*30mm
2
15
User Manual
1
8
Strike&Strike Box
1+1
16
Chuck
1

2
1.3.Specifications
Features:
Semiconductor fingerprint sensor(508dpi)
Passage mode function
 LCD screen display Date & Time, User ID access & User unlock records
Stainless steel handle
Voice guided operation
Auto secure & break-in alarm
Voice setting function
Auto locking time setting function
Privacy locking
Anti-theft Password
Emergency power supply through USB
Suitable for
Models
H30-TYZ
Doors
Applicable
Aluminum door
Wooden door
Materials
Handle：Zinc Alloy
Panel：SS304
Working
Voltage
6V/4x AA Batteries
Lock Weight
3KG
Door
Thickness to
Fit
35-65mm
Unlocking
Way
Zigbee
Fingerprint(option)
Password
Card
Mechanical key
Gateway(option)
Data
Capacity
Fingerprint+Password+Card≤240
（Fingerprint≤100）
Color
Silver
Black
Working
Temperature
-10℃-55℃
Low Wattage
Alarm
Less than 4.8V
Working
Humidity
0-95%
The Universal Lock

3
2.Installation
2.1Turn the handle
Notice: Adjust the handle according to the direction you open the
door.
For Front Panel:
For Back Panel:

4
2.2. Installation Diagram(For 5572)
Step 1 Install Mortise
Step 2 Install Sliding Screw Casing
Step 3 Connect Front and Back
Panels
Step4 Install Back Panel
Step5 Install the Battery
Keep arrow
direction(shows in
image) always upward.

5
3.Operation
3.1.Number Pad
1#：set
2#: configure the network.1.Net config
2.Net Remov
4#：Request remote lock picking
5#：Get a temporary password
6#：Time Updating
8#：updated
Passage mode：After verifying unlocking, press and hold "#" for 3 seconds and then prompt
"the door is passage mode"
3.2.Operation and Management
3.2.1.Fingerprint Registration
Place the unregistered fingerprint on the fingerprint detector according to voice prompt;
Keep your finger stable;
After successfully recording a fingerprint, then release your finger and place it again. After
that, when placing the finger each time, move the position of the finger slightly up, down, left
and right respectively and press it again until the voice prompt hints successfully recorded.
3.2.2.Setting Procedure
Initialization Mode
Reset button
3.2.3.Adding Administrative Users
Open the battery cover,
press and hold the“Reset”
button, install the battery.
5 seconds
(system prompts
5 key tones)
Within 5 seconds(release
wiyhin system prompts 5
key tons)
release the button
between 6 and 8 seconds
release the button
over 8 seconds
Initialization Failed
Initialization Successful
Initialization Failed
After initialization, the Master
Password is restored to
“123456”, and any fingerprint
can be unlocked for customers
to experience the lock function
Touch the
keyboard to
wake up the
system
1#
123456
System Setting
User Management
Adding Admin
code
Fingerprint
Password
F+P 5 Users in total)
“ 2 ” : UP(↑)
“ 8 ” : DOWN(↓)
“ * ” : Cancel, Return,
Exit and Delete
“ # ” : Confirm and End

6
1. User Management
0-5 level
1-10s
Admin
Normal
Users
English
Portuguese
Single User
Dual User
Pry Enable
Pry Disable
Normal
Users(Administrators
are not restricted by
dual users)
(F+P 235 Users remain)
+P 4 Users remain)
Code
Fingerprint
Password
Card
Fingerprint
Password
Card
Fingerprint
Password
Card
* Cancel
# Confirm
Initializate or not?
Enter a time, the system will locate the time point and list
all user operation records
6. Open Time
5. Pry Setting
4. Combination
3. Volume
2. Language
4. Initialization
1. Time And Date
3. Query Records
2. System Setting
6. Time Limit
5. Delete By Type
4. Delete By Code
3. Statistics
2. Adding Users
1. Adding Admin
Touch the keyboard to wake up the system —1#
— New Adminis- trator Password or Fingerprint.
Code
Current Time
3.2.4.Setting Guide
3.3.Electronic Locking Button
Press the electronic lock button, it prompts "lock" and
the door lock has been locked. At this time, you can
only pass the administrator's verification to unlock or
press it again, and it prompts that the "unlock"
electronic anti-lock function is closed.

7

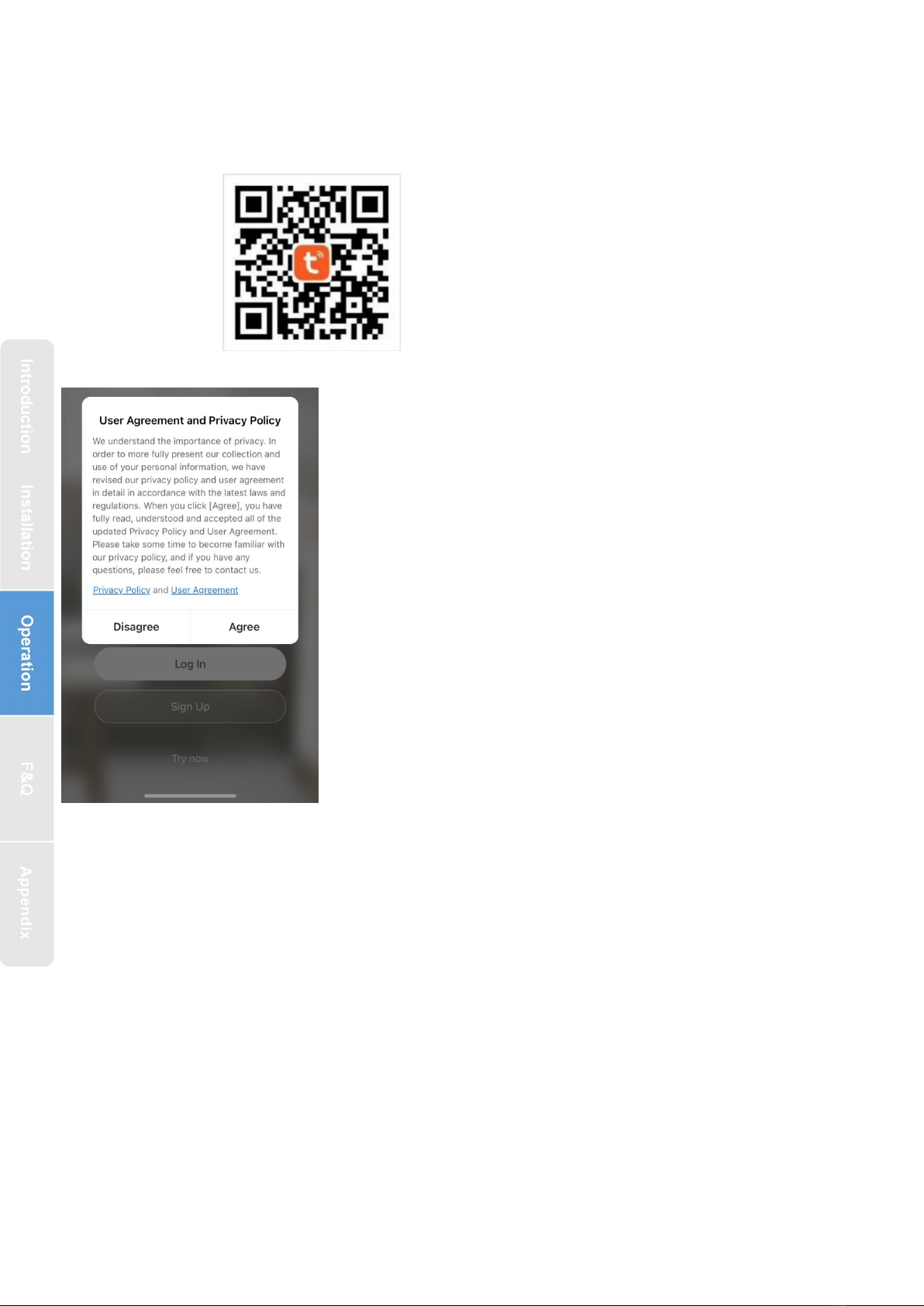

4. Add tuya smart app(optional)
4.1.Download
4.2.Register
1.Click “Sign Up”and read the Privacy Policy
after it pops up. Click “Agree” and enter the
registeration page.
2.You can use email or mobile number as your
account to register. The country/region of the APP will
be the same as the phone's. You can also change it by
yourself when registering.（You cannot change the
country/region after the registeration). Enter mobile
number/email and click”Get Verification Code”；
3.Enter the verification code and turn to the
password setting page. Set your password as required
and click “Done”.
4.3.Log in
If you already have an account,choose “Register with Existing Account”and
enter the log in page.
1）.The system will automatically locate the current country/region you are in.
Or you can choose the country/region by yourself.
2）.Enter mobile number/ email and password.
-Thirdy-party Social Account Log in
If you have downloaded Wechat or QQ on your phone, you can click the
Wechat/QQ icon in the log in page. You can log in using your wechat/QQ account
after authorizing it.If you are using iPhone,you can also log in with Apple ID.
You can search for
[ TuyaSmart ] in various app stores or
scan the QR code above to download

8

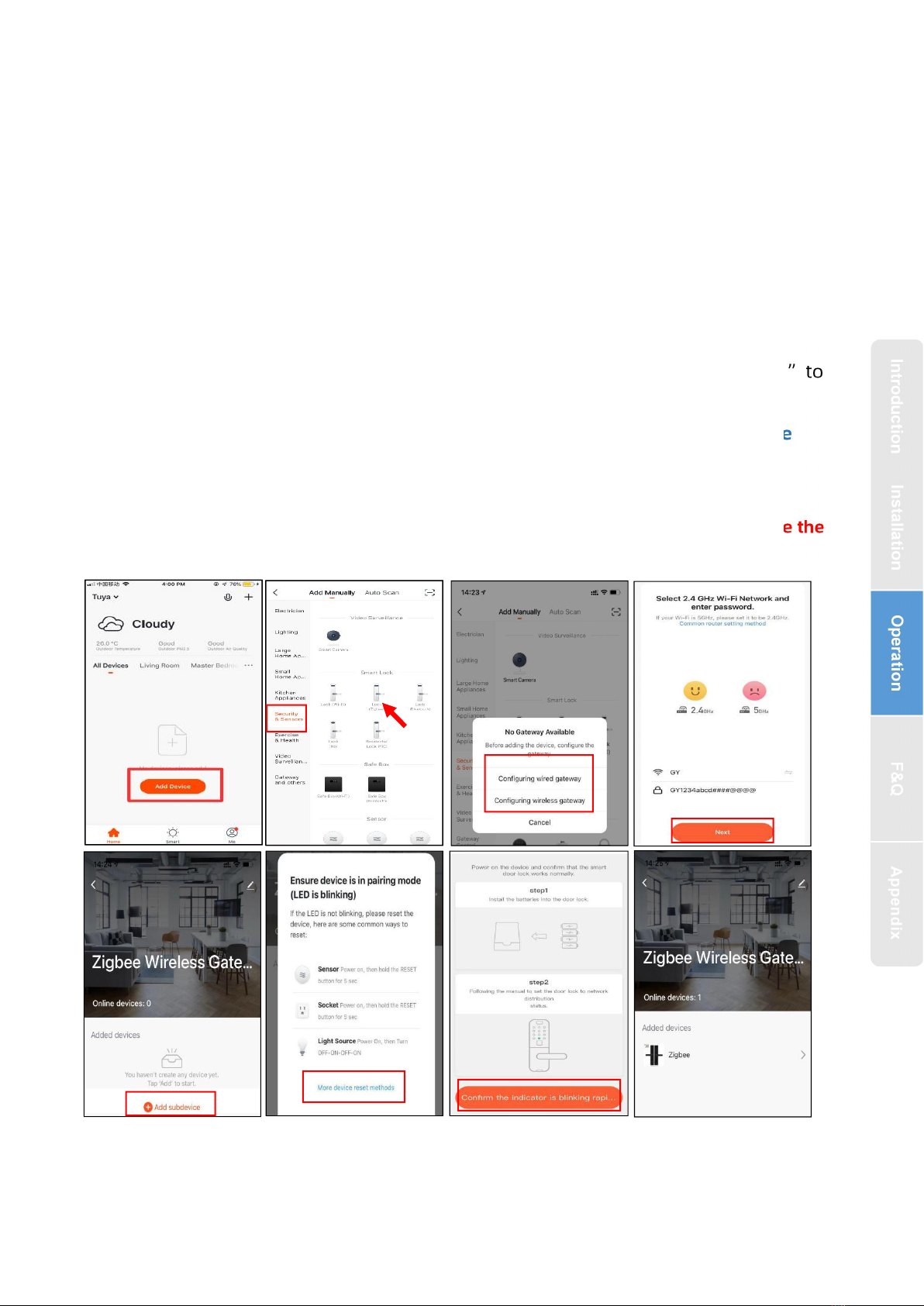

4.4.Using the APP
4.4.1. Add Lock
1. Tap Add Device on the Home page or + in the upper right corner of the page
to go to the Add Device page.
2.Click the zigbee door lock in Security&Sensors ，Choose add your zigbee
gateway type，Added successfully
3.After the gateway is added successfully, enter the gateway page, click on
"Add sub device",then select more device type.Find the door lock option
4.Door Lock： After pressing “2” + “#” to verify the administrator, press “1” to
enter the Network config
5.The “5”starts flashing，The screen is displayed in the network.The mobile
app continues the previous operation and enters the connection mode
Attention：1.You should be add admin first!!
2. If you want the door lock to have the network function, you must have the
corresponding gateway

9
4.4.2. Remote unlock
4.4.3. Temporary Password
1. Click the ‘+’ sign to add a temporary password
2. Follow the prompts to fill in the temporary password information
3.After the password is issued, it can be used, and then click the entered password for
secondary setting
4. The password can be frozen, unfreeze (after the freeze is issued, only unfreeze can continue
to use), delete
4.4.4.Opening record
You can query the log in the door opening log, and the
records are arranged in reverse order. The unlock ID that has
been associated with the user name will directly display the
corresponding user name, and the unlock ID that has not been
associated with the name will display the specific unlock ID
The door opening record will prompt in real time after
networking
1. Enter the setting interface for remote door opening
management, you can choose to open the door
remotely with a password, or open the door without
secret
2. On the main interface, click the remote open button to
open the door without secret and confirm directly
3. The password can be used to open the door remotely.
You need to enter the password information of the
recorded door lock, respond to the virtual password,
and use the generated temporary password to open

10

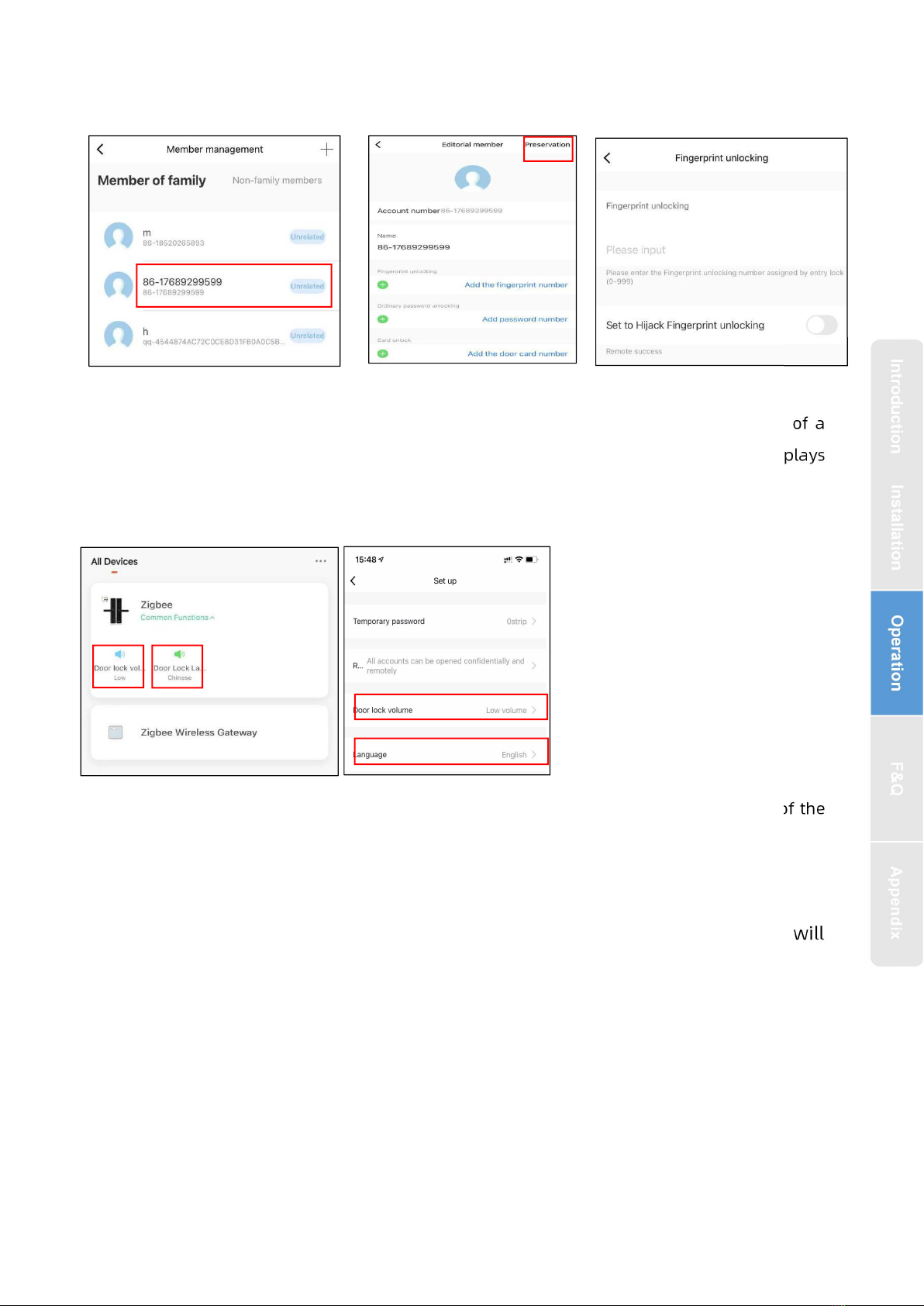

4.4.5.Member management
1.Select a member to edit，Can add fingerprint, password, card
2.Enter the information number entered on the door lock and bind it to the unlock ID of a
certain user. When opening the door in this way, the door opening record directly displays
the ID of the member
4.4.6.Set up
1.You can switch the language and volume of the door lock directly on the main page of the
app, or click to enter the door lock settings to set
Note:1. Press the doorbell button to upload the doorbell alarm.
2. But after we enter the password, fingerprint or card five times, we will
enter the lock mode and report continuous verification errors
3. In the lock mode, the error will be re-reported once the continuous
verification error
4. When the anti-pry button is pressed, an anti-pry alarm will be uploaded
5. When the lock is unlocked, the time will be checked, and the battery power
will be detected and reported. If it is less than 30%, a low battery alarm will be
reported

11
5. FAQ
1) How to read operation records?
In the Records of the main interface. .
2) Why can’t I unlock it after open
the passage mode
You need to perform an unlock verification in
any method, than the passage mode will take
effect.
3) What is the purpose of Auto Lock
You can set how long to lock after unlocking
4）After installation, touch sensing
keyboard, screen no respond
a) In this case, first check that the positive and
negative electrodes of the battery have been
installed upside down, whether the battery
has enough power
b) Remove the back panel and see if it's
connected.
c) To eliminate the above situation, you need
to remove the lock ,check whether the wires
of the lock body are squeezed, and the
re-wire.
5）Unable to register fingerprint
Check the fingers for dirt or wear, check the
fingerprint head on the lock for dirt and oil
stains, etc.
Check to see if the fingerprint is working
properly(Press to see if there is any responds.
6）What is the reason why the smart
lock consumes fast power?
a) Large standby power consumption
b) Short circuit
7）There is no response to pressing
the handle on outside the door, and
there is unlock normally on inside
the door, but the verification is
normal, and the motor is normal.
It may be the triangle direction on the clutch
was error, please check correction.
8）How many times will the
passcode be locked? How long is it
locked?
Enter the wrong password more than 5 times in
a row, the keyboard is locked for 90 secods

12
Guarantee
Customer Name：
Customer Calls ：
Purchase Date ：
Product Name ：
Product Model ：
Note:
1) Please keep this card so that you can use it when you need warranty service.
2) We provide you with a one-year warranty from the date of purchase.
3) This warranty service is valid for customers in any country in the world.
