Steamist SMP-12 User manual

Optional Auto
Drain Valve
Model AD-900
Water Inlet
⅜" Compression
Fitting
¾" Safety
Relief Valve
¾" Steam
Outlet
Knockouts for
Electrical Supply Line
Knockouts for
Control Cable
04/18 Pub. No. 231-B
- 1 -
Install Upright
and Level
CUS
®
IMPORTANT: The warranty of this product is voided if it is used in a commercial application or for anything other than a residential
steambath installation. All electrical connections must be performed by a licensed electrician in accordance with Local and National
Electric Codes.
Electrical Installation Instructions
Steambath Generators Models: SMP-12 and SMP-15
NOTE: A “TSC” series control is required to operate the "SMC"
generator.
The Steamist “SMP” Generator operates with only “TSC” series
controls mounted inside and an optional TSX control located
outside the steamroom. It’s small enough in size to be tucked
away using very little space in a vanity, closet, or basement, but
large enough to provide steam for most residential baths.
The Steamist “SMP” Steambath Generator comes factory
assembled, carefully wired and tested.
1. Pre-Installation
a) Proper electrical supply (208 or 240 Volt): See rating
label on Steam Generator and Chart on page 4.
Determine proper size of wire, voltage, amperage, and
phase for the Steam Generator. 90°C copper wire is
required for generator connection.
b) In-line fuse/circuit breaker required: Fuse/circuit breaker
to be installed must be sized in accordance with chart
on back page. Do NOT install a GFI (Ground Fault
Interrupter) to this equipment (per article 210-8 in the
National Electric Code).
c) Route power supply cable to the location where the
Steam Generator will be installed (before walls are
closed).
2. Electrical Rough-in
a) Route appropriate power cable to the location the Steam
Generator will be installed. If receptacle is desired,
mount the box for the receptacle near the location of
the Steam Generator.
NOTE: The plug and receptacle require a rating of no
less than 250V and proper amperage. Refer to chart on
page 4 for amperage rating.
After the walls are complete, the Steam Generator and
Control can be wired.
3. Steam Generator Electrical Installation
WARNING: All power to the Steam Generator must be
turned off.
a) Remove the two screws holding the electrical access
cover and remove cover.
b) Locate the supply line knockout. Mount proper strain
relief into knockout hole.
c) Strip back power cable’s outer insulation jacket
eight inches and insert into Steam Generator.
Strip back insulation ½" from the three (3) incom-
ing wires (two power and one ground).
d) Insert ground wire into grounding lug located
on the right side of the electrical compartment
and secure.
CAUTION: Be sure the ground wire does not
come in contact with a live electrical part.
e) Locate the terminal/fuse block in the upper portion
of the electrical compartment. Insert power wires
into the power lugs on the front of the terminal/fuse
block and secure.
4. Optional Auto Drain Valve Connection
a) Open knockout for Auto Drain Valve conduit
connection.
b) Route flexible conduit from valve to knockout and
secure.
c) Connect two wires from valve to the auto DRAIN
connection J11 on the printed circuit board (see
Figure 2).
Figure 1 - Steam Generator
Important: Locate Publication No. 199 “Steam Bath Important Safety Instructions”. This publication includes a Warning
label that the contractor must install on the wall near the entrance to the steam room in a highly visible location. This
label and its additional safety information are packaged with the generator in the envelope containing the installation
instructions. If it is lost or missing contact Steamist (201-933-0700) for a replacement Publication No. 199. This publica-
tion along with all documents must be left with the owner.
!
®

04/18 Pub. No. 231-B
- 2 -
Electrical Installation Instructions
Models: SMP-12 and SMP-15
The Steam Generator is installed in an upright position.
The proper sized 90°C copper wire and circuit breaker
have been used.
The circuit breaker is NOT a GFI (Ground Fault
Interrupter) type.
The Steam Generator is properly grounded.
The circuit breaker or disconnect switch is on.
Water supply is open to the Steam Generator.
Checklist
Before starting, insure that the conditions of the following checklist have been met:
The proper size Steam Generator has been selected by
using the sizing page in the “Full Line Brochure,” “Pricing
Guide,” or “The Generator Sizing Guide” in the Residen-
tial Systems/Steambath Product Information section of
the Steamist website - www.steamist.com.
CAUTION: An improperly sized Steam Generator will
NOT produce the amount of steam necessary to reach
selected temperature.
The proper voltage Steam Generator has been selected
(i.e., 208V or 240V). A 208V Generator operating on
240V will damage the heating element, and a 240V
Generator operating on 208V will result in a 25%
loss of power.
Water
Level
Probe
Optional Auto
Drain Connection
Test button
Troubleshooting LED’s
Modular Jacks
(Plug control cable
into any connector)
PC Board

04/18 Pub. No. 231-B
- 3 -
Electrical Installation Instructions
Models: TSG-12 and TSG-15
The Electrical Instructions must be given to the homeowner for future use.
NOTE: Unit must be wired with 90°C
copper wire in a suitable raceway, or, if
local codes allow, provide twist lock plug
on a 90°C copper wire cord from genera-
tor to a 250V 2-pole, 3-wire grounding
receptacle (amperage rating as required).
IMPORTANT: Run the Control Cable through a ¾" conduit. Remove protective cap when making the
final connection to Control.
TSX Auxilary Outside
Control
Figure 4 - Typical Installation
Models: SMP-12 and SMP-15
STOP
2
1
SHOWER
STEAMSHOWERSTEAM
1122
9:31
IM
Inside Installation
Control should be mounted four
feet from the floor. Select a
location convenient to the
bather but not in a direct line of
Shower or Body Sprays and not
directly above the Steamhead.
TSC Series Control
Control MUST be installed inside
the Steam room.
Control Cable
Route from
Control to Steam
Generator in a
¾" conduit.

- 4 -
04/18 Pub. No. 231-B
Water
Level
Probe
GN
Heating
Elements
TANK
Optional
Auto Drain
Valve
Water
Solenoid
Valve
Specification Chart
Model
No.
Max. Cu. Ft.
For Area Up To KW Volt Phase Amps
Breaker
Size
SMP-12
SMP-15
550
675
12
15
240
208
240
208
1
1
1
1
50
58
63
72
60
70
80
90
Electrical Installation Instructions

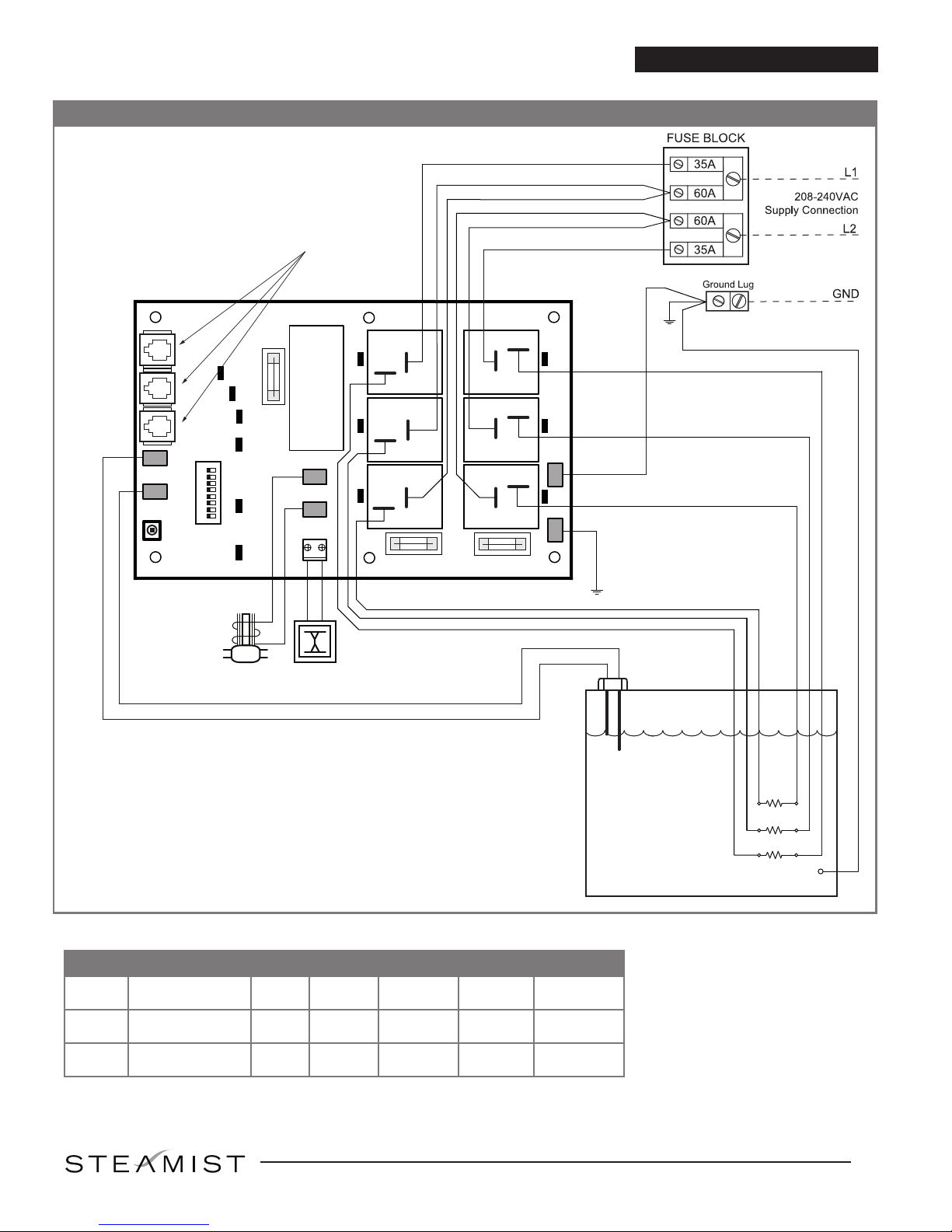

Figure 5 - Wiring Diagram Models: SMP-12 and SMP-15
90°C copper wire is required for
generator connection. Installation
shall be in accordance with appli-
cable electrical codes.
East Coast Office: 25 E. Union Ave., East Rutherford, NJ 07073 • Tel: [phone] • Fax: [phone]
West Coast Office: Tel: [phone] • Fax: [phone]
®
DRAIN
DS13
STEAMIST, INC.
ASSEMBLY NO. 007-3427
0.5A 250VAC
J11
F3
J9
J10
J12
SW2 F1 F2
DS9
RH1_L2
RH2_L2
RH3_L2
RH1_L1
RH2_L1
RH3_L1
DS5 DS6
DS4 DS7 DS8
S1
TEST
0.8A 250VAC
H2O LO SEN
H2O HI SEN
DRAIN
WTR1
SYS
FAIL
TEST
SYS
OK
COM
FAIL
DS3 DS1
DS2
DS10
DS11
0.5A 250VAC
J2
J1
FILL1
EARTH
EARTH
J5
J6
J7
J8
OPTIONS
5 6 7 8
1 2 3 4
WHITE GRAY
BLUE BLUE
GRAY
WHITE
Plug control cable into any connector
