20” PLANER
OWNER’S MANUAL
35-410

Page 2

Page 3
TABLE OF CONTENTS
INTRODUCTION
INTRODUCTION ...........................................................................................................3
TABLE OF CONTENTS.................................................................................................3
WARRANTY ..................................................................................................................4
PRODUCT SPECIFICATIONS ......................................................................................5
GENERAL SAFETY ......................................................................................................6
PRODUCT SAFETY......................................................................................................8
ELECTRICAL AND GROUNDING INSTRUCTIONS.....................................................9
UNPACKING AND INVENTORY .................................................................................10
ASSE BLY .................................................................................................................12
ADJUST ENTS ..........................................................................................................15
AINTENANCE ..........................................................................................................19
DIAGRA ....................................................................................................................22
PARTS LIST ................................................................................................................25
This user manual is intended for use by anyone working with this machine. It should be kept available
for immediate reference so that all operations can be performed with maximum efficiency and safety.
Do not attempt to perform maintenance or operate this machine until you have read and understand
the information contained in this manual.
The drawings, illustrations, photographs, and specifications in this user manual represent your machine
at time of print. However, changes may be made to your machine or this manual at any time with no
obligation to Steel City.

Page 4
WARRANTY
STEEL CITY WARRANTY
The manufacturer warrants its machines to be free from defects in workmanship and materials for a period of
2 years from the date of the original purchase for Steel City shop machines or for a period of 1 year for Titanium
production machines; subject to the following conditions :
A- Warranty applies to the original buyer only and may not be transferred. Original proof of purchase is
required.
B- Warranty is void if repairs or alterations are made to the machine by an unauthorized service center without
the direct consent of the manufacturer or its representative.
C- Warranty does not include defects, failures or breakages directly or indirectly caused by or resulting from
improper use, improper or lack of maintenance, abuse or misuse, negligence, accidents, damages in
handling or transportation, or normal wear and tear of any part or component.
D- Accessories and wear items such as motor, switch, bearings, drive belt or other accessories are covered
for 1 year.
E- Consumables such as blades, knives, bits, sandpaper or others are not covered.
To file a warranty claim, customer may contact his dealer or email [email protected]
The manufacturer or its representative will inspect, repair or replace any part that has proven to be defective in
workmanship or material, provided that the customer sends the product prepaid to a designated authorized
service center and provides reasonable time to proceed.
If judged on warranty, the manufacturer or its representative will return the repaired product prepaid or will replace
it by a new one at its choice. On the contrary, if it is determined that there is no defect or that the problem resulted
from causes not within the scope of the warranty, it will dispose of or return the product at customer’s expenses,
following customer’s instructions.
The manufacturer or its representative shall not be held liable for any special, indirect, incidental, punitive or
consequential damages, including and without limitation loss of profits arising from or related to the warranty,
the breach of any agreement, the operation or the use of its machines.
Note:
The specifications in this catalog are provided for informational purposes only and are subject to rectification
without notice. Some measures have been slightly rounded for ease of reading. Unless otherwise noted, they
should be considered for reference only.
Steel City reserves the right to make certain improvements to the design and appearance of its machines,
components, accessories or parts without notice and without the obligation to perform them on existing models.

Page 5
PRODUCT SPECIFICATIONS
otor 5 HP, 1 Ph, 220V
Planing width 20” (508 mm)
inimum length of stock 6 3/4” (171 mm)
Cutterhead’s frequency rotation 5 000 RP
Cutterhead’s diameter Ø 3 5/32” (80 mm)
Cuts/inch (not applicable for helical model) 78 cuts/inch at 16 fpm
62 cuts/inch at 20 fpm
Number of knives 3
in/max thickness of stock 1/4 to 8” (3 to 202 mm)
2 feed rates 16 or 20 fpm (4,9 to 6,1 m/min)
Dust outlet Ø 5” (127 mm)
Central table’s dimensions 25 3/4” x 20” (653 x 510 mm)
Table’s dimensions extension 55” x 20” (1437 x 508 mm)
Net weight 771 lb (350 kg)

Page 6
All federal and state laws and any regulations having
jurisdiction covering the safety requirements for use of this
machine take precedence over the statements in this
manual. Users of this machine must adhere to all such
regulations.
Below is a list of symbols that are used to attract your
attention to possible dangerous conditions.
These are safety alert symbols. They are used to alert you
to potential personal injury hazards. Obey all safety
messages that follow these symbols to avoid possible injury
or death.
Indicates an imminently hazardous situation which, if not
avoided, WILL result in death or serious injury.
Indicates a potentially hazardous situation which, if not
avoided, WILL result in serious injury or death.
Indicates a potentially hazardous situation which, if not
avoided, COULD result in serious injury or death.
Exposure to the dust created by power
sanding, sawing, grinding, drilling and other
construction activities may cause serious
and permanent respiratory or other injury,
including silicosis (a serious lung disease),
cancer, and death. Avoid breathing the dust, and avoid
prolonged contact with dust. The dust may contain
chemicals known to the State of California to cause
cancer, birth defects or other reproductive harm.
Some examples of these chemicals are:
• Lead from lead-based paints.
• Crystalline silica from bricks, cement and other
masonry products.
• Arsenic and chromium from chemically-treated
lumber.
Always operate tool in well ventilated area and provide
for proper dust removal. Use a dust collection system
along with an air filtration system whenever possible.
Always use properly fitting NIOSH/OSHA approved
respiratory protection appropriate for the dust exposure,
and wash exposed areas with soap and water.
DANGER
!
This manual is not totally comprehensive. It does not and can not convey every possible safety and
operational problem which may arise while using this machine. The manual will cover many of the basic
and specific safety procedures needed in an industrial environment.
ALWAYS wear eye protection. Any
machine can throw debris into the eyes
during operation, which could cause severe
and permanent eye damage. Everyday
eyeglasses are NOT safety glasses.
ALWAYS wear Safety Goggles (that comply with ANSI
standard Z87.1) when operating power tools.
SAFETY
WARNING
!
ALWAYS wear hearing protection. Plain
cotton is not an acceptable protective
device. Hearing equipment should comply
with ANSI S3.19 Standards.
WARNING
!
WARNING
!
WARNING
!
TO REDUCE the risk of electrical shock.
DO NOT use this machine outdoors. DO
NOT expose to rain or moisture. Store
indoors in a dry area. DO NOT handle the
plug with wet hands.
1. To avoid serious injury or damage to the machine, read
the entire User anual before assembly and operation
of this machine.
2. Serious personal injury may occur if normal safety
precautions are overlooked or ignored. Accidents are
frequently caused by lack of familiarity or failure to pay
attention. Obtain advice from supervisor, instructor, or
another qualified individual who is familiar with this
machine and its operation.
3. STOP using this machine, if at any time you experience
difficulties in performing any operation. Contact your
supervisor, instructor or machine service center
immediately.
WARNING
!
CHILDPROOF THE WORKSHOP AREA
by removing switch keys, unplugging tools
from the electrical receptacles, and using
padlocks. DO NOT use near or around
children.
WARNING
!

Page 7
4. Prevent electrical shock. Follow all electrical and safety
codes, including the National Electrical Code (NEC) and
the Occupational Safety and Health Regulations
(OSHA). All electrical connections and wiring should be
made by qualified personnel only.
5. ALWAYS be sure that the power switch is in the “OFF”
position and unplug the machine from the electrical
receptacle when making adjustments, changing parts or
performing any maintenance.
6. AVOID ACCIDENTAL STARTING. ake sure that the
power switch is in the “OFF” position before plugging in
the power cord to the electrical receptacle.
7. NEVER leave a machine running, unattended. Turn the
power switch to the OFF position. DO NOT leave the
machine until it has come to a complete stop.
8. THE USE of extension cords is not recommended for
220V equipment. It is better to position your equipment
and install the wiring to eliminate the need for an extension
cord. If an extension cord is necessary, refer to the chart
in the Grounding Instructions section to determine the
minimum gauge for the extension cord. The extension
cord must also contain a ground wire and plug pin.
9. DO NOT pull a machine by the power cord. NEVER
allow the power cord to come in contact with sharp
edges, hot surfaces, oil or grease.
10. DO NOT unplug a machine by pulling on the power
cord. ALWAYS grasp the plug, not the cord.
11. REPLACE a damaged cord immediately. DO NOT use
a damaged cord or plug if the machine is not operating
properly, or has been damaged, left outdoors or has
been in contact with water.
12. NEVER remove any chips without turning off the
machine and disconnecting the power.
13. NEVER turn on the machine if the workpiece is in
contact with the blade.
14. ENSURE that the machine sits firmly on the floor before
using. If the machine wobbles or is unstable, correct the
problem by using shims or blocks prior to operation.
15. ALWAYS keep hands and fingers away from the blades
when operating.
16. DO NOT USE the machine to perform an operation for
which it was not designed. It will be safer and provide
high quality job by only performing operations for which
the machine was intended.
17. Every work area is different. Always consider safety first,
as it applies to your work area. Use this machine with
caution. Failure to do so could result in serious personal
injury and damage to the machine.
18. DO NOT stand on a machine. Serious injury could result
if it tips over or you accidentally contact any moving part.
19. DO NOT store anything above or near the machine.
20. REMOVE ALL MAINTENANCE TOOLS from the
immediate area prior to turning the machine ON.
21. MAINTAIN your balance. DO NOT extend yourself over
the tool. Wear oil resistant rubber soled shoes. Keep
floor clear of debris, grease, and wax.
22. DO NOT operate any machine or tool if under the
influence of drugs, alcohol, or medication.
23. MAINTAIN all machines with care. ALWAYS KEEP
the machine clean and in good working order. KEEP all
blades and tool bits sharp and free of all rust and pitch.
24. EACH AND EVERY time, check for damaged parts prior
to using any machine. Carefully check all guards to see
that they operate properly, are not damaged, and
perform their intended functions. Check for alignment,
binding or breakage of all moving parts. Any guard or
other part that is damaged should be immediately
repaired or replaced. Check material for loose knots.
25. Safety decals are on this machine to warn and direct
you to how to protect yourself or visitors from personal
injury. These decals MUST be maintained so that they
are legible. REPLACE decals that are not legible.
26. KEEP protective guards in place and in working order.
27. Check material for loose knots, nails and other defects.
28. ALWAYS keep the work area clean, well lit, and
organized. DO NOT work in an area that has slippery
surfaces. Keep floor clear of debris, grease, and wax.
29. SECURE all work. When it is possible, use clamps or
jigs to secure the workpiece. This is safer than
attempting to hold the workpiece with your hands.
30. STAY ALERT, watch what you are doing, and use
common sense when operating any machine. DO NOT
operate any machine tool while tired or under the
influence of drugs, alcohol, or medication. A moment of
inattention while operating power tools may result in
serious personal injury.
31. USE ONLY recommended accessories. Use of incorrect
or improper accessories could cause serious injury to
the operator and cause damage to the machine. If in
doubt, DO NOT use it.
32. Wear proper clothing, DO NOT wear loose clothing,
gloves, neckties, or jewelry. These items can get caught
in the machine during operations and pull the operator
into the moving parts. Users must wear a protective
cover on their hair, if the hair is long, to prevent it from
contacting any moving parts.
33. Keep visitors and children away from any machine.
DO NOT permit people to be in the immediate work
area, especially when the machine is operating.
34. DO NOT use a machine as a toy.
35. DO NOT use electrical tools in the presence of
flammable liquids or gasses.
36. SAVE these instructions and refer to them frequently
and use them to instruct other users.
37. Establish a SAFETY ZONE around shop machinery.
A clearly defined “no-go” zone on the floor around each
machine. Take a few moments to either paint (using
non-slip paint) or using tape, define on the floor the limits
or perimeter of each machines safety zone.

Page 8
1. Do not clean the table of chips or dust with hands.
Blow off with low-pressure air.
2. Do not operate machine while the gear cover is open.
3. Be sure the knives of cutterhead are correst and all
hex screws are secured tightly before use.
PRODUCT SAFETY
4. Avoid possible reject: do not lower your head down at
the level of the cutterhead when it is running.
5. Avoid possible reject: inspect the board for crack and
other aspect which can cause rejection.

Page 9
To reduce the risk of electric shock, follow all
electrical and safety codes, including the
National Electric Code (NEC) and the
Occupational Safety and Health Regulations
(OSHA). All electrical connections and wiring
should be made by qualified personnel only.
WARNING
!
This machine MUST BE GROUNDED
while in use to protect the operator from
electric shock.
WARNING
!
In the event of a malfunction or breakdown, GROUNDING
provides the path of least resistance for electric current and
reduces the risk of electric shock. The plug MUST be
plugged into a matching electrical receptacle that is
properly installed and grounded in accordance with ALL
local codes and ordinances.
If a plug is provided with your machine DO NOT modify the
plug. If it will not fit your electrical receptacle, have a
qualified electrician install the proper connections to meet
all electrical codes. All connections must also adhere to all
of OSHA mandates.
IMPROPER ELECTRICAL CONNECTION of the
equipment-grounding conductor can result in risk of electric
shock. The conductor with the green insulation (with or
without yellow stripes) is the equipment-grounding
conductor.
DO NOT connect the equipment-grounding conductor to a
live terminal if repair or replacement of the electric cord or
plug is necessary.
Check with a qualified electrician or service personnel if you
do not completely understand the grounding instructions,
or if you are not sure the tool is properly grounded.
MINIMUM RECOMMENDED GAUGE FOR EXTENSION CORDS (AWG)
115/230 VOLT OPERATION ONLY
25’ long 50’ long 100’ long
0 to 6 Amps 18 AWG 16 AWG 16 AWG
6 to 10 Amps 18 AWG 16 AWG 14 AWG
10 to 12 Amps 16 AWG 16 AWG 14 AWG
12 to 15 Amps 14 AWG 12 AWG Not
recommended
◊ EXTENSION CORDS
◊ PLUGS/RECEPTACLES
MAKE SURE the circuit breaker does not
exceed the rating of the plug and
receptacle.
WARNING
!
To reduce the risk of fire or electrical
shock, use the proper gauge of extension
cord. When using an extension cord, be
sure to use one heavy enough to carry the
current your machine will draw.
WARNING
!
The smaller the gauge-number, the larger the diameter of
the extension cord is. If in doubt of the proper size of an
extension cord, use a shorter and thicker cord. An
undersized cord will cause a drop in line voltage resulting
in a loss of power and overheating.
WARNING
!
If you are using an extension cord outdoors, be sure it is
marked with the suffix “W-A” (“W” in Canada) to indicate
that it is acceptable for outdoor use.
ake certain the extension cord is properly sized, and in
good electrical condition. Always replace a worn or
damaged extension cord immediately or have it repaired by
a qualified person before using it.
Protect your extension cords from children, sharp objects,
excessive heat, and damp or wet areas.
USE ONLY a 3-wire extension cord that has
a 3-prong grounding plug and a 3-pole
receptacle that accepts the machine’s
plug.The third prong is used to ground the
tool and provide protection against
accidental electric shock. DO NOT remove the third.
◊ MAGNETIC SAFETY SWITCH
If the machine is equipped with a magnetic safety switch
you must to reset the overload protection switch after an
overload.
1. Remove the control box cover.
2. Press the reset button.
3. Reinstall the control box cover.
Make certain that the machine is disconnected
from the power source
WARNING
!
ELECTRICAL AND GROUNDING INSTRUCTIONS

Page 10
UNPACKING AND INVENTORY
The machine is heavy, few people are required
to unpack. Use hand truck to move it.
WARNING
!
No Description ty
A TABLE EXTENSION 2
B DUST CHUTE 1
C HANDWHEEL 1
D HANDLE 1
E BOLT (TABLE EXTENSION) 6
F SET SCREW (TABLE EXTENSION) 6
G BOLT (DUST CHUTE) 6
H WASHER (DUST CHUTE) 6
I KNIFE SETTING JIG FOOT PAD 2
J “C” CLIP (KNIFE SETTING JIG) 4
K KNIFE SETTING JIG BAR 1
L ALLEN KEY (3, 4, 5 & 6 mm) 4
CO BINATION WRENCH (8 & 10 mm, 12 & 14 mm, 17 & 19 mm) 3
BC
A
D
I
F
H
G
E
K
J
L
M A
CLEANING COMPONENTS
Bare metal surfaces have been coated by a rust
prevention compound at the factory. Protected surfaces
must be cleaned prior to assembly and installation.
Use appropriate cleaner and follow relevant safety
measures.
Carefully remove the machine, components and tools
from the shipping carton. Check for damaged or missing
items as per list below.
Please report any damaged or missing part to your
Steel City dealer immediately.

Page 11
Handwheel Depth
Adjustment
agnetic Switch
2 Rollers Table
Feed Roller
Speed Control
Return Rollers 2 TablesExtension
Lock Depth
Adjustment
Lock Pedal
4 Lifting Handle
Adjustable Feet
2 Access Door

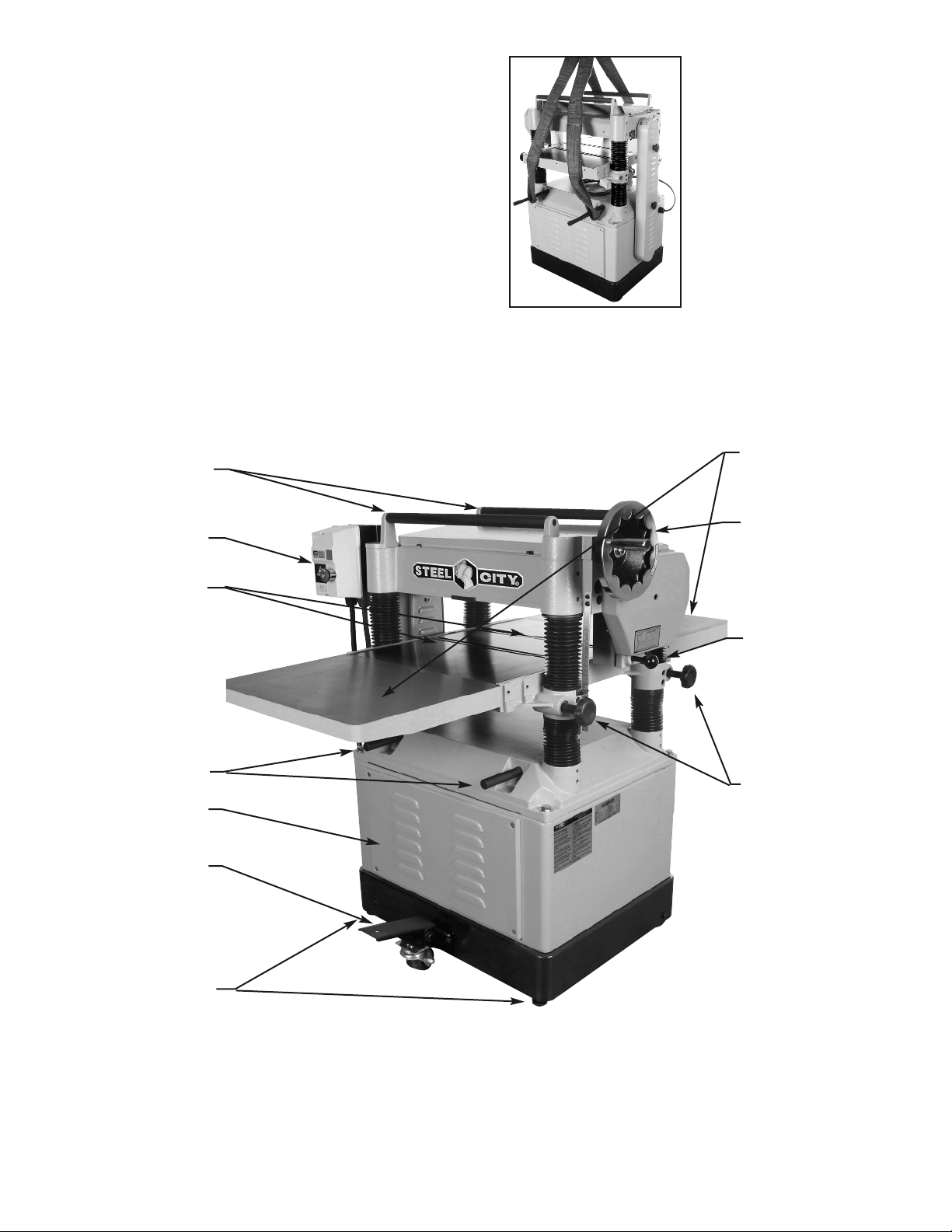

LIFTING HANDLES
There are four lifting handles furnished. All lifting handles
are of hidden type. Pull the handles out for use, push in
when not in use.
If any type of sling is used to lift machine, be sure to attach
to lifting handles ONLY. Be sure that machine is kept in
level position while lifting.

Page 12
ASSEMBLY
STAND ASSEMBLING
For best planing performance, locate planer on solid, level
foudation. With machine in position, test table surface
lenghtwise and crosswise with machinist level.Adjust the
2 feet under the mobile base. Lock the lock nut.
WARNING
!
Make certain that machine are disconnected
from the power source.
INSTALLALLING THE DEPTH OF CUT
ADJUSTMENT HANDWHEEL
1. Remove the protective tape from the handwheel shaft.
2. Remove the nut and the flat washer from the shaft.
3. Install the handwheel onto the shaft by aligning its
mounting hole with the key installed in the shaft and
secure the handwheel by retightening the nut with the
washer using the right wrench.
4. Screw the handle into the handwheel, then secure it
using the right wrenc

Page 13
INSTALLALLING THE SWITCH
ASSEMBLY
1. Remove the two cap screws installed on the left 2.
front side of the machine.
2. Align the switch assembly mounting holes with holes
in the machine. Secure it in place using the the two
cap screws with the right Allen key.

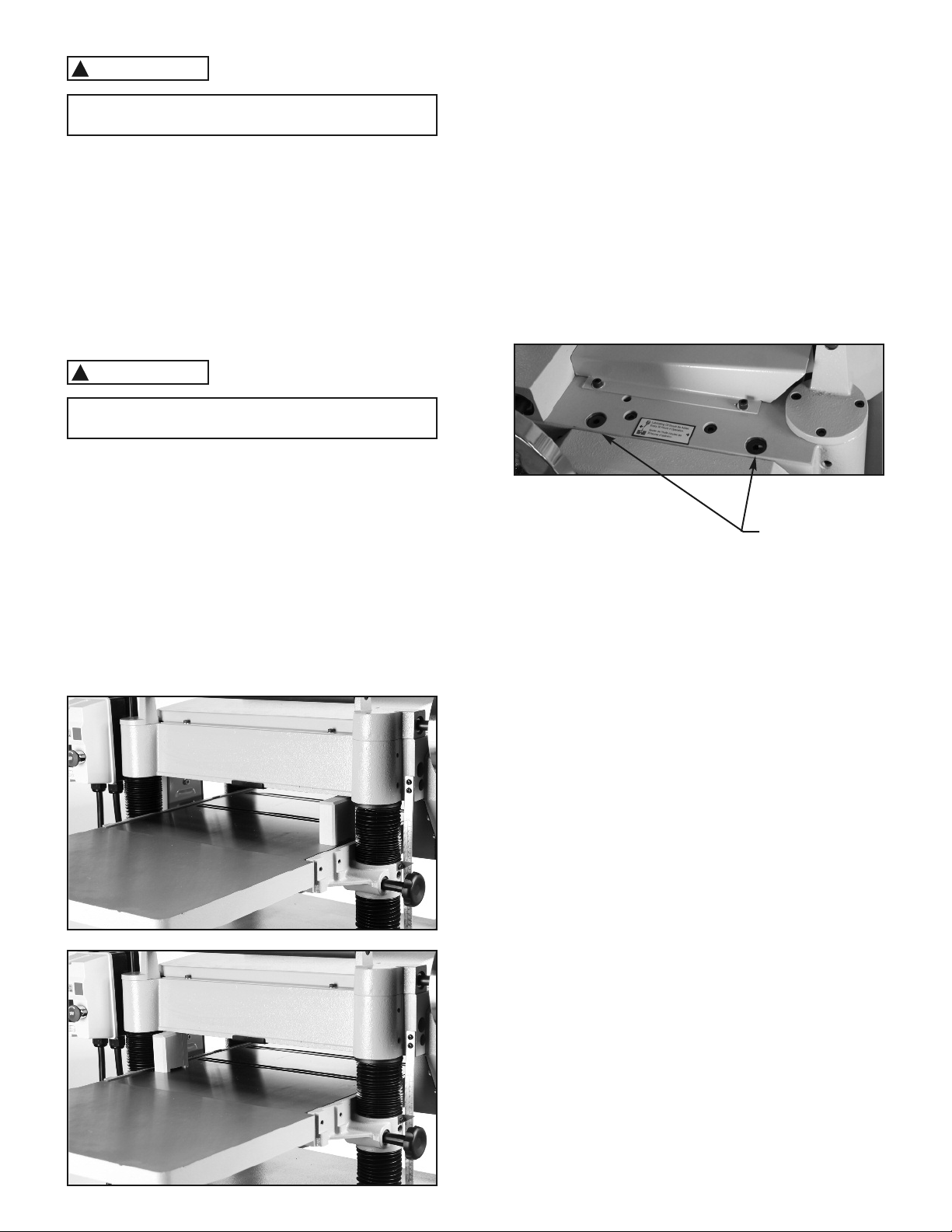

INSTALLALLING THE EXTENSION
TABLES
1. Install leveling screws into the extension tables with
the right Allen key so that they are ush with the
surface that faces the machine.
2. Attach the table extensions to the machine using three
hex head bolts A using the right wrench.
WARNING
!
Be careful, you need
a helper !
Hex bolt
Set screw
3. Use a straight edge approximately four feet long to
verify table level.
4. Using the bolts and set screws, adjust so that there is
no space between the straight edge and the tables.
5. Tighten bolts and repeat the same procedure for the
other table extension.
Vous constaterez qu’il demeure une légère
flexion des rallonges lorsque vous appliquez
une pression sur le bout de celles-ci. Pour con-
tre-balancer cette flexion, ajuster les vis de
pression pour surélever légèrement l’extrémité
des rallonges (0,5mm soit environ .020”)

Page 14

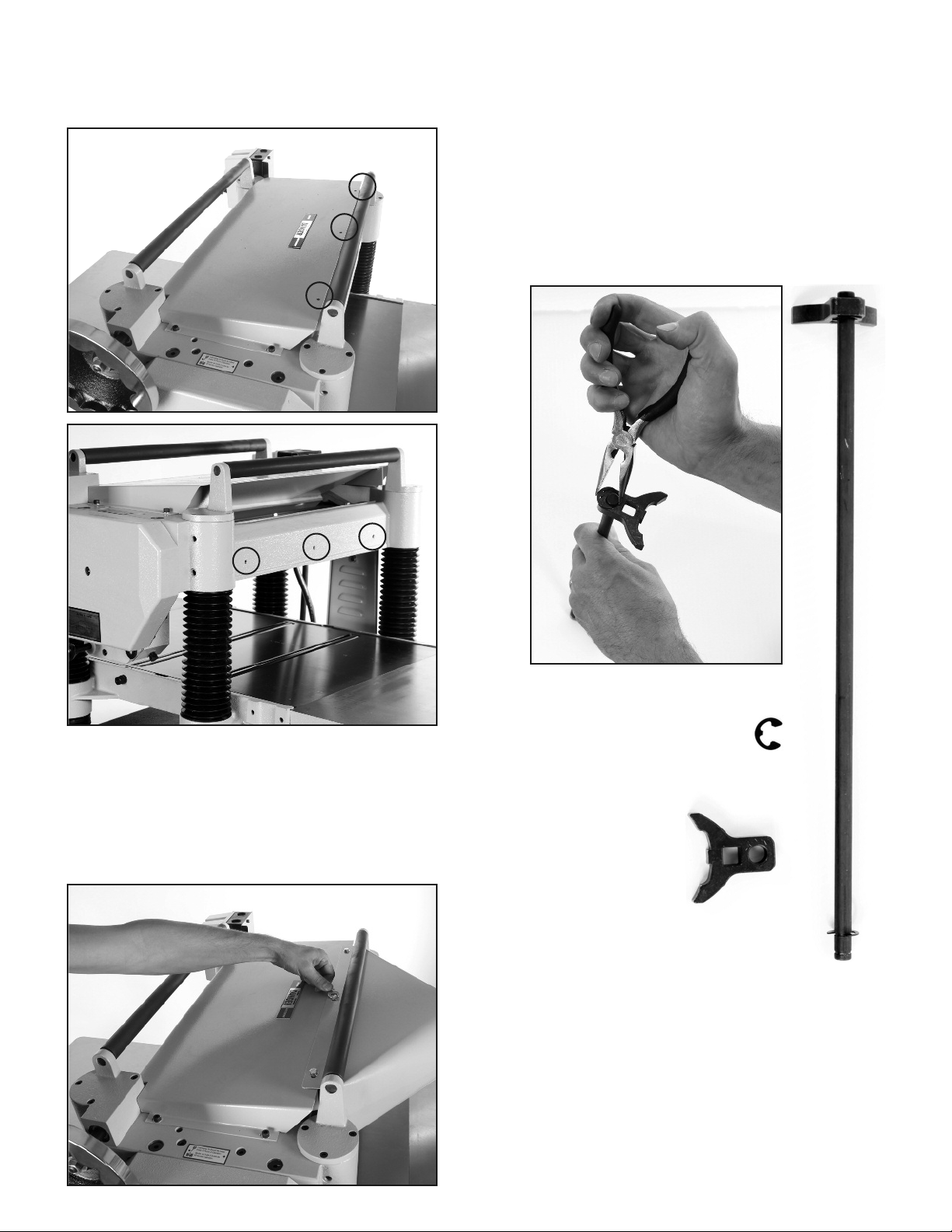

INSTALLING THE DUST CHUTE
1. Align the 3 dust chute mounting holes with the
corresponding holes in the machine.
2. Screw 3 bolts with washers into the upper part of the
dust chute by hand.
3. Screw 3 bolts with washers into the lower part of the
dust chute by hand.
4. Secure the dust chute to the machine by tightening all
6 bolts with the right wrench.
ASSEMBLING THE KNIFE JIG
1. Using a pair of pliers, push a “C” clip into the inner
grooves on each end of the knife setting jig rod.
2. Slide one foot onto one end of the rod.
3. Secure the foot on the rod by pushing a “C” clip into
the outer groove in the rod.
4. Repeat step 2 and 3 to install the other foot. Set the
jig aside for use whenever knife settings need to be
verified or adjusted.

Page 15
ADJUSTMENTS
DEPTH OF CUT
The distance of upward or downward movement is
controlled by handwheel.
One evolution: .059” (exactly 1,5 mm).
For more accuracy, always finaladjust with upward
movement.
NOTE: before moving table upward or down-
ward, loosen the lock nuts. After choosing the
proper position, tighten the lock nuts.
NOTE: Your planer was carefully adjusted at
the factory. However any inaccuracies due to
rough handling in transit can easily be cor-
rected by following these instructions. In order
to check the adjusments you will need a
straight edge, feeler gage and a homemade
gage block made of hardwood as shown.
TABLE ROLLERS
The machine is supplied with two rollers (A) which aid in
feeding the stock by reducing friction and turn as the stock
is fed through the planer. It is not possible to give exact
dimensions on the proper height setting of the table rollers
because each type of wood behaves differently.
As a general rule, however, when planing rough stock, the
table rollers should be set at high position. When planing
smooth stock the table rollers should be set at low
position.
In the case you need to minimise the snipe at the
beginning or the end of the board, rollers table should be
set at the low position.
NOTE: the raising range between .003” - .006” when
raising the roller higher above table as shown.
The table rollers on your planer are set for average
planing and are parallel to the table surface.
NOTE:
Be sure heigh of front and rear rollers are
same.
The table rollers must alway be set parallel to
the table.
1. Lay a straight edge across both rollers, loosen the
set screws.
Eccentric shaft
Set screw
Handwheel Depth
Adjustment
Lock Depth
Adjustment
WARNING
!
Make certain that machine are disconnected
from the power source.
2. Turn the eccentric shafts to raise or lower the table
rollers, when the proper height is obtained tighten
screws as shown. Repeat procedure for the opposite
end of table.

Page 16

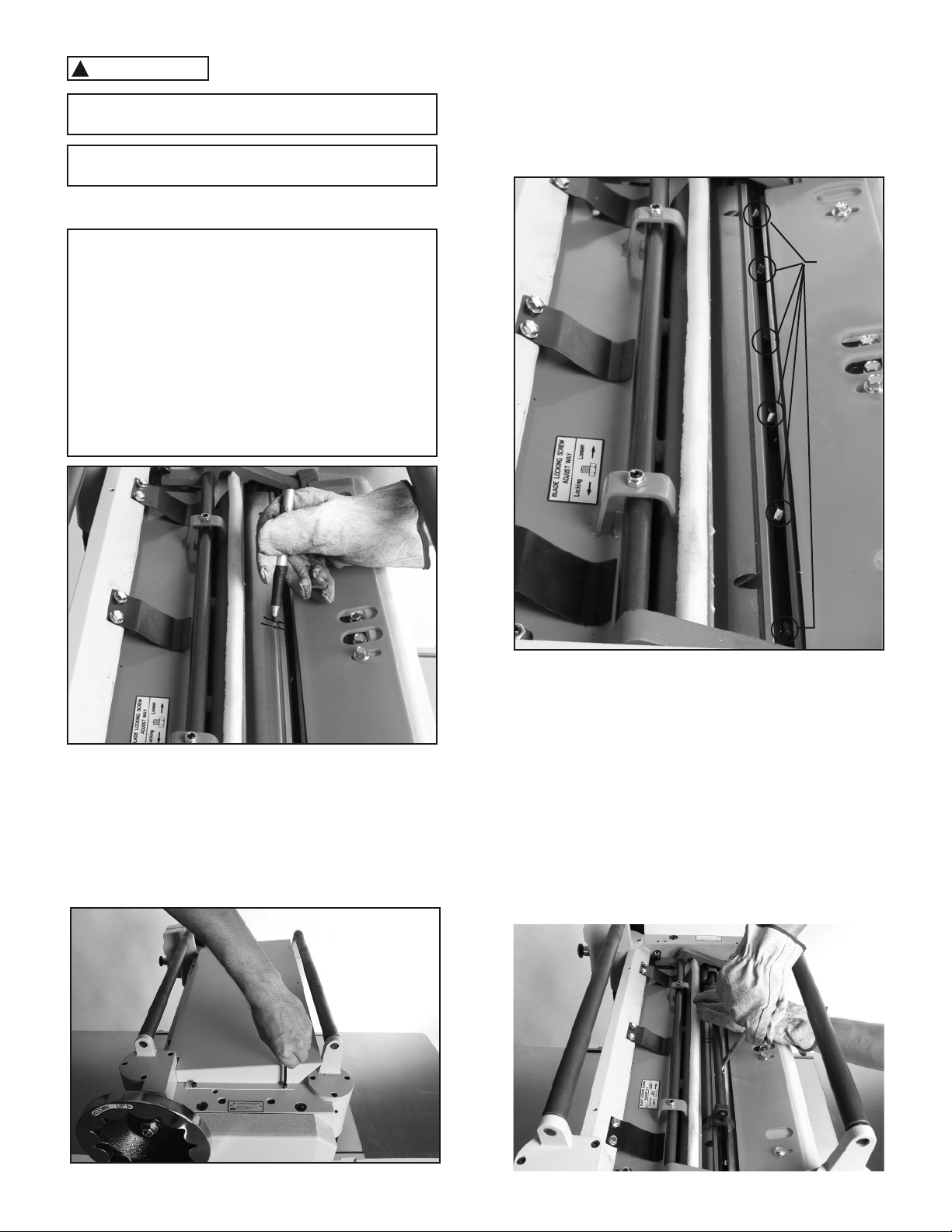

KNIVES REPLACEMENT
WARNING
!
Make certain that machine are disconnected
from the power source.
Be careful, knifes are very sharps. Wear
gloves!!
4. Check the locking screws, if the threads appear worn
or stripped or if the heads are becoming rounded,
replace them.
5. Clean the housing and the locking bar with a
degreaser.
To obtain the best adjustment results of the
knives, it is imperative to number the knives
and grooves on the cutterhead. With a perma-
nent felt pen, across the groove and over the
knife, draw 1 line for #1 knife, 2 lines for #2
knife, 3 for the #3 knife and 4 for the #4 knife.
This will enable you to go back and forth from
one knife to the other to make fine adjustments
and be certain that all knives were tightened
properly.
1. Remove the six screws and remove the upper cover.
2. Blow up chips and dust.
3. Loosen the knife locking bar by turning the locking
screws. Take care, the inner two springs will pop out
when removing the knife and knife locking bar.
6. Replace the locking bar and the knife in the housing
and place the knife gage on the cutter head. Center it
on the edge of the knife. The knife should comes in
contact with the center protrusion of the gage.
7. aintain gage knife down in place with one hand and
with the other begin to tighten the screws of the locking
bar. Start from the end screws, then the center screws
until the knife is securely held in the cutterhead.
Gradually increase the tightening.
8. Repeat previous steps for the other knifes.
Locking
screw

Page 17
TABLE PARALLEL TO CUTTERHEAD
The working table is set parallel to the cutterhead at the
factory and no further adjusment should be necessary. If
your machine is planing taper, first check to see if the
knives are set properly in the cutterhead.
Then check to see if the working table is set parallel to the
cutterhead
1. Place the gage block (not included) on the working
table directly under front edge of head casting. ake slight
contact by
gently raising table.
2. ove the gage block to the opposite end of the
working table and adjust it in the same manner.
CONCLUSION: The distance from the working table to
the edge of the head casting should be the same.
If not, contact a qualified technician.
WARNING
!
Make certain that machine are disconnected
from the power source.
FEEDING ROLLERS
The infeed roller and outfeed roller are those parts of the
planer that feed the stock while it is being planed. The in-
feed roller and outfeed roller are under spring tension and
this tension must be sufficient to feed the stock uniformly
through the planer without splitting but should not be so
tight that it causes damage to the board. The tension
should be equal at both ends of each roller.
To adjust the spring tension of the infeed/outfeed roller,
turn the screw and also the screw on the opposite end of
the infeed/outfeed roller with an Allen key.
If the Rollers tension is too heavey it will result in a
important snipe at the end or the beginning of the board.
Double check knife adjustement and especially
all 24 screws for tightness.
WARNING
!
Spring tension
adjusment screw

Page 18
ANTI-KICK BACK FINGERS
They are provided on your planer to prevent kickback.
These fingers operate by gravity and its necessary to
inspect them occasionally to make sure they are free of
gum and pitch so that they move independently and
operate correctly.
RELATION BETWEEN FEEDING
ROLLERS, CHIPBREAKER, PRESSURE
BAR AND CUTTING CIRCLE
The infeed roller, chipbreaker, pressure bar and outfeed
roller are adjusted at the factory. The infeed roller and the
chipbreaker to be set .004” (0,1 mm) below the cutting
circle, the pressure bar to be set .008” (0,2 mm) below the
cutting circle, as shown on the draw. If an adjustment to
the infeed roller, chipbreaker, pressure bar or outfeed
roller is necessary, contact a qualified technician.
1. To control the relation between cutterhead and out-
feed roller, place the gage block on the table directly
underneath the cutterhead. Using a .02” (0,5 mm) feeler
gage placed on top of the gage block, raise the working
table until the knife just touches the feeler gage when the
knife is at its lowest point. Do not move the working table
any further until the ooufeed roller is adjusted.
2. ove the gage block under the end of the outfeed
roller. The bottom of the outfeed roller should just touch
the top of the gage block.
3. Check and adjust opposite end of the outfeed roller
in the same manner.
NOTE: Be sure the knives are adjusted prop-
erly as previously explained.
WARNING
!
Make certain that machine are disconnected
from the power source.
Be careful, knifes are very sharps. Wear
gloves!!
FEED SPEED CONTROL
Your machine is equipped with a spiral, serrated infeed
roller and a solid steel outfeed roller. When the feed rollers
are engaged, they turn to feed the stock. The feed rollers
slow automatically when the machine is under heavy load
for best planing under all conditions. The feed rollers are
driven by chains and sprockets, which takes power
directly from the cutterhead through the oil bath gear box.
There are two feed speeds in the gear box by using the
shift lever to pull out or push in, and the feed speed range.
Speed rate of feed roll is transmitted by shaft geards in
gear box.
There are 3 kinds of operations of gearbox by using shaft
handle to pull or push.
Anti-kick back fingers
Outfeed roller
Pressure bar
Cutterhead
Infeed rolle
Chip breaker

Page 19
MAINTENANCE
!"
K'K.'$ /!0'$V&- -+.$/,&!0
1
,23M5 (769:65<NY %763D6
@
%637>L"T '3Z2>@EFF>2":7D
GHI1FFJ>K"LMN>C637>O@PJ>=26NN>#;3N3>1FFJ>
'==#>=Q37<35>'RI1FF
S
$"NN67D (769:65<NY =&'ISF>"MN
U
\"7;>C637 (769:65<NY %763D6
E
-63A>DZ76] (769:65<NY %763D6
O
,"N:;5 (769:65<NY ,N635>35A>=&'ISF>"MN
P
,23M5 (769:65<NY %763D6
[
.:D2M5C (769:65<NY =&'ISF>"MN
3. Remove the drain plug and filler cap. Drain dirty oil
thoroughly. Have some oil used in the respect for the
environmental standards.
4. Tighten the drain plug.
5. Fill with clean lubricant through hole .
6. Tighten the filler cap.
DRAINING OF THE GEAR BOX OIL
1. Remove the handwheel and the gearbox cover.
2. Remove the chain guard at the rear of the gear box
cover.
Chain guard
Hex screw
Drain plug Filler cap
WARNING
!
Make certain that machine are disconnected
from the power source.
Note: Degrease any member before oil or
grease it.

Page 20

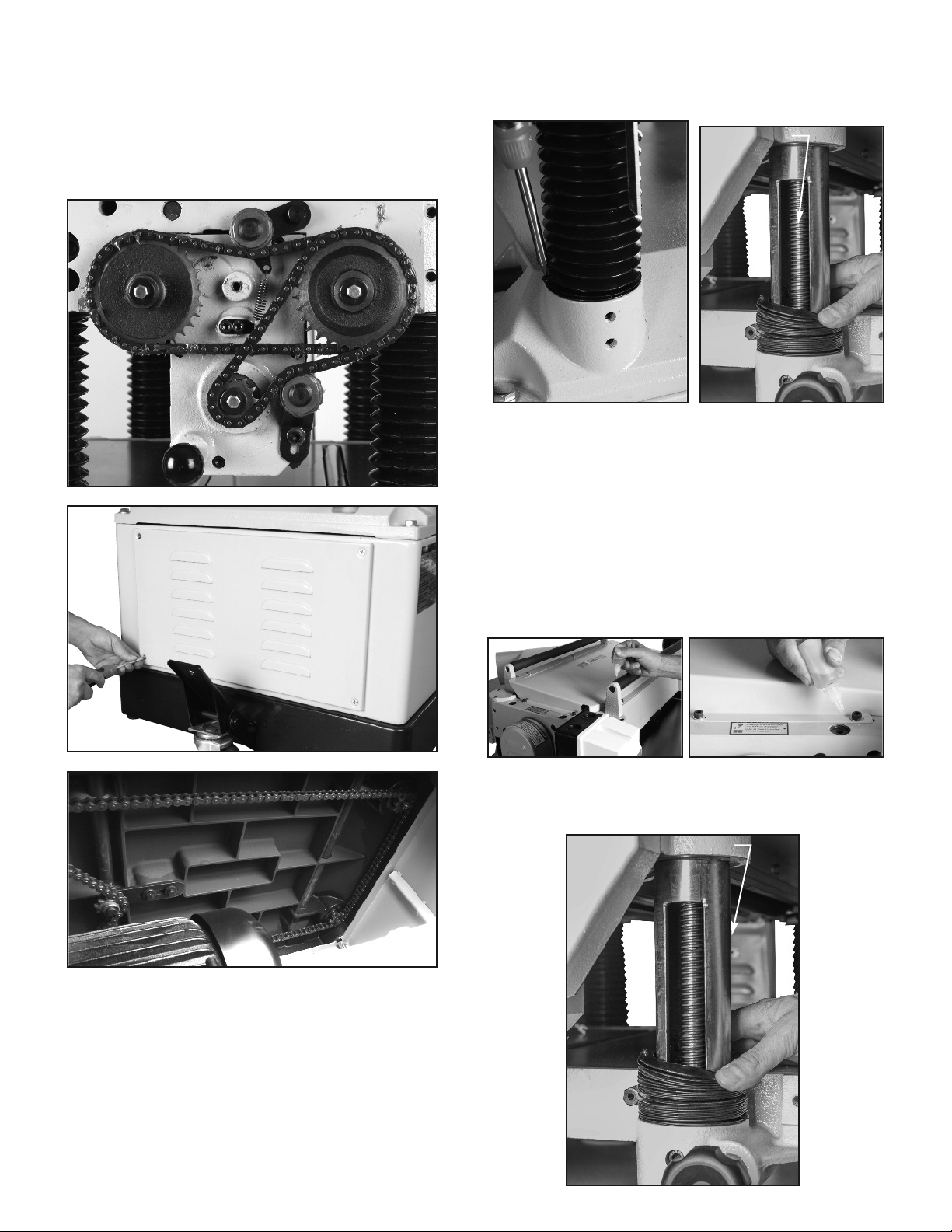

GREASE THE CHAINS
1. Remove the gear box cover to grease the 2 chains
rear of it.
2. Remove the base door to grease the chain under the
machine.
INFEED AND OUTFEED BUSHING
ROLLER, THE COLUMN AND THE
RETURN ROLLER
To oil the return rollers To oil the bushing of infeed
and outfeed roller
GREASE THE WORM GEAR
Remove the phillips screws that maintain the column pro-
tection to access the column and the worm gear.
Vis sans fin
Colonne
