Steren BAF-0880 User manual

ENGLISH
ENGLISH-02
IMPORTANT
Before using your new speaker, read the following
recommendations.
Do not use this device in areas where it might get wet. This could
cause electric shock and severe damage.
Keep this device in ventilated areas when in use.
Do not use this device in areas with high humidity.
Do not place any containers with liquid on top of this device.
Do not attempt to open or disassemble this device as this could
cause malfunctions and the voiding of the warranty.
Always clean this device with a soft and dry cloth.
If the power cord is damaged, it must be replaced by the
manufacturer, a service agent, or qualied personnel in order to
avoid risks.
FEATURES
Professional speaker with integrated amplier.
1600Wpmpo.
RCA or cannon input jacks.
One Microphone input jack.
Can connect in cascade with another speaker or amplier.
Overcharge protection.
Bass and treble controls.
Line level control.
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•

ENGLISH
ENGLISH-03
This list describes the decibel levels of certain sounds for your
protection
Db Level
(Decibel) Example
30 Quiet library, whispers
40 Sitting room, refrigerator, bedroom
50 Light trafc, normal conversation, quiet ofce environment
60 Air conditioner at 15 feet, sewing machine
70 Vacuum cleaner, hair dryer, noisy restaurant
80 Heavy trafc, Alarm clock at 2 feet
The following Sound levels may be dangerous is exposed for an
extended period of time.
Db Level
(Decibel) Example
90 Subway, motorcycle, lawnmower
100 Garbage truck
120 Rock concert in front of the speakers
140 Firearm, airplane
180 Rocket launch

ENGLISH
ENGLISH-04
CONTROLS
1
2
3
4
5
6
7
8
9
10
11
12

ENGLISH
ENGLISH-05
1.- POWER CABLE INPUT.
Allows you to connect the power cable.
2.- ON/OFF SWITCH.
Powers the device on/off.
3.- STAND INPUT.
Allows you to set the speaker up on a tripod.
4.- 6.3 mm MICROPHONE INPUT JACK.
Allows you to connect a microphone
with a 6.3 mm plug.
5.- LINE INPUT JACK.
Allows you to connect an RCA audio
device or a cannon microphone.
6.- LINE OUTPUT JACK.
Allows you to connect a powered
amplier or another speaker.
7.- MICROPHONE VOLUME LEVEL.
Allows you to increase or decrease the
volume level from 0 to 10.
8.- LINE LEVEL.
Controls line input and line output levels.
9.- BASS.
Allows you increase or decrease the bass level.
10.- TREBLE.
Allows you to increase or decrease the treble level.
11.- SATURATION INDICATOR.
This LED indicator light will illuminate if there is an
overcharge. If this happens, decrease the volume levels.
12.- POWER INDICATOR.
This LED indicator light will illuminate when the speaker is powered on.

INSTALLATION
Make sure that before you connect the speaker, the ON/OFF switch
is in the off position and the volume controls are at the minimum
level. If this is not the case, your speaker may suffer overcharge
damage.
1. Connect the power cable to the electric outlet and connect the other
end of the power cable to the speaker.
2. Connect a microphone to the input jack labeled MIC IN through the
6.3 mm plug or cannon plug.
3. Use the RCA Line In input jacks in order to connect a CD, MP3, DVD,
or other type of audio device.
4. Power all the devices on. A green LED indicator light will illuminate
indicating that the speaker is powered on.
5. Adjust the volume levels of the connected devices (CD, MP3, etc.) as
well as the line in level on the speaker. Also adjust the Bass and treble
levels in order to equalize the sound.
6. The red LED indicator light will illuminate if an overcharge is detected.
This occurs in order to protect your speaker. The volume levels should
be reduced in order to prevent serious damage to the speaker.
Do not place the microphone near the speaker. Doing so could
cause an echo as well as damage to the speaker.
ENGLISH
ENGLISH-06
This kit is ideal for electronic students or hobbyists because

ENGLISH
ENGLISH-07
EXTRA FUNCTIONS
The LINE OUT jack can be used for connecting another amplier or
even another BAF-0880 in cascade mode. On the bottom of your
speaker you will nd an input where you will be able to setup a pedestal
or a tripod.

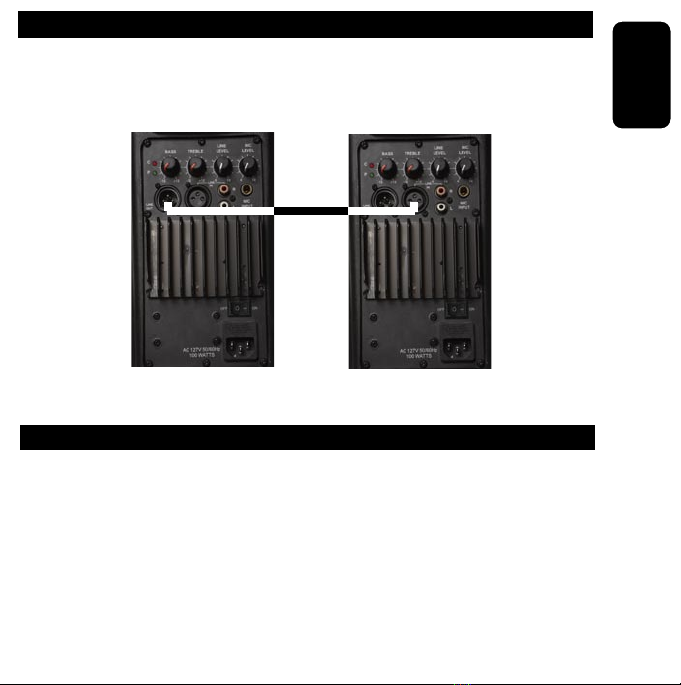

connection in cascade mode
PLACEMENT
These speakers have been designed for placing on the ground, on a
table, or a speaker tripod. We remind you that the tripod BAF-150 is
compatible with this model.
Avoid placing the device in the corner of a room. Doing so will increase
the output of low frequencies and may cause distortion in the sound.
Avoid placing the speaker in front of walls. This will also increase the
output of low frequencies but not as much as placing the speaker in a
corner. However, if you need to emphasize low frequencies, this is a
good way to do so.

ENGLISH
ENGLISH-07
SPECIFICATIONS
AMPLIFIER
Input: 127V~50-60HZ 100 W
Output: 1600Wpmpo
Harmonic
Distortion: 0.1%
SPL: 96dB
WOOFER
Impedance: 4 ohms
Power: 70Wrms
Diameter: 8”
Frequency Response: 70 Hz-4.5kHz
Sensitivity: 86dB
Coil Diameter: 1.5”
Magnet: 30 oz
TWEETER
Impedance: 8 ohms
Power: 25 Wrms
Diameter: 3”
Frequency Response: 3kHz-20kHz
Sensitivity: 96dB
Coil Diameter: 1.4”
Magnet: 10 oz
Product design and specications subject to change without
previous notice.

WARRANTY
This Steren product is warranted under normal usage against defects in workmanship and
materials to the original purchaser for one year from the date of purchase.
CONDITIONS
1.- This warranty card with all the required information, invoice or purchase ticket, product
box or package, and product, must be presented when warranty service is required.
2.- If the product stills on the warranty time, the company will repair it free of charge.
3.- The repairing time will not exceed 30 natural days, from the day the claim was received.
4.- Steren sell parts, components, consumables and accessories to customer, as well as
warranty service, at any of the addresses mentioned later.
THIS WARRANTY IS VOID IN THE NEXT CASES:
If the product has been damaged by an accident, acts of God, mishandling, leaky batteries,
failure to follow enclosed instructions, improper repair by unauthorized personnel, improper
safe keeping, among others.
a) The consumer can also claim the warranty service in the purchase establishment.
b) If you lose the warranty card, we can reissue it, if you show the invoice or purchase ticket.
Product: Professional speaker box with amplier
Part number: BAF-0880
Brand: Steren

RETAILER INFORMATION
Name of the retailer
Address
Product
Brand
Part number
Serial number
Date of delivery
In case your product fails or have questions, please contact your nearest dealer. If
you are in Mexico, please give a call to our Call Center.
Call Center
01 800 500 9000
