Stern Pinball STAR WARS Pin Series User manual

Stern Pinball machines are assembled in Elk Grove Village, Illinois,
USA; each pinball machine has unique characteristics that make it
a one-of-a-kind American-made product. Each machine will have
variations in appearance resulting from differences in the machine’s
particular wood parts, digital art and mechanical assemblies. Stern
Pinball has inspected each game element to ensure it meets our quality
standards.
SETUP GUIDE
1-800-KICKERS - [email protected]
www.sternpinball.com - facebook.com/sternpinball
© & ™ Lucaslm Ltd.

2
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not operate this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus
(including ampliers) that produce heat.
9. Do not defeat the safety purpose of the grounding type plug. A grounding type plug has two blades
and a third grounding prong. The third prong is provided for your safety. If the provided plug does not
t into your outlet, consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at the plugs, convenience
receptacles, and the point where they exit from the apparatus.
11. Only use attachments/accessories specied by the manufacturer.
12. Unplug this apparatus during lightning storms or when unused for long periods of time.
13. Refer all servicing to qualied service personnel. Servicing is required when the apparatus has
been damaged in any way, such as if the power-supply cord or plug has been damaged, liquid has
been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or
moisture, does not operate normally, or has been dropped.
14. The pinball machine shall be connected to a mains socket outlet with a protective earthing
connection.
15. WARNING: To reduce the risk of re or electric shock, do not expose apparatus to rain or moisture.
16. DO NOT expose the pinball machine to dripping and splashing. DO NOT put objects lled with
liquids, such as vases, on the machine.
17. The DPDT rocker switch located under the backbox of the game turns the unit on and off. This
switch cuts off both the Hot and Neutral electrical lines. This is the power switch. When the switch is
depressed in the “1” position the power is ON. When depressed in the “O” position, the power is off.
The power switch shall remain operable.
18. CAUTION: To reduce the risk of electric shock, servicing other than mentioned in the operating
instructions should only be done by qualied service personnel unless you are qualied to do so.
19. Do not expose the battery on the CPU board, located in the top backbox, to excessive heat such
as direct sunlight, re, or other heat sources.
20. Use only legs specied by the manufacturer, or those sold with the apparatus.
LIMITED CONSUMER WARRANTY
60 DAYS LABOR
60 DAYS PARTS
9 MONTHS DISPLAY
ANY QUESTIONS CALL:
1-800-KICKERS
(542-5377)
CLEANING/CARE
GLASS SURFACE
USE A STANDARD HOUSEHOLD GLASS CLEANER WITH A SOFT CLOTH.
PLAYFIELD AND PLASTICS SURFACE
USE A HOUSEHOLD FURNITURE POLISH APPLIED TO A SOFT CLEAN MICROFIBER CLOTH. DO
NOT SPRAY DIRECTLY ONTO SURFACE OR PLAYFIELD. AVOID DIRECT CONTACT BETWEEN
LIQUIDS AND PLAYFIELD.
FOR OPTIMAL PERFORMANCE AND GAMEPLAY IT IS STRONGLY ADVISED TO CLEAN THE
PLAYING SURFACE REGULARLY (I.E. EVERY 2-4 WEEKS IF USED FREQUENTLY)
Lightning in a triangle warns that there is dangerous electricity inside an
appliance or product.
An exclamation mark in a triangle mean there are important instructions
you should read.
IMPORTANT SAFETY INSTRUCTIONS - PLEASE READ FIRST

3
PARTS LIST
8 CABINET LEG BOLTS
POWER CORD
2 BACKBOX BOLTS
4 PINBALLS
4 LEGS AND LEVELERS
1 GAME CABINET
SETUP GUIDE
INDEX
INITIAL SETUP• 4
VOLUME ADJUSTMENT • 9
SERVICE MENU • 9
SERVICE MENU ADJUSTMENTS • 12

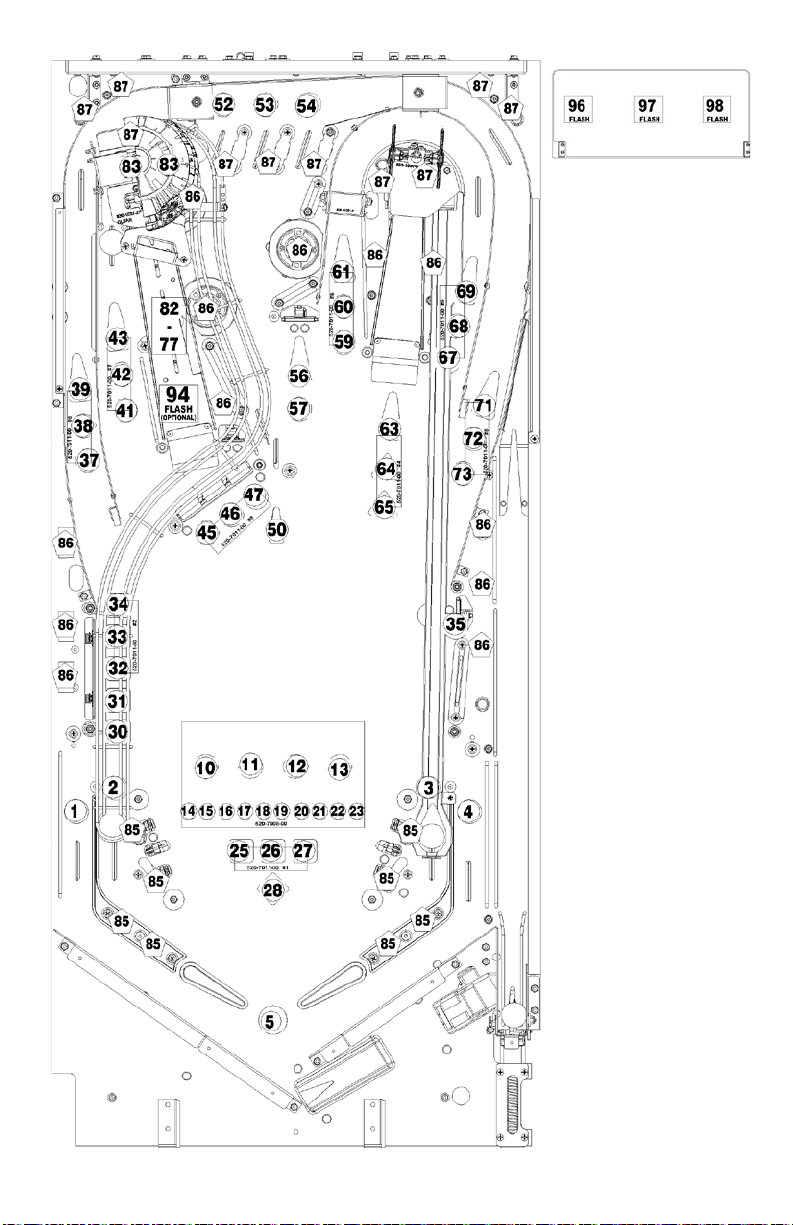

PLAYFIELD & CABINET ELECTRICAL • 13
DRIVER REFERENCE • 13
SWITCH REFERENCE • 15
LIGHT REFERENCE • 18
PLAYFIELD TOP ASSEMBLIES • 22
PLAYFIELD BOTTOM ASSEMBLIES • 24
PLAYFIELD RUBBER PARTS • 26
TOOLS REQUIRED:
- 5/8” WRENCH OR SOCKET DRIVER
BACKBOX
FRONT MOLDING
CABINET

4
REMOVE 4 LEGS
FROM CARTON
3STAND GAME ON
END
4
CHECK THAT BOTTOM LEG
LEVELERS ARE FULLY SEATED
INSTALL BOTH FRONT LEGS
EACH USING 2 OF THE BOLTS
SUPPLIED WITH THE GAME
UNBOX GAME
1 2
OPEN CARTON
CAREFULLY TILT CARTON
FORWARD ONTO THE FLOOR
TAKE HOLD OF THE CABINET
AND CAREFULLY PULL GAME
OUT FROM CARTON
INITIAL SETUP (2 PEOPLE REQUIRED)

5
WITH ASSISTANCE
5
ROCK THE CABINET FORWARD
6AGAIN, WITH ASSISTANCE,
CAREFULLY LIFT THE BACK
OF THE CABINET AND PLACE
ON A STURDY SUPPORT
OBJECT
UNTIL THE FRONT LEGS ARE
ON THE FLOOR
INSTALL AND TIGHTEN BOTH
BACK LEGS USING 2 BOLTS
EACH
SUPPORT
HERE
7 8
SECURING THE BACKBOX TO
THE REST OF THE CABINET
UNTIL IT IS IN AN UPRIGHT
POSITION
TAKE CARE TO MAKE SURE NO
CABLES ARE PINCHED WHILE
LIFTING THE BACKBOX
CUT THE STRAP LIFT BACKBOX

6
9
USING THE TWO 5/8”
BACKBOX BOLTS INCLUDED
1
INSTALLING PINBALLS
2
REACH INSIDE THE CABINET
AND LIFT THE TWO LATCHES
LOCATED ON EITHER SIDE OF
THE FRONT DOOR
SLIDE PLAYFIELD GLASS
SLIGHTLY TOWARDS THE
BACKBOX THEN PARTIALLY
LIFT UP THE FRONT MOLDING
SLIDE PLAYFIELD GLASS
COMPLETELY OUT FROM
THE FRONT AND CAREFULLY
PLACE IN A SAFE AREA IF
ACCESS TO THE PLAYFIELD
IS NEEDED
SLIDE PLAYFIELD GLASS
DOWN PARTIALLY AND PLACE
THE PINBALLS INTO THE
PLAYFIELD AREA
TO INSTALL PINBALLS
SECURE BACKBOX
UNPLUG 4-PIN CONNECTOR
BEFORE FULLY LIFTING OFF
THE FRONT MOLDING

7
1
TILT ADJUSTMENT
INITIALIZATION
ATTACH THE POWERLINE
CORD TO THE BACK
OF THE GAME ON THE
BACKBOX AND PLUG THE
CORD INTO A 3-PRONG
POWER OUTLET
FLIP THE POWER
SWITCH LOCATED ON
THE UNDERSIDE OF THE
RIGHT EDGE OF THE
BACKBOX TO POWER ON
THE GAME
2REMOVE ANY SHIPPING
MATERIAL COVERING THE
TILT SENSOR.
3SENSITIVITY OF THE TILT
HAS BEEN FACTORY
ADJUSTED. IF FURTHER
ADJUSTMENT IS REQUIRED,
LOOSEN THUMB SCREW,
ADJUST THE PLUMB BOB,
AND RETIGHTEN.
NOTE: THE VERTICAL
POSITION OF THE PLUMB
BOB AFFECTS TILT
SENSITIVITY - HIGHER
MAKES THE GAME MORE
SENSITIVE TO TILTING.
LEVELING
ADJUST THE FRONT
OR REAR LEVELERS AS
NECESSARY TO POSITION
THE PLAYFIELD BUBBLE
LEVEL, LOCATED ON THE
FRONT RIGHT OF THE
PLAYFIELD NEXT TO THE
SHOOTER LANE, TO FLOAT
BETWEEN THE TWO (2)
BLACK LINES. THIS WILL
PLACE THE PLAYFIELD AT
THE RECOMMENDED 6.5°
PITCH.
2USE A PINBALL TO ROLL
DOWN THE CENTER OF
THE PLAYFIELD FOR SIDE-
TO-SIDE LEVELING, OR
USE AN EXTERNAL BUBBLE
LEVEL, DIGITAL LEVEL, OR
SMARTPHONE LEVEL APP.
1LOCATE THE TILT SENSOR
INSIDE THE FRONT DOOR
BY THE LEFT SIDE PANEL.

8
12
3
UNSCREW THE BLACK
PLAYFIELD KNOB AT THE
BOTTOM CENTER OF THE
PLAYFIELD

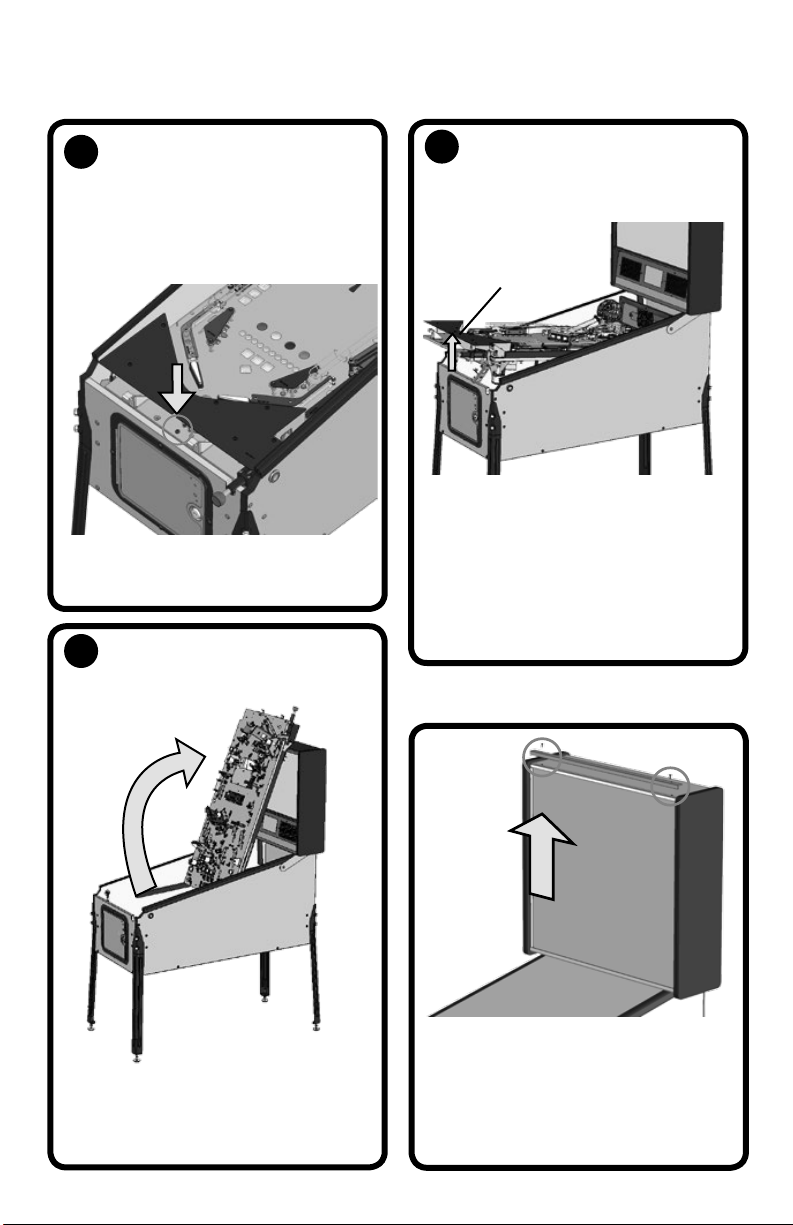

THE PLAYFIELD BY THE
MIDDLE OF THE PLASTIC ARCH
LIFT THE PLAYFIELD UP
AND THEN PULL SLIGHTLY
TOWARDS YOU
LIFT THE PLAYFIELD UP
ON ITS END RESTING IT
AGAINST THE BACKBOX
PLAYFIELD SHOULD STOP
SLIDING AT A NOTCH ABOUT A
FOOT AWAY FROM THE BACK
OF THE CABINET
CAUTION: TAKE CARE AS
PINBALLS COULD FALL OUT
OF THE BALL TROUGH WHILE
LIFTING THE PLAYFIELD
PLASTIC ARCH
CAREFULLY LIFT
PLAYFIELD ACCESS
(FOR QUALIFIED SERVICE PERSONNEL ONLY)
IF ACCESS TO THE BACKBOX
IS NECESSARY, REMOVE 2
PHILLIPS SCREWS ON THE
TOP OF THE BACKBOX
REMOVE GLASS BRACKET AND
LIFT GLASS UP AND OUT
BACKBOX ACCESS

9

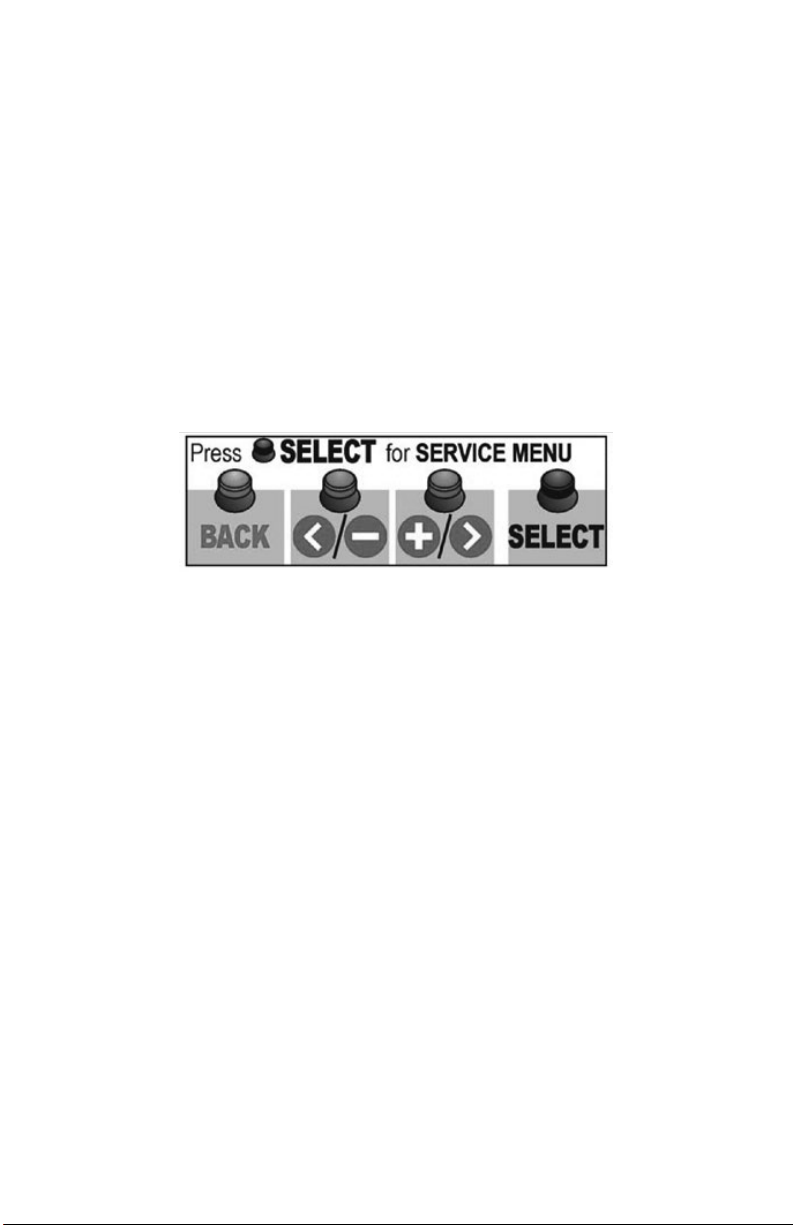

SERVICE MENU
Service Menu Control:
Green - Back/Escape
Left Red - Left/Minus
Right Red - Right/Plus
Black - Enter/Select
VOLUME ADJUSTMENT
Volume Menu Control:
Green - Exit to Attract Mode
Left Red - Decrease Volume
Right Red - Increase Volume
Black - Enter Service Menu
Open the door on the front of the machine to gain access to the service
control buttons. The four buttons for changing settings will be located
on the inside of the front door. Press the right red button to increase the
volume of the game. Press the left red button to decrease the volume. The
current volume will be shown on the main display.
Open the door on the front of the machine to gain access to the service
control buttons. Press the black button to continue into the Service Menu.
The left and right red buttons are used to browse the options within the
Service Menu. Use the black button to select an item in the menu and see
available options. The green button is used to back out of menu options,
returning to the previous screen. To exit out of the Service Menu, press the
green button until the game goes back into Attact Mode.

10
SERVICE MENU CONTINUED
DIAGNOSTICS
SWITCH
Switch Test: Close each switch by hand and observe the display. If the
switch is working properly it will display the name and corresponding number
of the switch when it is actived.
Active Switch Test: Shows all active switches on the playeld. This test is
useful for identifying if a switch is stuck.
The Diagnostics Menu is used to access various tests to verify that your
machine is working properly or to help diagnose potential problems.
COIL
Coil Test: Used to test individual coils on the playeld. Use the left and right
ipper buttons to select a coil to test. Press the start button to re the coil.
CAUTION: Keep hands clear from playeld while testing coils.
Cycle Coil Test: Automatically cycles through all coils on the game to
verify complete functionality. Observe the playeld and make sure each
corresponding coil res as the game cycles through each.
LAMP
LED Test: Selects individual lights to ash on the playeld. Use the left and
right ipper buttons to cycle through all the lights on the game. The corre-
sponding light ashes as it is displayed on the screen.
All LED Test: The CPU will illuminate all LEDs on the playeld. Useful for
identifying possible non-functioning LEDs without cycling through every light.
G.I. (General Illumination): Lights the three general illumination areas of the
playeld at the lower, middle, and upper areas of the game. Use the ipper
buttons to cycle through each.
NODE
Node Test: Checks the status of the node boards. In this case the CPU
Node 0 and the Playeld Core Node 8.

11
GAME
Bank: Tests the functionality of the 3-Bank Drop Target Assembly. Manually
hit the drop targets and watch the display. The display should indicate any
dropped targets. Useful for checking the functionality of switches in the
drop target bank. If any of the targets are recessed, press the start button to
reset them.
CLEAR TROUGH
Clear Trough Test: This test allows for a simple method of removing pinballs
from the trough and making sure the trough correctly detects any pinballs
it is currently holding. The display should indicate if and how many pinballs
are installed as well as the corresponding activated switches. Press the start
button to activate the autolauncher and remove pinballs from the trough. It is
a good idea to do this before intending to lift the playeld.
DOT MATRIX
Dot Matrix Test: Exercises the dot matrix display to test the illumination of
all pixels in the display. No interaction is necessary. The test will continue to
loop on its own. Press the launch button to exit out of the test.
SERVICE MENU CONTINUED
ADJUSTMENTS
The Adjustments Menu is used to makes changes to settings related to the
gameplay of the pinball machine. Use the ipper buttons to cycle through
all the game options. Press the start button to select an adjustment. The
adjustment will ash when it is selected. Use the ipper buttons to change
the selected adjustment and hit the start button to save the changes.

12
STANDARD ADJUSTMENTS
FEATURE ADJUSTMENTS
SERVICE MENU ADJUSTMENTS
ID Adjustment Name Default
Setting
1 Replay Type Auto
2 Replay Percentage 10
3 Replay Award Extra Ball
4 Replay Levels 1
5 Auto Replay Start 2,000,000
11 Replay Boost YES
12 Extra Ball Limit 5
13 Extra Ball Percentage 25
14 Balls Per Game 3
15 Tilt Warnings 2
16 Allow High Scores YES
17 Grand Champion Awards 1
18 High Score #1 Awards 1
19 High Score #2 Awards 0
20 High Score #3 Awards 0
21 High Score #4 Awards 0
22 Grand Champion Score 2,000,000
23 High Score #1 1,750,000
24 High Score #2 1,500,000
25 High Score #3 1,000,000
26 High Score #4 750,000
27 HSTD Initials 3 Initials
28 HSTD Reset Count 2,000
29 Language English
ID Adjustment Name Default Setting
1 Double Bonus Timer 10-60 seconds (30)
2FORCE Difculty EASY / HARD (EASY)
3 First Mode Start EASY / HARD (EASY)
4 JEDI Battle Timer 30-90 seconds (60)
5 JEDI Battle Balls in
Play
3-4 (4)
6Standup Difculty EASY / MEDIUM /
HARD (EASY)
7Modes Difculty EASY / MEDIUM /
HARD (MEDIUM)
8 R2-D2 Multiball EASY / HARD (EASY)
9 Main Multiball Target
Completions
1-5 (3)
10 Destroy Death Star
Timer
10-45 seconds (25)
11 TIE Fighter Hurry-ups 1-5 (2)
12 R2-D2 Multiball
Champion
250,000
13 R2-D2 Champion
Award
CREDIT
14 R2-D2 Champion
Awards
0-3 (0)
15 Death Star Multiball
Champion
300,000
16 Death Star Champion
Award
CREDIT
17 Death Star Champion
Awards
0-3 (0)
18 TIE Figher Multiball
Champion
100,000-2,000,000
(200,000)
19 TIE Fighter Multiball
Champion Award
CREDIT
20 TIE Fighter Multiball
Champion Awards
0-3 (0)
30 Custom Message ON
31 Knocker Volume LOW
32 Game Restart YES
33 Ball Save Time 0:08
34 Timed Plunger OFF
35 Flipper Ball Launch OFF
37 Player Competition NO
38 Time Format 12-Hour
39 Lost Ball Recovery YES
44 Backbox to Cabinet Speaker
Balance
30
45 Backbox Speaker Type 0
46 Cabinet Speaker Type 0
47 Master Volume Max Setting 64
48 Master Volume Min Setting 0
49 Headphones Volume Max Setting 63
50 Headphones Volume Min Setting 0
51 GI LED Brightness 100%
52 GI LED Max Brightness 255
53 Insert LED Brightness 100%
54 Insert LED Max Brightness 255
55 Flasher LED Brightness 100%
56 Flasher LED Max Brightness 255
57 Attract Mode Backbox Brightness 100%
58 Game Play Backbox Brightness 100%
21 JEDI Multiball
Champion
500,000-1,500,000
(500,000)
22 JEDI Multiball Award CREDIT
23 JEDI Multiball Awards 0-3 (0)
24 Combo Champion 2-20 (2)
25 Combo Champion
Award
CREDIT
26 Combo Champion
Awards
0-3 (0)
27 Bonus Champion 100,000-1,000,000
(100,000)
28 Bonus Champion
Award
CREDIT
29 Bonus Champion
Awards
0-3 (0)
30 Bottom Lanes EASY / HARD (EASY)
31 Play Music In Attract
Mode
NO / YES (NO)
32 Play Audio In Attract
Clips
NO / YES (NO)
33 Slingshot Power 16-64 (32)
34 Disable Drop Targets NO / YES (NO)
35 Disable Control Gates NO / YES (NO)
36 Left Flipper Power EASY / MEDIUM /
HARD (HARD)
37 Right Flipper Power EASY / MEDIUM /
HARD (HARD)
38 Ball Launch Power 128-255 (240)
39 Drop Targets Reset
Power
192-255 (222)
40 Trough Eject Power 176-255 (192)

13
PLAYFIELD & CABINET ELECTRICAL
BACKBOX
CPU NODE 0
CN22
CN5
CN2
CN3
CN3
CN1
CN4
CN1
755-7512-L8
When replacing node boards,
ensure DIP address switches
are set correctly!
PLAYFIELD FRONT
Node Bus Cable (RJ45)
604-5004-08-XX
Serial Data Cable
036-8054-XX
NODE BOARD ID INSTRUCTION SHEET
NODE 0
NODE 8a
NODE 8
NODE 8b
NODE 8c
PLAYFIELD REAR
PIN
MODEL
© & ™ Lucasfilm Ltd.
ID DIP Address Description Location Part Number
Node 0 n/a Spike 2 CPU Node Backbox 509-1003-01
Node 8 n/a Playeld 48V Core-Driver Node Playeld 520-7017-72
8a n/a Serial LED board - PLFD-Lower Playeld 520-7008-00
8b n/a Serial 16 LED board Playeld 520-6831-01
8c n/a Trough Serial Opto Receiver Extension Playeld 520-7001-00
ID DIP Address Description Location Part Number
Node 0 n/a Spike 2 CPU Node Backbox 509-1003-01
Node 8 n/a Playeld 48V Core-Driver Node Playeld 520-7017-72
8a n/a Serial LED board - Playeld-Lower Playeld 520-7008-00
8b n/a Serial 16 LED Board Playeld 520-6831-01
8c n/a Trough Serial Opto Receiver Extension Playeld 520-7001-00
ID Name Node Connector Ret.
Pin
Ret.
Wire
Voltage V+
Pin
V+
Color
Location Type Address Part Number
1 Trough 8 CN8 7 ORG
GRY
48V 3/4 GRY
ORG
Playeld Coil - 27-
1500
8-DR-1 090-5004-ND
2 Auto Plunger 8 CN8 9 ORG
WHT
48V 3/4 GRY
ORG
Playeld Coil - 24-
940
8-DR-4 090-5036-ND
3 Left Flipper
Power
8 CN8 6 ORG
YEL
48V 2 GRY
ORG
Playeld Coil - 23-
900
8-DR-5 090-5020-30-ND
4 Right Flipper
Power
8 CN8 5 ORG
GRN
48V 1 GRY
ORG
Playeld Coil - 23-
900
8-DR-0 090-5020-30-ND
5 Left/Right
Slingshot
8 CN7 4 ORG
BLU
48V 1 GRY
ORG
Playeld Coil - 26-
1200
8-DR-7 090-5044-ND
6
7 Left/Right Pop
Bumper
8 CN7 3 ORG
BLK
48V 1 GRY
ORG
Playeld Coil - 26-
1200
8-DR-6 090-5044-ND
8 Bottom Pop
Bumper
8 CN7 2 ORG
RED
48V 1 GRY
ORG
Playeld Coil - 26-
1200
8-DR-8 090-5044-ND
9 3-Bank Drop
Reset
8 CN8 11 ORG
BRN
48V 3/4 GRY
ORG
Playeld Coil - 25-
1240
8-DR-3 090-5034-ND
10 Left/Right
Control Gates
8 CN8 10 ORG
VIO
48V 3/4 GRY
ORG
Playeld Coil - 32-
1250
8-DR-2 090-5060-01-ND
NODE REFERENCE
DRIVER REFERENCE

14
Driver Location Map

15
SWITCH REFERENCE
ID Name Node Node
Ext
Conn. Input
Pin
Input
Wire
GND
Pin
Ground
Wire
Location Type Address Part Number
1 Shooter Lane
Opto
8 - CN10 2 GRY
WHT
7/8/9 BLK
GRN
Playeld Opto 8-SW-28 520-8115-00 tx
520-8116-00 rx
2 Left Outlane 8 - CN11 4 LGN
RED
11 BLK
ORG
Playeld Rollover 8-SW-17 500-9935-03
3 Left Return
Lane
8 - CN11 5 LGN
ORG
11 BLK
ORG
Playeld Rollover 8-SW-18 500-9935-03
4 Right Return
Lane
8 - CN11 6 LGN
YEL
11 BLK
ORG
Playeld Rollover 8-SW-19 500-9935-03
5 Right Outlane 8 - CN11 7 LGN
BLU
11 BLK
ORG
Playeld Rollover 8-SW-20 500-9935-03
6 Left Slingshot 8 - CN10 4 GRY
BLU
7/8/9 BLK
GRN
Playeld Leaf 8-SW-30 180-5231-00
7 Right Slingshot 8 - CN10 3 GRY
VIO
7/8/9 BLK
GRN
Playeld Leaf 8-SW-29 180-5231-00
8 L Flipper
Button
8 - CN9 4 GRY
BRN
7 BLK
GRN
Cabinet Leaf 8-SW-25 180-5160-01R
9 Left Flipper
EOS
8 - CN10 6 GRY
YEL
7/8/9 BLK
GRN
Playeld Leaf 8-SW-16 180-5149-00
10 R Flipper
Button
8 - CN9 3 GRY
RED
7 BLK
GRN
Cabinet Leaf 8-SW-24 180-5160-01R
11 Right Flipper
EOS
8 - CN10 5 GRY
GRN
7/8/9 BLK
GRN
Playeld Leaf 8-SW-31 180-5149-00
12
13
14
15
16 Trough 6 8 8c CN4 - - Playeld Opto 8-SW-40 520-5344-00 tx
520-7001-00 rx
17 Trough 5 8 8c CN4 - - Playeld Opto 8-SW-41 520-5344-00 tx
520-7001-00 rx
18 Trough 4 8 8c CN4 - - Playeld Opto 8-SW-42 520-5344-00 tx
520-7001-00 rx
19 Trough 3 8 8c CN4 - - Playeld Opto 8-SW-43 520-5344-00 tx
520-7001-00 rx
20 Trough 2 8 8c CN4 - - Playeld Opto 8-SW-44 520-5344-00 tx
520-7001-00 rx
21 Trough 1 8 8c CN4 - - Playeld Opto 8-SW-45 520-5344-00 tx
520-7001-00 rx
22 Trough Jam 8 8c CN4 - - Playeld Opto 8-SW-46 520-5344-00 tx
520-7001-00 rx
23
24 FORCE Target
Bottom
8 8a CN10 2 TAN
BLK
10 BLK
YEL
Playeld Leaf,
Target
8-SW-32 511-2777-00
25 FORCE Target
Top
8 8a CN10 3 TAN
RED
10 BLK
YEL
Playeld Leaf,
Target
8-SW-33 511-2777-00
26 Yoda Mystery
Target
8 8a CN10 4 TAN
ORG
10 BLK
YEL
Playeld Leaf,
Target
8-SW-34 515-9784-00-00
27
28
29
30
31 Left Luke Orbit 8 - CN13 5 PNK
ORG
10 BLK
BRN
Playeld Rollover 8-SW-3 500-9935-04
32 Hidden Target 8 - CN13 6 PNK
YEL
10 BLK
BRN
Playeld Leaf,
Target
8-SW-4 515-9783-00-00
33 Death Star
Target
8 - CN13 3 PNK
BRN
10 BLK
BRN
Playeld Leaf,
Target
8-SW-1 515-9784-00-01
34 Top Lane Left 8 - CN13 7 PNK
GRN
10 BLK
BRN
Playeld Rollover 8-SW-5 500-9935-03
35 Top Lane
Center
8 - CN13 8 PNK
BLU
10 BLK
BRN
Playeld Rollover 8-SW-6 500-9935-03
36 Top Lane Right 8 - CN13 9 PNK
VIO
10 BLK
BRN
Playeld Rollover 8-SW-7 500-9935-03
37 Left Pop
Bumper
8 - CN12 9 WHT
GRY
10 BLK
RED
Playeld Leaf 8-SW-15 180-5232-00
38 Bottom Pop
Bumper
8 - CN13 4 PNK
RED
10 BLK
BRN
Playeld Leaf 8-SW-2 180-5232-00

16
Switch Location Map

17
SWITCH REFERENCE CONTINUED
ID Name Node Node
Ext
Conn. Input
Pin
Input
Wire
GND
Pin
Ground
Wire
Location Type Address Part Number
39 Right Pop
Bumper
8 - CN13 2 PNK
BLK
10 BLK
BRN
Playeld Leaf 8-SW-0 180-5232-00
40 Han Ramp
Enter
8 - CN11 2 LGN
BLK
11/12 BLK
ORG
Playeld Rollover 8-SW-26 500-9935-03
41 Han Ramp Exit
Opto
8 - CN11 3 LGN
BRN
11/12 BLK
ORG
Playeld Opto 8-SW-27 520-8115-00 tx
520-8116-00 rx
42
43 3-Bank Drop
Tgt Left
8 - CN11 8 LGN
VIO
12 BLK
ORG
Playeld Opto 8-SW-21 520-5252-13
44 3-Bank Drop
Tgt Center
8 - CN11 9 LGN
GRY
12 BLK
ORG
Playeld Opto 8-SW-22 520-5252-13
45 3-Bank Drop
Tgt Right
8 - CN11 10 LGN
WHT
12 BLK
ORG
Playeld Opto 8-SW-23 520-5252-13
46
47 Center Target 8 - CN12 2 WHT
BRN
10 BLK
RED
Playeld Leaf,
Target
8-SW-8 515-9784-00-00
48 R2-D2 Lock 1 8 - CN12 3 WHT
RED
10 BLK
RED
Playeld Opto 8-SW-9 520-8115-00 tx
520-8116-00 rx
49 Leai Spinner
Opto
8 - CN12 4 WHT
ORG
10 BLK
RED
Playeld Opto 8-SW-10 520-8115-00 tx
520-8116-00 rx
50 Leia Orbit 8 - CN12 5 WHT
YEL
10 BLK
RED
Playeld Rollover 8-SW-11 500-9935-03
51 Right Luke
Orbit
8 - CN12 6 WHT
GRN
10 BLK
RED
Playeld Rollover 8-SW-12 500-9935-03
52 Right Ramp
Target
8 - CN12 7 WHT
BLU
10 BLK
RED
Playeld Leaf,
Target
8-SW-13 515-9784-00-01
53 R2-D2 Lock 2 8 - CN12 8 WHT
VIO
10 BLK
RED
Playeld Opto 8-SW-14 520-8115-00 tx
520-8116-00 rx
54
55
56 Start Button 8 8a CN10 5 GRY 10 BLK
YEL
Cabinet Micro 8-SW-35 500-2490-04-
LED
57
58 Tilt Pendulum 8 8a CN10 6 WHT 10 BLK
YEL
Cabinet Plumb
Bob
8-SW-36 516-0007-00
59
C1
C10 Service Plus 0 - CN25 3 LGN
VIO
6 BLK Coin
Door
0-SW-9 515-1963-00
C11 Service Minus 0 - CN25 2 LGN
BLU
6 BLK Coin
Door
0-SW-10 515-1963-00
C12 Service Back 0 - CN25 1 LGN
BLK
6 BLK Coin
Door
0-SW-11 515-1963-00
C17 Headphone
Detect
0 - - - - - - Coin
Door
0-SW-16 -
C18 Headphone Kit
Cable Detect
0 - CN3 5 BLK 4 BLK CPU
Node
0-SW-17 -
C19 Volume Encod-
er 1
0 - CN3 6 WHT 1 DRAIN CPU
Node
0-SW-18 -
C2
C20 Volume Encod-
er 2
0 - CN3 7 GRN 1 DRAIN CPU
Node
0-SW-19 -
C24 DC Sense 0 - CN7 4 GRY
RED
1 BLK - 0-SW-23 -
C3
C4
C5
C6
C7
C8
C9 Service Select 0 - CN25 4 LGN
GRY
6 BLK Coin
Door
0-SW-8 515-1963-00

18
LIGHT REFERENCE
ID Name Node Node
Ext.
Conn. Ret.
Pin
Ret.
Wire
Src.
Pin
Src.
Wire
Location Type Light
Color
Address Part Number
1 Left Outlane 8 - CN14 6 ORG
VIO
7/8 YEL Playeld Feature White 8-LP-3 520-5307-00
2 Left Return
Lane
8 - CN14 5 ORG
BLU
7/8 YEL Playeld Feature White 8-LP-4 520-5307-00
3 Right Return
Lane
8 - CN14 4 ORG
YEL
7/8 YEL Playeld Feature White 8-LP-5 520-5307-00
4 Right Out-
lane
8 - CN14 3 ORG 7/8 YEL Playeld Feature White 8-LP-6 520-5307-00
5 Shoot Again 8 - CN14 2 ORG
RED
7/8 YEL Playeld Feature White 8-LP-7 520-5307-00
6
7 Start 8 8b CN2 1 YEL
BLK
7/8 RED Cabinet Feature White 8-LP-70 500-2490-04-LED
8
9
10 HAN 8 8a - LED11 - - - Playeld Feature White 8-LP-18 520-7008-00
11 LEIA 8 8a - LED12 - - - Playeld Feature White 8-LP-19 520-7008-00
12 R2-D2 8 8a - LED13 - - - Playeld Feature White 8-LP-20 520-7008-00
13 LUKE 8 8a - LED14 - - - Playeld Feature White 8-LP-21 520-7008-00
14 Bonus 1 8 8a - LED1 - - - Playeld Feature White 8-LP-8 520-7008-00
15 Bonus 2 8 8a - LED2 - - - Playeld Feature White 8-LP-9 520-7008-00
16 Bonus 3 8 8a - LED3 - - - Playeld Feature White 8-LP-10 520-7008-00
17 Bonus 4 8 8a - LED4 - - - Playeld Feature White 8-LP-11 520-7008-00
18 Bonus 5 8 8a - LED5 - - - Playeld Feature White 8-LP-12 520-7008-00
19 Bonus 10 8 8a - LED6 - - - Playeld Feature White 8-LP-13 520-7008-00
20 Bonus 20 8 8a - LED7 - - - Playeld Feature White 8-LP-14 520-7008-00
21 Bonus 30 8 8a - LED8 - - - Playeld Feature White 8-LP-15 520-7008-00
22 Bonus 40 8 8a - LED9 - - - Playeld Feature White 8-LP-16 520-7008-00
23 Bonus ? 8 8a - LED10 - - - Playeld Feature White 8-LP-17 520-7008-00
24
25 2x 8 8a CN3 2 YEL
BRN
1 RED Playeld Feature White 8-LP-22 520-7011-00
26 3x 8 8a CN3 3 YEL
ORG
1 RED Playeld Feature White 8-LP-23 520-7011-00
27 Double
Scoring
8 8a CN3 4 YEL
GRN
1 RED Playeld Feature White 8-LP-24 520-7011-00
28 Jedi Multiball 8 8a CN3 5 ORG
GRY
1 RED Playeld Feature White 8-LP-25 520-5307-00
29
30 (F)ORCE 8 8a CN9 9 GRN
GRY
1 RED Playeld Feature White 8-LP-62 520-5307-00
31 F(O)RCE 8 8a CN9 10 GRN
WHT
1 RED Playeld Feature White 8-LP-63 520-5307-00
32 FO(R)CE 8 8a CN4 2 BRN
BLK
1 RED Playeld Feature White 8-LP-26 520-7011-00
33 FOR(C)E 8 8a CN4 3 BRN 1 RED Playeld Feature White 8-LP-27 520-7011-00
34 FORC(E) 8 8a CN4 4 BRN
RED
1 RED Playeld Feature White 8-LP-28 520-7011-00
35 Yoda Mys-
tery
8 8a CN9 8 GRN
VIO
1 RED Playeld Feature White 8-LP-61 520-5307-00
36
37 Left Luke
10K
8 8a CN4 5 BRN
ORG
1 RED Playeld Feature White 8-LP-29 520-7011-00
38 Left Luke
25K
8 8a CN4 6 BRN
YEL
1 RED Playeld Feature White 8-LP-30 520-7011-00
39 Left Luke
Arrow
8 8a CN4 7 BRN
GRN
1 RED Playeld Feature White 8-LP-31 520-7011-00
40
41 Left Han 10K 8 8a CN4 8 BRN
BLU
1 RED Playeld Feature White 8-LP-32 520-7011-00
42 Left Han 25K 8 8a CN4 9 BRN
VIO
1 RED Playeld Feature White 8-LP-33 520-7011-00
43 Left Han
Arrow
8 8a CN4 10 BRN
GRY
1 RED Playeld Feature White 8-LP-34 520-7011-00
44
45 3-Bank Drop
Tgt Left
8 8a CN7 4 BLU
ORG
1 RED Playeld Feature White 8-LP-44 520-7011-00

19
Light Location Map

20
LIGHT REFERENCE CONTINUED
ID Name Node Node
Ext.
Conn. Ret.
Pin
Ret.
Wire
Src.
Pin
Src.
Wire
Location Type Light
Color
Address Part Number
46 3-Bank Drop
Tgt Center
8 8a CN7 3 BLU
RED
1 RED Playeld Feature White 8-LP-43 520-7011-00
47 3-Bank Drop
Tgt Right
8 8a CN7 2 BLU
BRN
1 RED Playeld Feature White 8-LP-42 520-7011-00
48
49
50 R2-D2
Multiball
8 8a CN6 8 ORG
GRY
1 RED Playeld Feature White 8-LP-41 520-5307-00
51
52 Top Lane
Left
8 8a CN6 2 YEL
VIO
1 RED Playeld Feature White 8-LP-35 520-5307-00
53 Top Lane
Center
8 8a CN6 3 YEL
GRY
1 RED Playeld Feature White 8-LP-36 520-5307-00
54 Top Lane
Right
8 8a CN6 4 YEL
WHT
1 RED Playeld Feature White 8-LP-37 520-5307-00
55
56 R2-D2 Arrow 8 8a CN6 6 ORG
BRN
1 RED Playeld Feature White 8-LP-39 520-5307-00
57 Extra Ball 8 8a CN6 5 ORG
BLK
1 RED Playeld Feature White 8-LP-38 520-5307-00
58
59 Leia Spinner
10K
8 8a CN7 5 BLU
YEL
1 RED Playeld Feature White 8-LP-45 520-7011-00
60 Leia Spinner
25K
8 8a CN7 6 BLU
GRN
1 RED Playeld Feature White 8-LP-46 520-7011-00
61 Leia Spinner
Arrow
8 8a CN7 7 BLU 1 RED Playeld Feature White 8-LP-47 520-7011-00
62
63 Right Ramp
Arrow
8 8a CN7 8 BLU
VIO
1 RED Playeld Feature White 8-LP-48 520-7011-00
64 TIE Fighter
Multiball
8 8a CN7 9 BLU
GRY
1 RED Playeld Feature White 8-LP-49 520-7011-00
65 TIE Fighter
Hurry Up
8 8a CN7 10 BLU
WHT
1 RED Playeld Feature White 8-LP-50 520-7011-00
66
67 Leia 10K 8 8a CN9 2 GRN
BRN
1 RED Playeld Feature White 8-LP-55 520-7011-00
68 Leia 25K 8 8a CN9 3 GRN
RED
1 RED Playeld Feature White 8-LP-56 520-7011-00
69 Leia Arrow 8 8a CN9 4 GRN
ORG
1 RED Playeld Feature White 8-LP-57 520-7011-00
70
71 Right Luke
Arrow
8 8a CN9 5 GRN
YEL
1 RED Playeld Feature White 8-LP-58 520-7011-00
72 Right Luke
25K
8 8a CN9 6 GRN 1 RED Playeld Feature White 8-LP-59 520-7011-00
73 Right Luke
10K
8 8a CN9 7 GRN
BLU
1 RED Playeld Feature White 8-LP-60 520-7011-00
74
75
76
77 Ramp 1 8 8b CN2 7 YEL
GRY
8/9 RED Playeld Feature White 8-LP-64 520-7011-00
78 Ramp 2 8 8b CN2 6 YEL
BLU
8/9 RED Playeld Feature White 8-LP-65 520-7011-00
79 Ramp 3 8 8b CN2 5 YEL
GRN
8/9 RED Playeld Feature White 8-LP-66 520-7011-00
80 Ramp 4 8 8b CN2 4 YEL
ORG
8/9 RED Playeld Feature White 8-LP-67 520-7011-00
81 Ramp 5 8 8b CN2 3 YEL
RED
8/9 RED Playeld Feature White 8-LP-68 520-7011-00
82 Ramp 6 8 8b CN2 2 YEL
BRN
8/9 RED Playeld Feature White 8-LP-69 520-7011-00
83 Death Star
(X2)
8 8a CN8 2 GRN
BLK
1 RED Playeld Feature Green 8-LP-51 520-5333-00
84
