STIEBEL ELTRON GALAXY 1 Instruction Manual

OPERATION AND INSTALLATION
AUTOMATIC HAND DRYER
»GALAXY
™1
»GALAXY
™M1
»GALAXY
™2
»GALAXY
™M2
Certified to ANSI/UL Std. 499
Conforms to CAN/CSA Std. 22.2 No. 36

2 | GALAXY™AUTOMATIC HAND DRYERS WWW.STIEBEL-ELTRON-USA.COM
GENERAL INFORMATION
1. General Information ____________________________________________________________ 2
1.1 Safety instructions_______________________________________________________________________3
2. Safety ____________________________________________________________________________ 4
2.1 Intended use______________________________________________________________________________4
3. Register your product __________________________________________________________ 6
4. Appliance description __________________________________________________________ 6
5. Cleaning, care and maintenance_______________________________________________ 7
6. Safety ____________________________________________________________________________ 7
6.1 General safety instructions ____________________________________________________________7
7. Minimum clearances____________________________________________________________ 7
8. Preparation______________________________________________________________________ 9
9. Wall mounting__________________________________________________________________ 10
10. Electrical installation __________________________________________________________ 11
11. Specification____________________________________________________________________ 12
11.1 Dimensions______________________________________________________________________________ 12
11.2 Technical data __________________________________________________________________________ 13
12. Warranty _______________________________________________________________________ 14
OPERATION
1. General Information
This manual must be read carefully before attempting to install the Galaxy™ automatic
hand dryer. If you do not follow the safety rules or the instructions outlined in this
manual, the unit may not operate properly and it could cause property damage,
serious bodily injury and/or death.
Stiebel eltron, Inc. Will not be liable for any damages because of failure to comply
with the installation and operating instructions outlined in this manual or because
of improper use. Failure to comply with the installation and operating instructions
or improper use voids the warranty.
Never remove the unit’s cover unless the electricity is turned off. Make sure that air
inlet and air exit grills are always kept free of obstructions to ensure proper air flow.
If you have any questions regarding the installation or operation of this hand dryer
or if you need a copy of the installation instructions please call our technical service
line at 800.582.8423.

ENGLISH
WWW.STIEBEL-ELTRON-USA.COM GALAXY™AUTOMATIC HAND DRYERS | 3
GENERAL INFORMATION
NOTE:
Read these instructions carefully before using the appliance and keep
them for future reference. Pass on the instructions to a new user if
required.
1.1 Safety instructions
1.1.1 Structure of safety instructions
!KEYWORD: Type of risk
Here, possible consequences are listed that may result from failure to
observe the safety instructions.
f Steps to prevent the risk are listed.
1.1.2 Symbols, type of risk
Symbol Type of risk
!Injury
Electrocution
Burns
Symbol Meaning
!Material losses - damage to the unit and/
or installtion site
Appliance disposal
fThis symbol indicates that you have to do something. The action you need to
take is described step by step.

4 | GALAXY™AUTOMATIC HAND DRYERS WWW.STIEBEL-ELTRON-USA.COM
SAFETY
2. Safety
2.1 Intended use
The appliance is intended for drying hands.
This appliance is intended for domestic use. It can be used safely by untrained
persons. The appliance can also be used in a non-domestic environment, e.g. in a
commercial setting, as long as it is used in the same way.
Any other use beyond that described shall be deemed inappropriate.
Observation of these instructions and of instructions for any accessories used is also
part of the correct use of this appliance.
!Please read and follow these instructions. Failure to follow these
instructions could result in serious bodily injury or death.
There are no user-servicable parts. Service of the unit must be
performed by qualified service technicians.
!WARNING:
to reduce the risk of fire, electric shock, or injury to persons, observe the
following:
f Use the unit only in the manner intended by the manufacturer. If you
have questions, contact the manufacturer.
f Before servicing or cleaning the unit, switch power off at service
panel and lock the service disconnecting means to prevent
power from being switched on accidentally. When the means
of disconnecting the service cannot be locked, securely fasten a
prominent warning device, such as a tag, to the service panel.
!WARNING:
To reduce the risk of fire, or electric shock, do not use this hand dryer
with any solid state speed control device.
DANGER: Electrocution
The following instructions must be observed:
f Before proceeding with any installation, adjustment, alteration,
or service of this unit all circuit breakers and disconnect switches
servicing the unit must be turned off.
f Never remove the unit’s cover unless the electricity servicing the
unit is turned off.
f The unit must be properly grounded.
Failure to do so could result in serious personal injury or death.

ENGLISH
WWW.STIEBEL-ELTRON-USA.COM GALAXY™AUTOMATIC HAND DRYERS | 5
SAFETY
!WARNING: Injury
Where children or persons with limited physical, sensory or mental
capabilities are allowed to control this appliance, ensure that this will
only happen under supervision or after appropriate instructions by a
person responsible for their safety. Children must be supervised to
ensure that they never play with the appliance.
!WARNING: Fire
Never operate this appliance...
-if the minimum clearances to adjacent object surfaces are not
maintained, for example to furniture, net curtains, curtains, textiles
or other flammable materials (for minimum clearances, see specifi
cation/ dimensions chapter).
-in rooms where the appliance is at risk from fire or explosion as a
result of chemicals, dust, gases or vapors.
-in the direct proximity of pipes or containers that carry or contain
flammable or explosive materials.
-if work such as laying cables, grinding or sealing is carried out in the
installation room.
-if sprays, floor polish or similar products containing petroleum are
used. Vent the room sufficiently before using unit.
-if an appliance component is damaged, the appliance has fallen over,
or already had a fault.

6 | GALAXY™AUTOMATIC HAND DRYERS WWW.STIEBEL-ELTRON-USA.COM
REGISTER YOUR PRODUCT
3. Register your product
You must register this product within 90 days of purchase on our
website in order to activate the standard warranty or to be eligible for
the extended warranty. Go to our web site at
www.stiebel-eltron-usa.com and click on register your product.
Before beginning the registration process, we suggest that you gather the
necessary information which will be as follows:
Type, Example: Galaxy 1 (from the white label that is on the side of the unit)
Number listed after “Nr.”
Place of Purchase
Purchase Date
First & Last Name
Email address
Physical Address
Phone Number
If you have any questions concerning the registration process or warranty op-
tions, please contact stiebel eltron usa directly at 800.582.8423.
4. Appliance description
In order to dry your hands most efficiently, please use the following procedure:
fShake off excess water over the wash basin
fPlace hands underneath the unit at a distance of 4˝–7˝
fRub your hands together as if you were washing them
Your hands will be dry within 25– 35 seconds.
The Stiebel Eltron Galaxy™series hand dryers are equipped with an infrared sensor
switch. This sensor will activate the unit when hands are placed underneath it.
Approximately 7 seconds after the hands have been removed, the unit will
automatically shut off.
The sensor is the black rectangle located underneath the unit between the air exit
and air inlet grills. The sensor switch will not work properly if it has been covered by
gum or dirt. If the sensor is obstructed, the hand dryer will switch off automatically
to prevent it from running continuously. Should the unit overheat, a safety high-
limit switch will turn off the heating element. The safety high-limit switch resets
automatically once the heating element cools down.

ENGLISH
WWW.STIEBEL-ELTRON-USA.COM GALAXY™AUTOMATIC HAND DRYERS | 7
CLEANING, CARE AND MAINTENANCE
5. Cleaning, care and maintenance
!MATERIAL LOSSES:
The Galaxy™hand dryer does not contain any parts serviceable by non-
licensed people. In case of malfuntion please contact a licensed
electrician.
To clean the case use a soft cloth with a mild detergent if necessary. Never use any
abrasive cleaners since they will scratch the finish of the unit. Never spray water or
cleaning fluids directly on hand dryer. While cleaning the unit, make sure the electric
eye switch is not covered.
INSTALLATION
6. Safety
DANGER: Electrocution
Before beginning any work on the electric installation, be sure the main
breaker panel switch is “off” to avoid any danger of electric shock.
NOTE:
The circuit should be equipped with a “ground fault interrupter” where
required by local, state or national electrical codes. All electrical work
must comply with national and applicable state and local electrical
codes.
Only a qualified technician should carry out installation, commissioning, maintenance
and repair of the appliance.
6.1 General safety instructions
We guarantee trouble-free function and operational reliability only if original
accessories and spare parts intended for the appliance are used and if the installation
is performed as described in this manual.
7. Minimum clearances
DANGER: Electrocution
Do not install unit where it can accidentally be splashed with water.
Observe all minimum clearance requirements. Failure to do so could
result in serious personal injury or death.
Do not install the hand dryer in danger zones 0, 1, or 2. Doing so may allow the unit
to be splashed with water which could result in serious personal injury or death.

8 | GALAXY™AUTOMATIC HAND DRYERS WWW.STIEBEL-ELTRON-USA.COM
MINIMUM CLEARANCES
24”
(600
mm
)
24”
(600
mm
)
89”
118”
(3000
mm
)
(2250
mm
)
1
2
30

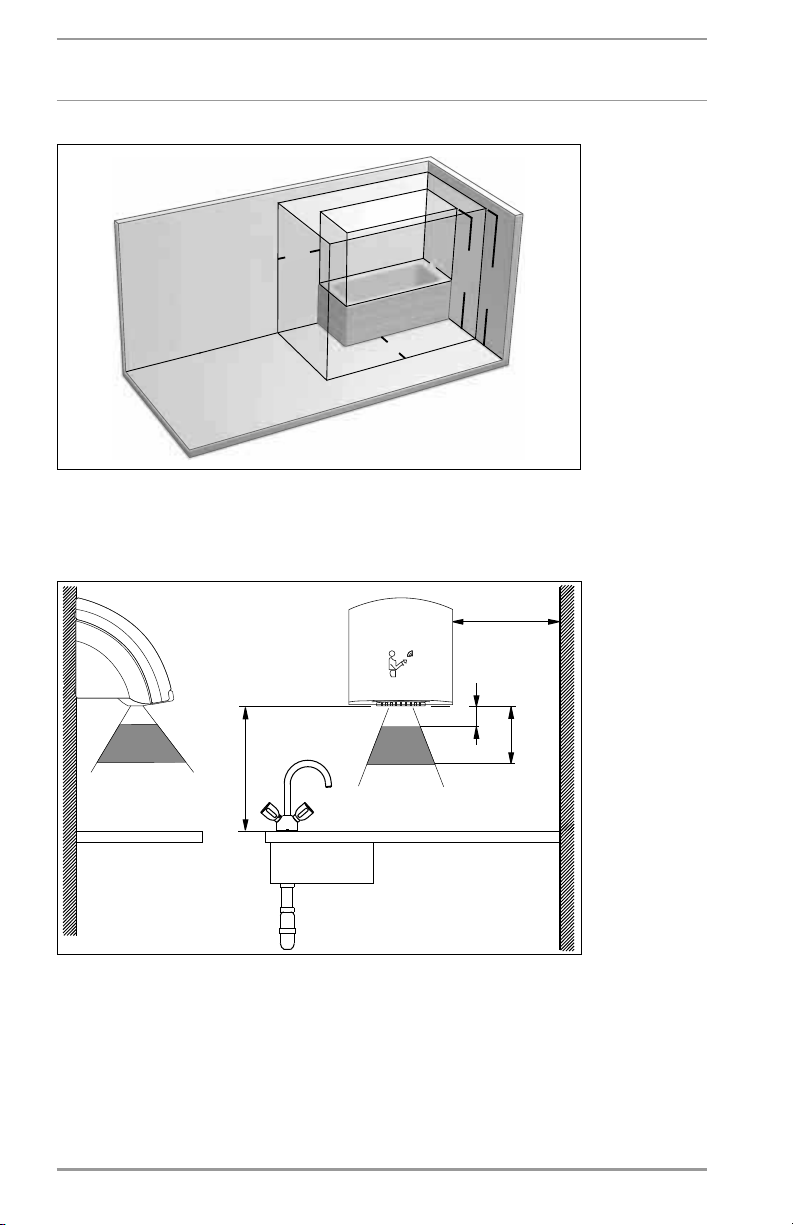

0 Danger zone: do not install unit in bathtubs showers, or wash basins.
1 Danger zone: do not install directly above bathtubs or showers.
2 Danger zone: do not install within 24˝ (600 mm) of bathtubs or showers
3 Safe area: unit must be installed in this area, outside of danger zones 2, 1 and
0.
5 Ý (127 mm)
12
Ý (PP)
min 4ÝPP
1½
Ý PP
fBefore mounting the unit to the wall, ensure all minimum distances are met for
safety and performance considerations.
fThe unit must be installed at least 4˝ (102 mm) from perpendicular walls.
fThe unit must be installed at least 12˝ (305 mm) above countertops to avoid
splashing the unit.
fEnsure the air outlet is not obstructed

ENGLISH
WWW.STIEBEL-ELTRON-USA.COM GALAXY™AUTOMATIC HAND DRYERS | 9
PREPARATION
min 4Ý(102 mm)
48Ý(1219 mm)
Mount the hand dryer at least 48˝ (1219 mm) above the floor.
8. Preparation
The Galaxy™hand dryer must have its own independent circuit using 3 wire cable
of the appropriate size protected by a correctly rated double-pole circuit breaker.
The Galaxy™1 unit for 110– 120 V requires a 20 A circuit breaker and AWG 12 copper
wire. The Galaxy™2 unit for 220 –240V or 208 V requires a 15 A circuit breaker and
AWG 12 copper wire.
fTransfer the four mounting points to the wall and trace the electrical wiring
entry point using the enclosed drilling template.
fFeed the electrical wiring through the entry point traced with the template.
fRemove the two screws at the air outlet grill and the screw on the locking slide.

10 | GALAXY™AUTOMATIC HAND DRYERS WWW.STIEBEL-ELTRON-USA.COM
WALL MOUNTING
fPull down the locking slide and remove the front cover.
fCut a hole in the back housing and install a ½˝ strain relief connector for the
electric cable. Tighten the strain connector onto the cable.
9. Wall mounting
fDrill the mounting holes in the wall. Use anchors for securing into drywall or
tile. Anchoring to studs is preferred, but not required.
lone fürMonta
1
fSecure the unit into the pre-drilled holes.

ENGLISH
WWW.STIEBEL-ELTRON-USA.COM GALAXY™AUTOMATIC HAND DRYERS | 11
ELECTRICAL INSTALLATION
10. Electrical installation
fConnect the wires to the terminal block connections.
1
2
3
1M
~
N/L L
GND
N/L
L
GND
208—240V/60Hz
110—120V/60Hz
1 Fan motor
2 Heating element
3 Sensor
fReinstall the front cover. Push up the locking slide and reinstall the three
screws that were removed.

12 | GALAXY™AUTOMATIC HAND DRYERS WWW.STIEBEL-ELTRON-USA.COM
SPECIFICATION
11. Specification
11.1 Dimensions
Galaxy™1 & Galaxy™2
9
7
/
8
Ý(250 mm)
9
1
/
16
Ý(230 mm)
6
7
/
8
Ý(175 mm)
6
7
/
8
Ý(175 mm)
Galaxy™M1 & Galaxy™M2
electronic
9
1
/
16
Ý(230 mm)
6
7
/
8
Ý(175 mm)
6
7
/
8
Ý(175 mm)
10òÝ (266 mm)

ENGLISH
WWW.STIEBEL-ELTRON-USA.COM GALAXY™AUTOMATIC HAND DRYERS | 13
SPECIFICATION
11.2 Technical data
Galaxy™1 Galaxy™M1
Part number 073009 073724
Electrical data
Phase 60/50 Hz - single
Voltage 120 V
Wattage 1850 W 1850 W
Amperage 15.42 A 15.42 A
Required circuit breaker120 A
Required wire size212 AWG
Other
Height 913/16(250 mm) 10½(266 mm)
Width 67/8
(175 mm)
Depth 91/16 (230 mm)
Weight 5.5 lb (2.5 kg) 8.8 lb (4.0 kg)
Color Alpine white Alpine white, charcoal gray, silver
Housing ABS polycarbonate Cast aluminum
Sound level 53 dB(A) 53 dB(A)
Air volume 90.0 cfm
Drying time 30 seconds
Galaxy™2 Galaxy™M2
Part number 073010 073725
Electrical data
Phase 60/50 Hz - single
Voltage 240 V 208 V 240 V 208 V
Wattage 2000 W 1500 W 2000 W 1500 W
Amperage 8.34 A 7.21 A 8.34 A 7.21 A
Required circuit breaker115 A 15 A
Required wire size212 AWG
Other
Height 913/16(250 mm) 10½(266 mm)
Width 67/8
(175 mm)
Depth 91/16(230 mm)
Weight 5.5 lb (2.5 kg) 8.8 lb (4.0 kg)
Color Alpine white Alpine white, charcoal gray, silver
Housing ABS polycarbonate Cast aluminum
Sound level 53 dB(A) 53 dB(A)
Air volume 95.0 cfm
Drying time 30 seconds
1This is our recommendation for overcurrent protection sized at 100% of load.
Check local codes for compliance if necessary.
2Copper must be used. Conductors should be sized to maintain a voltage drop of less than 3%
under load.

14 | GALAXY™AUTOMATIC HAND DRYERS WWW.STIEBEL-ELTRON-USA.COM
WARRANTY | ENVIRONMENT AND RECYCLINGV
WARRANTY
Residential & Commercial Warranty: Stiebel Eltron, Inc. warrants to the origi-
nal owner that the Galaxy™touchless automatic hand dryer will be free from
defects in workmanship and materials for a period of five (5) years from the
date of purchase. Should the part(s) prove to be defective under normal use
during this period, stiebel eltron, inc. will be responsible for replacement
of the defective part(s) only. Stiebel Eltron, Inc. is not responsible for labor
charges to remove and/or replace the defective part(s), or any incidential or
consequential expenses.
Should the owner wish to return the hand dryer for repair, the owner must
first secure written authorization from Stiebel Eltron, Inc. The owner shall be
required to show proof of purchase date, and to pay all transportation costs to
return the defective part(s) or hand dryer for repair or replacement. Warranty
is void if water heater has been installed or used improperly or if design has
been altered in any way.
WARRANTY
This warranty is valid for U.S.A. & Canada only.
Warranties may vary by country. Please consult
your local Stiebel Eltron representative for the
warranty for your country.
Environment and recycling
Please help us to protect the environment by
disposing of the packaging in accordance with
the national regulations for waste processing.
12. Warranty

ENGLISH
WWW.STIEBEL-ELTRON-USA.COM GALAXY™AUTOMATIC HAND DRYERS | 15
NOTES

дȟ дȟ
ƆϭЪȟ
½ȟ
3 ¾ȟ
ƆϵϯϮȟ
ĂůůŵŽƵŶƟŶŐŚŽůĞƐ
6 иȟ
7 ¼ȟ
6 ½ȟ
TĞŵƉlatĞmay notƉrint at
ĐŽƌƌĞĐƚƐŝnjĞŚĞĐŬůŽĐĂƟŽŶ
ŽĨŵŽƵŶƟŶŐŚŽůĞƐĂŐĂŝŶƐƚ
ŵĞĂƐƵƌĞŵĞŶƚƐbefore
ĚƌŝůůŝŶŐŚŽůĞƐ
Drilling template for mounting Galaxy™hand dryer

United States of America
STIEBEL ELTRON, Inc.
17 West Street | West Hatfield MA 01088
Tel. [phone] | Fax [phone]
[email protected]
www.stiebel-eltron-usa.com
328505-40039-9245
