STIEBEL ELTRON ULTRONIC 1 S Specification sheet

OPERATION AND INSTALLATION MANUAL
GUIA DE OPERACION E INSTALACION
MODE D'EMPLOI ET MANUEL D'INSTALLATION
TOUCHLESS AUTOMATIC HIGH-SPEED HAND DRYERS
SECADORES DE MANO DE ALTAVELOCIDAD SIN CONTACTO
SECHOIRS DE MAIN SANS CONTACT AUTOMATIQUES ET ULTRA RAPIDES
» ULTRONIC"" 1 S
)> ULTRONir 1W
» ULTRONIC™ 2 S
» ULTRONIC'" 2 W
Intertek
STIEBEL ELTRON,Inc.
17 WestStreet 1 West Hatfield, MA 01088
Tel. 413-2W-33BO 1 Fax A13-247-3369
Email [email protected]m
www.stiebel-eltron-usa.com
STIEBEl ELTRON
Simply the Best

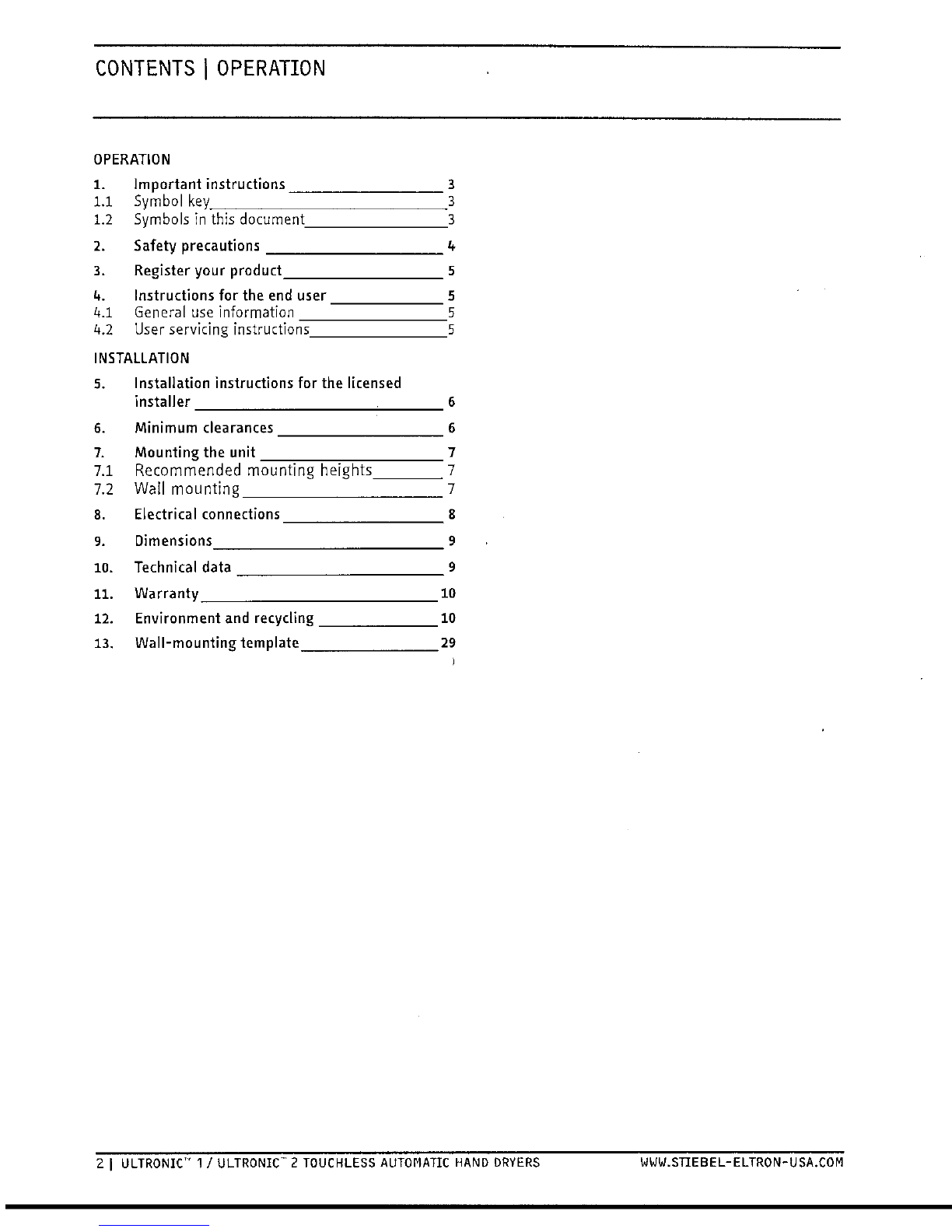

CONTENTS 1 OPERATION
OPERATION
1. Important instructions
1.1
1.2
2.
3.
it.
4.1
4.2
Symbol key
Symbols in thisdocument
Safety precautions
Register your product
Instructions fortheend user
General use information
User servicing instructions
INSTALLATION
5. Installation instructions forthe licensed
installer
6.
7.
7.1
7.2
8.
9.
10.
11.
12.
13.
Minimum clearances
Mounting the unit
Recommended mounting heights
Wail mounting
Electricalconnections
Dimensions
Technicaldata
Warranty
Environment and recycling
Wall-mounting template
3
3
3
^
5
5
5
5
6
6
7
7
7
8
9
9
10
10
29
2| ULTRONIC" 1 / ULTRONIC"" 2 TOUCHLESS AUTOMATICHAND DRYERS WWW.SnEBEL-ELTRON-USA.COM

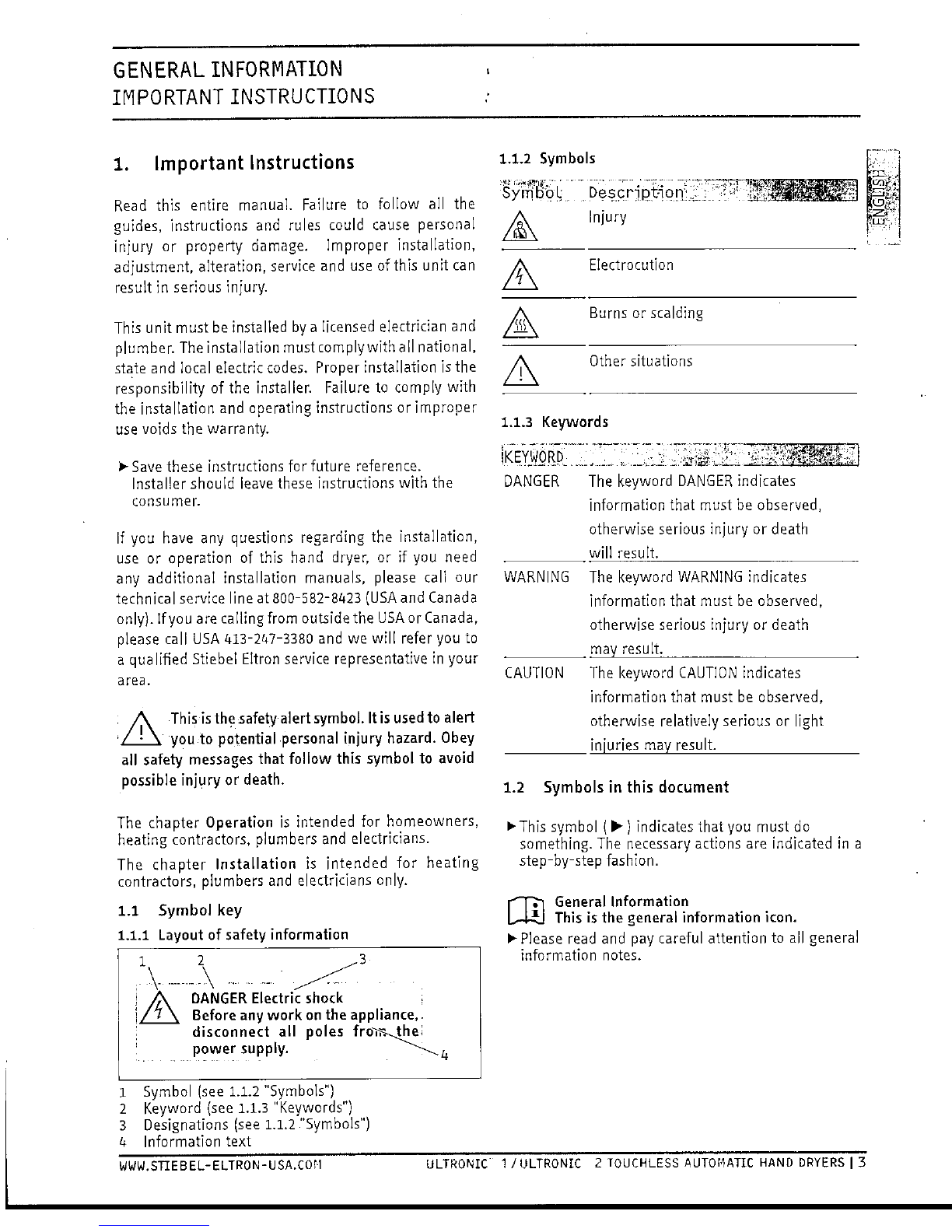

GENERAL INFORMATION
IMPORTANT INSTRUCTIONS
1. ImportantInstructions
Read this entiremanual. Failure to follow all the
guides,instructions and rulescouldcausepersonal
injury or propertydamage.Improper installation,
adjustment, alteration, service anduseof this unit can
result in serious injury.
This unit must be installed by a licensedelectrician and
plumber. The installationmustcomply with all national,
state and localelectriccodes.Proper installation isthe
responsibility ofthe installer.Failure to comply with
the installation and operatinginstructions or improper
use voids the warranty.
> Savetheseinstructions for future reference.
Installer shouldleavethese instructions with the
consumer.
If you have any questionsregarding the installation,
use or operation of this hand dryer, orifyou need
any additional installationmanuals, please call our
technical serviceline at 800-582-8423 (USA and Canada
only). If youare calling from outside the USA or Canada,
please call USA 413-247-3380 andwe will refer youto
a qualified Stiebel Eltron servicerepresentative in your
area.
A
This isthe safetyalert symbol. It is used to alert
you to potential personal injury hazard.Obey
all safetymessagesthatfollowthissymbol to avoid
possible injury or death.
The chapterOperation is intended for homeowners,
heating contractors,plumbers and electricians.
The chapterInstallation is intended for heating
contractors,plumbers and electriciansonly.
1.1 Symbol key
1.1.1Layout of safety information
DANGER Electricshock
Before any work onthe appliance,.
disconnect all poles
powersupply.
1 Symbol(see1.1.2"Symbols")
2 Keyword(see1.1.3"Keywords")
3 Designations(see1.1.2"Symbols")
k Information text
1.1.2Symbols
SyrrjDbl
Injury
Electrocution
Burns or scalding
A
Othersituations
1.1.3Keywords
iKETO^;'i;r;;IS
DANGER The keyword DANGER indicates
information that must be observed,
otherwiseseriousinjury or death
_ _ will result. _
WARNING The keywordWARNINGindicates
information that must be observed,
otherwiseserious injury or death
. _ may result _ _
CAUTION The keyword CAUTION indicates
information that must be observed,
otherwiserelativelyserious or light
_ injuries may result. _
1.2 Symbols in this document
is symbol (^J indicates that you must do
something. The necessaryactions are indicated ina
step-by-stepfashion.
General Information
11 This isthe generalinformationicon.
Please read andpay careful attention toall general
informationnotes.
WWW.STIEBEL-ELTRON-USA.COM
ULTRONIC' 1 /ULTRONIC 2 TOUCHLESS AUTOMATIC HAND DRYERS | 3

GENERAL INFORMATION
SAFETY PRECAUTIONS
2. Safety precautions
A
Please read and follow these instructions.
Failure.to follow theseinstructionscould
'result in seriousbodily injury or death.
There areno user-servicable parts. Service of
lthe.un.it must be performed by qualified service
(technicians'.
'WARNING - TO REDUCE THE RISK OF FIRE, ELECTRIC
'SHOCK, OR IN'jURY TO PERSONS,OBSERVE THE
FOLLOWING:
a) Usethe unit only inthe mannerintended bythe
manufacturer. If you have questions, contact the
manufacturer.
b) Beforeservicing or cleaning the unit, switch
power offat servicepanel and lock the service
I disconnecting means'tp^revent power from
'ibeine.'switched on-,accidenfa!ly,~When the service
j • *>/'•. - Y-"»-;> r^:; ',"-.3?•'•"'•?^H^/'- '. . ,. •„' "',
'.disconnectin&'rheans cannot be locked,securely
• • ••3';. •",•• *..- ".•'?•? • '
fasten a prominent warning device,such asa tag, to
the servicepanel.
A
WARNING
To reduce the risk offire,or electricshock,
do notuse this handdryer with any solid state
[;speed controldevice.
DANGER Electrocution
Beforeproceeding with any installation,
iadjustment, alteration, or service of this unit all
circuit breakers and disconnectswitches servicing
;the unit must be turned off. Failure to do-so could
i result in seriousr'perso.naljnjury or death.
DANGER Electrocution
Never remove the unit's coverunless the
electricity servicing'the unit is turned off. Failure
todoso couldresult in seriouspersonal injury or
; death.
^,x DANGER Electrocution: The unit must be ;
J-\y grounded.Failure to electrically ;
ground the productcouldresult in seriouspersonal
injury or death.
WARNING Injury
Wherechildren or persons with limited j
physical,sensory or mental capabilitjes;are-ajlj3we:d j
to control this appliance, ensure.thatthisM/ill only
happen undersupervision or after appropriate in-
structions bya personresponsible for their safety.
Children must be supervised to ensure that they
neverplay with the appliance.
WARNING Fire
Neveroperate this appliance ...
-ifthe minimum clearances to adjacentobjectsur-
faces arenot maintained, for example.to furniture,
net curtains, curtains, textjles,or other flamrnable
materials (for minimum clearances, see specificaV [
tion/dimensions chapter). t
• i
-in roomswhere the appliance isat risk, from "fire". J
or explosion asa result of chemicals, dust, gases or
vapors.
-in the direct proximity of pipes or containers that
carry or contain'flammable or explosive materials.
-if work such as laying cables, grinding or sealing is •
carried outinthe installationroom.
-if sprays, floor polish or similar productscontain-
ing petroleum are used. Vent the room sufficiently
beforeusing unit.
-ifan appliance component is damaged, the-app!;-. ',
ance has fallen over or already hada fault.
ULTRONIC'" 1 / ULTRONIC" 2 TOUCHLESS AUTOMATIC HAND DRYERS WWW.STIEBEL-ELTRON-USA.COM

GENERAL INFORMATION
REGISTER YOURPRODUCT
OPERATION
INSTRUCTIONS FOR THEEND USER
3. Registeryourproduct
You must register this product within 90
11 days of purchase onour website in order to
activate the standard warranty or tobe eligible for
the extended warranty. Gotoourweb site at:
www.stiebel-eltron-usa.com and click on register
your product.
Beforebeginning the registration process, we
suggest that you gather the necessary information
which will beas follows:
Type,Example:Ultronic 1 S (from the black label that
is onthe bottom ofthe unit)
Number listed after "Nr."
Place of Purchase
Purchase Date
First & LastName
Emailaddress
Physical Address
Phone Number
IF YOU HAVE ANY QUESTIONS CONCERNING THE
REGISTRATION PROCESS OR WARRANTY OPTIONS,
PLEASE CONTACT STIEBEL ELTRON USA DIRECTLY AT
{800)-582-8<f23.
Limited liability warranty:
Stiebel Eltron,Inc. isnot liable for damages tothe unit,
damage to personalproperty,bodily injury, or loss of
life duetothe followingconditions:
- Non-observance of theseinstructions
- Incorrect use
- Installation ofthe appliance by unqualifiedpersonnel
- Unauthorizedmodifications
- Technicalmodifications
-Useof unauthorized spare parts
k. Instructions fortheend user
4.1 General use information
In order todry yourhandsmostefficiently, please use
the following procedure:
> Shake off excess water over the washbasin
> Place handsunderneath the unit ata distance of
^" - 7"
^•Rub your hands together asifyou were washing
them
Your hands will bedryin approximately 15 seconds.
The StiebelEltronUltronicserieshanddryers are
equipped with an infrared sensor switch. Thissensor
will activate the unit when hands are placed underneath
it. Approximately 7 seconds after the handshavebeen
removed, the unit will automatically shut off.
The sensor isthe blackrectanglelocatedunderneath the
unit between theair exit andair inlet grills. The sensor
switch will not workproperly ifithas beencovered by
gumor dirt. Ifthe sensor is obstructed, the handdryer
will switch off automatically to prevent it from running
continuously.
4.2 User servicing instructions
A
The Ultronic hand dryer does not contain any
parts serviceable bythelay person. In case of
malfunction pleasecontact a licensed electrician.
CAUTION Fire
-\r spraycleaning spray.mto^he. ajrsjqt..
Ensure that no moisture ca'
ID- t
To clean the housing usea softcloth with a mild
detergent if necessary.Never useany abrasivecleaners
since they will scratch the finish ofthe unit. Neverspray
water or cleaningfluidsdirectly on handdryer.While
cleaning the unit, makesure the electric eye switch is
not covered.
WWW.STIEBEL-ELTRON-USA.COM
ULTRONIC1 1/ULTRONIC ' 2 TOUCHLESS AUTOMATIC HAND DRYERS} 5

INSTALLATION
INSTALLATION INSTRUCTIONS FOR THE LICENSED INSTALLER
5. Installationinstructions forthe
licensed installer
A
,
WARNING: O-REDUCE THE RISK OF FIRE,
ELECIRIC'SHOCK OR INJURY TO PERSONS,
'aHlnstallationwortaand electrical wirine must be
, * ', - -*> . *r> ' >j- - i . '•-., . ^Rh- Y-- . • «J
i'done by qualified perso_njs)s!n: accordance with al]
^applicable codes and;stan^ards, including fire-rated
construction:-'
;b) When cutting'of.drillin'g.into wall or ceiling, do
'not damageelectrical wiring and otherhidden utili-
|ties. :,
DANGER Electrocution
Beforeproceeding with any installation,
adjustment, alteration, or service of this unit all
| circuitbreakers and disconnect switches servicing
;the unit mustibe turned off. Failure todoso could
Iresultin seriouspersonal injury or death.
WARNING Electrocution
Do •notijnstal|Vuhit*where itcan accidentally
be splashed with water, failure todoso couldresult
in seriouspersonal injury or death.
All electrical work mustcomply with national
and applicable-state and localelectricalcodes.
The circuit should betecjuipped.wvith a '-ground fault
I interrupter" where required by .local, state or national!
ielectricalicodes! :;!'•* •
!The Ultrpriic!hand:dfryer musthave its own'inde-
ipendent circuitusing:cable ofthe appropriatesize
protected byVa correctly.rated circuit breaker. The
UltronicU^/WfunTtsvareidesigned for 110-120 Volt
electricaUserviceVand require a 15amp circuit break-
ier and a-ftl^ gauge^copper wire. The Ultronic 2S/W
units are;,designed for 220-2W) V or 208V electrical
service and^require a 15 amp circuit breaker and a
gaugecopper wire.
Minimum clearances
WARNING Electrocution
Do not install unit where itcan accidentally
be splashed with water. Observe all minimum
clearance requirements.Failure todoso couldresult
in seriouspersonal injury or death.
Do not install the handdryer in DANGER ZONES 0,1,
or 2 (seeupper right diagram). Doing so rhay,-allow
the unit tobe splashed with water which could
result in seriouspersonal injury or death.
0 DANGER ZONE: donot install unit in bathtubs
showers, or washbasins.
1 DANGER ZONE: do not installdirectly above bathtubs
or showers.
2 DANGER ZONE: donot install within 24" of bathtubs
or showers
3 SAFE AREA: unit must be installed in this area,
outside of DANGER ZONES 2, 1 and0.
Before mounting the unit tothe wall, ensure
all minimum distances aremetfor safety and
performance considerations.
6| ULTRONIC'" 1 / ULTRONIC" 2 TOUCHLESSAUTOMATIC HAND DRYERS
WWW.SHEBEL-ELTRON-USA.COM

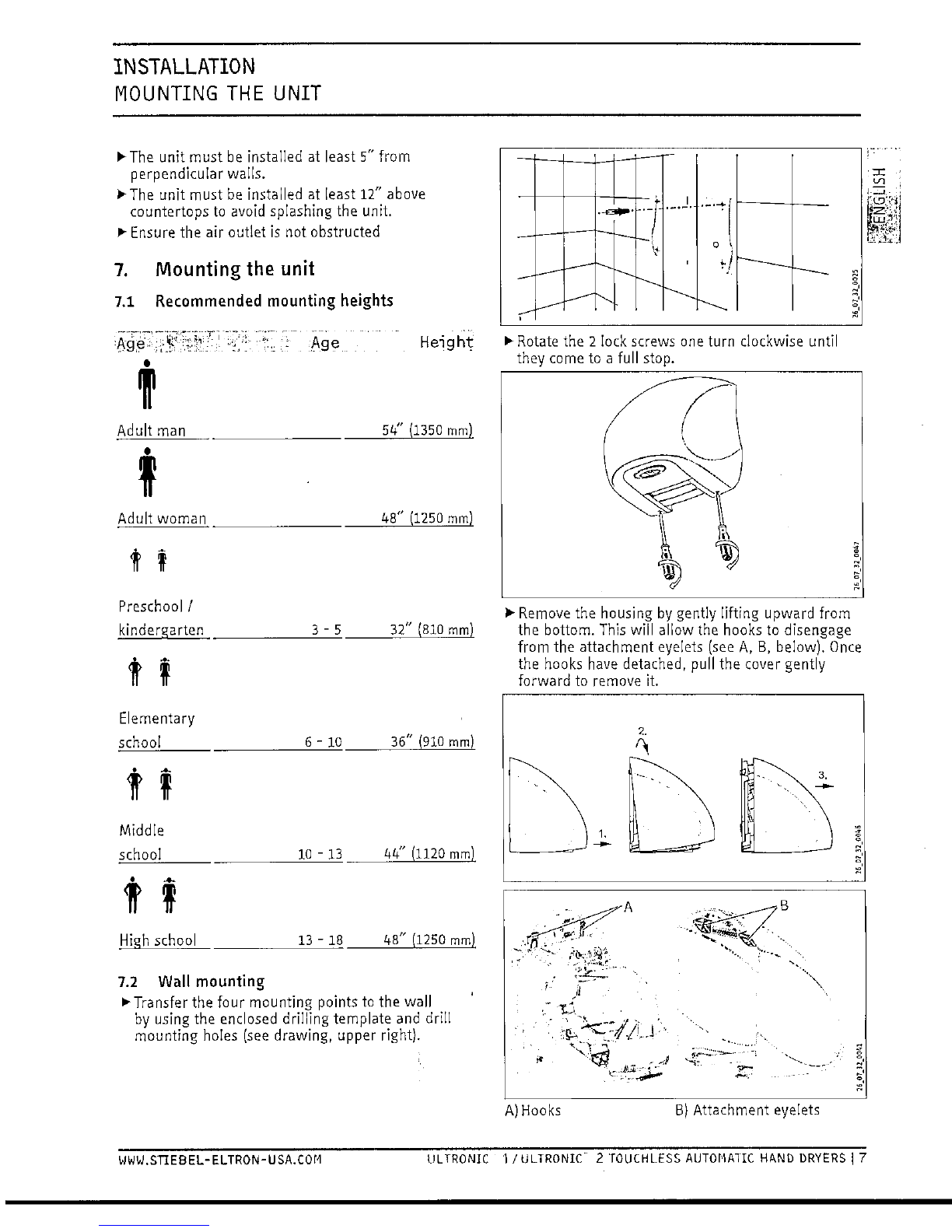

INSTALLATION
MOUNTING THE UNIT
Hhe unit must be installed at least 5" from
perpendicular walls.
Hhe unit must be installed at least 12" above
countertops to avoidsplashing the unit.
> Ensure theair outlet isnot obstructed
7. Mounting the unit
7.1 Recommendedmountingheights
I
Adult man
I
Adultwoman
t I
Preschool /
kindergarten
t I
Elementary
school
t I
Middle
school
• -•.
1f I
High schooL
,Age
3 - 5
Height
f (1350 mm)
48" (1250 mm)
32" (810 mm)
6 - 1036" (910 mm)
10 - 13 44" (1120 mm)
13 - 18 ^8" (1250 mm)
7.2 Wall mounting
^-Transferthe fourmountingpoints tothe wall
by using the enclosed drilling template and drill
mounting holes(see drawing, upper right}.
o
j
Rotate the2 lock screws one turnclockwise until
theycome toa fullstop.
Remove the housing by gently lifting upward from
the bottom.This will allow the hooks to disengage
from the attachmenteyelets(see A,B, below). Once
the hookshavedetached,pull the cover gently
forward to remove it.
A) Hooks B) Attachmenteyelets
WWW.STIEBEL-ELTRON-USA.COM
ULTRONIC 1/ ULTRONIC 2 TOUCHLESS AUTOMATIC HANDDRYERS I 7

INSTALLATION
ELECTRICAL CONNECTIONS
8. Electricalconnections
Put the housingbackonto the front ofthe unit
Lift upward to reengage the hooks into the
attachment eyelets.
Press the housing down gently soit locks in place.
thetwo screws a full turn counterclockwise to
stop.
1 Wiring block
> Install a 1/2"electricalconnector inthe back part of
housing inthe hole locatedbelow the wiring block
(l, above}.
^ Feed wires through connector; tighten clamp down
on wire.
"live" wires must be connected tothe slots
on the terminal marked N/LandL The ground
wire must be connected tothe slot onthe terminal
marked with the groundsymbol.
240V/60 Hz
120V/60 Hz
•r
r
8I ULTRONIC'" 1 / ULTRONIC" 2 TOUCHLESS AUTOMATIC HAND DRYERS
WWW.STTEBEL-ELTRON-USA.COH

INSTALLATION
DIMENSIONS
9. Dimensions
10.2" (2570.2"
(3mm)
0.16" (184 mm)
10. Technicaldata
Item no.
231584
Ultrorric™ 1 W_
231585
.•y.Lt.eqn_ic™ 2"S .'ULtPCinic1" 2.W.
231586 231587
iElectricat-D.ata
Phase single
single
single
single
Voltage^
120v 120V 208v
208V 240v
Wattage
985w 985w 775w 1000 w 775W
1000 w
Amperage 8.5 A 8.5 A 3.85 A 4.3 A 3.85 A
Minimum required
circuit breaker size
ISA
Min.required wire size #14 AWG copper
Dimensions?'
Height
11.4" 7289 mm
Width
10.1"/257 mm
Depth
Weight-•
Weight
9.2" 7234 mm
9.7lb.74.4kg
Construction
Color
Stainless steel Alpinewhite
Stainless steelAlpine white
Housing
aluminum
Degree of protection (IP) JP 23
Safety class system
Sound level 82dB[A)
Airspeed 210 mph794 m/s
Air volume
170.7cFM7l90m37h
Drying time
15 seconds
WWW.STIEBEL-ELTRON-USA.COH ULTRONIC'" 1 /ULTRONIC' 2 TOUCHLESS AUTOMATIC HAND DRYERS I 9

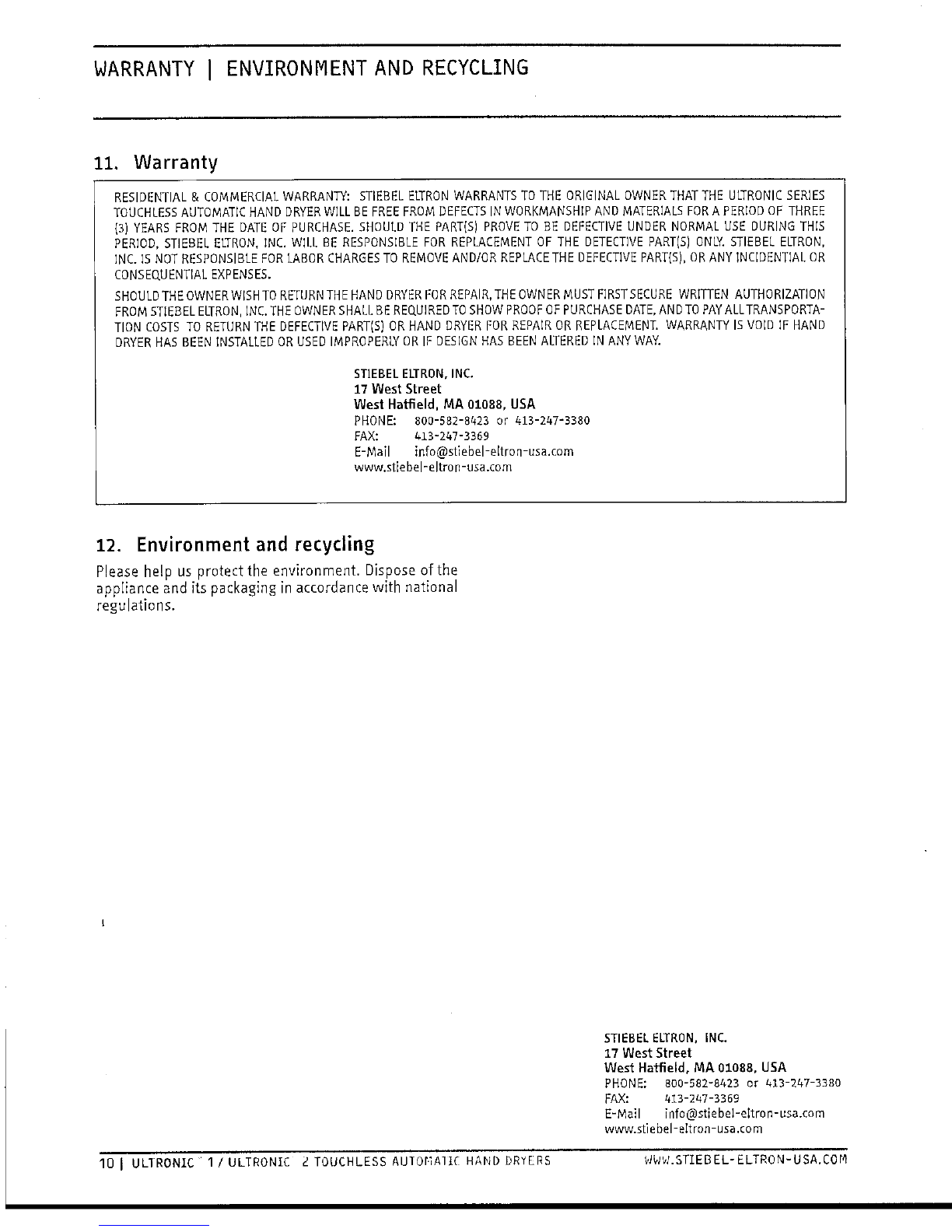

WARRANTY I ENVIRONMENT AND RECYCLING
11. Warranty
RESIDENTIAL & COMMERCIAL WARRANTY: STIEBELELTRON WARRANTS TOTHE ORIGINALOWNER THAT THE ULTRONICSERIES
TOUCHLESS AUTOMATIC HAND DRYER WILL BE FREE FROM DEFECTS IN WORKMANSHIP AND MATERIALS FORA PERIOD OF THREE
(3) YEARSFROM THE DATE OF PURCHASE.SHOULD THE PART(S) PROVE TOBE DEFECTIVEUNDERNORMAL USE DURINGTHIS
PERIOD, STIEBELELTRON, INC. WILL BE RESPONSIBLE FOR REPLACEMENT OFTHE DETECTIVE PART(S)ONLY.STIEBELELTRON,
INC. IS NOT RESPONSIBLE FOR LABORCHARGES TO REMOVE AND/OR REPLACETHEDEFECTIVEPART(S), ORANY INCIDENTIAL OR
CONSEQUENTIAL EXPENSES.
SHOULD THE OWNER WISH TO RETURN THE HAND DRYER FOR REPAIR, THE OWNER MUST FIRSTSECURE WRITTEN AUTHORIZATION
FROMSTIEBELELTRON, INC. THE OWNERSHALL BE REQUIRED TO SHOW PROOF OF PURCHASEDATE, ANDTOPAY ALL TRANSPORTA-
TION COSTS TO RETURN THE DEFECTIVEPART(S) OR HAND DRYER FOR REPAIR OR REPLACEMENT. WARRANTY IS VOID IF HAND
DRYER HAS BEENINSTALLED OR USEDIMPROPERLY ORIF DESIGN HAS BEENALTERED IN ANYWAY.
STIEBELELTRON, INC.
17 West Street
West Hatfield, MA 01088, USA
PHONE: [phone] or 413-247-3380
FAX: [phone]
E-Mail [email protected]m
www.stiebel-eltron-usa.com
12. Environment and recycling
Please help us protect the environment. Dispose ofthe
appliance andits packaging in accordance with national
regulations.
STIEBELELTRON, INC.
17 WestStreet
West Hatfield, MA 01088, USA
PHONE: [phone] or 413-247-3380
FAX: [phone]
E-Mail [email protected]m
www.stiebel-eltron-usa.com
10I ULTRONIC 1 / ULTRONIC i TOUCHLESS AUTOMATIC HAND DRYERS WWW.3TIEBEL-ELTRON-USA.COri
