Instruction manual for
assembly and use
21/04/2016 | Version 1 | 254057
Residential
home bed

Contents
Contents
1Manufacturer’s Address, Change History, Market Information.........................................4
2Foreword...............................................................................................................................5
3Safety Instructions ...............................................................................................................6
4Product Description .............................................................................................................7
4.1 Designated Use _______________________________________________________ 7
4.2 Components of the Bed ________________________________________________ 7
4.3 Technical Data ________________________________________________________ 8
4.3.1 Type plate ............................................................................................................. 8
4.3.2 Materials used....................................................................................................... 8
4.3.3 Dimensions - bed .................................................................................................. 9
4.3.4 Weight - bed.......................................................................................................... 9
4.3.5 Adjustment - backrest............................................................................................ 9
5Assembly ............................................................................................................................10
5.1 Fitting the Feet _______________________________________________________ 11
5.2 Attaching the Bed Extension (Optional) __________________________________ 12
5.3 Fitting the Side Panels ________________________________________________ 14
5.4 Fitting the Head and Footboards (Optional) _______________________________ 15
5.5 Attaching the Fixed Board (Optional) ____________________________________ 16
5.6 Further Options ______________________________________________________ 17
6Operation - Backrest ..........................................................................................................18
7Cleaning..............................................................................................................................19
8Servicing.............................................................................................................................20
9Disposal ..............................................................................................................................20
9.1 Disposal of the Bed ___________________________________________________ 20
9.2 Disposal of Packaging ________________________________________________ 20
10 Available Accessories........................................................................................................21
Residential home bed - Carino 3

Manufacturer’s Address, Change History, Market Information
1 Manufacturer’s Address, Change History, Market Infor-
mation
Joh. Stiegelmeyer GmbH & Co. KG
Ackerstrasse 42, 32051 Herford
Postfach 28 54, 32018 Herford, Germany
Phone: [phone] / 1850
Fax, service, general: +49 (0) 5221 / 185219
Fax for customer service requests: +49 (0) 5221 / 185443
E-mail: [email protected]
Version Date Change
1 21/04/2016 First edition
No part of this manual may be reproduced without the prior written permission of the pub-
lisher. All rights reserved. The right to make technical changes is reserved.
This product is not licenced for use on the North American market. This applies
particularly to the United States of America. The distribution and use of the bed in
these markets, including through third parties, is prohibited by the manufacturer.
4 Version 1

Foreword
2 Foreword
Dear Customer,
STIEGELMEYER would like to thank you for the confidence you have placed in us in de-
ciding to purchase this bed. Each Stiegelmeyer bed has been tested by the manufacturer
for safety and functionality and has left our factory in fault-free condition.
Correct operation and care are necessary to ensure the bed is kept in this excellent condi-
tion over the long-term. Therefore, please read and observe this product information care-
fully. It is a useful aid when assembling and operating the bed. The instruction manual con-
tains all the necessary information to enable you to carry out the complete assembly pro-
cedure, operate the bed easily and safely handle this bed, both for you as the operator and
for your users. This product information is a practical reference book and should be kept
close to hand at all times.
We wish you and your users every success in using this bed. STIEGELMEYER is confi-
dent that with this bed it is making a positive contribution to your work.
Stiegelmeyer Pflegemöbel GmbH & Co. KG
Please note: This product documentation is an important basis for properly and
successfully assembling your bed and for assuring that your bed is operated cor-
rectly. Therefore, please take the time to read the information and step by step
guide attentively before you attempt to assemble and use the bed. Please note that
there is a definite order for completing the individual steps. This will become evident
as you read the documentation, and it is important that you proceed in this order.
Residential home bed - Carino 5

Safety Instructions
3 Safety Instructions
Backrest
•Before adjusting the backrest, make sure that there are no
limbs at risk under the backrest. Risk of crushing!
/Trapping hazard!
•When the backrest is raised, the area behind the backrest
must be kept free. It is particularly important to keep limbs
out of this area. Risk of crushing! /Trapping hazard!
•
The backrest must not be subjected to a weight of more than
90 kg. Risk of breaking!
•Do not sit or bounce on the backrest. Risk of breaking!
Side panels
•Do not sit or bounce on the side panels. Risk of breaking!
Bed extension (optional)
•Subjecting a weight of more than 200 kg to the footboard at
the end of the bed extension will make the bed tip up.
Tipping hazard!
Side tray (optional)
•
The side tray must not be subjected to a weight of more than
5 kg. Risk of breaking!
Fixed board along the side of the bed (optional)
•Do not sit or bounce on the fixed board along the side of the
bed. Risk of breaking!
Patient lifting pole (optional)
•The patient lifting pole must not be exposed to a weight of
more than 75 kg. Risk of breaking!
DANGER
Caution
6 Version 1

Product Description
4 Product Description
4.1 Designated Use
This bed is designed to offer comfortable positioning options for people living in residential
homes, nurses’ homes and retirement homes as well as hotels, rehabilitation centres, dis-
abled facilities and similar institutions. In addition:
•The bed is suitable for people who are 190 cm and/or 210 cm in height.
•When the optional fixed board along the side of the bed is used, the bed is suitable
for persons who are 146 cm in height and upwards only.
•Do not rest the full weight of the body on the backrest when it is raised.
•Do not use candles, cigarettes, tea lights or similar items in bed or on the side tray.
•The maximum safe working load is 225 kg (resident plus accessories).
•The bed is not a medical device and must not be used to as a replacement for a
medical care bed.
This bed may only be used under the operating conditions described in this instruction
manual. Any other use is regarded as not compliant with the intended purpose.
4.2 Components of the Bed

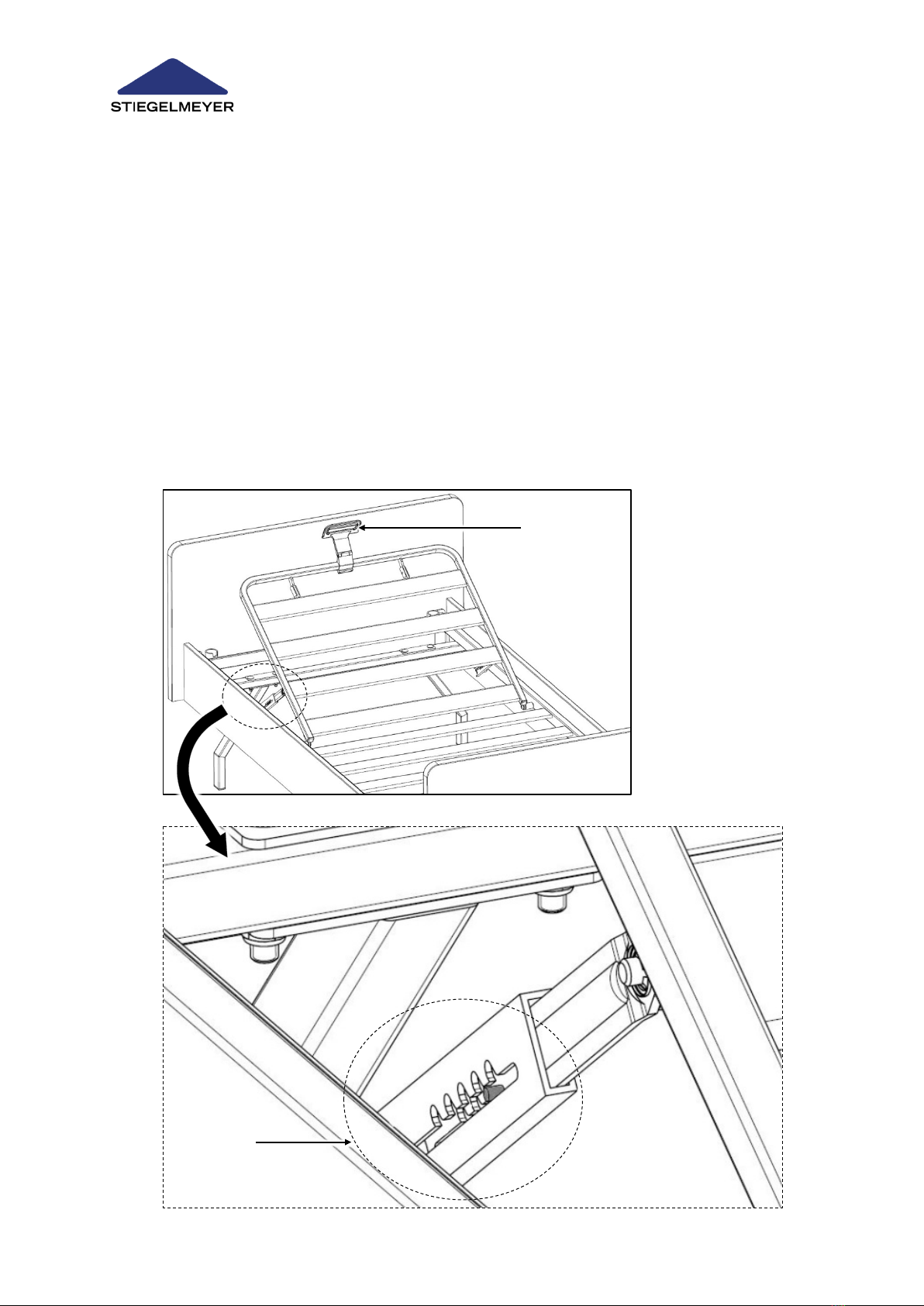

The mattress base is divided into a backrest and a seat section. The backrest is fitted with
a rastomat mechanism. The backrest can be adjusted manually from an angle of 0° to ap-
proximately 30° with the aid of a handle.
The bed has four fixed feet which are attached to the corners of the bed frame.
An approximately 20 cm bed extension can be supplied at the customer’s request.
Residential home bed - Carino 7

Product Description
4.3 Technical Data

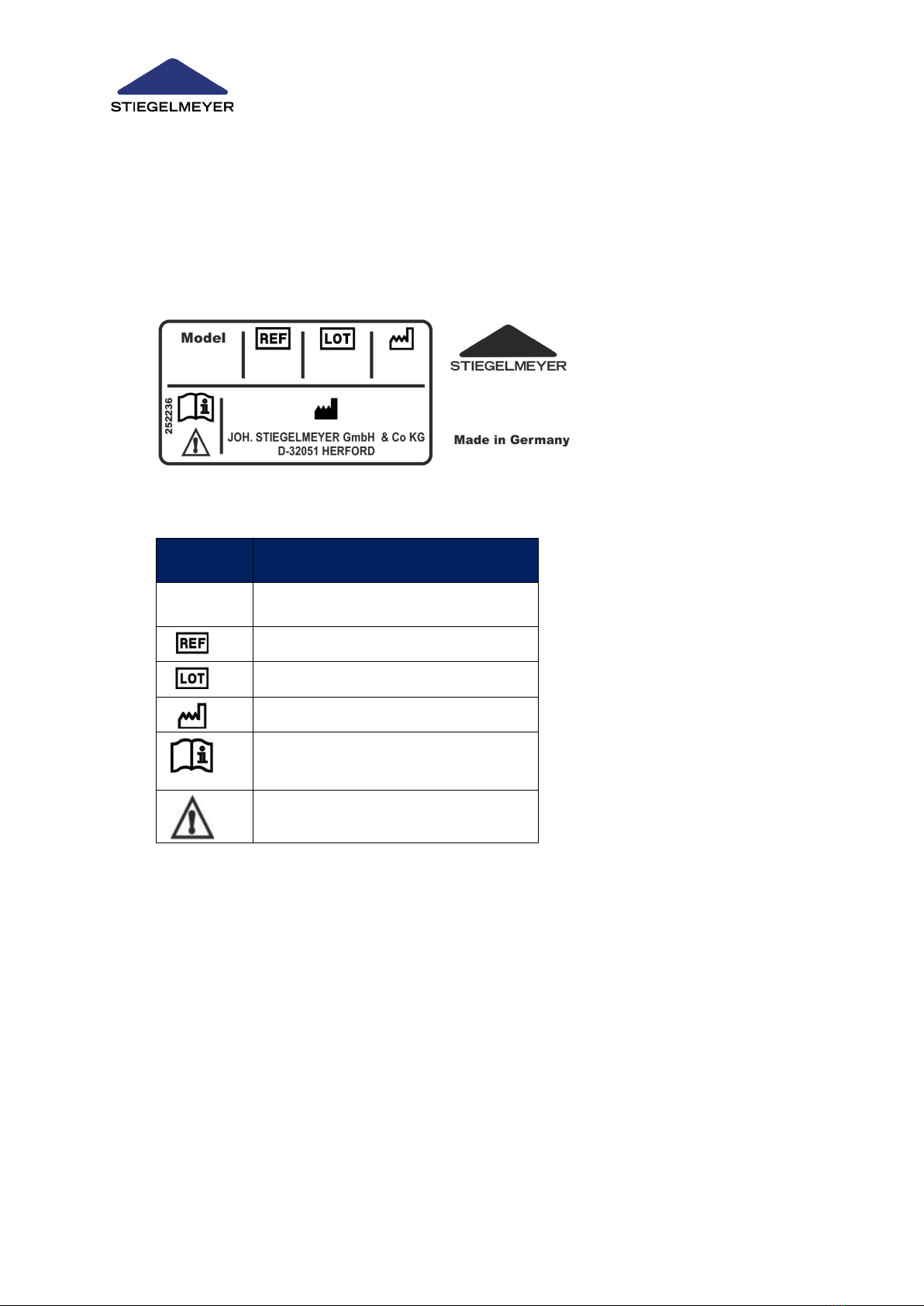

4.3.1 Type plate
The type plate is at the head end of the mattress base (inner side).
It contains the following information:
Fig. 19:
Type plate
Symbol Meaning
Model Name of product
Item number
Order number
Date of manufacture (week/year)
Pay attention to the instruction
manual!
Follow the safety information given!
4.3.2 Materials used
The bed is made predominantly of steel sections coated with a polyester powder finish or a
zinc or chromium metal finish.
The chassis consists of steel profiles.
The head and footboards and the side panels are made of wood materials.
All surfaces are safe for contact with the skin.
8 Version 1

Product Description
4.3.3 Dimensions - bed
Please note: All indications of dimensions and weights in this manual are approxi-
mate.
Description 90 x 200 cm 90 x 220 cm 100 x 200 cm
External dimensions 105 x 210 cm 105 x 230 cm 115 x 210 cm
Mattress base (mattress di-
mensions)
90 x 200 cm 90 x 220 cm 100 x 200 cm
Mattress base division 80/120 cm 80/140 cm 80/120 cm
Height of mattress base 40 cm 40 cm 40 cm
4.3.4 Weight - bed
Description 90 x 200 cm 90 x 220 cm 100 x 200 cm
Safe working load of 225 kg of 225 kg of 225 kg
Total weight 100 kg *
(*): Depending on the materials and accessories used, the overall weight may vary from
the figure shown.
4.3.5 Adjustment - backrest
Description 90 x 200 cm 90 x 220 cm 100 x 200 cm
Backrest angle 30°
Residential home bed - Carino 9

Assembly
5 Assembly

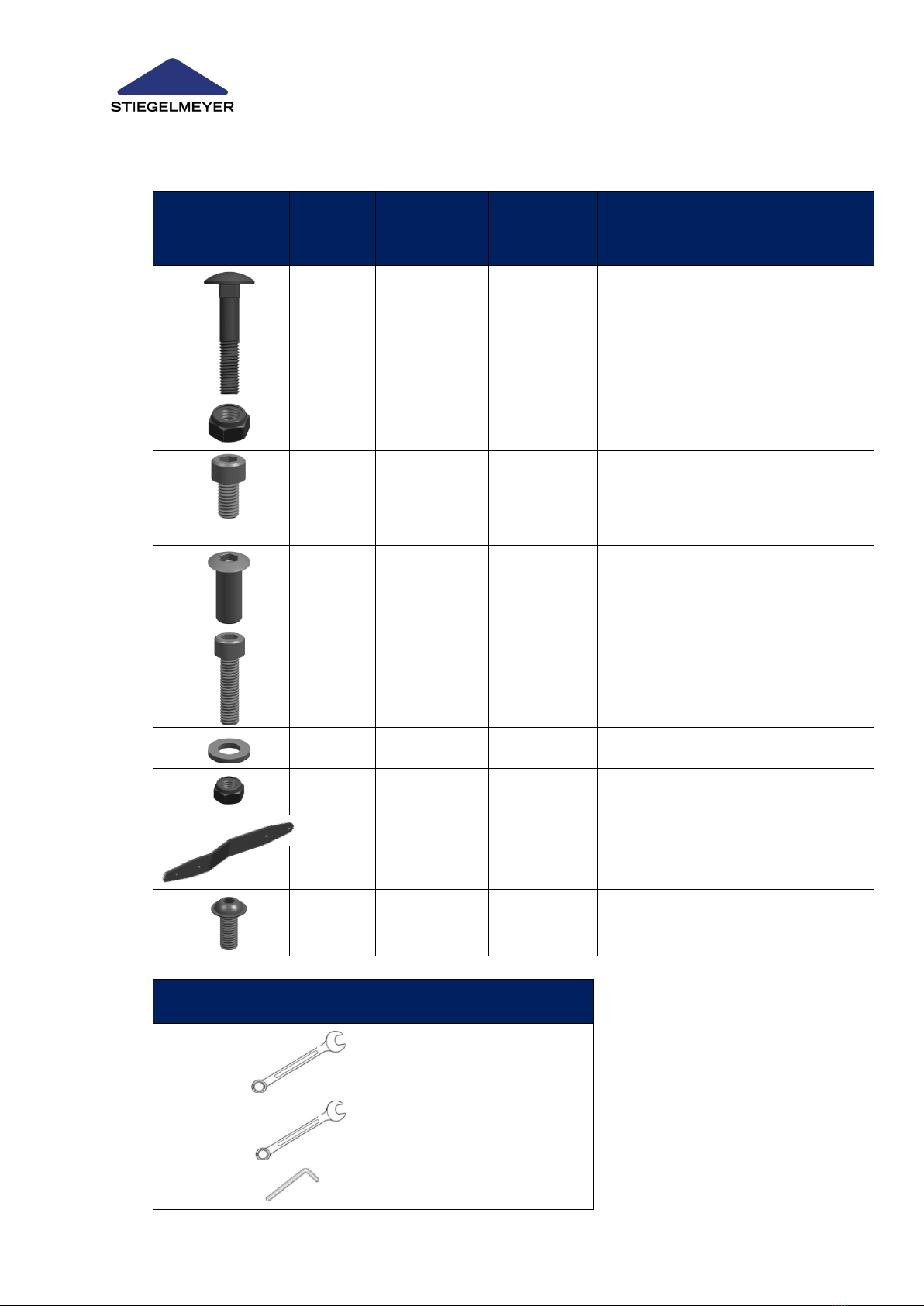

part Quantity Dimensions ID number Use in Optional
feature
8 x M8 x 45 mm 10001 Feet
8 x M8 10002 Feet
12 x M6 x 12 mm 10003
Side panel /
6 screws are required for
attaching the fixed board
along the side of the bed
(optional)
8 x M8 x 20 mm 10004 Head and footboards
6 x M6 x 25 mm 10005 Fixed board (mounting
bracket - at bottom) X
12 x Ø 6.4 mm 10006 Fixed board (mounting
bracket - at bottom)
X
6 x M6 10007 Fixed board (mounting
bracket - at bottom)
X
3 x - 10008 Fixed board X
2 x M8 x 20 cm 10009 T-pieces / bed extension X
Tools Size
13 mm
10 mm
5 mm
10 Version 1

Assembly

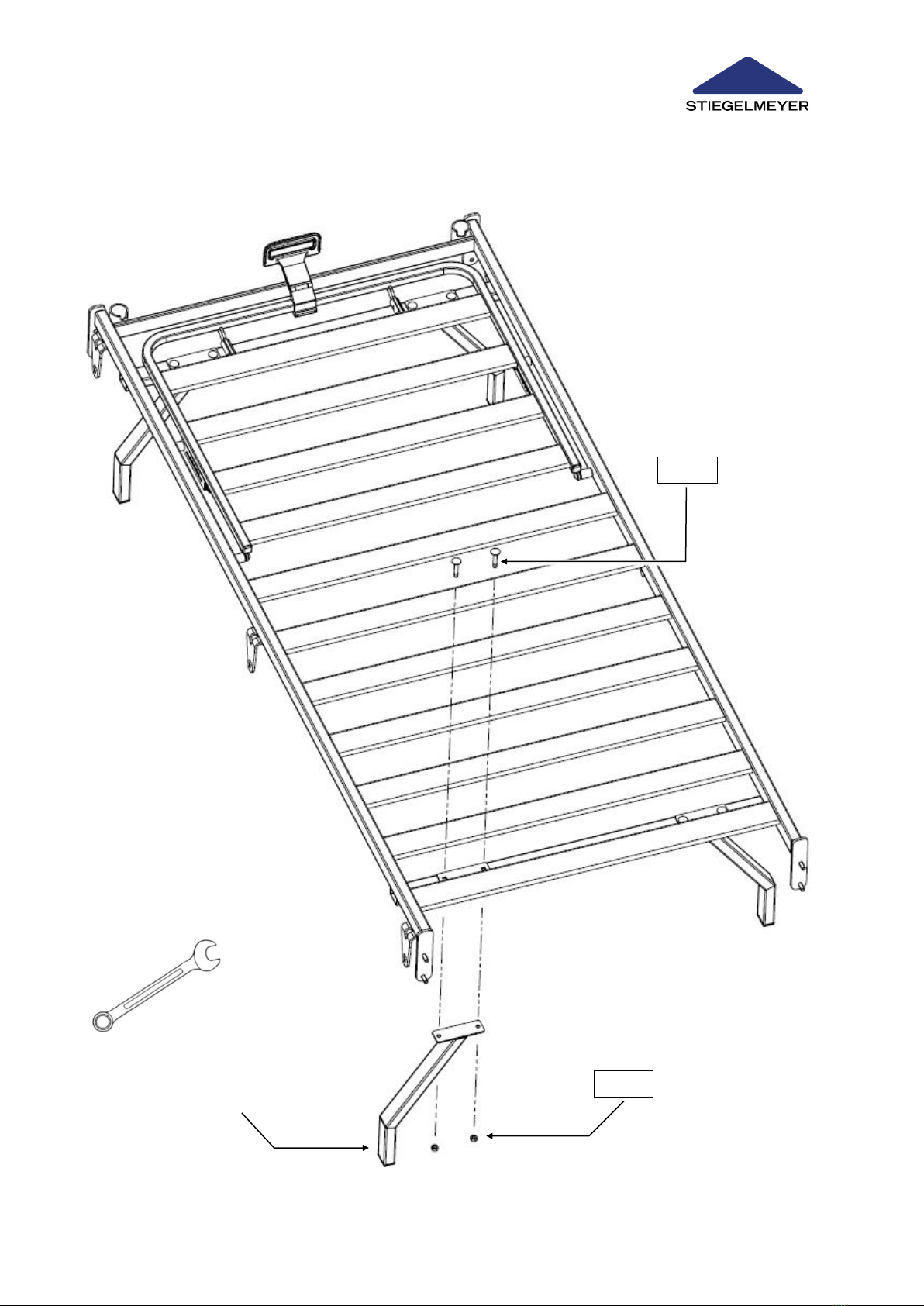

5.1 Fitting the Feet
10002
8 x
10001
8 x
4 x
13 mm
Residential home bed - Carino 11

Assembly

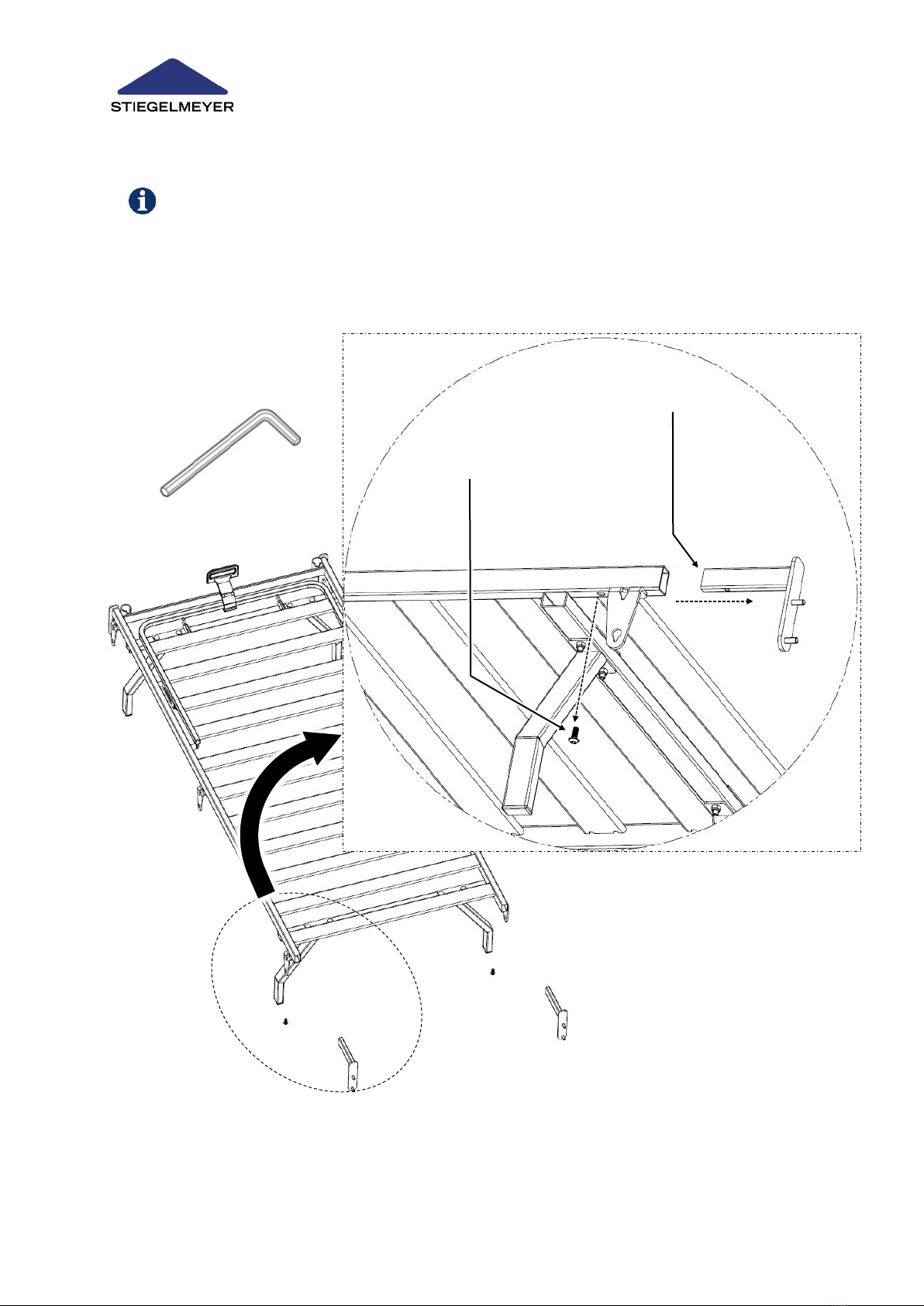

5.2 Attaching the Bed Extension (Optional)
The T-pieces are attached to the mattress base frame in the factory. To assemble the
bed extension, the T-pieces at the foot end must first of all be removed.
The bed extension is attached at the foot end only. Proceed as follows:
1. Loosen the screws and take the T-pieces out.


12 Version 1

Assembly

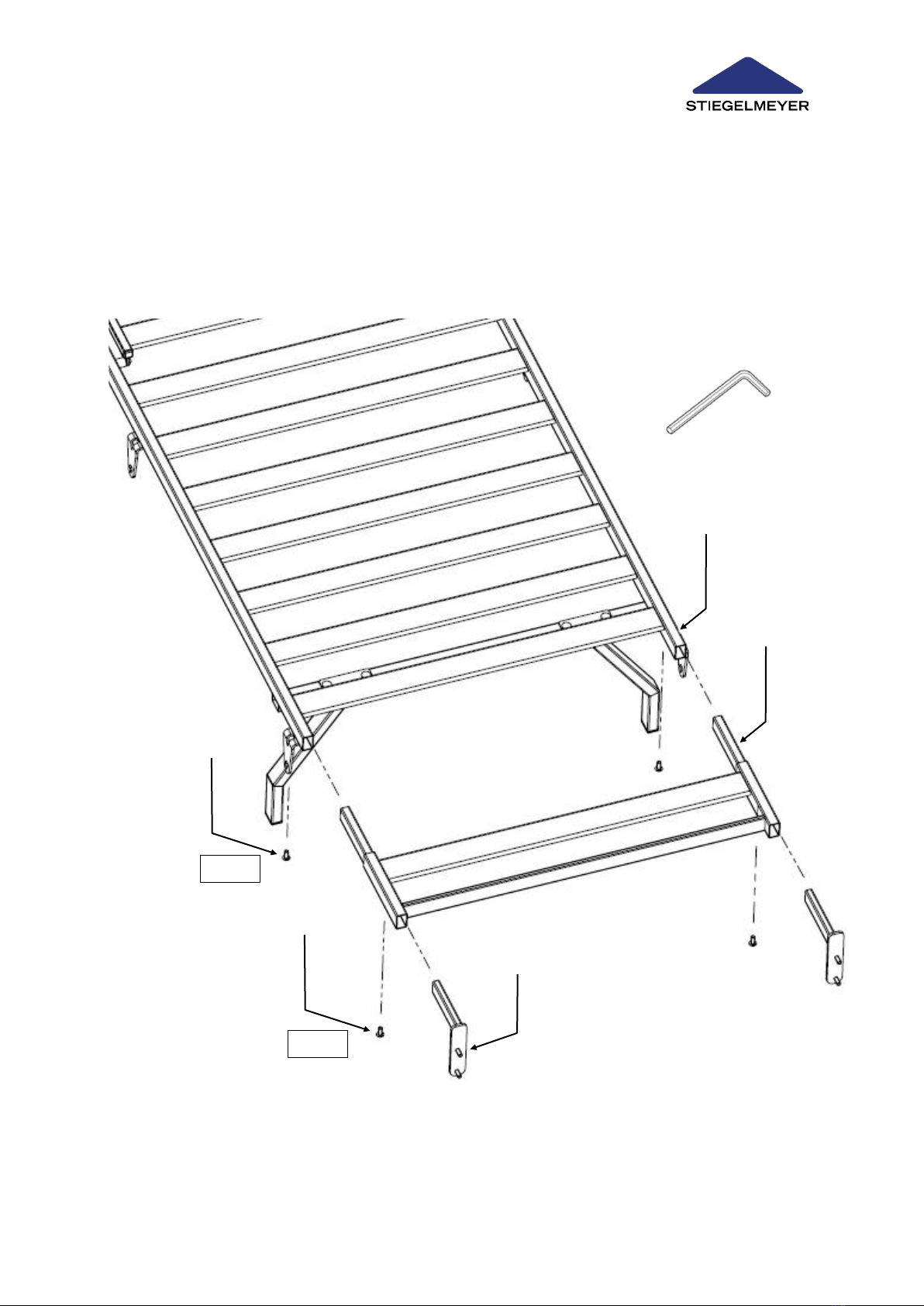

2. Insert the bed extension into the mattress base frame.
3. Attach the bed extension with two screws.
4. Insert the T-pieces into the bed extension and affix them with twoscrews.
5. Check that all screws have been tightened properly.





10009
10009
2 x
2 x
2 x
Residential home bed - Carino 13

Assembly
5.3 Fitting the Side Panels
Assembly of right and
left-hand side panels is
identical

A quantity of 6 screws
with the ID number
10003
is required per
side panel
Right-hand
mattress base
Left-hand
mattress base
10003
12 x

Proceed as follows:
−
Insert the screws into the threaded holes in the side panels
(3 to 4 turns).
−
Insert screws at the places provided on the bed frame .
−
Press the side panel downwards.
−
Tighten the screws.
14 Version 1

Assembly

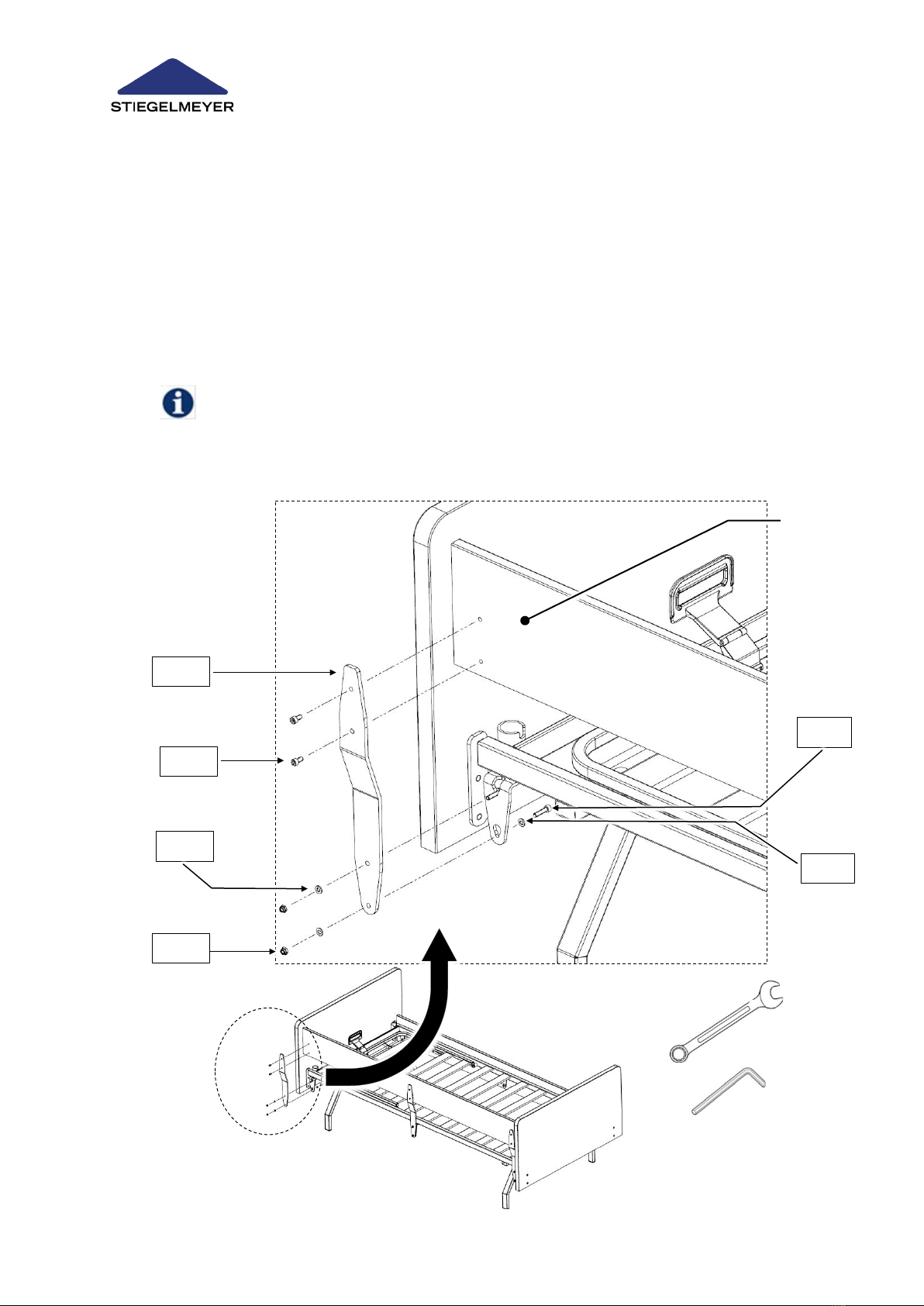

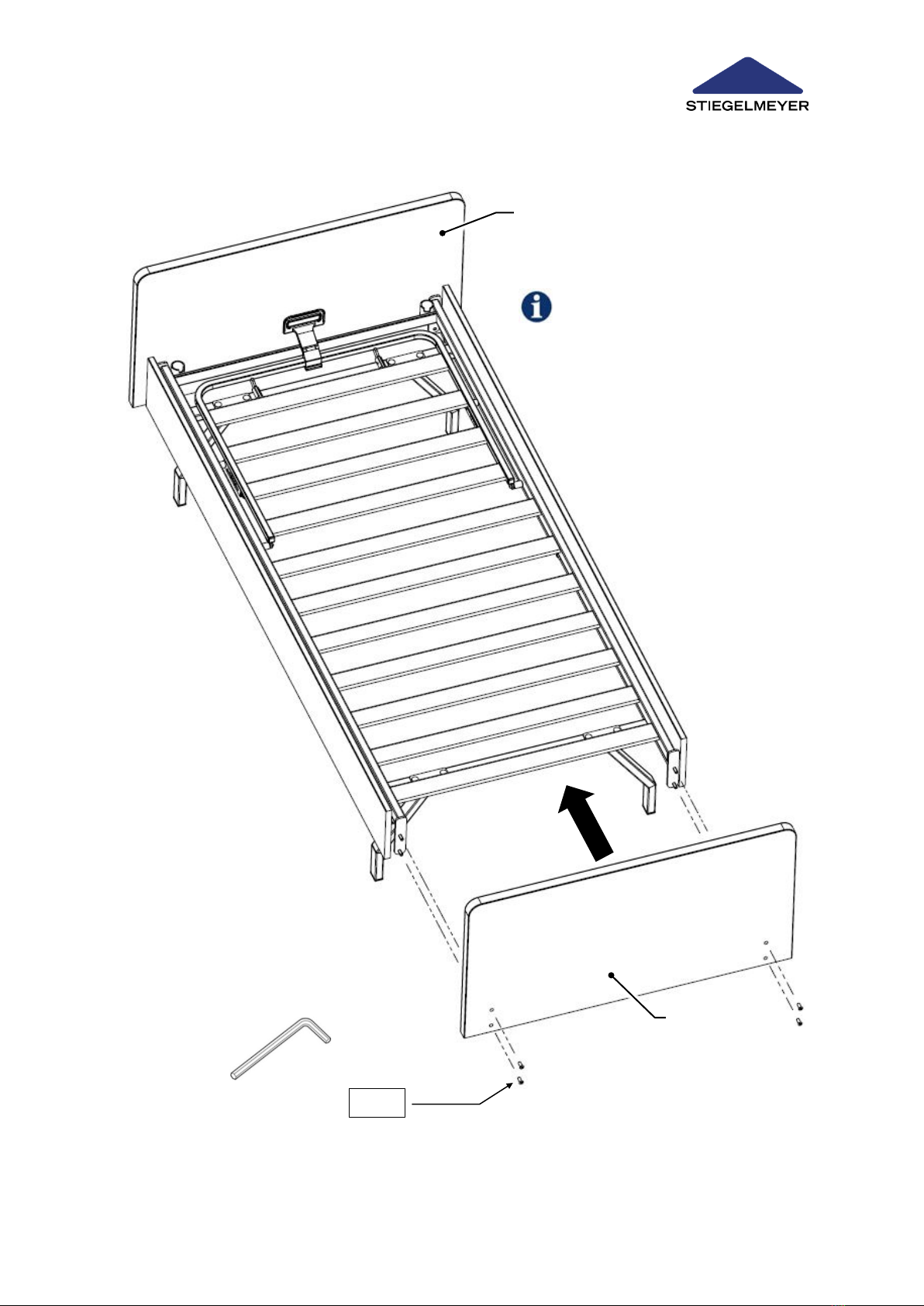

5.4 Fitting the Head and Footboards (Optional)
10004
8 x
Headboard
Footboard
The method for assembling the head
and footboards is identical.
A quantity of 4 screws with the ID
number
10004 is required per head or
footboard
Residential home bed - Carino 15

Assembly
5.5 Attaching the Fixed Board (Optional)
•The fixed board along the side of the bed can be attached to the left or right-hand
side of the bed.
•A side panel is not attached to the side of the bed that is fitted with the fixed board.
•If a side panel is already attached, this must be removed first.
•IMPORTANT! If a fixed board is attached to one side of the bed, this side of the
bed must rest against the wall. Trapping hazard!
•When the optional fixed board along the side of the bed is used, the bed is suitable
for persons who are 146 cm in height and upwards only.
Assembly: To begin with, attach the three mounting brackets (10008) to the bed
frame, then attach the fixed board to the mounting brackets.
10 mm
Please note: The side panel is used as a fixed board along the side of the bed.
10006
10003
10005
6 x
12 x
6 x
10008
3 x
Fixed board
6 x
10006
10007
16 Version 1

Assembly
5.6 Further Options

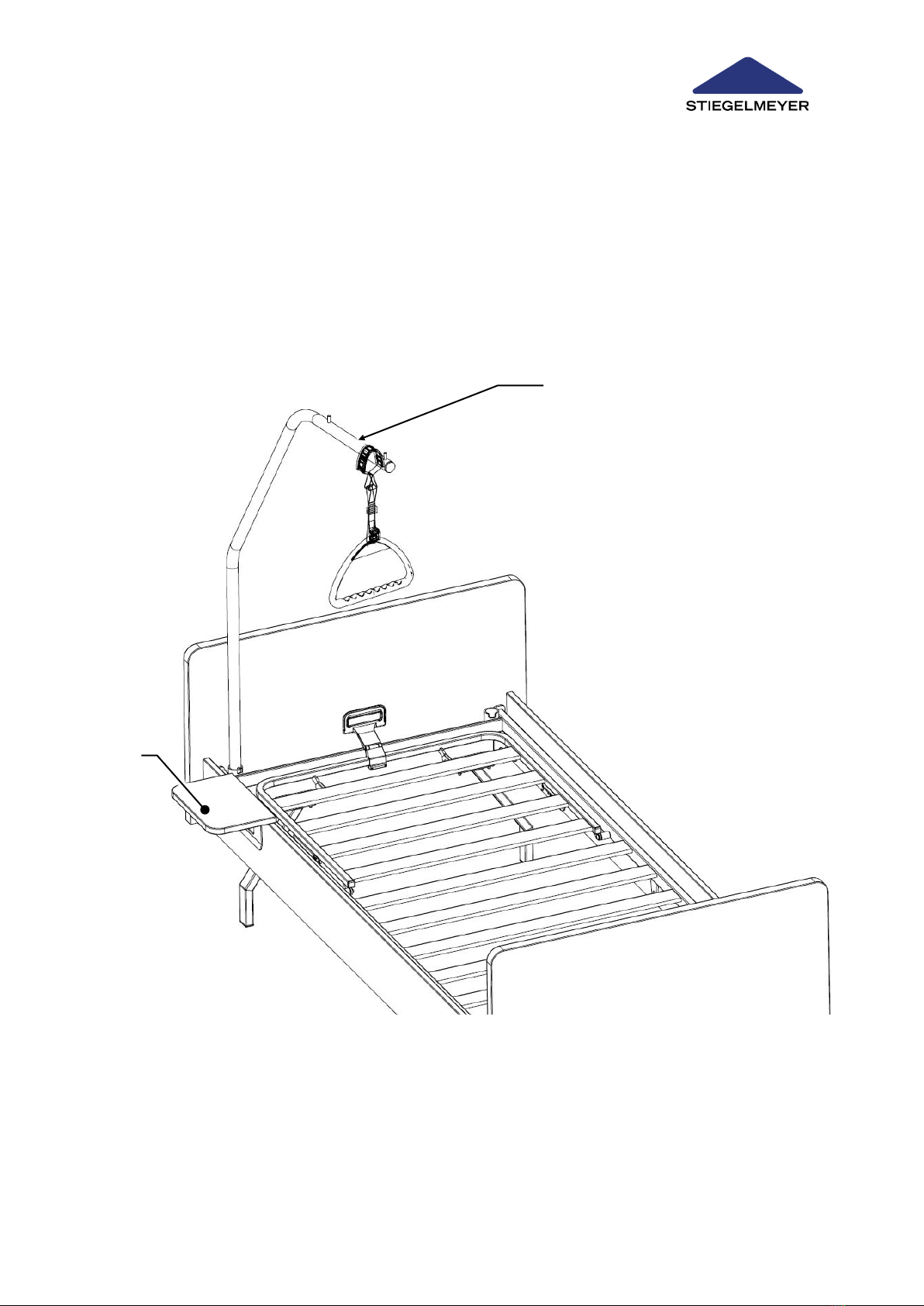

The bed can optionally be complemented with useful accessories.
•Patient lifting pole with grab handle (insertable). Maximum loading capacity: 75
kg.
•Side tray (insertable). Maximum loading capacity: 5 kg.
•Underbed drawer
•Softcovers
•Reading lamp


Residential home bed - Carino 17

Operation - Backrest
6 Operation - Backrest
Caution! It is important to read the safety instruction in Chapter 3 before operating the bed.
Caution - Risk of injury! Do not grip the backrest by the frame. Adjust the backrest using
the handle only.
Raising: Grip the handle and raise the backrest in stages.
The backrest can be adjusted in 5 stages . It must audibly click into place at each stage.
Check to ensure that the backrest is firmly locked in position after each adjustment.
Lowering:
•Grip the handleand raise the backrest to its highest position.
•Lower the backrest.


18 Version 1

Cleaning
7 Cleaning
NOTICE
−Do not use scouring agents, abrasive cleaning agents or scouring pads. These sub-
stances can damage the surfaces.
−Do not use organic solvents such as halogenated/aromatic hydrocarbons and ketones.
−Do not use acidic cleaning solvents.
−It is essential that the manufacturer’s dosage advice is followed to prevent damaging
the plastic and metal surfaces!
−The bed must not be cleaned automatically in a machine.
−Ensure that after cleaning/ disinfection no liquid residues remain on the metallic parts of
the bed (avoid drops on the edges). Otherwise corrosion cannot be excluded in these
areas in the long term.
−Despite the excellent mechanical resistance, scratches, knocks, etc., which permeate
the entire coating should be resealed using a suitable repair medium to prevent the
penetration of moisture.
For disinfection by wiping, most cleaning and disinfection agents commonly used in institu-
tions or care facilities, such as cold and hot water, detergents, alkaline solutions and alco-
hols, can be used.
These agents may not contain any substances that could change the surface structure or
the adhesive properties of the plastic materials.
The following cleaning agents have been successfully tested and approved by
Stiegelmeyer:
Manufacturer Description Concentration according to
manufacturer
Antiseptica
Biguacid-S
0.5% solution
B. Braun
Meliseptol rapid, Meliseptol
Working solution 50 ml/m²
Bode Chemie
Bacillol AF
Working solution 50 ml/m²
Ecolab
Incidin Plus
0.5% solution
Fresenius-Kabi
Ultrasol-F
0.5% solution
Lysoform
Amocid
1.5 % solution
Schülke
Buraton 10 F
5 % solution
Please consult the appropriate manufacturer before using any other agents than those in-
cluded in this list. Only alternative agents with an equivalent composition may be used, to
prevent any damage to the bed as a result.
Residential home bed - Carino 19

Servicing
8 Servicing
The Carino bed is maintenance-free; however, we would recommend performing an annu-
al inspection of the following points:
•Condition and good working order of the rastomat mechanism and the backrest.
•Ensure that all connection elements are firmly tightened.
9 Disposal
WARNING
Risk of infection
The operator must ensure that no components of the bed that are to be disposed of are
infectious or contaminated.
9.1 Disposal of the Bed
If the bed is to be disposed of, the plastic and metallic parts must be separated and dis-
posed of properly in accordance with relevant local and national environmental regulations
and legislation of the town or country concerned. If you have any queries, you can contact
your local municipal or commercial waste company or our service department.
9.2 Disposal of Packaging
Packaging must be sorted according to recyclable and other types of waste and recycled
and disposed of in line with the environmental regulations and legislation of the country
concerned. Recycling and disposal are governed in the European Union by the EU Waste
Framework Directive 2008/98/EC.
!
20 Version 1
