STILLA Chatswood User manual

STILLA
ASSEMBLY INSTRUCTIONS
‘Chatswood’8x16
S3071
Every part needed to construct your shed is included inside the pack; cedar
panels, doors, windows, hardware kits & roof sheeting. Please ensure you fully
unpack all the parts & check against the parts checklist before contacting
customer service about anything you believe may be missing. Thank-you!
All manuals and user guides at all-guides.com

1 | P a g e
Caution
Please be careful when handling all components, some parts have sharp metal edges.
Always wear work gloves, eye protection and long sleeves when assembling or maintaining
your shed.
Tools required for assembly
•Level
•Drill
•Hammer
•Ladder
•Power saw (circular)
•Phillips head drive
•Hex Head Drive (5/16’)
•Safety glasses
•Gloves
•Tape Measure
Before assembly
•Remove all parts from packages and place in a safe place close to assembly area.
•Check all parts on assembly parts list are included, prior to commencing assembly.
•Review all instructions; continue to refer to instructions throughout assembly –step
by step.
Preparing your site
•Choose your site carefully, site surface must be level (unless a Elevation kit or Heavy
duty floor kit option has been purchased with your product)
All manuals and user guides at all-guides.com

2 | P a g e

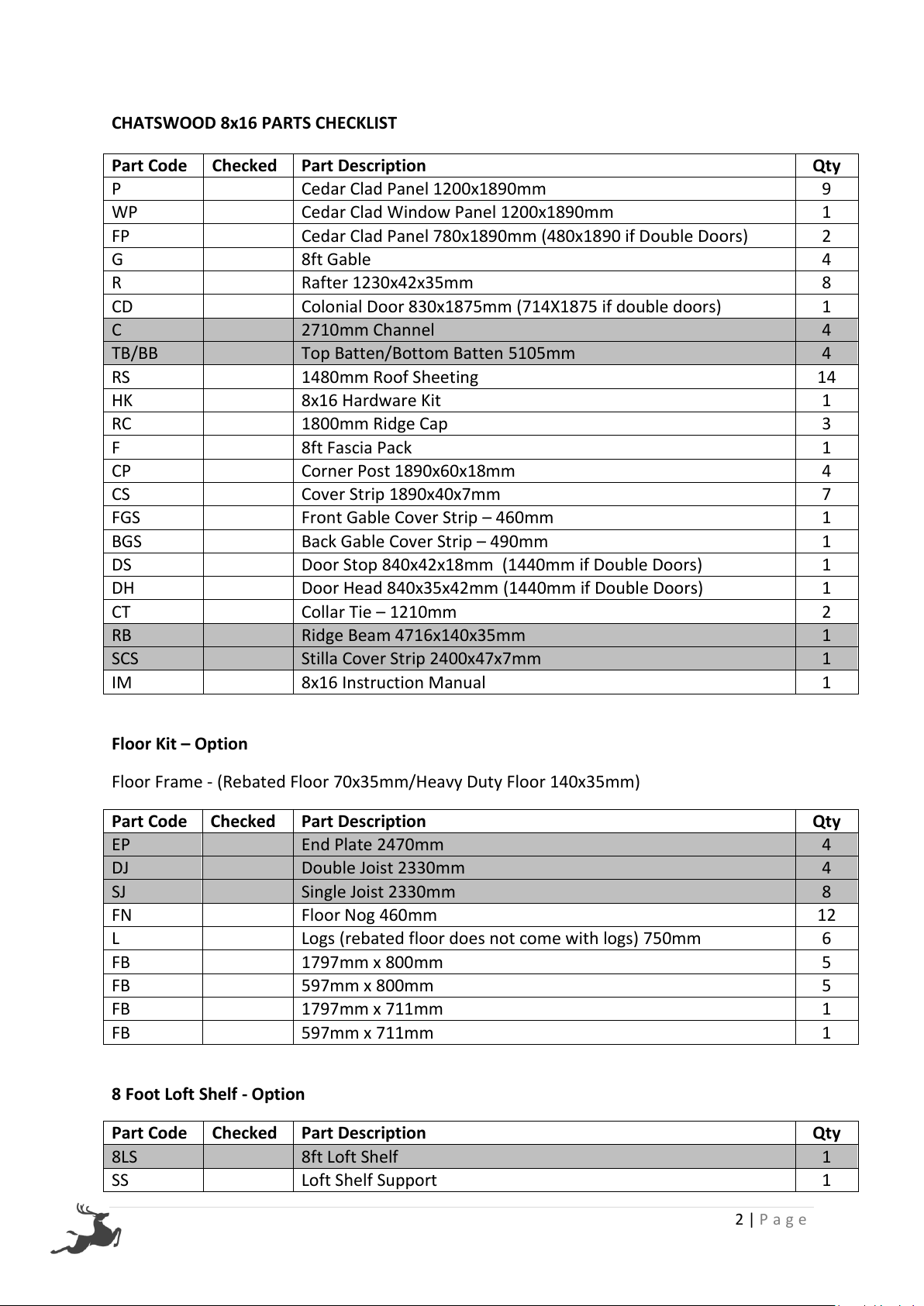

CHATSWOOD 8x16 PARTS CHECKLIST
Part Code
Checked
Part Description
Qty
P
Cedar Clad Panel 1200x1890mm
9
WP
Cedar Clad Window Panel 1200x1890mm
1
FP
Cedar Clad Panel 780x1890mm (480x1890 if Double Doors)
2
G
8ft Gable
4
R
Rafter 1230x42x35mm
8
CD
Colonial Door 830x1875mm (714X1875 if double doors)
1
C
2710mm Channel
4
TB/BB
Top Batten/Bottom Batten 5105mm
4
RS
1480mm Roof Sheeting
14
HK
8x16 Hardware Kit
1
RC
1800mm Ridge Cap
3
F
8ft Fascia Pack
1
CP
Corner Post 1890x60x18mm
4
CS
Cover Strip 1890x40x7mm
7
FGS
Front Gable Cover Strip –460mm
1
BGS
Back Gable Cover Strip –490mm
1
DS
Door Stop 840x42x18mm (1440mm if Double Doors)
1
DH
Door Head 840x35x42mm (1440mm if Double Doors)
1
CT
Collar Tie –1210mm
2
RB
Ridge Beam 4716x140x35mm
1
SCS
Stilla Cover Strip 2400x47x7mm
1
IM
8x16 Instruction Manual
1
Floor Kit –Option
Floor Frame - (Rebated Floor 70x35mm/Heavy Duty Floor 140x35mm)
Part Code
Checked
Part Description
Qty
EP
End Plate 2470mm
4
DJ
Double Joist 2330mm
4
SJ
Single Joist 2330mm
8
FN
Floor Nog 460mm
12
L
Logs (rebated floor does not come with logs) 750mm
6
FB
1797mm x 800mm
5
FB
597mm x 800mm
5
FB
1797mm x 711mm
1
FB
597mm x 711mm
1
8 Foot Loft Shelf - Option
Part Code
Checked
Part Description
Qty
8LS
8ft Loft Shelf
1
SS
Loft Shelf Support
1
All manuals and user guides at all-guides.com

3 | P a g e
Double Doors –Option
Part Code
Checked
Part Description
Qty
CD
Colonial Door 714x1875mm
2
FP
Cedar Clad Panel 480x1890mm
2
DP
Door Leaver Packer 100x100x18mm
1
DS
Door stop 1440x42x19mm
1
DH
Door head 1440x42x35mm
1
8x16 Lean To –Option –Add Extra Screws
Part Code
Checked
Part Description
Qty
B
Beam 5105x70x35mm
1
VB
Verandah Beam 5105x140x35mm
1
VR
Verandah Rafter 1000x42x35mm
5
VP
Verandah Posts 2400x90x90mm
3
VF
Verandah Fascias 1100x75x20mm
2
VS
Verandah Roof Sheets 1150mm
7
8x16 Annex –Option –Add Extra Screws
Part Code
Checked
Part Description
Qty
B
Beam 5105x70x35mm
1
VB
Verandah Beam 5105x140x35mm
1
VR
Verandah Rafter 1930x42x35mm
5
VP
Verandah Posts 2400x90x90mm
3
VF
Verandah Fascias 2000x75x20mm
2
VS
Verandah Roof Sheets 2050mm
7
All manuals and user guides at all-guides.com

4 | P a g e
If no floor option was purchased, go to step 2.0 (Wall Assembly)
STEP 1.0
FLOOR KIT
1.0 –FLOOR KIT
PART CODE
QTY
DESCRIPTION
EP
4
End Plate 2470mm
SJ
8
Single Joist 2330mm
DJ
4
Double Joist 2330mm (42x35mm part of DJ goes at the top inside)
FN
12
Floor Nog
100BS
56
100mm Batten screw (Heavy Duty Floor Only)
75N
56
75mm Nail (Rebated Floor Only)
65HHS
28
65mm Hex Head Screw
1.0 –FLOOR FRAME
Fasten through EP into DJ using 3 x 100BS per join (75N on Rebated Floor)
Fasten through EP into SJ using 2 x 100BS per join (75N on Rebated Floor)
Fasten FN’s in positions shown below using 65HHS
Fasten floor frames together using 6 x 65HHS
HEAVY DUTY FLOOR KIT
The 8x16 Heavy Duty floor frame comes in two parts. Install one floor frame in desired position at desired
height, and ensure fully supported in all 4 corners. Butt second floor frame and attach to installed frame using
6 x 65HHS evenly spaced along EP. Ensure other end is level and supported.
Heavy duty floor can be installed on unlevelled ground –use supplied logs to level your floor by digging them
into the ground- see support positions in pic above –attach logs to floor using 4 x 100BS per support.
Yellow Tongue
DJ
DJ
SJ
SJ
SJ
SJ
All manuals and user guides at all-guides.com

5 | P a g e
Ensure floor frame is square by measuring from corner to corner diagonally prior to installing flooring.

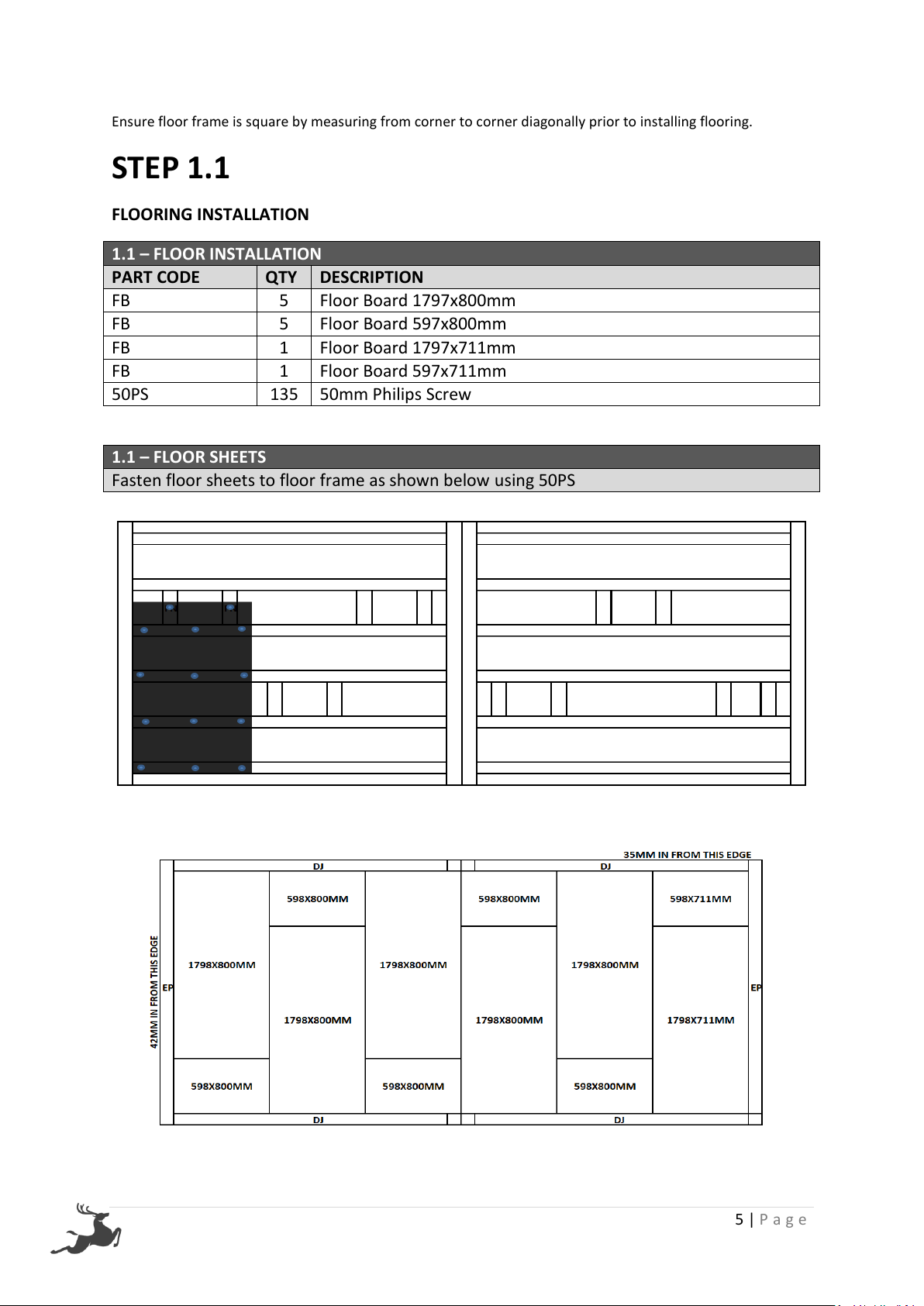

STEP 1.1
FLOORING INSTALLATION
1.1 –FLOOR INSTALLATION
PART CODE
QTY
DESCRIPTION
FB
5
Floor Board 1797x800mm
FB
5
Floor Board 597x800mm
FB
1
Floor Board 1797x711mm
FB
1
Floor Board 597x711mm
50PS
135
50mm Philips Screw
1.1 –FLOOR SHEETS
Fasten floor sheets to floor frame as shown below using 50PS
All manuals and user guides at all-guides.com

6 | P a g e

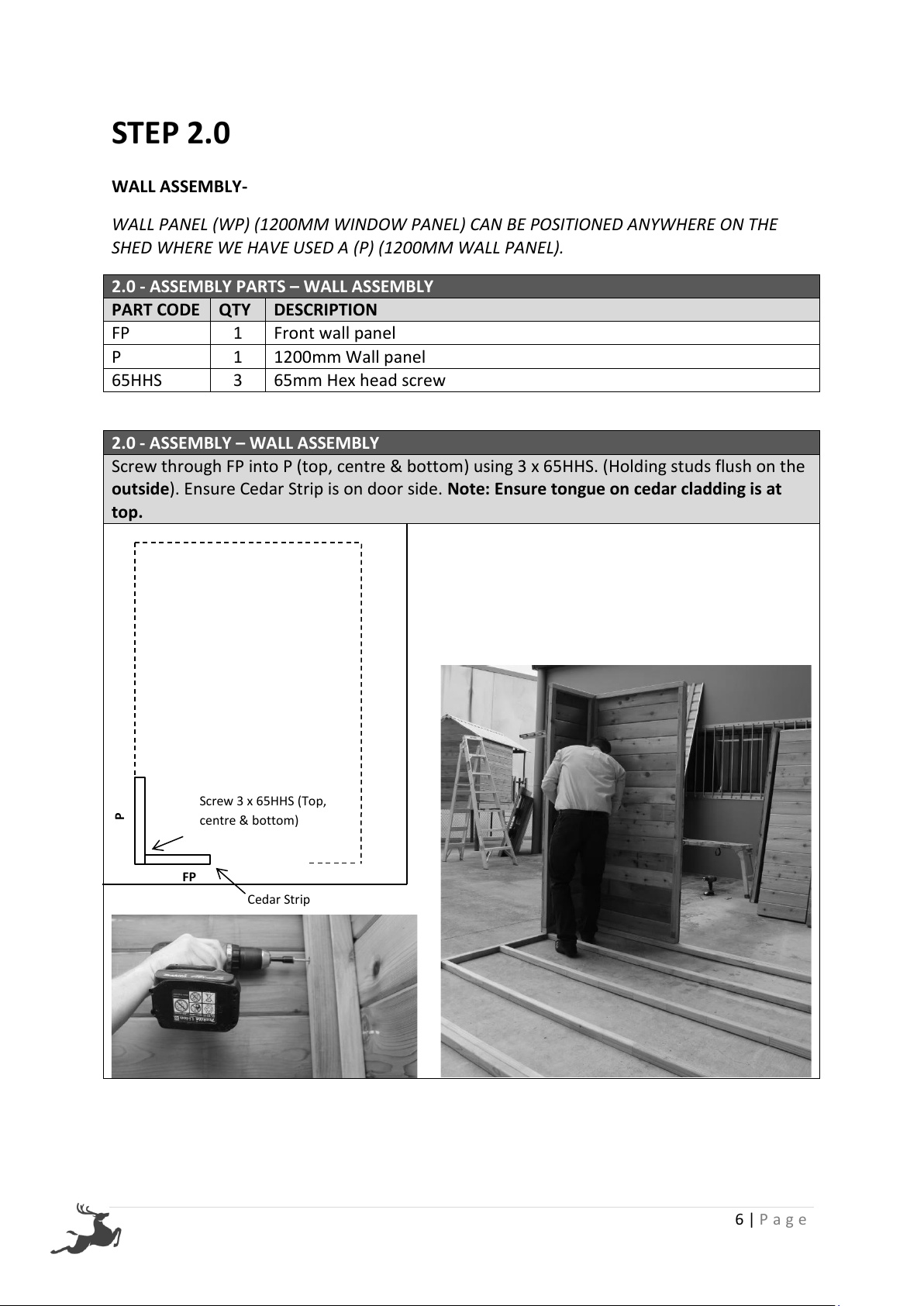

STEP 2.0
WALL ASSEMBLY-
WALL PANEL (WP) (1200MM WINDOW PANEL) CAN BE POSITIONED ANYWHERE ON THE
SHED WHERE WE HAVE USED A (P) (1200MM WALL PANEL).
2.0 - ASSEMBLY PARTS –WALL ASSEMBLY
PART CODE
QTY
DESCRIPTION
FP
1
Front wall panel
P
1
1200mm Wall panel
65HHS
3
65mm Hex head screw
2.0 - ASSEMBLY –WALL ASSEMBLY
Screw through FP into P (top, centre & bottom) using 3 x 65HHS. (Holding studs flush on the
outside). Ensure Cedar Strip is on door side. Note: Ensure tongue on cedar cladding is at
top.
P
Screw 3 x 65HHS (Top,
centre & bottom)
FP
Cedar Strip
All manuals and user guides at all-guides.com

7 | P a g e
STEP 2.1
WALL ASSEMBLY
2.1 - ASSEMBLY PARTS –WALL ASSEMBLY
PART CODE
QTY
DESCRIPTION
P
1
1200mm Wall panel
65HHS
3
65mm Hex head screw
2.1 - ASSEMBLY PARTS –WALL ASSEMBLY
Screw through P into P (Top, centre & bottom) using 3 x 65HHS, holding studs flush on the
inside.
P
Screw 3 x 65HHS (Top,
centre & bottom)
P
All manuals and user guides at all-guides.com

8 | P a g e
STEP 2.2
WALL ASSEMBLY
2.2 - ASSEMBLY PARTS –WALL ASSEMBLY
PART CODE
QTY
DESCRIPTION
P
1
1200mm Wall panel
65HHS
3
65mm Hex head screw
2.2 - ASSEMBLY PARTS –WALL ASSEMBLY
Screw through P into P (Top, centre & bottom) using 3 x 65HHS, holding studs flush on the
inside.
P
Screw 3 x 65HHS (Top,
centre & bottom)
P
All manuals and user guides at all-guides.com

9 | P a g e
STEP 2.3
WALL ASSEMBLY
2.3 - ASSEMBLY PARTS –WALL ASSEMBLY
PART CODE
QTY
DESCRIPTION
P
1
1200mm Wall panel
65HHS
3
65mm Hex head screw
2.3 - ASSEMBLY PARTS –WALL ASSEMBLY
Screw through P into P (Top, centre & bottom) using 3 x 65HHS, holding studs flush on the
inside.
P
Screw 3 x 65HHS (Top,
centre & bottom)
P
All manuals and user guides at all-guides.com

10 | P a g e
STEP 2.4
WALL ASSEMBLY
2.4 - ASSEMBLY PARTS –WALL ASSEMBLY
PART CODE
QTY
DESCRIPTION
P
1
1200mm Wall panel
65HHS
3
65mm Hex head screw
2.4 - ASSEMBLY PARTS –WALL ASSEMBLY

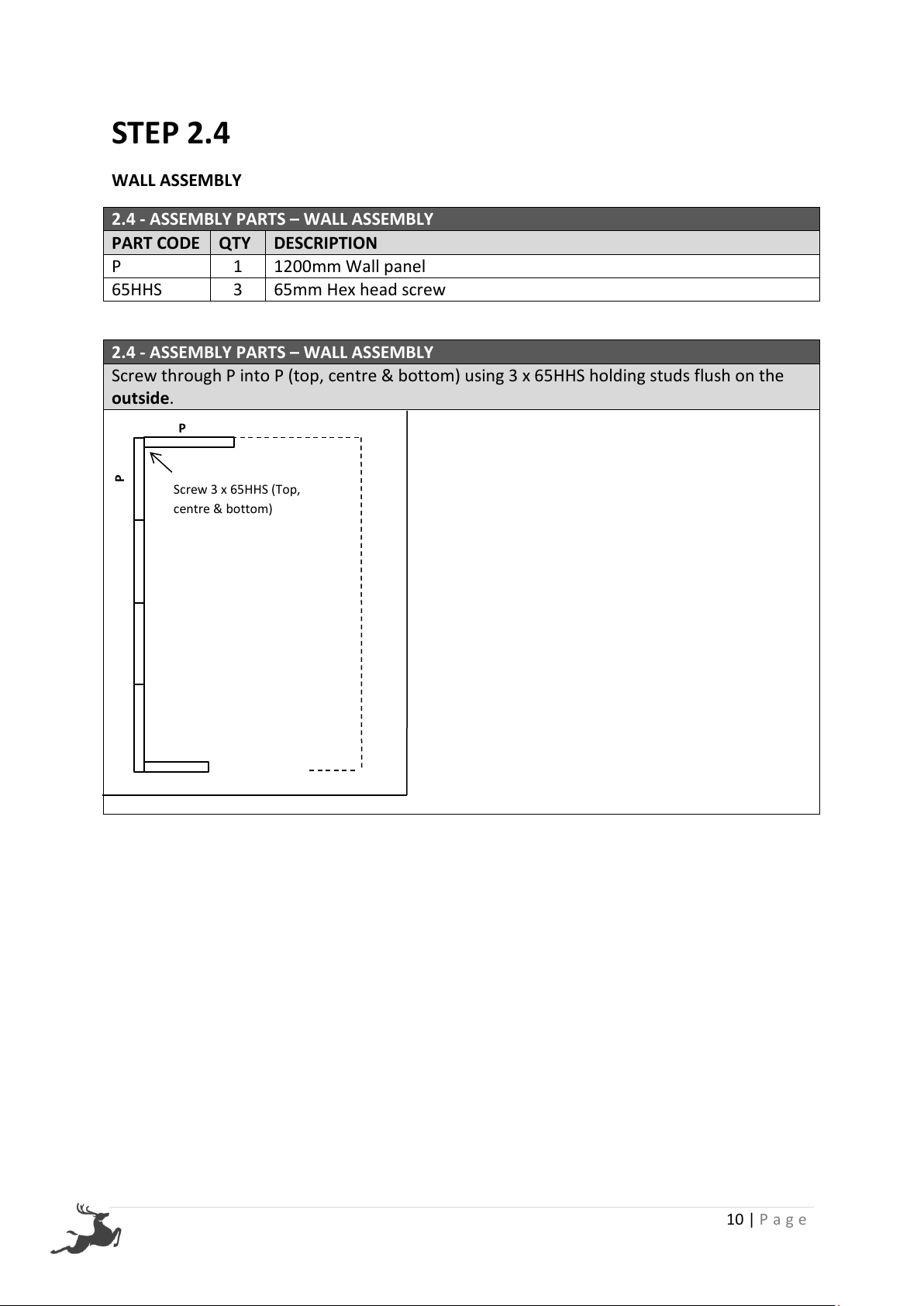

Screw through P into P (top, centre & bottom) using 3 x 65HHS holding studs flush on the
outside.
P
Screw 3 x 65HHS (Top,
centre & bottom)
P
All manuals and user guides at all-guides.com

11 | P a g e

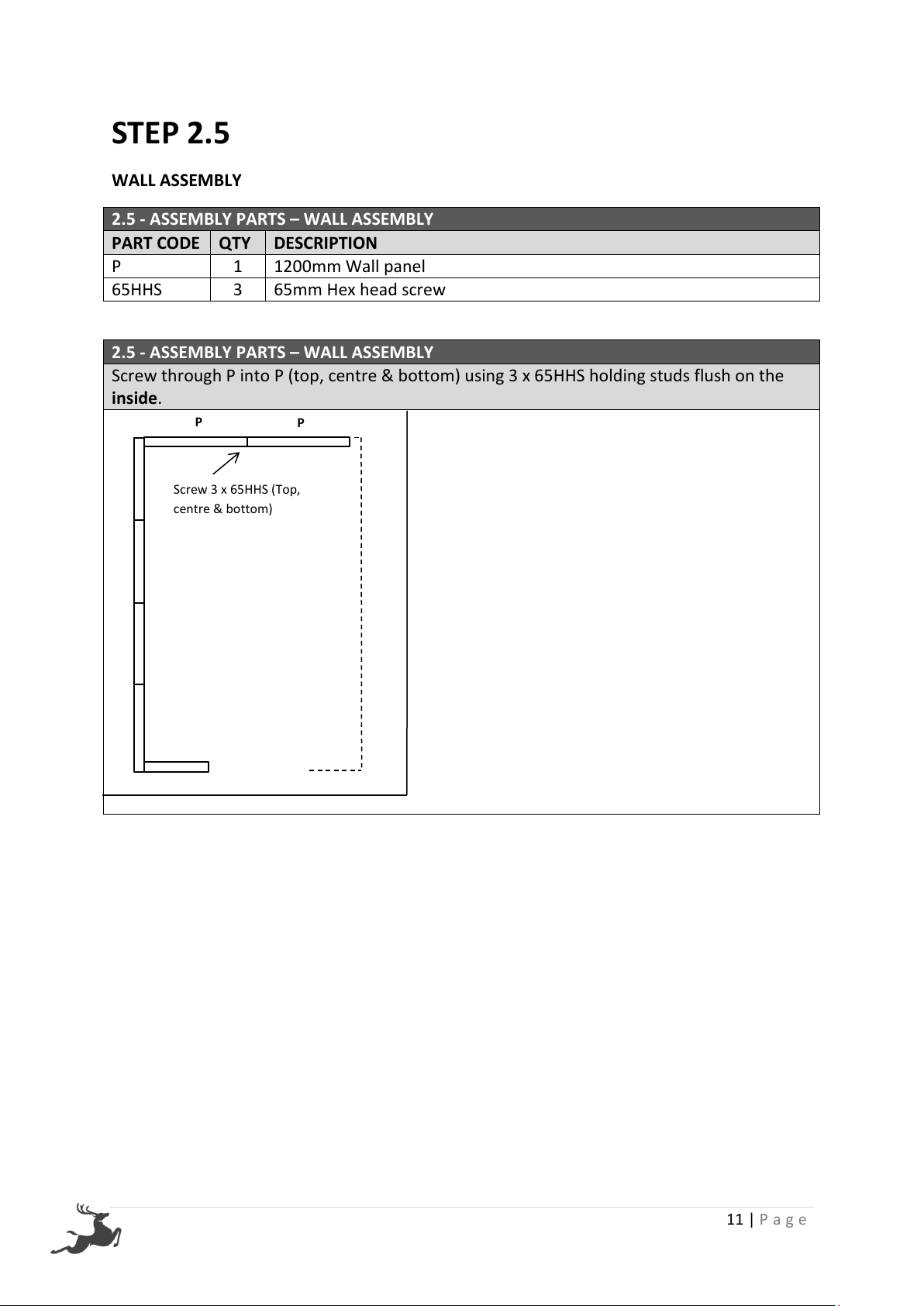

STEP 2.5
WALL ASSEMBLY
2.5 - ASSEMBLY PARTS –WALL ASSEMBLY
PART CODE
QTY
DESCRIPTION
P
1
1200mm Wall panel
65HHS
3
65mm Hex head screw
2.5 - ASSEMBLY PARTS –WALL ASSEMBLY
Screw through P into P (top, centre & bottom) using 3 x 65HHS holding studs flush on the
inside.
P
Screw 3 x 65HHS (Top,
centre & bottom)
P
All manuals and user guides at all-guides.com

12 | P a g e

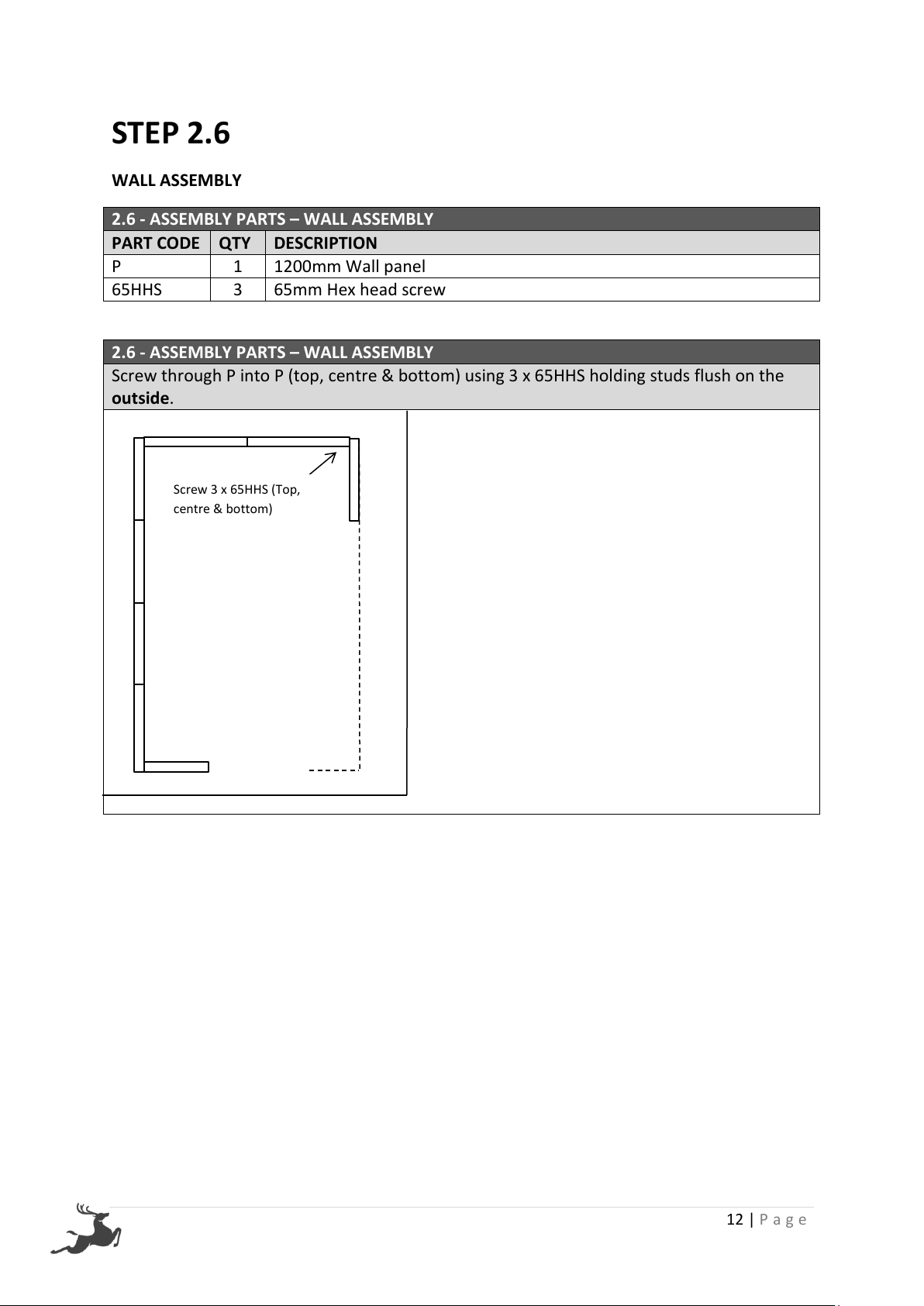

STEP 2.6
WALL ASSEMBLY
2.6 - ASSEMBLY PARTS –WALL ASSEMBLY
PART CODE
QTY
DESCRIPTION
P
1
1200mm Wall panel
65HHS
3
65mm Hex head screw
2.6 - ASSEMBLY PARTS –WALL ASSEMBLY
Screw through P into P (top, centre & bottom) using 3 x 65HHS holding studs flush on the
outside.
Screw 3 x 65HHS (Top,
centre & bottom)
All manuals and user guides at all-guides.com

13 | P a g e

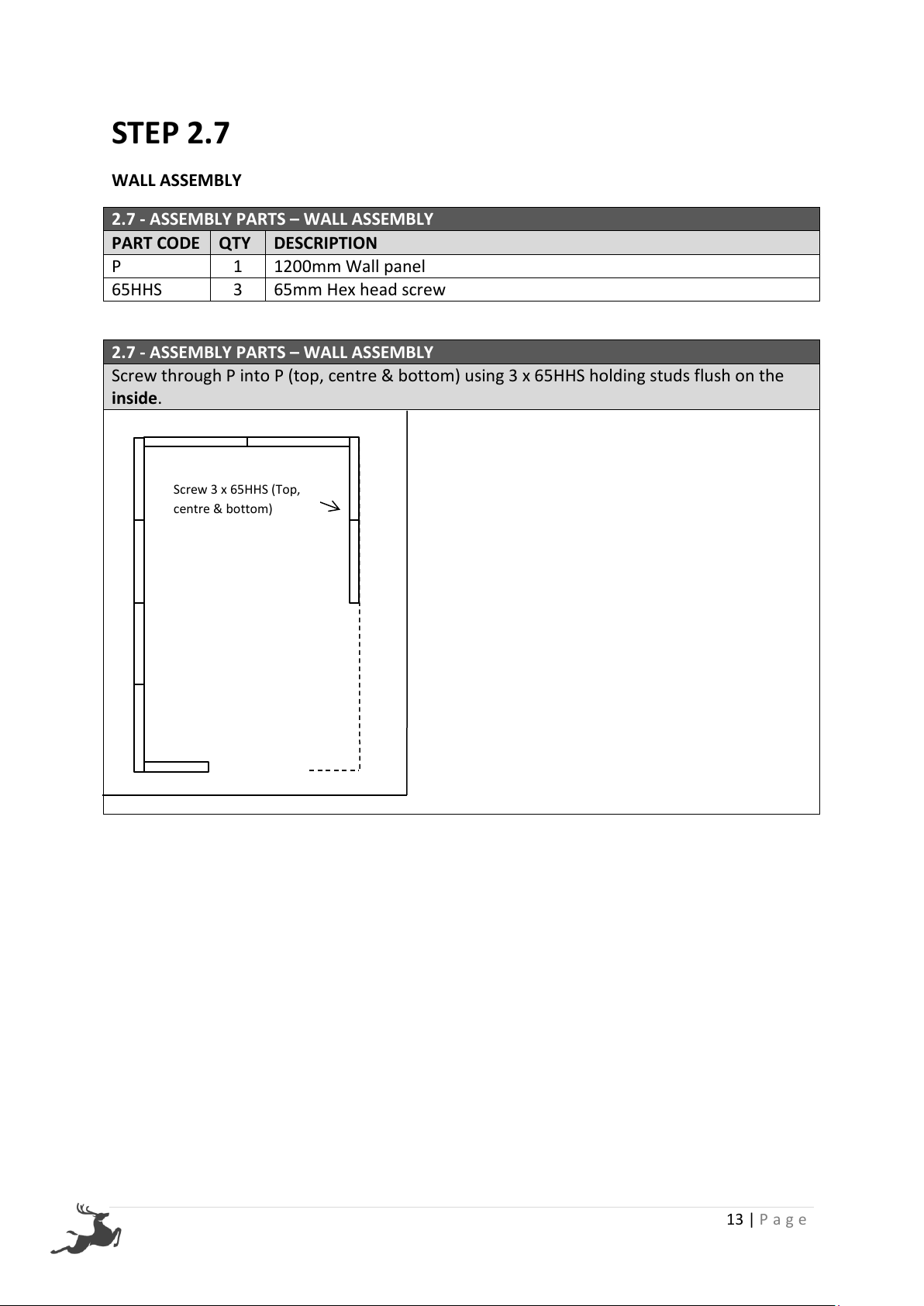

STEP 2.7
WALL ASSEMBLY
2.7 - ASSEMBLY PARTS –WALL ASSEMBLY
PART CODE
QTY
DESCRIPTION
P
1
1200mm Wall panel
65HHS
3
65mm Hex head screw
2.7 - ASSEMBLY PARTS –WALL ASSEMBLY
Screw through P into P (top, centre & bottom) using 3 x 65HHS holding studs flush on the
inside.
Screw 3 x 65HHS (Top,
centre & bottom)
All manuals and user guides at all-guides.com

14 | P a g e
STEP 2.8
WALL ASSEMBLY
THE WINDOW PANEL (WP –1200MM WINDOW PANEL) CAN BE POSITIONED ANYWHERE ON
THE SHED WHERE WE HAVE USED A P (1200MM WALL PANEL)
2.8 - ASSEMBLY PARTS –WALL ASSEMBLY
PART CODE
QTY
DESCRIPTION
WP
1
1200mm Window wall panel
65HHS
3
65mm Hex head screw
2.8 - ASSEMBLY –WALL ASSEMBLY
Screw through P into WP (top, centre & bottom) using 3 x 65HHS. (Holding studs flush on
the inside).
Screw 3 x 65HHS (Top,
centre & bottom)
All manuals and user guides at all-guides.com

15 | P a g e

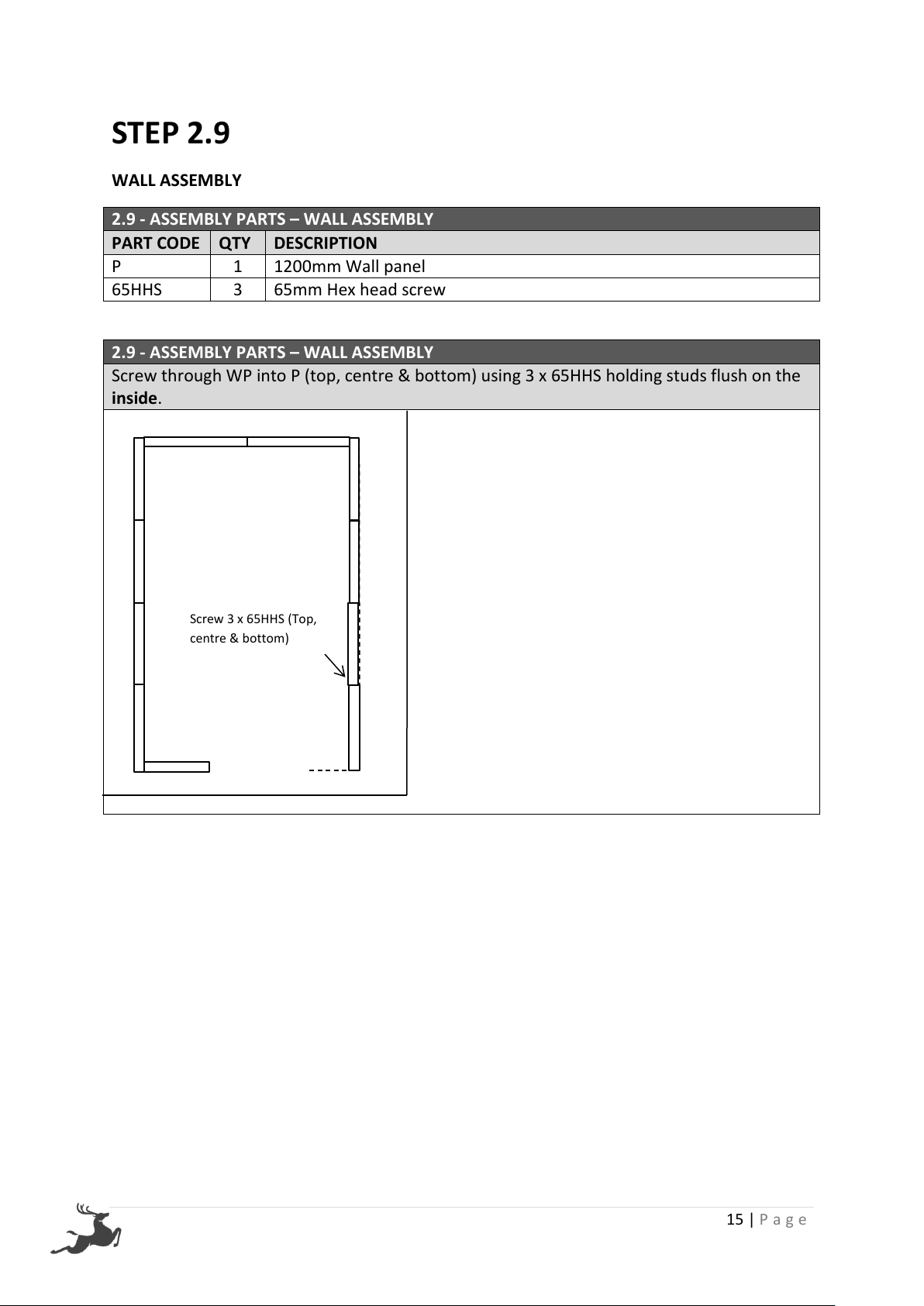

STEP 2.9
WALL ASSEMBLY
2.9 - ASSEMBLY PARTS –WALL ASSEMBLY
PART CODE
QTY
DESCRIPTION
P
1
1200mm Wall panel
65HHS
3
65mm Hex head screw
2.9 - ASSEMBLY PARTS –WALL ASSEMBLY
Screw through WP into P (top, centre & bottom) using 3 x 65HHS holding studs flush on the
inside.
Screw 3 x 65HHS (Top,
centre & bottom)
All manuals and user guides at all-guides.com

16 | P a g e
STEP 3.0
WALL ASSEMBLY
3.0 - ASSEMBLY PARTS –WALL ASSEMBLY
PART CODE
QTY
DESCRIPTION
FP
1
Front wall panel
65HHS
3
65mm Hex head screw
3.0 - ASSEMBLY PARTS –WALL ASSEMBLY
Screw through WP into P (top, centre & bottom) using 3 x 65HHS holding studs flush on the
outside.
Screw 3 x 65HHS (Top,
centre & bottom)
P
FP
All manuals and user guides at all-guides.com

17 | P a g e
STEP 3.1
BACK GABLE ASSEMBLY
3.1 - ASSEMBLY PARTS –GABLE ASSEMBLY
PART CODE
QTY
DESCRIPTION
G
4
Gable
65HHS
9
65mm Hex head screw
FGS
1
Front gable cover strip
SCS
1
Stilla branded cover strip
40N
10
40mm Nail
DH
1
Door Head
3.1 - ASSEMBLY –GABLE ASSEMBLY
Lay 2 x G (left and right) on a flat surface with the frame facing upwards –see picture below.
Screw together in position shown, holding flush at the bottom (using 2 x 65HHS). Repeat for
other gable.
Turn one complete gable over (cedar facing upwards). Position (SCS) Stilla branded cover
strip flush with bottom of gable Board and flush on each end. Nail through cover strip into
gable using 40N.
Position (FGS) front gable cover strip over join in front gable. Fasten in position using 40N.
Hold DH (Door Head) centre along base plate of gable. Screw down through gable base plate
into DH centre and ends using 3x65HHS.
All manuals and user guides at all-guides.com

18 | P a g e
STEP 3.2
FRONT GABLE ASSEMBLY
3.2 - ASSEMBLY PARTS –GABLE ASSEMBLY
PART CODE
QTY
DESCRIPTION
1
Assembled front gable
1
Assembled back gable
65HHS
7
65mm Hex head screw

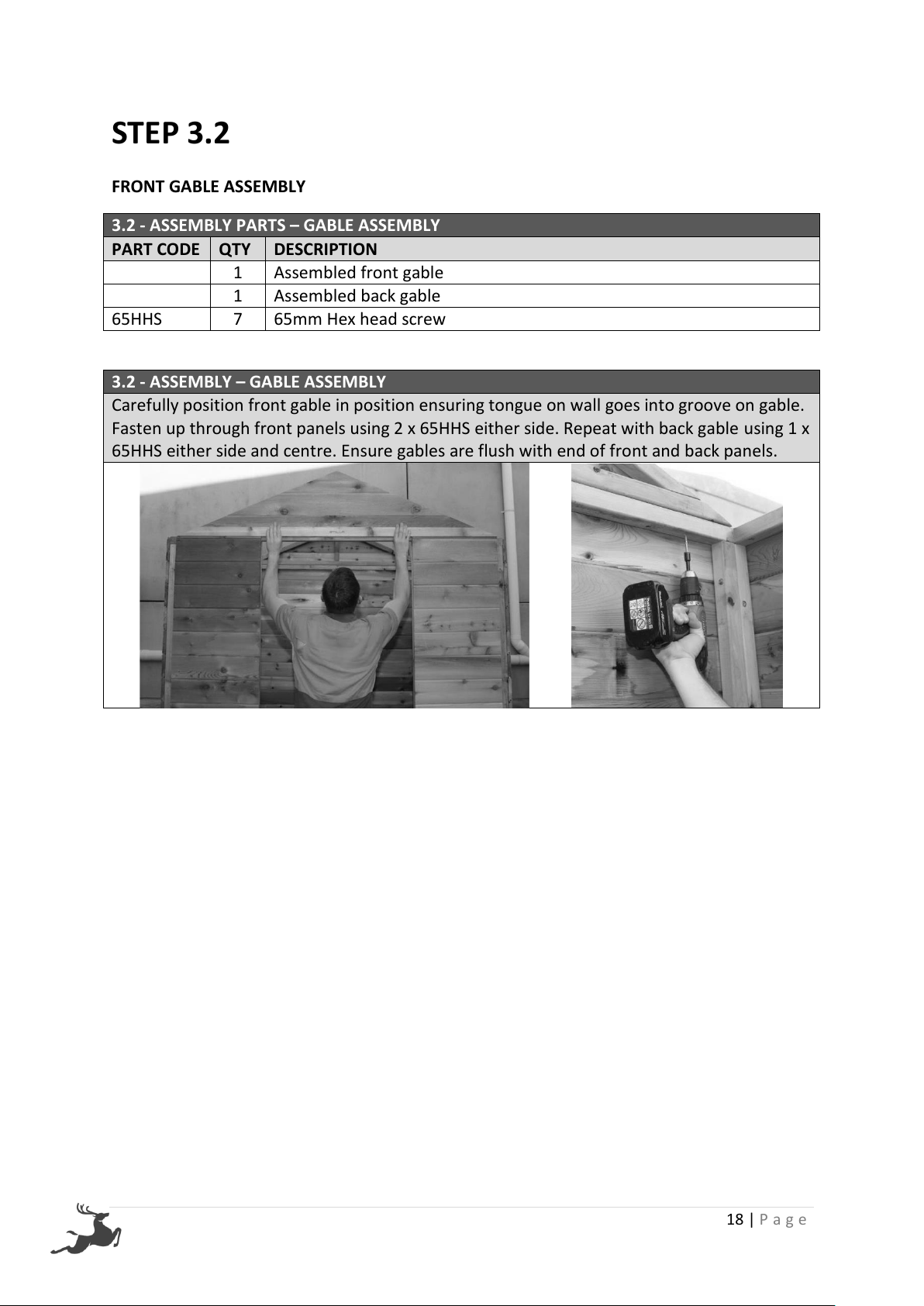

3.2 - ASSEMBLY –GABLE ASSEMBLY
Carefully position front gable in position ensuring tongue on wall goes into groove on gable.
Fasten up through front panels using 2 x 65HHS either side. Repeat with back gable using 1 x
65HHS either side and centre. Ensure gables are flush with end of front and back panels.
All manuals and user guides at all-guides.com

19 | P a g e
STEP 3.3
RIDGE BEAM BRACKET
3.3 - ASSEMBLY PARTS –RIDGE BEAM BRACKET
PART CODE
QTY
DESCRIPTION
RBB
2
Ridge beam bracket
50PS
4
50mm screws

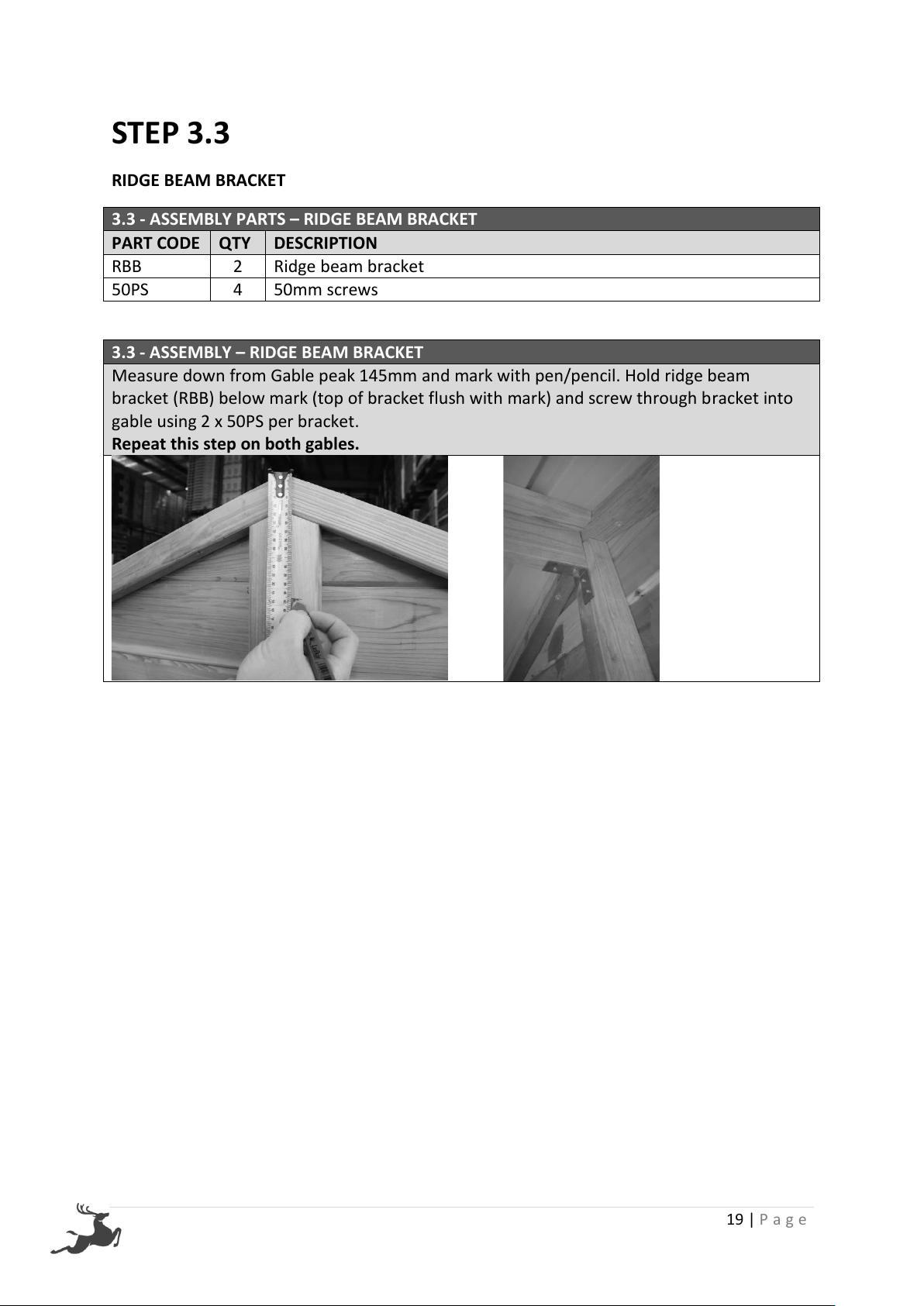

3.3 - ASSEMBLY –RIDGE BEAM BRACKET
Measure down from Gable peak 145mm and mark with pen/pencil. Hold ridge beam
bracket (RBB) below mark (top of bracket flush with mark) and screw through bracket into
gable using 2 x 50PS per bracket.
Repeat this step on both gables.
All manuals and user guides at all-guides.com
