STILLA Wattle 8x4 User manual

STILLA
ASSEMBLY INSTRUCTIONS
Wattle 8x4’
S3110
Every part needed to construct your shed is included inside the pack; cedar
panels, doors, windows, hardware kits & roof sheeting. Please ensure you fully
unpack all the parts & check against the parts checklist before contacting
customer service about anything you believe may be missing. Thank-you!

1 | P a g e
Caution
Please be careful when handling all components, some parts have sharp metal edges.
Always wear work gloves, eye protection and long sleeves when assembling or maintaining
your shed.
Tools required for assembly
•Level
•Drill (capable of driving 100mm
Batten Screw)
•Hammer
•Ladder
•12mm Drill bit
•6mm Drill bit
•Tape measure
•Phillips head drive
•Hex Head Drive (5/16’)
•Safety glasses
•Gloves
•Circular/power saw (if rebated or
heavy duty floor was chosen)
•4mm Alan key
•Batten screw drive
Before assembly
•Before proceeding with installation, we recommend viewing the Cedar Shed video at
www.stilla.com.au/installation/ or search Stilla Classic Cedar Sheds on Youtube. This doesn’t
show the installation in detail however it could give you some handy tips. Please note we
haven’t videoed the assembly of each shed however the video online is the Maple 12x6 and
will give you an overall idea on how the installation process is completed.
•Remove all parts from packages and place in a safe place close to assembly area.
•Review all instructions; continue to refer to instructions throughout assembly –step
by step.
Preparing your site
•If you are installing your shed on the Stilla rebated floor we recommend finding a
place in your yard that is very close to level. Pavers or a solid material that will not be
affected by weather can be used to perfectly level the shed by placing under the
floor frame where required, make sure all members are supported.
•If you are installing your shed on the Stilla heavy duty floor, this can be placed on
unlevelled surfaces and levelled up by using the 100x100 stumps provided.

2 | P a g e
WATTLE 8x4 PARTS CHECKLIST
Part Code
Checked
Part Description
Qty
12P
Cedar Clad Panel 1200x1890mm
4
FP
Cedar Clad Panel 780x1890mm (480x1890mm if Double Doors)
2
CD
Colonial Door 830x1875mm
1
G
8ft Gables
4
CP
Corner Posts 1890x60x18mm
4
CS
Cover Strips 1890x40x7mm
1
F
8ft Fascia Pack
1
R
Rafters 1230x42x35mm
4
DH
Door Head 840x42x35mm (1440mm if double doors)
1
DS
Door Step 840x19x42mm (1440mm if double doors)
1
FGS
Front Gable Strip 460mm
1
BGS
Back Gable Strip 490mm
1
RS
1480mm Roof Sheeting
4
RC
1520mm Ridge Cap
1
TB/BB
Top Batten/Bottom Batten 1520mm
4
C
1520mm Chanel
2
HK
8x4 Hardware Kit
1
IM
8x4 Instruction Manual
1
SCS
Stilla Cover Strip (If no floor option cut SCS to 1800mm and join)
1
Floor Kit –Option
Floor Frame - (Rebated Floor 70x38mm/Heavy Duty Floor 140x38mm)
Part Code
Checked
Part Description
Qty
DJ
Double Joist 1124mm
2
SJ
Single Joist 1124mm
4
FN
Floor Nog 460mm
3
L
Logs (rebated floor does not come with logs)
4
FB
1798mm x 800mm
1
FB
598mm x 800mm
1
FB
1798mm x 311mm
1
FB
598mm x 311mm
1
EP
End Plate 2484mm
2
8 Foot Loft Shelf - Option
Part Code
Checked
Part Description
Qty
SS
Loft Shelf Support
1
8LS
8ft Loft Shelf
1

3 | P a g e
8x4 Lean To –Option –Add Extra Screws
Part Code
Checked
Part Description
Qty
VR
Verandah Rafter 1000x42x35mm
3
VF
Verandah Fascias 1100x75x20mm
2
VS
Verandah Roof Sheets 1150mm
2
B
Beam 1520x70x35mm
1
VB
Verandah Beam 1520x140x35mm
1
VP
Verandah Posts 2400x90x90mm
2
8x4 Annex –Option –Add Extra Screws
Part Code
Checked
Part Description
Qty
VR
Verandah Rafter 1930x42x35mm
3
VF
Verandah Fascias 2000x75x20mm
2
VS
Verandah Roof Sheets 2050mm
2
B
Beam 1520x70x35mm
1
VB
Verandah Beam 1520x140x35mm
1
VP
Verandah Posts 2400x90x90mm
2
Double Doors –Option –Changes to above kit
Part Code
Checked
Part Description
Qty
CD
Colonial Door 714x1875mm
2
FP
Front Panel 480x1890mm
2
DP
Door Leaver Packer 100x100x18mm
1
DH
Door Head 1440x42x35mm
1
DS
Door Stop 1440x42x19mm
1

4 | P a g e
If no floor option was purchased, go to step 2.0 (Wall Assembly)
STEP 1.0
FLOOR KIT
1.0 –FLOOR KIT
PART CODE
QTY
DESCRIPTION
EP
2
End Plate 2484mm
SJ
4
Single Joist 1124mm
DJ
2
Double Joist 1124mm
FN
3
Floor Nog 460mm
100BS
28
100mm Batten screw (Heavy Duty Floor Only)
75N
28
75mm Nail (Rebated Floor Only)
65HHS
6
65mm Hex Head Screw

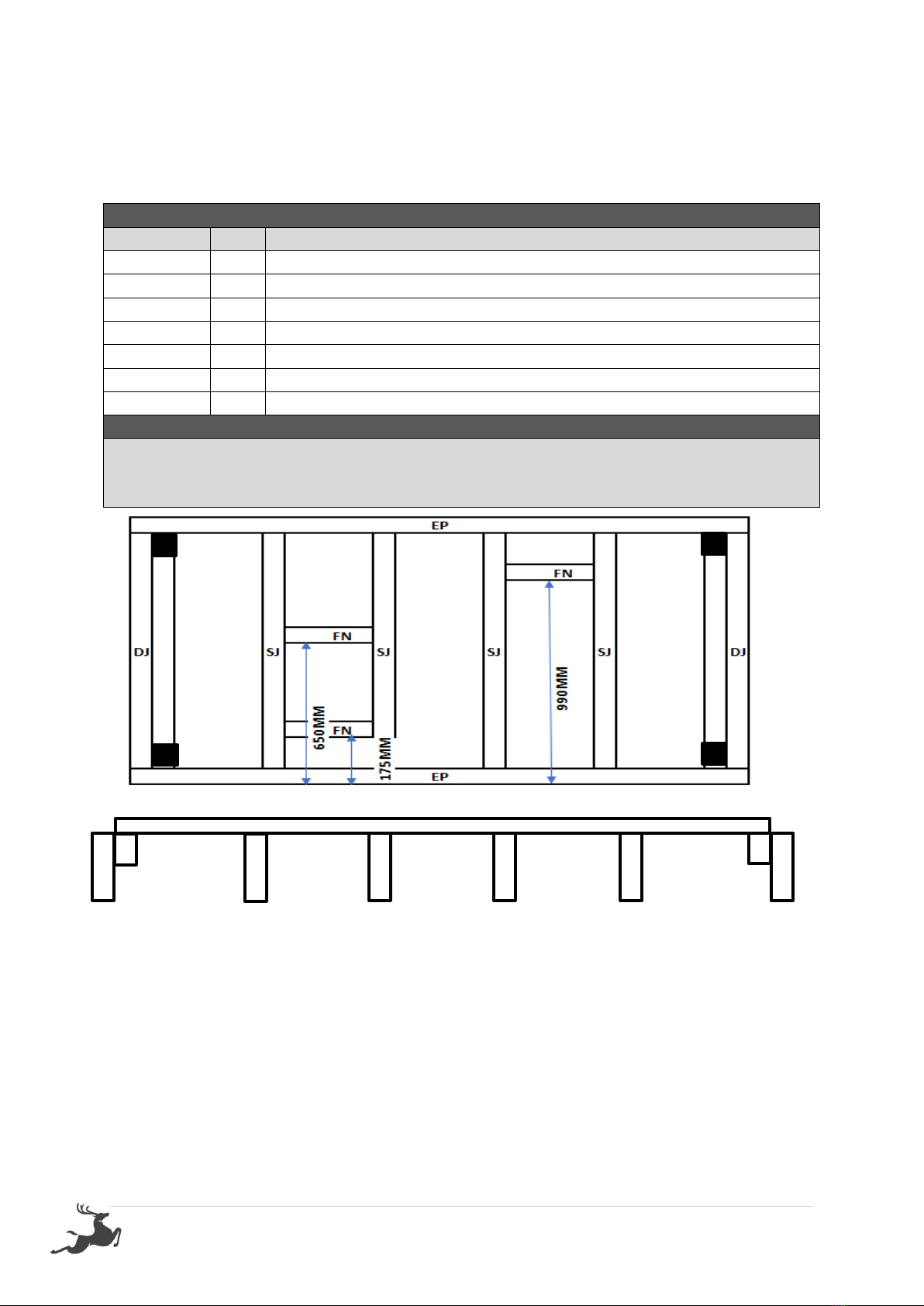

1.0 –FLOOR FRAME
Fasten through EP into DJ using 3 x 100BS per join (75N on Rebated Floor)
Fasten through EP into SJ using 2 x 100BS per join (75N on Rebated Floor)
Fasten FN’s in positions shown below using 65HHS
HEAVY DUTY FLOOR KIT
Heavy duty floor can be installed on unlevelled ground –use supplied logs to level your floor
by digging them into the ground.
Install heavy duty floor kit using (L) 4 logs –1 in each corner (position shown above) screw
through frame into log using 4 x 100BS per corner
Ensure floor frame is square by measuring from corner to corner diagonally prior to
installing flooring.
Yellow Tongue
DJ
DJ
SJ
SJ
SJ
SJ

5 | P a g e
STEP 1.1
FLOORING INSTALLATION
1.1 –FLOOR INSTALLATION
PART CODE
QTY
DESCRIPTION
FB
1
Floor Board 1798x800mm
FB
1
Floor Board 598x800mm
FB
1
Floor Board 1798x311mm
FB
1
Floor Board 598x311mm
50PS
36
50mm Philips Screw

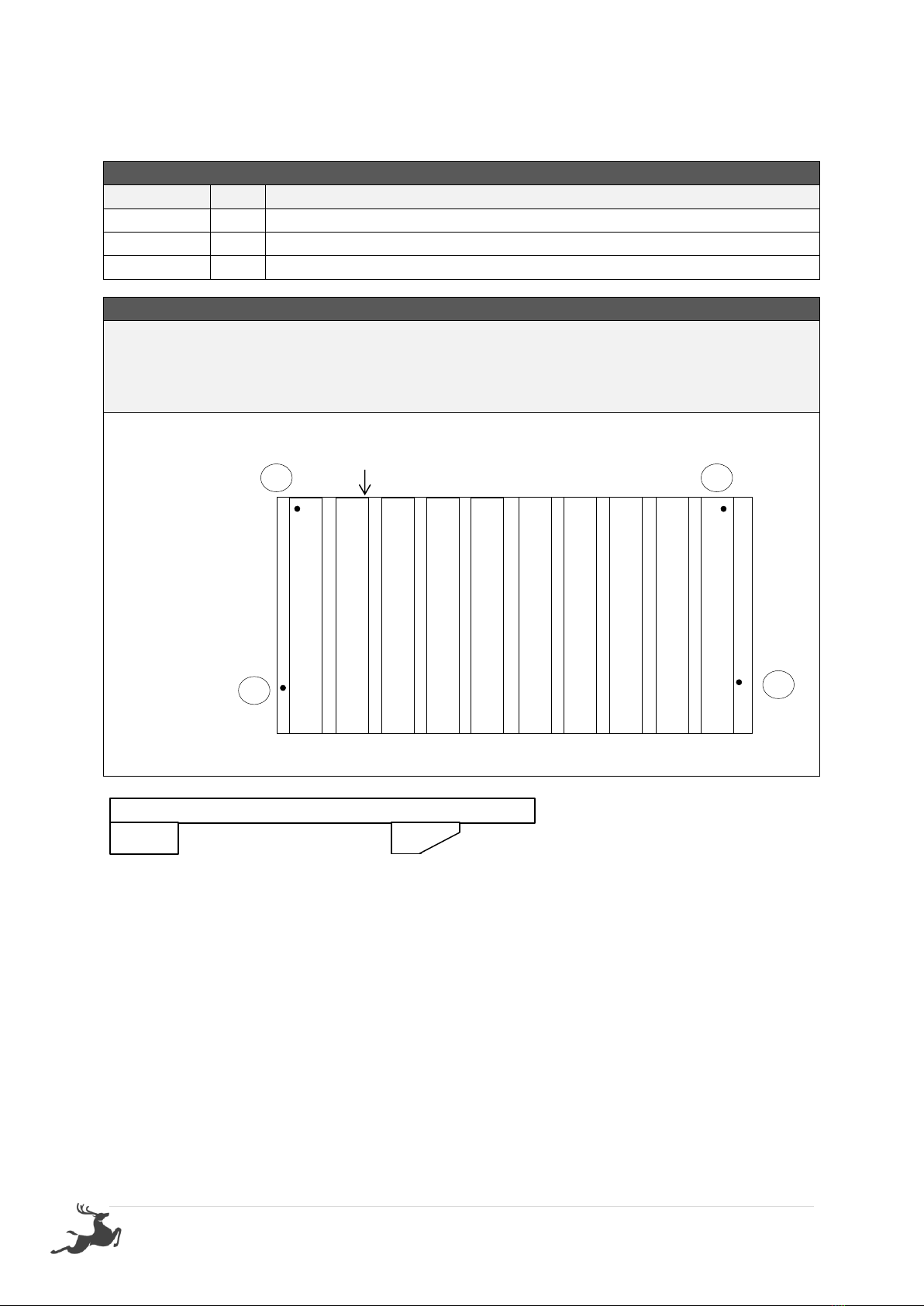

1.1 –FLOOR SHEETS
Fasten floor sheets to floor frame as shown below using 50PS - The x marked on the floor
sheets do not line up with our Joists, disregard. Flooring in 43mm from edge of floor frame
from all 4 sides.
43MM IN FROM EDGE
43MM IN FROM EDGE

6 | P a g e
STEP 2.0
WALL ASSEMBLY
2.0 - ASSEMBLY PARTS –WALL ASSEMBLY
PART CODE
QTY
DESCRIPTION
FP
1
Front panel
12P
1
1200mm Wall panel
65HHS
3
65mm Hex head screw
If optional window was purchased, it can take the place of any 1200mm (12P) panel.

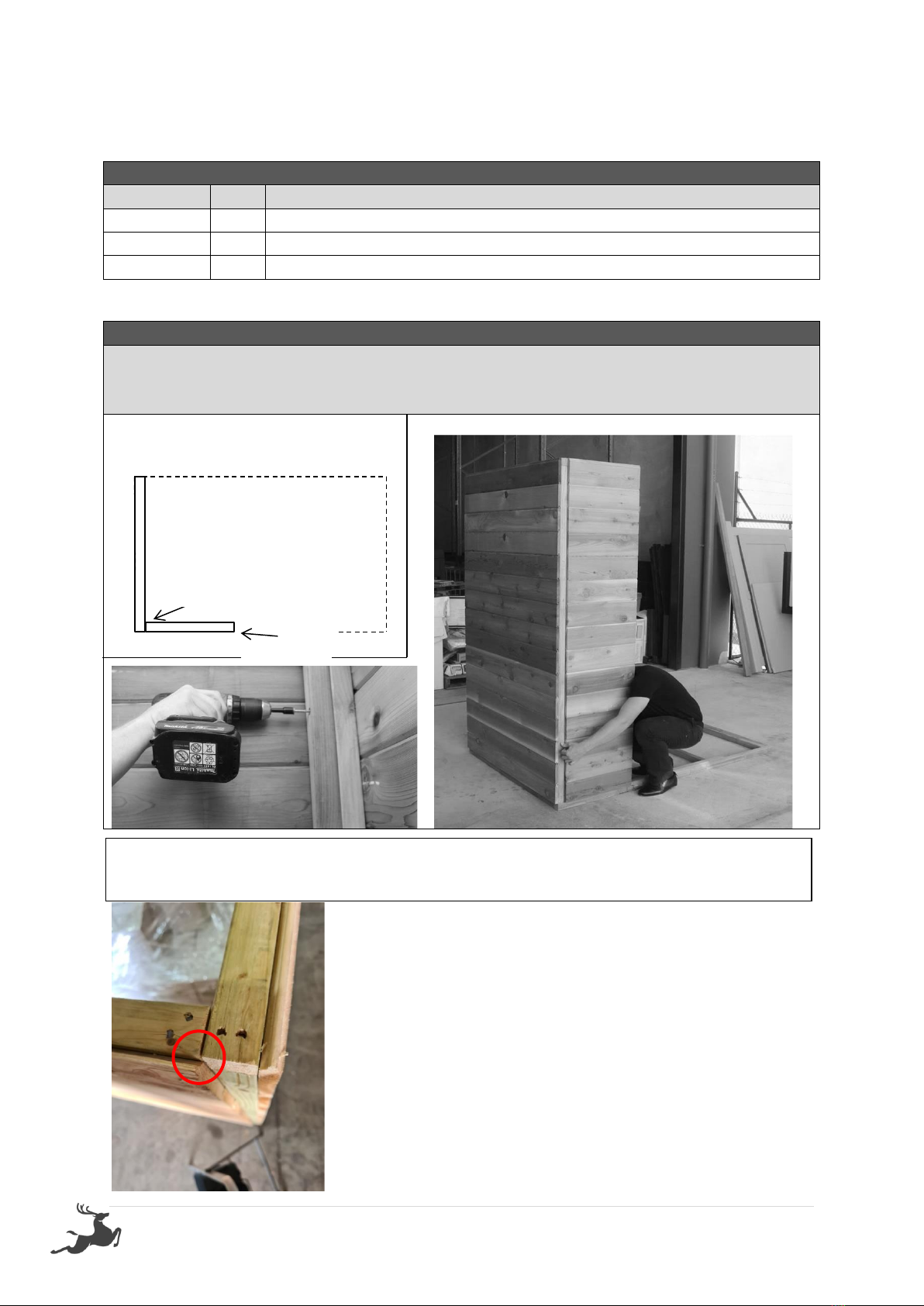

2.0 - ASSEMBLY –WALL ASSEMBLY
Screw through FP into 12P (top, centre & bottom) using 3 x 65HHS. (Holding studs flush on
the outside)
Note: Ensure tongue on VJ cladding is facing upwards.
12P
Screw 3 x 65HHS (Top,
centre & bottom)
FP
Cedar Strip
When screwing the four corners together please make sure the studs are flush on the
outside (not the inside) as per image below.

7 | P a g e
STEP 2.1
WALL ASSEMBLY
2.1 - ASSEMBLY PARTS –WALL ASSEMBLY
PART CODE
QTY
DESCRIPTION
12P
1
1200mm Wall panel
65HHS
3
65mm Hex head screw

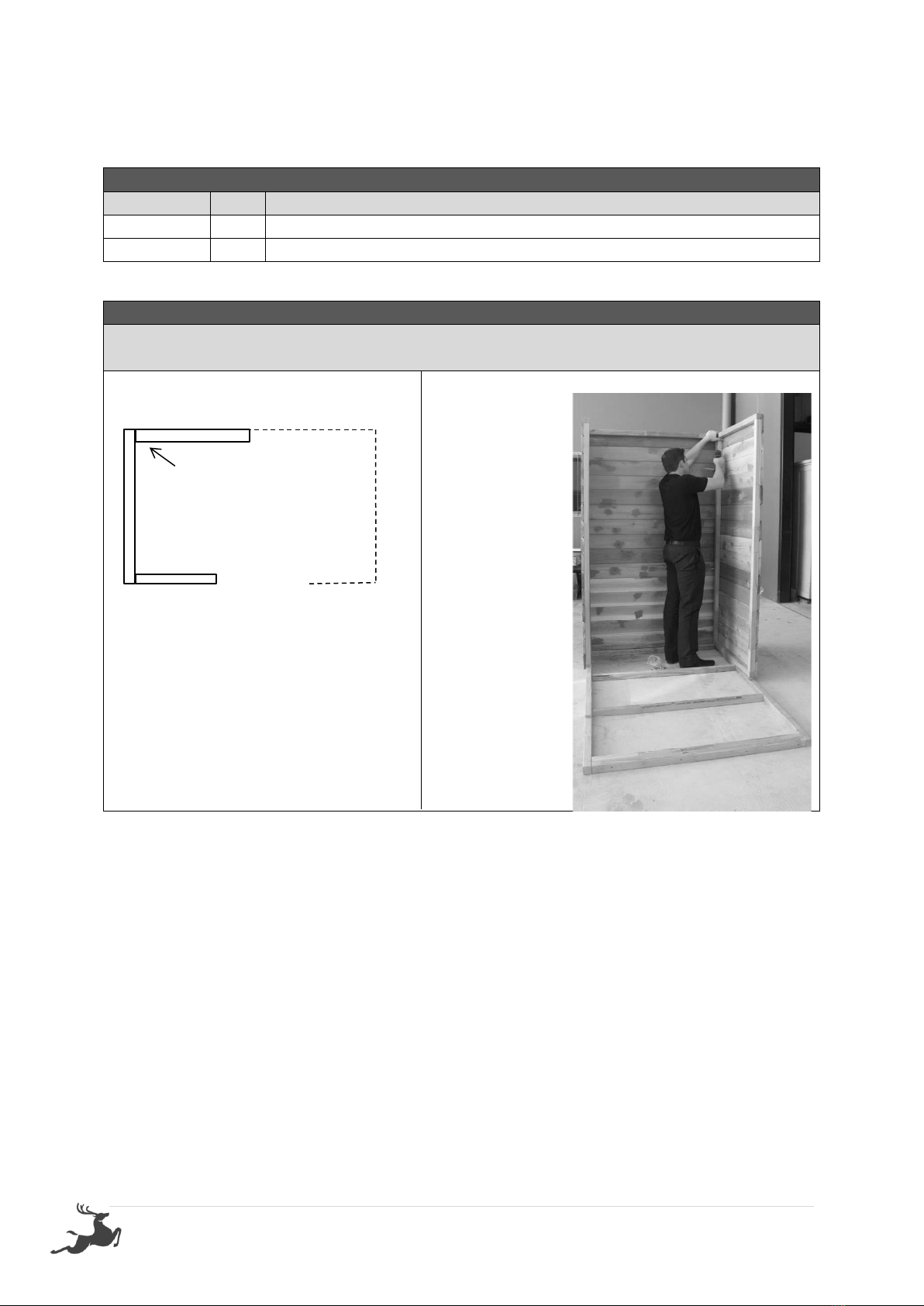

2.1 - ASSEMBLY –WALL ASSEMBLY
Screw through 12P into 12P (Top, centre & bottom) using 3 x 65HHS, holding studs flush on
the outside.
12P
Screw 3 x 65HHS (Top,
centre & bottom)
FRONT OF SHED
12P

8 | P a g e
STEP 2.2
WALL ASSEMBLY
2.2 - ASSEMBLY PARTS –WALL ASSEMBLY
PART CODE
QTY
DESCRIPTION
12P
1
1200mm Wall panel
65HHS
3
65mm Hex head screw

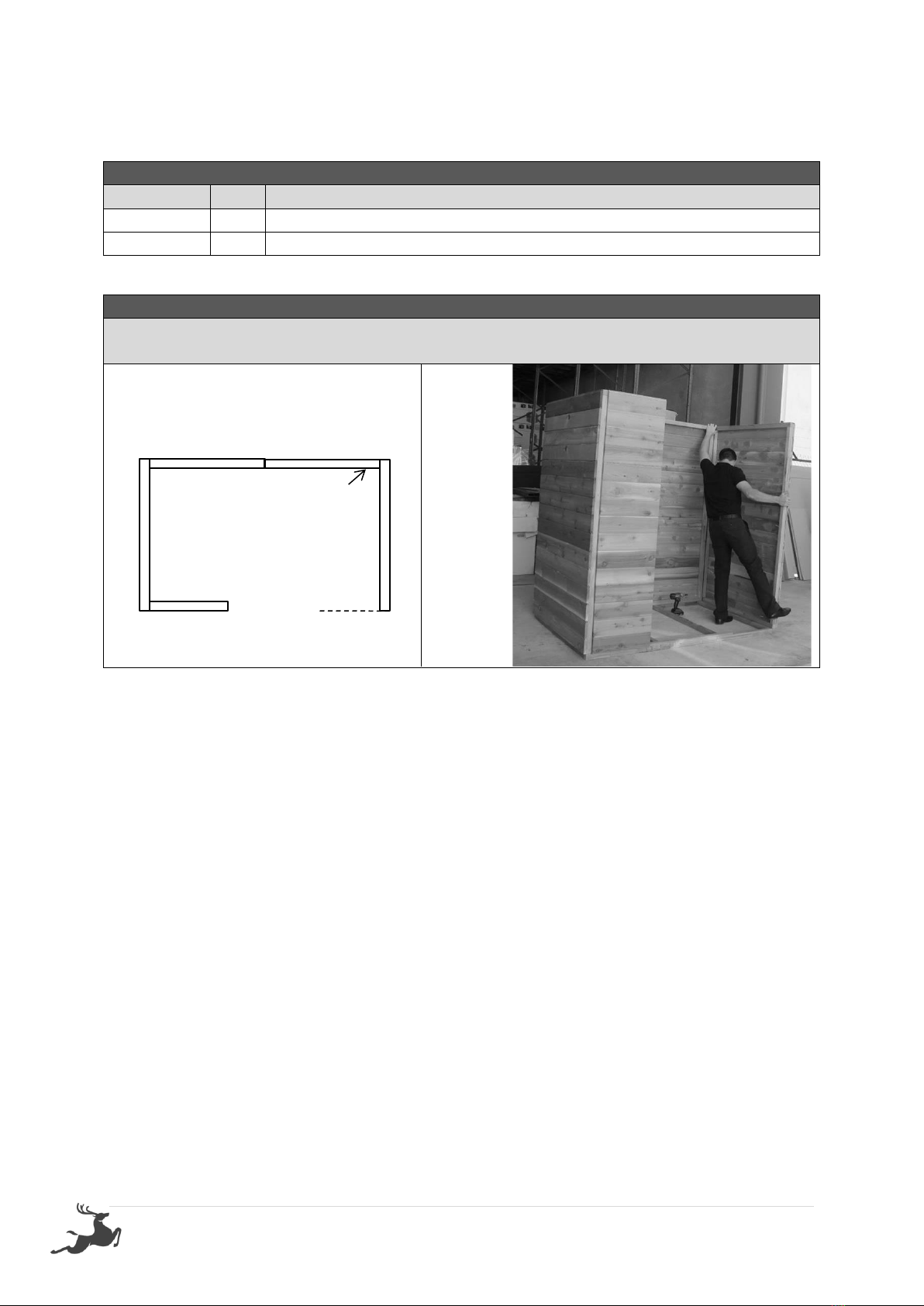

2.2 - ASSEMBLY –WALL ASSEMBLY
Screw through 12P into 12P (Top, centre & bottom) using 3 x 65HHS, holding studs flush on
the inside.
12P
Screw 3 x 65HHS (Top,
centre & bottom)
12P
FRONT OF SHED

9 | P a g e
STEP 2.3
WALL ASSEMBLY
2.3 - ASSEMBLY PARTS –WALL ASSEMBLY
PART CODE
QTY
DESCRIPTION
12P
1
1200mm Wall panel
65HHS
3
65mm Hex head screw
2.3 - ASSEMBLY –WALL ASSEMBLY
Screw through 12P into 12P (top, centre & bottom) using 3 x 65HHS holding studs flush on
the outside.
Screw 3 x 65HHS (Top,
centre & bottom)
12P
12P

10 | P a g e
STEP 2.4
WALL ASSEMBLY
2.4 - ASSEMBLY PARTS –WALL ASSEMBLY
PART CODE
QTY
DESCRIPTION
FP
1
Front panel
65HHS
3
65mm Hex head screw
2.4 - ASSEMBLY –WALL ASSEMBLY
Screw through FP into 12P (top, centre & bottom) using 65HHS holding studs flush on the
outside.
Screw 3 x 65HHS (Top,
centre & bottom)
FRONT OF SHED
FP
12P
Cedar Strip

11 | P a g e
STEP 2.5
GABLE ASSEMBLY
2.5 - ASSEMBLY PARTS –GABLE ASSEMBLY
PART CODE
QTY
DESCRIPTION
G
4
Gable (2 pairs)
65HHS
6
65mm Hex head screw
FGS
1
Front gable cover strip
SCS
1
Stilla branded cover strip
40N
10
40mm Nail
DH
1
Door head

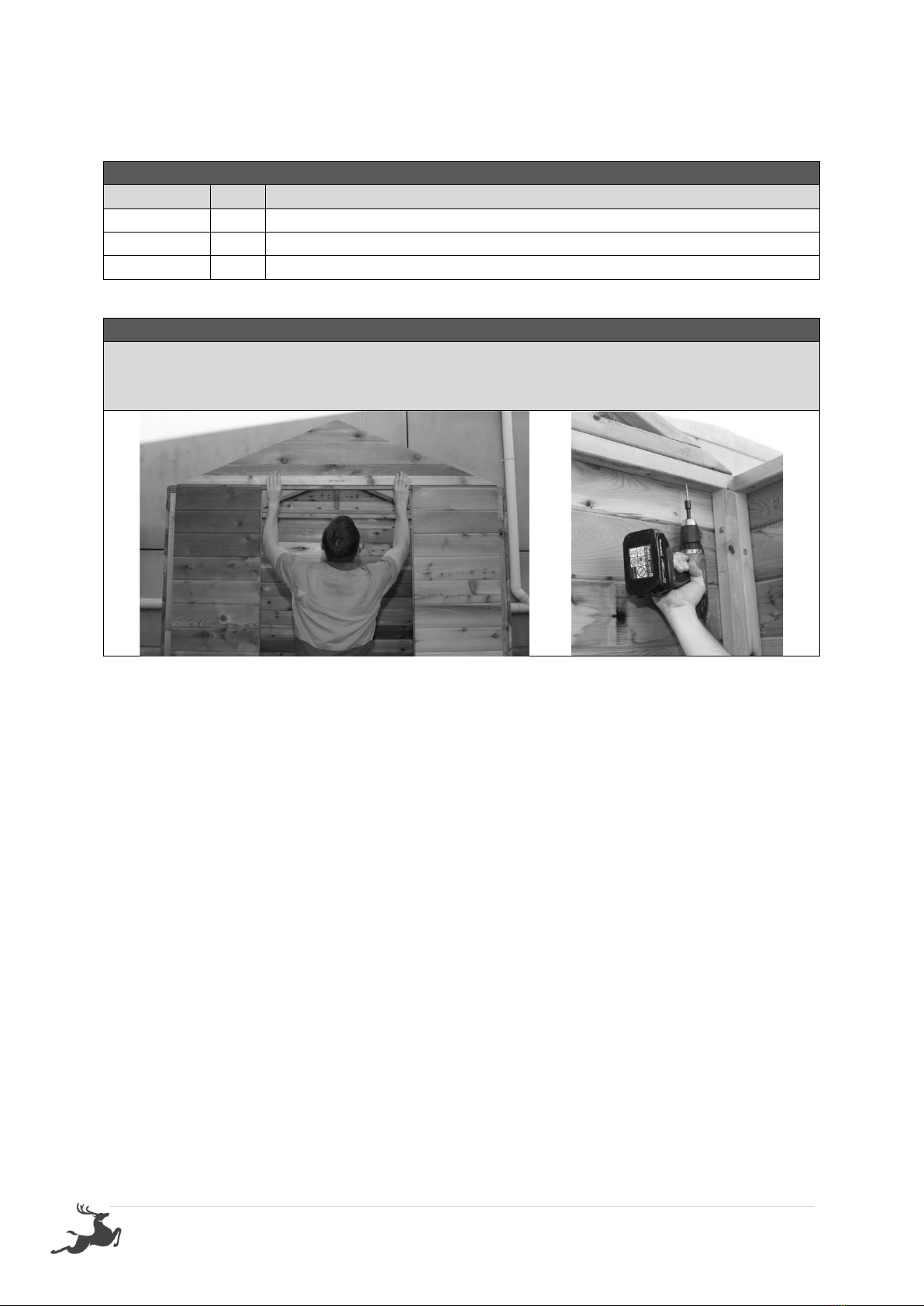

2.5- ASSEMBLY –GABLE ASSEMBLY
Lay both gable pairs on a flat surface with frame upwards. Hold flush at the bottom and
screw together using 2 x 65HHS in centre stud. (Image 1)
Turn one gable over. Position (SCS) Stilla branded cover strip flush with bottom cedar board
and flush on each end. Nail through cover strip into gable using 40N. (Image 2)
Position (FGS) front gable cover strip over join in front gable. Fasten in position using 40N.
(Image 3)
Hold DH (Door head) Perfectly centre of base plate on gable, screw down through gable
bottom plate into door head using 2 x 65HHS
1
2 3

12 | P a g e
STEP 2.6
FRONT GABLE ASSEMBLY
2.6 - ASSEMBLY PARTS –GABLE ASSEMBLY
PART CODE
QTY
DESCRIPTION
1
Assembled front gable
1
Assembled back gable
65HHS
7
65mm Hex head screw
2.6- ASSEMBLY –GABLE ASSEMBLY
Carefully position front gable in position ensuring tongue on wall goes into groove on gable.
Fasten up through front panels using 2 x 65HHS either side. Repeat with back gable using 1 x
65HHS either side and centre.

13 | P a g e
STEP 3.0
ROOF ASSEMBLY
3.0 - ASSEMBLY PARTS –ROOF ASSEMBLY
PART CODE
QTY
DESCRIPTION
BB
1
Bottom batten
TB
1
Top batten
R
2
Rafter
100BS
4
100mm Batten screw

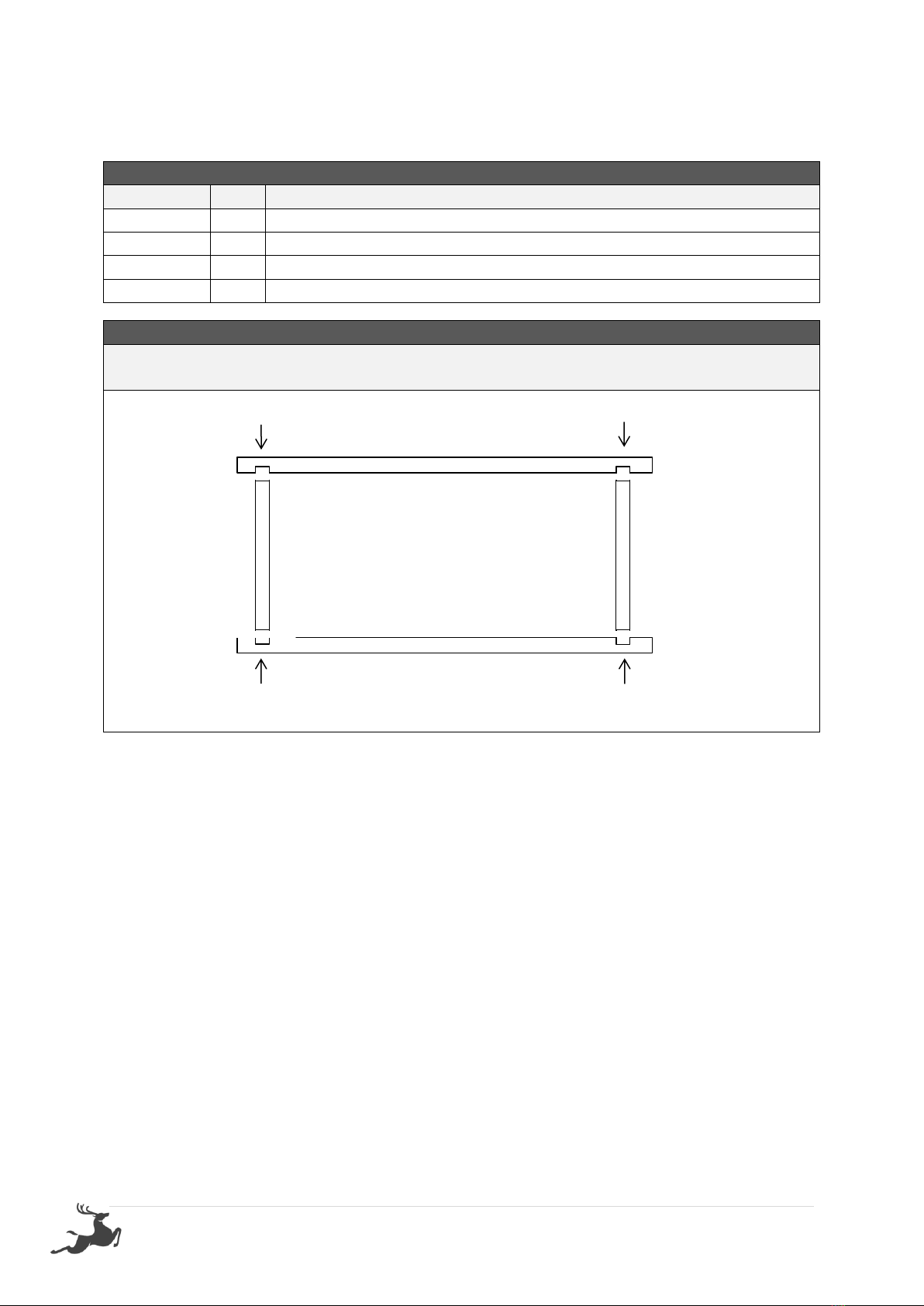

3.0 - ASSEMBLY –ROOF ASSEMBLY
Slide rafters (R) into checked out sections in battens (BB & TB). Fasten through BB & TB into
R using 1 x 100BS per join.
TB
BB
R
R

14 | P a g e
STEP 3.1
ROOF ASSEMBLY
3.1 - ASSEMBLY PARTS –ROOF ASSEMBLY
PART CODE
QTY
DESCRIPTION
RS
2
1480mm roof sheet
40RS
2
40mm Roof screw
25RS
2
25mm Roof screw
3.1 - ASSEMBLY –ROOF ASSEMBLY
Lay roof frame on a hard surface. Position roof sheets (RS) flush at top and flush with end of
roof battens. Fasten roof sheets to roof frame in number sequence shown using 25RS into
top batten (TB) & 40RS into bottom batten (BB).
Note: only screw in Pan at top and in rib at bottom.
Bent up edge at top.
1
1
2
2
(TOP)
TB
BB
TB
BB

15 | P a g e
STEP 3.2
ROOF ASSEMBLY
3.2 - ASSEMBLY PARTS –ROOF ASSEMBLY
PART CODE
QTY
DESCRIPTION
40RS
1
40mm Roof screw
25RS
2
25mm Roof screw
3.2 - ASSEMBLY –ROOF ASSEMBLY
Fasten either side of roof sheeting overlap at top and through joined rib at bottom.
1
2
Bent up edge at top.
(TOP)
3
25RS
40RS

16 | P a g e
STEP 3.3
ROOF ASSEMBLY
3.3 - ASSEMBLY PARTS –ROOF ASSEMBLY
PART CODE
QTY
DESCRIPTION
40RS
8
40mm Roof screw
25RS
8
25mm Roof screw
3.3 - ASSEMBLY –ROOF ASSEMBLY
Complete screwing roof off at top. 1 x 25RS in pan beside every rib. Once top complete
screw bottom off using 1 x 40RS in every rib.
Note: Use straight edge to keep all screws in line and centre of batten.
TB
Bent up edge at top.
BB
TOP

17 | P a g e
STEP 3.4
ROOF ASSEMBLY
3.4 - ASSEMBLY PARTS –ROOF ASSEMBLY
PART CODE
QTY
DESCRIPTION
C
1
1520mm Chanel
ST
3
Self-tapping screw
3.4 - ASSEMBLY –ROOF ASSEMBLY
Slide capping onto roof overhang. Fasten capping (C) to roof using 3 x ST.
Repeat steps 3.0 –3.4 for opposite roof panel.
Bent up edge at top
TB
BB

18 | P a g e
STEP 3.5
ROOF INSTALLATION
3.5 - ASSEMBLY PARTS –ROOF INSTALLATION
PART CODE
QTY
DESCRIPTION
2
Completed roof panels
65HHS
5
65mm Hex head screw
3.5 - ASSEMBLY –ROOF INSTALLATION
Slide one roof panel into position. Ensure roof rafters are flush with gables on the inside.
Top batten of roof frame is to be in line with gable peak. Fasten through gables into top
batten on roof. Fasten up through side wall top plates at each end and centre. Ensure walls
run parallel with bottom batten (BB) on roof. (Repeat this step for both roof panels)
STEP 3.6
DOOR STOP ASSEMBLY
3.6 - ASSEMBLY PARTS –DOOR HANDLE ASSEMBLY
PART CODE
QTY
DESCRIPTION
DS
1
Door Stop
40N
2
40mm nail
3.6 - ASSEMBLY PARTS –DOOR HANDLE ASSEMBLY
Place door stop in position at base of door between front FP’s. Nail door stop down using 2 x
40n. (if installing on a concrete slab –use a small dyna bolt to fix in place, these are not
supplied)

19 | P a g e
STEP 3.7
DOOR HEAD ASSEMBLY
3.7 - ASSEMBLY PARTS –DOOR HEAD ASSEMBLY
PART CODE
QTY
DESCRIPTION
DH
1
Door Head
65HHS
2
65mm Hex Head Screws
3.7 - ASSEMBLY PARTS –DOOR HEAD ASSEMBLY
Place door head in position under front gable between front panels –fasten in place.
If Double door option was chosen go to step 4.2
STEP 3.8
DOOR HINGE ASSEMBLY
3.8 - ASSEMBLY PARTS –DOOR HINGE ASSEMBLY
PART CODE
QTY
DESCRIPTION
H
2
Hinge
HS
6
Hinge Screw
CD
1
Door
3.8 - ASSEMBLY –DOOR HINGE ASSEMBLY
Place door on back and hold hinge (H) in position. Fasten hinges to door using 3 x hinge
screws (HS) per hinge.
Position: Hinges are to be placed at top and bottom of door. They are to be centralised over
bracing on back of door (as per second and third image below)
Pre-drilling is recommended
