STILLA Hyland S3015 User manual

STILLA
ASSEMBLY INSTRUCTIONS
‘Hyland’8x6
S3015
Every part needed to construct your shed is included inside the pack; cedar
panels, doors, windows, hardware kits & roof sheeting. Please ensure you fully
unpack all the parts & check against the parts checklist before contacting
customer service about anything you believe may be missing. Thank-you!

1 | P a g e
Caution
Please be careful when handling all components, some parts have sharp metal edges.
Always wear work gloves, eye protection and long sleeves when assembling or maintaining
your shed.
Tools required for assembly
•Level
•Drill
•Hammer
•Ladder
•12mm Drill bit
•6mm Drill bit
•Phillips head drive
•Hex Head Drive (5/16’)
•Safety glasses
•Gloves
•Circular/power saw (if floor
purchased)
Before assembly
•Remove all parts from packages and place in a safe place close to assembly area.
•Review all instructions; continue to refer to instructions throughout assembly –step
by step.
Preparing your site
•Choose your site carefully, site surface must be level (unless an Elevation kit or
Heavy duty floor kit option has been purchased with your product)
HYLAND 8x6 PARTS CHECKLIST
Part Code
Checked
Part Description
Qty
12P
Cedar Clad Panel 1200x1890mm
2
P
Cedar Clad Panel 900x1890mm
4
FP
Cedar Clad Panel 780x1890mm (480x1890mm if Double Doors)
2
G
8ft Gable
4
R
Rafters 1230x42x35mm
6
CD
Single Colonial Door 830x1875mm
1
C
2115mm Channel
2
TB/BB
Top Batten/Bottom Batten 2115mm
4
RS
1480mm Roof Sheeting
6
HK
8x6 Hardware Kit
1
RC
1200mm Ridge Cap
2
F
8ft Fascia Pack
1
CP
Corner Posts 1890x60x18mm
4
CS
Cover Strips 1890x40x7mm
3
FGS
Front Gable Cover Strip –460mm
1
BGS
Back Gable Cover Strip –490mm
1
DH
Door Head 840x35x42mm (1440mm if double doors)
1
DS
Door Step 840x19x42mm (1440mm if double doors)
1
CT
Collar Tie 480mm
1
SCS
Stilla Cover Strip 2400x46x7mm
1

2 | P a g e
IM
8x6 Instruction Manual
1
Floor Kit –Option
Floor Frame - (Rebated Floor 70x35mm/Heavy Duty Floor 140x35mm)
Part Code
Checked
Part Description
Qty
EP
End Plate 2470 mm
2
DJ
Double Joist 1730mm
2
SJ
Single Joist 1730mm
4
FN
Floor Nogs 460mm
4
L
Logs (light duty floor does not come with logs) 750mm
4
FB
1797mm x 800mm
2
FB
597mm x 800mm
2
FB
1797mm x 111mm
1
FB
597mm x 111mm
1
8 Foot Loft Shelf - Option
Part Code
Checked
Part Description
Qty
8LS
8ft Loft Shelf
1
SS
8ft Shelf Support
1
Double Doors –Option –Changes to above kit
Part Code
Checked
Part Description
Qty
CD
Colonial Door 714x1875mm
2
FP
Front Panel 480x1890mm
2
DP
Door Leaver Packer 100x100x18mm
1
DS
Door Stop 1440x42x18mm
1
DH
Door Head 1440x42x35mm
1
8x6 Lean To –Option –Add Extra Screws
Part Code
Checked
Part Description
Qty
B
Beam 2115x70x35mm
1
VB
Verandah Beam 2115x140x35mm
1
VR
Verandah Rafter 1000x42x35mm
3
VP
Verandah Posts 2400x90x90mm
2
VF
Verandah Fascias 1100x75x20mm
2
VS
Verandah Roof Sheets 1150mm
3
8x6 Annex –Option –Add Extra Screws
Part Code
Checked
Part Description
Qty
B
Beam 2115x70x35mm
1
VB
Verandah Beam 2115x140x35mm
1
VR
Verandah Rafter 1930x42x35mm
3
VP
Verandah Posts 2400x90x90mm
2
VF
Verandah Fascias 2000x75x20mm
2
VS
Verandah Roof Sheets 2050mm
3

3 | P a g e
If no floor option was purchased, go to step 2.0 (Wall Assembly)
STEP 1.0
FLOOR KIT
1.0 –FLOOR KIT
PART CODE
QTY
DESCRIPTION
EP
2
End Plate 2470mm
SJ
4
Single Joist 1730mm
DJ
2
Double Joist 1730mm (42x35mm part of DJ goes at the top inside)
100BS
28
100mm Batten screw (Heavy Duty Floor Only)
75N
28
75mm Nail (Rebated Floor Only)
65HHS
8
65HHS Hex Head Screw
FN
4
Floor Nog

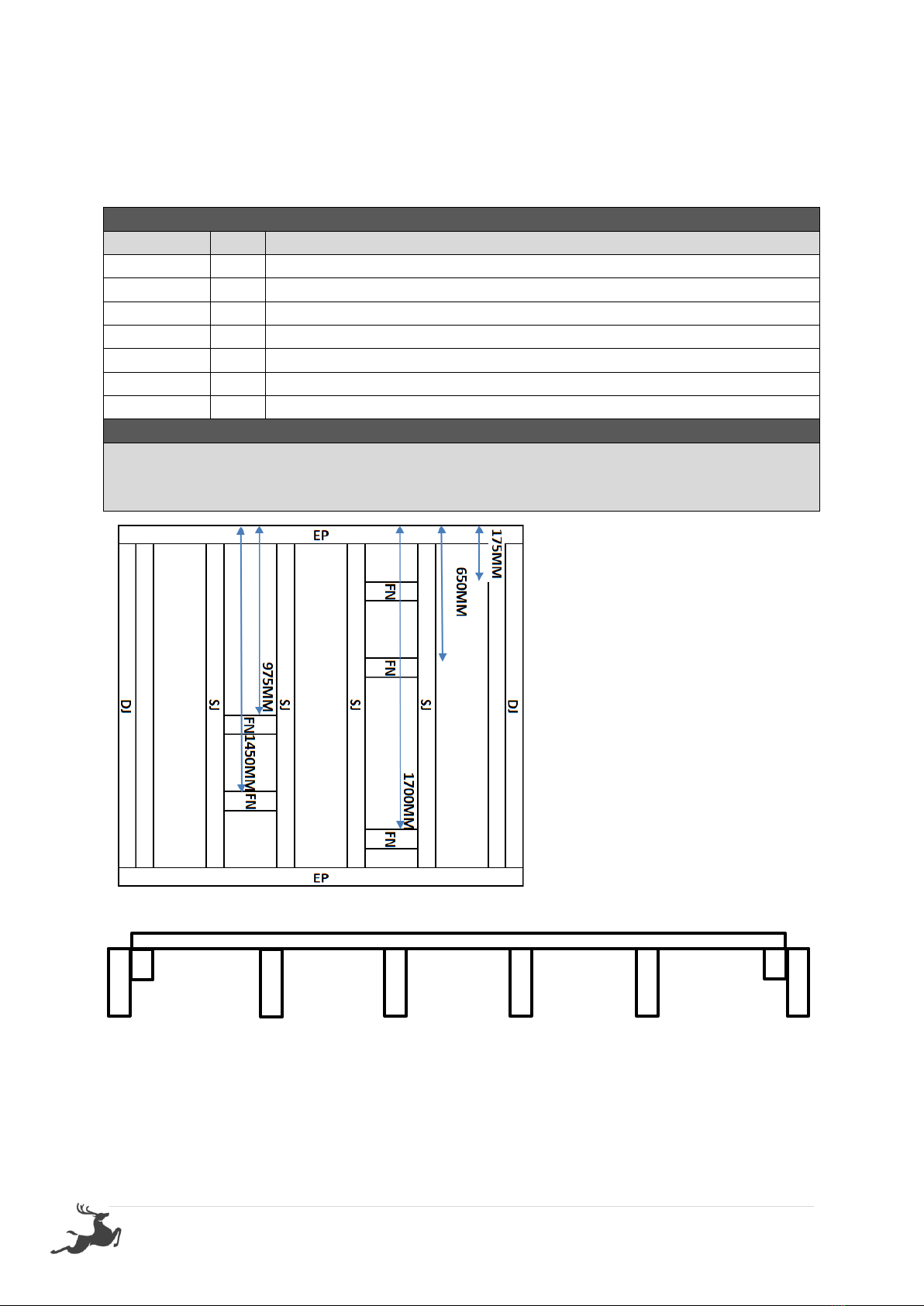

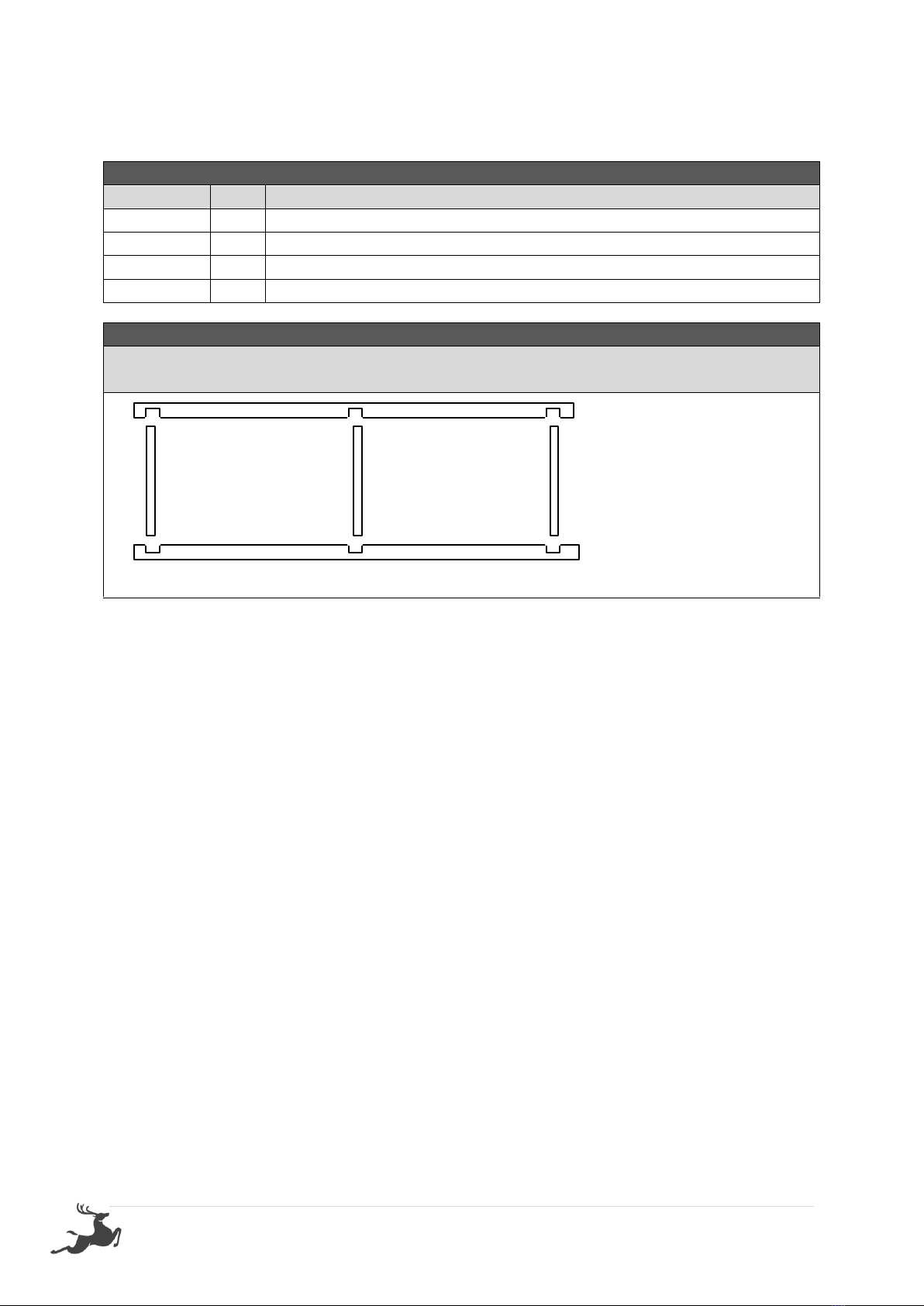

1.0 –FLOOR FRAME
Fasten through EP into DJ using 3 x 100BS per join (75N on Rebated Floor)
Fasten Through EP into SJ using 2 x 100BS per join (75N on Rebated Floor)
Fasten FN’s in positions shown below using 65HHS
HEAVY DUTY FLOOR KIT
Heavy duty floor can be installed on unlevelled ground –use supplied logs to level your floor
by digging them into the ground.
Install heavy duty floor kit using (L) 4 logs –1 in each corner (position shown above) screw
through frame into log using 4 x 100BS per corner
Yellow Tongue
DJ
DJ
SJ
SJ
SJ
SJ

4 | P a g e
Ensure floor frame is square by measuring from corner to corner diagonally prior to
installing flooring.
STEP 1.1
FLOORING INSTALLATION
1.1 –FLOOR INSTALLATION
PART CODE
QTY
DESCRIPTION
FB
2
Floor Board 1797x800mm
FB
2
Floor Board 597x800mm
FB
1
Floor Board 1797x111mm
FB
1
Floor Board 597x111mm
50PS
60
50mm Philips Screw

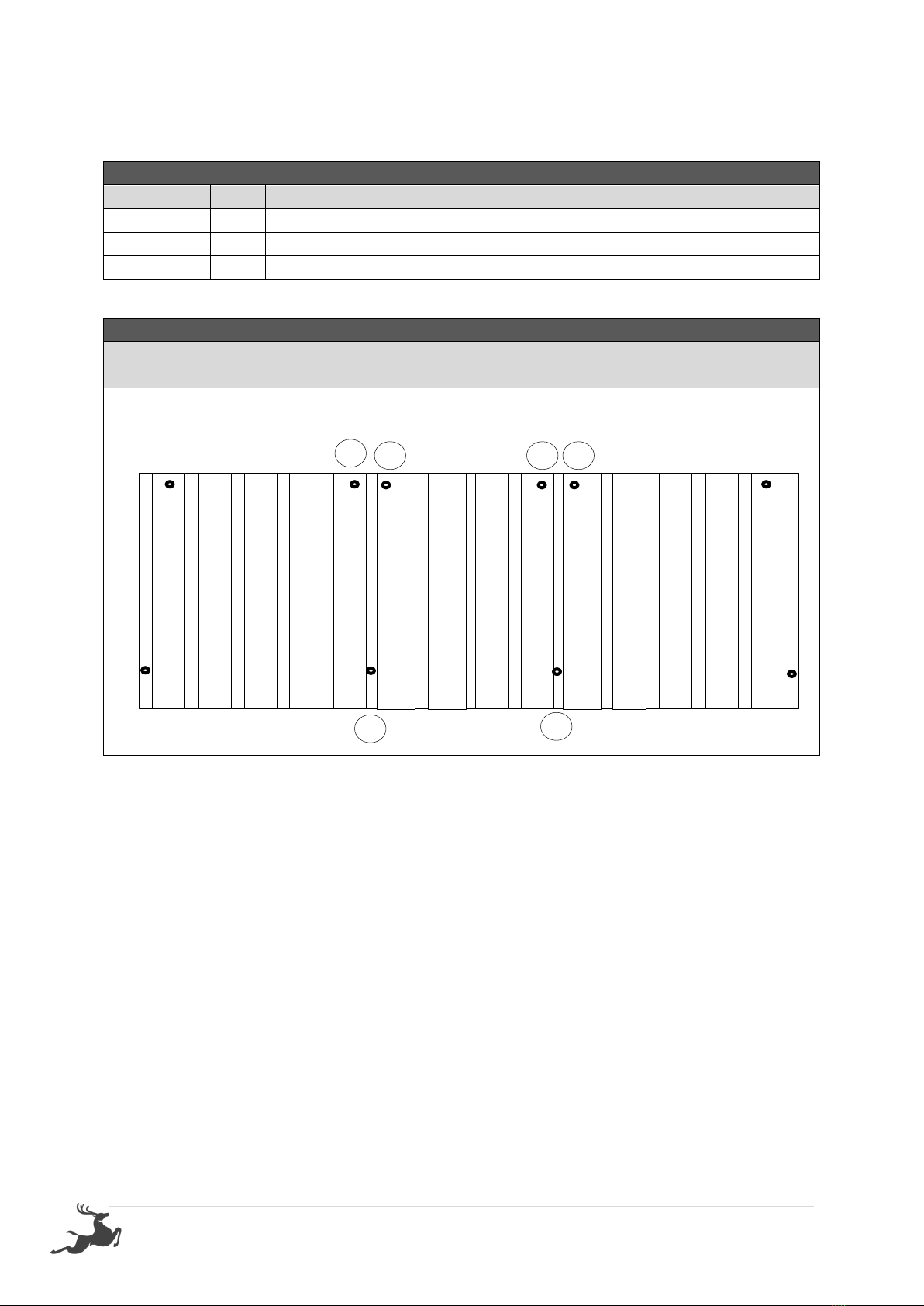

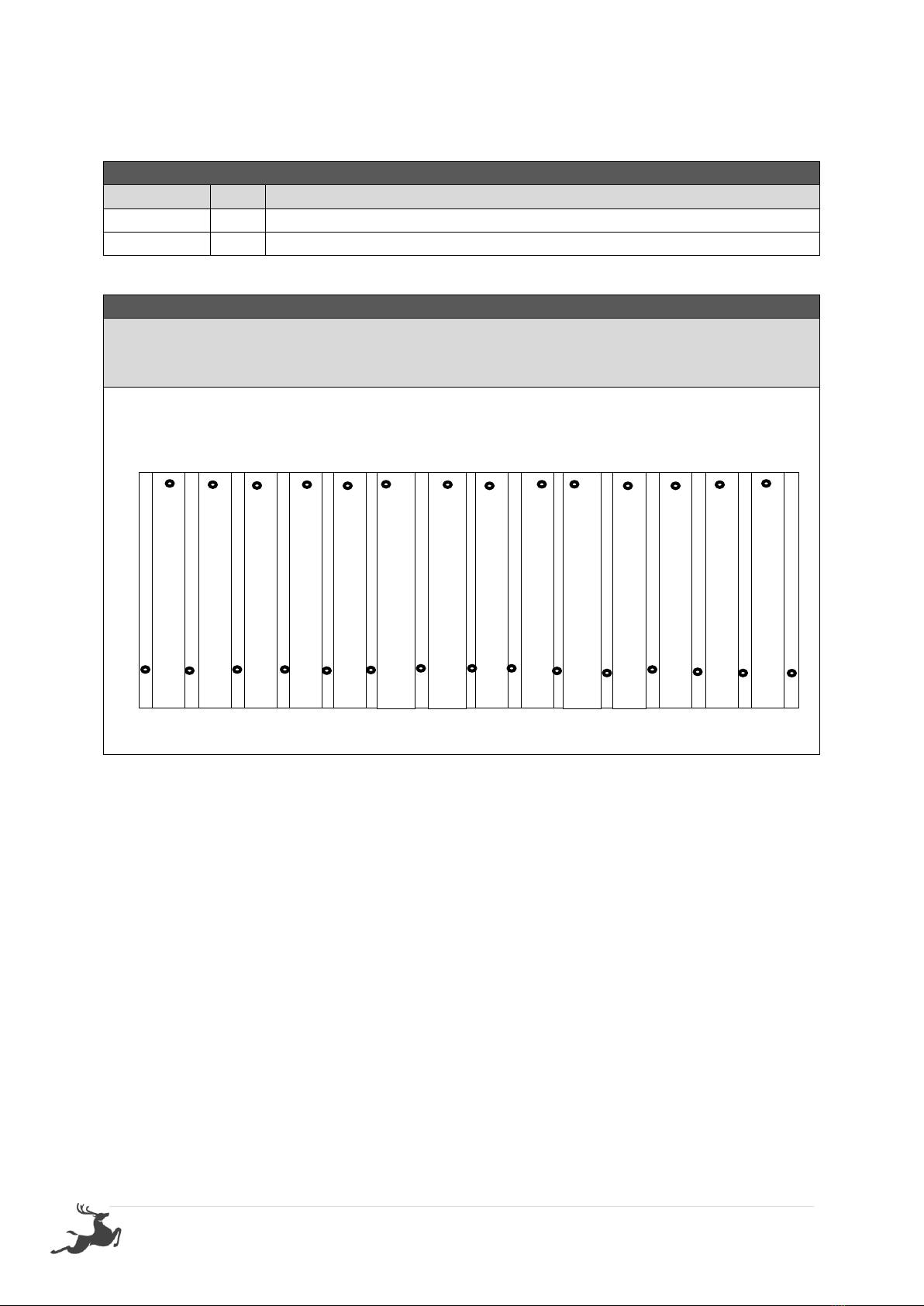

1.1 –FLOOR SHEETS
Fasten floor sheets to floor frame as shown below using 50PS
44MM IN FROM EDGE
37MM IN FROM EDGE

5 | P a g e
STEP 2.0
WALL ASSEMBLY
2.0 - ASSEMBLY PARTS –WALL ASSEMBLY
PART CODE
QTY
DESCRIPTION
FP
1
Front wall panel
P
1
Wall panel
65HHS
3
65mm Hex head screw
1.0 - ASSEMBLY –WALL ASSEMBLY

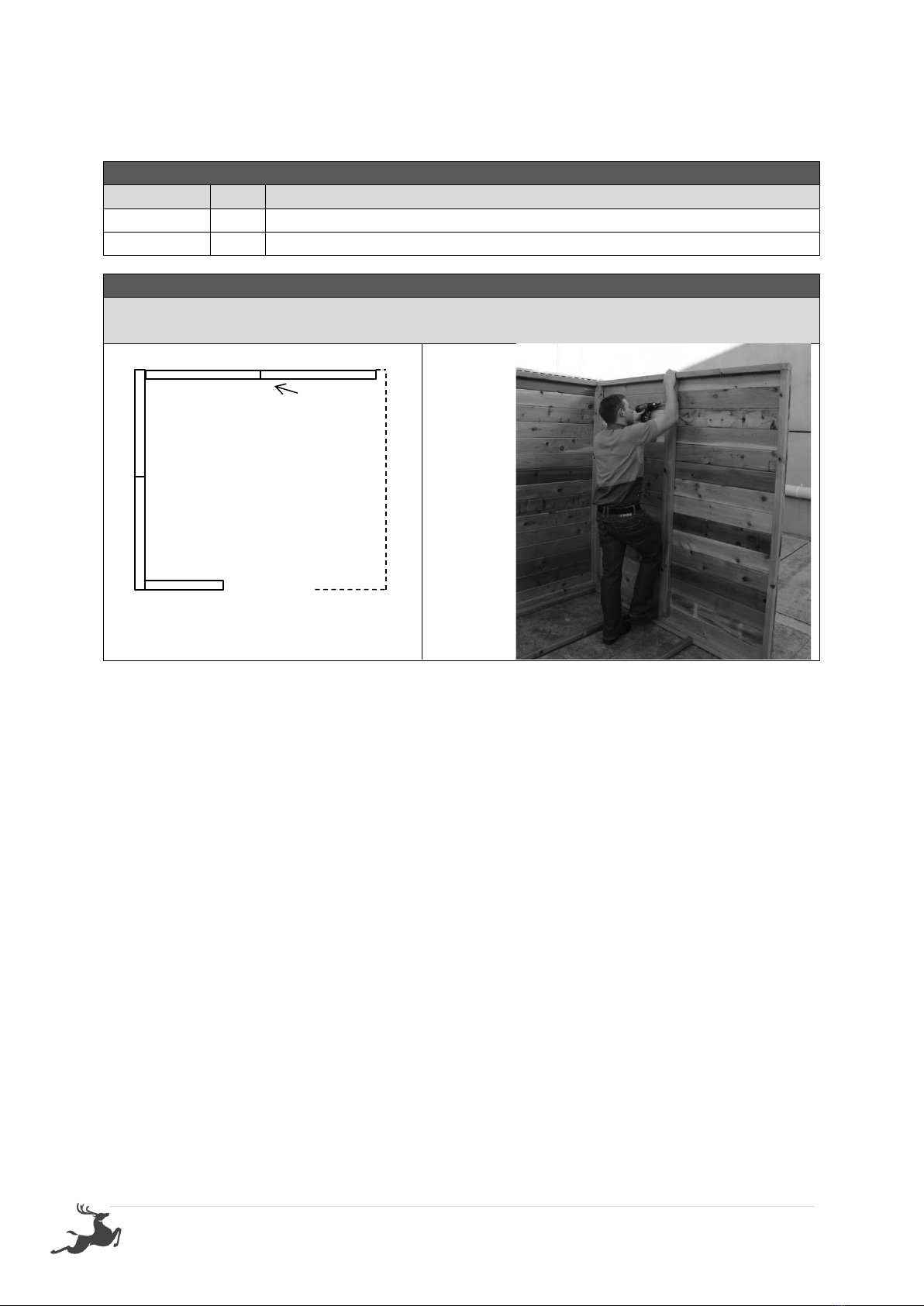

Screw through FP into P (top, centre & bottom) using 3 x 65HHS. (Holding studs flush on the
outside)
Note: Ensure tongue on VJ cladding is facing upwards on all panels.
–If optional window was purchased, it can take the place of any 900mm (P) panel.
P
Screw 3 x 65HHS (Top,
centre & bottom)
FP
Cedar Strip

6 | P a g e

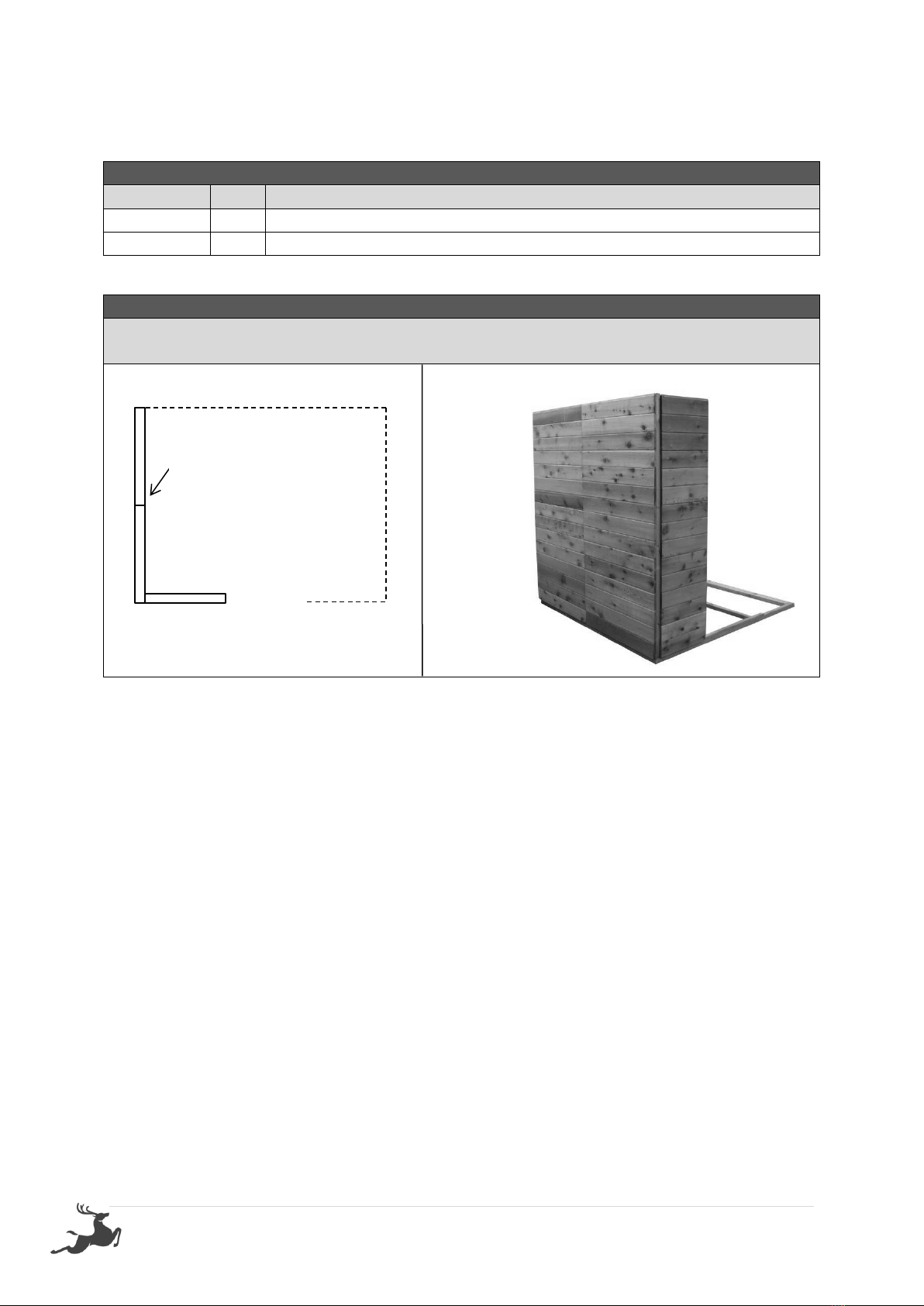

STEP 2.1
WALL ASSEMBLY
2.1 - ASSEMBLY PARTS –WALL ASSEMBLY
PART CODE
QTY
DESCRIPTION
P
1
Wall panel
65HHS
3
65mm Hex head screw
2.1 - ASSEMBLY –WALL ASSEMBLY
Screw through P into P (Top, centre & bottom) using 3 x 65HHS, holding studs flush on the
inside.
P
Screw 3 x 65HHS (Top,
centre & bottom)
FRONT OF SHED
P

7 | P a g e
STEP 2.2
WALL ASSEMBLY
2.2 - ASSEMBLY PARTS –WALL ASSEMBLY
PART CODE
QTY
DESCRIPTION
12P
1
Wall panel
65HHS
3
65mm Hex head screw
2.2 - ASSEMBLY –WALL ASSEMBLY
Screw through 12P into P (Top, centre & bottom) using 3 x 65HHS, holding studs flush on the
outside.
12P
Screw 3 x 65HHS (Top,
centre & bottom)
FRONT OF SHED
P

8 | P a g e
STEP 2.3
WALL ASSEMBLY
2.3 - ASSEMBLY PARTS –WALL ASSEMBLY
PART CODE
QTY
DESCRIPTION
12P
1
1200mm Wall panel
65HHS
3
65mm Hex head screw
2.3 - ASSEMBLY –WALL ASSEMBLY
Screw through 12P into 12P (Top, centre & bottom) using 3 x 65HHS, holding studs flush on
the inside.
12P
Screw 3 x 65HHS (Top,
centre & bottom)
12P
FRONT OF SHED

9 | P a g e
STEP 2.4
WALL ASSEMBLY
2.4 - ASSEMBLY PARTS –WALL ASSEMBLY
PART CODE
QTY
DESCRIPTION
P
1
1200mm Wall panel
65HHS
3
65mm Hex head screw
2.4 - ASSEMBLY –WALL ASSEMBLY
Screw through 12P into P (top, centre & bottom) using 3 x 65HHS holding studs flush on the
outside.
Screw 3 x 65HHS (Top,
centre & bottom)
12P
P

10 | P a g e
STEP 2.5
WALL ASSEMBLY
2.5 - ASSEMBLY PARTS –WALL ASSEMBLY
PART CODE
QTY
DESCRIPTION
P
1
Wall panel
65HHS
3
65mm Hex head screw
2.5 - ASSEMBLY –WALL ASSEMBLY
Screw through P into P (top, centre & bottom) using 3 x 65HHS holding studs flush on the
inside.
Screw 3 x 65HHS (Top,
centre & bottom)
FRONT OF SHED
P
P

11 | P a g e
STEP 2.6
WALL ASSEMBLY
2.6 - ASSEMBLY PARTS –WALL ASSEMBLY
PART CODE
QTY
DESCRIPTION
FP
1
Wall panel
65HHS
3
65mm Hex head screw
2.6 - ASSEMBLY –WALL ASSEMBLY
Screw through FP into P (top, centre & bottom) using 3 x 65HHS holding studs flush on the
outside.
Screw 3 x 65HHS (Top,
centre & bottom)
Cedar Strip
FP
P

12 | P a g e
STEP 2.7

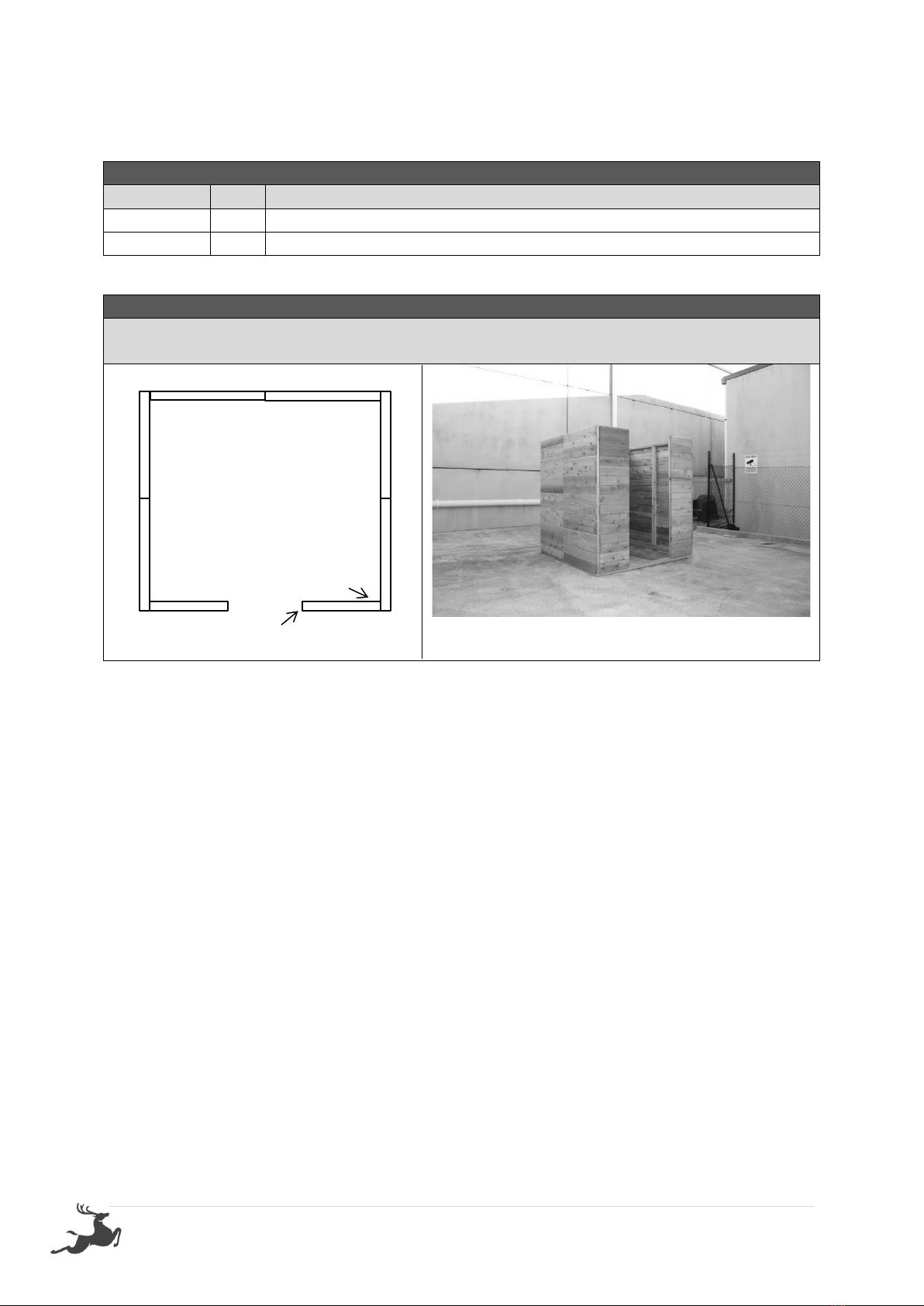

GABLE ASSEMBLY
2.7 - ASSEMBLY PARTS –GABLE ASSEMBLY
PART CODE
QTY
DESCRIPTION
G
4
Gable (2 pairs)
65HHS
6
65mm Hex head screw
FGS
1
Front gable cover strip
SCS
1
Stilla branded cover strip
40N
10
40mm Nail
DH
1
Door head

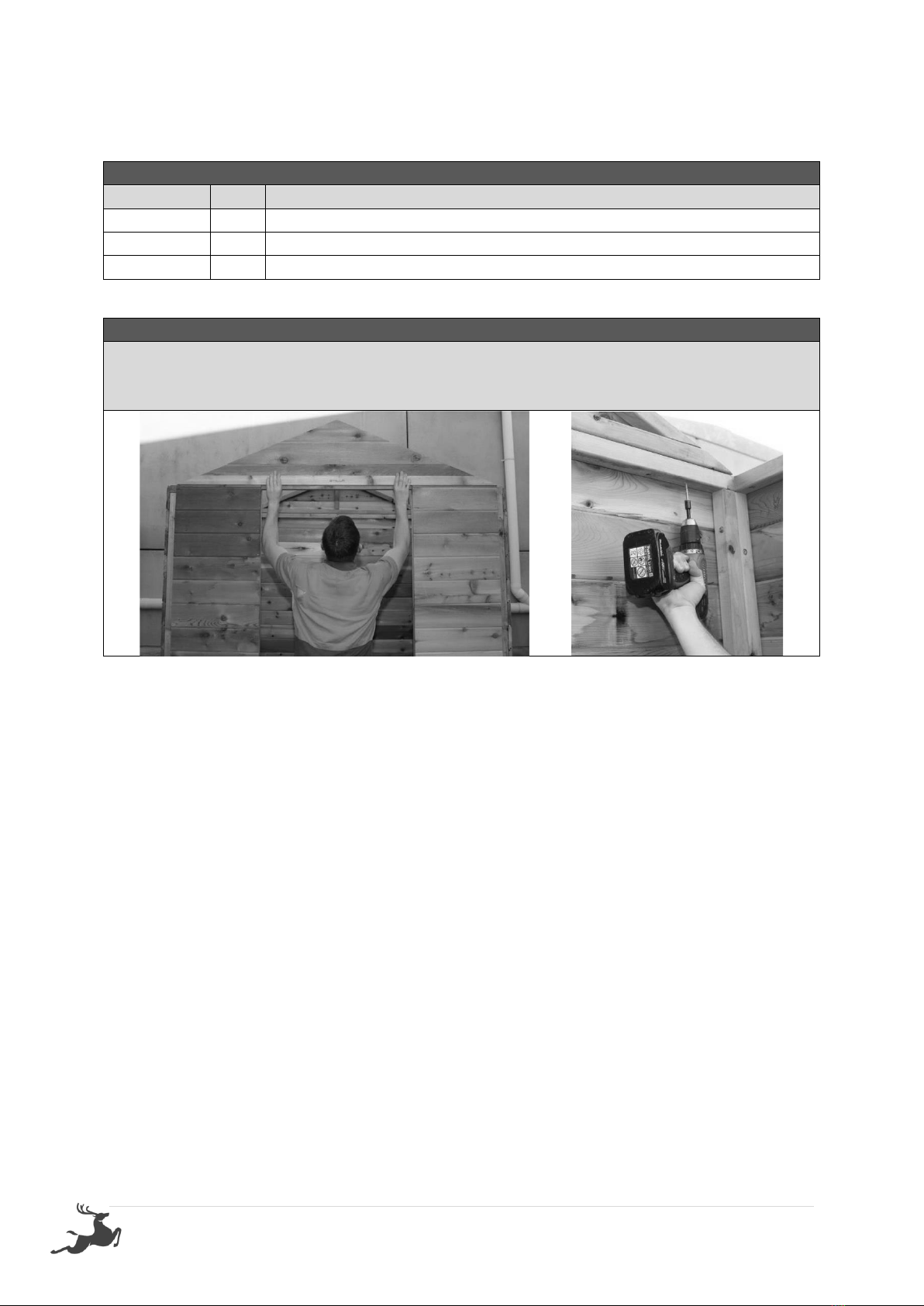

2.7 - ASSEMBLY –GABLE ASSEMBLY
Lay both gable pairs on a flat surface with frame upwards. Hold flush at the bottom and
screw together using 2 x 65HHS in centre stud. (Image 1)
Turn one gable over. Position (SCS) Stilla branded cover strip flush with bottom cedar board
and flush on each end. Nail through cover strip into gable using 40N. (Image 2)
Position (FGS) front gable cover strip over join in front gable. Fasten in position using 40N.
(Image 3)
Hold DH (Door head) Perfectly centre of base plate on gable, screw down through gable
bottom plate into door head using 2 x 65HHS
1
2 3

13 | P a g e
STEP 2.8
FRONT GABLE ASSEMBLY
2.8 - ASSEMBLY PARTS –GABLE ASSEMBLY
PART CODE
QTY
DESCRIPTION
1
Assembled front gable
1
Assembled back gable
65HHS
7
65mm Hex head screw
2.8 - ASSEMBLY –GABLE ASSEMBLY
Carefully position front gable in position ensuring tongue on wall goes into groove on gable.
Fasten up through front panels using 2 x 65HHS either side. Repeat with back gable using 1 x
65HHS either side and centre.

14 | P a g e
STEP 3.0
ROOF ASSEMBLY
3.0 - ASSEMBLY PARTS –ROOF ASSEMBLY
PART CODE
QTY
DESCRIPTION
BB
1
Bottom batten
TB
1
Top batten
R
3
Roof rafter
100BS
6
100mm Batten screw
3.0 - ASSEMBLY –ROOF ASSEMBLY
Slide rafters (R) into checked out sections in battens (BB & TB). Fasten through BB and TB
into R using 1 x 100BS per join.
TB
BB
R
R
R
Top

15 | P a g e
STEP 3.1
ROOF ASSEMBLY
3.1 - ASSEMBLY PARTS –ROOF ASSEMBLY
PART CODE
QTY
DESCRIPTION
RS
2
1480mm roof sheet
40RS
2
40mm roof screw
25RS
2
25mm roof screw
3.1 - ASSEMBLY –ROOF ASSEMBLY
Lay roof frame on a hard flat surface. Position 1 roof sheet (RS) at each end of frame, flush
at top and flush with end of roof battens.(Ensure bent up edge of sheeting is at the top.
Fasten roof sheets to roof frame at each end in number sequence shown using 25RS in top
batten and 40RS in bottom batten.
Note –Only screw in pan at top and in rib at bottom.
BB
TB
Bent up edge at top.
Overhang
1
1
2
2
(TOP)

16 | P a g e
STEP 3.2
ROOF ASSEMBLY
3.2 - ASSEMBLY PARTS –ROOF ASSEMBLY
PART CODE
QTY
DESCRIPTION
RS
1
1480mm roof sheet
40RS
2
40mm roof screw
25RS
4
25mm roof screw
3.2 - ASSEMBLY–ROOF ASSEMBLY
Fasten roof sheet (RS) to frame in sequence shown. 1 x 25RS either side of join at top and 1
x 40RS through rib join at bottom
TOP
Bent up edge at top.
1
1
2
3
2
3

17 | P a g e
STEP 3.3
ROOF ASSEMBLY
3.3 - ASSEMBLY PARTS –ROOF ASSEMBLY
PART CODE
QTY
DESCRIPTION
40RS
12
40mm roof screw
25RS
12
25mm roof screw
3.3 - ASSEMBLY–ROOF ASSEMBLY
Complete screwing off roof at top 1 x 25RS beside every rib. Once top complete, screw
bottom off using 1 x 40RS in every rib.
Note –use a straight edge to keep all screws in line and centre of the batten

18 | P a g e
STEP 3.4
ROOF ASSEMBLY
If you purchased the Lean-To/Annex, leave the channel off the side you will be installing
your Lean-To/Annex
3.4 - ASSEMBLY PARTS –ROOF ASSEMBLY
PART CODE
QTY
DESCRIPTION
C
1
2115mm Channel
ST
4
Self-tapping screw
3.4 - ASSEMBLY –ROOF ASSEMBLY
Slide channel onto roof (C)
Fasten channel (C) to roof using ST x 4 in positions shown.
Repeat steps 3.0 to 3.4 for other roof panel.
1 rib in
Sheet join
Sheet join
1 rib in
TB
BB

19 | P a g e
STEP 3.5
ROOF INSTALLATION
3.5 - ASSEMBLY PARTS –ROOF INSTALLATION
PART CODE
QTY
DESCRIPTION
2
Completed roof panels
65HHS
10
65mm Hex head screw
3.5 - ASSEMBLY –ROOF INSTALLATION
Slide roof panel into position and fasten up through front and back gables. Ensure roof
rafters are flush with gables. Fasten up through side wall top plates at each end and each
panel join. Ensure walls run parallel with bottom batten (BB) on roof. (Repeat this step for
both roof panels)
STEP 3.6
COLLAR TIE INSTALLATION
3.6 –ASSEMBLY –COLLAR TIE INSTALLATION
PART CODE
QTY
DESCRIPTION
CT
1
Collar tie 480mm
65HHS
2
65mm Hex head screw
3.6 - ASSEMBLY PARTS –COLLAR TIE INSTALLATION
Holding Collar tie tight and level in position screw through CT into Roof Rafter (R).
CT
Screw
