Stirling SORHP1-O User manual
N13275
AFTER SALES SUPPORT
1300 886 649
AUS MODEL: SORHP1-O PRODUCT CODE: 49165 05/2015
Model Number SORHP1-O
Electric Oven
INSTRUCTION MANUAL
IM Version No: V1.2 Issue Date: 4 February 2015
2
Welcome
Congratulations on choosing to buy a STIRLING®product.
All products brought to you by STIRLING®are manufactured to the highest
standards of performance and safety and, as part of our philosophy of
customer service and satisfaction, are backed by our comprehensive 3 Year
in Home Warranty. We hope you will enjoy using your purchase for many years
to come.
3
Contents
02 Welcome
04 Warranty Details
05 General Safety Instructions
08 Product Overview
10 Installation
16 Getting Started
17 Instructions
25 Cooking Guidelines
27 FAQs
29 Other Useful Information
35 Repair and Refurbished Goods or Parts Notice
4
Electric Oven
Warranty Details
The product is guaranteed to be free from defects in workmanship and parts
for a period of 36 months from the date of purchase. Defects that occur
within this warranty period, under normal use and care, will be repaired,
replaced or refunded at our discretion, solely at our option with no charge for
parts and labour. The benefits conferred by this warranty are in addition
to all rights and remedies in respect of the product that the consumer
has under the Competition and Consumer Act 2010 and similar state and
territory laws.
Our goods come with guarantees that cannot be excluded under the
Australian Consumer Law. You are entitled to a replacement or refund for
a major failure and to compensation for any other reasonably foreseeable
loss or damage. You are also entitled to have the goods repaired or
replaced if the goods fail to be of acceptable quality and the failure does
not amount to a major failure.
YEAR IN HOME
WARRANTY
3
5
General Safety Instructions
Important installation advice
• This oven must be installed by a licensed electrician.
• Adjacent furniture: When having the oven installed, make sure that
the adjacent furniture or housing, and all installation materials, are able
to withstand a minimum temperature of 85°C above the ambient room
temperature while the oven is in use.
• Certain types of vinyl or laminate kitchen furniture are particularly prone
to heat damage or discolouration at temperatures below the guidelines
given above. We assume no liability for any damage caused by the
appliances being installed in contravention of this temperature limit, or by
placing adjacent cabinet materials closer than 4mm near the appliance.
• Ventilation: Heat, steam and moisture will be created during use of the
oven. Take care to avoid injury and ensure that the room is adequately
ventilated. If the appliance is going to be used for prolonged periods
of time, additional ventilation may be required. If in doubt about your
ventilation requirements, consult your qualied installer.
• Cables: Do not allow electrical ttings or cables to come into contact
with areas on the oven that get hot.
• Curtains: Do not install the oven next to curtains or soft furnishings.
• Damaged cord: If the power cord is damaged, it must be replaced by the
manufacturer or a qualied service engineer in order to avoid a hazard.
IMPORTANT SAFETY INSTRUCTIONS
READ CAREFULLY AND KEEP FOR FUTURE REFERENCE
Read this manual thoroughly before first use, even if you are familiar with
this type of product. The safety precautions enclosed herein reduce the risk
of fire, electric shock and injury when correctly adhered to. Keep the manual
in a safe place for future reference, along with the completed warranty card
and purchase receipt. If applicable, pass these instructions on to the next
owner of the appliance.
Always follow basic safety precautions and accident prevention
measures when using an electrical appliance, including the following:
6
General Safety Instructions (Cont.)
General usage conditions and restrictions
• Domestic use only: This oven is designed for indoor domestic use only. It
can be built into a standard kitchen cabinet or housing unit.
• Intended purpose: Only use this oven for its intended purpose, in its
intended environment and as described in this manual. Any other use may
cause re, electric shock or injury.
• Follow instructions: Make sure to observe all rules and provisions in
this instruction manual. Do not allow anybody who is not familiar with the
contents of this manual to operate the oven.
• Use common sense: These instructions are not intended to
cover every possible condition and situation. As with any electrical
household appliance, common sense and caution are therefore always
recommended when installing, operating and maintaining the oven.
• Usage restriction: This oven is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities, or lack of
experience and knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person responsible for
their safety.
• Supervise children: Young children do not recognise the risks involved
when using electrical appliances. Make sure children younger than 8
years of age are kept away from the oven during use. If it is necessary for
younger family members to be in the kitchen, ensure that they are kept
under close supervision at all times.
• Unattended: Never leave the oven unattended during use, as this is a re
risk. Oils and fats in roasting dishes may catch re due to overheating.
• No heater: Do not use the oven for heating a room or drying clothes.
• No timer: The appliance is not intended to be operated by means of an
external timer or separate remote control system.
• After use: Make sure to switch off the oven after use and before cleaning.
• Damage: Do not use the oven if any part has been damaged or does not
work properly. Only have it repaired by an authorised service centre.
Incorrect repair could expose you to the risk of electric shock, re or
injury. Prolonged use of the unit in such conditions could cause re or
electrocution. In case of damage, contact our after sales support
centre using the details at the bottom of this page.
• Liability: We assume no liability for any eventual damages caused by
misuse of the product or noncompliance with these instructions.
7
General Safety Instructions (Cont.)
• Do not use when faulty: Do not use the oven in the event of a technical
fault. Any faults must be xed by an appropriately qualied and authorised
person. Contact our after sales support line for advice.
Oven-specific safety advice
• Oven door: Do not place heavy objects on the oven door. Do not lean on
the oven door when it is open, as this can damage the door hinges.
• Grill: Keep the oven door closed when using the grill function.
• Oven cavity: During cooking, never place pans or cookware directly onto
the bottom of your oven. Always place them on the shelves provided.
• Oven accessories: When removing the baking/drip tray or oven rack
from the hot oven, always use an oven mitt.
• Aluminium foil: Do not use aluminium foil to cover the grill pan or heat
items wrapped in aluminium foil under the grill. The high reectivity of the
foil could potentially damage the grill element. You should also never line
the base of your oven with aluminium foil.
• Lifting/moving: Do not attempt to lift or move the oven by using the
oven door or handle, as this may cause damage to the appliance or result
in injury to the person lifting the appliance.
• Cleaning: Clean the oven on a regular basis so oils and fats do not
accumulate and cause a re risk. Make sure the oven is switched off
before cleaning. Do not use harsh abrasive cleaners or metal scrapers
to clean the oven door glass as this can scratch the surface, which may
result in the oven glass shattering. Do not use steam cleaning equipment
for cleaning any part of the oven. When cleaning the oven, ensure that no
part is immersed in water or other liquid.
CAUTION: Hot!
• Do not touch hot surfaces: The heating elements and other accessible
parts inside the oven cavity become extremely hot during operation and
can cause burns on contact. Take care when handling the food you are
cooking to avoid touching hot parts inadvertently. Keep young children
well away when using the oven.
• Opening the door: Be careful when opening the oven door to avoid
contact with hot parts of the oven and steam.
• Danger of fire! Never leave items inside the oven cavity as this can be a
re hazard when the oven is switched on.
8
Product Overview
Oven cavity
A 1x Oven rack
B 1x Baking/drip tray
C 1x Oven light
D 2x Side rack supports for four shelf positions:
1 (lowest)
2 (medium low)
3 (medium high)
4 (highest)
E Fan cover
Also included, but not pictured:
4x ST4*26 screws and 4x brackets for installation
BA
DD
4
1
4
33
2
1
2
C
E
9
Product Overview (Cont.)

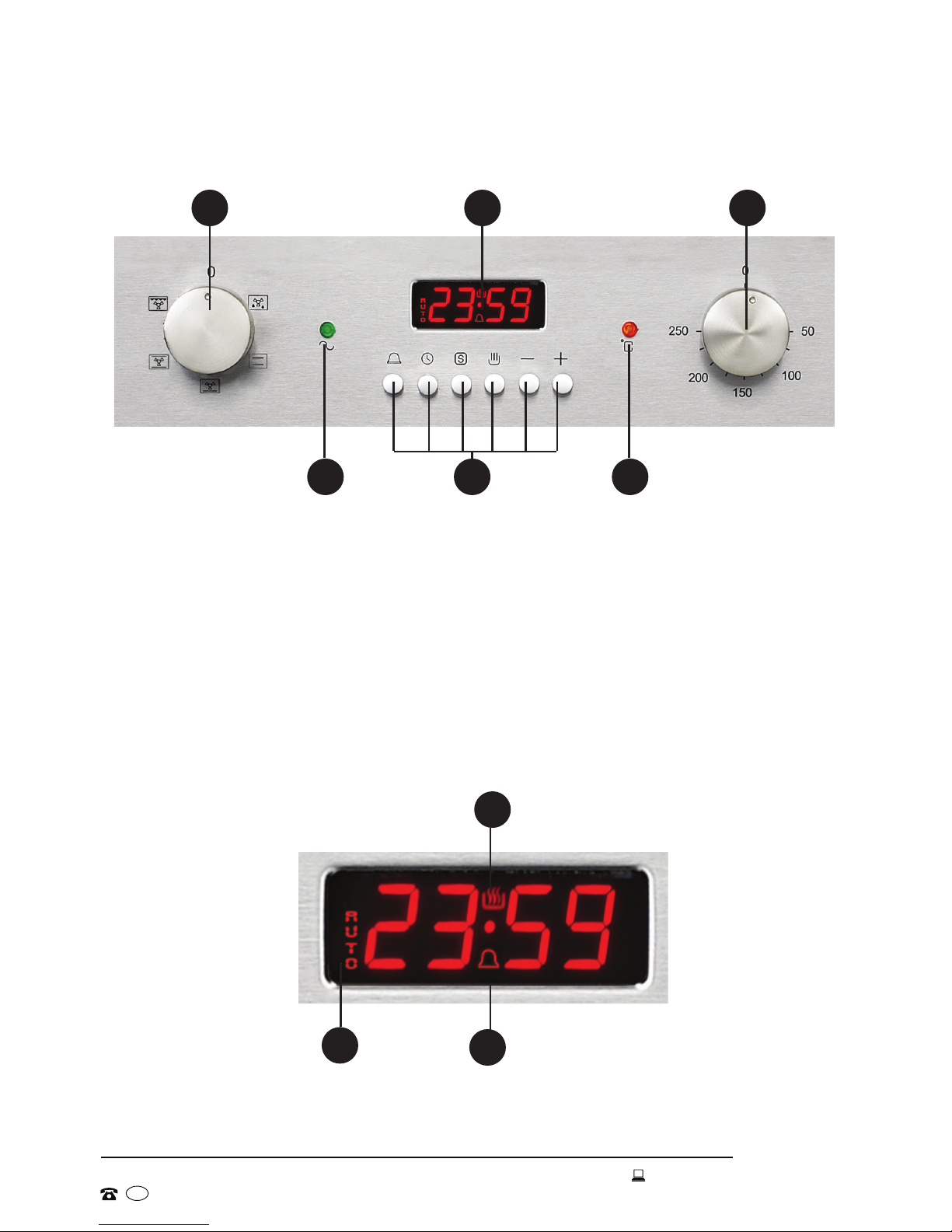

Control panel

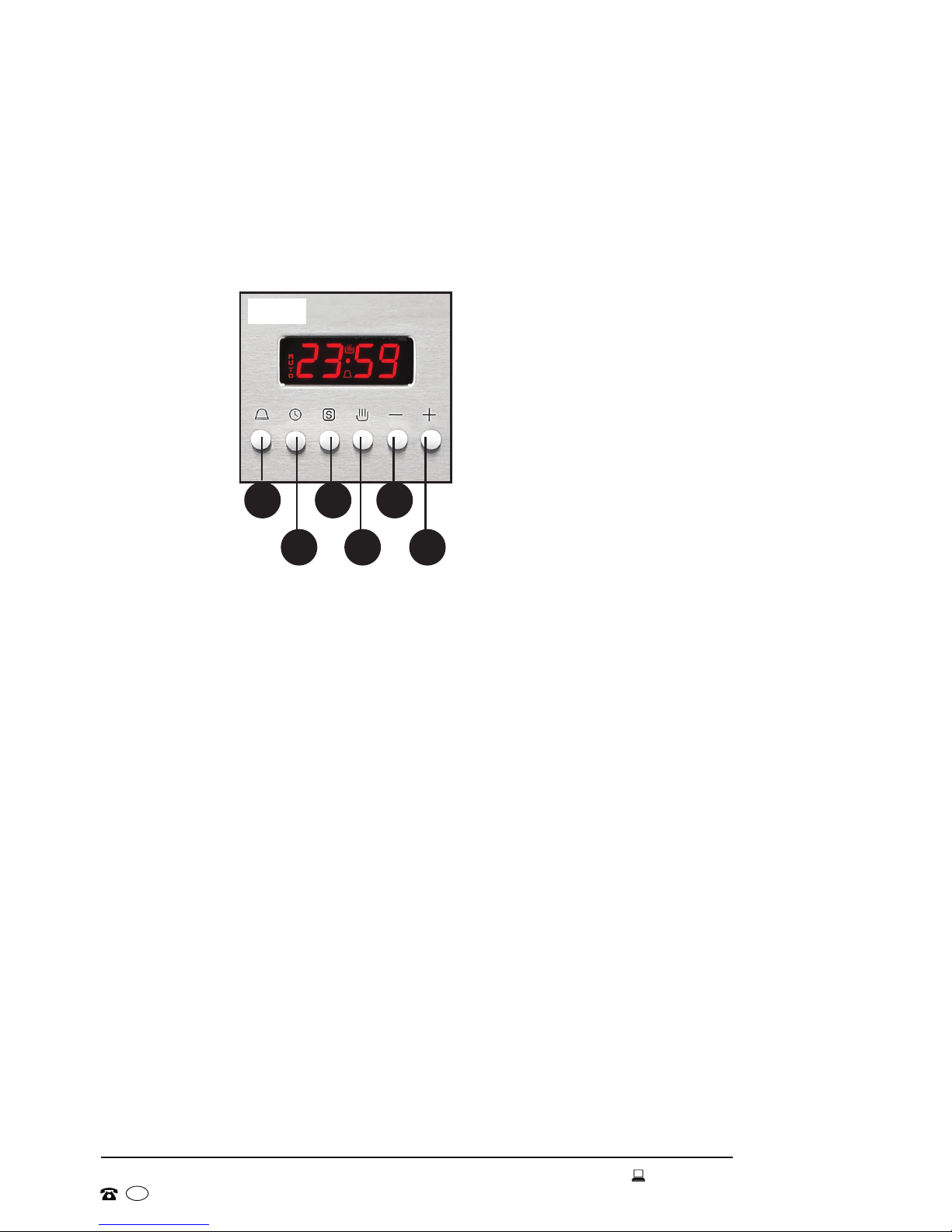

Oven programmer/timer display
1
4 6
2 3
1 Oven function selector knob
2 Oven programmer/timer display
3 Thermostat control knob
4 Power indicator light
5 Oven operating light
6 Timer buttons
A Auto function symbol
B Minute minder symbol
C Manual operation symbol
A
C
5
B
10
Installation
Unpacking the appliance
• This product has been packaged to protect it against transportation
damage. Unpack the appliance and remove all packaging materials from
around the oven and from inside the oven cavity.
• Keep all packaging materials until you have made sure your new oven is
undamaged and in good working order. The carton is recyclable. Whenever
possible, reuse the carton and recycle it when disposing of the packaging
materials.
• Plastic wrapping can be a suffocation hazard for babies and young
children, so ensure all packaging materials are out of their reach, and
dispose of them safely.
This oven must be correctly installed by an appropriately qualified
electrician in accordance with all applicable rules and regulations and
following the instructions in this manual.
Do not try to install the oven yourself; doing so will expose you to danger and
void the warranty. Improper installation, adjustment, alteration or service can
cause injury or damage. We decline any responsibility for injury or damage,
to persons or property, as a result of improper use or installation.
Important advice for the installer
• Before connecting the appliance, make sure that the supply voltage
marked on the Rating Plate corresponds with your mains supply voltage.
• WARNING: This appliance must be earthed.
11
Installation (Cont.)

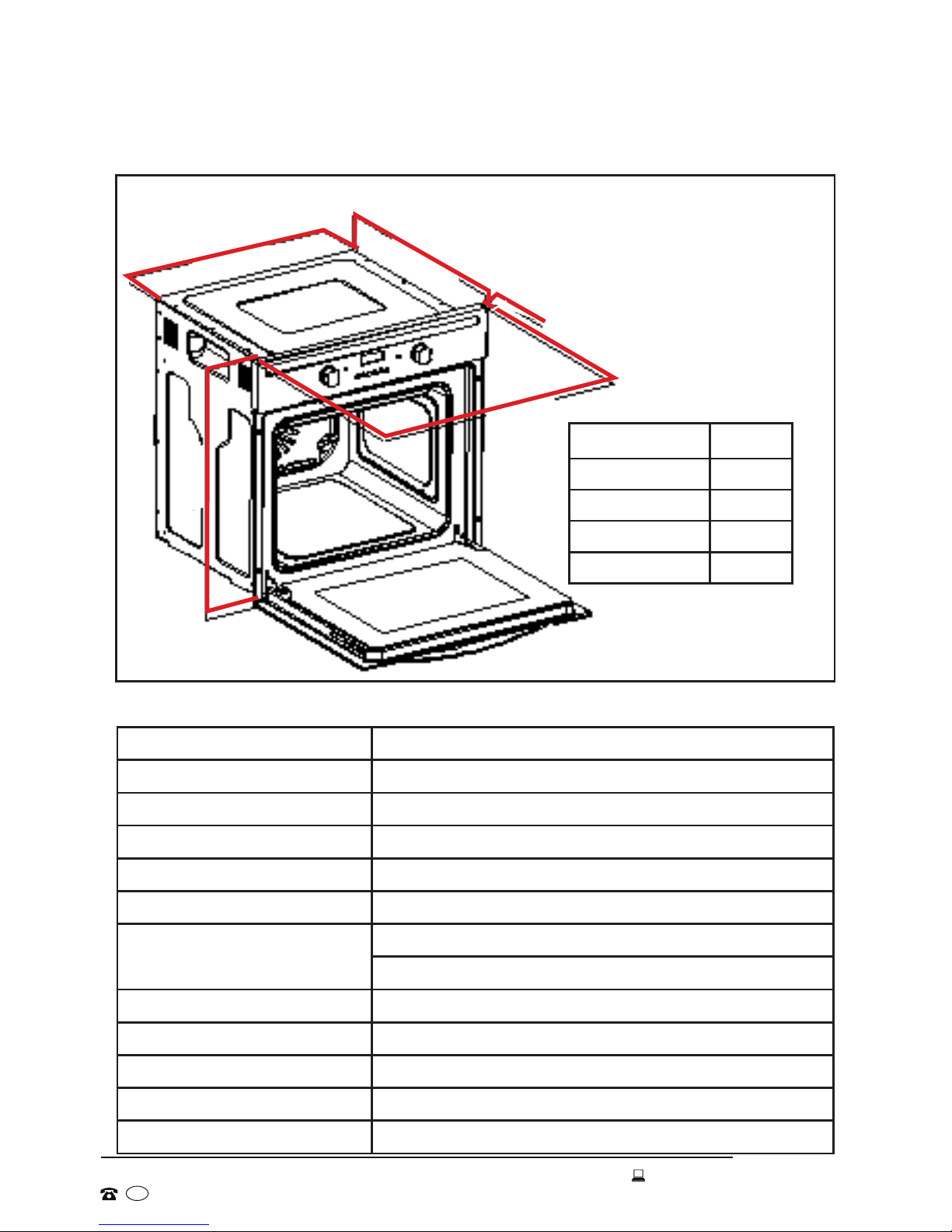

Dimensions
Specifications
Oven chamber capacity 58L
Dimensions See Fig. 1, above
Weight 31kg (33kg with packaging carton)
Shelf positions 4
Oven door Triple glazed, removable
Oven light bulb 25W, 300°C, screw type pigmy
Accessories 1 x Baking/drip tray, 1 x Oven rack
Set of side racks (already assembled)
Oven functions 5
Oven temperature range 50 – 250°C
Timer 24 hour, digital
Rated voltage / frequency 220-240V AC / 50Hz
Total rated mains power 2300W
590mm
516mm
550mm 22mm
595mm
Height 590mm
Width of Face 595mm
Width of Back 516mm
Depth of Face 22mm
Depth of Back 550mm
Fig. 1
12

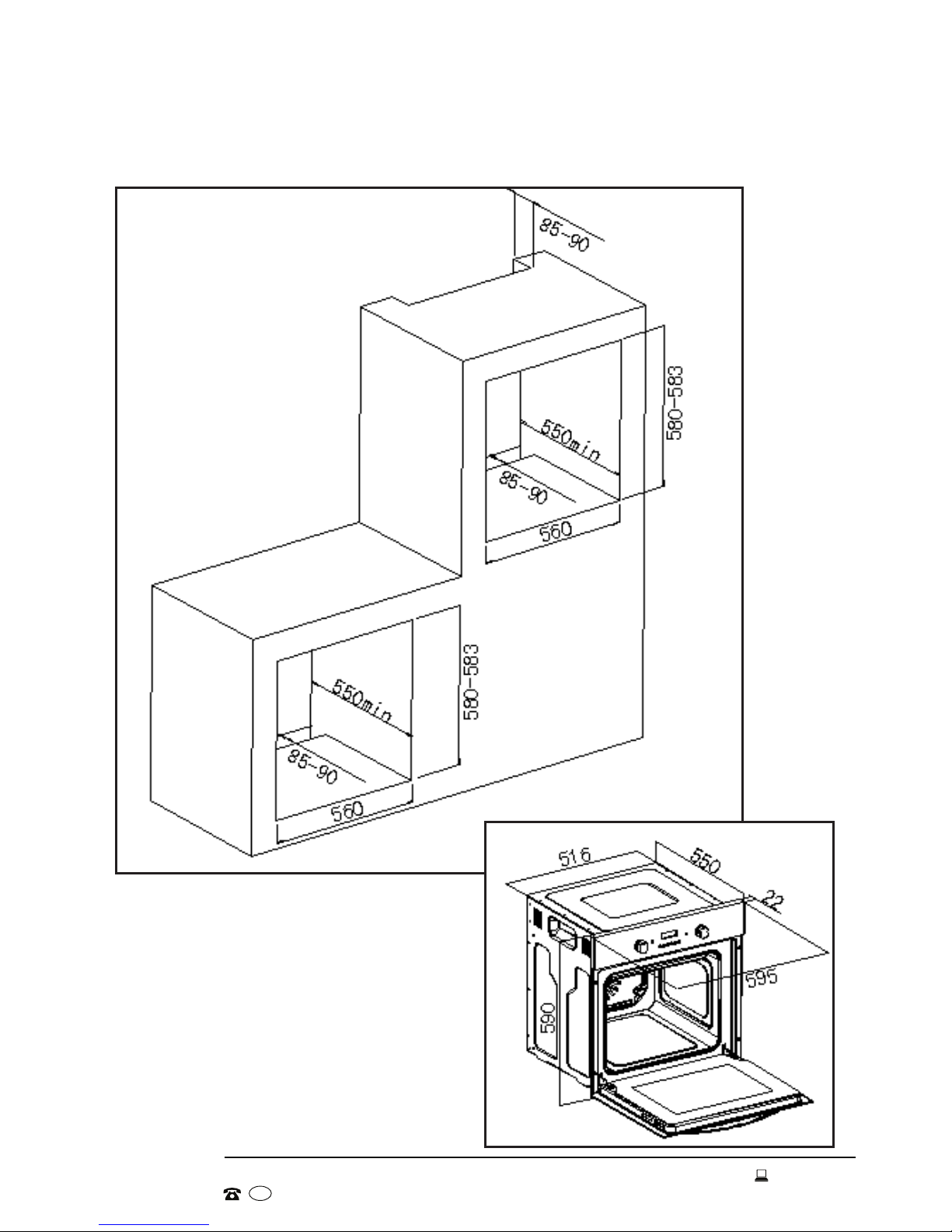

Fig. 2

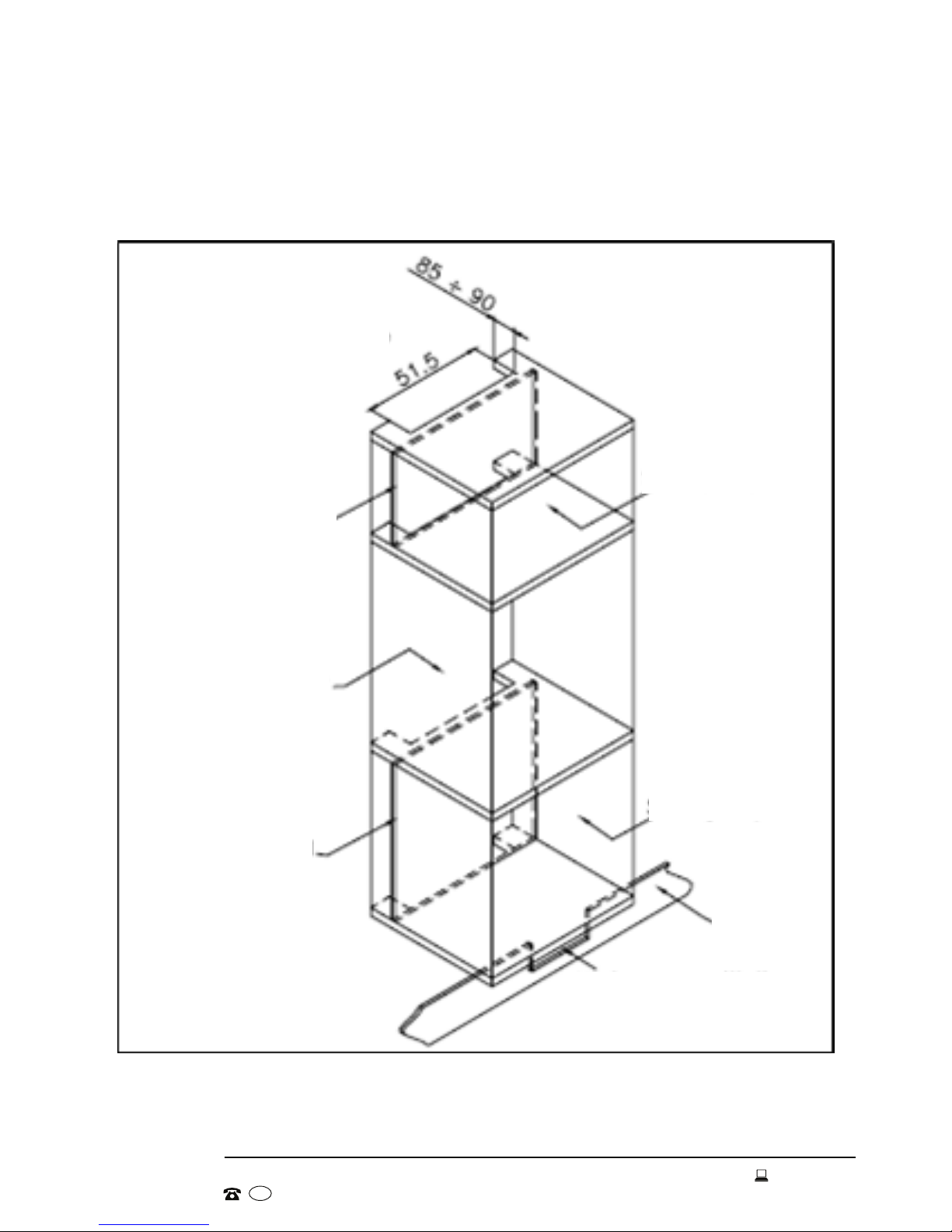

Space requirements
Installation (Cont.)

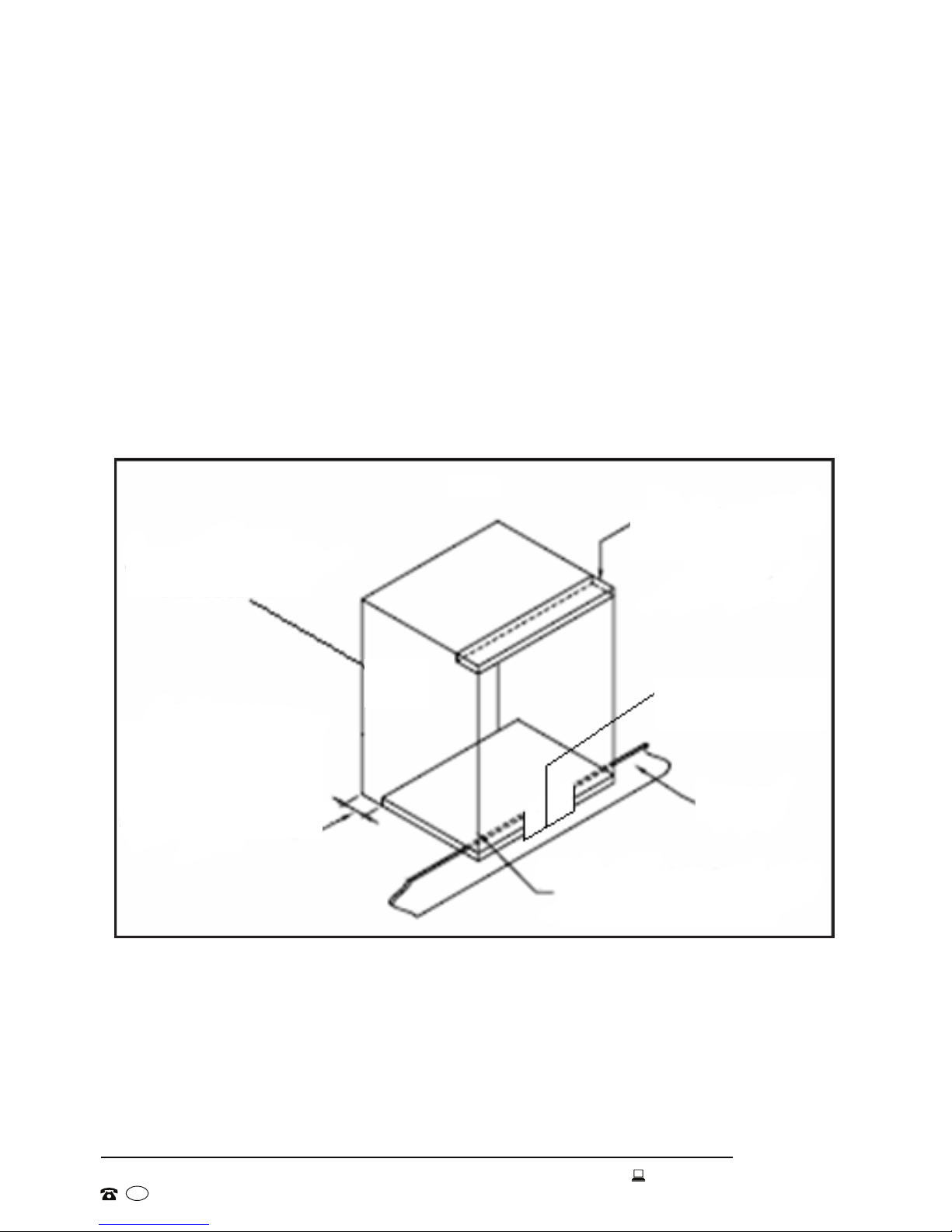

Installing the oven into the kitchen cabinet
Fig. 3
NOTE: Fig. 3 is printed in more detail
on the previous page as Fig. 1.
13
Installation (Cont.)

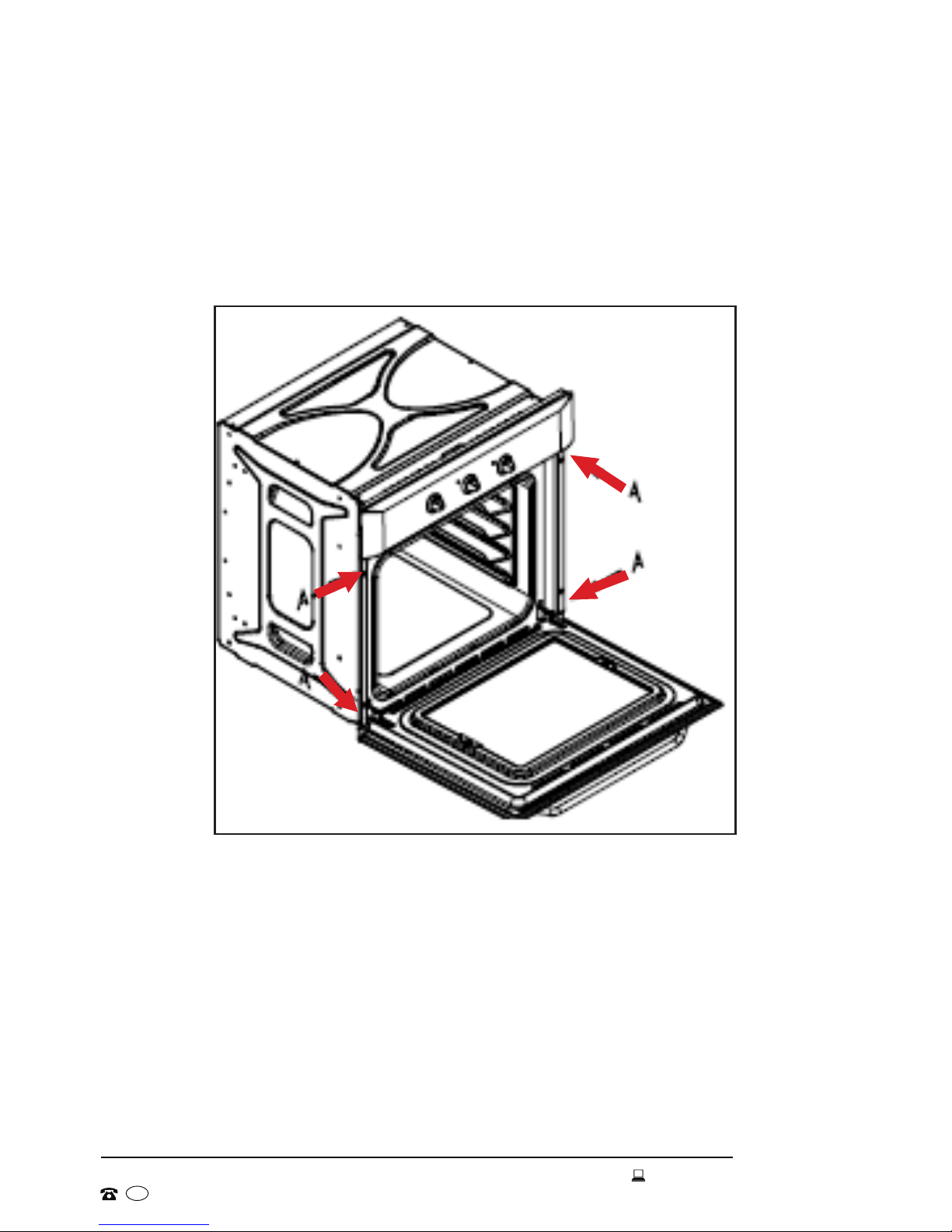

Positioning the appliance
• Ensure that the aperture that you will be fitting the oven into is of the size
given in Fig. 2, opposite.
• The oven must be fitted into an oven housing with the ventilation cut-outs
shown in Fig. 4 below.
• Ensure that the rear panel of the furniture housing unit has been removed.
Fig. 4: Ventilation and cut-out requirements for the installation of the
appliance into a standard kitchen unit
Fig. 4
Remove rear panel
from this section
75-90mm spacing
between wall and
rear of support shelf
and of cabinet base
False drawer front
to be fitted
Plinth
Minimum cut-out
200cm2
Support rail to be
removed
14
Installation (Cont.)
Fig. 5: Ventilation and cut-out requirements for the installation of the
appliance into a tall housing unit
Fig. 5
Minimum ventilation
requirements for rear of
unit: top, base and support
shelves
Rear panel
Remove rear panel
from this section
Minimum ventilation
cut-out 200cm2
Rear panel
Storage space
Plinth
Storage space
15
Installation (Cont.)
Ensure that the oven has been securely fixed into the housing unit. To fix the
oven into the housing unit, attach the four brackets (supplied) through the
slots at the sides of the unit (marked with arrows in Fig. 6 below) and then use
the four screws (supplied) to affix the oven cabinet into the housing unit.
Fig. 6
16
Before first use
• Read: The best way to familiarise yourself with all the parts and operating
principles of your new electric oven is to read this manual. Pay particular
attention to the safety instructions on pages 5–7. Refer to pages 8–9 for a
picture and list of all parts and buttons.
• Clean: After the appliance has been properly installed, before rst use,
wipe the interior oven surfaces with a soft cloth dampened with warm
water and a little mild detergent to remove any dust from transport.
• Wash: Remove and wash the oven rack and baking/drip tray with warm
water and a little washing-up liquid. Dry and return to the oven. Leave the
oven door open until it is completely dry.
• Initial use: Before using the oven for the rst time, we recommend you
burn off any dust, oil or other remnants from manufacturing or transport.
Set the oven function to the “Intensive Bake” setting and the thermostat
to a 250°C. Any smoke and odour during this initial use is normal and
completely harmless; ensure good ventilation. Leave the oven on for
approximately 30 minutes and when cooled, wipe away any residue.
CAUTION!
Take care to avoid burns, the oven becomes very hot during use.
Getting Started
17
Setting and using the oven programmer/timer
Selecting manual operation mode
Your new electric oven has a digital timer with an easy to read LED display
and six control buttons for easy operation (Fig. 7).
When your appliance is connected to the mains supply for the rst time,
the numbers on the timer display will ash. Before you can select a cooking
function or set a temperature, you must set the appliance into manual
operation mode.
• Press the “manual operation” button on the control panel to select manual
operation mode.
Setting the time of day
After setting your oven for manual operation, you should also set the time of day.
• First press the “manual operation” button, then use the “minus” and “plus”
buttons to adjust the time that appears in the display. When the correct time
is displayed, release the “minus” and “plus” buttons. After a few seconds the
time will x in the display and you will be able to use your oven.
Setting the minute minder function
You are able to set the minute minder at any time, regardless of whether an
oven function has been selected. You can set a period of time using the minute
minder function and an alarm will sound when that period of time has elapsed.
• First press the “minute minder” button, the display will show “00:00”. Then
use the “minus” and “plus” buttons to set the period of time you wish the
minute minder to count down for.
Instructions
A C E
B D F
Fig. 7
Timer buttons
A Minute minder button
B Duration button
C End cook button
D Manual operation button
E Minus button
F Plus button
18
Setting the duration function
This function will allow you to set a countdown time similar to the minute
minder function. However, the oven will no longer continue to heat once the
countdown period has elapsed.
• Use the thermostat control knob to set the temperature you require. The
manual operation symbol will appear on the display.
• Use the oven function selector knob to select the required cooking mode.
You have to set the mode rst before you can set the duration for the
required cooking time.
• Press the “duration” button and the display will show “00:00”. Then use the
“minus” and “plus” buttons to set the period of time you wish the duration
function to count down for.
• Once your set countdown time appears on the display, let go of the “minus”
and “plus” buttons. The countdown will start immediately and the word
AUTO will appear on the timer display. If required, use the “minus” or “plus”
buttons to adjust the countdown time.
• An alarm will sound when the countdown time has elapsed and the oven
will switch off. The word AUTO will ash and the heating symbol will
disappear. Press the “duration” button to silence the alarm.
• Once the duration function has been used, you will need to return the
oven to manual operation mode. To do this, press the “manual operation”
button, the word AUTO will disappear from the display and the manual
operation symbol will appear instead.
Instructions (Cont.)
• Once your set countdown time appears on the display, let go of the “minus”
and “plus” buttons. The minute minder symbol will appear on the timer
display. (To adjust the set time, use the “minus” or “plus” buttons.)
• An alarm will sound when the countdown time has elapsed. Press the
“minute minder” button to silence the alarm.
IMPORTANT!
The oven will continue heating once the alarm has been silenced.
To switch off the oven if you have finished cooking,
you must turn the oven function selector and thermostat control knobs to “0”.
IMPORTANT!
If you do not turn the thermostat control and oven function knobs to “0”, the appliance
will continue to operate as soon as you press the “manual operation” button.
19
Instructions (Cont.)
Setting the end cook function
This function is similar to the duration function. However, instead of setting
the period of time that you wish the oven to remain on before switching off,
you select the point of time (the time of day) at which you wish the oven to
switch off.
• Use the thermostat control knob to set the temperature that you require.
The manual operation symbol will appear on the display.
• Use the oven function selector knob to select the required cooking mode.
• Press the “end cook” button and the display will show “00:00”. Now use
the “minus” and “plus” buttons to set the time of day that you wish the
oven to stop heating and switch off. The timer will calculate how long the
cooking time will be, based on the time of day you have selected, and
show it on the display. (To adjust a set time, if required, use the “minus”
and “plus” buttons.)
• Once the display has reached the time of day at which you want the oven
to stop heating, let go of the “minus” and “plus” buttons. The countdown
will start immediately and the word AUTO will appear on the timer display.
• At the time of day that you have programmed the oven to stop heating, the
oven will switch off and an alarm will sound. The word AUTO will ash and
the heating symbol will disappear. Press the “end cook” button to silence
the alarm.
• Once the end cook function has been used, you will need to return the
oven to manual operation mode. To do this, press the “manual operation”
button, the word AUTO will disappear from the display and the manual
operation symbol will appear instead.
IMPORTANT!
If you do not turn the thermostat control and oven function knobs to “0”, the appliance
will continue to operate as soon as you press the “manual operation” button.
20
Setting the start and end time function
The oven start and end timer allows you to set a time in the future at which
the oven will switch on and switch off. This is a convenient feature you can
use when at home to help you program the oven for a later start.
Instructions (Cont.)
IMPORTANT!
If you do not turn the thermostat control and oven function knobs to “0”, the appliance
will continue to operate as soon as you press the “manual operation” button.
WARNING!
• For your personal safety and to avoid any potential fire risk, do not program the
timer and then leave the oven unattended.
• For food safety reasons, do not leave easily spoilt foods in the oven for too long
when using the timer.
• When baking, we do not recommend programming the oven for a delayed start as
the cake mixture may dry out and the raising agents may lose their effectiveness.
• Use the thermostat control knob to set the temperature that you require.
The manual operation symbol will appear on the display.
• Use the oven function selector knob to select the required cooking mode.
• Press the “duration” button and the display will show “00:00”. Use the
“minus” and “plus” buttons to set the period of time you wish to cook for.
The word AUTO will appear on the timer display.
• Immediately press the “end cook” button and the timer display will show
“00:00”. Use the “minus” and “plus” buttons to set the time of day at
which you want the oven to switch off. The oven will calculate at what time
it needs to switch on, so that your food will cook for the length of time
selected. It will automatically switch on once it reaches the previously set
time of day.
• When the time of day reaches the end of the set cooking time, the oven
will switch off and an alarm will sound. The word AUTO will ash and the
heating symbol will disappear. Press the “end cook” or “duration” button to
silence the alarm.
• Once the start and end time function has been used you will need to
return the oven to manual operation mode. To do this, press the “manual
operation” button, the word AUTO will disappear from the display and the
manual operation symbol will appear instead.
Table of contents
Other Stirling Oven manuals
Stirling
Stirling SO69S User manual
Stirling
Stirling STR-AEO User manual
Stirling
Stirling STR-BEO65L User manual
Stirling
Stirling Black Edition STR-PEO User manual
Stirling
Stirling STR-AEO65L User manual
Stirling
Stirling AFD24L User manual
Stirling
Stirling SO65B User manual
Stirling
Stirling tp54h4wh User manual
Stirling
Stirling STR-APYRO User manual
Stirling
Stirling AFD23L-G User manual
Popular Oven manuals by other brands
Electrolux
Electrolux 318 205 122 Use and care guide
Samsung
Samsung NY90T5010SS User & installation manual
Renfert
Renfert Magma 2300-0000 instruction manual
Hamilton Beach
Hamilton Beach 31506 - Hamilton 6 SL Toaster Oven user manual
Bertazzoni
Bertazzoni FD30CON Specifications
Sears
Sears Kenmore ELITE 911.49002 Use & care guide
