OPERATING INSTRUCTIONS

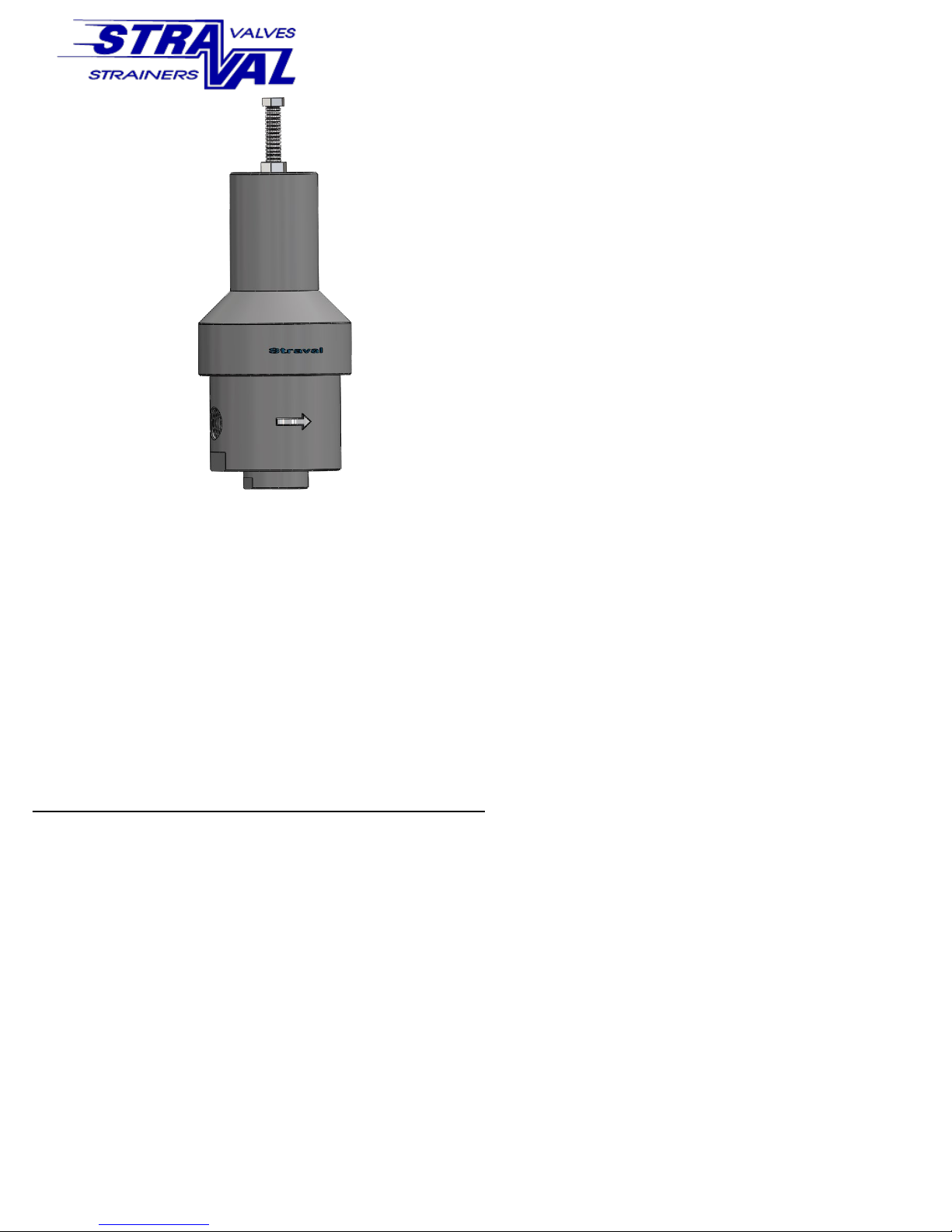

MODEL PRS-09i-P
PLASTIC PRESSURE REDUCING
VALVE
DISASSEMBLY/ASSEMBLY INSTRUCTIONS
If the regulator fails to maintain the proper outlet pres-
sure, there could be a number of probable causes as fol-
lows: Internal clogging of foreign objects or material,
sediment, etc. in the valve seat area, sensing port, dia-
phragm cavity and valve spring cavity which houses the
spring. If this condition appears frequently a strainer
installed at the inlet side of the valve is recommended.
If disassembly is required, make sure the valve piping is
not under pressure and sufficiently cooled off for operat-
ing personnel to handle. To disassemble the valve, it is
not necessary to remove the valve from the piping, alt-
hough it may be more convenient to work on the valve at
a bench with a vise. Unscrew the spring chamber (3)
with a strap wrench.
If fluid is leaking from the adjusting screw, the dia-
phragm is suspect. Inspect the diaphragm (9), replace if
torn, abraded, or delaminated or otherwise damaged or
cut. Sealing area of the diaphragm should be free from
tears or cuts, otherwise external leakage will occur. Ex-
amine to see if there are signs the diaphragm pulled
away from the outer clamped seating area. If so, realign
diaphragm and make sure the spring chamber is tight-
ened properly, and checked again for tightening after full
temperature is reached after installation. Also, check to
make sure the locknut (7) is tight which holds the dia-
phragm plates and main valve shaft together (6) & (8). A
spare diaphragm should always be kept on hand to keep
down time to a minimum.
Examine the main valve (6) and seat area for excessive
wear particularly in the valve seat area. Replace external
valve spring (5) if corroded or damaged.
Reassemble valve in the same sequence as disassembled
making sure the diaphragm lock nut (7) and spring
chamber (3) are tight so that no leakage can take place
in these areas. Tighten the diaphragm lock nut (6) snug
plus ¼ turn, and spring chamber hand tight plus ¼ turn
using a strap wrench (3). Also examine the O-ring seal
for the bottom plug to make sure it is not damaged or
shows signs of deterioration. Replace if necessary.
It is often easier to assemble the spring chamber assem-
bly upside down by dropping the spring and spring hard-
ware into the spring chamber. Then the body (11) subas-
sembly with the main valve (6) and diaphragm (9) can
be positioned over the spring chamber (3) and threading
the assembly together until hand tight. Then the final
tightening with a strap wrench can be done with the
valve right side up.
PRINCIPLE OF OPERATION:
Fluid passing through the valve enters the inlet port passing the
the valve seat formed by main valve, and finally through the
outlet port. Outlet pressure is sensed by the underside of the
diaphragm through a vertical port, which connects with the out-
let port. Pressure regulation is achieved when a force balance is
maintained between the pressure acting on the underside of the
diaphragm and the spring force, which is adjusted to hold a par-
ticular outlet pressure. If the outlet pressure is below the set
point as preset by the adjusting spring, the spring force over-
comes the pressure force acting on the underside of the dia-
phragm. This causes the main valve to open, thereby admitting
higher inlet pressure fluid to raise the outlet pressure until the
force balance is restored. As soon as the outlet pressure is re-
stored, the main valve begins to close and to limit the amount
of higher inlet pressure fluid passing through the valve.
Never apply the valve on shut-off or dead ended service,
as the valve is not designed for this purpose. Always install a
relief valve on the outlet side of the regulator.
OPERATING INSTRUCTIONS
If the valve has not been ordered preset to a specific outlet
pressure, simply adjust the spring (5) compression by loosen-
ing the lock nut (2) and turn the adjusting screw (1) Clock-
wise to increase the spring compression. This will
increase the outlet pressure. Similarly, turning the screw
counterclockwise will reduce the spring compression and cor-
respondingly reduce the outlet pressure.
Phone: [phone] Fax: [phone]
http://www.straval.com Email: s[email protected]

Phone: [phone] Fax: [phone]
http://www.straval.com Email: s[email protected]
After the valve is properly assembled, reset the spring adjusting
screw (1) until the desired outlet pressure is achieved at the flow
range the valve will be operating. Then tighten the adjusting
screw lock nut (2). Note that some valves, depending on the
droop characteristic, may require readjustment of the spring set-
ting if there are wide ranges in flows. Consult factory for applica-
tion assistance if a different spring or if a different valve is re-
quired.
NOTE: When the outlet pressure must be maintained
at a specic value, and where excessive pressure may
damage equipment, a relief valve must be installed on
the outlet side of the regulator.
