Strobel VTD410EV-SEPC1 User manual

For the professional user
Für den professionellen Anwender
Betriebsanleitung
Class:
Klasse:
Model:
Ausführung:
Machine number:
Maschinen-Nr.:
Dated:
Stand:
VTD410EV-SEPC1
1
Operating Instructions
Spezialmaschinen GmbH

Im Zeichen der Qualität
ou nd the Strobel trademark on every Strobel
machine leaving our works. And with good reason.
This symbol is a guaranteen of the high quality of
our products. Quality which creates trust – trust
in our technology, our service and, not least of all,
in our good name.
ie nden die Strobel-Schutzmarke auf jeder
Strobel-Maschine, die unser Werk verlässt.
Und das aus gutem Grund. Denn dieses Zeichen
garantiert Ihnen die hohe Qualität unserer
Produkte. Qualität, die Vertrauen schafft – in unsere
Technik, unseren Service und nicht zuletzt in unseren
guten Namen.
S
Y
The sign of quality

trobel clients know that they can expect a particularly
high standard of performance from our company and our
machines. Now you have settled for one of our products.
For us this is a source of encouragement and of obligation
to Justify your trust.
If you wish to prot from the performance and efciency of
your Strobel machine as long as possible, exact handling
and thorough care is necessary. For this reason we kindly
request that you read the operating instructions closely.
It provides all the information you need for trouble free
operation.
And if you do happen to need a spare part the enclosed
spare parts list gives a complete overview. It is clearly
classied according to components so that you can nd the
required part quickly and easily. In order to avoid errors we
request you to quote machine class, machine number and
part number completely on your spare part order.
We wish you lots of success in your work with your new
Strobel machine.
S
A decision with future
Spezialmaschinen GmbH

1 BA_VTD410EV-SEPC1_A1_140417_en
Operating Instructions
STROBEL Class 410EV-SEPC1
Contents
1General notes on safety............................................................................................3
2General .....................................................................................................................5
2.1 Operating instructions.....................................................................................5
2.2 Class identification, serial number and orientation of the machine.................5
2.3 Range of application.......................................................................................5
2.4 Technical data................................................................................................6
3Installation and putting into service...........................................................................7
3.1 Unpacking the machine..................................................................................7
3.2 Installation ......................................................................................................7
3.3 Sense of rotation ............................................................................................9
3.4 Motor drive via V-belts....................................................................................9
3.4.1 Tensioning the V-belt.........................................................................9
3.5 Positions of the machine ................................................................................9
3.6 Lubrication....................................................................................................13
4Instructions for use..................................................................................................14
4.1 Needles and threads ....................................................................................14

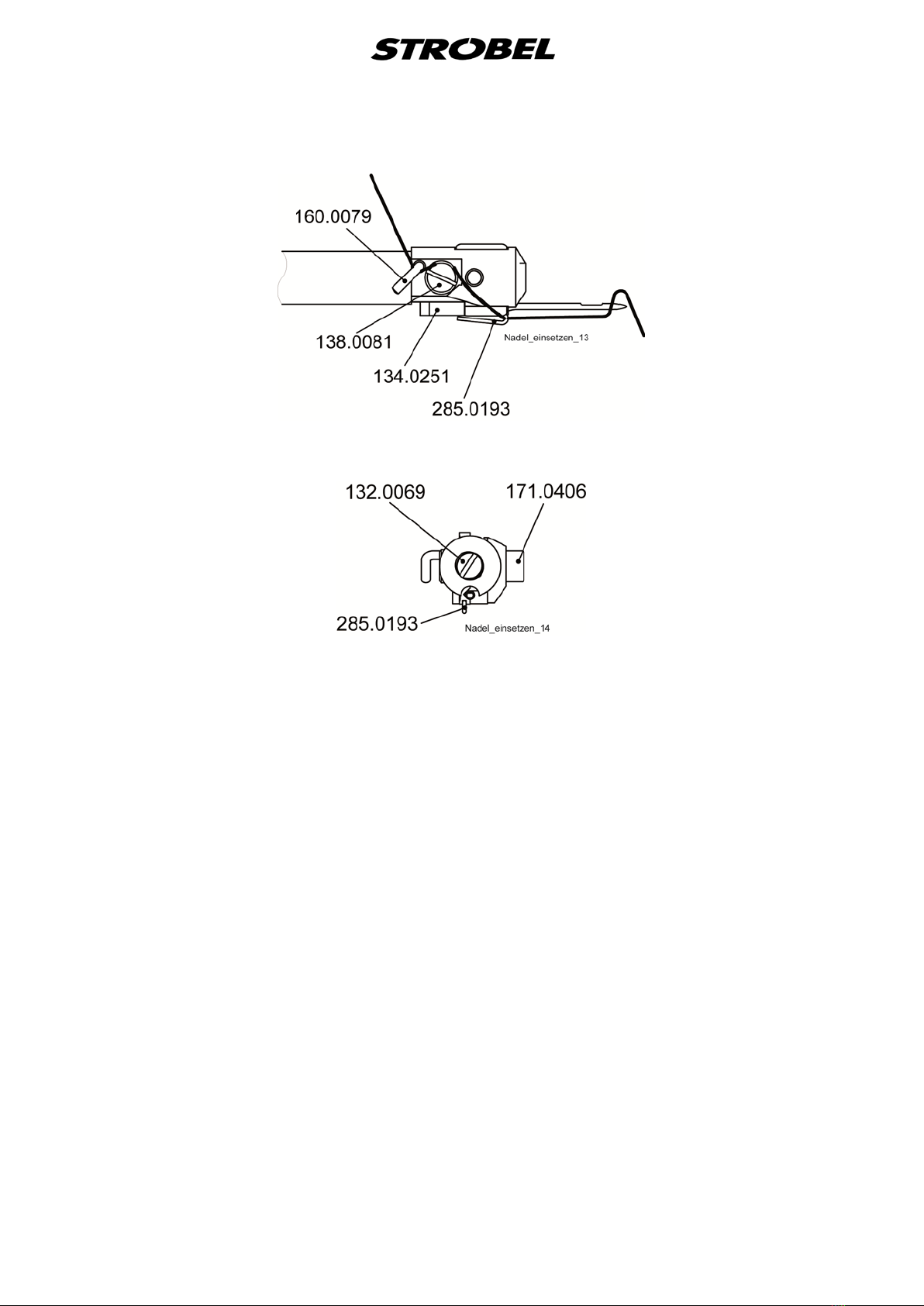

4.2 Inserting the needle (Fig. 8)..........................................................................14
4.3 Threading and thread courses......................................................................16
4.3.1 Threading.........................................................................................16
4.3.2 Thread courses................................................................................16
4.4 Thread tension..............................................................................................18
4.5 Setting the stitch length................................................................................19
4.6 Setting the material guide.............................................................................20
4.7 Sewing drive.................................................................................................20

2 BA_VTD410EV-SEPC1_A1_140417_en
5Operating the machine............................................................................................21
5.1 Right hand treadle........................................................................................21
5.2 Operating the gathering device (EV) ............................................................21
5.2.1 Knee lever........................................................................................22
5.2.2 Gathering (left hand treadle)............................................................22
5.2.3 Operating the shaft coupling for the front cup..................................23
5.2.4 Setting the differential feed (Fig. 14)................................................23
5.3 Inserting and removing the fabric.................................................................24
5.3.1 Sewing.............................................................................................24
6Machine maintenance.............................................................................................25

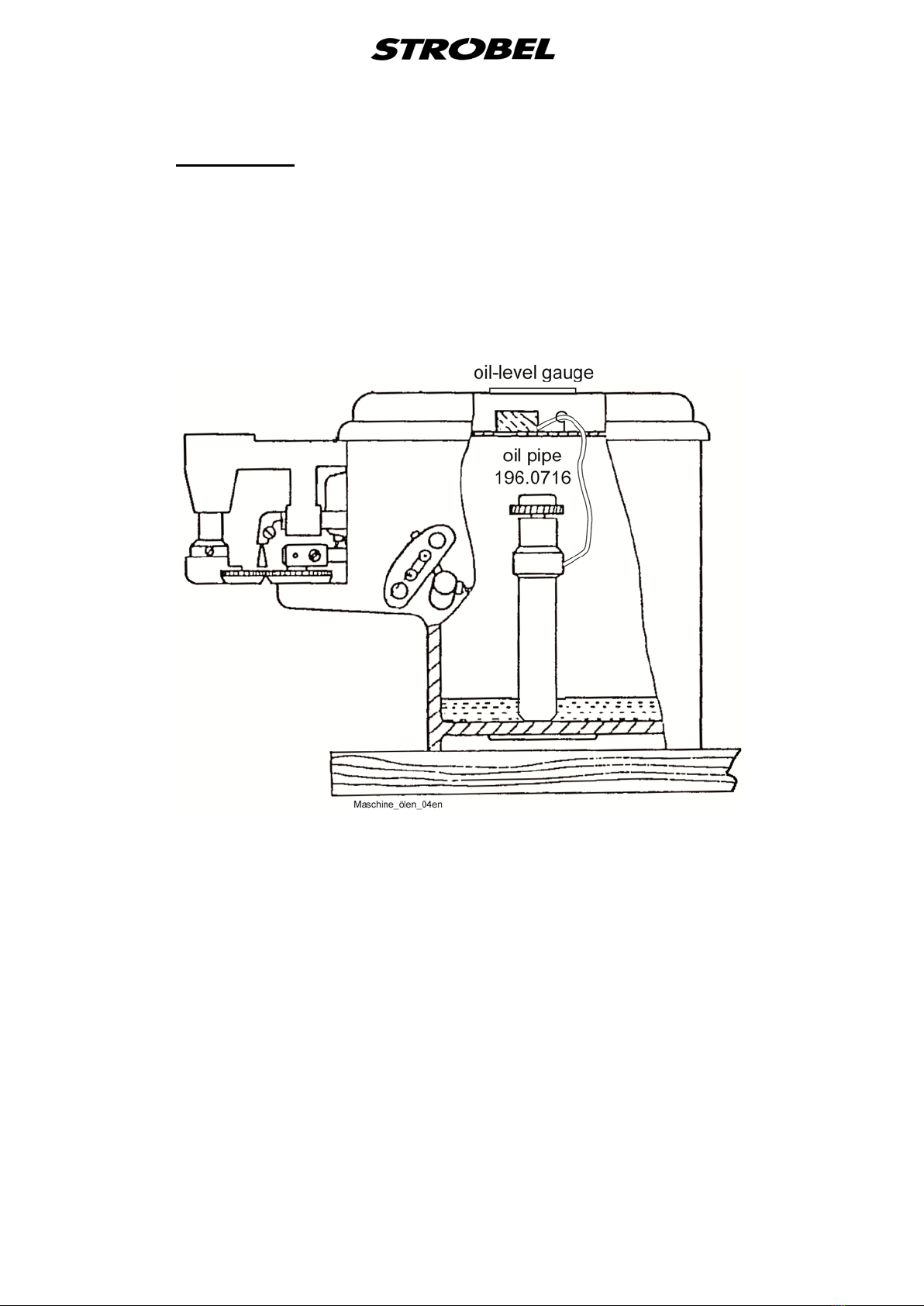

6.1 Checking the oil level....................................................................................25
6.2 Oil drain tube................................................................................................26
7Variable sewing tools ..............................................................................................26
Subject to change without prior notice

3 BA_VTD410EV-SEPC1_A1_140417_en
1 General notes on safety
The non-compliance with the following notes on safety can lead to bodily
injuries or to damages of the machine.
1. The machine must only be operated by persons familiar with the relevant
operating instructions and who have been instructed accordingly.
2. Before commissioning also read the notes on safety and the operating
instructions of the sewing drive manufacturer.
3. The machine must only be operated according to its designation and not
without the appropriate guards; all explicit safety regulations must also be
observed.
4. For threading, for changing the reels, for exchanging sewing tools such as
needles, grippers, stitch plate, transport devices, if necessary cutter and
cutting block, for cleaning, when leaving the workplace and for
maintenance work, switch off main switch or pull mains plug. With a
mechanically operated coupling motor without activation lock, wait until the
motor has stopped.
5. General maintenance work must only be carried out by appropriately
instructed persons in accordance with the operating instructions.
6. Repair, modification and maintenance work must only be carried out by
qualified staff or by appropriately instructed persons.
7. During maintenance and repair work at pneumatic devices, the machine
must be disconnected from the pneumatic supply network. Exceptions are
only admissible during adjusting work and function test by appropriately
instructed qualified staff.
8. Work at the electrical equipment must only be carried out by qualified
staff.
9. Work at parts and devices under voltage is not allowed. Exceptions are
regulated by the regulation EN50110 (DIN VDE0105).
10. Modification or alteration at the machine must only be undertaken under
consideration of all explicit safety regulations.
11. Only spare parts released by us for use are to be used during repairs.
12. The commissioning of the upper part is prohibited until it has been
determined that the entire sewing unit complies with the regulations of the
EC guidelines.

4 BA_VTD410EV-SEPC1_A1_140417_en
13. Warning notes in the operating instructions of the machine, which point
out special points of danger, are marked at the appropriate positions with
the safety symbol.
Warning notes in the operating instructions of the machine which point out
special dangers of injury for operating or qualified staff, are marked at the
appropriate positions with the symbol
it is essential that you observe and follow these notes as well as the
generally valid safety regulations.

5 BA_VTD410EV-SEPC1_A1_140417_en
2 General
2.1 Operating instructions
Any person involved in the installation, operation, maintenance and repair of
the machine must have read and understood the operating instructions and
mainly the safety instructions before starting the machine.
2.2 Class identification, serial number and orientation of the
machine
The operating side of the machine is the starting point for the description
referring to sides. The class identification (type) as well as the machine and
model number (after the dash) are located below the left handwheel.
These data are also shown on the front page of the cover sheet of the
Operating Instructions.
2.3 Range of application
High capacity insoling machine for attaching the insole to uppers made of
Kevlar, leather and textile materials up to a total thickness of 11 mm, with
differential feed for gathering low extra fullness at the ball part and with shaft
coupling for the front cup drive.
Equipped with pneumatically controlled gathering device in combination with
the adjustable differential feed for gathering extra fullness at the toe, and shaft
coupling for the front cup drive.

6 BA_VTD410EV-SEPC1_A1_140417_en
2.4 Technical data
Speed: max. mechanically admissible 1800 min-1
Recommended rated speed 1500 min-1
Min. Motor power 550 W
Machine/pulley diameter dw 80
V-belt profile 10 x 6 mm
Stitch length 3 – 8 mm
Kind of stitchsingle thread overseam
Needle system 134
Needle size 120 – 180
Recommended thread twisted polyester filament
Thread size 20/3, 30, 40
Stitch type 501
Kind of feed rear and front cup drive
Pneumatic connection 6- 6.5 bar
Air consumption – average value 0.5 l per working stroke
Required space 0.7 x 1.06 m
Noise:
Average noise level at a speed of
n = 1900 min-1: LpAm 76 dB (A)
Noise test according to DIN 45635-48-1 KL3

7 BA_VTD410EV-SEPC1_A1_140417_en
3 Installation and putting into service
3.1 Unpacking the machine
The machines of the series 400 are only supplied complete.
The thread stand, oil and other machine tool accessories located with in the
package.
Make sure that all accessories have been unpacked before throwing away any
packing material.
3.2 Installation
ATTENTION!
Danger of bodily injuries or finger bruises through pulling in
of garments or hairs!
The machine may not be operated without belt guards for
head and motor.
The electrical connection must be carried out according to the marking of the
cable or the supplied wiring diagram.
Check if all screws on the stand are tight and retighten them, if necessary.
Before putting the machine into service make sure that the electrical connecting
data on the motor's name plate, your electric network and the frequency, and all
other connecting values, e.g. for the air, correspond to the data shown on the
machine and the operating instructions.
Since feed cup opening and some other operations are realized pneumatically,
a compressed air connection of 6 bar is required (see point “2.4 Technical
data”). Regulation of the pressure by means of compressed air conditioner
293.0975 at the stand.
ATTENTION!
Before putting the machine into service make sure
that the electrical connecting data on the motor’s
name plate, your electric network, and all other connecting
values, e. g. for the air, correspond to the data shown on
the machine and the operating instructions.
All rust preventing agents, such as Vaseline and similar agents, have to be
wiped off carefully, particularly from the most important sewing tools.

8 BA_VTD410EV-SEPC1_A1_140417_en
Fig. 1

9 BA_VTD410EV-SEPC1_A1_140417_en
3.3 Sense of rotation
The correct sense of rotation of the hand wheel is clockwise in line of vision on
the hand wheel.
3.4 Motor drive via V-belts
3.4.1 Tensioning the V-belt
Caution! Danger of injury!
When checking the belt tension, switch off the machine at
the mains. Do not operate the machine without the belt
guard. Otherwise there is a DANGER of crushing
fingers, of injuries to the body and of pulling in parts of
clothing.
The tensioning of the V-belt is carried out by swivelling the motor underneath
the table plate after releasing the retaining nut with SW 24.
The V-belt must not be tensioned too much, especially with the stop motor. You
should be able to depress it with light thumb pressure by about 2 cm.
Too little V-belt tensioning can impair the positioning of the machine and
therefore impair the function sequence.
3.5 Positions of the machine
Caution! Danger of injury!
Danger of crushing fingers and needle through stitching as
well as pulling in of parts of clothing.
Keep fingers and hands away from moving parts when
setting the position generator and checking the positions
with switched-on machine.
General:
The machine requires a pulse generator that is mounted on the main shaft
(handwheel) of the machine and that detects the mechanical position of the
machine and sends it to the control.
The pulse generator has to be mounted on the machine as follows:
The pulse wheel (1) from the encoder must be positioned so that the
outgoing edge (disc transition from "light" to "dark" in the machine direction)
in the sensor (2) when the machine with the needle reaches the front
position (Fig. 2).

10 BA_VTD410EV-SEPC1_A1_140417_en
Fig. 2
To adjust or remove, loosen the two clamping screws (2), Fig. 3. Retighten
them well before restarting.
Fig. 3
The proper position of the position transmitter to the flange is marked with a
spot of paint.

11 BA_VTD410EV-SEPC1_A1_140417_en
Positions:
The machine requires two needle positions and, depending on sewing drive,
possibly also a reference position.
Reference position (if necessary, e.g. sewing drive DC1500-AB322A (Fig. 4)):
The reference position needs to be set so that the tip of the needle
concludes with the outer transport table edge in the direction of the
piercing.
Fig. 4
Needle position (when stop outside the stitch (Fig. 5)):
This needle position is important for inserting and removing the material
and is achieved by stepping back the right pedal (pedal position -2).
The needle position needs to be set so that the tip of the needle
concludes at a distance of 7 mm from the outer transport table edge in the
direction of the piercing. The tip is located thereby over the table.
The needle position is position 2 at the sewing drive.
Fig. 5

12 BA_VTD410EV-SEPC1_A1_140417_en
Needle position (when stop in the stitch (Fig. 6)):
This needle position is important when stopping in the stitch (pedal
position 0), when swiveling in the separating plate of the hold-back device
and for the threading.
The needle position needs to be set so that the tip of the needle
concludes at a distance of 10 mm after the transport table edge in the
direction of the piercing. The tip is located thereby in front of the table.
The needle position is position 1 at the sewing drive.
Fig. 6

13 BA_VTD410EV-SEPC1_A1_140417_en
3.6 Lubrication
First lubrication (see also point “6.1 Checking the oil leve”).
Remove outer and inner machine cover and pour original STROBEL oil
supplied with the machine, from above.
To take off the inner cover first pull out the oil pipe 196.0716 which is plunging
in the oil rising pipe 193.0473 of the pump (Fig. 7).
Fig. 7
The special STROBEL oil (viscosity 46 c St) supplied with the machine should
always be used.
The oiling points are lubricated automatically, thus no maintenance is required
(see also point “6.1 Checking the oil leve/oil quantity”).
When remounting the inner cover make sure that the lower part of the main oil
pipe 196.0716 is pushed into the oil rising pipe 193.0473 of the oil pump
(Fig. 7). Otherwise the automatic lubrication does not work and the
machine will be heavily damaged through blocking of the shafts in the
bearings, etc.
Therefore the instructions should be followed carefully and, after filling
the machine with new oil, the machine should be operated for a short
while and the correct working of the automatic lubrication should be
controlled through the oil inspection glass in the outer cover.

14 BA_VTD410EV-SEPC1_A1_140417_en
4 Instructions for use
4.1 Needles and threads
Use needle type 134.
Since there are several needle points available for the different materials to be
sewn, choose the most suitable needle point according to the needle
manufacturer's catalogue. Recommended needle type for leather is 134 LR, for
textile material 134 R.
When sewing fixed parts it may happen that the needle eye pastes up and
there is no correct loop formation.
Thicker and hard materials require thicker needles.
Guaranteed remark!
This machine has been set and sewn off with genuine
Strobel needles.
No guarantee can be granted if the settings are modified
for using different needle types.
4.2 Inserting the needle (Fig. 8)
ATTENTION!
Switch off the machine electrically and make sure that the
machine is really in the standstill position by stepping the
treadle for the motor control before changing the needle.
Otherwise DANGER of finger bruises and needle through-
stitches.
Introduce the needle with its horizontal groove pointing downwards, push it to
the rear until it strikes against the needle stop 134.0251 (Fig. 8), then clamp it
by means of the screw 171.0406 (Fig. 9).

15 BA_VTD410EV-SEPC1_A1_140417_en
Fig. 8
Fig. 9

16 BA_VTD410EV-SEPC1_A1_140417_en
4.3 Threading and thread courses
ATTENTION! Danger of bodily injuries
Switch off machine electrically and confirm that the
machine is really in standstill position by operating the
treadle for the motor control before threading.
Otherwise danger of finger bruises and needle through
stitches.
CAUTION!
The function “Preparation threading” does
not
replace the electrical switching off of the machine during
threading.
This function serves only to ensure that the needle is
already in the correct position when the machine is
switched off.
4.3.1 Threading
Before the actual threading of the machine, the needle point can be brought
into the correct position with the function “Preparation threading”.
The function is activated or deactivated by the button “4” on the V810 operating
control and displayed with an arrow over the button or otherwise with the
“-Stop-” display in the display.
Please see the operating instruction manual for the sewing drive.
4.3.2 Thread courses
Because of the pneumatically controlled gathering device two successive
Asked thread tensions are grown. The front tension 838.0196 operating
normally, the rear thread tension 938.0196 activity occurs when the partition
plate of Gathering device swung and fullness, as is gathered at the toe. For this
shirring a firmer tension is needed to better fix the resulting material folds on
the shoe sole, and can get a good gathering. After swinging the partition plate,
the front is now more normal tension back into activity and that the rear thread
tension is released.
