Stryker L9000 LED User manual

User Guide
L9000 LED
Light Source
REF 0220210000
2009/02 www.stryker.com 1000401120 D

1
Contents
Warnings and Cautions ............................................................. 2
Symbol Definitions ............................................................................ 4
Product Description and Intended Use ........................... 5
Indications ......................................................................................... 6
Intended Use ..................................................................................... 6
Setup and Assembly ................................................................... 9
Connecting the AC Power Cable ...................................................... 9
Connecting the Light Cable .............................................................. 9
System Operation ....................................................................... 11
Powering the System On and Off ................................................... 11
Selecting the Operation Mode ........................................................ 12

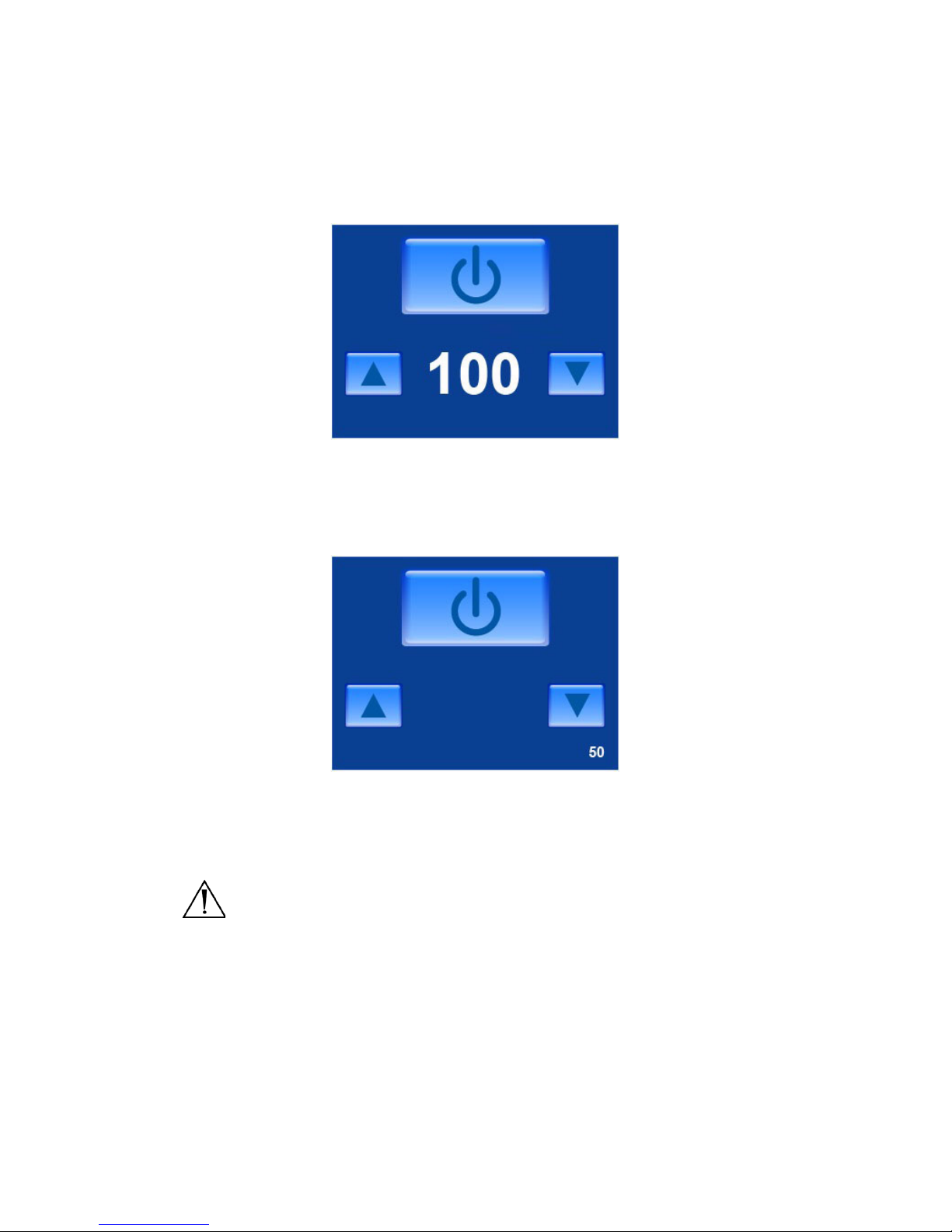

Adjusting the Brightness ................................................................. 13
Visual Display .................................................................................. 13
Language Selection ........................................................................ 15
Safety Shutoff ................................................................................. 16
Checking the ESST Feature ............................................................ 17
Using the L9000 with a Voice-Controlled System Interface ........... 18
Using the SFB Serial Interface ........................................................ 18
Troubleshooting .............................................................................. 19
Cleaning and Maintenance ................................................... 21
Cleaning the L9000 ......................................................................... 21
Replacing the Fuses ....................................................................... 21
Disposing of the L9000 ................................................................... 21
Technical Specifications ....................................................... 22
Electromagnetic Compatibility ........................................................ 23
Warranty .......................................................................................... 27

2
Warnings and Cautions
Please read this manual and follow its instructions carefully. The words warning,
caution, and note carry special meanings and should be carefully reviewed:
WARNING THE PERSONAL SAFETY OF THE PATIENT OR USER MAY BE
INVOLVED. DISREGARDING THIS INFORMATION COULD RESULT
IN SERIOUS INJURY TO THE PATIENT OR USER.
Caution Special procedures or precautions must be followed to avoid
damaging the instrument.
Note Special information to make maintenance easier or important
information more clear.
An exclamation mark within a triangle is intended to alert the
user to the presence of important operating and maintenance
instructions in the manual.
A lightning bolt within a triangle is intended to warn of the
presence of hazardous voltage. Refer all service to authorized
personnel.
WARNING IMPORTANT SAFETY NOTICE: BEFORE OPERATING THIS
DEVICE, PLEASE READ THIS OPERATING MANUAL THOROUGHLY
AND CAREFULLY. WHEN USING THIS DEVICE WITH ALIGHT
SOURCE, FIRE AND/OR SEVERE INJURY MAY RESULT TO THE
PATIENT, USER OR INANIMATE OBJECTS, IF THE INSTRUCTIONS IN
THIS MANUAL ARE NOT FOLLOWED. ALL LIGHT SOURCES,
INCLUDING THE L9000, CAN GENERATE SIGNIFICANT AMOUNTS
OF HEAT AT THE SCOPE TIP, THE SCOPE LIGHT POST, THE LIGHT
CABLE TIP, AND/OR NEAR THE LIGHT CABLE ADAPTER. HIGHER
LEVELS OF BRIGHTNESS FROM THE LIGHT SOURCE RESULT IN
HIGHER LEVELS OF HEAT. ALWAYS ADJUST THE BRIGHTNESS
LEVEL OF THE CAMERA AND THE MONITOR, BEFORE ADJUSTING
THE BRIGHTNESS LEVEL OF THE LIGHT SOURCE. ADJUST THE
BRIGHTNESS LEVEL OF THE LIGHT SOURCE TO THE MINIMUM
BRIGHTNESS NECESSARY TO ADEQUATELY ILLUMINATE THE
SURGICAL SITE. INADDITION, ADJUST THE INTERNAL SHUTTER OF
THE CAMERA HIGHER IN ORDER TO RUN THE LIGHT SOURCE AT A
LOWER INTENSITY. AVOID TOUCHING THE SCOPE TIP OR THE
LIGHT CABLE TIP TO THE PATIENT, AND NEVER PLACE THEM ON
TOP OF THE PATIENT, AS DOING SO MAY RESULT IN BURNS TO THE
PATIENT OR USER. INADDITION, NEVER PLACE THE SCOPE TIP,
THE SCOPE LIGHT POST, THE LIGHT CABLE ADAPTER, OR THE
LIGHT CABLE TIP ON THE SURGICAL DRAPES OR OTHER
FLAMMABLE MATERIAL, AS DOING SO MAY RESULT IN FIRE.

3
ALWAYS PLACE THE LIGHT SOURCE IN STANDBY MODE
WHENEVER THE SCOPE IS REMOVED FROM THE LIGHT CABLE OR
THE DEVICE IS UNATTENDED. THE SCOPE TIP, SCOPE LIGHT POST,
LIGHT CABLE ADAPTER, AND LIGHT CABLE TIP WILL TAKE
SEVERAL MINUTES TO COOL OFF AFTER BEING PLACED IN
STANDBY MODE, AND THEREFORE MAY STILL RESULT IN FIRE OR
BURNS TO THE PATIENT, USER, OR INANIMATE OBJECTS.
WARNING TOHELP AVOID POTENTIAL SERIOUS INJURY TO THE USER AND
THE PATIENT AND/OR DAMAGE TO THIS DEVICE, THE USER MUST:
1. Read this operating manual thoroughly, especially the warnings, and be
familiar with its contents prior to using this equipment.
2. Carefully unpack the unit and check if any damage occurred during
shipment. If damage is detected, please refer to the “Service and Claims”
section in this manual.
3. Be a qualified physician, having complete knowledge of the use of this
equipment.
4. Test this equipment prior to a surgical procedure. This unit was fully
tested at the factory before shipment.
5. Attempt no internal repairs or adjustments that are not specifically
detailed in the Troubleshooting, Cleaning and Maintenance sections of
this operating manual.
6. Never sterilize any part of the L9000 console.
7. Disconnect the L9000 from the electrical outlet when inspecting the
fuses.
The warranty is void if any of these warnings or cautions contained in this manual
are disregarded. The user must also be ensure that:
• Readjustments, modifications, and/or repairs are carried out
exclusively by Stryker Endoscopy.
• The electrical installation of the relevant operating room complies
with the applicable IEC, CEC, and NEC requirements.
WARNING FEDERAL LAW (UNITED STATES OF AMERICA) RESTRICTS THIS
DEVICE TO USE BY, OR ON ORDER OF, APHYSICIAN.

4
Symbol Definitions
Type CF Applied Part
Protective Earth Ground
Equipotentiality
Denotes compliance to CSA 22.2 No.601.1-M90 and UL60601-1.
This symbol indicates that the waste of electrical and electronic
equipment must not be disposed as unsorted municipal waste
and must be collected separately. Please contact the
manufacturer or other authorized disposal company to
decommission your equipment.

5
Product Description and Intended Use
The Stryker L9000 Light Source is a light-generating unit designed to illuminate
surgical sites during endoscopic applications. The L9000 uses light-emitting diode
(LED) technology to generate bright, crisp light, which it delivers to the surgical site
via a fiberoptic light cable. The L9000 is compatible with all Stryker light cables,
and, with the proper light cable and adapters, can connect to any flexible or rigid
endoscope.
The L9000 is equipped with Electronic Scope Sensing Technology (ESST), a
special safety feature that helps prevent accidental burns caused by a light cable
that is not connected to the scope. For more information, refer to the section
“Checking the ESST Feature”. When operated with an ESST light cable, the L9000
senses when the scope and the light cable are separated and places the light source
in Standby mode. In Standby mode, the L9000 will reduce light output to a
minimum, preventing the light cable from generating excessive heat.
WARNING THE SCOPE TIP, SCOPE LIGHT POST, LIGHT CABLE ADAPTER, AND
LIGHT CABLE TIP WILL TAKE SEVERAL MINUTES TO COOL OFF
AFTER BEING PLACED IN STANDBY MODE AND THEREFORE MAY
STILL RESULT IN FIRE AND/OR BURNS TO THE PATIENT, USER, OR
AN INANIMATE OBJECT IF NOT USED PROPERLY. DONOT PLACE
THE SCOPE OR THE LIGHT CABLE ON THE PATIENT OR ON THE
DRAPES OR OTHER FLAMMABLE MATERIAL, EVEN WHEN THE
DEVICE IS IN STANDBY MODE.
The Stryker L9000 Light Source consists of one of each of the following:
• light source console
•powercord

6
Indications
The Stryker LED Light Source is used to illuminate the site of surgery during
minimally invasive surgical procedures in arthroscopy (orthopedic surgery),
laparoscopy (general and gynecological surgery) and in Endoscopy (general,
gastroenterological and ENT surgery). The light is transmitted from the source
through an optical cable and a scope.
The light source is an integral component of a visualization system which consists
of a video camera, video monitor, video recorder, video printer, light cable and
scope.
Intended Use
The Stryker LED Light Source is used to illuminate the site of surgery during
minimally invasive surgical procedures in Arthroscopy (orthopedic surgery),
Laparoscopy (general and gynecological surgery) and in Endoscopy (general,
gastroenterological and ENT surgery). The light is transmitted from the source
through an optical cable and a scope.

7
The features of the L9000 console are described below (see Figures 1 and 2).
Figure 1 Front panel of the L9000 console
1. Power Button: Powers the unit on and off.
2. Touch Screen: Provides user controls and system feedback.
3. Cable Clamp: Grasps the light-source end of an inserted fiberoptic
cable.
4. Jaw Handle: Opens the fiberoptic cable holder.
12 34

8
Figure 2 Rear panel of the L9000 console
5. SFB Series Connectors : Enables FireWire connection with Stryker
FireWire devices. Provides connection for remote diagnoses and future
software upgrades.
6.
SIDNE Connector: Enables connection to the SIDNE voice control
system
7. Equipotential ground plug: Connects to a potential equalization
conductor
8. AC Inlet: Connects to the provided power cord for AC power supply.
675
8

9
Setup and Assembly
Note When selecting a setup location for the L9000, consult the
“Electromagnetic Compatibility” section included in this manual
to determine the best location.
To set up the L9000, make the following connections:
• Connect the AC power cable
• Connect the light cable
Caution To ensure proper cooling, position the L9000 on its feet. Do
not operate the unit upside down or on its side.
Connecting the AC Power Cable
1. Plug in the AC power cord to the AC Inlet on the rear console panel.
2. Plug in the other end of the AC cord to a hospital-grade outlet.
WARNING WHEN THE L9000 IS INTERCONNECTED WITH OTHER MEDICAL
ELECTRICAL EQUIPMENT, LEAKAGE CURRENTS MAY BE ADDITIVE.
TOMINIMIZE LEAKAGE CURRENT THAT MAY TRAVEL TO THE
PATIENT OR USER, ANY TYPE CF APPLIED PART SHOULD BE USED
ONLY WITH OTHER TYPE CF APPLIED PARTS. ENSURE ALL
SYSTEMS ARE INSTALLED ACCORDING TO THE REQUIREMENTS OF
IEC 60601-1-1.
Connecting the Light Cable
WARNING USE ONLY NONCONDUCTIVE FIBEROPTIC CABLES WITH THE
L9000 TO MAINTAIN ELECTRICAL ISOLATION.
Note The L9000 Light Source is compatible with all Stryker Light
Cables.

10

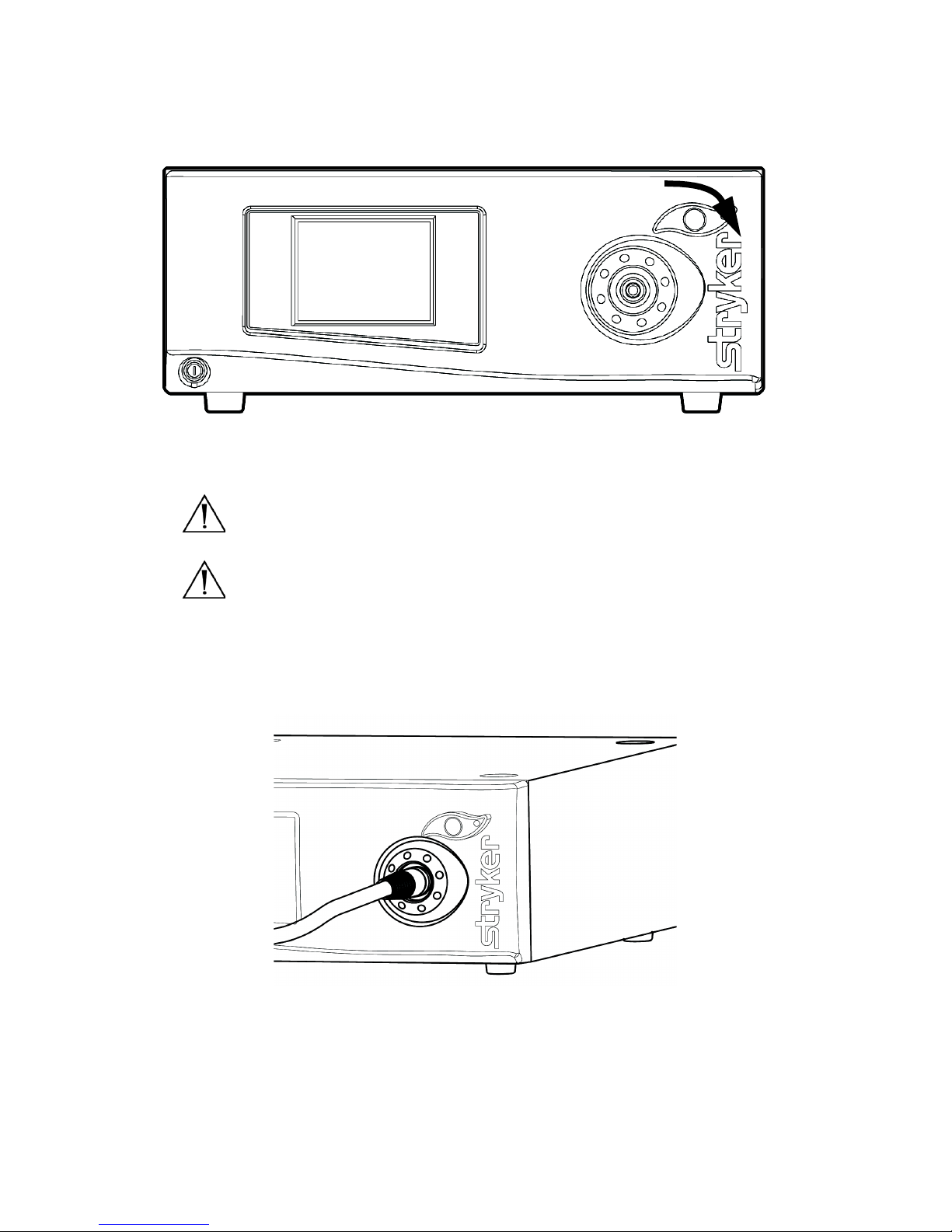

1. Lock open the cable clamp by turning the jaw handle clockwise until it
stops (see Figure 3).
Figure 3 Locking open the cable clamp
WARNING KEEP FINGERS AWAY FROM THE CABLE CLAMP AS THE CLAMP MAY
INADVERTENTLY DEPLOY AND CAUSE INJURY.
WARNING DONOT LOOK DIRECTLY INTO THE CABLE PORT. THE HIGH-
INTENSITY LIGHT MAY CAUSE DAMAGE TO THE EYES.
2. Insert a clean, dry fiberoptic cable into the cable port until the jaw latch
releases and the jaw clamps the cable in place (see Figure 4). Pull gently
on the fiberoptic cable to test that it is securely seated in the cable port.
Figure 4 Inserting the light cable into the cable port
3. Connect an endoscope to the opposite end of the fiberoptic cable.
4. To remove the light cable, press the mode button on the touch screen to
put the unit into standby. Then, turn the jaw handle clockwise until the
latch opens.

11
WARNING IFTHE LIGHT SOURCE IS NOT IN STANDBY MODE PRIOR TO
REMOVING THE CABLE, THE HIGH INTENSITY LIGHT WILL SHINE
DIRECTLY OUT OF THE LIGHT SOURCE BRIEFLY BEFORE TURNING
OFF, POSSIBLY CAUSING INJURY TO THE USER’SEYES.
Note The Light Source will default to Standby mode when a light cable
is inserted.
System Operation
Note Before operating the L9000, see the “Setup and Assembly” section
of this manual.
Powering the System On and Off
To power on the L9000:
Press the power switch on the front panel. The LCD will indicate that the unit is
in Standby mode.
Note The light will not illuminate unless a light cable is installed in the
cable port.
To power off the L9000:
1. Put the light source unit into Standby mode.
2. Disconnect the light cable from the L9000 console.
3. Run the fan for at least one minute to cool the unit.
4. Press the power switch on the front panel of the L9000.
WARNING TOALLOW FOR ADEQUATE COOLING, NEVER BLOCK THE REAR OR
SIDE FAN VENTS. FAILURE TO FOLLOW THIS INSTRUCTION MAY
RESULT IN DAMAGE TO THE L9000 OR APOSSIBLE FIRE.

12
Selecting the Operation Mode
The L9000 has two operation modes, Activate and Standby.
•ACTIVATE mode: The Activate mode is used during normal
operation. It enables light output to be controlled by the brightness
controls on the front console panel.
•STANDBY mode: The Standby mode is used when the L9000 is
powered on, but not in use. It reduces the light output to a minimum,
thereby reducing the heat generated at the tip of the light cable or
scope when the L9000 is not being used.
Press the Activate/Standby button on the LCD screen to toggle between the two
operational modes.
WARNING TOHELP PREVENT BURNS TO THE PATIENT, USER OR INANIMATE
OBJECTS AND POSSIBLE FIRE, ALWAYS PUT THE L9000 IN
STANDBY MODE WHENEVER THE ENDOSCOPE IS REMOVED FROM
THE LIGHT CABLE. THE SCOPE TIP, SCOPE LIGHT POST, LIGHT
CABLE ADAPTER, AND LIGHT CABLE TIP WILL TAKE SEVERAL
MINUTES TO COOL OFF AFTER BEING PLACED IN STANDBY MODE
AND THEREFORE MAY STILL RESULT IN FIRE AND/OR BURNS TO
THE PATIENT, USER OR INANIMATE OBJECTS IF NOT USED
PROPERLY. DONOT PLACE THE SCOPE OR THE LIGHT CABLE ON
THE PATIENT, ON THE DRAPES, OR OTHER FLAMMABLE MATERIAL,
EVEN WHEN THE DEVICE IS IN STANDBY MODE.
BRIGHTNESS
STANDBY

13
Adjusting the Brightness
The L9000 has up and down buttons for adjusting brightness.
Press the up arrow to increase brightness, and press the down arrow to decrease
brightness. The selection will appear on the LCD as a percentage between 0 and
100.
When in Standby mode, the previous Activate mode brightness level appears in
the lower right-hand corner.
WARNING THE HIGHER THE BRIGHTNESS, THE MORE HEAT ENERGY THAT
WILL BE GENERATED IN THE SCOPE AND THE TIP OF THE CABLE.
ALWAYS ADJUST THE BRIGHTNESS LEVEL OF THE CAMERA AND
THE MONITOR BEFORE ADJUSTING THE BRIGHTNESS LEVEL OF THE
LIGHT SOURCE. ADJUST THE BRIGHTNESS LEVEL OF THE LIGHT
SOURCE TO THE MINIMUM BRIGHTNESS NECESSARY TO
ILLUMINATE THE SURGICAL SITE. FAILURE TO FOLLOW THIS
INSTRUCTION COULD RESULT IN FIRE OR BURNS TO THE PATIENT,
USER OR AN INANIMATE OBJECT. INADDITION, ADJUST THE
INTERNAL SHUTTER OF THE CAMERA HIGHER IN ORDER TO RUN
THE LIGHT SOURCE AT ALOWER INTENSITY.
WARNING THE SURFACE TEMPERATURE NEAR THE SCOPE ADAPTER AND AT
THE TIP OF THE SCOPE MAY EXCEED 41ºC IF THE UNIT IS
OPERATED AT HIGH LEVELS OF BRIGHTNESS FOR EXTENDED
PERIODS OF TIME. THE HEATED SCOPE AND ADAPTER MAY CAUSE
BURNS TO THE PATIENT, USER OR AN INANIMATE OBJECT.
Visual Display
The L9000 provides feedback through the touch-screen LCD.
•Brightness: The LCD display shows the intensity level of the light as a
percentage between 0 and 100. For example, if the LCD shows “70,”
the light output to the fiberoptic cable is running at 70 percent of
capacity.

14
• The LCD also displays warning and error codes. The table below lists
and defines the warning and error codes displayed.
Code Definition Recommended
Action
E-1 The LEDs have exceeded their
recommended operating temperature.
Return the L9000 for
repair.
E-2 All conditions are met for the LEDs to
illuminate, yet it remains off.
Return the L9000 for
repair.
E-3 The LEDs are kept off because the
electronics fan is not working properly.
Return the L9000 for
repair.
E-4 The LEDs are kept off because the heat
pipe fan is not working properly.
Return the L9000 for
repair.
E-5 All conditions are not met for the LEDs
to illuminate, yet it remains on.
Return the L9000 for
repair.

15
Language Selection
The L9000 LCD has the capability of displaying text in the following languages
To select a particular language, perform the following steps:
1. Go into Standby mode.
2. Press and hold the Activate/Standby toggle button until the language
identifier appears (approximately 5 seconds).
3. Use left and right arrows to scroll through the available languages.
4. Once the desired language is selected, press the Home button to return
to the previous menu.
Danish French Japanese Portuguese
Dutch German Korean Simplified Chinese
English Greek Norwegian Spanish
Finnish Italian Polish Swedish

16
Safety Shutoff
The L9000 Light Source is equipped with a Safety Shutoff feature which will
temporarily turn off the LEDs in the event of excessive heat in the LED assembly.
WARNING ONCE THE LIGHT SOURCE COOLS DOWN (AFTER 7-10 MINUTES),
POWER WILL RESUME TO THE LED MODULE AND THE UNIT WILL
RESTART IN STANDBY MODE. TOPREVENT FIRES AND
ACCIDENTAL BURNS TO THE PATIENT, USER OR INANIMATE
OBJECTS, ALWAYS PLACE THE SCOPES AND/OR FIBEROPTIC CABLES
IN ASAFE PLACE, AND NOT ON THE PATIENT, DRAPES, OR OTHER
FLAMMABLE MATERIAL, TO ENSURE SAFE RESUMPTION OF LIGHT
OUTPUT. IFTHE L9000 LIGHT SOURCE EXPERIENCES A
TEMPORARY SHUTDOWN, IT IS RECOMMENDED THAT THE DEVICE
BE RETURNED FOR SERVICE.
Caution Do not abruptly interrupt power to the unit. This will turn off
the fan and may cause severe damage to the internal cooling
system.

17
Checking the ESST Feature
The L9000 is equipped with Electronic Scope Sensing Technology (ESST), a
special safety feature that helps prevent accidental fires or burns to the patient or
user caused by a light cable not connected to a scope. This feature will only work
if the L9000 is used with an ESST light cable. When operated with an ESST light
cable, the L9000 senses when the scope and light cable are separated, and places
the light source in Standby mode. In Standby mode, the L9000 will reduce light
output to a minimum, preventing the light cable from generating excessive heat.
To verify the ESST feature is active, perform the following test before every
surgical procedure:
1. Set up the L9000 system with an ESST light cable and scope, and then
power on the system.
2. Place the L9000 in Activate mode.
3. Remove the light cable from the ESST scope adapter.
The L9000 should return to Standby mode, indicating that the ESST feature is
functioning properly.
WARNING ALWAYS CHECK TO ENSURE THAT THE UNIT HAS SWITCHED INTO
STANDBY MODE, BEFORE ASSUMING ESST SAFETY PROTECTION. IF
THE UNIT FAILS TO RETURN TO STANDBY MODE, THERE MAY BE A
FAULT WITH THE ESST FEATURE. INTHIS CASE, DO NOT ASSUME
ESST SAFETY PROTECTION, AND RETURN THE UNIT FOR SERVICE.
WARNING EVEN WITH ESST PROTECTION, OR WHEN THE L9000 IS IN
STANDBY MODE, NEVER PLACE THE TIP OF THE LIGHT CABLE OR
LIGHT CABLE ADAPTER DIRECTLY ON THE PATIENT, DRAPES OR
OTHER FLAMMABLE MATERIAL, AS BURNS OR FIRE MAY RESULT.
THE SCOPE TIP, SCOPE LIGHT POST, LIGHT CABLE ADAPTER, AND
LIGHT CABLE TIP WILL TAKE SEVERAL MINUTES TO COOL OFF
AFTER BEING PLACED IN STANDBY MODE, AND THEREFORE MAY
STILL RESULT IN FIRE AND/OR BURNS TO THE PATIENT, USER, OR
AN INANIMATE OBJECT IF NOT USED PROPERLY. DONOT PLACE
THE SCOPE OR THE LIGHT CABLE ON THE PATIENT, ON THE
DRAPES, OR OTHER FLAMMABLE MATERIAL, EVEN WHEN THE
DEVICE IS IN STANDBY MODE.

18
Using the L9000 with a Voice-Controlled
System Interface
The L9000 can be used in conjunction with Stryker voice-control systems
(SIDNE®). For more information about using the L9000 with Stryker voice-
control systems, refer to the SIDNE® Operating and Maintenance Manual
(P/N 1000-400-653).
Using the SFB Serial Interface
The SFB serial connection on the rear panel of the L9000 enables Firewire
connection to the Stryker Endoscopy Software Management site. Connecting to
this site enables remote diagnostics and software updates.
Note This system feature is not necessary for regular light-source
operation.
Note This system feature requires an additional device (such as a
computer) to connect to the Software Management site.
Note The SFB serial connection can also be used to connect the L9000
to the 1288HD Camera Console. When connected, the user
can control the L9000 from the 1288HD Camera Head.
For more information about using the L9000 with the 1288HD
Camera System, refer to the 1288HD Instructions For Use
(P/N 1000-401-140)
